Page 3545 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual INTERIOR ROOM LAMP
LT-55
C
D
E
F
G
H
I
J
L
MA
B
LT
INTERIOR ROOM LAMPPFP:26410
System DescriptionEKS003BQ
POWER SUPPLY AND GROUND
Power is supplied at all times:
●through 10A fuse [No. 28, located i

INTERIOR ROOM LAMP
LT-55
C
D
E
F
G
H
I
J
L
MA
B
LT
INTERIOR ROOM LAMPPFP:26410
System DescriptionEKS003BQ
POWER SUPPLY AND GROUND
Power is supplied at all times:
●through 10A fuse [No. 28, located in the fuse block (J/B)]
●to key switch terminal 1 and
●to time control unit terminal 1
●through 10A fuse [No. 26, located in the fuse block (J/B)]
●to interior room lamp terminal 1.
When the key is removed from ignition key cylinder, power is interrupted:
●through key switch terminal 2
●to time control unit terminal 18.
With the ignition key switch in the ON or START position, power is supplied:
●through 10A fuse [No. 5, located in the fuse block (J/B)]
●to time control unit terminal 17.
Ground is supplied:
●through body grounds terminals M27 and M70
●to time control unit terminal 16
When the driver side door is opened, ground is supplied:
●through body grounds B8 and B18
●to front door switch driver side terminal 3
●from front door switch driver side terminal 2
●to time control unit terminal 30.
When any door (except back door) is opened, ground is supplied:
●through case ground of each door switch
●to each door switch terminal 1
●to time control unit terminal 31.
When back door is opened, ground is supplied:
●through body ground D53
●to back door switch terminal 3
●from back door switch terminal 1
●to time control unit terminal 31.
When the driver side door is unlocked, the time control unit receives a ground signal:
●through body grounds terminals M27 and M70
●to door unlock sensor terminal 2
●from door unlock sensor terminal 5
●to time control unit terminal 28.
When a signal, or combination of signals is received by the time control unit, ground is supplied:
●through time control unit terminal 26
●to interior room lamp terminal 2.
With power and ground supplied, the interior room lamp illuminates.
SWITCH OPERATION
When interior room lamp switch is ON, ground is supplied:
●through case grounds of interior room lamp
●to interior room lamp.

Page 3546 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual LT-56
INTERIOR ROOM LAMP
INTERIOR ROOM LAMP TIMER OPERATION
When interior room lamp switch is in the “DOOR” position, the time control unit keeps the interior room lamp
illuminated for about 30 se

Page 3547 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual INTERIOR ROOM LAMP
LT-57
C
D
E
F
G
H
I
J
L
MA
B
LT

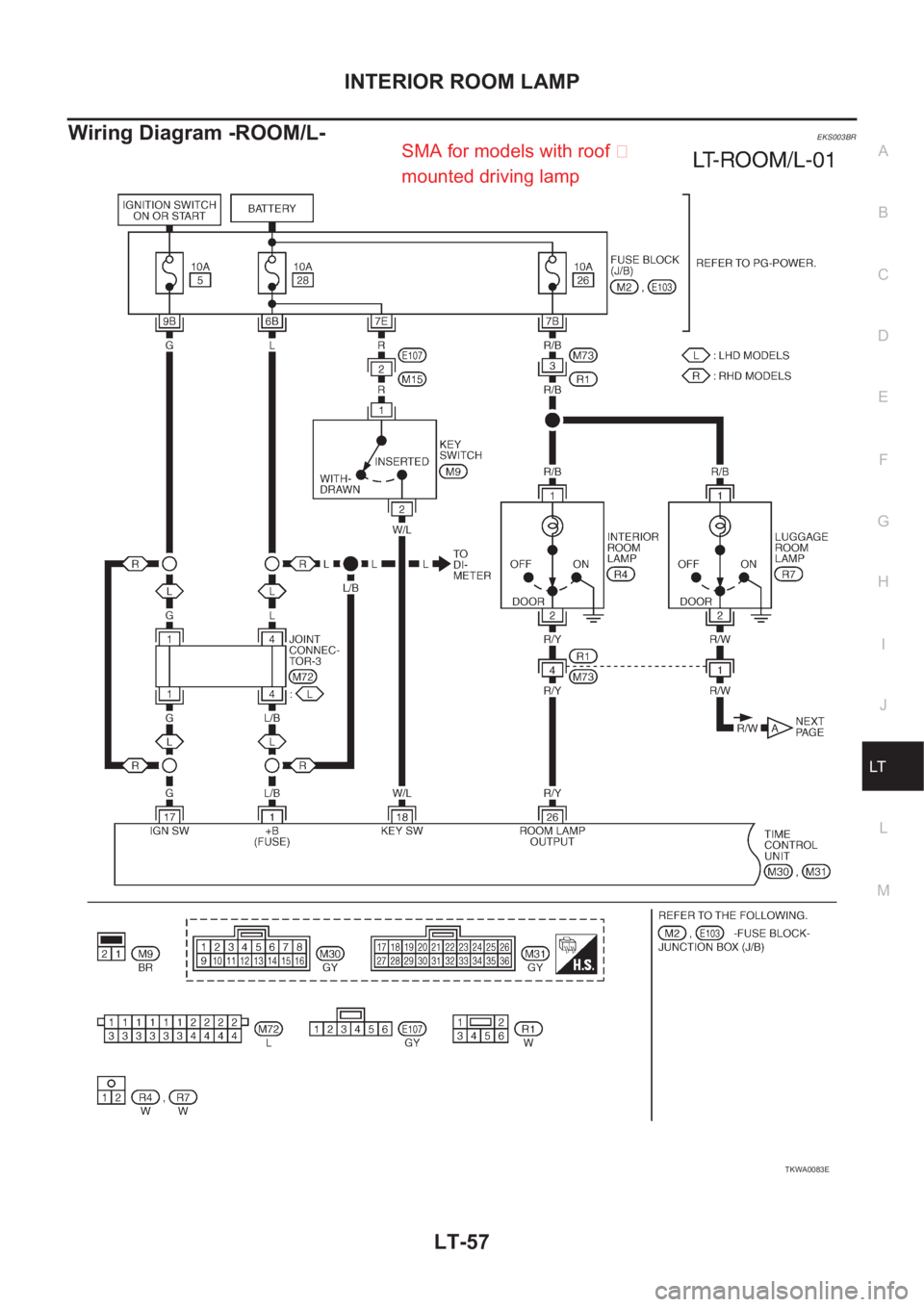

Wiring Diagram -ROOM/L-EKS003BR
TKWA0083E
SMA for models with roof
mounted drivin
g lamp

Page 3548 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual LT-58
INTERIOR ROOM LAMP

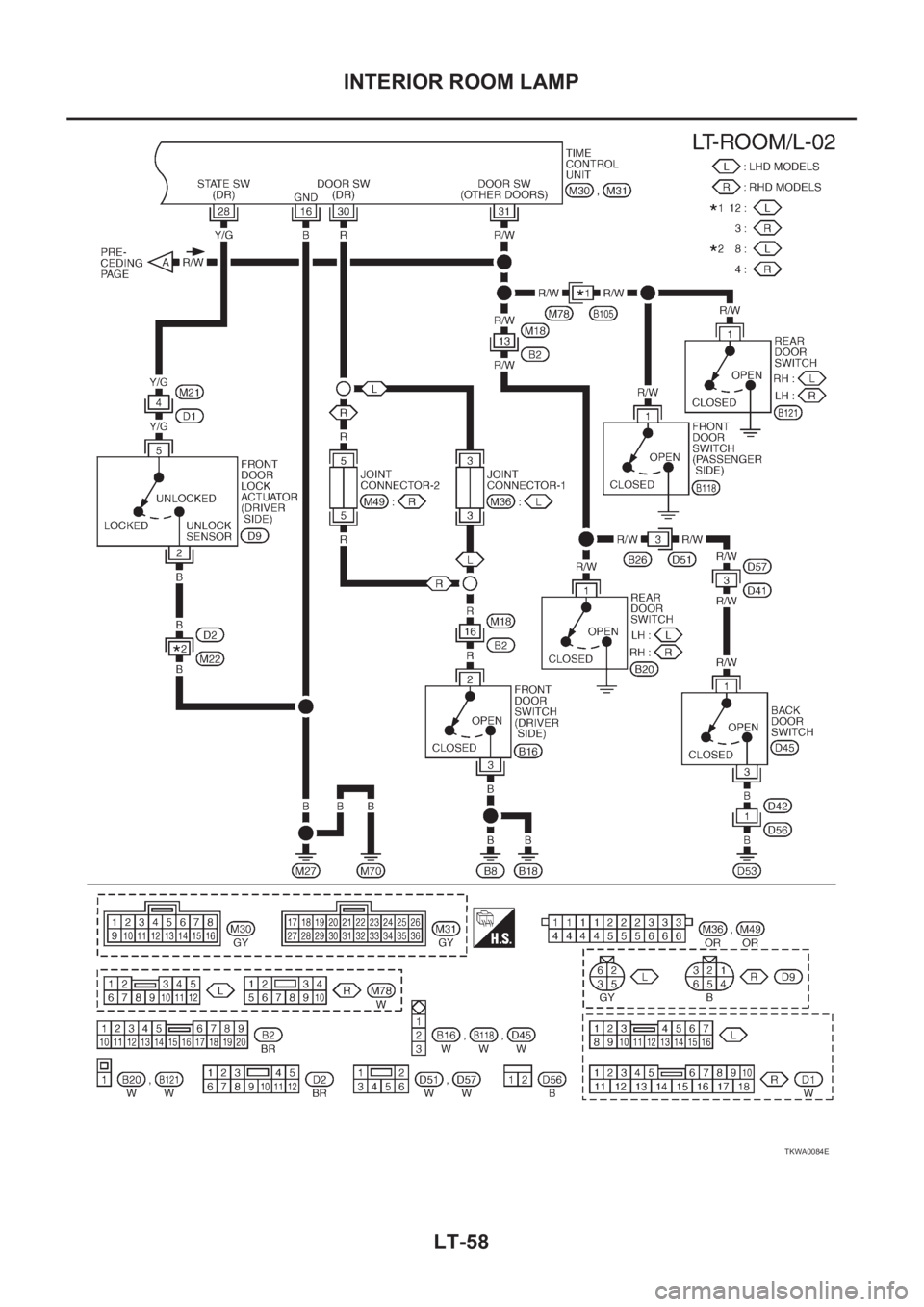

TKWA0084E

Page 3549 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual INTERIOR ROOM LAMP
LT-59
C
D
E
F
G
H
I
J
L
MA
B
LT

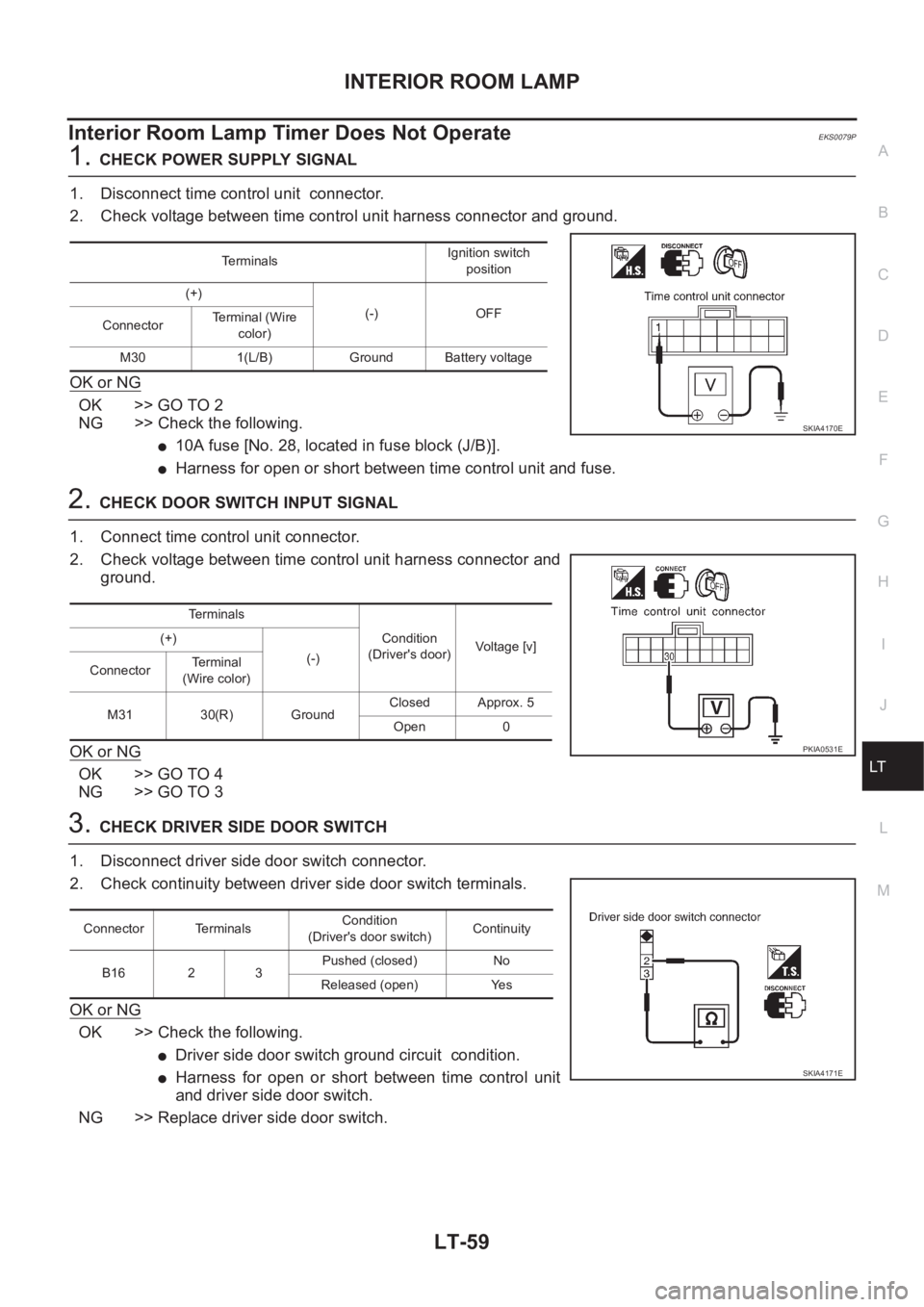

Interior Room Lamp Timer Does Not OperateEKS0079P
1.CHECK POWER SUPPLY SIGNAL
1. Disconnect time control unit connector.
2. Check voltage between ti

Page 3550 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual LT-60
INTERIOR ROOM LAMP
4. CHECK FRONT DOOR UNLOCK SENSOR INPUT SIGNAL
Check voltage between time control unit harness connector and ground.
OK or NG
OK >> GO TO 6
NG >> GO TO 5
5. CHECK FRONT DOOR

Page 3551 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual INTERIOR ROOM LAMP
LT-61
C
D
E
F
G
H
I
J
L
MA
B
LT

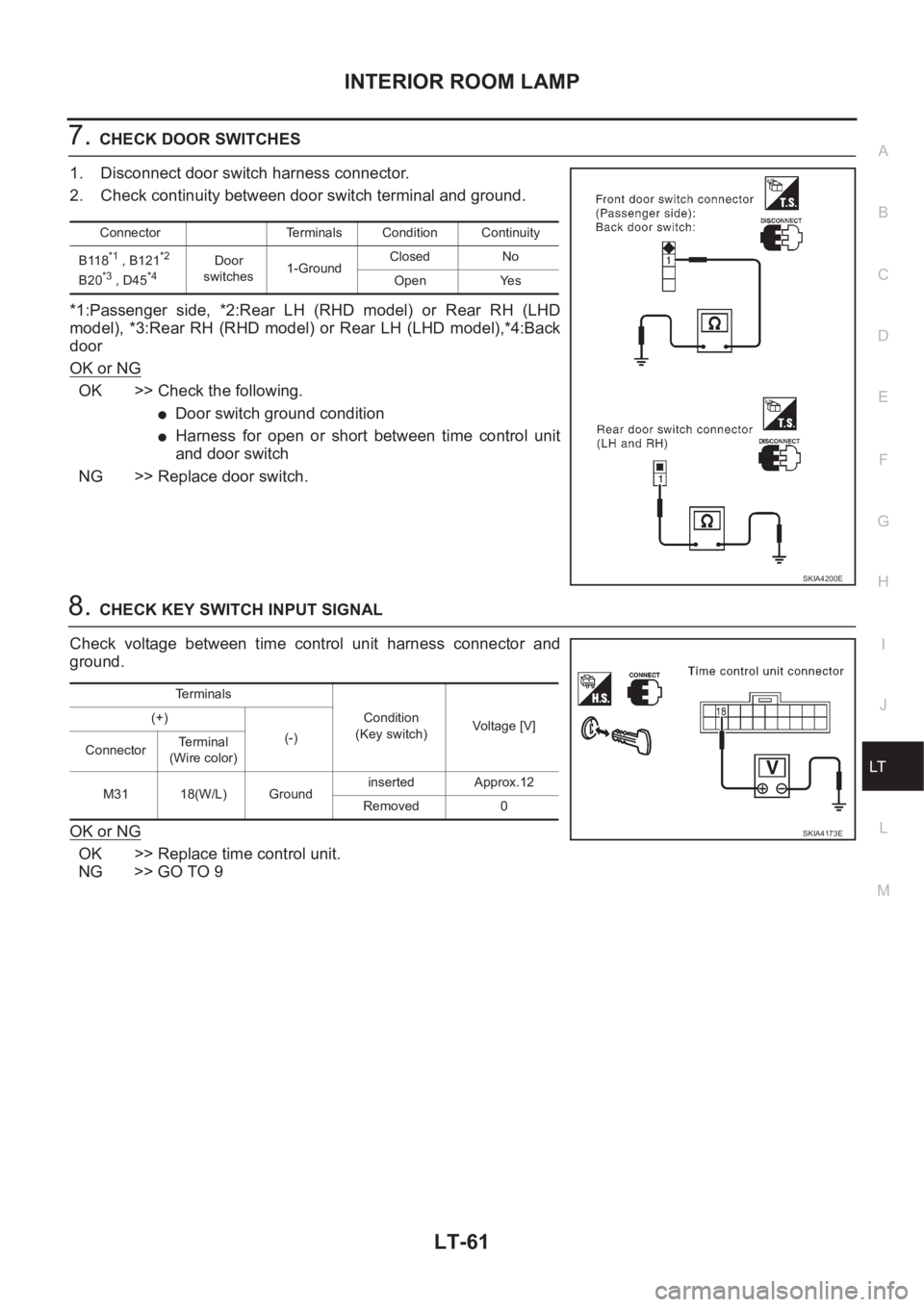

7.CHECK DOOR SWITCHES
1. Disconnect door switch harness connector.
2. Check continuity between door switch terminal and ground.
*1:Passenger side,

Page 3552 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual LT-62
INTERIOR ROOM LAMP

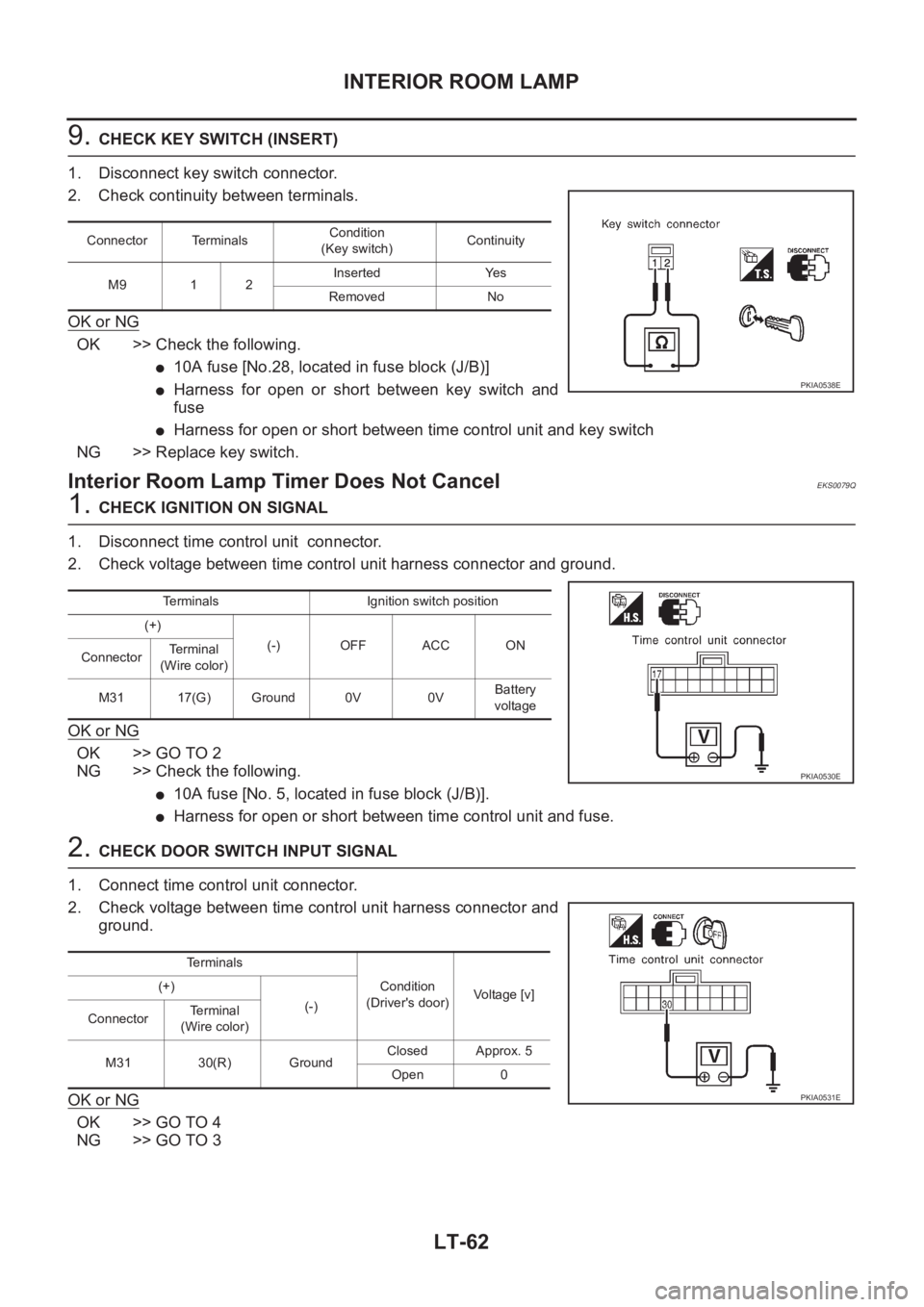

9. CHECK KEY SWITCH (INSERT)
1. Disconnect key switch connector.
2. Check continuity between terminals.
OK or NG
OK >> Check the following.
●10A fuse [No.28, located in fuse
