2.CHECK PNP SWITCH CIRCUIT (WITHOUT CONSULT-II)
Without CONSULT-II
1. Turn ignition switch to “ON” position. (Do not star NISSAN X-TRAIL 2001 Service Repair Manual TROUBLE DIAGNOSES FOR SYMPTOMS
AT-243
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
2.CHECK PNP SWITCH CIRCUIT (WITHOUT CONSULT-II)
Without CONSULT-II
1. Turn ignition switch to “ON” position. (Do not star](/manual-img/5/57405/w960_57405-2320.png)
TROUBLE DIAGNOSES FOR SYMPTOMS
AT-243
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
2.CHECK PNP SWITCH CIRCUIT (WITHOUT CONSULT-II)
Without CONSULT-II
1. Turn ignition switch to “ON” position. (Do not start engine.)
2. Check voltage between TCM terminals 26, 27, 34, 35, 36 and
ground while moving selector lever through each position.
OK or NG
OK >> GO TO 4.
NG >> Check the following items:
●PNP switch (Refer to AT- 2 4 6 , "COMPONENT
INSPECTION" .)
●Harness for short or open between ignition switch and
PNP switch
●Harness for short or open between PNP switch and TCM
●Diode (P, N positions)
3.CHECK OVERDRIVE CONTROL SWITCH CIRCUIT (WITH CONSULT-II)
With CONSULT-II
1. Turn ignition switch to “ON” position.
(Do not start engine.)
2. Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Read out “OVERDRIVE SWITCH”.
Check the signal of the overdrive control switch is indicated properly.
(Overdrive control switch “ON” displayed on CONSULT-II means
overdrive “OFF”.)
OK or NG
OK >> GO TO 5.
NG >> Check the following items:
●Overdrive control switch (Refer to AT- 2 4 6 , "COMPO-
NENT INSPECTION" .)
●Harness for short or open between TCM and over-
drive control switch
●Harness of ground circuit for overdrive control switch
for short or open Vo l t a g e :
B: Battery voltage
0: 0V
Lever positionTerminal No.
36 35 34 27 26
P, N B 0 0 0 0
R0B000
D00B00
2000B0
10000B
SCIA0777E
SAT645J
Page 2322 of 3833
AT-244
[EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS
4. CHECK OVERDRIVE CONTROL SWITCH CIRCUIT (WITHOUT CONSULT-II)
Without CONSULT-II
1. Turn ignition switch to “ON” position.
(Do not start engine.)
2. Check voltage between TCM terminal 22 and ground when overdrive control switch is “ON” and “OFF”.
OK or NG
OK >> GO TO 6.
NG >> Check the following items:
●Overdrive control switch (Refer to AT-246, "COMPONENT INSPECTION" .)
●Harness for short or open between TCM and overdrive control switch
●Harness of ground circuit for overdrive control switch for short or open Voltage:
Switch position “ON”: Battery voltage
Switch position “OFF”: 1V or less
SCIA0778E
Page 2323 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual TROUBLE DIAGNOSES FOR SYMPTOMS
AT-245
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
5.CHECK CLOSED THROTTLE POSITION AND WIDE OPEN THROTTLE POSITION SIGNAL CIRCUIT
(WITH CONSULT-II)
With CONSULT-II
1. Turn ig NISSAN X-TRAIL 2001 Service Repair Manual TROUBLE DIAGNOSES FOR SYMPTOMS
AT-245
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
5.CHECK CLOSED THROTTLE POSITION AND WIDE OPEN THROTTLE POSITION SIGNAL CIRCUIT
(WITH CONSULT-II)
With CONSULT-II
1. Turn ig](/manual-img/5/57405/w960_57405-2322.png)
TROUBLE DIAGNOSES FOR SYMPTOMS
AT-245
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
5.CHECK CLOSED THROTTLE POSITION AND WIDE OPEN THROTTLE POSITION SIGNAL CIRCUIT
(WITH CONSULT-II)
With CONSULT-II
1. Turn ignition switch to “ON” position.
(Do not start engine.)
2. Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for A/T with CONSULT-II.
3. Read out “CLOSED THL/SW” and “W/O THRL-SW” depressing and releasing accelerator pedal.
Check the signal of throttle position signal is indicated properly.
OK or NG
OK >> GO TO 7.
NG >> Check the following items. If any items are damaged, repair or replace damaged parts.
●Accelerator pedal position sensor — Refer to AT- 1 8 0 , "DTC P1705 ACCELERATOR PEDAL
POSITION (APP) SENSOR" .
●Harness for short or open between accelerator pedal position sensor and ECM
6.CHECK CLOSED THROTTLE POSITION AND WIDE OPEN THROTTLE POSITION SIGNAL CIRCUIT
(WITHOUT CONSULT-II)
Without CONSULT-II
Check the following items:
●Accelerator pedal position sensor — Refer to AT- 1 8 0 , "DTC P1705 ACCELERATOR PEDAL POSITION
(APP) SENSOR" .
●Harness for short or open between accelerator pedal position sensor and ECM
OK or NG
OK >> GO TO 7.
NG >> Repair or replace damaged parts.
7.CHECK DTC
Perform “TCM SELF-DIAGNOSTIC PROCEDURE (NO TOOLS)”. Refer to AT- 5 1 , "
TCM SELF-DIAGNOSTIC
PROCEDURE (NO TOOLS)" .
OK or NG
OK >>INSPECTION END
NG >>
●Perform TCM input/output signal inspection.
●If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
Accelerator pedal
conditionData monitor
CLOSED THL/SW W/O THRL-SW
Released ON OFF
Fully depressed OFF ON
SAT646J
Page 2324 of 3833
AT-246
[EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS

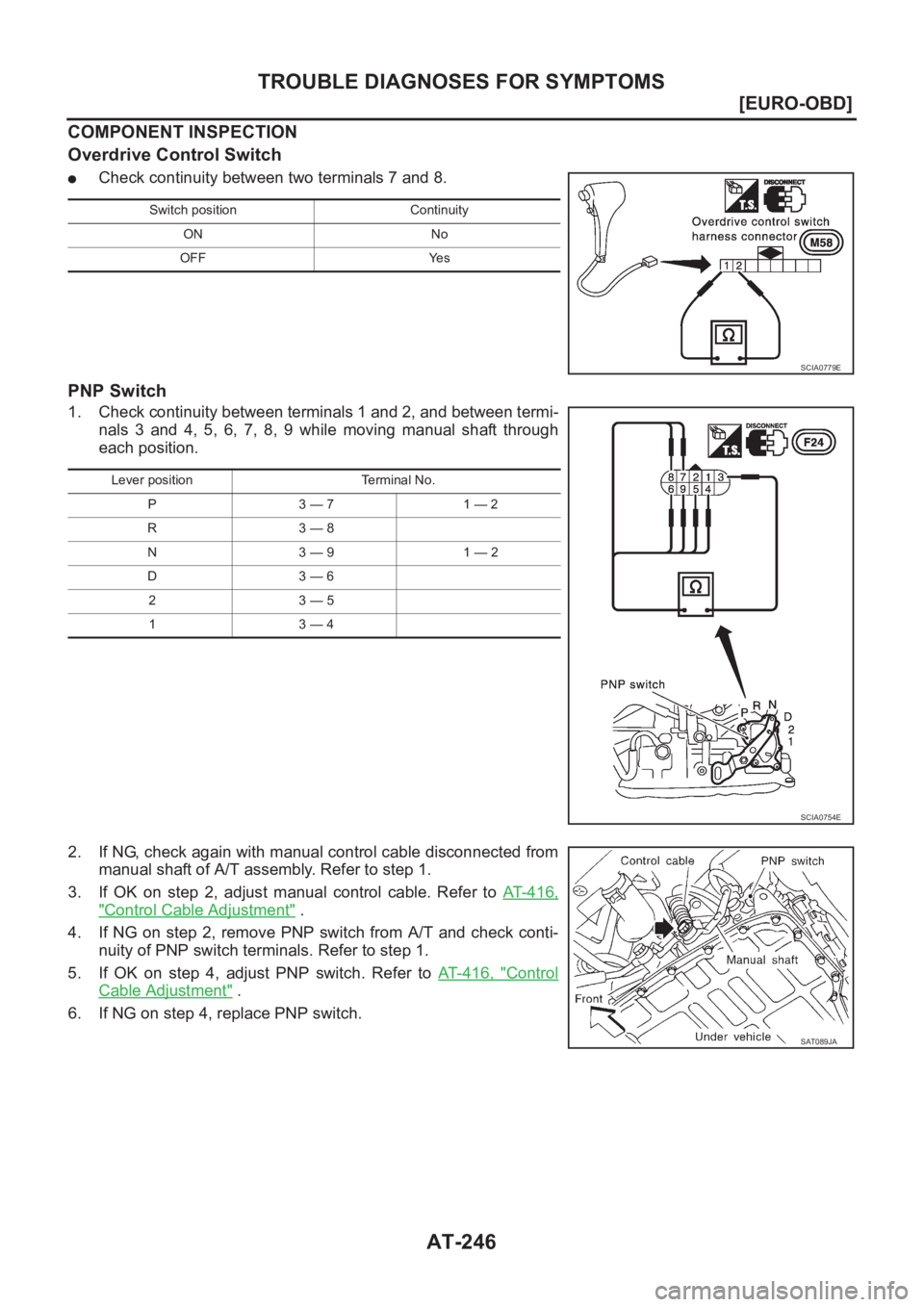

COMPONENT INSPECTION
Overdrive Control Switch
●Check continuity between two terminals 7 and 8.
PNP Switch
1. Check continuity between terminals 1 and 2, and between termi-
nals 3 and 4, 5, 6, 7, 8, 9 while moving manual shaft through
each position.
2. If NG, check again with manual control cable disconnected from
manual shaft of A/T assembly. Refer to step 1.
3. If OK on step 2, adjust manual control cable. Refer to AT- 4 1 6 ,
"Control Cable Adjustment" .
4. If NG on step 2, remove PNP switch from A/T and check conti-
nuity of PNP switch terminals. Refer to step 1.
5. If OK on step 4, adjust PNP switch. Refer to AT- 4 1 6 , "
Control
Cable Adjustment" .
6. If NG on step 4, replace PNP switch.
Switch position Continuity
ON No
OFF Yes
SCIA0779E
Lever position Terminal No.
P3 — 71 — 2
R3 — 8
N3 — 91 — 2
D3 — 6
23 — 5
13 — 4
SCIA0754E
SAT089JA
Page 2325 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION
AT-247
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
[EXC.F/EURO-OBD]ON BOARD DIAGNOSTIC SYSTEM DESCRIPTIONPFP:00000
CONSULT-IIECS004NW
After performing AT- 2 4 7 NISSAN X-TRAIL 2001 Service Repair Manual ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION
AT-247
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
[EXC.F/EURO-OBD]ON BOARD DIAGNOSTIC SYSTEM DESCRIPTIONPFP:00000
CONSULT-IIECS004NW
After performing AT- 2 4 7](/manual-img/5/57405/w960_57405-2324.png)
ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION
AT-247
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
[EXC.F/EURO-OBD]ON BOARD DIAGNOSTIC SYSTEM DESCRIPTIONPFP:00000
CONSULT-IIECS004NW
After performing AT- 2 4 7 , "SELF-DIAGNOSTIC PROCEDURE (WITH CONSULT-II)" , place check marks for
results on the AT-259, "
DIAGNOSTIC WORKSHEET" . Reference pages are provided following the items.
NOTICE:
1. The CONSULT-II electrically displays shift timing and lock-up timing (that is, operation timing of each sole-
noid).
Check for time difference between actual shift timing and the CONSULT-II display. If the difference is
noticeable, mechanical parts (except solenoids, sensors, etc.) may be malfunctioning. Check mechanical
parts using applicable diagnostic procedures.
2. Shift schedule (which implies gear position) displayed on CONSULT-II and that indicated in Service Man-
ual may differ slightly. This occurs because of the following reasons:
–Actual shift schedule has more or less tolerance or allowance,
–Shift schedule indicated in Service Manual refers to the point where shifts start, and
–Gear position displayed on CONSULT-II indicates the point where shifts are completed.
3. Shift solenoid valve “A” or “B” is displayed on CONSULT-II at the start of shifting. Gear position is dis-
played upon completion of shifting (which is computed by TCM).
4. Additional CONSULT-II information can be found in the Operation Manual supplied with the CONSULT-II
unit.
SELF-DIAGNOSTIC PROCEDURE (WITH CONSULT-II)
1. Turn on CONSULT-II and touch “A/T” for TCM self-diagnosis.
If A/T is not displayed, check TCM power supply and ground cir-
cuit. Refer to AT- 3 0 6 , "
TCM Terminals and Reference Value" . If
result is NG, refer to PG-2, "
POWER SUPPLY ROUTING" .
2. Touch “SELF-DIAG RESULTS”.
Display shows malfunction experienced since the last erasing
operation.
CONSULT-II performs “REAL TIME DIAG”.
Also, any malfunction detected while in this mode will be dis-
played at real time.
SELF-DIAGNOSTIC RESULT TEST MODE
SAT014K
SAT987J
Detected items
(Screen terms for CONSULT-II, “SELF DIAGNOSIS”
test mode)Malfunction is detected when... Remarks
Item Display
No failure
(NO SELF DIAGNOSTIC FAILURE INDICATED FUR-
THER TESTING MAY BE REQUIRED)
●No failure has been detected.
Initial start INITIAL START
●This is not a malfunction message (Whenever
shutting off a power supply to the TCM, this
message appears on the screen.)
Page 2326 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual AT-248
[EXC.F/EURO-OBD]
ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION
CAUTION:
If malfunction is detected in multiple systems including CAN communication line, CAN communication line trouble diagnosis
shall NISSAN X-TRAIL 2001 Service Repair Manual AT-248
[EXC.F/EURO-OBD]
ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION
CAUTION:
If malfunction is detected in multiple systems including CAN communication line, CAN communication line trouble diagnosis
shall](/manual-img/5/57405/w960_57405-2325.png)
AT-248
[EXC.F/EURO-OBD]
ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION
CAUTION:
If malfunction is detected in multiple systems including CAN communication line, CAN communication line trouble diagnosis
shall be performed first.Revolution sensor VHCL SPEED SEN·A/T
●TCM does not receive the proper voltage sig-
nal from the sensor.
Vehicle speed sensor
(Meter)VHCL SPEED SEN·MTR
●TCM does not receive the proper voltage sig-
nal from the sensor.
Accelerator pedal posi-
tion (APP) sensorTHROTTLE POSI SEN
●TCM receives an excessively low or high volt-
age from the sensor.
Shift solenoid valve A SHIFT SOLENOID/V A
●TCM detects an improper voltage drop when it
tries to operate the solenoid valve.
Shift solenoid valve B SHIFT SOLENOID/V B
●TCM detects an improper voltage drop when it
tries to operate the solenoid valve.
Overrun clutch solenoid
valveOVERRUN CLUTCH S/V
●TCM detects an improper voltage drop when it
tries to operate the solenoid valve.
T/C clutch solenoid valve T/C CLUTCH SOL/V
●TCM detects an improper voltage drop when it
tries to operate the solenoid valve.
A/T fluid temperature sen-
sorBATT/FLUID TEMP SEN
●TCM receives an excessively low or high volt-
age from the sensor.To be displayed in case
of abnormality and when
no recording is made.
Engine speed signal ENGINE SPEED SIG
●TCM does not receive the proper voltage sig-
nal from the ECM.
Line pressure solenoid
valveLINE PRESSURE S/V
●TCM detects an improper voltage drop when it
tries to operate the solenoid valve.
CAN communication CAN COMM CIRCUIT
●When malfunction is detected in CAN commu-
nication line.
TCM (RAM) CONTROL UNIT (RAM)
●TCM memory (RAM) is malfunctioningRefer to AT-351, "
TCM
TERMINALS AND REF-
ERENCE VALUE"
TCM (ROM) CONTROL UNIT (ROM)●TCM memory (ROM) is malfunctioningRefer to AT-351, "
TCM
TERMINALS AND REF-
ERENCE VALUE"
TCM (EEP ROM) CONT UNIT (EEP ROM)●TCM memory (EEP ROM) is malfunctioning.Refer to AT-351, "
TCM
TERMINALS AND REF-
ERENCE VALUE"
Detected items
(Screen terms for CONSULT-II, “SELF DIAGNOSIS”
test mode)Malfunction is detected when... Remarks
Item Display
Page 2327 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION
AT-249
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
DATA MONITOR MODE (A/T)
Item Displaymove to center Monitor items
Description Remarks
TCM
Input
signalsCAN
comm NISSAN X-TRAIL 2001 Service Repair Manual ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION
AT-249
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
DATA MONITOR MODE (A/T)
Item Displaymove to center Monitor items
Description Remarks
TCM
Input
signalsCAN
comm](/manual-img/5/57405/w960_57405-2326.png)
ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION
AT-249
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
DATA MONITOR MODE (A/T)
Item Displaymove to center Monitor items
Description Remarks
TCM
Input
signalsCAN
comm
sig-
nalsMain
signalsSelection
from
menu
Vehicle speed
sensor 1 (A/T)
(Revolution sen-
sor)VHCL/S SE·A/T
[km/h] or [mph]
X——
●Vehicle speed com-
puted from signal of
revolution sensor is
displayed.When racing engine in N
or P with vehicle station-
ary, CONSULT-II data
may not indicate 0 km/h
(0 mph).
Vehicle speed
sensor 2
(Meter)VHCL/S
SE·MTR
[km/h] or [mph]
X——
●Vehicle speed com-
puted from signal of
vehicle speed sensor is
displayed.Vehicle speed display
may not be accurate
under approx. 10 km/h
(6 mph). It may not indi-
cate 0 km/h (0 mph)
when vehicle is station-
ary.
Accelerator pedal
position sensorTHRTL POS
SEN
[V]X——
●Accelerator pedal posi-
tion sensor signal volt-
age is displayed.
A/T fluid tempera-
ture sensorFLUID TEMP SE
[V]
X——
●A/T fluid temperature
sensor signal voltage is
displayed.
●Signal voltage lowers
as fluid temperature
rises.
Battery voltage BATTERY VOLT
[V]X——
●So urce vo ltage of TCM
is displayed.
Engine speed ENGINE SPEED
[rpm]
X—X
●Engine speed, com-
puted from engine
speed signal, is dis-
played.Engine speed display
may not be accurate
under approx. 800 rpm.
It m a y no t i ndi cat e 0 r p m
even when engine is not
running.
Overdrive control
switchOVERDRIVE
SW
[ON/OFF]X——
●ON/OFF state com-
puted from signal of
overdrive control SW is
displayed.
PN position (PNP)
switchPN POSI SW
[ON/OFF]
X——
●ON/OFF state com-
puted from signal of PN
position SW is dis-
played.
R position switch R POSITION SW
[ON/OFF]
X——
●ON/OFF state com-
puted from signal of R
position SW is dis-
played.
D position switch D POSITION SW
[ON/OFF]
X——
●ON/OFF state com-
puted from signal of D
position SW is dis-
played.
2 position switch 2 POSITION SW
[ON/OFF]
X——
●ON/OFF status, com-
puted from signal of 2
position SW, is dis-
played.
Page 2328 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual AT-250
[EXC.F/EURO-OBD]
ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION
1 position switch 1 POSITION SW
[ON/OFF]
X——●ON/OFF status, com-
puted from signal of 1
position SW, is dis-
played.
ASCD cruise s NISSAN X-TRAIL 2001 Service Repair Manual AT-250
[EXC.F/EURO-OBD]
ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION
1 position switch 1 POSITION SW
[ON/OFF]
X——●ON/OFF status, com-
puted from signal of 1
position SW, is dis-
played.
ASCD cruise s](/manual-img/5/57405/w960_57405-2327.png)
AT-250
[EXC.F/EURO-OBD]
ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION
1 position switch 1 POSITION SW
[ON/OFF]
X——●ON/OFF status, com-
puted from signal of 1
position SW, is dis-
played.
ASCD cruise sig-
nalASCD·CRUISE
[ON/OFF]
X——
●Status of ASCD cruise
signal is displayed.
ON... Cruising state
OFF... Normal running
state●This is displayed even
when no ASCD is
mounted.
ASCD OD cut sig-
nalASCD·OD CUT
[ON/OFF]
X——
●Status of ASCD OD
release signal is dis-
played.
ON... OD released
OFF... OD not released●This is displayed even
when no ASCD is
mounted.
Kickdown switch KICKDOWN SW
[ON/OFF]
X——
●ON/OFF status, com-
puted from signal of
kick down SW, is dis-
played.●This is displayed even
when no kick down
switch is equipped.
Closed throttle
position signalCLOSED THL/
SW
[ON/OFF]X——
●ON/OFF status, com-
puted from signal of
closed throttle position
signal, is displayed.●This means closed
throttle position signal
input via CAN com-
munication line.
Wide open throttle
position signalW/O THRL/P-
SW
[ON/OFF]
X——
●ON/OFF status, com-
puted from signal of
wide open throttle posi-
tion signal, is dis-
played.●This means wide
open throttle position
signal input via CAN
communication line.
Gear position GEAR
—— X
●Gear position data
used for computation
by TCM, is displayed.
Selector lever
positionSLCT LVR POSI
—— X
●Selector lever position
data, used for compu-
tation by TCM, is dis-
played.●A specific value used
for control is displayed
if fail-safe is activated
due to error.
Vehicle speed VEHICLE
SPEED
[km/h] or [mph]—— X
●Vehicle speed data,
used for computation
by TCM, is displayed.
Torque converter
slip ratioTC SLIP
RATIO
[0.000]———
●Ratio of engine revolu-
tion to input shaft revo-
lution of torque
converter
Torque converter
slip speedTC SLIP
SPEED
[rpm]———Difference in revolution
between input shaft revo-
lution and input shaft rev-
olution of torque
converterDisplay doesn't indicate
o rpm even if engine is
stopped.
But this isn't malfunc-
tion.
CAN communica-
tionCAN COMM
[OK/NG]—X—
CAN circuit 1CAN CIRC 1
[OK/UNKWN]—X—
CAN circuit 2CAN CIRC 2
[OK/UNKWN]—X— Item Displaymove to center Monitor items
Description Remarks
TCM
Input
signalsCAN
comm
sig-
nalsMain
signalsSelection
from
menu
