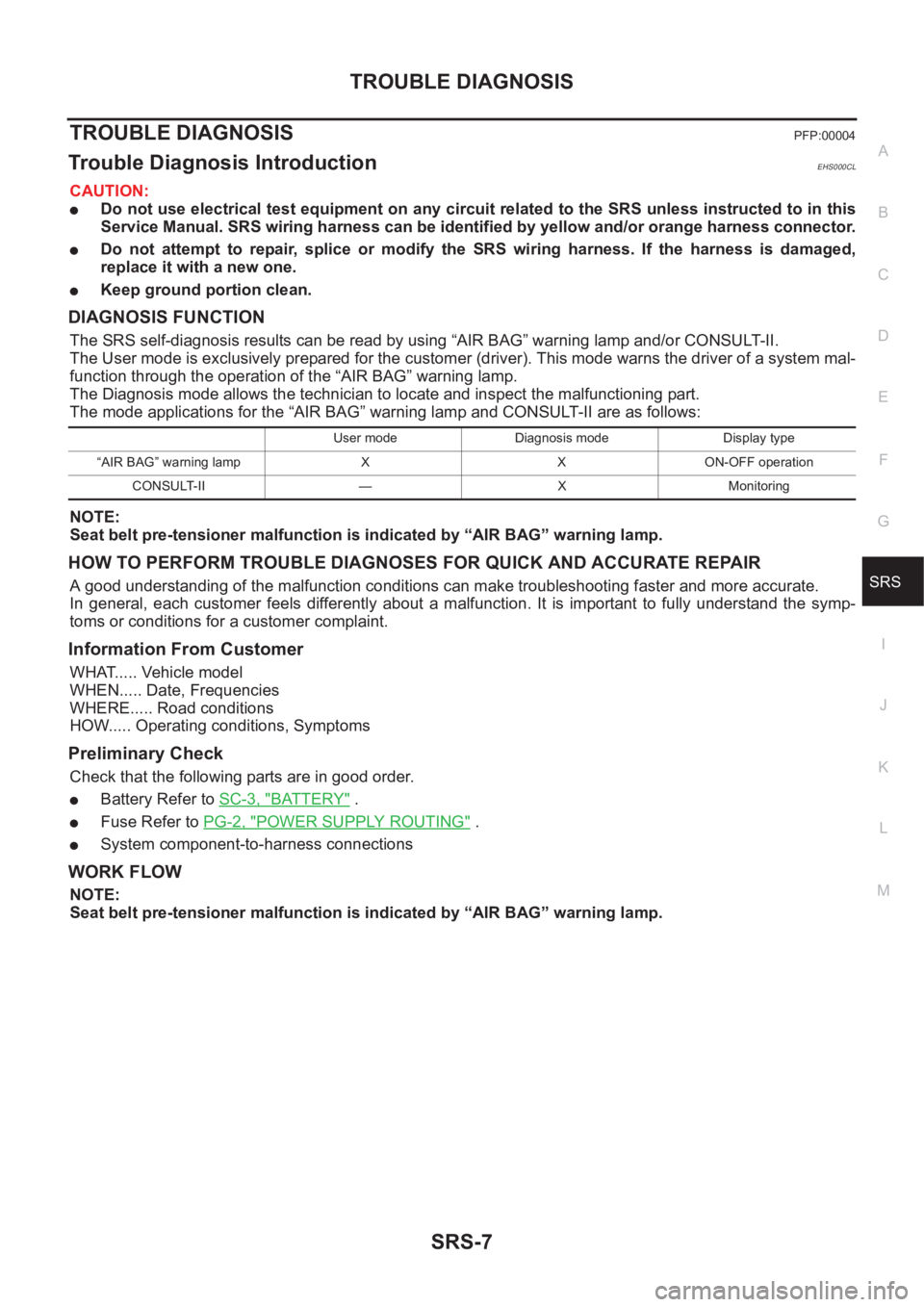

TROUBLE DIAGNOSISPFP:00004
Trouble Diagnosis IntroductionEHS000CL
CAUTION:
●Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harness can be identified by yellow and/or orange harness connector.
●Do not attempt to repair, splice or modify the SRS wiring harness. If the harness is damaged,
replace it with a new one.
●Keep ground portion clean.
DIAGNOSIS FUNCTION
The SRS self-diagnosis results can be read by using “AIR BAG” warning lamp and/or CONSULT-II.
The User mode is exclusively prepared for the customer (driver). This mode warns the driver of a system mal-
function through the operation of the “AIR BAG” warning lamp.
The Diagnosis mode allows the technician to locate and inspect the malfunctioning part.
The mode applications for the “AIR BAG” warning lamp and CONSULT-II are as follows:
NOTE:
Seat belt pre-tensioner malfunction is indicated by “AIR BAG” warning lamp.
HOW TO PERFORM TROUBLE DIAGNOSES FOR QUICK AND ACCURATE REPAIR
A good understanding of the malfunction conditions can make troubleshooting faster and more accurate.
In general, each customer feels differently about a malfunction. It is important to fully understand the symp-
toms or conditions for a customer complaint.
Information From Customer
WHAT..... Vehicle model
WHEN..... Date, Frequencies
WHERE..... Road conditions
HOW..... Operating conditions, Symptoms
Preliminary Check
Check that the following parts are in good order.
●Battery Refer to SC-3, "BATTERY" .
●Fuse Refer to PG-2, "POWER SUPPLY ROUTING" .
●System component-to-harness connections
WORK FLOW
NOTE:
Seat belt pre-tensioner malfunction is indicated by “AIR BAG” warning lamp.
User mode Diagnosis mode Display type
“AIR BAG” warning lamp X X ON-OFF operation
CONSULT-II — X Monitoring
Page 3010 of 3833
SRS-8
TROUBLE DIAGNOSIS

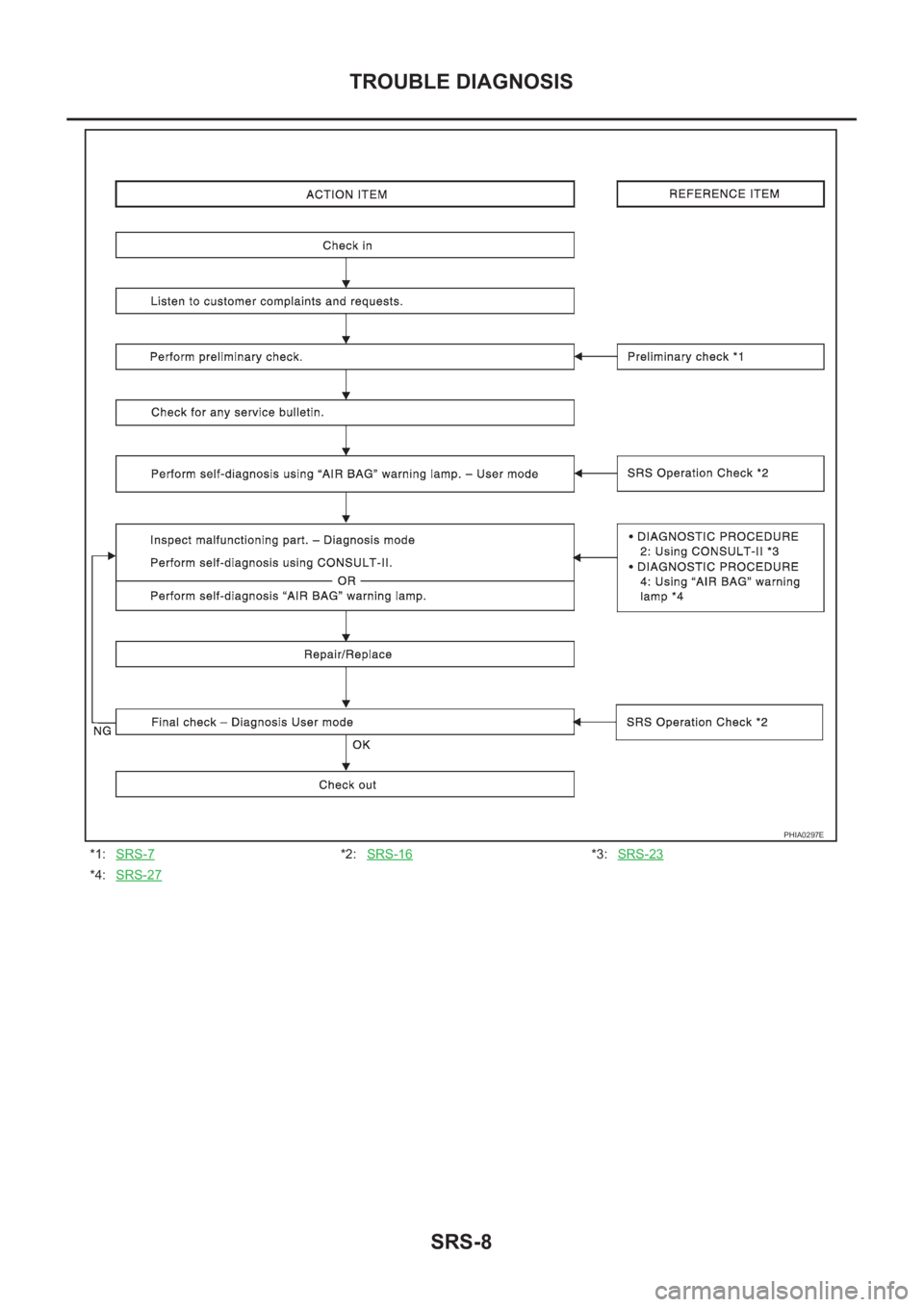

*1:SRS-7*2:SRS-16*3:SRS-23
*4:SRS-27
PHIA0297E
Page 3011 of 3833
TROUBLE DIAGNOSIS
SRS-9
C
D
E
F
G
I
J
K
L
MA
B
SRS
SRS Components Parts LocationEHS000CM
PHIA0020E
Page 3012 of 3833
SRS-10
TROUBLE DIAGNOSIS

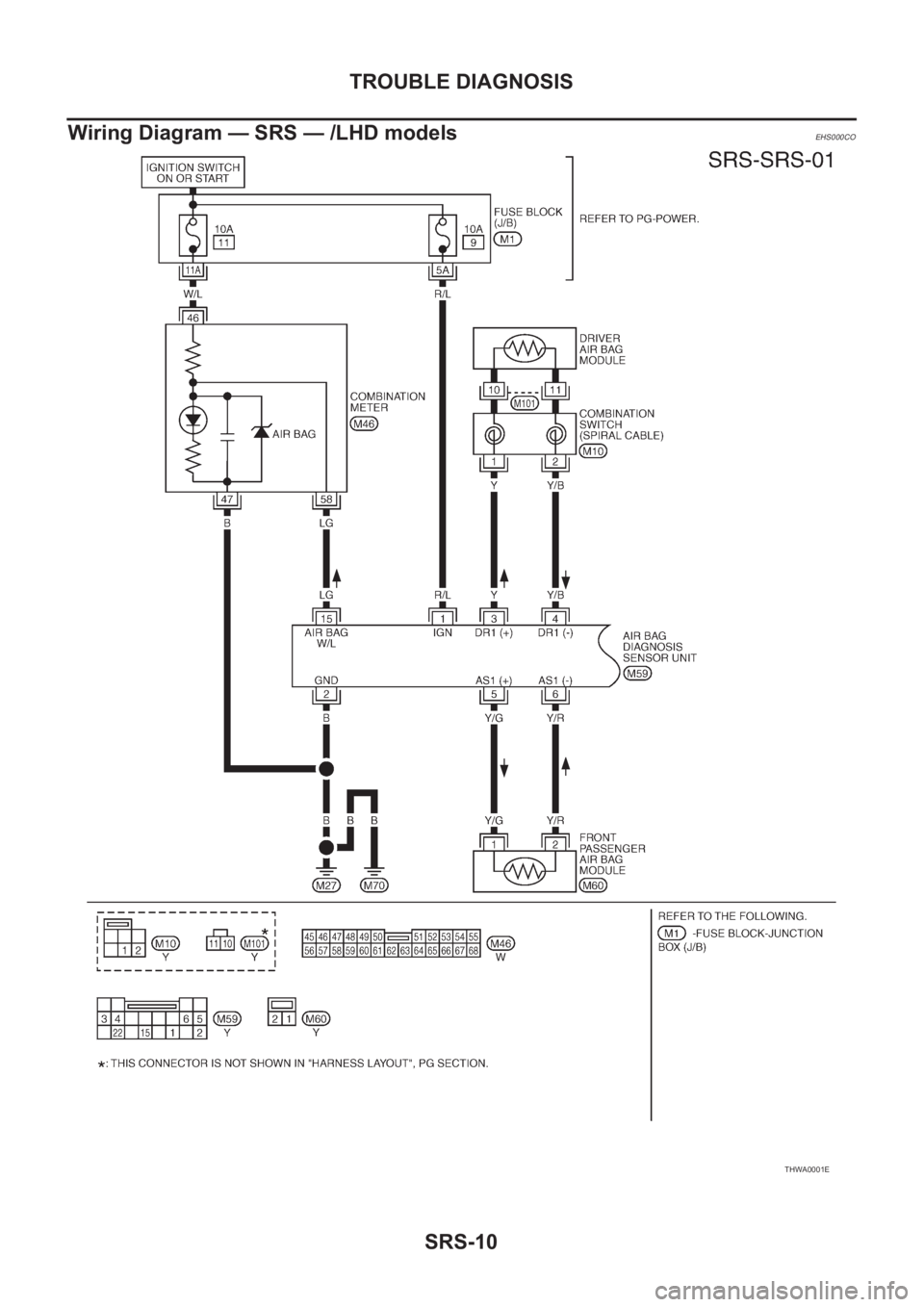

Wiring Diagram — SRS — /LHD models
EHS000CO
THWA0001E
Page 3013 of 3833
TROUBLE DIAGNOSIS
SRS-11
C
D
E
F
G
I
J
K
L
MA
B
SRS

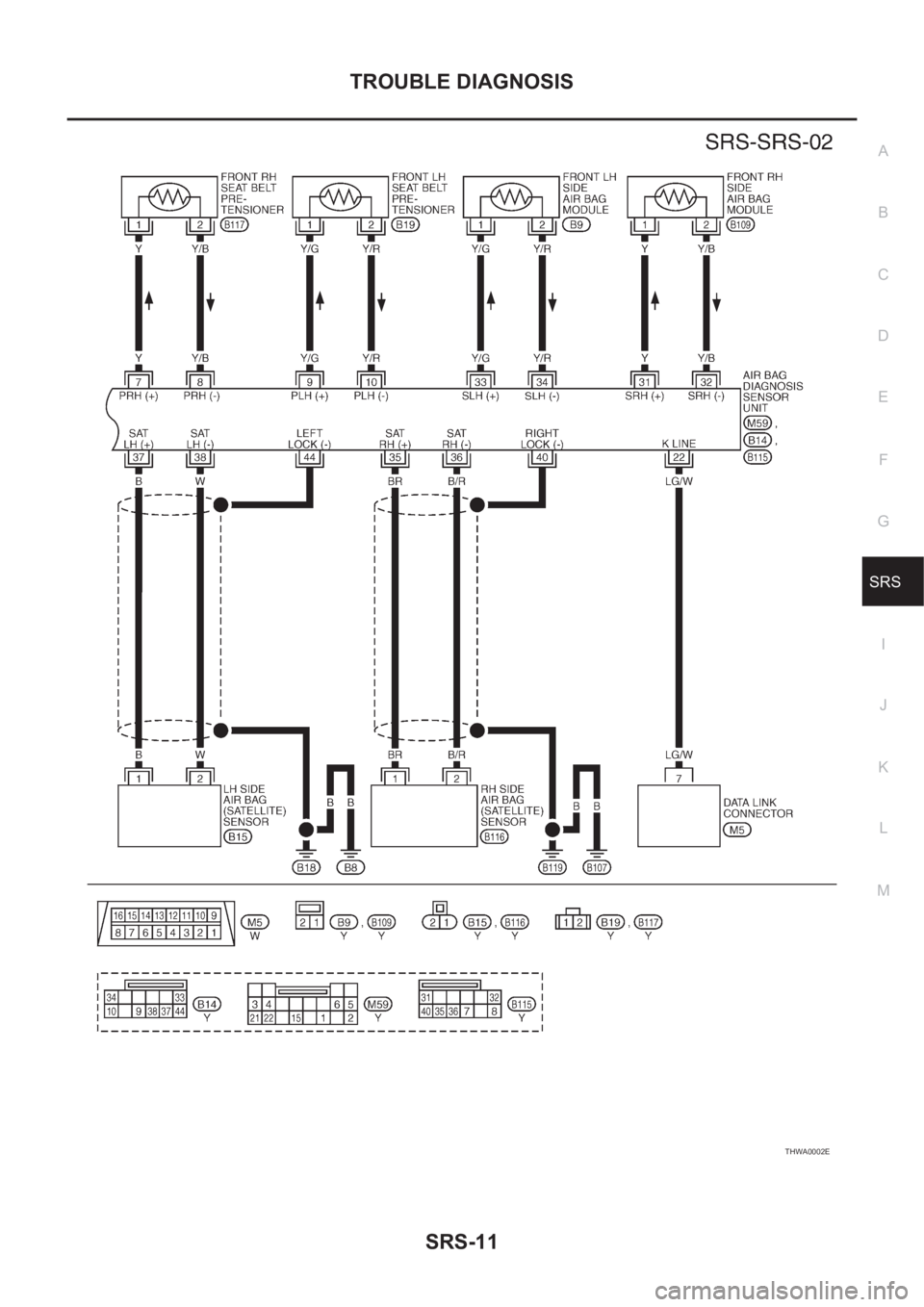

THWA0002E
Page 3014 of 3833
SRS-12
TROUBLE DIAGNOSIS
Wiring Diagram-SRS-/RHD models
EHS000D6
THWA0003E
Page 3015 of 3833
TROUBLE DIAGNOSIS
SRS-13
C
D
E
F
G
I
J
K
L
MA
B
SRS

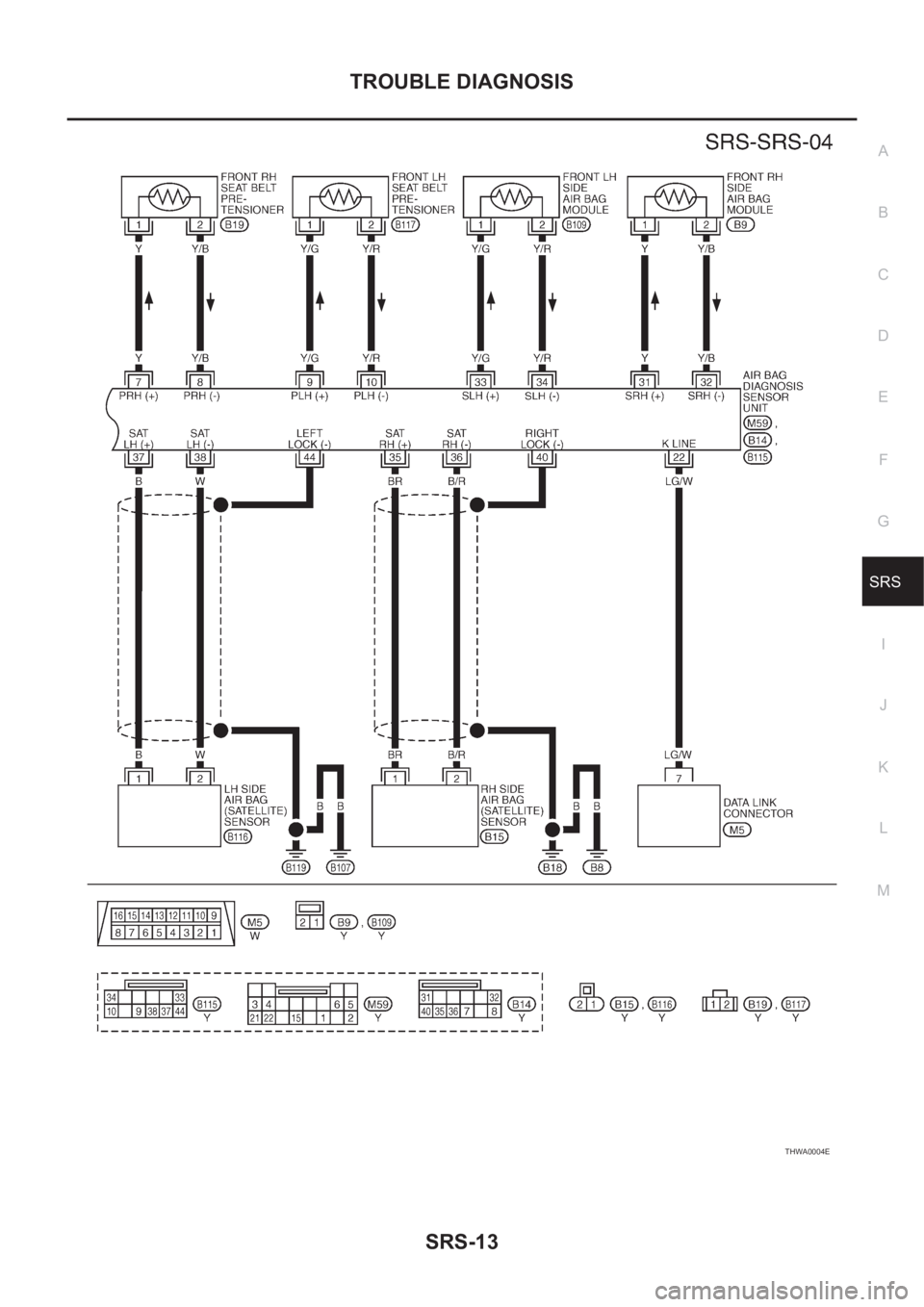

THWA0004E
Page 3016 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual SRS-14
TROUBLE DIAGNOSIS
CONSULT-II Function
EHS000O6
DIAGNOSIS MODE FOR CONSULT-II
●“SELF-DIAG [CURRENT]”
A current Self-diagnosis result (also indicated by the number of warning lam NISSAN X-TRAIL 2001 Service Repair Manual SRS-14
TROUBLE DIAGNOSIS
CONSULT-II Function
EHS000O6
DIAGNOSIS MODE FOR CONSULT-II
●“SELF-DIAG [CURRENT]”
A current Self-diagnosis result (also indicated by the number of warning lam](/manual-img/5/57405/w960_57405-3015.png)

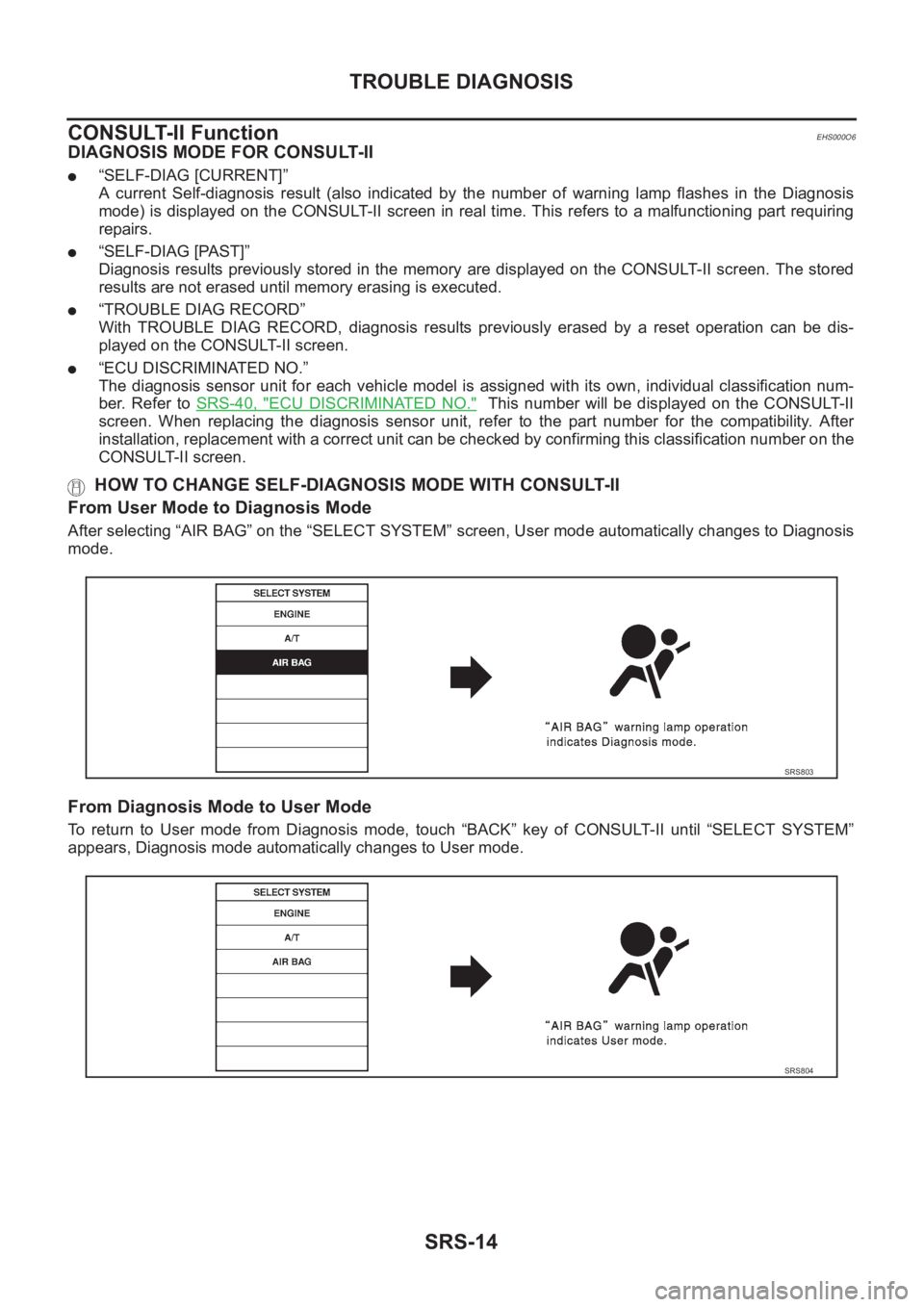

SRS-14
