Page 2777 of 3833

PARKING BRAKE CONTROL
PB-3
C
D
E
G
H
I
J
K
L
MA
B
PB

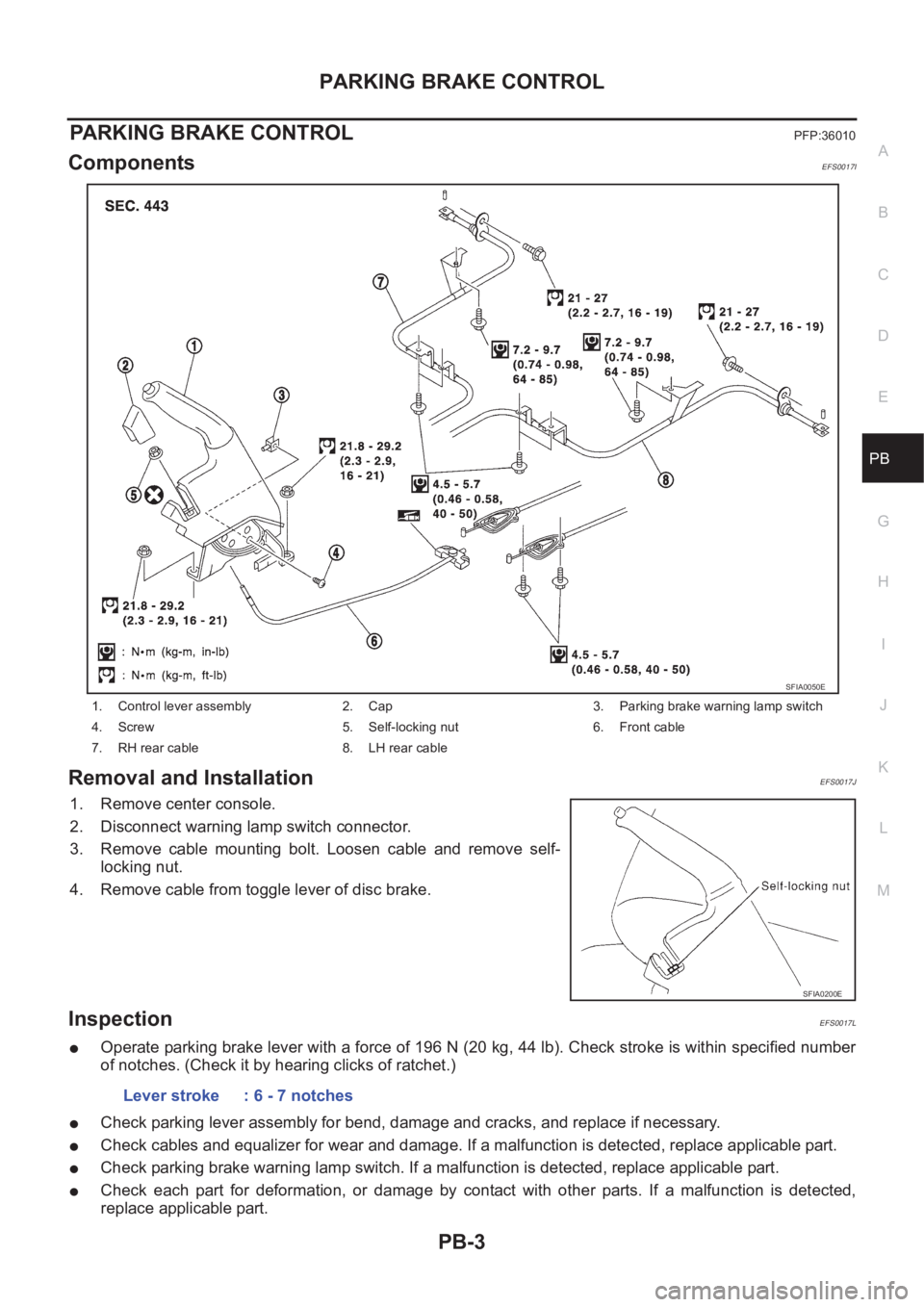

PARKING BRAKE CONTROLPFP:36010
Components EFS0017I
Removal and InstallationEFS0017J
1. Remove center console.
2. Disconnect warning lamp switch connector.
3. Remove cable mounting bolt. Loosen cable and remove self-
locking nut.
4. Remove cable from toggle lever of disc brake.
InspectionEFS0017L
●Operate parking brake lever with a force of 196 N (20 kg, 44 lb). Check stroke is within specified number
of notches. (Check it by hearing clicks of ratchet.)
●Check parking lever assembly for bend, damage and cracks, and replace if necessary.
●Check cables and equalizer for wear and damage. If a malfunction is detected, replace applicable part.
●Check parking brake warning lamp switch. If a malfunction is detected, replace applicable part.
●Check each part for deformation, or damage by contact with other parts. If a malfunction is detected,
replace applicable part.
1. Control lever assembly 2. Cap 3. Parking brake warning lamp switch
4. Screw 5. Self-locking nut 6. Front cable
7. RH rear cable 8. LH rear cable
SFIA0050E
SFIA0200E
Lever stroke : 6 - 7 notches
Page 2778 of 3833
PB-4
PARKING BRAKE CONTROL

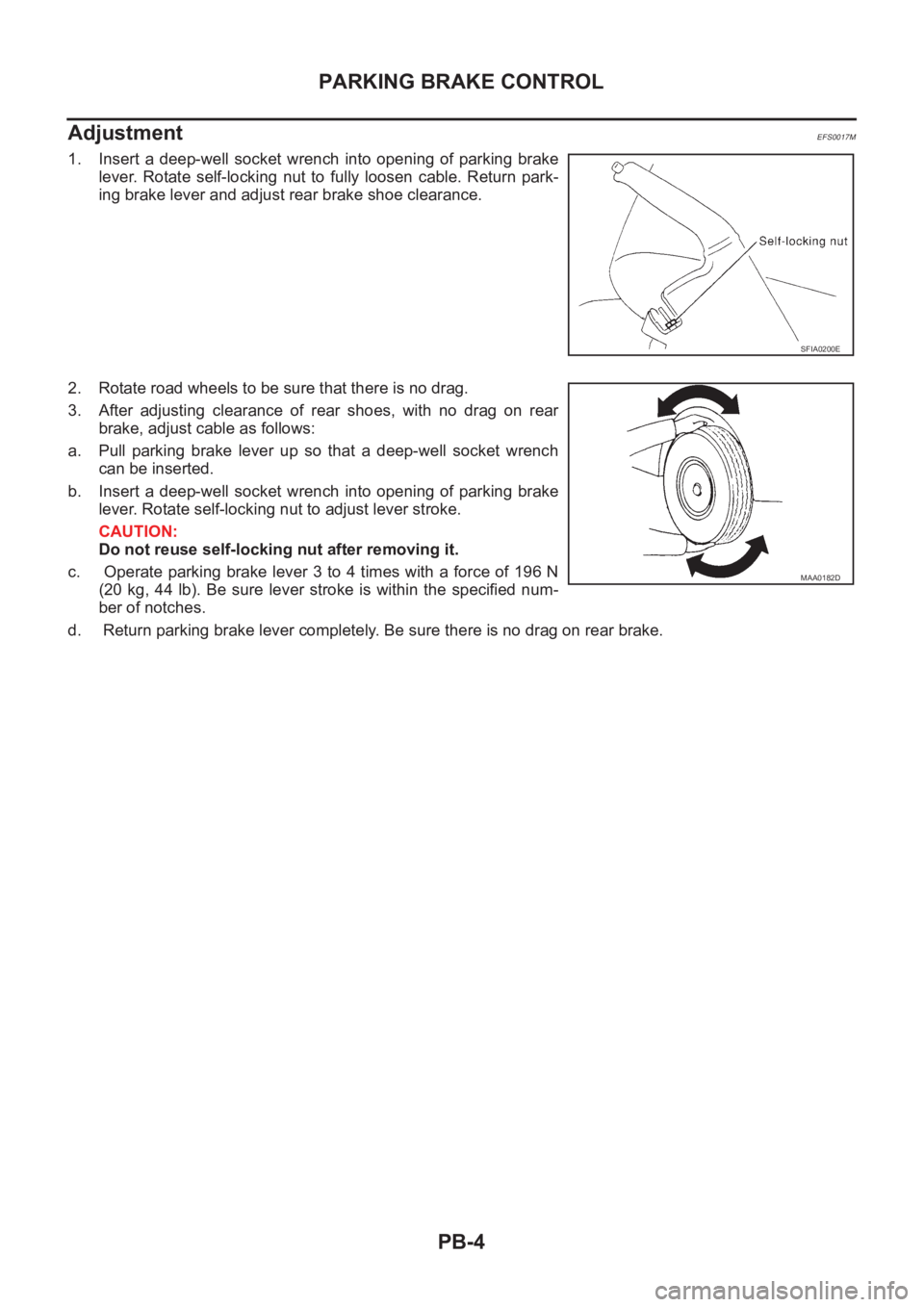

Adjustment
EFS0017M
1. Insert a deep-well socket wrench into opening of parking brake
lever. Rotate self-locking nut to fully loosen cable. Return park-
ing brake lever and adjust rear brake shoe clearance.
2. Rotate road wheels to be sure that there is no drag.
3. After adjusting clearance of rear shoes, with no drag on rear
brake, adjust cable as follows:
a. Pull parking brake lever up so that a deep-well socket wrench
can be inserted.
b. Insert a deep-well socket wrench into opening of parking brake
lever. Rotate self-locking nut to adjust lever stroke.
CAUTION:
Do not reuse self-locking nut after removing it.
c. Operate parking brake lever 3 to 4 times with a force of 196 N
(20 kg, 44 lb). Be sure lever stroke is within the specified num-
ber of notches.
d. Return parking brake lever completely. Be sure there is no drag on rear brake.
SFIA0200E
MAA0182D
Page 2779 of 3833
PARKING BRAKE SHOE
PB-5
C
D
E
G
H
I
J
K
L
MA
B
PB

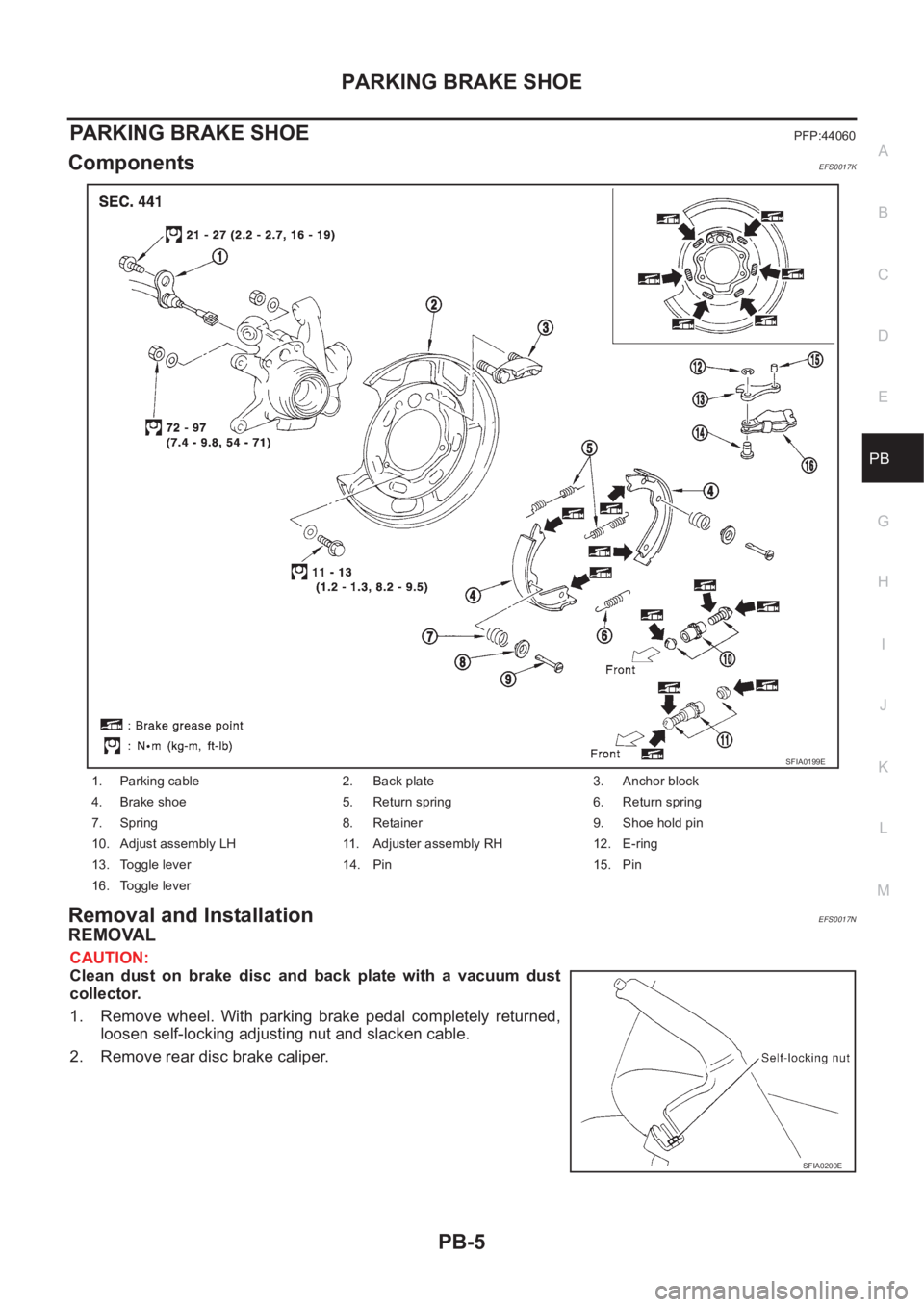

PARKING BRAKE SHOEPFP:44060
ComponentsEFS0017K
Removal and InstallationEFS0017N
REMOVAL
CAUTION:
Clean dust on brake disc and back plate with a vacuum dust
collector.
1. Remove wheel. With parking brake pedal completely returned,
loosen self-locking adjusting nut and slacken cable.
2. Remove rear disc brake caliper.
1. Parking cable 2. Back plate 3. Anchor block
4. Brake shoe 5. Return spring 6. Return spring
7. Spring 8. Retainer 9. Shoe hold pin
10. Adjust assembly LH 11. Adjuster assembly RH 12. E-ring
13. Toggle lever 14. Pin 15. Pin
16. Toggle lever
SFIA0199E
SFIA0200E
Page 2780 of 3833
PB-6
PARKING BRAKE SHOE

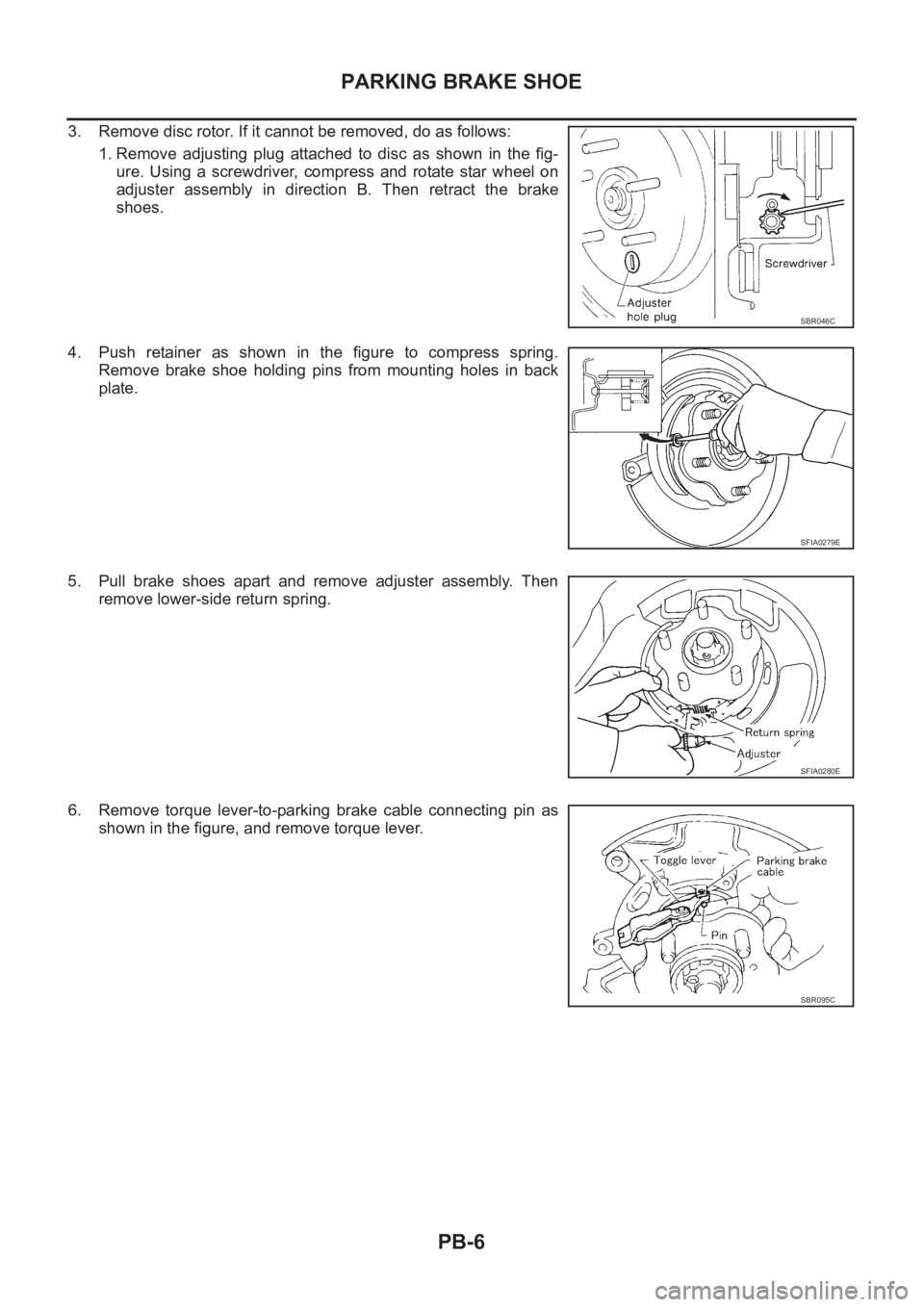

3. Remove disc rotor. If it cannot be removed, do as follows:
1. Remove adjusting plug attached to disc as shown in the fig-
ure. Using a screwdriver, compress and rotate star wheel on
adjuster assembly in direction B. Then retract the brake
shoes.
4. Push retainer as shown in the figure to compress spring.
Remove brake shoe holding pins from mounting holes in back
plate.
5. Pull brake shoes apart and remove adjuster assembly. Then
remove lower-side return spring.
6. Remove torque lever-to-parking brake cable connecting pin as
shown in the figure, and remove torque lever.
SBR046C
SFIA0279E
SFIA0280E
SBR095C
Page 2781 of 3833
PARKING BRAKE SHOE
PB-7
C
D
E
G
H
I
J
K
L
MA
B
PB

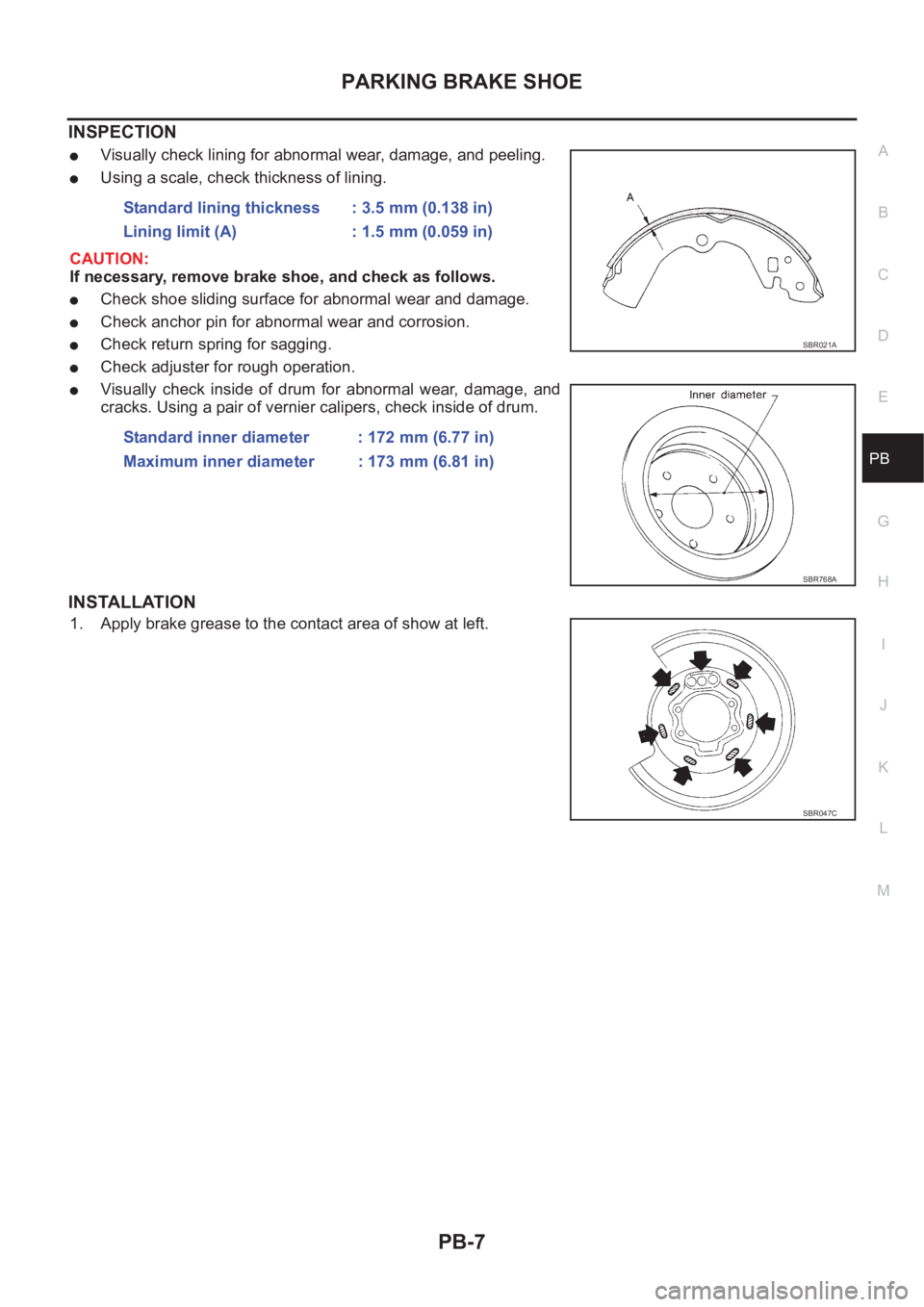

INSPECTION
●Visually check lining for abnormal wear, damage, and peeling.
●Using a scale, check thickness of lining.
CAUTION:
If necessary, remove brake shoe, and check as follows.
●Check shoe sliding surface for abnormal wear and damage.
●Check anchor pin for abnormal wear and corrosion.
●Check return spring for sagging.
●Check adjuster for rough operation.
●Visually check inside of drum for abnormal wear, damage, and
cracks. Using a pair of vernier calipers, check inside of drum.
INSTALLATION
1. Apply brake grease to the contact area of show at left.Standard lining thickness : 3.5 mm (0.138 in)
Lining limit (A) : 1.5 mm (0.059 in)
Standard inner diameter : 172 mm (6.77 in)
Maximum inner diameter : 173 mm (6.81 in)
SBR021A
SBR768A
SBR047C
Page 2782 of 3833
PB-8
PARKING BRAKE SHOE

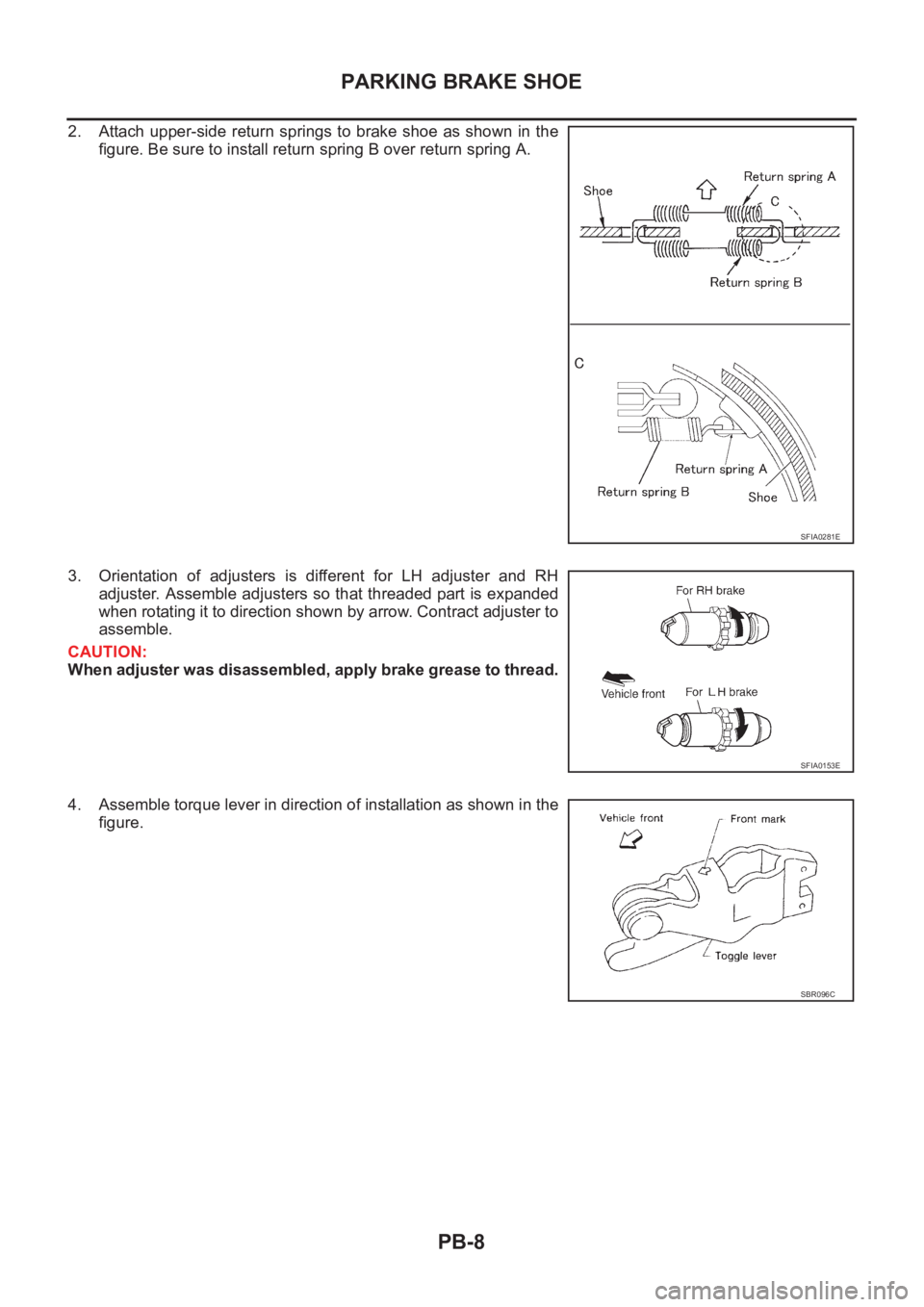

2. Attach upper-side return springs to brake shoe as shown in the
figure. Be sure to install return spring B over return spring A.
3. Orientation of adjusters is different for LH adjuster and RH
adjuster. Assemble adjusters so that threaded part is expanded
when rotating it to direction shown by arrow. Contract adjuster to
assemble.
CAUTION:
When adjuster was disassembled, apply brake grease to thread.
4. Assemble torque lever in direction of installation as shown in the
figure.
SFIA0281E
SFIA0153E
SBR096C
Page 2783 of 3833
PARKING BRAKE SHOE
PB-9
C
D
E
G
H
I
J
K
L
MA
B
PB

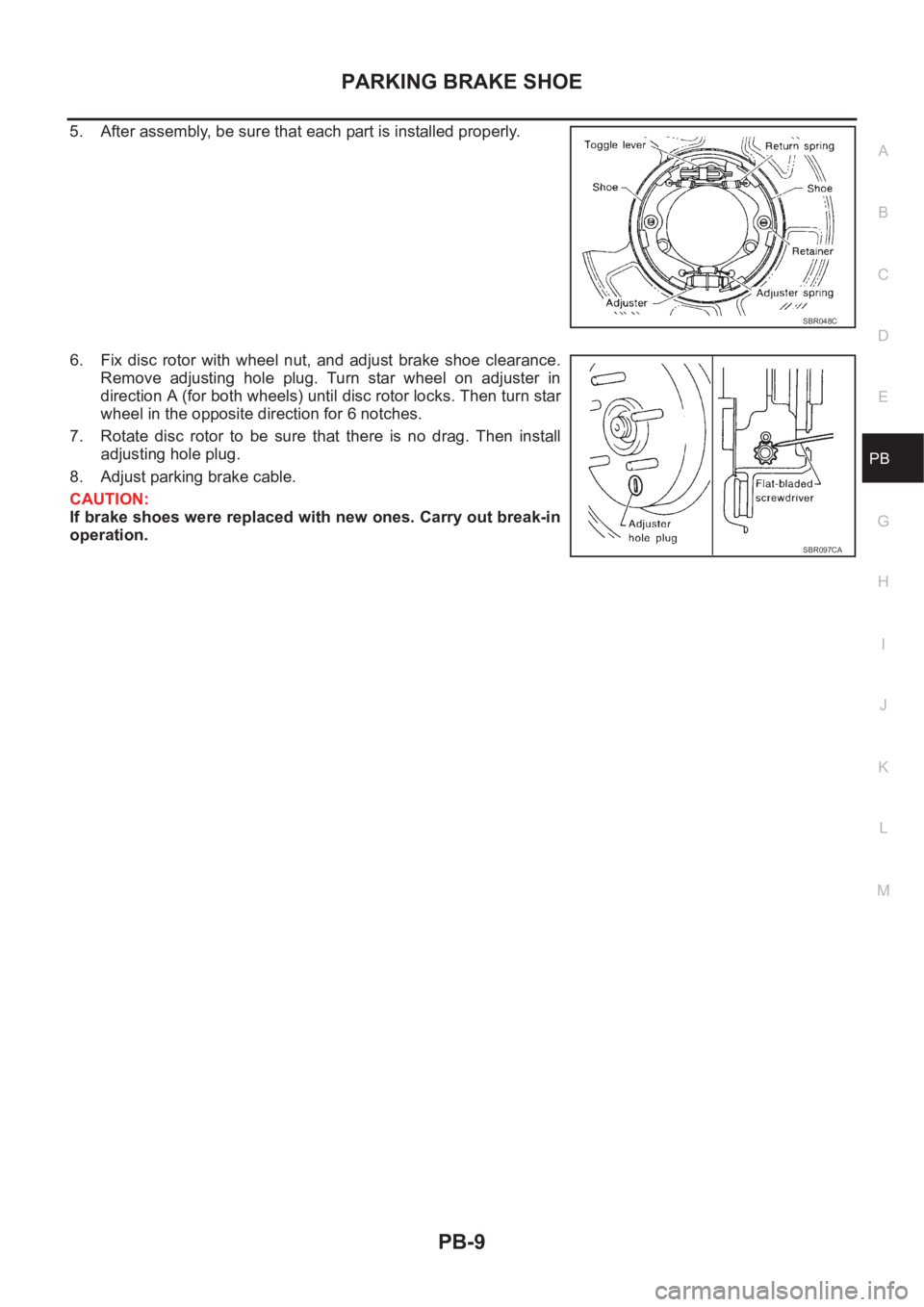

5. After assembly, be sure that each part is installed properly.
6. Fix disc rotor with wheel nut, and adjust brake shoe clearance.
Remove adjusting hole plug. Turn star wheel on adjuster in
direction A (for both wheels) until disc rotor locks. Then turn star
wheel in the opposite direction for 6 notches.
7. Rotate disc rotor to be sure that there is no drag. Then install
adjusting hole plug.
8. Adjust parking brake cable.
CAUTION:
If brake shoes were replaced with new ones. Carry out break-in
operation.
SBR048C
SBR097CA
Page 2784 of 3833
PB-10

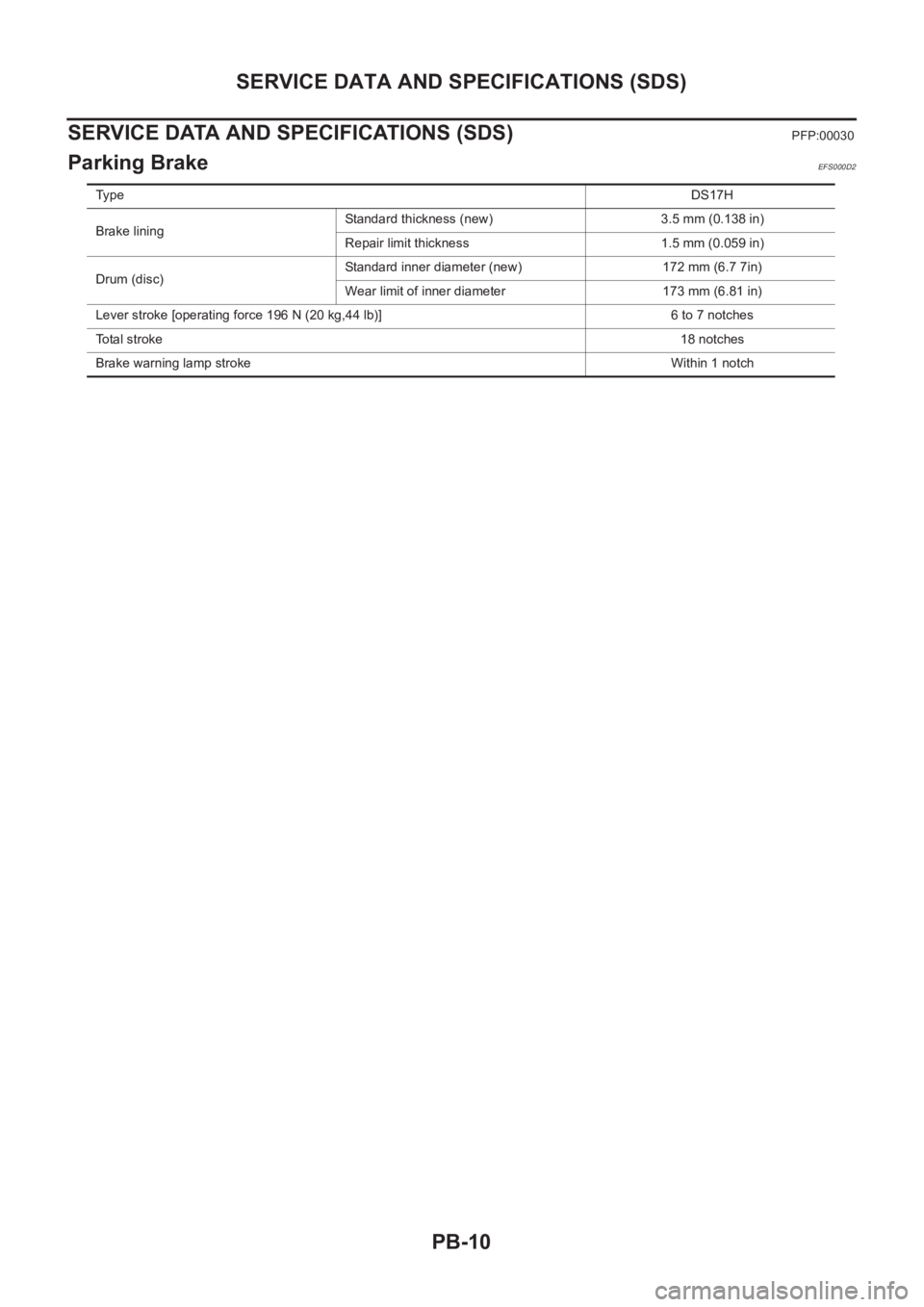

SERVICE DATA AND SPECIFICATIONS (SDS)
SERVICE DATA AND SPECIFICATIONS (SDS)
PFP:00030
Parking BrakeEFS000D2
Ty p eDS17H
Brake liningStandard thickness (new) 3.5 mm (0.138 in)
Repair limit thickness 1.5 mm (0.059 in)
Drum (disc)Standard inner diameter (new) 172 mm (6.7 7in)
Wear limit of inner diameter 173 mm (6.81 in)
Lever stroke [operating force 196 N (20 kg,44 lb)] 6 to 7 notches
To t a l s t r o k e18 notches
Brake warning lamp strokeWithin 1 notch
