2001 NISSAN X-TRAIL Service Repair Manual

Page 3113 of 3833

NISSAN X-TRAIL 2001  Service Repair Manual MULTI-REMOTE CONTROL SYSTEM
BL-61
C
D
E
F
G
H
J
K
L
MA
B
BL
4.CHECK GROUND CIRCUIT FOR TIME CONTROL UNIT
Check continuity between time control unit harness connector termi-
nal 16 and ground.
OK or NG

Page 3114 of 3833

NISSAN X-TRAIL 2001  Service Repair Manual BL-62
MULTI-REMOTE CONTROL SYSTEM
Time Control Unit Unlock Signal Circuit Check
EIS004G9
1. CHECK TIME CONTROL UNIT  OUTPUT  SIGNAL
Check voltage between time control unit and ground.
OK or NG
OK >> R

Page 3115 of 3833

NISSAN X-TRAIL 2001  Service Repair Manual MULTI-REMOTE CONTROL SYSTEM
BL-63
C
D
E
F
G
H
J
K
L
MA
B
BL
ID Code Entry ProcedureEIS001RH
SEL497X

Page 3116 of 3833

NISSAN X-TRAIL 2001  Service Repair Manual BL-64
MULTI-REMOTE CONTROL SYSTEM
Remote Controller Battery Replacement
EIS001RI
SEL241X

Page 3117 of 3833

NISSAN X-TRAIL 2001  Service Repair Manual FRONT DOOR LOCK
BL-65
C
D
E
F
G
H
J
K
L
MA
B
BL

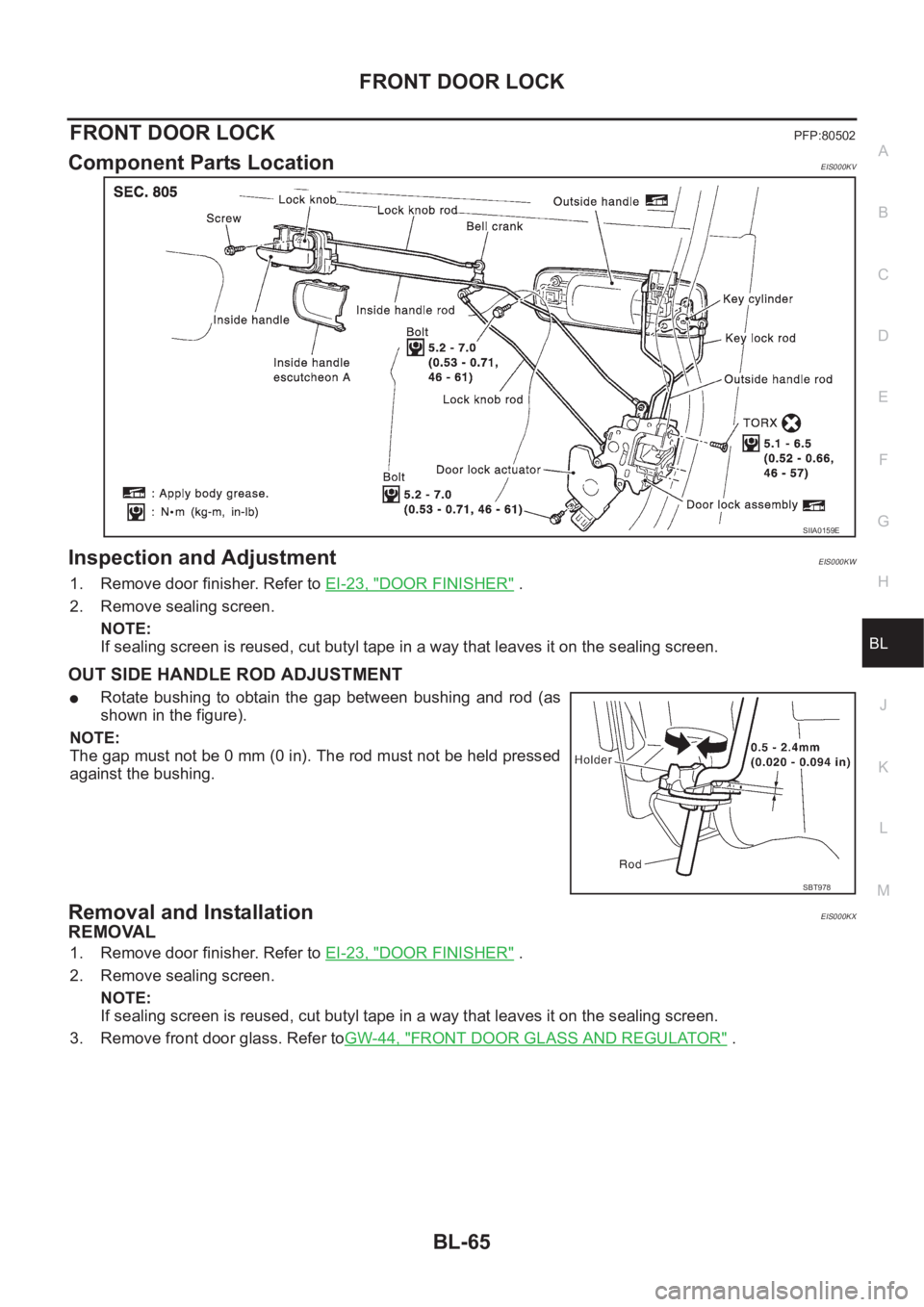

FRONT DOOR LOCKPFP:80502
Component Parts LocationEIS000KV
Inspection and AdjustmentEIS000KW
1. Remove door finisher. Refer to EI-23, "DOOR FINISHER&

Page 3118 of 3833

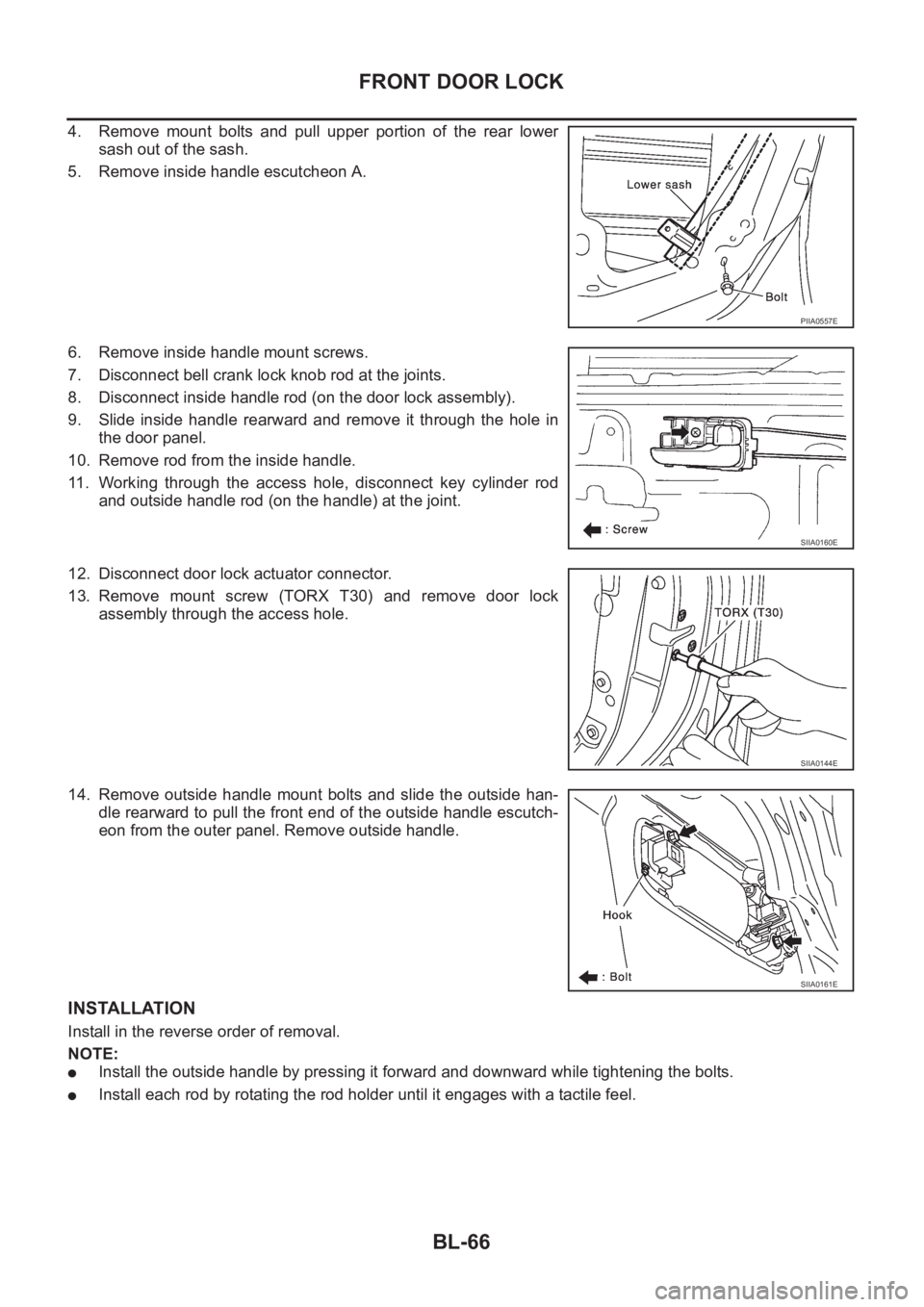

NISSAN X-TRAIL 2001  Service Repair Manual BL-66
FRONT DOOR LOCK
4. Remove  mount  bolts  and  pull  upper  portion  of  the  rear  lower
sash out of the sash.
5. Remove inside handle escutcheon A.
6. Remove inside handle mount screws.
7. Disc

Page 3119 of 3833

NISSAN X-TRAIL 2001  Service Repair Manual FRONT DOOR LOCK
BL-67
C
D
E
F
G
H
J
K
L
MA
B
BL

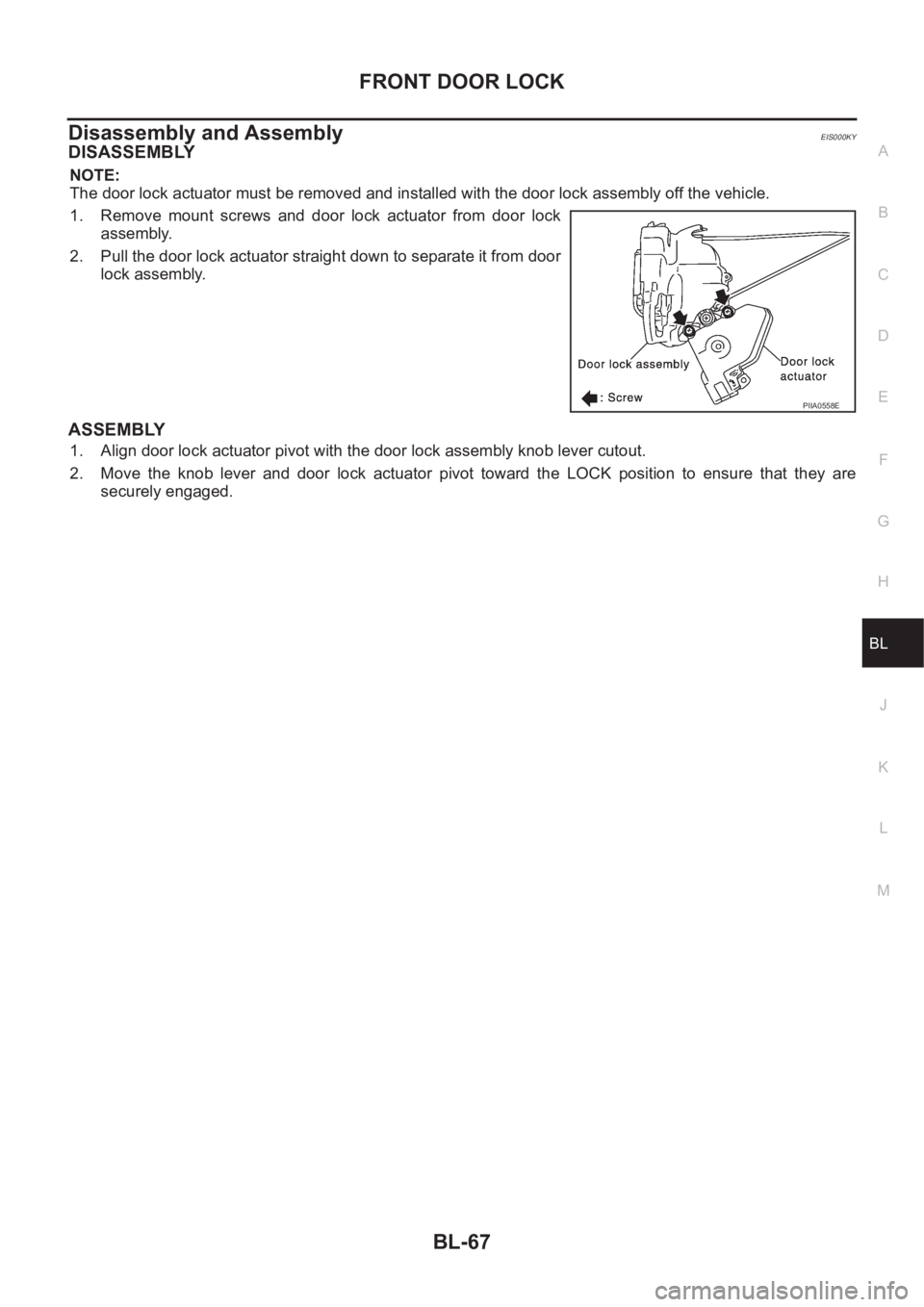

Disassembly and AssemblyEIS000KY
DISASSEMBLY
NOTE:
The door lock actuator must be removed and installed with the door lock assembly off the vehicle.
1.

Page 3120 of 3833

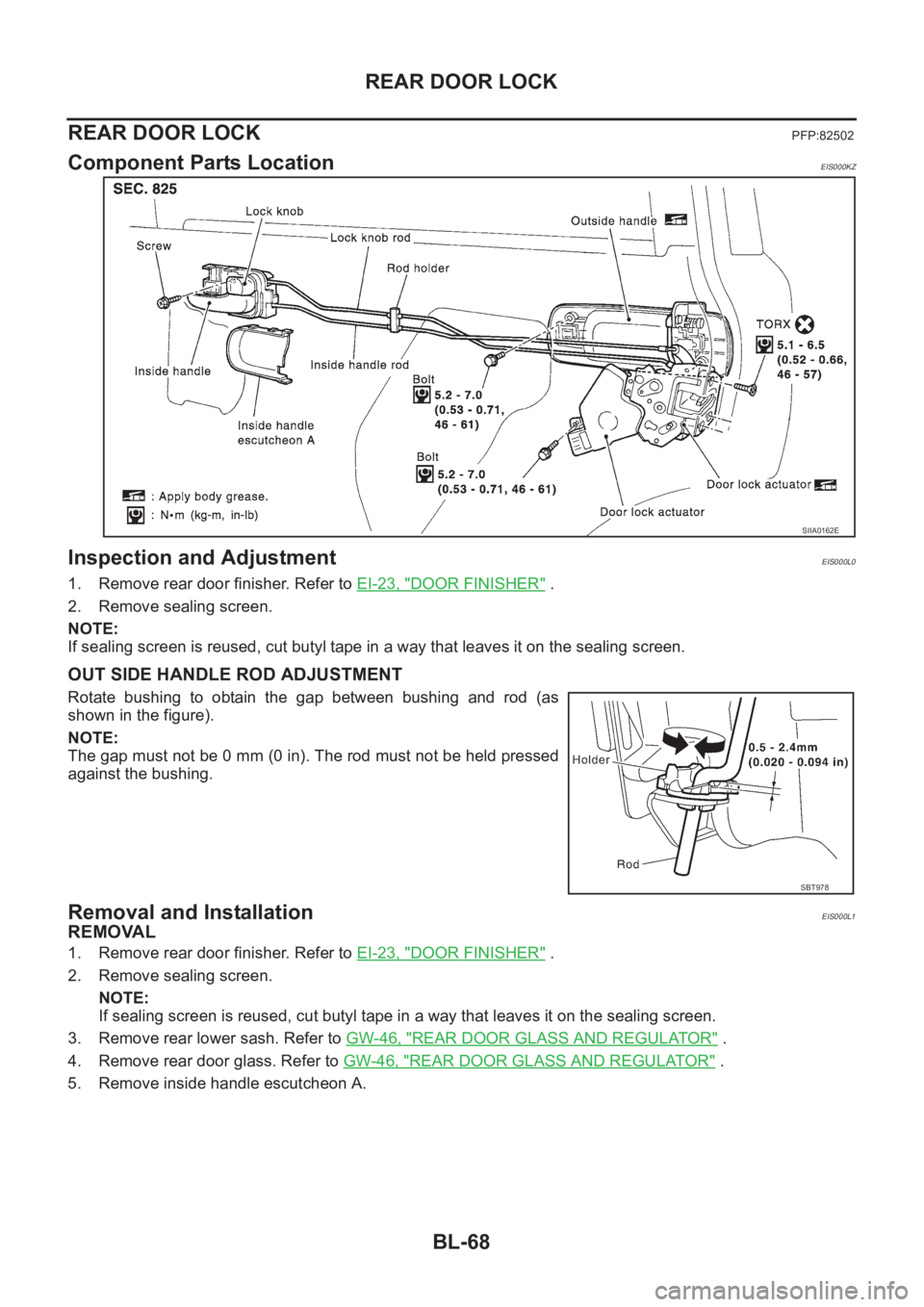

NISSAN X-TRAIL 2001  Service Repair Manual BL-68
REAR DOOR LOCK
REAR DOOR LOCK
PFP:82502
Component Parts LocationEIS000KZ
Inspection and AdjustmentEIS000L0
1. Remove rear door finisher. Refer to EI-23, "DOOR FINISHER" .
2. Remove seali
