FRONT WIPER AND WASHER SYSTEM
WW-5
C
D
E
F
G
H
I
J
L
MA
B
WW

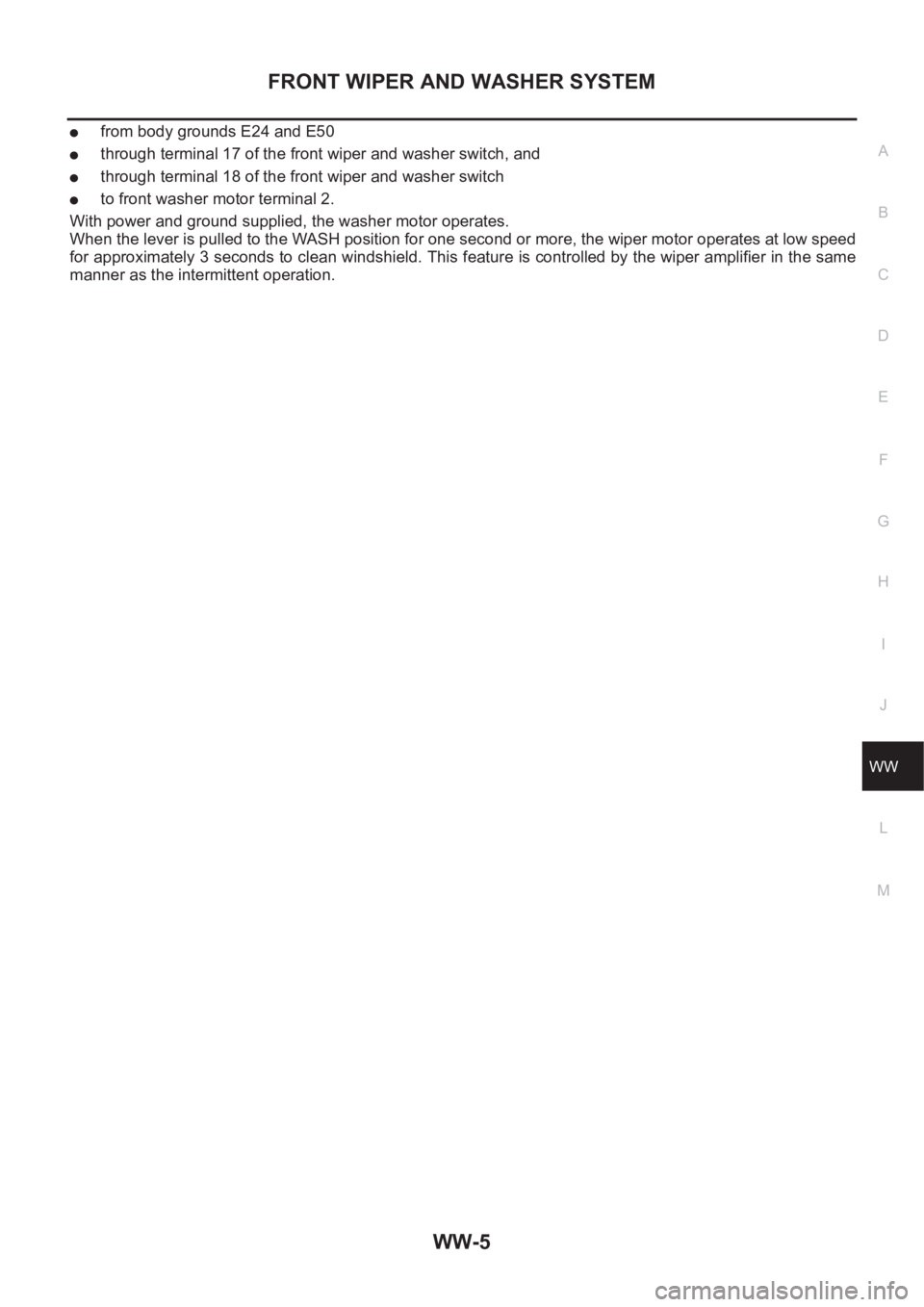

●from body grounds E24 and E50
●through terminal 17 of the front wiper and washer switch, and
●through terminal 18 of the front wiper and washer switch
●to front washer motor terminal 2.
With power and ground supplied, the washer motor operates.
When the lever is pulled to the WASH position for one second or more, the wiper motor operates at low speed
for approximately 3 seconds to clean windshield. This feature is controlled by the wiper amplifier in the same
manner as the intermittent operation.
Page 3634 of 3833
WW-6
FRONT WIPER AND WASHER SYSTEM
Wiring Diagram — WIPER —
EKS0032O
TKWA0104E
Page 3635 of 3833

FRONT WIPER AND WASHER SYSTEM
WW-7
C
D
E
F
G
H
I
J
L
MA
B
WW
Terminal and Reference Values for Combination SwitchEKS0032P
Removal and Installation for Front Wiper Arms, Adjustment for Wiper Arms
Stop Location
EKS0032Q
1. Prior to wiper arm installation, turn on wiper switch to operate
wiper motor and then turn it “OFF” (Auto Stop).
2. Lift the blade up and then set it down onto glass surface to set
the blade center to clearance “L1” & “L2” immediately before
tightening nut.
3. Eject washer fluid. Turn on wiper switch to operate wiper motor
and then turn it “OFF”.
4. Ensure that wiper blades stop within clearance “L1” & “L2”.
●Tighten wiper arm nuts to specified torque.
●Before reinstalling wiper arm, clean up the pivot area as illus-
trated. This will reduce possibility of wiper arm looseness.
TER-
MINAL
NO.WIRE
COLOR ITEM CONDITION
DATA (DC Voltage) IGNI-
TION
SWITCHCONDITION OR OPERATION
13 L/YWiper auto
Stop signalONWiper is moving Approx. 0
Wiper while the vehicle is stopped Approx. 12
14 LWiper motor
Operation signal (LO)ON Wiper switchOFF Approx. 12
LO Approx. 0
15 Y/G Ignition ON signal ON — Approx. 12
16 L/BWiper motor
Operation signal (HI)ON Wiper switchOFF Approx. 12
HI Approx. 0
17 B/W Ground OFF — —
18 GWasher switch sig-
nalON Wiper switchWASH Approx. 0
OFF Approx. 12
SEL543TA
Clearance “L1”: 49.2 - 64.2 mm (1.937 - 2.528 in)
Clearance “L2”: 39.3 - 54.3 mm (1.547 - 2.138 in)
Front wiper: 20.6 - 26.5 N-m
(2.1 - 2.7 kg-m, 16 - 19 ft-lb)
PKIA0473E
SEL024J
Page 3636 of 3833
WW-8
FRONT WIPER AND WASHER SYSTEM

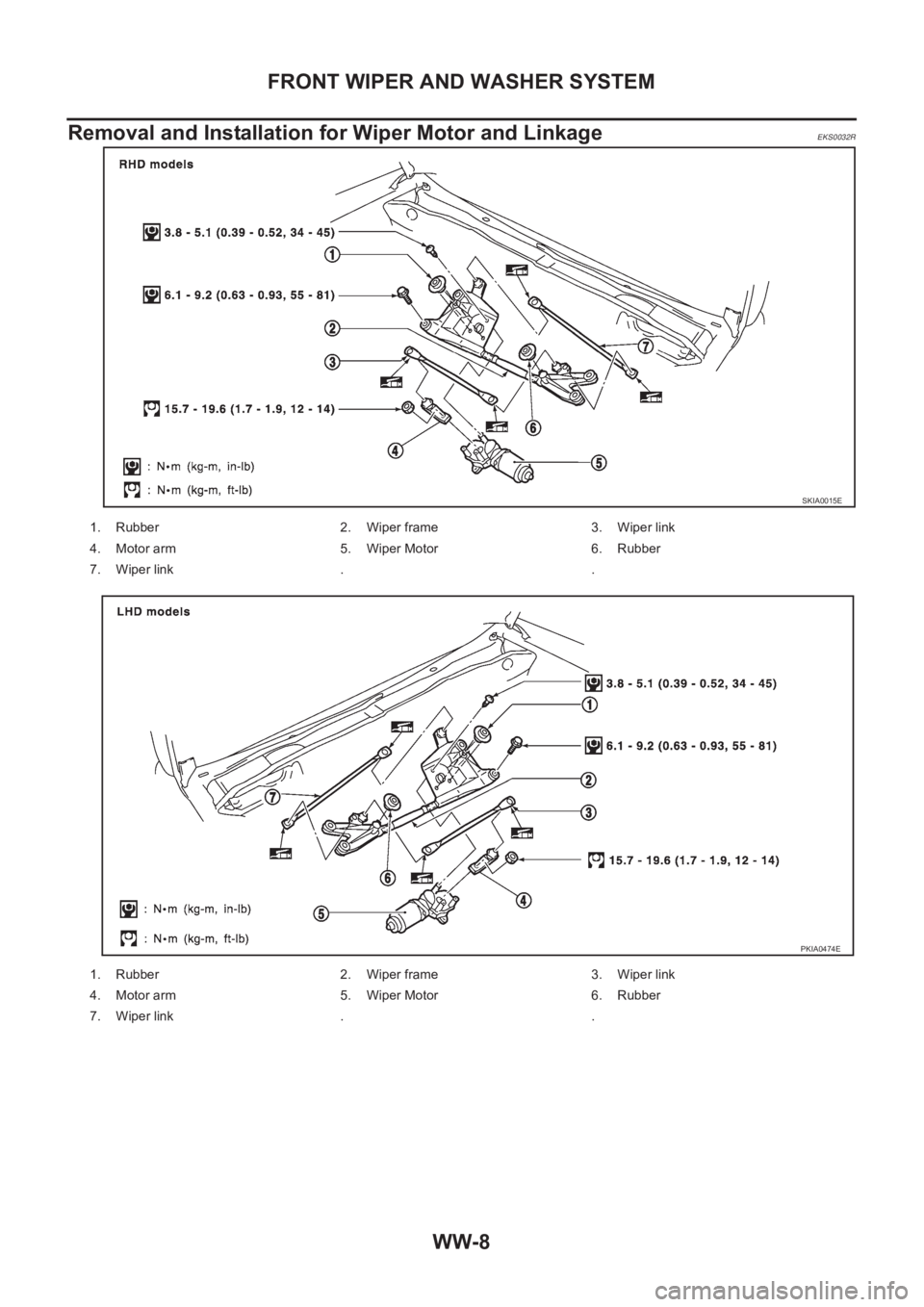

Removal and Installation for Wiper Motor and Linkage
EKS0032R
SKIA0015E
1. Rubber 2. Wiper frame 3. Wiper link
4. Motor arm 5. Wiper Motor 6. Rubber
7. Wiper link . .
1. Rubber 2. Wiper frame 3. Wiper link
4. Motor arm 5. Wiper Motor 6. Rubber
7. Wiper link . .
PKIA0474E
Page 3637 of 3833

FRONT WIPER AND WASHER SYSTEM
WW-9
C
D
E
F
G
H
I
J
L
MA
B
WW

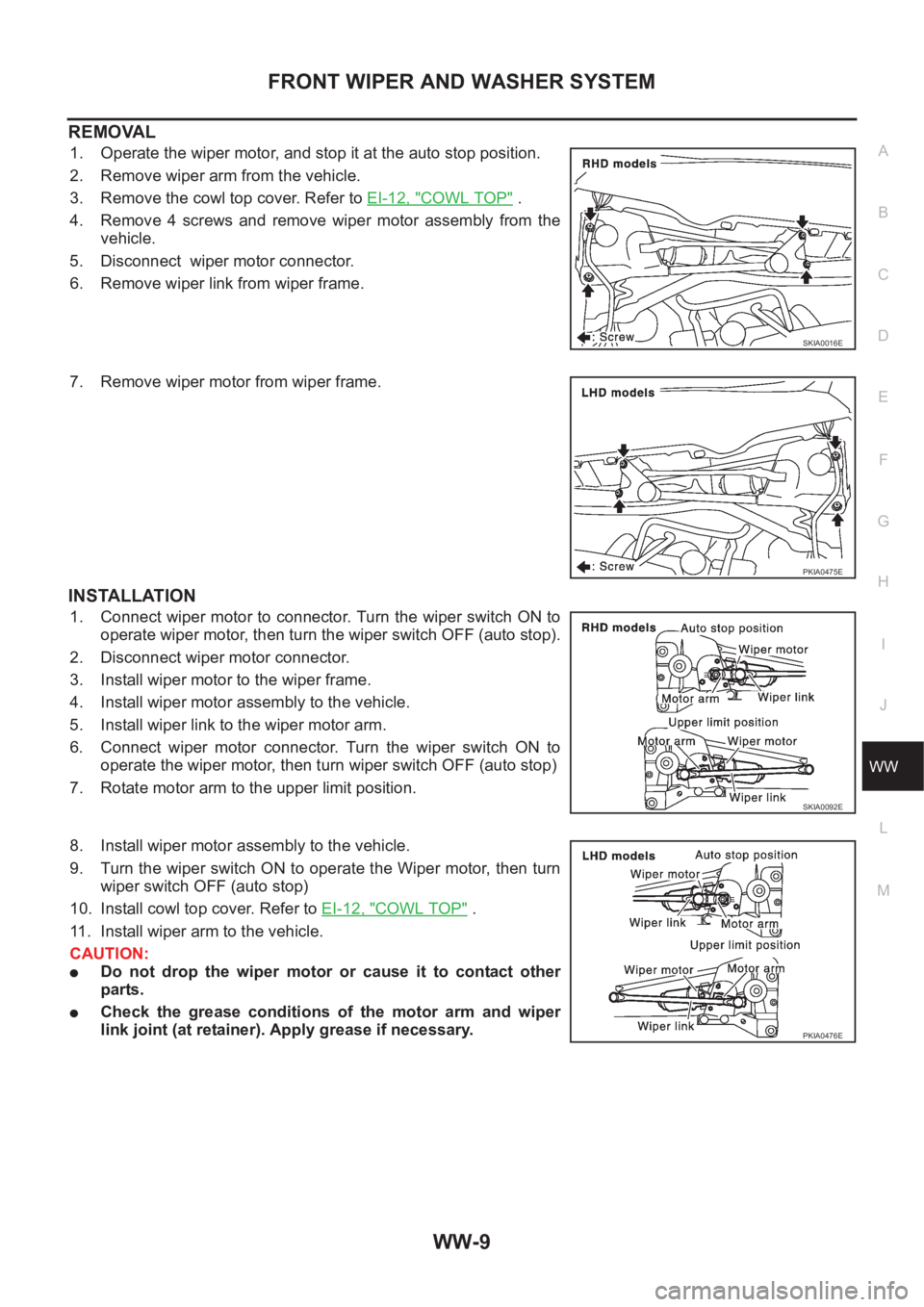

REMOVAL
1. Operate the wiper motor, and stop it at the auto stop position.
2. Remove wiper arm from the vehicle.
3. Remove the cowl top cover. Refer to EI-12, "
COWL TOP" .
4. Remove 4 screws and remove wiper motor assembly from the
vehicle.
5. Disconnect wiper motor connector.
6. Remove wiper link from wiper frame.
7. Remove wiper motor from wiper frame.
INSTALLATION
1. Connect wiper motor to connector. Turn the wiper switch ON to
operate wiper motor, then turn the wiper switch OFF (auto stop).
2. Disconnect wiper motor connector.
3. Install wiper motor to the wiper frame.
4. Install wiper motor assembly to the vehicle.
5. Install wiper link to the wiper motor arm.
6. Connect wiper motor connector. Turn the wiper switch ON to
operate the wiper motor, then turn wiper switch OFF (auto stop)
7. Rotate motor arm to the upper limit position.
8. Install wiper motor assembly to the vehicle.
9. Turn the wiper switch ON to operate the Wiper motor, then turn
wiper switch OFF (auto stop)
10. Install cowl top cover. Refer to EI-12, "
COWL TOP" .
11. Install wiper arm to the vehicle.
CAUTION:
●Do not drop the wiper motor or cause it to contact other
parts.
●Check the grease conditions of the motor arm and wiper
link joint (at retainer). Apply grease if necessary.
SKIA0016E
PKIA0475E
SKIA0092E
PKIA0476E
Page 3638 of 3833
WW-10
FRONT WIPER AND WASHER SYSTEM

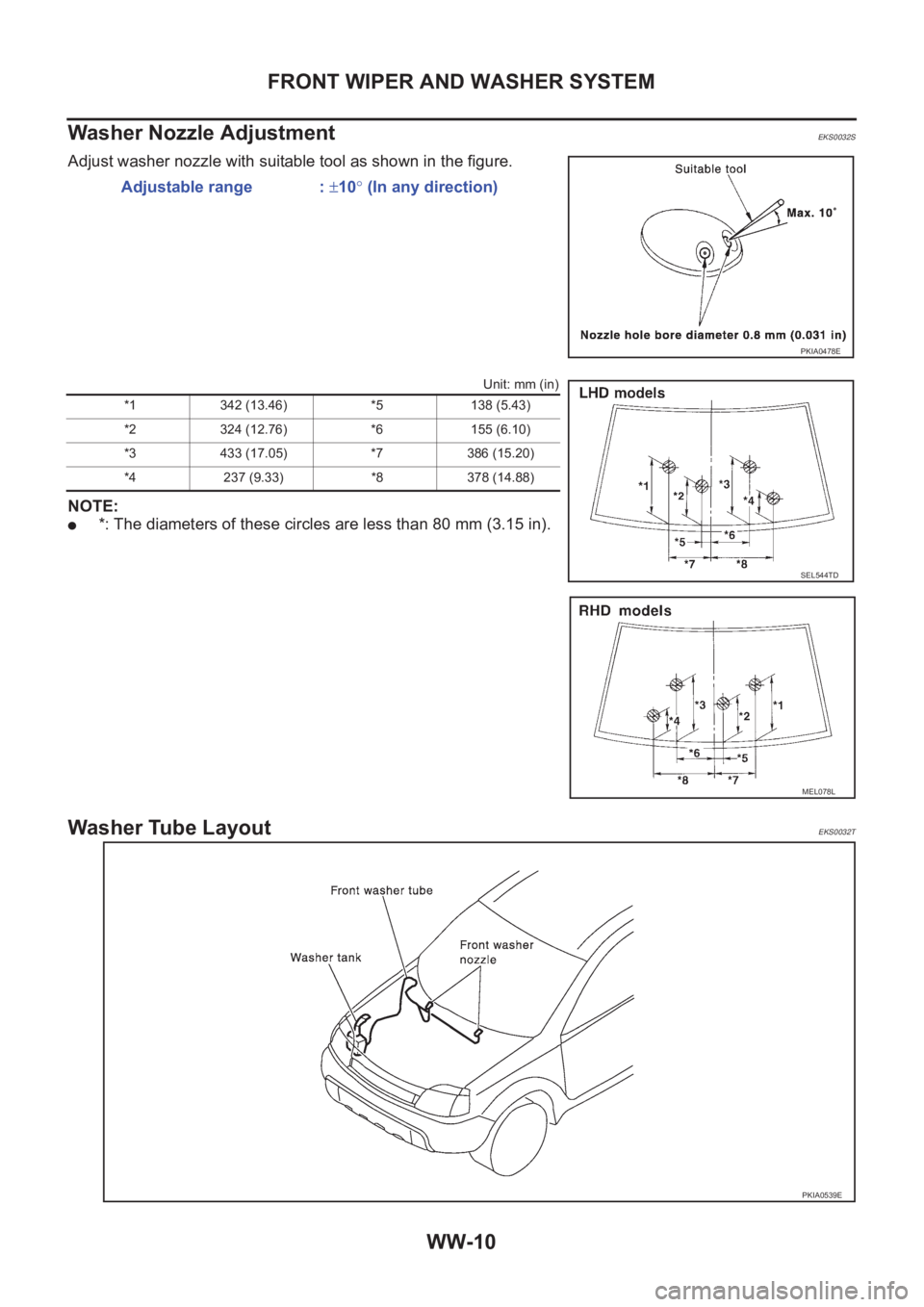

Washer Nozzle Adjustment
EKS0032S
Adjust washer nozzle with suitable tool as shown in the figure.
Unit: mm (in)
NOTE:
●*: The diameters of these circles are less than 80 mm (3.15 in).
Washer Tube LayoutEKS0032T
Adjustable range : ±10° (In any direction)
PKIA0478E
*1 342 (13.46) *5 138 (5.43)
*2 324 (12.76) *6 155 (6.10)
*3 433 (17.05) *7 386 (15.20)
*4 237 (9.33) *8 378 (14.88)
SEL544TD
MEL078L
PKIA0539E
Page 3639 of 3833
FRONT WIPER AND WASHER SYSTEM
WW-11
C
D
E
F
G
H
I
J
L
MA
B
WW
Removal and Installation for Washer Nozzle EKS0032U
REMOVAL
1. Push washer nozzle pawl toward engine hood to pull out.
INSTALLATION
1. After connecting washer hose, press nozzle from cowl top cover surface.
2. Assemble nozzle and socket.
3. Adjust nozzle injection position.
Inspection for Washer Nozzle EKS0032V
CHECK VALVE
●Blow air in the injection direction, and check that air flows only
one way. Make sure that the reverse direction (inhale) is not
possible.
Removal and Installation for Wiper and Washer Switch EKS0032W
REMOVAL
1. Remove steering column cover.
2. Remove wiper washer switch connector.
3. Remove two screws then remove wiper washer switch from the
base.
INSTALLATION
Installation is in the reverse order of removal.
PKIA0481E
PKIA0482E
SKIA0018E
Page 3640 of 3833
WW-12
FRONT WIPER AND WASHER SYSTEM

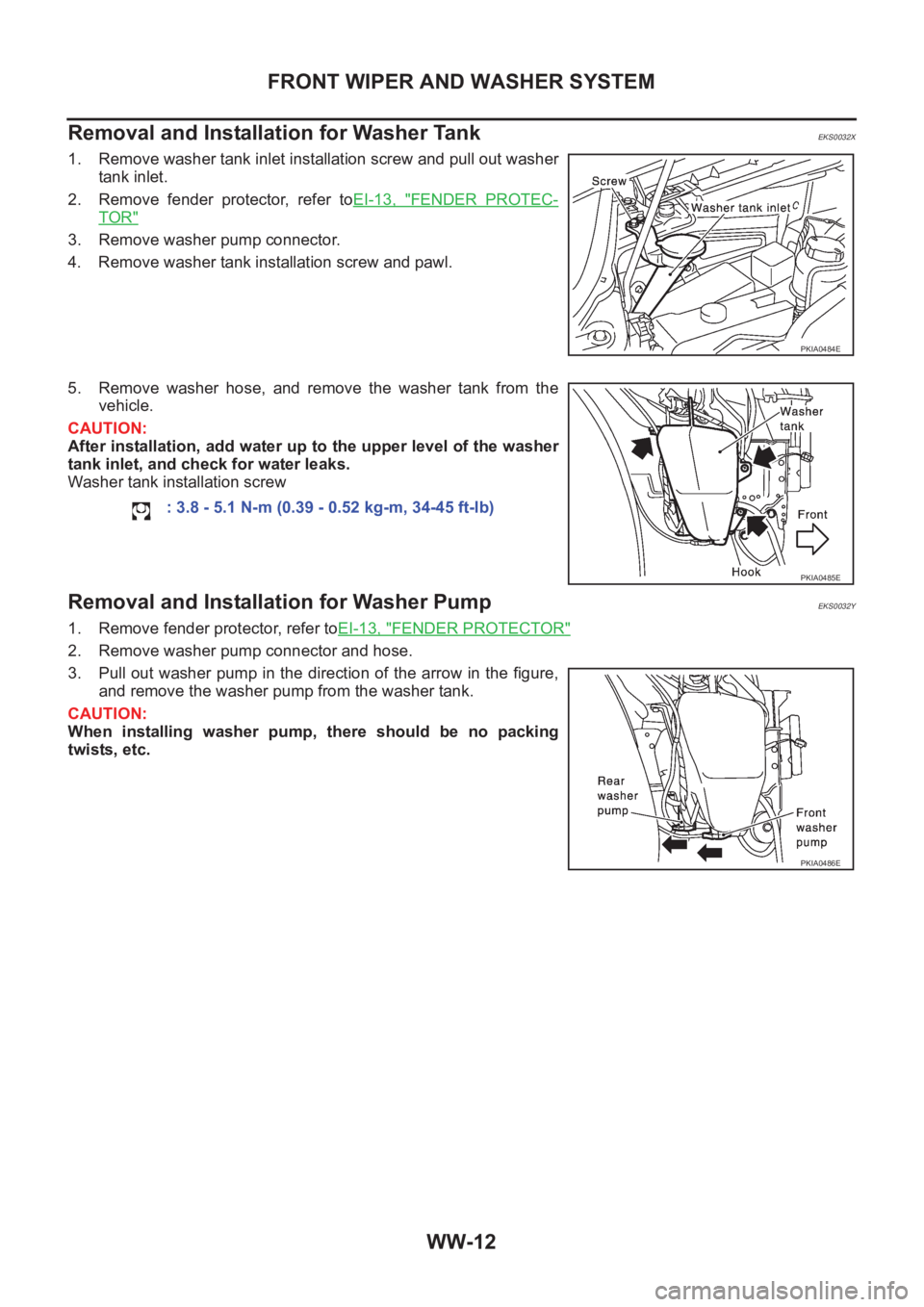

Removal and Installation for Washer Tank
EKS0032X
1. Remove washer tank inlet installation screw and pull out washer
tank inlet.
2. Remove fender protector, refer toEI-13, "
FENDER PROTEC-
TOR"
3. Remove washer pump connector.
4. Remove washer tank installation screw and pawl.
5. Remove washer hose, and remove the washer tank from the
vehicle.
CAUTION:
After installation, add water up to the upper level of the washer
tank inlet, and check for water leaks.
Washer tank installation screw
Removal and Installation for Washer Pump EKS0032Y
1. Remove fender protector, refer toEI-13, "FENDER PROTECTOR"
2. Remove washer pump connector and hose.
3. Pull out washer pump in the direction of the arrow in the figure,
and remove the washer pump from the washer tank.
CAUTION:
When installing washer pump, there should be no packing
twists, etc.
PKIA0484E
: 3.8 - 5.1 N-m (0.39 - 0.52 kg-m, 34-45 ft-lb)
