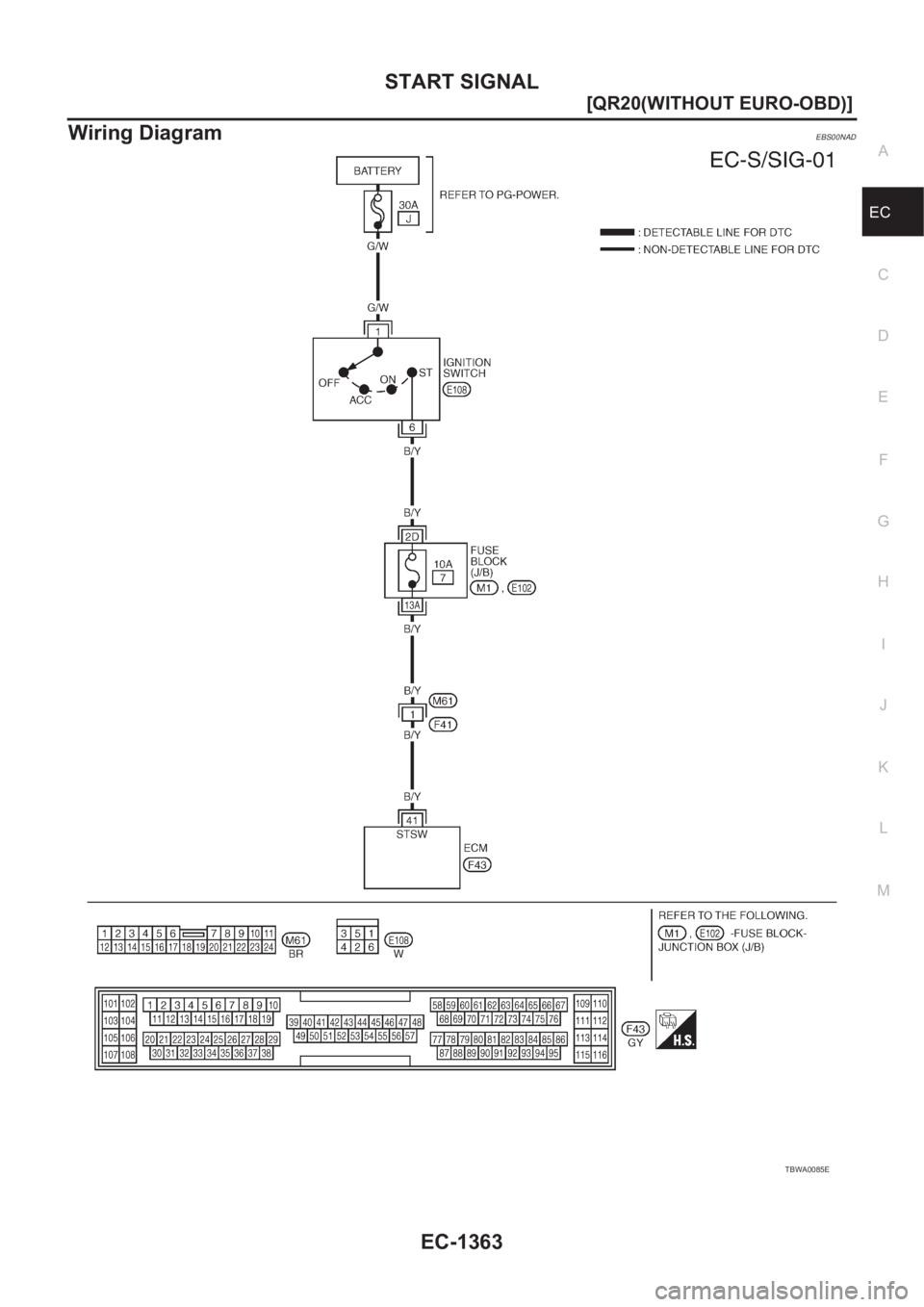

NISSAN X-TRAIL 2001 Service Repair Manual START SIGNAL EC-1363 [QR20(WITHOUT EURO-OBD)] C D E F G H I J K L MA EC Wiring DiagramEBS00NAD TBWA0085E

Page 1714 of 3833

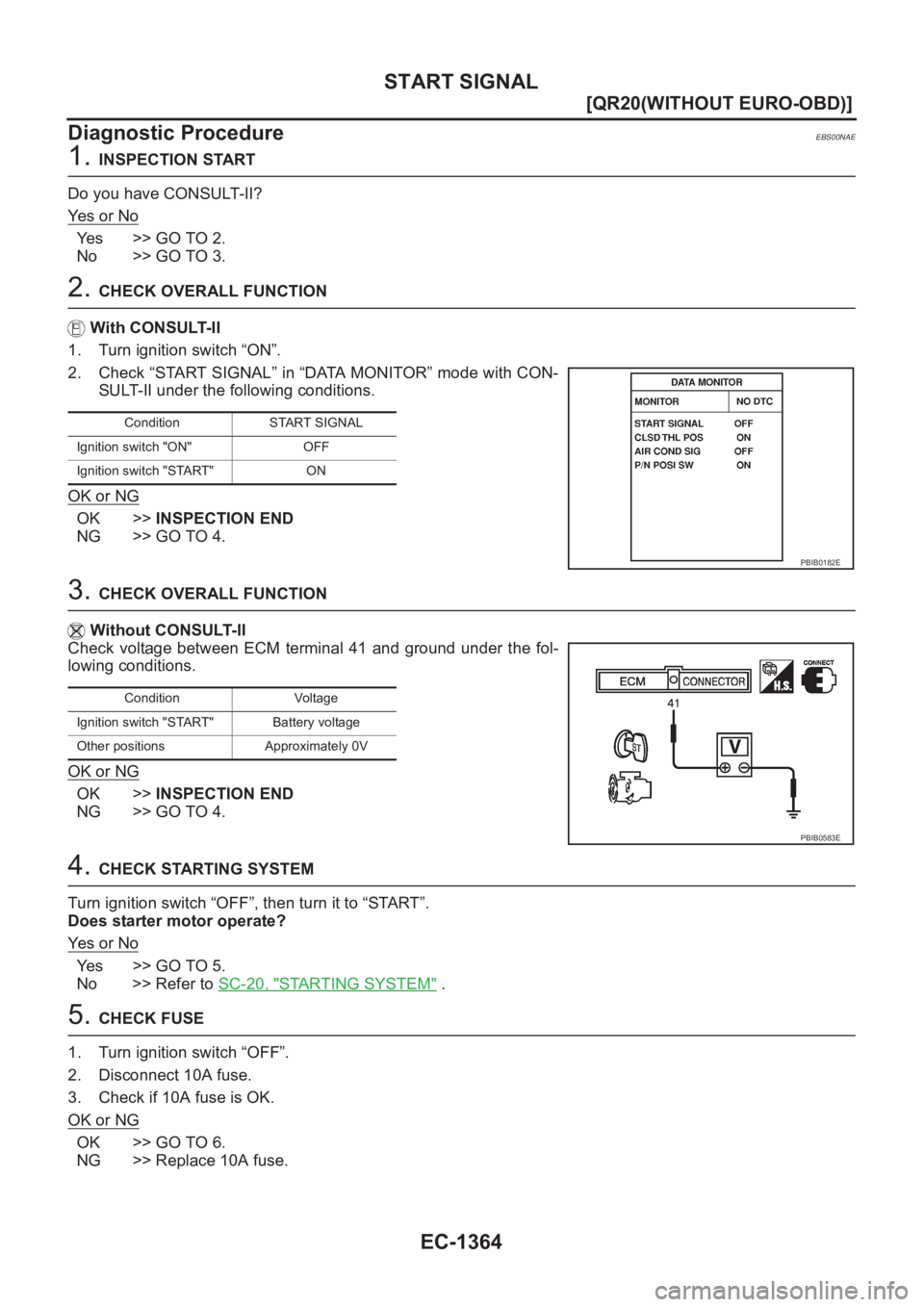

NISSAN X-TRAIL 2001 Service Repair Manual EC-1364 [QR20(WITHOUT EURO-OBD)] START SIGNAL Diagnostic Procedure EBS00NAE 1. INSPECTION START Do you have CONSULT-II? Ye s o r N o Yes >> GO TO 2. No >> GO TO 3. 2. CHECK OVERALL FUNCTION With C

Page 1715 of 3833

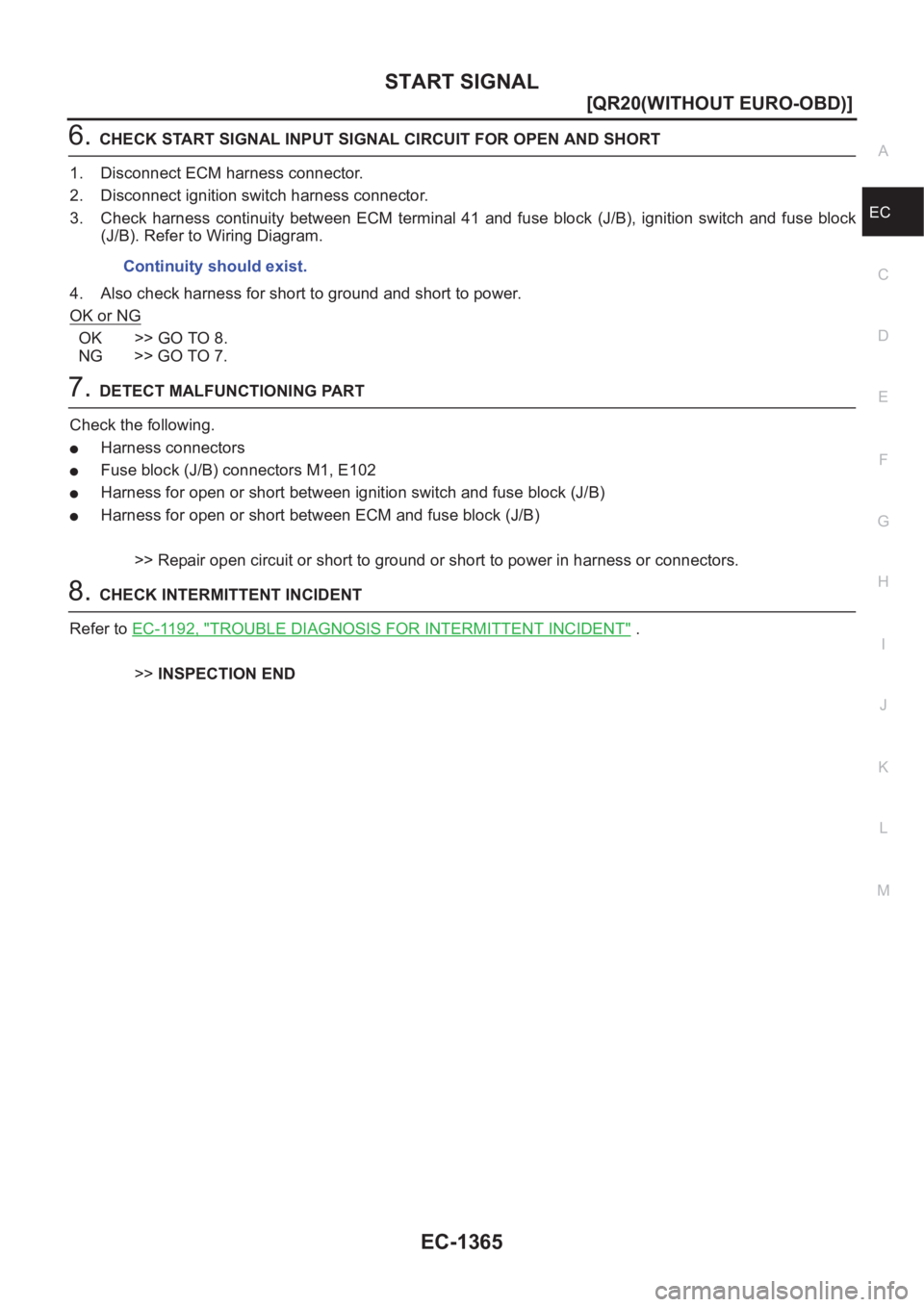

NISSAN X-TRAIL 2001 Service Repair Manual START SIGNAL EC-1365 [QR20(WITHOUT EURO-OBD)] C D E F G H I J K L MA EC 6.CHECK START SIGNAL INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT 1. Disconnect ECM harness connector. 2. Disconnect ignition switch

Page 1716 of 3833

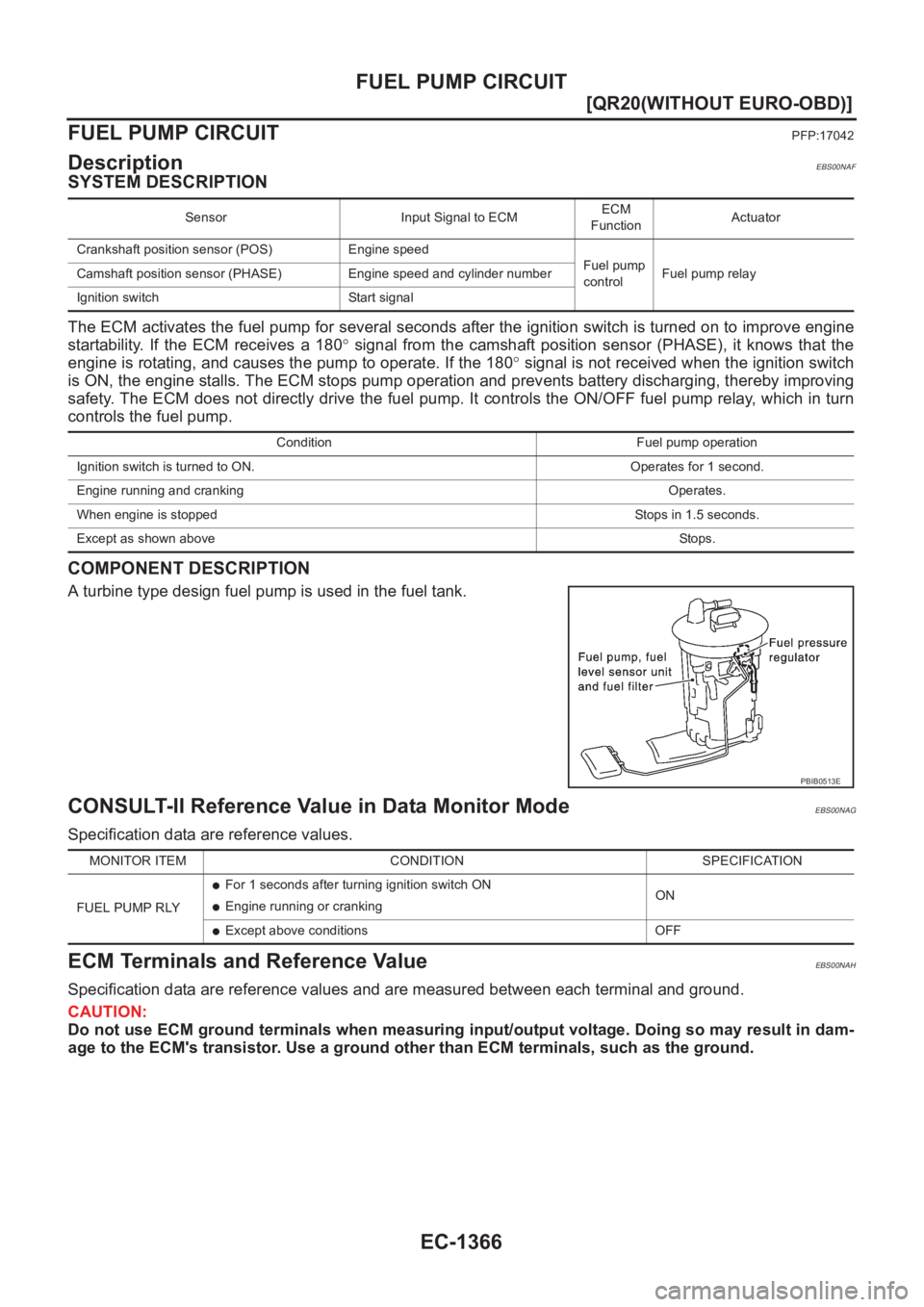

NISSAN X-TRAIL 2001 Service Repair Manual EC-1366 [QR20(WITHOUT EURO-OBD)] FUEL PUMP CIRCUIT FUEL PUMP CIRCUIT PFP:17042 DescriptionEBS00NAF SYSTEM DESCRIPTION The ECM activates the fuel pump for several seconds after the ignition switch is t

Page 1717 of 3833

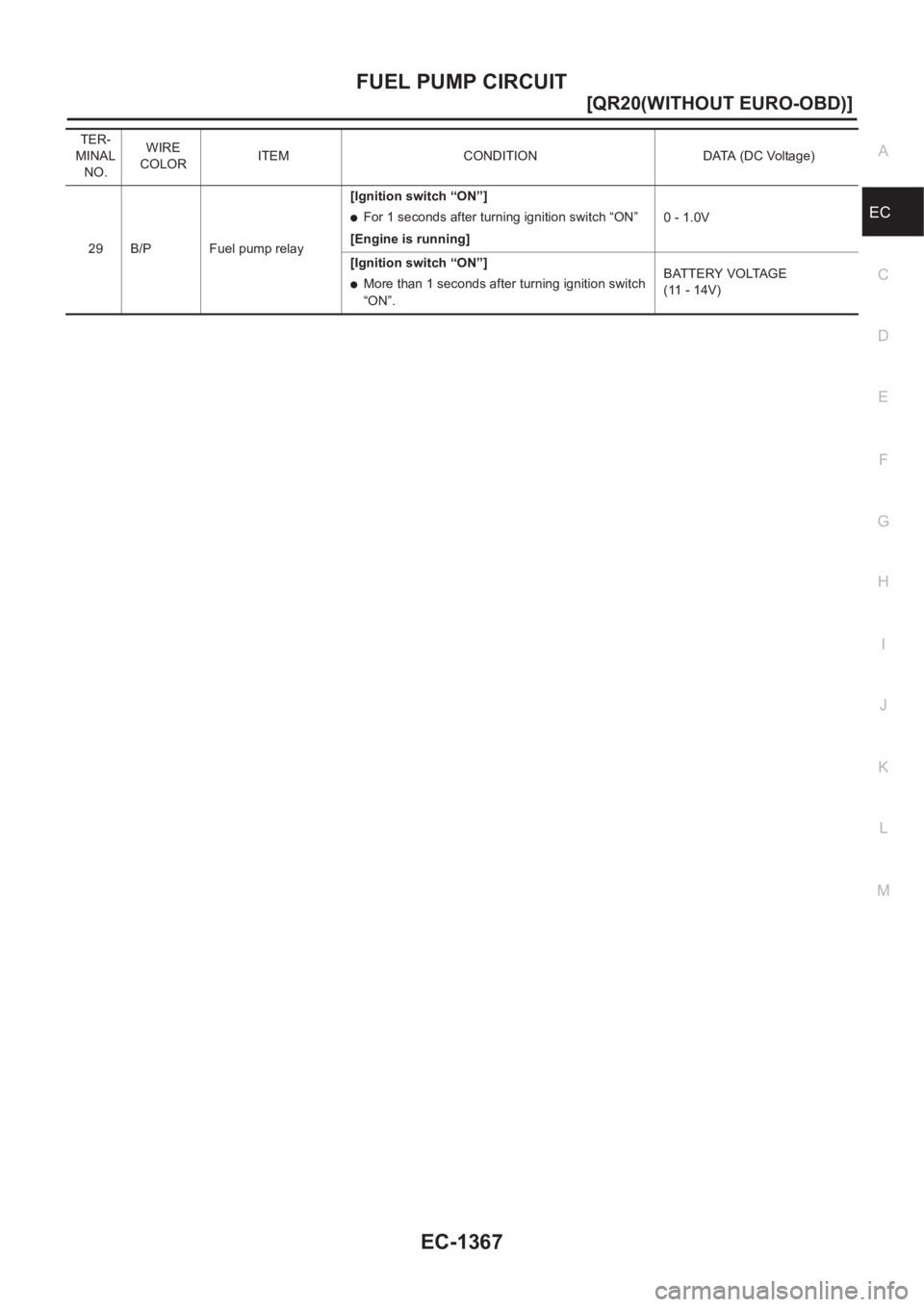

NISSAN X-TRAIL 2001 Service Repair Manual FUEL PUMP CIRCUIT EC-1367 [QR20(WITHOUT EURO-OBD)] C D E F G H I J K L MA EC TER- MINAL NO.WIRE COLORITEM CONDITION DATA (DC Voltage) 29 B/P Fuel pump relay[Ignition switch “ON”] ●For 1 second

Page 1718 of 3833

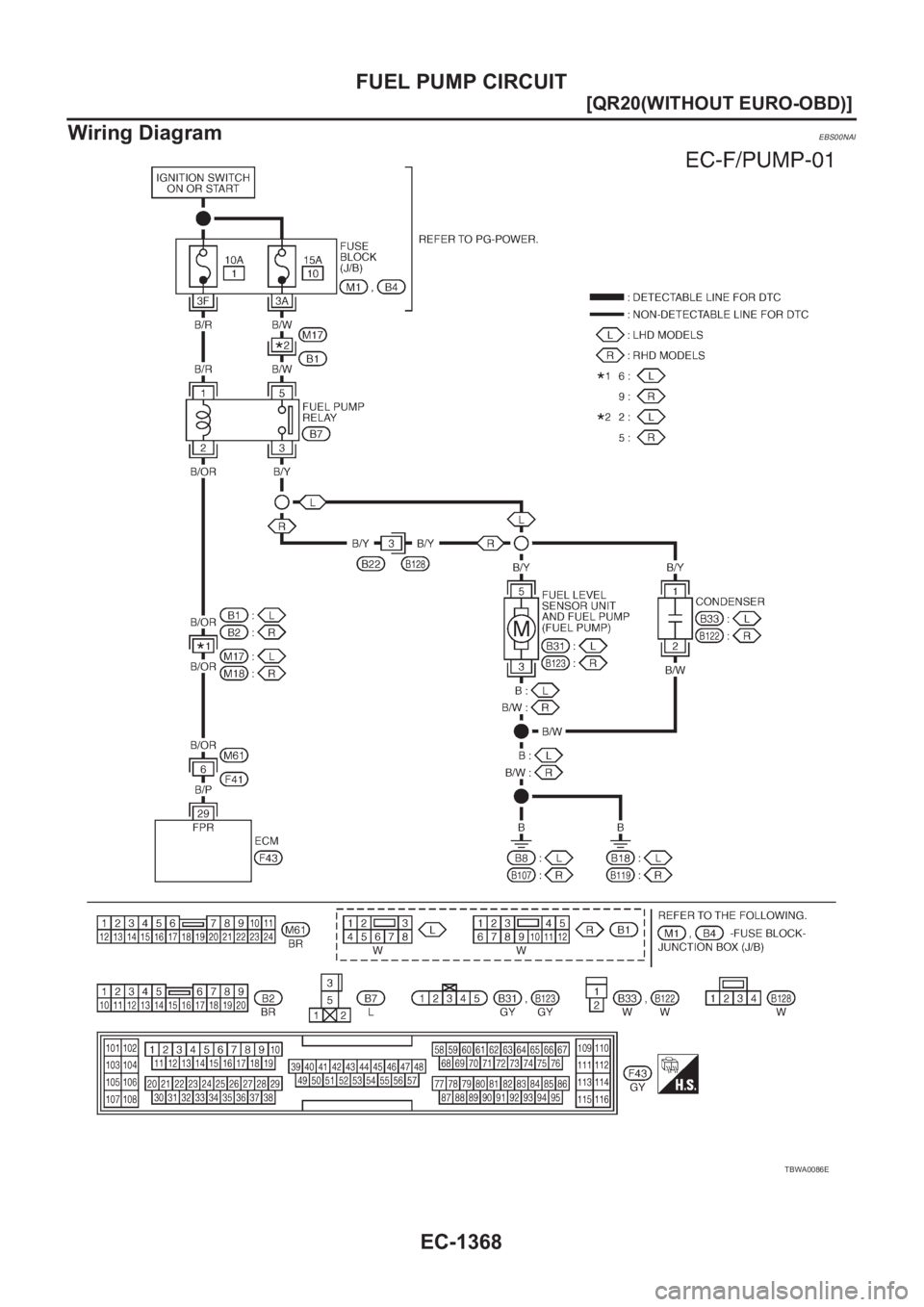

NISSAN X-TRAIL 2001 Service Repair Manual EC-1368 [QR20(WITHOUT EURO-OBD)] FUEL PUMP CIRCUIT Wiring Diagram EBS00NAI TBWA0086E

Page 1719 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual FUEL PUMP CIRCUIT EC-1369 [QR20(WITHOUT EURO-OBD)] C D E F G H I J K L MA EC Diagnostic ProcedureEBS00NAJ 1.CHECK OVERALL FUNCTION 1. Turn ignition switch “ON”. 2. Pinch fuel feed hose with two fi

Page 1720 of 3833

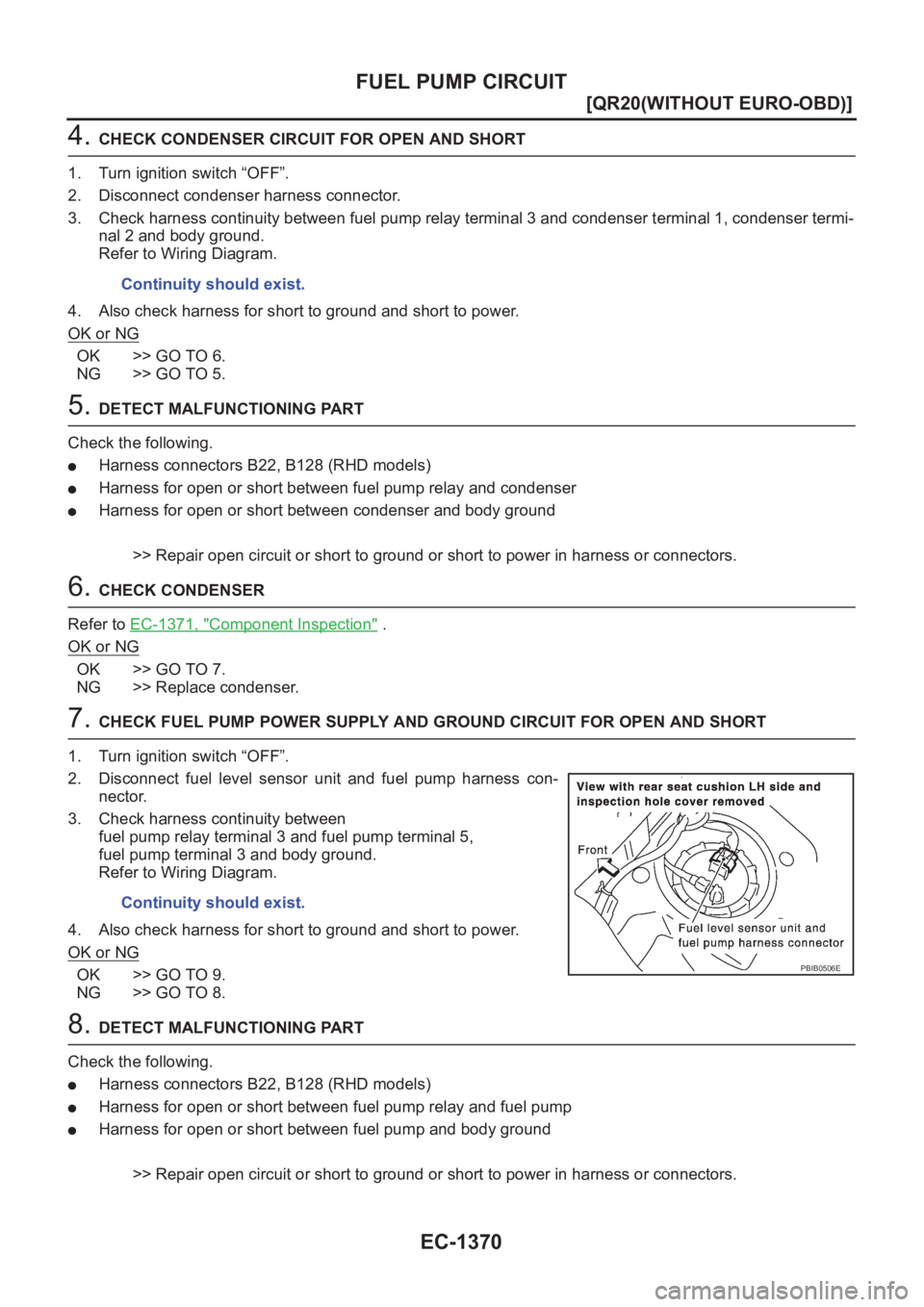

NISSAN X-TRAIL 2001 Service Repair Manual EC-1370 [QR20(WITHOUT EURO-OBD)] FUEL PUMP CIRCUIT 4. CHECK CONDENSER CIRCUIT FOR OPEN AND SHORT 1. Turn ignition switch “OFF”. 2. Disconnect condenser harness connector. 3. Check harness continui
