TROUBLE DIAGNOSIS
BRC-105
[ESP/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
4.ACTUATOR RELAY POWER SUPPLY CIRCUIT INSPECTION
1. Disconnect relay box connectors.
2. Check the voltage between the vehicle-side connector E55 and
body ground.
Is inspection result OK?
YES >> GO TO 5.
NO >>
●Check the fuse 30A.
●Check for continuity between the battery and the relay box terminal No. 9. If it is not OK,
replace the fuse or harness.
5.ACTUATOR RELAY POWER CIRCUIT CHECK
1. Disconnect connectors for the ESP/TCS/ABS control unit and
the relay box.
2. Check for continuity between the ESP/TCS/ABS control unit
(vehicle-side connector B111) and the relay box (vehicle-side
connector E56).
Is inspection result OK?
YES >> GO TO 6.
NO >> Harness disconnection between the ESP/TCS/ABS control unit and the relay box.
6.ACTUATOR RELAY UNIT INSPECTION
Check the actuator relay as a unit.
Is inspection result OK?
YES >> Check the ESP/TCS/ABS control unit power supply circuit.
NO >> Replace the actuator relay.
SFIA0919E
RELAY BOX
(Vehicle-side connector) E55Body ground Voltage value
9 (BR) – Battery voltage (approx. 12V)
SFIA0920E
ESP/TCS/ABS control unit
(Vehicle-side connector B111)ESP relay box
(Vehicle-side connector E56)Continuity
2 (Y/R) 5 (Y/R) Yes
36 (L/Y) 7 (L/Y) Yes
Page 2890 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual BRC-106
[ESP/TCS/ABS]
TROUBLE DIAGNOSIS
Inspection 10 Stop Lamp Switch and Circuit
EFS001AL
Inspection procedure
1. SELF-DIAGNOSIS RESULT CHECK
Check the self-diagnosis results.
Is
“STOP LAMP SW” NISSAN X-TRAIL 2001 Service Repair Manual BRC-106
[ESP/TCS/ABS]
TROUBLE DIAGNOSIS
Inspection 10 Stop Lamp Switch and Circuit
EFS001AL
Inspection procedure
1. SELF-DIAGNOSIS RESULT CHECK
Check the self-diagnosis results.
Is
“STOP LAMP SW”](/manual-img/5/57405/w960_57405-2889.png)
BRC-106
[ESP/TCS/ABS]
TROUBLE DIAGNOSIS
Inspection 10 Stop Lamp Switch and Circuit
EFS001AL
Inspection procedure
1. SELF-DIAGNOSIS RESULT CHECK
Check the self-diagnosis results.
Is
“STOP LAMP SW” indicated in the self-diagnosis results?
>> GO TO 2.
2. STOP LAMP INSPECTION
1. Disconnect connectors for the stop lamp switch and the ESP/TCS/ABS control unit.
2. Securely connect them again.
3. Start the engine.
4. Repeat depressing the brake pedal carefully several times, then perform the self-diagnosis again.
Is the same self-diagnosis item indicated?
YES >> GO TO 3.
NO >> Repair or replace the poorly connected connector.
3. STOP LAMP SWITCH CIRCUIT CHECK
1. Disconnect connectors for the stop lamp switch and the ESP/
TCS/ABS control unit.
2. Check for continuity between the stop lamp switch (vehicle-side
connector M12) and the ESP/TCS/ABS control unit (vehicle-
side connector B111).
Is inspection result OK?
YES >> Perform the ESP/TCS/ABS control unit self-diagnosis again.
NO >> Harness disconnection between the ESP/TCS/ABS control unit and the stop lamp switch.
Inspection 11 ESP/TCS/ABS Control Unit Power Supply CircuitEFS001AM
Inspection procedure
1. SELF-DIAGNOSIS RESULT CHECK 1
Check the self-diagnosis results.
Is
“BATTERY VOLTTAGE [ABNORMAL]” indicated in the self-diagnosis results?
>> GO TO 2.
Self-diagnosis results
CONSUL-II indication item
STOP LAMP SW
SFIA0921E
ESP/TCS/ABS control unit
(Vehicle-side connector B111)STOP LAMP SW
(Vehicle-side connector M12)Continuity
48 (P) 2 (P) Yes
Self-diagnosis results
CONSUL-II indication item
BATTERY VOLTTAGE [ABNORMAL]
Page 2891 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual TROUBLE DIAGNOSIS
BRC-107
[ESP/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
2.SELF-DIAGNOSIS RESULT CHECK 2
1. Disconnect the ESP/TCS/ABS control unit connector. Securely connect them again.
2. Perform the sel NISSAN X-TRAIL 2001 Service Repair Manual TROUBLE DIAGNOSIS
BRC-107
[ESP/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
2.SELF-DIAGNOSIS RESULT CHECK 2
1. Disconnect the ESP/TCS/ABS control unit connector. Securely connect them again.
2. Perform the sel](/manual-img/5/57405/w960_57405-2890.png)
TROUBLE DIAGNOSIS
BRC-107
[ESP/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
2.SELF-DIAGNOSIS RESULT CHECK 2
1. Disconnect the ESP/TCS/ABS control unit connector. Securely connect them again.
2. Perform the self-diagnosis.
Is the same self-diagnosis item indicated?
YES >> GO TO 3.
NO >> Repair or replace the poorly connected connector.
3.ESP/TCS/ABS CONTROL UNIT POWER SUPPLY CIRCUIT INSPECTION 1
1. Disconnect the ESP/TCS/ABS control unit connector.
2. Turn the ignition switch ON (engine not running), and check the
voltage between the ESP/TCS/ABS control unit (vehicle-side
connector B111) and body ground.
Is inspection result OK?
YES >> GO TO 4.
NO >> GO TO 5.
4.ESP/TCS/ABS CONTROL UNIT GROUND CIRCUIT INSPECTION 1
Check the ESP/TCS/ABS control unit (vehicle-side connector B111)
ground circuit.
Is inspection result OK?
YES >> Perform the ESP/TCS/ABS control unit self-diagnosis again.
NO >> Harness disconnection or improper installation of the ESP/TCS/ABS control unit.
SFIA0922E
ESP/TCS/ABS control unit
(Vehicle-side connector B111)Body ground Voltage value
1 (G/R) – Battery voltage (approx. 12V)
SFIA0923E
ESP/TCS/ABS control unit
(Vehicle-side connector B111)Body ground Continuity
28 (B) – Yes
29 (B) – Yes
Page 2892 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual BRC-108
[ESP/TCS/ABS]
TROUBLE DIAGNOSIS
5. ESP/TCS/ABS CONTROL UNIT POWER SUPPLY CIRCUIT INSPECTION 2
1. Check the fuse 10A.
2. Check for continuity between the battery positive terminal and
t NISSAN X-TRAIL 2001 Service Repair Manual BRC-108
[ESP/TCS/ABS]
TROUBLE DIAGNOSIS
5. ESP/TCS/ABS CONTROL UNIT POWER SUPPLY CIRCUIT INSPECTION 2
1. Check the fuse 10A.
2. Check for continuity between the battery positive terminal and
t](/manual-img/5/57405/w960_57405-2891.png)
BRC-108
[ESP/TCS/ABS]
TROUBLE DIAGNOSIS
5. ESP/TCS/ABS CONTROL UNIT POWER SUPPLY CIRCUIT INSPECTION 2
1. Check the fuse 10A.
2. Check for continuity between the battery positive terminal and
the ESP/TCS/ABS control unit (vehicle-side connector B111).
Is inspection result OK?
YES >> Check the battery for a loose terminal and low voltage or the alternator for abnormality.
NO >>
●Replace the fuse 10A.
●Harness disconnection
Inspection 12 When “EMERGENCY BRAKE” is indicated in the Self-Diagnosis
Results
EFS001AO
Inspection procedure
1. SELF-DIAGNOSIS RESULT CHECK
Check the self-diagnosis results.
When any items other than “EMERGENCY BRAKE” is displayed in the self-diagnosis results, follow the
instructions below.
CAUTION:
“EMERGENCY BRAKE” is indicated when the control unit itself is detected internal error. If this dis-
play item was indicated, replace the control unit.
Is
“EMERGENCY BRAKE” is indicated in the self-diagnosis results?
>> Replace the ESP/TCS/ABS control unit, and perform the self-diagnosis again.
Inspection 13 When “ST ANG SEN SIGNAL” is Indicated in the Self-Diagnosis
Results
EFS001AP
Inspection procedure
1. SELF-DIAGNOSIS RESULT CHECK 1
Check the self-diagnosis results.
When any items other than
“ST ANGLE SEN SIGNAL” is displayed in the self-diagnosis results:
YES >> Check and repair the applicable items. Perform the self-diagnosis again.
NO >> Perform the steering wheel angle sensor neutral position adjustment. GO TO 2.
SFIA0924E
ESP/TCS/ABS control unit
(Vehicle-side connector B111)Battery terminal Continuity
1 (G/R) positive Yes
Self-diagnosis results
CONSUL-II indication item
EMERGENCY BRAKE
Self-diagnosis results
CONSUL-II indication item
ST ANGLE SEN SIGNAL
Page 2893 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual TROUBLE DIAGNOSIS
BRC-109
[ESP/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
2.SELF-DIAGNOSIS RESULT CHECK 2
Turn the ignition switch OFF, and ON to erase the self-diagnosis results. And perform the ESP/TCS/ABS NISSAN X-TRAIL 2001 Service Repair Manual TROUBLE DIAGNOSIS
BRC-109
[ESP/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
2.SELF-DIAGNOSIS RESULT CHECK 2
Turn the ignition switch OFF, and ON to erase the self-diagnosis results. And perform the ESP/TCS/ABS](/manual-img/5/57405/w960_57405-2892.png)
TROUBLE DIAGNOSIS
BRC-109
[ESP/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
2.SELF-DIAGNOSIS RESULT CHECK 2
Turn the ignition switch OFF, and ON to erase the self-diagnosis results. And perform the ESP/TCS/ABS con-
trol unit self-diagnosis again.
Is the same self-diagnosis item indicated again?
YES >> After replacing the spiral cable (with the steering wheel angle sensor), perform the neutral position
adjustment. Then conduct the self-diagnosis again.
NO >> Inspection End
Inspection 14 Brake Fluid Level of Reservoir Tank, Communication Circuit
between ESP/TCS/ABS Control Unit and Brake Fluid Level Warning Switch
EFS001AQ
Inspection procedure
1.SELF-DIAGNOSIS RESULT CHECK 1
Check the self-diagnosis results.
Does the brake warning light turn on?
YES >> Check the pad for wear. Check the brake fluid for leakage.
NO >> GO TO 2.
2.SELF-DIAGNOSIS RESULT CHECK 2
1. Disconnect connectors for the brake fluid level warning switch and the ESP/TCS/ABS control unit.
2. Securely connect connectors. Perform the ESP/TCS/ABS control unit self-diagnosis again.
Is the same self-diagnosis item indicated again?
YES >> GO TO 3.
NO >> Poor connection of connector. Repair or replace the poorly connected connector.
3.CIRCUIT CHECK BETWEEN BRAKE FLUID LEVEL WARNING SWITCH AND ESP/TCS/ABS CON-
TROL UNIT
1. Disconnect connectors for the brake fluid level warning switch
and the ESP/TCS/ABS control unit.
2. Check for continuity between the brake fluid level warning switch (vehicle-side connector E19) and the
ESP/TCS/ABS control unit (vehicle-side connector B111).
Is inspection result OK?
YES >> Perform the ESP/TCS/ABS control unit self-diagnosis again.
NO >> Repair or replace the disconnected harness.
Self-diagnosis results
CONSUL-II indication item
BR FLUID LEVER LOW
SFIA0925E
ESP/TCS/ABS control unit
(Vehicle-side connector B111)Brake fluid level warning switch
(Vehicle-side connector E19)Continuity
40 (Y/B) 1 (Y/B) Yes
Page 2894 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual BRC-110
[ESP/TCS/ABS]
TROUBLE DIAGNOSIS
Inspection 15 CAN Communication Circuit, ESP/TCS/ABS Control Unit and
Steering Wheel Angle Sensor
EFS001C6
Inspection procedure
1. SELF-DIAGNOSIS RESULT CHECK NISSAN X-TRAIL 2001 Service Repair Manual BRC-110
[ESP/TCS/ABS]
TROUBLE DIAGNOSIS
Inspection 15 CAN Communication Circuit, ESP/TCS/ABS Control Unit and
Steering Wheel Angle Sensor
EFS001C6
Inspection procedure
1. SELF-DIAGNOSIS RESULT CHECK](/manual-img/5/57405/w960_57405-2893.png)
BRC-110
[ESP/TCS/ABS]
TROUBLE DIAGNOSIS
Inspection 15 CAN Communication Circuit, ESP/TCS/ABS Control Unit and
Steering Wheel Angle Sensor
EFS001C6
Inspection procedure
1. SELF-DIAGNOSIS RESULT CHECK 1
Check the self-diagnosis results.
Are any items other than above indicated in self-diagnosis results?
YES >> Repair or replace affected items.
NO >> GO TO 2.
2. CHECK HARNESS AND CONNECTORS BETWEEN ESP/TCS/ABS CONTROL UNIT AND STEERING
WHEEL ANGLE SENSOR.
1. Turn the ignition switch OFF, and disconnect the battery nega-
tive terminal.
2. Disconnect the ESP/TCS/ABS control unit connector and the
steering wheel angle sensor connector.
3. Check the harness between the ESP/TCS/ABS control unit
(vehicle-side connector B111) and the steering wheel angle sen-
sor (vehicle-side connector M81) for open and short circuit.
4. Check connectors for the control unit and the sensor.
–Check the connector housing for disconnected, loose, bent, and
collapsed terminals.
Is inspection result OK?
YES >> GO TO 3.
NO >> Repair disconnected harness or poorly connected connectors. GO TO 3.
3. SELF-DIAGNOSIS RESULT CHECK 2
1. Connect connectors to the control unit and the sensor.
2. Connect the battery negative terminal, and turn the ignition switch ON.
3. After erasing the self-diagnosis result, start the engine to perform the self-diagnosis again.
Is only
“ST ANGLE SEN COM CIR” indicated in the self-diagnosis results?
YES >> Replace the spiral cable (with the steering wheel angle sensor) and adjust the neutral position of
the steering wheel angle sensor. Refer to BRC-57, "
ON-VEHICLE SERVICE" .
NO >> GO TO 4.
Self-diagnosis results
CONSUL-II indication item
CAN COMM CIRCUIT
ST ANG SEN COM CIR
SFIA0904E
ESP/TCS/ABS control unit
(Vehicle-side connector B111)Steering wheel angle sensor
(Vehicle-side connector M81)Continuity
2 (Y/R) 3 (Y/R) Yes
Page 2895 of 3833
TROUBLE DIAGNOSIS
BRC-111
[ESP/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
4.CAN COMMUNICATION SYSTEM CHECK
Check “CAN DIAG SUPPORT MNTR” of the data monitor items.
Is inspection result OK?
>> After printing the monitor items, go to CAN SYSTEM. Refer to LAN-12, "CAN SYSTEM (FOR M/
T MODELS)" .

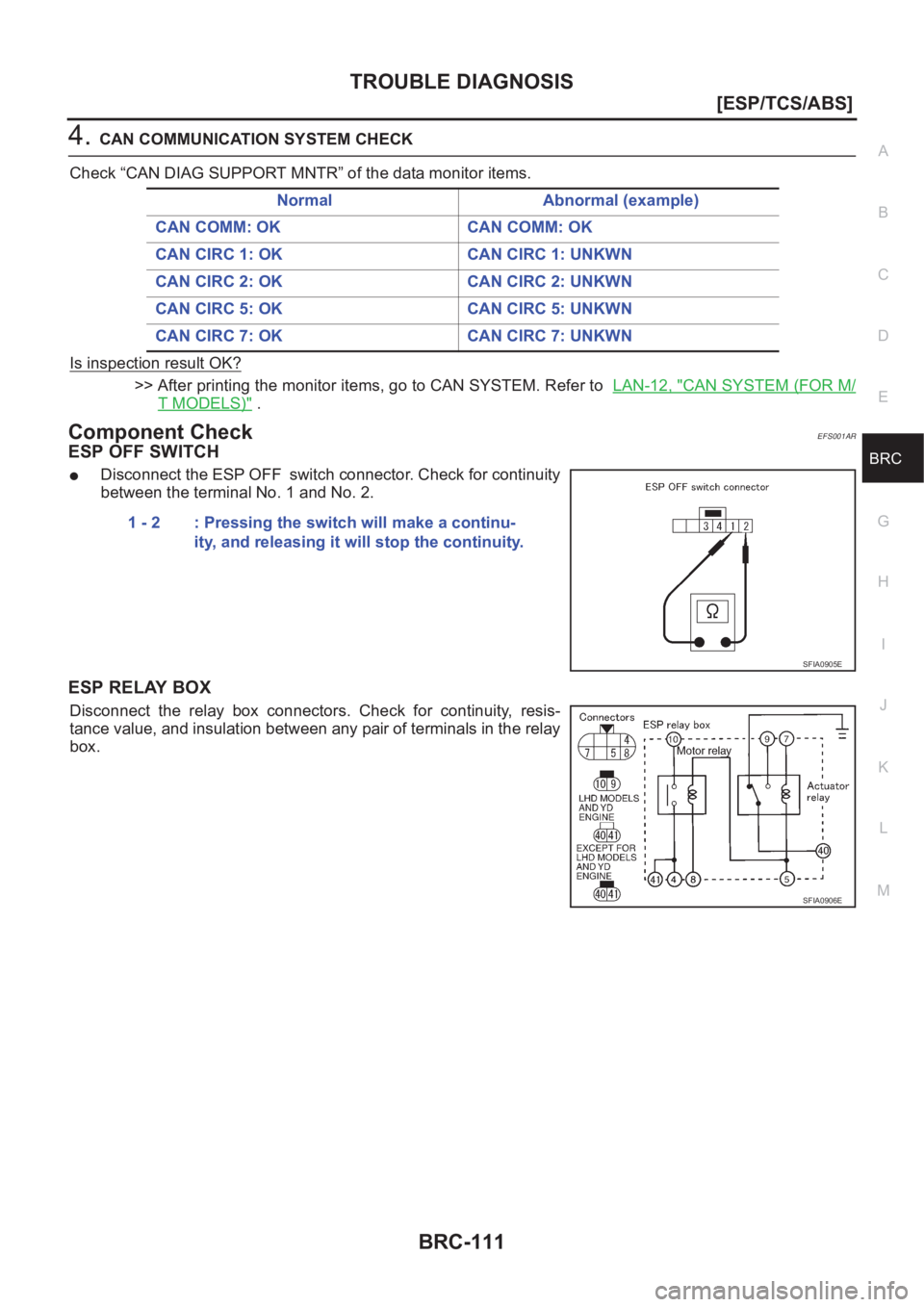

Component CheckEFS001AR
ESP OFF SWITCH
●Disconnect the ESP OFF switch connector. Check for continuity
between the terminal No. 1 and No. 2.
ESP RELAY BOX
Disconnect the relay box connectors. Check for continuity, resis-
tance value, and insulation between any pair of terminals in the relay
box.Normal Abnormal (example)
CAN COMM: OK CAN COMM: OK
CAN CIRC 1: OK CAN CIRC 1: UNKWN
CAN CIRC 2: OK CAN CIRC 2: UNKWN
CAN CIRC 5: OK CAN CIRC 5: UNKWN
CAN CIRC 7: OK CAN CIRC 7: UNKWN
1 - 2 : Pressing the switch will make a continu-
ity, and releasing it will stop the continuity.
SFIA0905E
SFIA0906E
Page 2896 of 3833
BRC-112
[ESP/TCS/ABS]
TROUBLE DIAGNOSIS

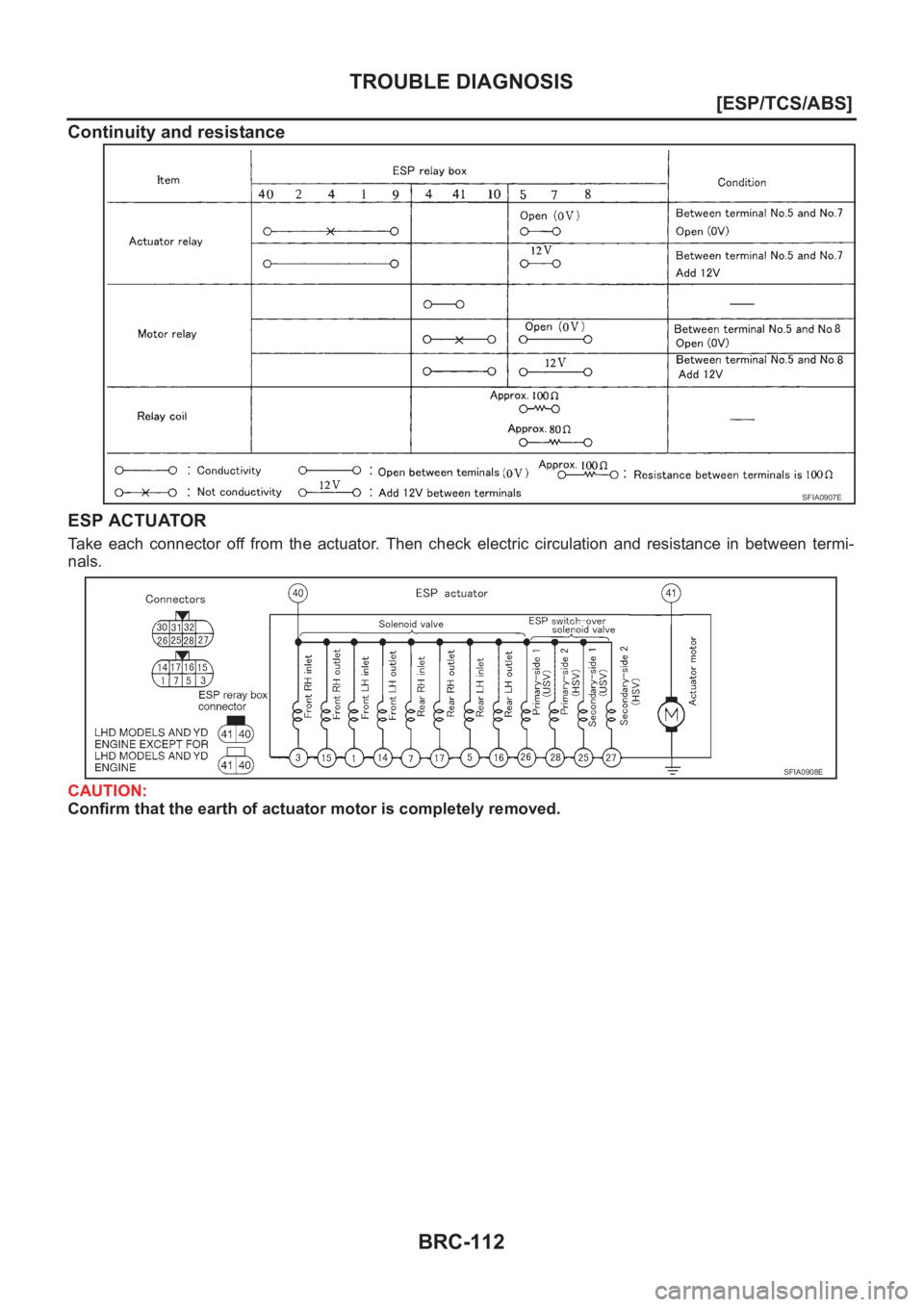

Continuity and resistance
ESP ACTUATOR
Take each connector off from the actuator. Then check electric circulation and resistance in between termi-
nals.
CAUTION:
Confirm that the earth of actuator motor is completely removed.
SFIA0907E
SFIA0908E
