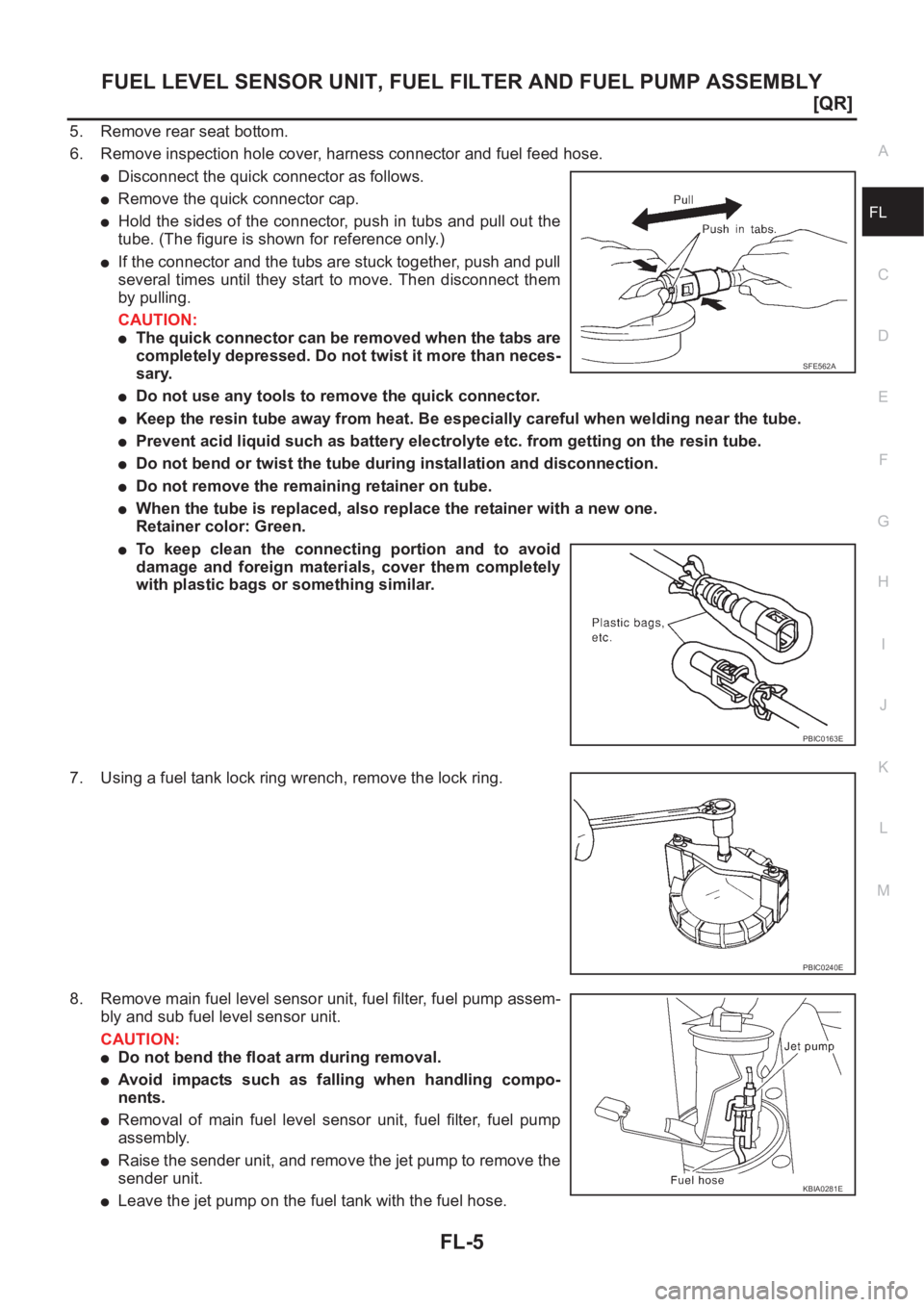

FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY
FL-5
[QR]
C
D
E
F
G
H
I
J
K
L
MA
FL
5. Remove rear seat bottom.
6. Remove inspection hole cover, harness connector and fuel feed hose.
●Disconnect the quick connector as follows.
●Remove the quick connector cap.
●Hold the sides of the connector, push in tubs and pull out the
tube. (The figure is shown for reference only.)
●If the connector and the tubs are stuck together, push and pull
several times until they start to move. Then disconnect them
by pulling.
CAUTION:
●The quick connector can be removed when the tabs are
completely depressed. Do not twist it more than neces-
sary.
●Do not use any tools to remove the quick connector.
●Keep the resin tube away from heat. Be especially careful when welding near the tube.
●Prevent acid liquid such as battery electrolyte etc. from getting on the resin tube.
●Do not bend or twist the tube during installation and disconnection.
●Do not remove the remaining retainer on tube.
●When the tube is replaced, also replace the retainer with a new one.
Retainer color: Green.
●To keep clean the connecting portion and to avoid
damage and foreign materials, cover them completely
with plastic bags or something similar.
7. Using a fuel tank lock ring wrench, remove the lock ring.
8. Remove main fuel level sensor unit, fuel filter, fuel pump assem-
bly and sub fuel level sensor unit.
CAUTION:
●Do not bend the float arm during removal.
●Avoid impacts such as falling when handling compo-
nents.
●Removal of main fuel level sensor unit, fuel filter, fuel pump
assembly.
●Raise the sender unit, and remove the jet pump to remove the
sender unit.
●Leave the jet pump on the fuel tank with the fuel hose.
SFE562A
PBIC0163E
PBIC0240E
KBIA0281E
Page 1930 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual FL-6
[QR]
FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY
●If necessary, remove the chamber from the bottom of the fuel tank.
●Remove the chamber by sliding toward the rear of the vehic NISSAN X-TRAIL 2001 Service Repair Manual FL-6
[QR]
FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY
●If necessary, remove the chamber from the bottom of the fuel tank.
●Remove the chamber by sliding toward the rear of the vehic](/manual-img/5/57405/w960_57405-1929.png)

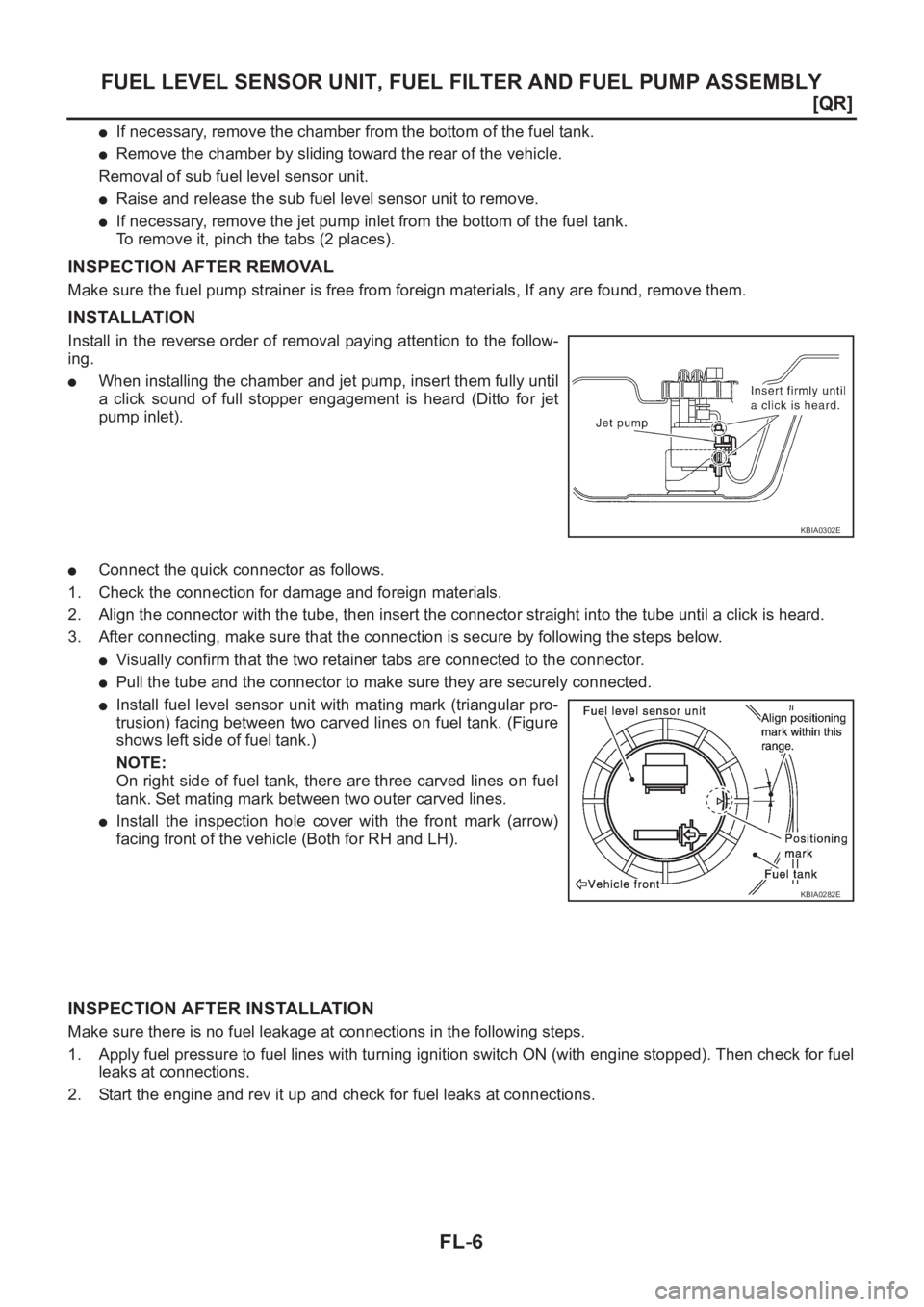

FL-6
[QR]
FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY
●If necessary, remove the chamber from the bottom of the fuel tank.
●Remove the chamber by sliding toward the rear of the vehicle.
Removal of sub fuel level sensor unit.
●Raise and release the sub fuel level sensor unit to remove.
●If necessary, remove the jet pump inlet from the bottom of the fuel tank.
To remove it, pinch the tabs (2 places).
INSPECTION AFTER REMOVAL
Make sure the fuel pump strainer is free from foreign materials, If any are found, remove them.
INSTALLATION
Install in the reverse order of removal paying attention to the follow-
ing.
●When installing the chamber and jet pump, insert them fully until
a click sound of full stopper engagement is heard (Ditto for jet
pump inlet).
●Connect the quick connector as follows.
1. Check the connection for damage and foreign materials.
2. Align the connector with the tube, then insert the connector straight into the tube until a click is heard.
3. After connecting, make sure that the connection is secure by following the steps below.
●Visually confirm that the two retainer tabs are connected to the connector.
●Pull the tube and the connector to make sure they are securely connected.
●Install fuel level sensor unit with mating mark (triangular pro-
trusion) facing between two carved lines on fuel tank. (Figure
shows left side of fuel tank.)
NOTE:
On right side of fuel tank, there are three carved lines on fuel
tank. Set mating mark between two outer carved lines.
●Install the inspection hole cover with the front mark (arrow)
facing front of the vehicle (Both for RH and LH).
INSPECTION AFTER INSTALLATION
Make sure there is no fuel leakage at connections in the following steps.
1. Apply fuel pressure to fuel lines with turning ignition switch ON (with engine stopped). Then check for fuel
leaks at connections.
2. Start the engine and rev it up and check for fuel leaks at connections.
KBIA0302E
KBIA0282E
Page 1931 of 3833

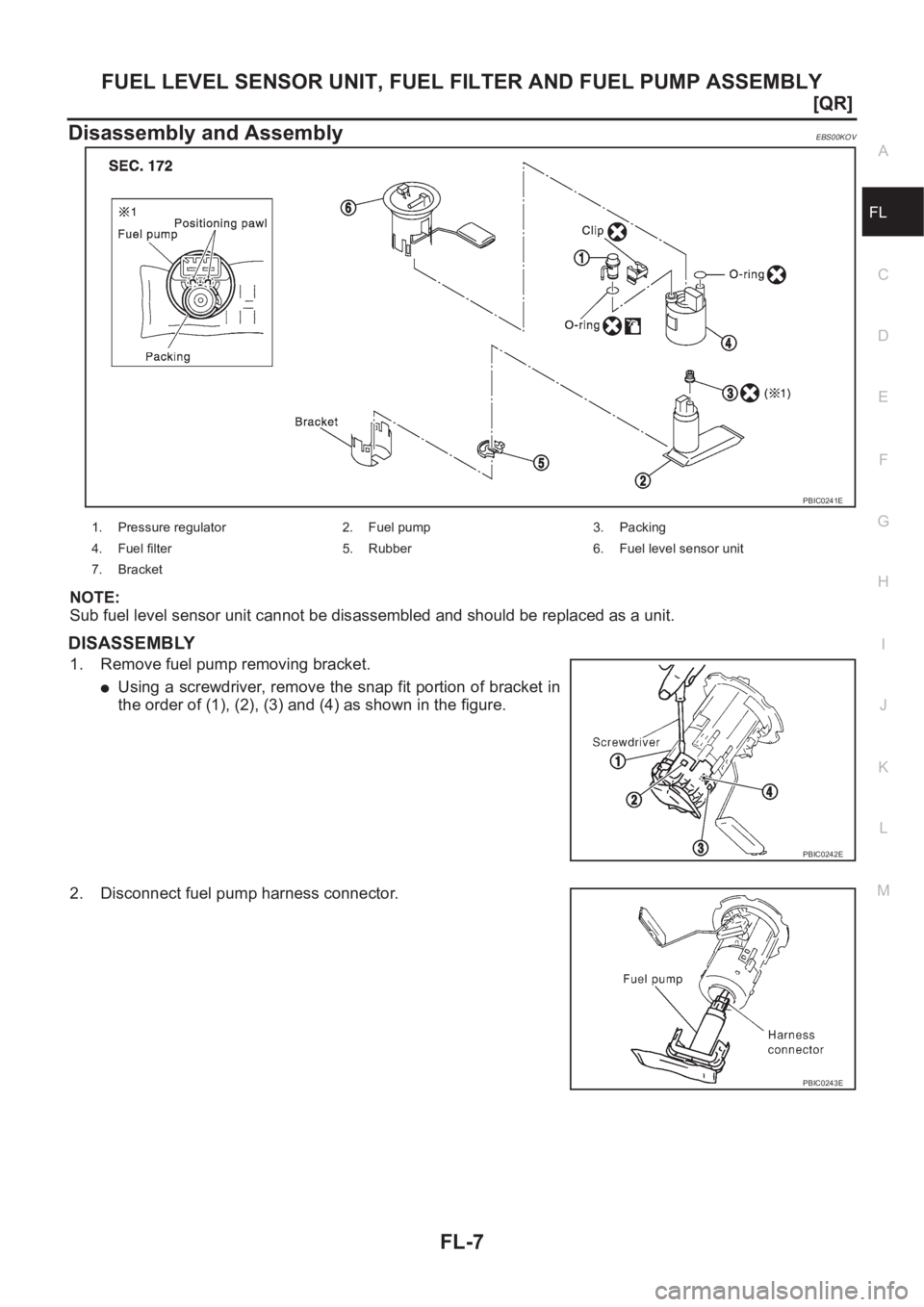

FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY
FL-7
[QR]
C
D
E
F
G
H
I
J
K
L
MA
FL
Disassembly and AssemblyEBS00KOV
NOTE:
Sub fuel level sensor unit cannot be disassembled and should be replaced as a unit.
DISASSEMBLY
1. Remove fuel pump removing bracket.
●Using a screwdriver, remove the snap fit portion of bracket in
the order of (1), (2), (3) and (4) as shown in the figure.
2. Disconnect fuel pump harness connector.
PBIC0241E
1. Pressure regulator 2. Fuel pump 3. Packing
4. Fuel filter 5. Rubber 6. Fuel level sensor unit
7. Bracket
PBIC0242E
PBIC0243E
Page 1932 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual FL-8
[QR]
FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY
3. Separate the fuel filter and fuel level sensor unit.
a. Fit a used O-ring into space between fuel level sensor unit and
fuel NISSAN X-TRAIL 2001 Service Repair Manual FL-8
[QR]
FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY
3. Separate the fuel filter and fuel level sensor unit.
a. Fit a used O-ring into space between fuel level sensor unit and
fuel](/manual-img/5/57405/w960_57405-1931.png)

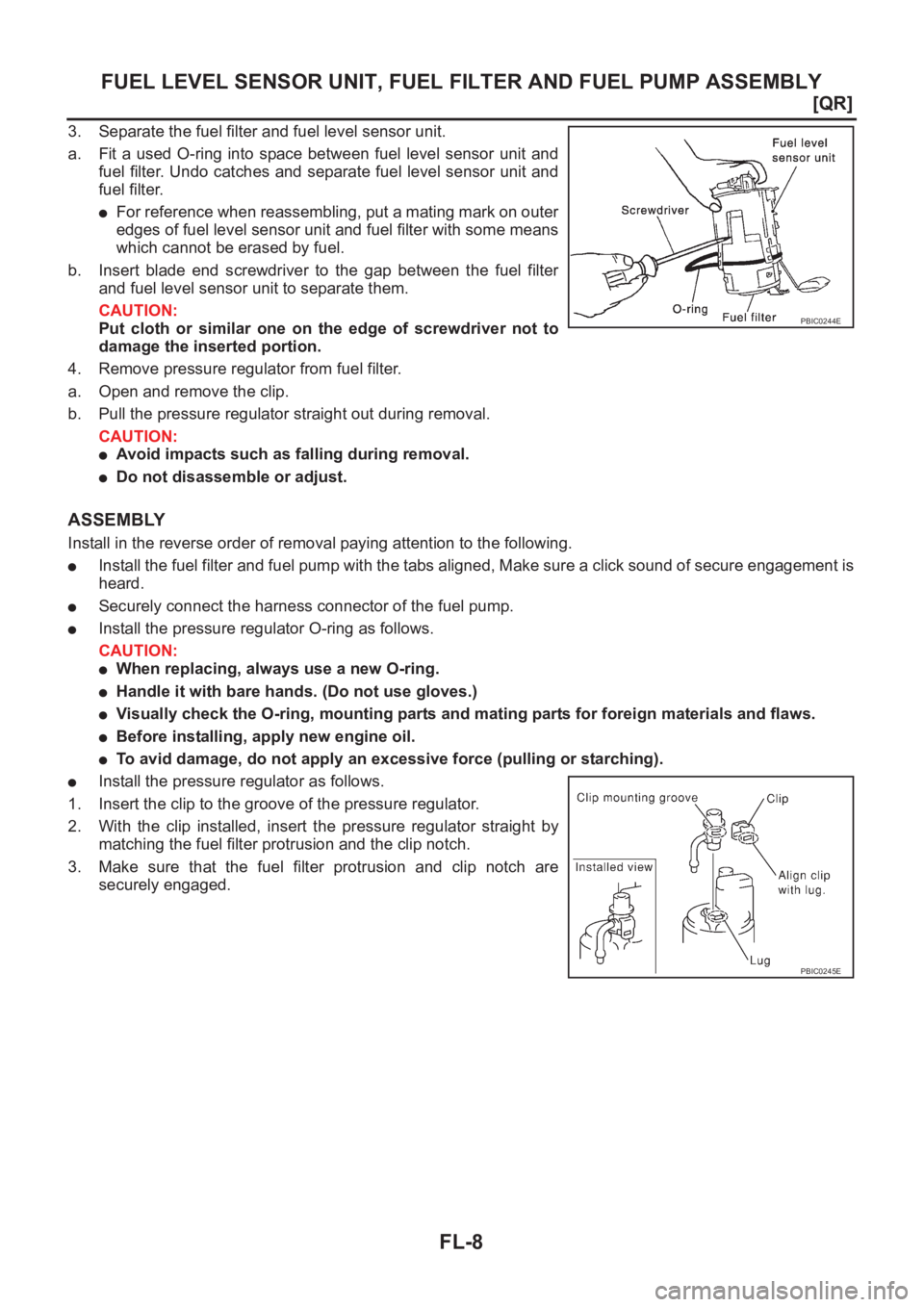

FL-8
[QR]
FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY
3. Separate the fuel filter and fuel level sensor unit.
a. Fit a used O-ring into space between fuel level sensor unit and
fuel filter. Undo catches and separate fuel level sensor unit and
fuel filter.
●For reference when reassembling, put a mating mark on outer
edges of fuel level sensor unit and fuel filter with some means
which cannot be erased by fuel.
b. Insert blade end screwdriver to the gap between the fuel filter
and fuel level sensor unit to separate them.
CAUTION:
Put cloth or similar one on the edge of screwdriver not to
damage the inserted portion.
4. Remove pressure regulator from fuel filter.
a. Open and remove the clip.
b. Pull the pressure regulator straight out during removal.
CAUTION:
●Avoid impacts such as falling during removal.
●Do not disassemble or adjust.
ASSEMBLY
Install in the reverse order of removal paying attention to the following.
●Install the fuel filter and fuel pump with the tabs aligned, Make sure a click sound of secure engagement is
heard.
●Securely connect the harness connector of the fuel pump.
●Install the pressure regulator O-ring as follows.
CAUTION:
●When replacing, always use a new O-ring.
●Handle it with bare hands. (Do not use gloves.)
●Visually check the O-ring, mounting parts and mating parts for foreign materials and flaws.
●Before installing, apply new engine oil.
●To avid damage, do not apply an excessive force (pulling or starching).
●Install the pressure regulator as follows.
1. Insert the clip to the groove of the pressure regulator.
2. With the clip installed, insert the pressure regulator straight by
matching the fuel filter protrusion and the clip notch.
3. Make sure that the fuel filter protrusion and clip notch are
securely engaged.
PBIC0244E
PBIC0245E
Page 1933 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual FUEL TANK
FL-9
[QR]
C
D
E
F
G
H
I
J
K
L
MA
FL
FUEL TANKPFP:17202
Removal and InstallationEBS00KOW
REMOVAL
WARNING:
Be sure to read “General Precautions” when working on fuel system. Refer to FL-3, NISSAN X-TRAIL 2001 Service Repair Manual FUEL TANK
FL-9
[QR]
C
D
E
F
G
H
I
J
K
L
MA
FL
FUEL TANKPFP:17202
Removal and InstallationEBS00KOW
REMOVAL
WARNING:
Be sure to read “General Precautions” when working on fuel system. Refer to FL-3,](/manual-img/5/57405/w960_57405-1932.png)

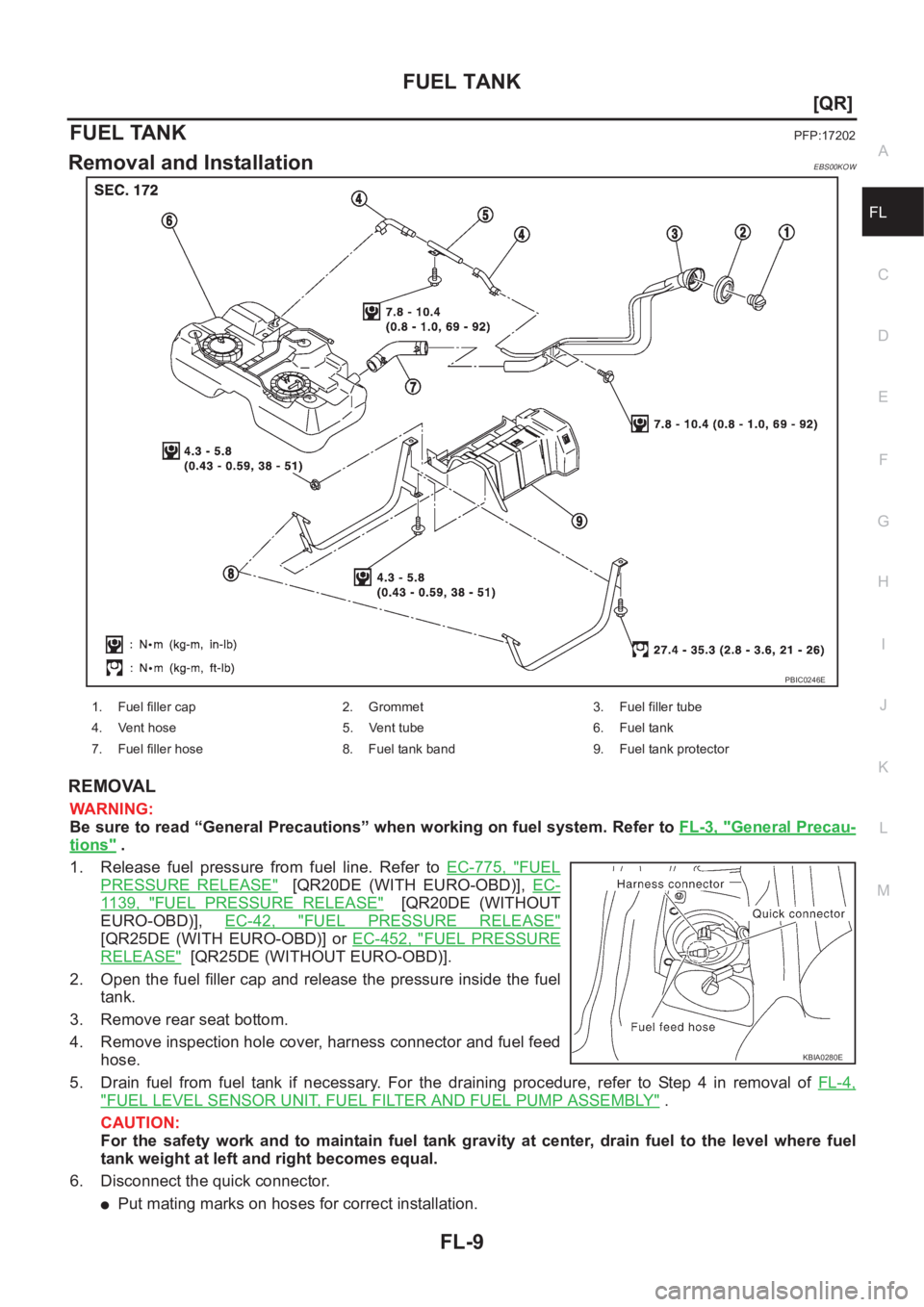

FUEL TANK
FL-9
[QR]
C
D
E
F
G
H
I
J
K
L
MA
FL
FUEL TANKPFP:17202
Removal and InstallationEBS00KOW
REMOVAL
WARNING:
Be sure to read “General Precautions” when working on fuel system. Refer to FL-3, "
General Precau-
tions" .
1. Release fuel pressure from fuel line. Refer to EC-775, "
FUEL
PRESSURE RELEASE" [QR20DE (WITH EURO-OBD)], EC-
11 3 9 , "FUEL PRESSURE RELEASE" [QR20DE (WITHOUT
EURO-OBD)], EC-42, "
FUEL PRESSURE RELEASE"
[QR25DE (WITH EURO-OBD)] or EC-452, "FUEL PRESSURE
RELEASE" [QR25DE (WITHOUT EURO-OBD)].
2. Open the fuel filler cap and release the pressure inside the fuel
tank.
3. Remove rear seat bottom.
4. Remove inspection hole cover, harness connector and fuel feed
hose.
5. Drain fuel from fuel tank if necessary. For the draining procedure, refer to Step 4 in removal of FL-4,
"FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY" .
CAUTION:
For the safety work and to maintain fuel tank gravity at center, drain fuel to the level where fuel
tank weight at left and right becomes equal.
6. Disconnect the quick connector.
●Put mating marks on hoses for correct installation.
PBIC0246E
1. Fuel filler cap 2. Grommet 3. Fuel filler tube
4. Vent hose 5. Vent tube 6. Fuel tank
7. Fuel filler hose 8. Fuel tank band 9. Fuel tank protector
KBIA0280E
Page 1934 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual FL-10
[QR]
FUEL TANK
7. Remove exhaust center tube and insulator. Refer to EX-2, "EXHAUST SYSTEM" .
8. Remove propeller shaft. Refer to PR-2, "
REAR PROPELLER SHAFT" .
9. Using a tra NISSAN X-TRAIL 2001 Service Repair Manual FL-10
[QR]
FUEL TANK
7. Remove exhaust center tube and insulator. Refer to EX-2, "EXHAUST SYSTEM" .
8. Remove propeller shaft. Refer to PR-2, "
REAR PROPELLER SHAFT" .
9. Using a tra](/manual-img/5/57405/w960_57405-1933.png)

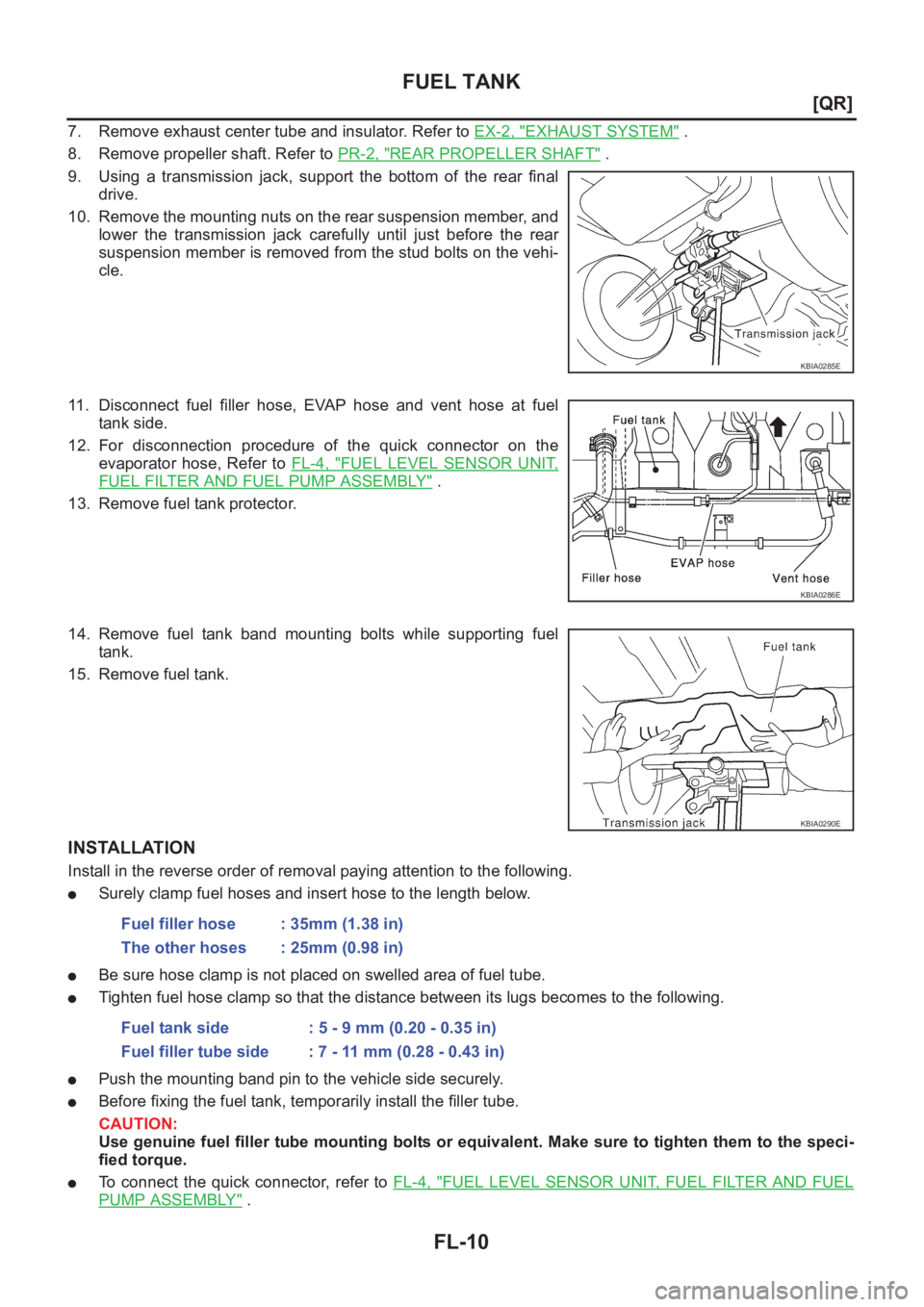

FL-10
[QR]
FUEL TANK
7. Remove exhaust center tube and insulator. Refer to EX-2, "EXHAUST SYSTEM" .
8. Remove propeller shaft. Refer to PR-2, "
REAR PROPELLER SHAFT" .
9. Using a transmission jack, support the bottom of the rear final
drive.
10. Remove the mounting nuts on the rear suspension member, and
lower the transmission jack carefully until just before the rear
suspension member is removed from the stud bolts on the vehi-
cle.
11. Disconnect fuel filler hose, EVAP hose and vent hose at fuel
tank side.
12. For disconnection procedure of the quick connector on the
evaporator hose, Refer to FL-4, "
FUEL LEVEL SENSOR UNIT,
FUEL FILTER AND FUEL PUMP ASSEMBLY" .
13. Remove fuel tank protector.
14. Remove fuel tank band mounting bolts while supporting fuel
tank.
15. Remove fuel tank.
INSTALLATION
Install in the reverse order of removal paying attention to the following.
●Surely clamp fuel hoses and insert hose to the length below.
●Be sure hose clamp is not placed on swelled area of fuel tube.
●Tighten fuel hose clamp so that the distance between its lugs becomes to the following.
●Push the mounting band pin to the vehicle side securely.
●Before fixing the fuel tank, temporarily install the filler tube.
CAUTION:
Use genuine fuel filler tube mounting bolts or equivalent. Make sure to tighten them to the speci-
fied torque.
●To connect the quick connector, refer to FL-4, "FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL
PUMP ASSEMBLY" .
KBIA0285E
KBIA0286E
KBIA0290E
Fuel filler hose : 35mm (1.38 in)
The other hoses : 25mm (0.98 in)
Fuel tank side : 5 - 9 mm (0.20 - 0.35 in)
Fuel filler tube side : 7 - 11 mm (0.28 - 0.43 in)
Page 1935 of 3833
FUEL TANK
FL-11
[QR]
C
D
E
F
G
H
I
J
K
L
MA
FL

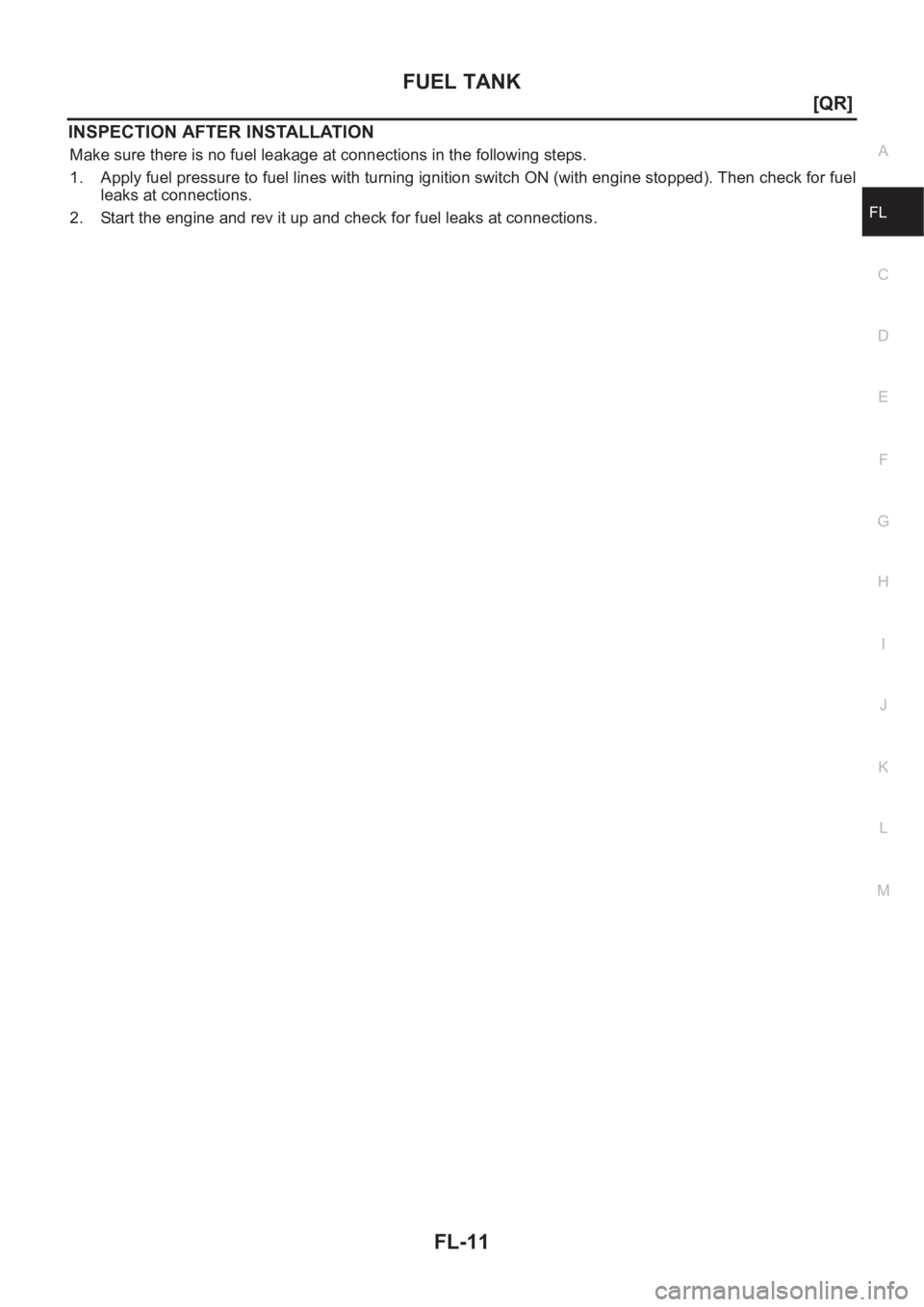

INSPECTION AFTER INSTALLATION
Make sure there is no fuel leakage at connections in the following steps.
1. Apply fuel pressure to fuel lines with turning ignition switch ON (with engine stopped). Then check for fuel
leaks at connections.
2. Start the engine and rev it up and check for fuel leaks at connections.
Page 1936 of 3833
FL-12
[QR]

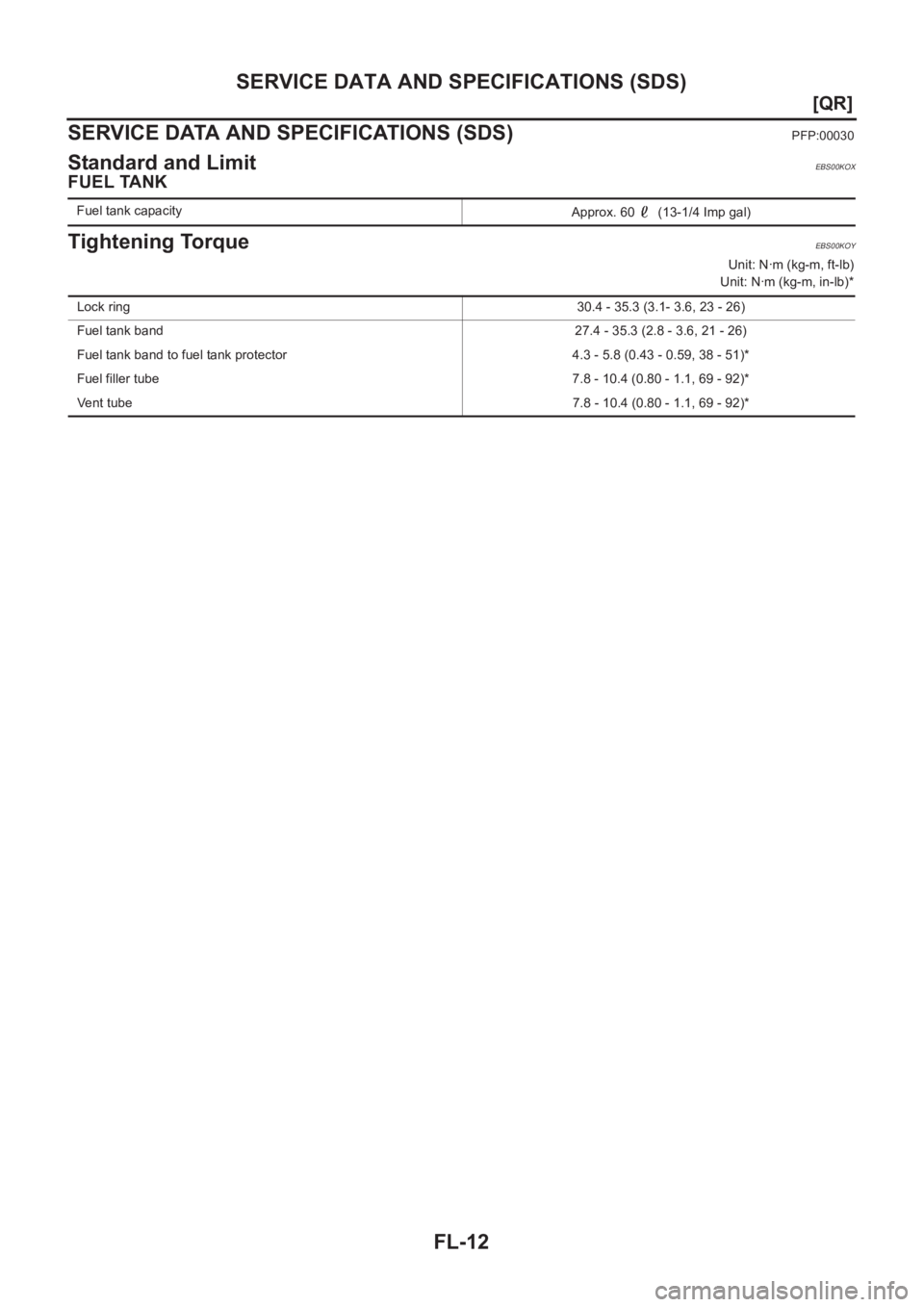

SERVICE DATA AND SPECIFICATIONS (SDS)
SERVICE DATA AND SPECIFICATIONS (SDS)
PFP:00030
Standard and LimitEBS00KOX
FUEL TANK
Tightening TorqueEBS00KOY
Unit: N·m (kg-m, ft-lb)
Unit: N·m (kg-m, in-lb)* Fuel tank capacity
Approx. 60 (13-1/4 Imp gal)
Lock ring30.4 - 35.3 (3.1- 3.6, 23 - 26)
Fuel tank band 27.4 - 35.3 (2.8 - 3.6, 21 - 26)
Fuel tank band to fuel tank protector 4.3 - 5.8 (0.43 - 0.59, 38 - 51)*
Fuel filler tube 7.8 - 10.4 (0.80 - 1.1, 69 - 92)*
Ve n t t u b e7.8 - 10.4 (0.80 - 1.1, 69 - 92)*
