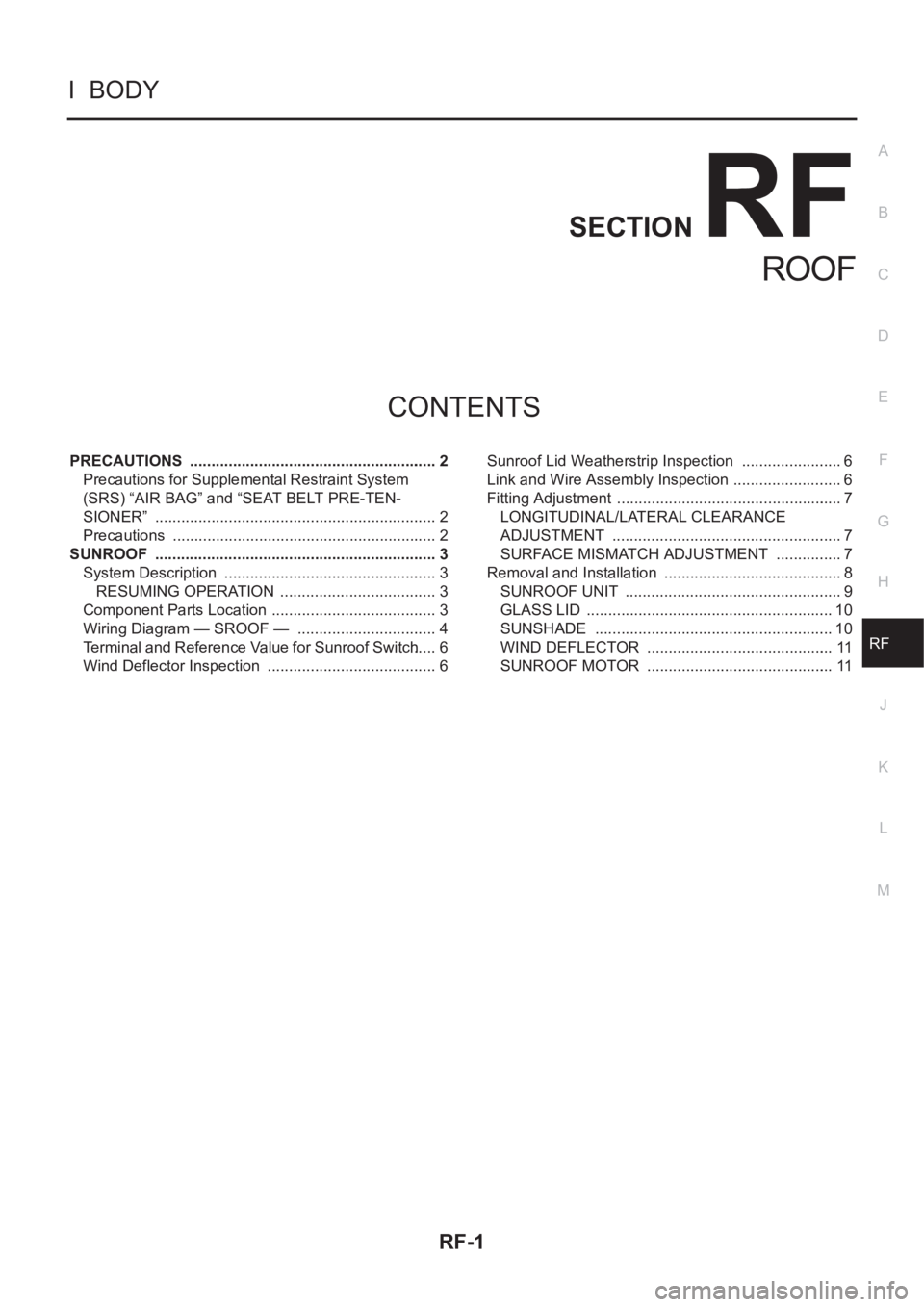

RF-1
ROOF
I BODY
CONTENTS
C
D
E
F
G
H
J
K
L
M
SECTION
A
B
RF
ROOF
PRECAUTIONS .......................................................... 2
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” .................................................................. 2
Precautions .............................................................. 2
SUNROOF .................................................................. 3
System Description .................................................. 3
RESUMING OPERATION ..................................... 3
Component Parts Location ....................................... 3
Wiring Diagram — SROOF — ................................. 4
Terminal and Reference Value for Sunroof Switch ..... 6
Wind Deflector Inspection ........................................ 6Sunroof Lid Weatherstrip Inspection ........................ 6
Link and Wire Assembly Inspection .......................... 6
Fitting Adjustment ..................................................... 7
LONGITUDINAL/LATERAL CLEARANCE
ADJUSTMENT ...................................................... 7
SURFACE MISMATCH ADJUSTMENT ................ 7
Removal and Installation .......................................... 8
SUNROOF UNIT ................................................... 9
GLASS LID .......................................................... 10
SUNSHADE ........................................................ 10
WIND DEFLECTOR ............................................ 11
SUNROOF MOTOR ............................................ 11
Page 3210 of 3833

RF-2

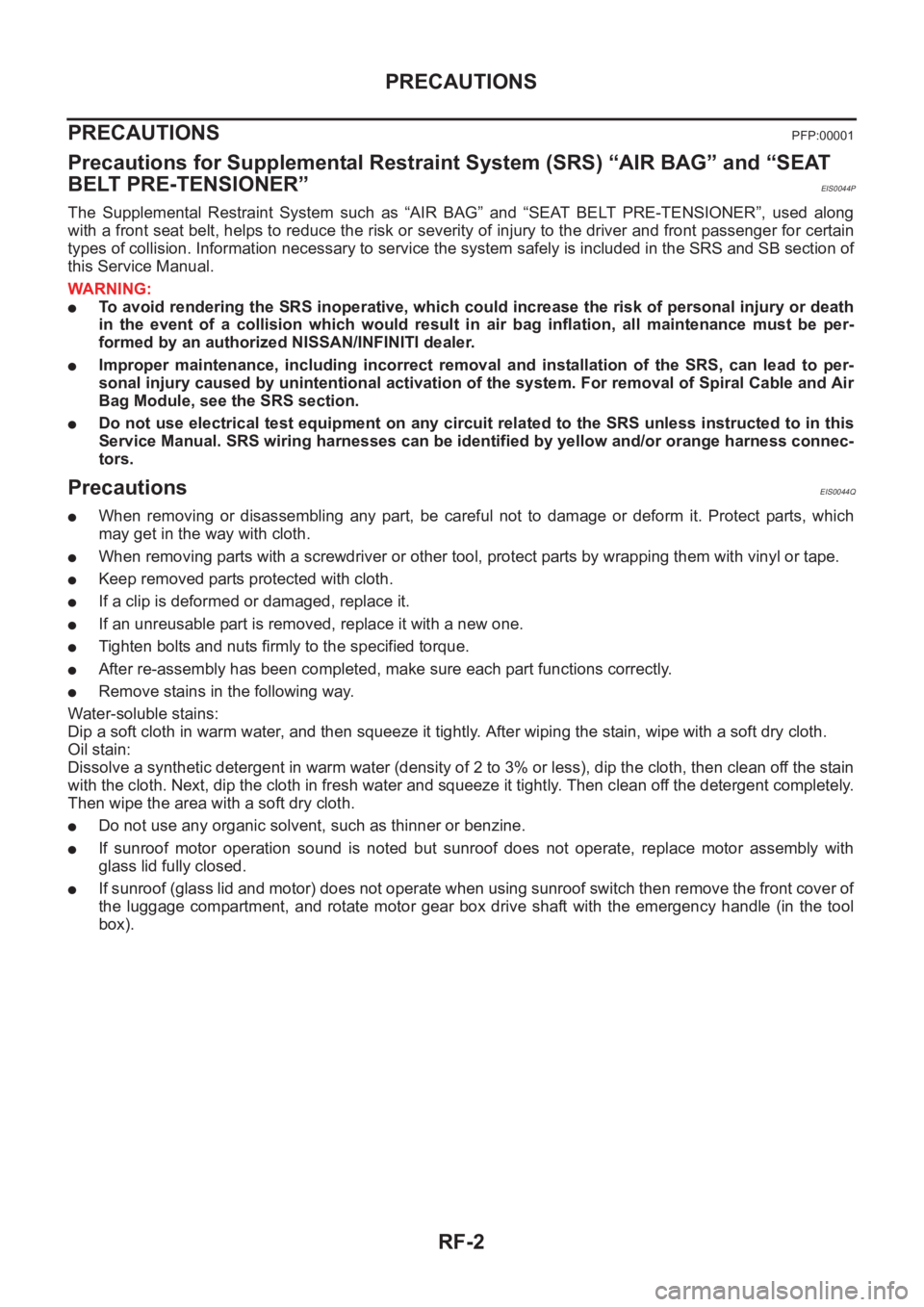

PRECAUTIONS
PRECAUTIONS
PFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
EIS0044P
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the SRS and SB section of
this Service Manual.
WARNING:
●To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.
●Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.
●Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harness connec-
tors.
Precautions EIS0044Q
●When removing or disassembling any part, be careful not to damage or deform it. Protect parts, which
may get in the way with cloth.
●When removing parts with a screwdriver or other tool, protect parts by wrapping them with vinyl or tape.
●Keep removed parts protected with cloth.
●If a clip is deformed or damaged, replace it.
●If an unreusable part is removed, replace it with a new one.
●Tighten bolts and nuts firmly to the specified torque.
●After re-assembly has been completed, make sure each part functions correctly.
●Remove stains in the following way.
Water-soluble stains:
Dip a soft cloth in warm water, and then squeeze it tightly. After wiping the stain, wipe with a soft dry cloth.
Oil stain:
Dissolve a synthetic detergent in warm water (density of 2 to 3% or less), dip the cloth, then clean off the stain
with the cloth. Next, dip the cloth in fresh water and squeeze it tightly. Then clean off the detergent completely.
Then wipe the area with a soft dry cloth.
●Do not use any organic solvent, such as thinner or benzine.
●If sunroof motor operation sound is noted but sunroof does not operate, replace motor assembly with
glass lid fully closed.
●If sunroof (glass lid and motor) does not operate when using sunroof switch then remove the front cover of
the luggage compartment, and rotate motor gear box drive shaft with the emergency handle (in the tool
box).
Page 3211 of 3833

SUNROOF
RF-3
C
D
E
F
G
H
J
K
L
MA
B
RF
SUNROOFPFP:91210
System DescriptionEIS000MK
●Operating sunroof switch allows glass lid open/close, and tilt UP·DOWN.
●When sunroof switch is pressed firmly toward the OPEN side, glass lid automatically opens and automatic
operation is stopped at a point 180 mm to the fully open position.
NOTE:
After the emergency handle is used to rotate the motor drive shaft, sunroof switch operation may not cor-
respond to actual glass lid movement. When this happens, conduct resuming operation to restore normal
operation.
RESUMING OPERATION
●If actual glass lid operation does not correspond to expected
operation, operate sunroof switch to slide glass lid toward area
A in the figure. This should result in resumption of normal oper-
ation.
CAUTION:
Before normal operation is resumed, expected sunroof
switch operation and actual glass lid movement may not
correspond. Make sure that neither head nor hands pro-
trude from sunroof and conduct resuming operation.
Component Parts LocationEIS000ML
SIIA0139E
SIIA0321E
Page 3212 of 3833
RF-4
SUNROOF

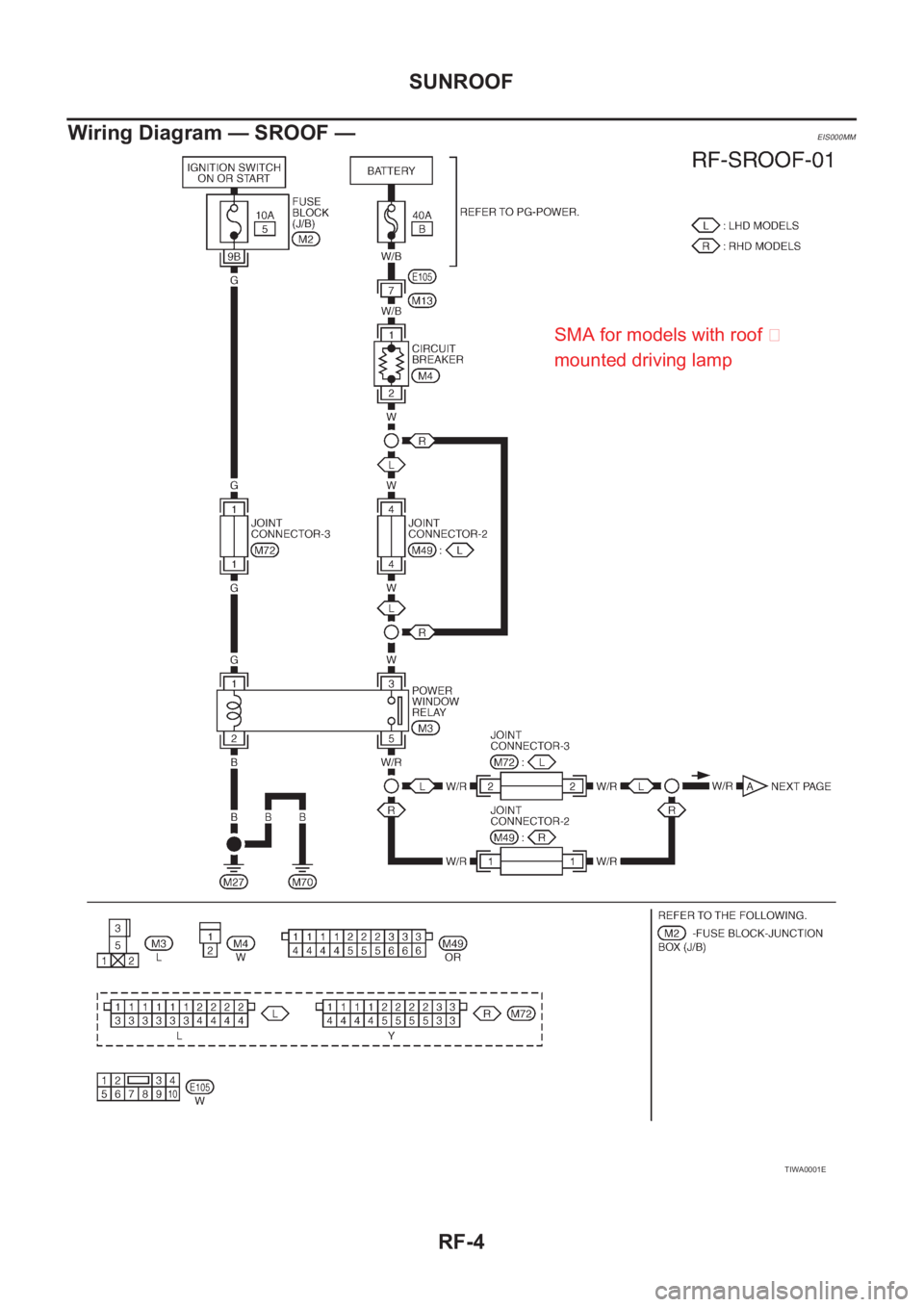

Wiring Diagram — SROOF —
EIS000MM
TIWA0001E
SMA for models with roof
mounted driving lamp

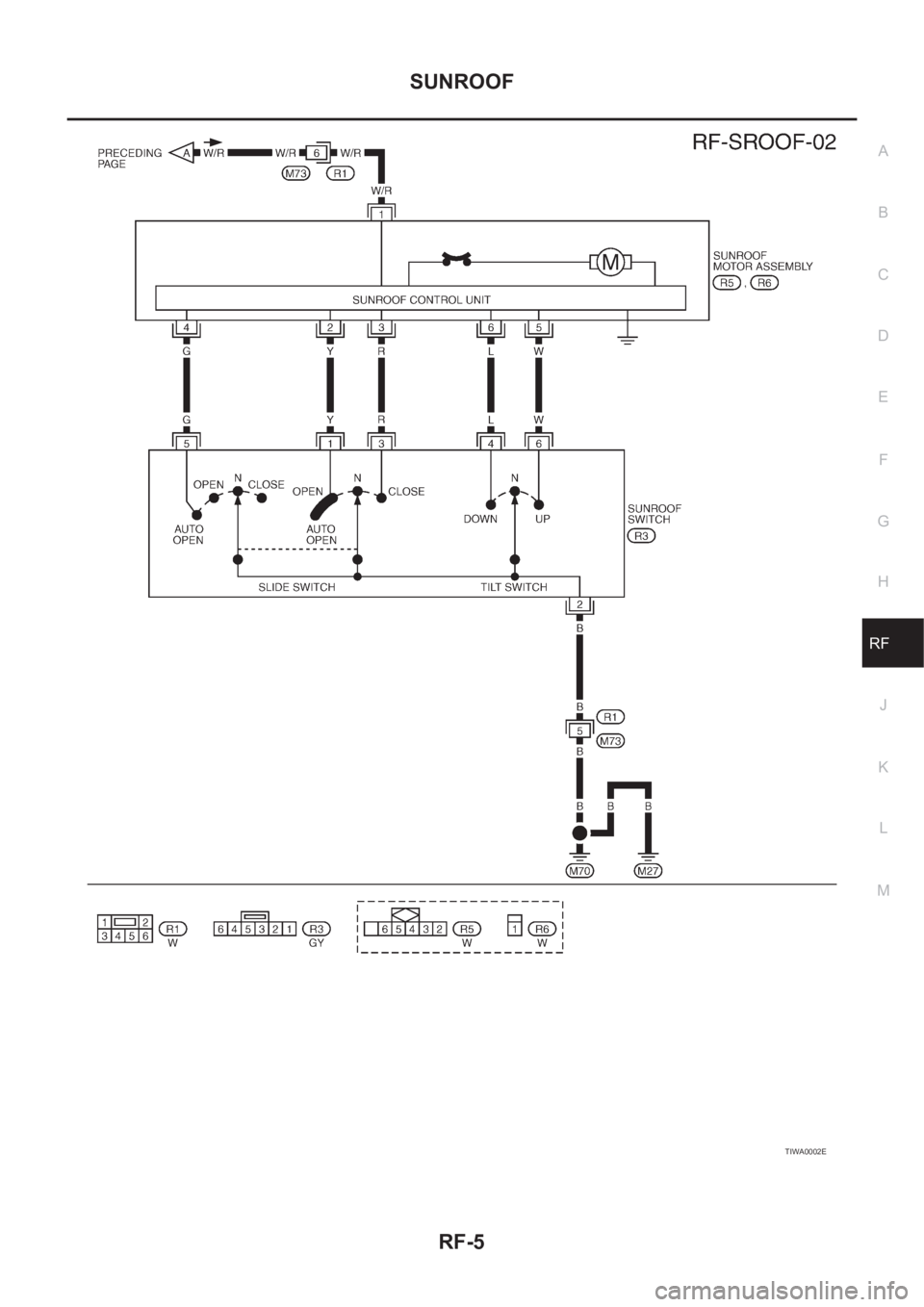

Page 3213 of 3833
SUNROOF
RF-5
C
D
E
F
G
H
J
K
L
MA
B
RF
TIWA0002E
Page 3214 of 3833

RF-6
SUNROOF

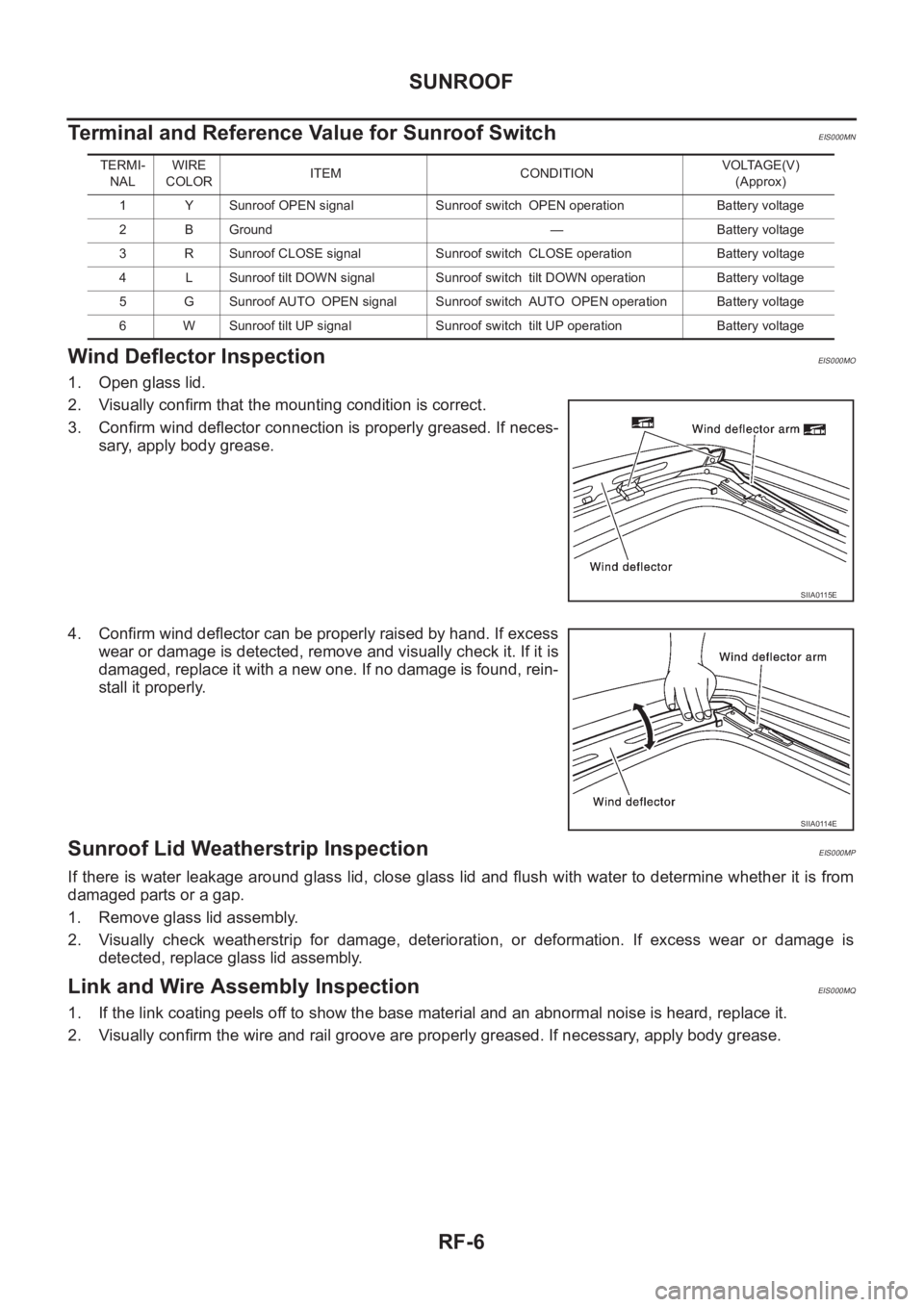

Terminal and Reference Value for Sunroof Switch
EIS000MN
Wind Deflector InspectionEIS000MO
1. Open glass lid.
2. Visually confirm that the mounting condition is correct.
3. Confirm wind deflector connection is properly greased. If neces-
sary, apply body grease.
4. Confirm wind deflector can be properly raised by hand. If excess
wear or damage is detected, remove and visually check it. If it is
damaged, replace it with a new one. If no damage is found, rein-
stall it properly.
Sunroof Lid Weatherstrip InspectionEIS000MP
If there is water leakage around glass lid, close glass lid and flush with water to determine whether it is from
damaged parts or a gap.
1. Remove glass lid assembly.
2. Visually check weatherstrip for damage, deterioration, or deformation. If excess wear or damage is
detected, replace glass lid assembly.
Link and Wire Assembly InspectionEIS000MQ
1. If the link coating peels off to show the base material and an abnormal noise is heard, replace it.
2. Visually confirm the wire and rail groove are properly greased. If necessary, apply body grease.
TERMI-
NAL WIRE
COLORITEM CONDITIONVOLTAGE(V)
(Approx)
1 Y Sunroof OPEN signal Sunroof switch OPEN operation Battery voltage
2 B Ground — Battery voltage
3 R Sunroof CLOSE signal Sunroof switch CLOSE operation Battery voltage
4 L Sunroof tilt DOWN signal Sunroof switch tilt DOWN operation Battery voltage
5 G Sunroof AUTO OPEN signal Sunroof switch AUTO OPEN operation Battery voltage
6 W Sunroof tilt UP signal Sunroof switch tilt UP operation Battery voltage
SIIA0115E
SIIA0114E
Page 3215 of 3833
SUNROOF
RF-7
C
D
E
F
G
H
J
K
L
MA
B
RF

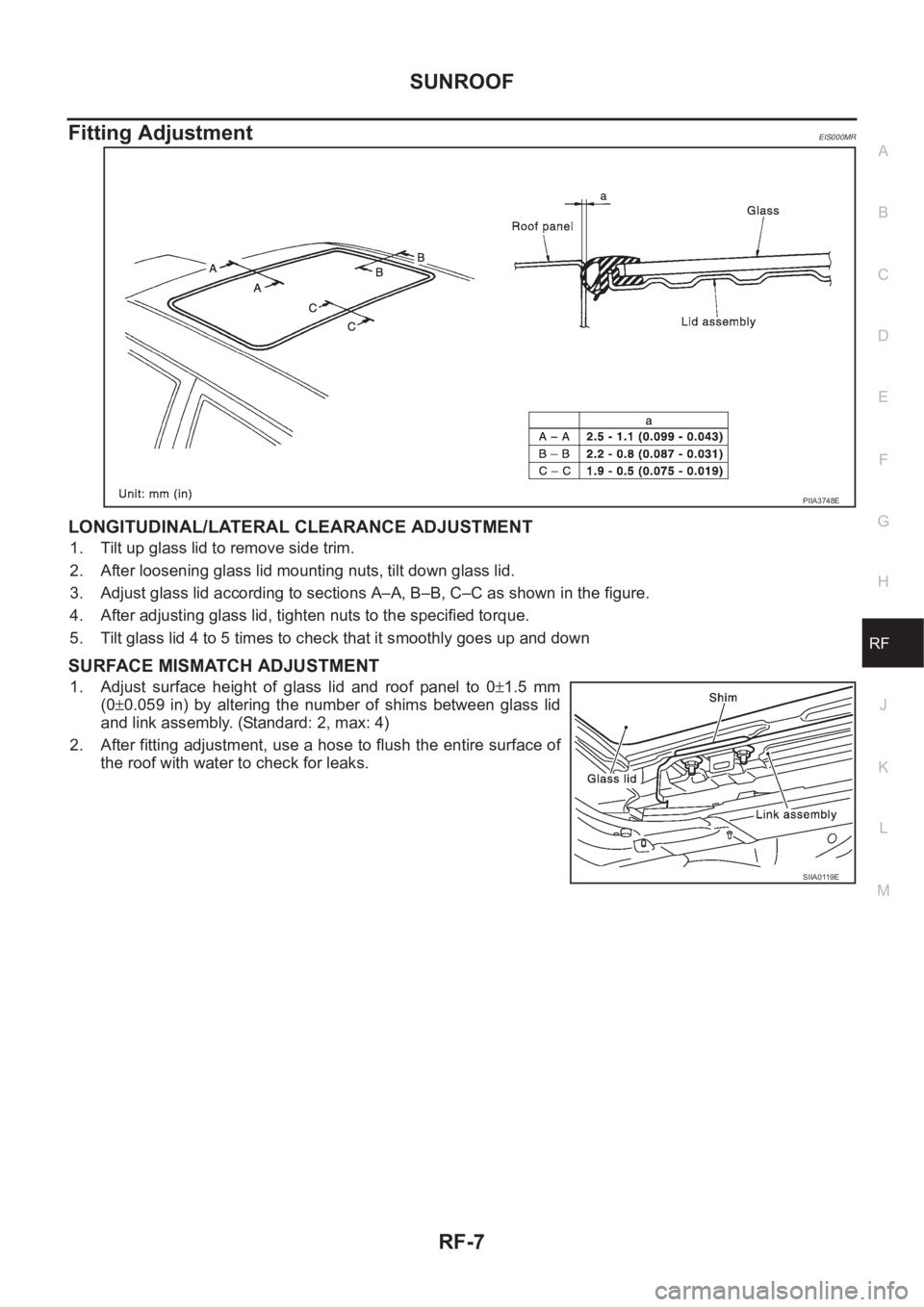

Fitting AdjustmentEIS000MR
LONGITUDINAL/LATERAL CLEARANCE ADJUSTMENT
1. Tilt up glass lid to remove side trim.
2. After loosening glass lid mounting nuts, tilt down glass lid.
3. Adjust glass lid according to sections A–A, B–B, C–C as shown in the figure.
4. After adjusting glass lid, tighten nuts to the specified torque.
5. Tilt glass lid 4 to 5 times to check that it smoothly goes up and down
SURFACE MISMATCH ADJUSTMENT
1. Adjust surface height of glass lid and roof panel to 0±1.5 mm
(0±0.059 in) by altering the number of shims between glass lid
and link assembly. (Standard: 2, max: 4)
2. After fitting adjustment, use a hose to flush the entire surface of
the roof with water to check for leaks.
PIIA3748E
SIIA0119E
Page 3216 of 3833
RF-8
SUNROOF

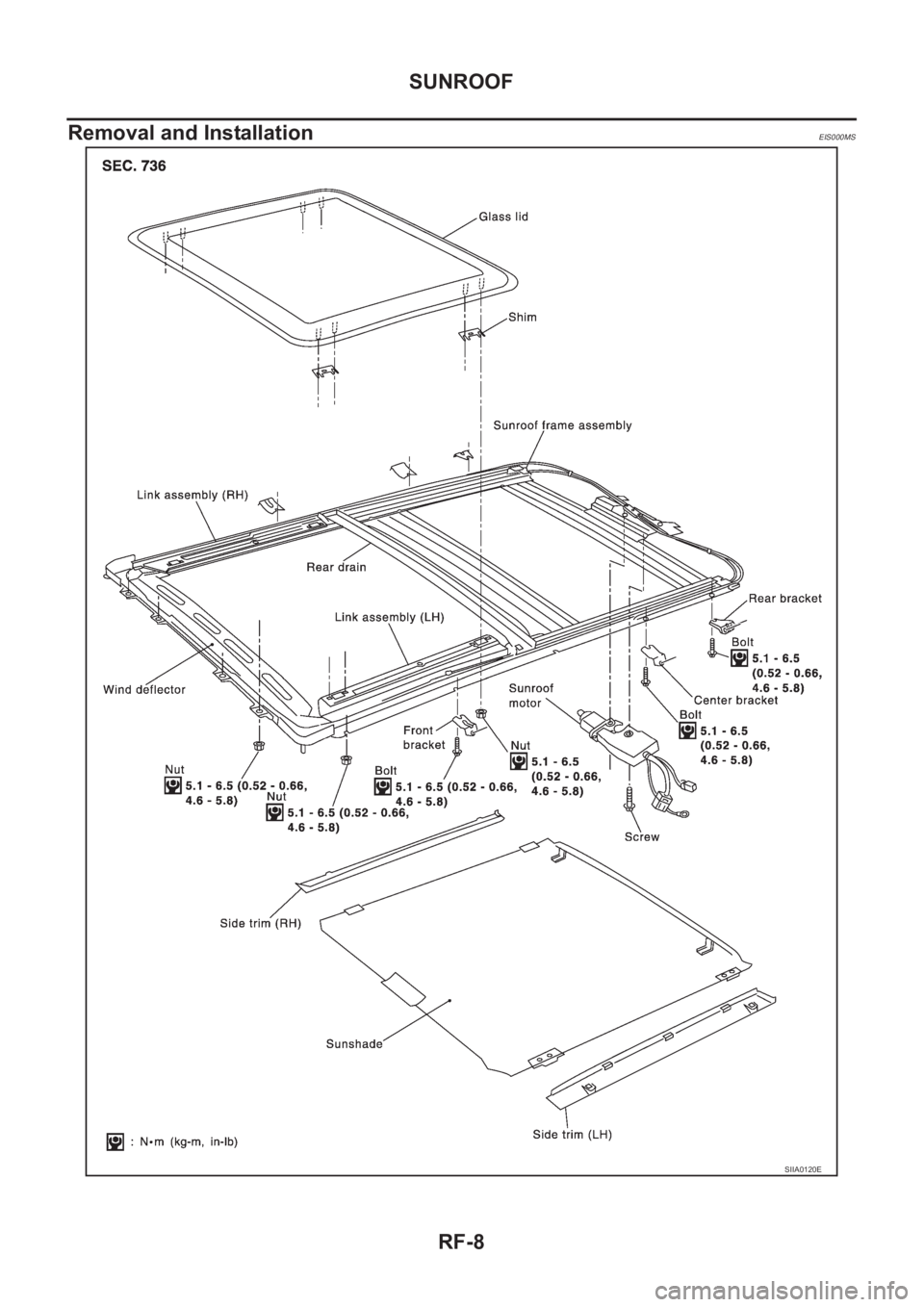

Removal and Installation
EIS000MS
SIIA0120E
