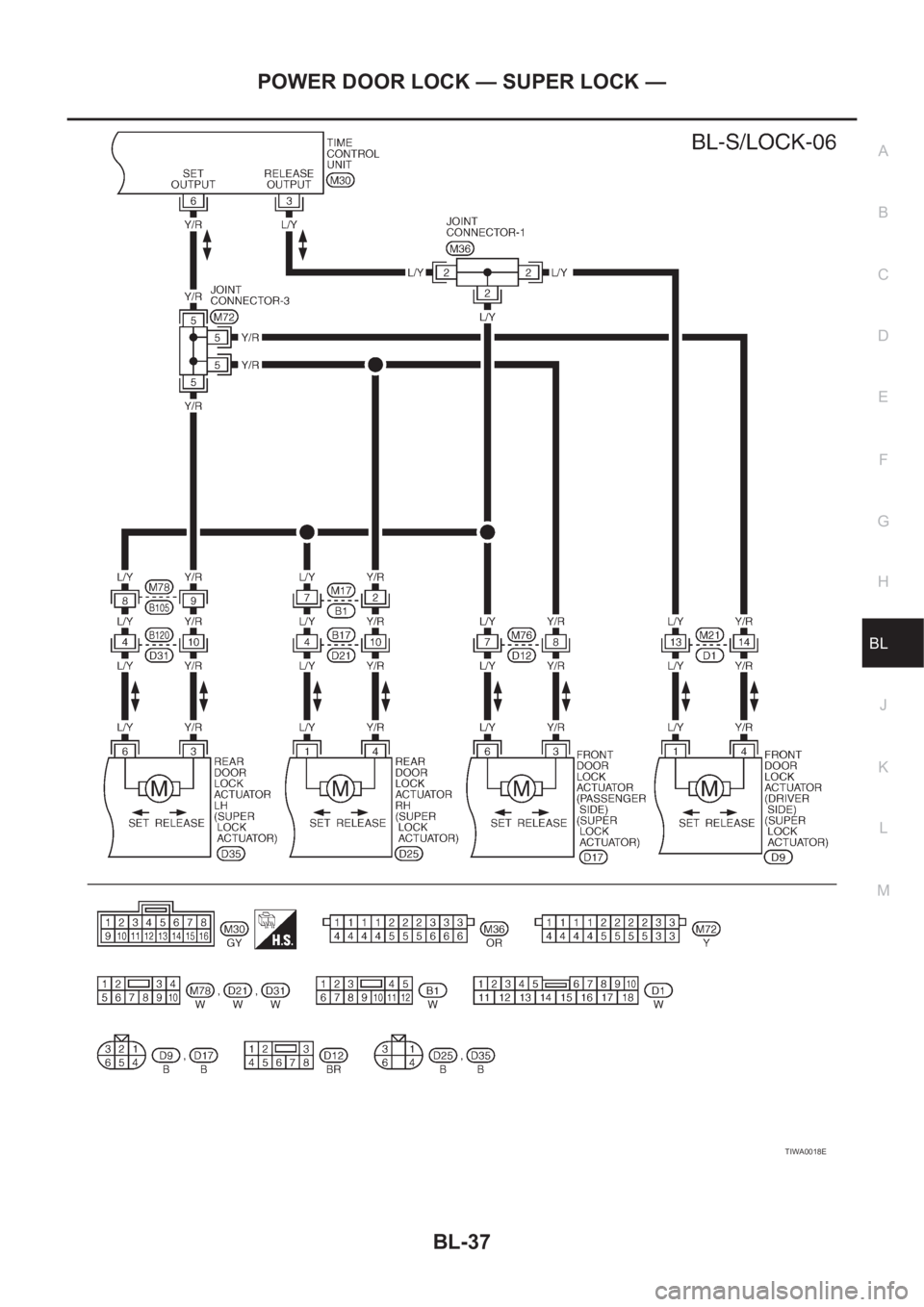

POWER DOOR LOCK — SUPER LOCK —
BL-37
C
D
E
F
G
H
J
K
L
MA
B
BL
TIWA0018E
Page 3090 of 3833

BL-38
POWER DOOR LOCK — SUPER LOCK —

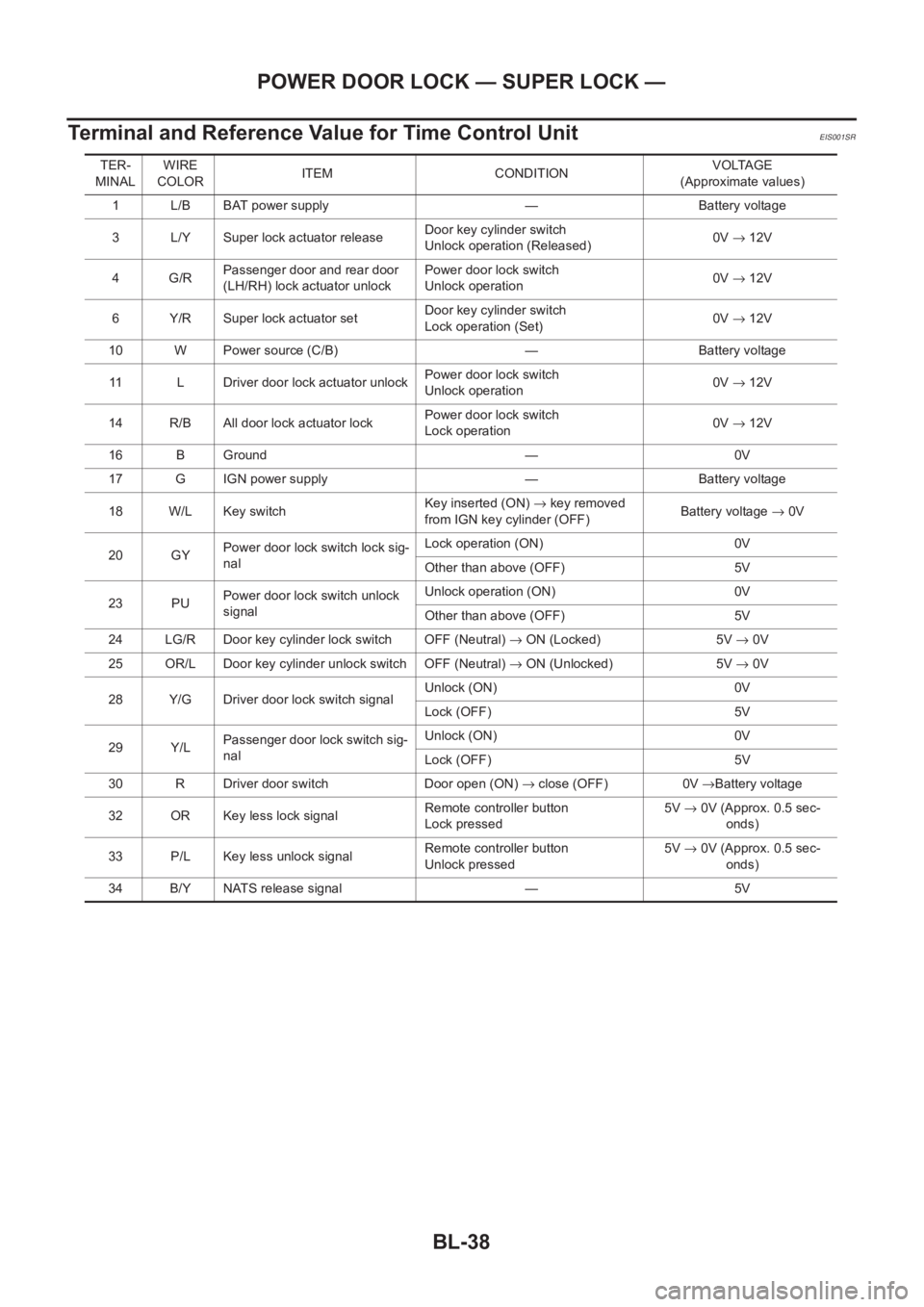

Terminal and Reference Value for Time Control Unit
EIS001SR
TER-
MINALWIRE
COLORITEM CONDITIONVOLTAGE
(Approximate values)
1 L/B BAT power supply — Battery voltage
3 L/Y Super lock actuator releaseDoor key cylinder switch
Unlock operation (Released)0V→ 12V
4G/RPassenger door and rear door
(LH/RH) lock actuator unlockPower door lock switch
Unlock operation0V→ 12V
6 Y/R Super lock actuator setDoor key cylinder switch
Lock operation (Set)0V→ 12V
10 W Power source (C/B) — Battery voltage
11 L Driver door lock actuator unlockPower door lock switch
Unlock operation0V→ 12V
14 R/B All door lock actuator lockPower door lock switch
Lock operation0V→ 12V
16 B Ground — 0V
17 G IGN power supply — Battery voltage
18 W/L Key switchKey inserted (ON) → key removed
from IGN key cylinder (OFF)Battery voltage → 0V
20 GYPower door lock switch lock sig-
nalLock operation (ON) 0V
Other than above (OFF) 5V
23 PUPower door lock switch unlock
signalUnlock operation (ON) 0V
Other than above (OFF) 5V
24 LG/R Door key cylinder lock switch OFF (Neutral) → ON (Locked) 5V → 0V
25 OR/L Door key cylinder unlock switch OFF (Neutral) → ON (Unlocked) 5V → 0V
28 Y/G Driver door lock switch signalUnlock (ON) 0V
Lock (OFF) 5V
29 Y/LPassenger door lock switch sig-
nalUnlock (ON) 0V
Lock (OFF) 5V
30 R Driver door switch Door open (ON) → close (OFF) 0V →Battery voltage
32 OR Key less lock signalRemote controller button
Lock pressed5V→ 0V (Approx. 0.5 sec-
onds)
33 P/L Key less unlock signalRemote controller button
Unlock pressed5V→ 0V (Approx. 0.5 sec-
onds)
34 B/Y NATS release signal — 5V
Page 3091 of 3833
POWER DOOR LOCK — SUPER LOCK —
BL-39
C
D
E
F
G
H
J
K
L
MA
B
BL

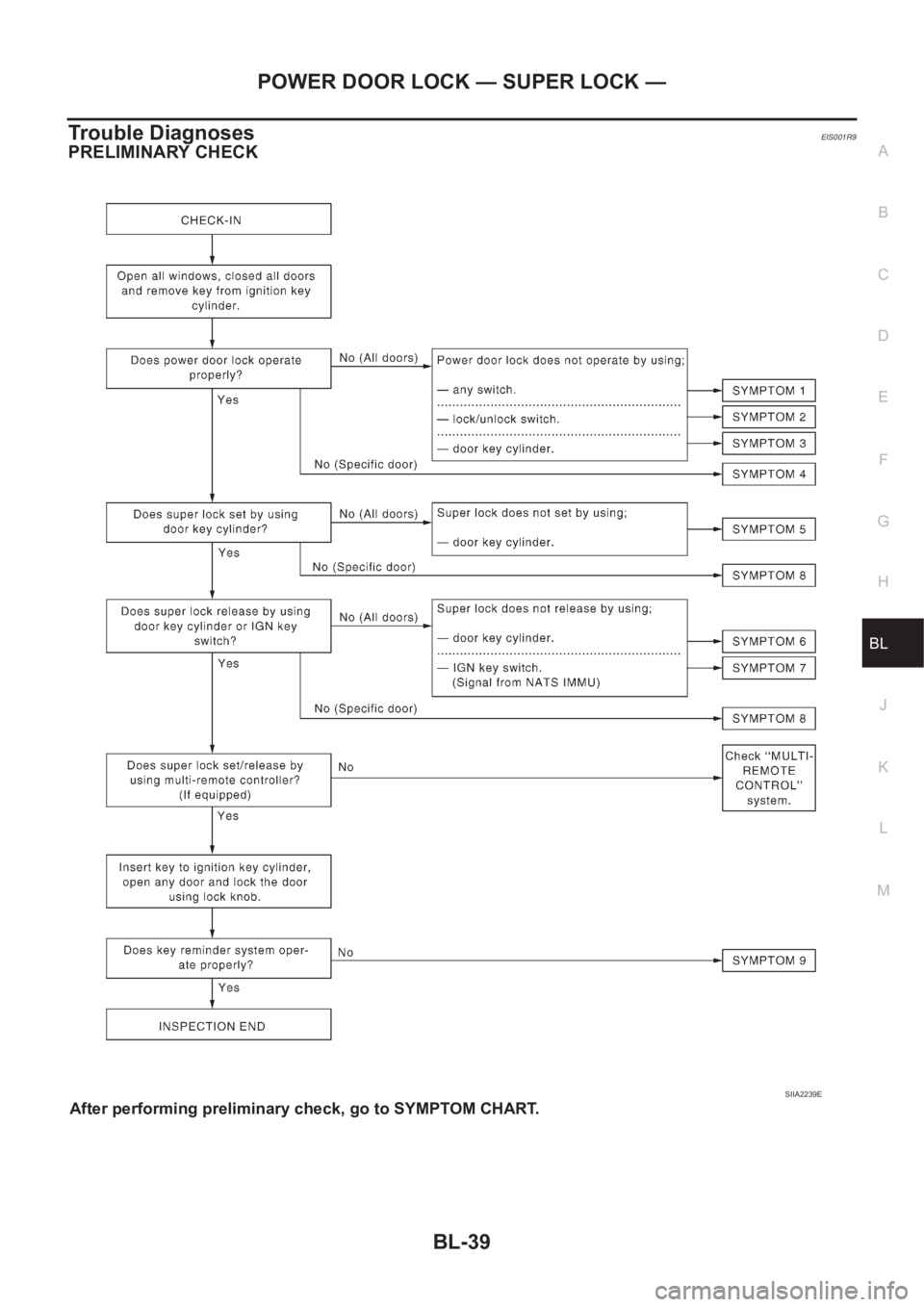

Trouble DiagnosesEIS001R9
PRELIMINARY CHECK
After performing preliminary check, go to SYMPTOM CHART.
SIIA2239E
Page 3092 of 3833

BL-40
POWER DOOR LOCK — SUPER LOCK —

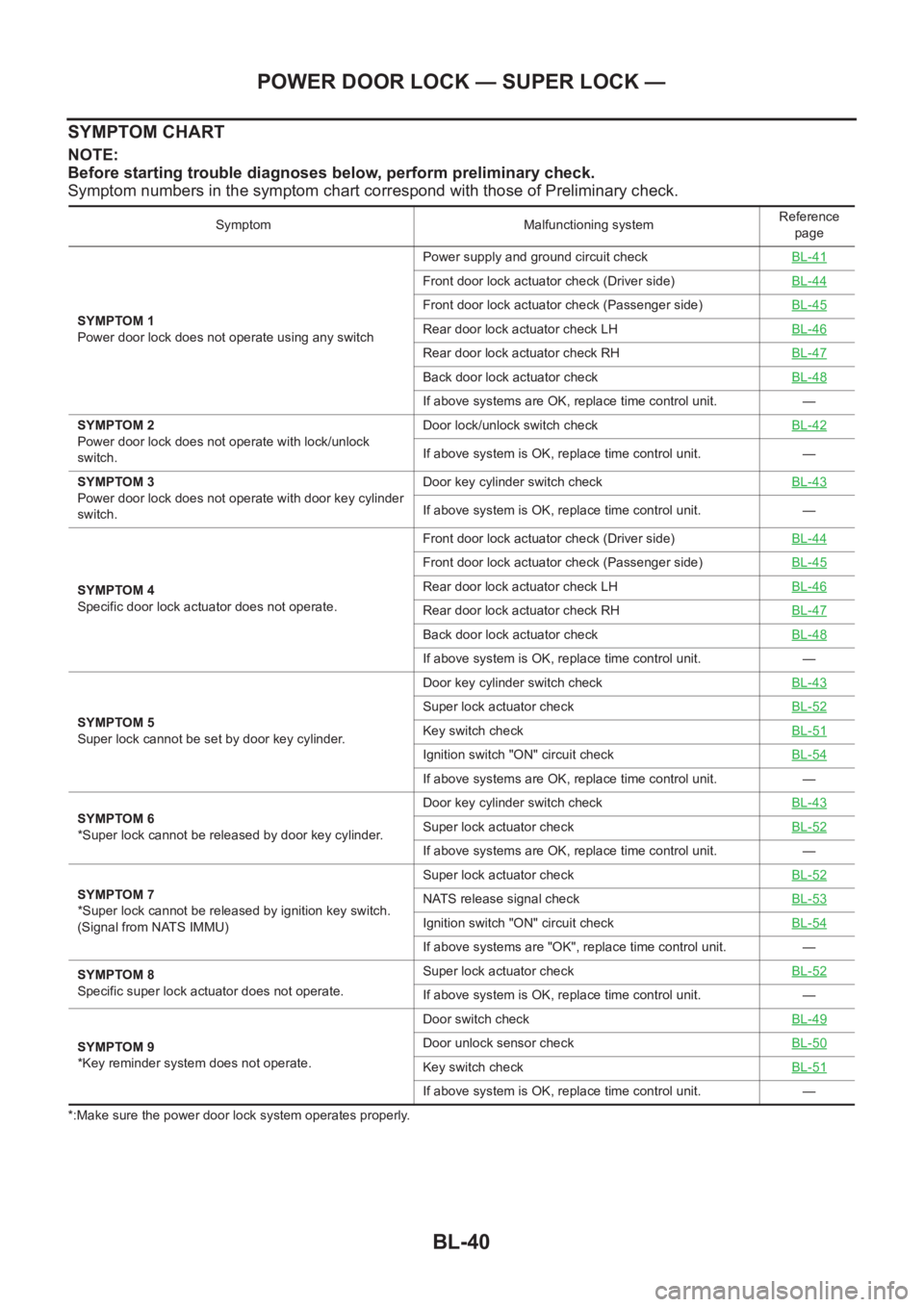

SYMPTOM CHART
NOTE:
Before starting trouble diagnoses below, perform preliminary check.
Symptom numbers in the symptom chart correspond with those of Preliminary check.
*:Make sure the power door lock system operates properly.Symptom Malfunctioning systemReference
page
SYMPTOM 1
Power door lock does not operate using any switchPower supply and ground circuit checkBL-41
Front door lock actuator check (Driver side)BL-44
Front door lock actuator check (Passenger side)BL-45
Rear door lock actuator check LH BL-46
Rear door lock actuator check RHBL-47
Back door lock actuator checkBL-48
If above systems are OK, replace time control unit. —
SYMPTOM 2
Power door lock does not operate with lock/unlock
switch.Door lock/unlock switch checkBL-42
If above system is OK, replace time control unit. —
SYMPTOM 3
Power door lock does not operate with door key cylinder
switch.Door key cylinder switch checkBL-43
If above system is OK, replace time control unit. —
SYMPTOM 4
Specific door lock actuator does not operate.Front door lock actuator check (Driver side)BL-44
Front door lock actuator check (Passenger side)BL-45
Rear door lock actuator check LH BL-46
Rear door lock actuator check RHBL-47
Back door lock actuator checkBL-48
If above system is OK, replace time control unit. —
SYMPTOM 5
Super lock cannot be set by door key cylinder.Door key cylinder switch checkBL-43
Super lock actuator checkBL-52
Key switch checkBL-51
Ignition switch "ON" circuit checkBL-54
If above systems are OK, replace time control unit. —
SYMPTOM 6
*Super lock cannot be released by door key cylinder.Door key cylinder switch checkBL-43
Super lock actuator checkBL-52
If above systems are OK, replace time control unit. —
SYMPTOM 7
*Super lock cannot be released by ignition key switch.
(Signal from NATS IMMU)Super lock actuator checkBL-52
NATS release signal checkBL-53
Ignition switch "ON" circuit checkBL-54
If above systems are "OK", replace time control unit. —
SYMPTOM 8
Specific super lock actuator does not operate.Super lock actuator checkBL-52
If above system is OK, replace time control unit. —
SYMPTOM 9
*Key reminder system does not operate.Door switch checkBL-49
Door unlock sensor checkBL-50
Key switch checkBL-51
If above system is OK, replace time control unit. —
Page 3093 of 3833
POWER DOOR LOCK — SUPER LOCK —
BL-41
C
D
E
F
G
H
J
K
L
MA
B
BL

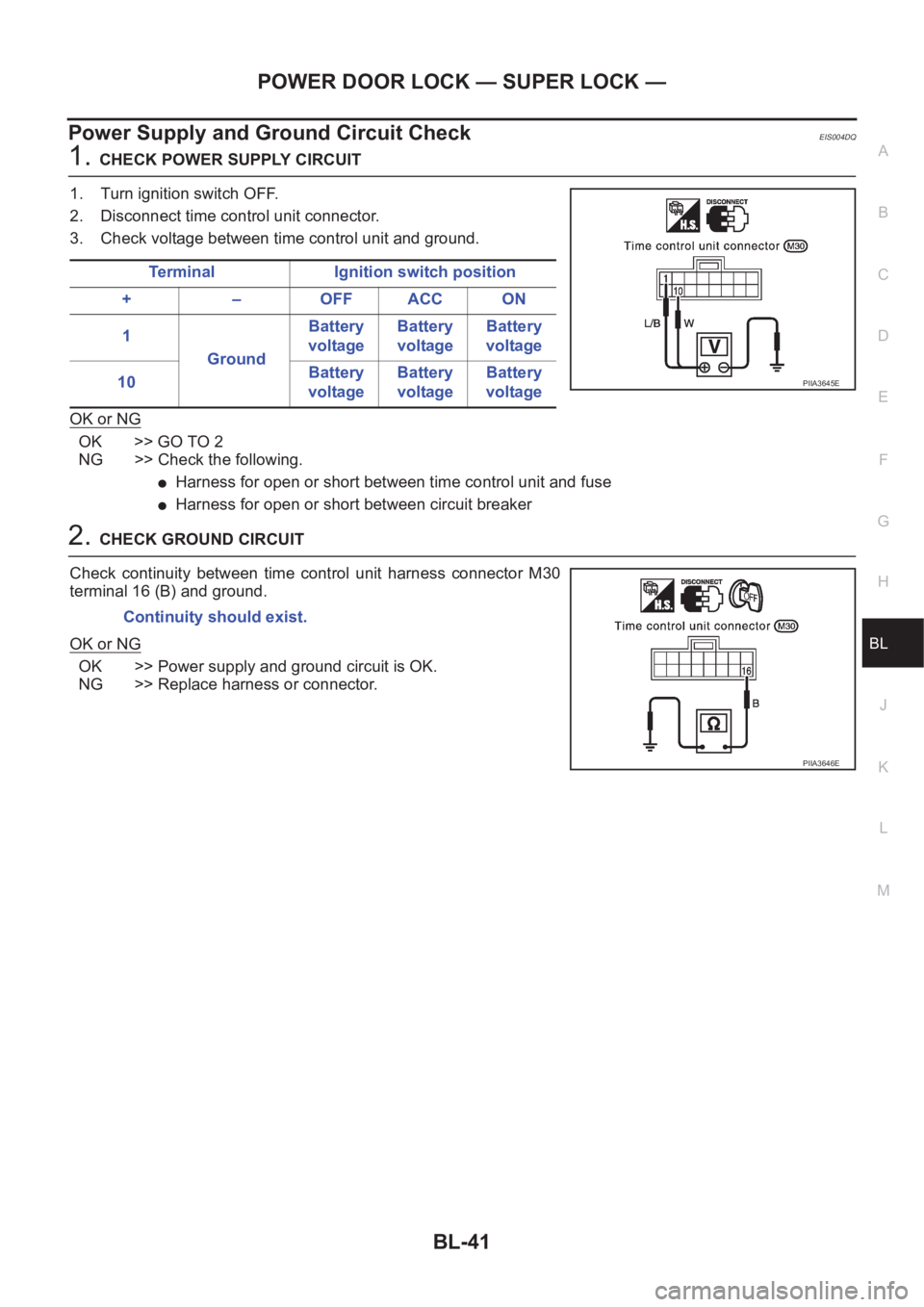

Power Supply and Ground Circuit CheckEIS004DQ
1.CHECK POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect time control unit connector.
3. Check voltage between time control unit and ground.
OK or NG
OK >> GO TO 2
NG >> Check the following.
●Harness for open or short between time control unit and fuse
●Harness for open or short between circuit breaker
2.CHECK GROUND CIRCUIT
Check continuity between time control unit harness connector M30
terminal 16 (B) and ground.
OK or NG
OK >> Power supply and ground circuit is OK.
NG >> Replace harness or connector.Terminal Ignition switch position
+ – OFF ACC ON
1
GroundBattery
voltageBattery
voltageBattery
voltage
10Battery
voltageBattery
voltageBattery
voltage
PIIA3645E
Continuity should exist.
PIIA3646E
Page 3094 of 3833

BL-42
POWER DOOR LOCK — SUPER LOCK —

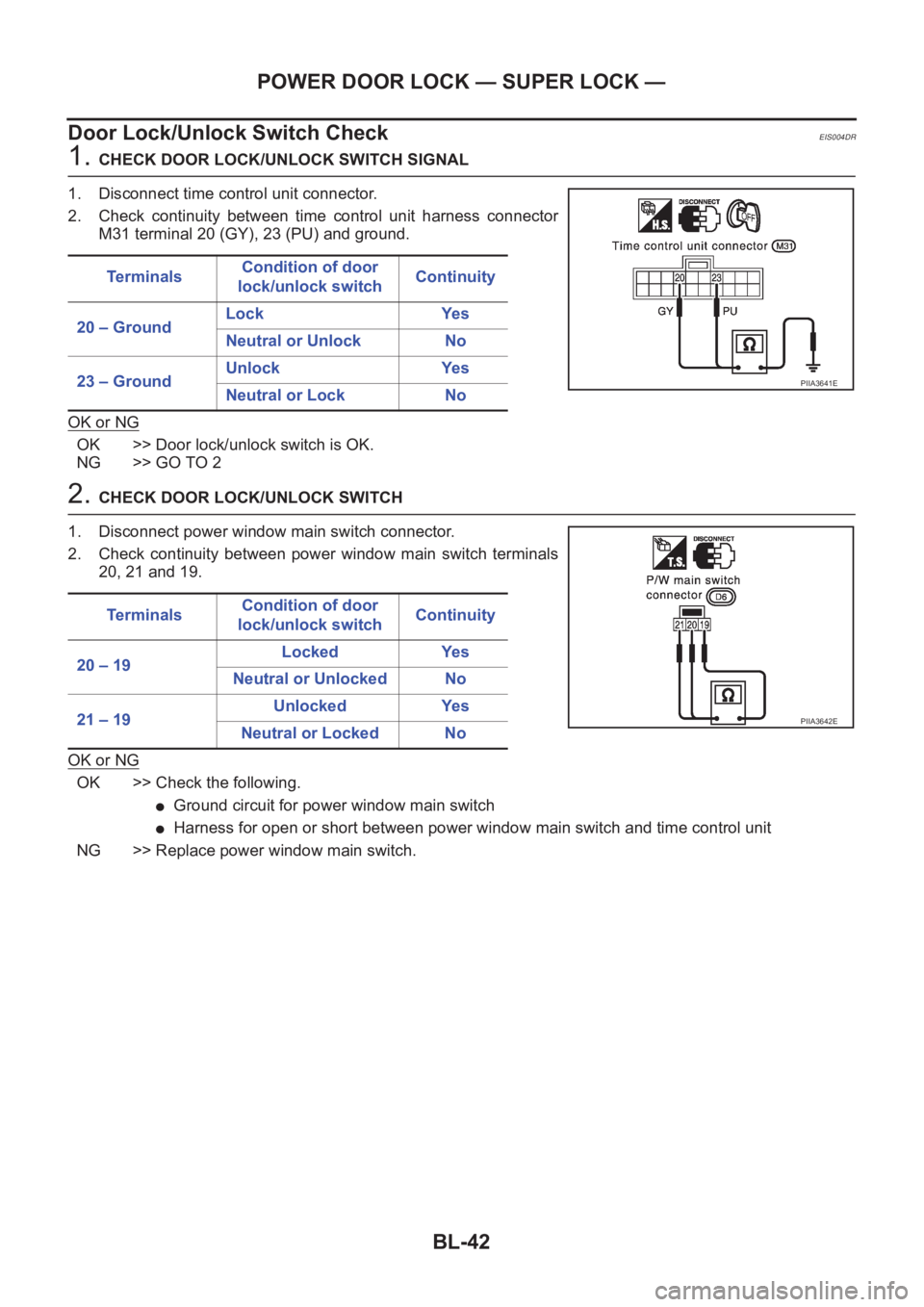

Door Lock/Unlock Switch Check
EIS004DR
1. CHECK DOOR LOCK/UNLOCK SWITCH SIGNAL
1. Disconnect time control unit connector.
2. Check continuity between time control unit harness connector
M31 terminal 20 (GY), 23 (PU) and ground.
OK or NG
OK >> Door lock/unlock switch is OK.
NG >> GO TO 2
2. CHECK DOOR LOCK/UNLOCK SWITCH
1. Disconnect power window main switch connector.
2. Check continuity between power window main switch terminals
20, 21 and 19.
OK or NG
OK >> Check the following.
●Ground circuit for power window main switch
●Harness for open or short between power window main switch and time control unit
NG >> Replace power window main switch.Te r m i n a l sCondition of door
lock/unlock switchContinuity
20 – GroundLock Yes
Neutral or Unlock No
23 – GroundUnlock Yes
Neutral or Lock No
PIIA3641E
Te r m i n a l sCondition of door
lock/unlock switchContinuity
20 – 19Locked Yes
Neutral or Unlocked No
21 – 19Unlocked Yes
Neutral or Locked No
PIIA3642E
Page 3095 of 3833
POWER DOOR LOCK — SUPER LOCK —
BL-43
C
D
E
F
G
H
J
K
L
MA
B
BL

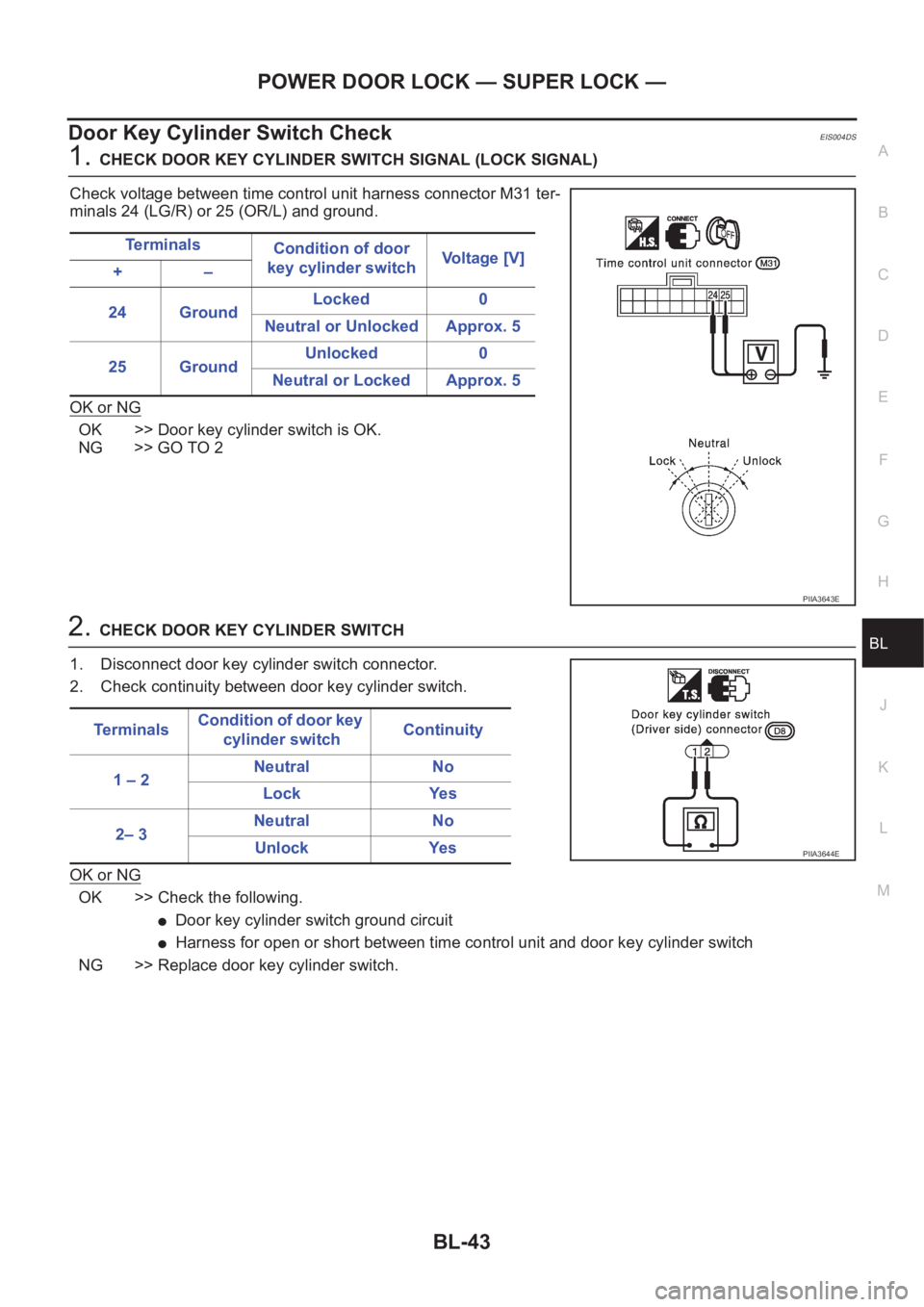

Door Key Cylinder Switch CheckEIS004DS
1.CHECK DOOR KEY CYLINDER SWITCH SIGNAL (LOCK SIGNAL)
Check voltage between time control unit harness connector M31 ter-
minals 24 (LG/R) or 25 (OR/L) and ground.
OK or NG
OK >> Door key cylinder switch is OK.
NG >> GO TO 2
2.CHECK DOOR KEY CYLINDER SWITCH
1. Disconnect door key cylinder switch connector.
2. Check continuity between door key cylinder switch.
OK or NG
OK >> Check the following.
●Door key cylinder switch ground circuit
●Harness for open or short between time control unit and door key cylinder switch
NG >> Replace door key cylinder switch.Te r m i n a l s
Condition of door
key cylinder switchVo l t a g e [ V ]
+–
24 GroundLocked 0
Neutral or Unlocked Approx. 5
25 GroundUnlocked 0
Neutral or Locked Approx. 5
PIIA3643E
Te r m i n a l sCondition of door key
cylinder switchContinuity
1 – 2Neutral No
Lock Yes
2– 3Neutral No
Unlock Yes
PIIA3644E
Page 3096 of 3833

BL-44
POWER DOOR LOCK — SUPER LOCK —
Front Door Lock Actuator (Driver Side) Check
EIS004DT
1. CHECK DOOR LOCK SIGNAL
1. Disconnect door lock actuator (driver side) connector.
2. Check voltage between door lock actuator harness connector
D9 terminal 3(R/B), 6(L) and ground.
OK or NG
OK >> GO TO 2
NG >> GO TO 3
2. CHECK DOOR LOCK ACTUATOR
1. Disconnect door lock actuator (driver side) connector.
2. Apply 12V direct current to door lock actuator and check opera-
tion.
OK or NG
OK >> Check harness connection.
NG >> Replace door lock actuator (driver side).
3. CHECK DOOR LOCK ACTUATOR CIRCUIT
1. Disconnect time control unit connector.
2. Check continuity between door lock actuator (driver side) har-
ness connector D9 terminal 3(R/B), 6(L) and time control unit
harness connector M30 terminal 11(L), 14(R/B).
OK or NG
OK >> Replace time control unit.
NG >> Check harness for open or short between time control unit and door lock actuator. Te r m i n a l s
Condition of door
lock/unlock switchVoltage [V]
+–
3 (R/B) Ground Locked
Approx. 12
6 (L) Ground Unlocked
PIIA4284E
Te r m i n a l
Door lock actuator operation
+–
36 Unlock → Lock
63 Lock → Unlock
PIIA4285E
Te r m i n a l s
Continuity
Door lock
actuatorTime control unit
3 (R/B) 14 (R/B) Yes
6 (L) 11 (L) Yes
PIIA4286E
