Page 2249 of 3833
DTC P0750 SHIFT SOLENOID VALVE A
AT-171
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

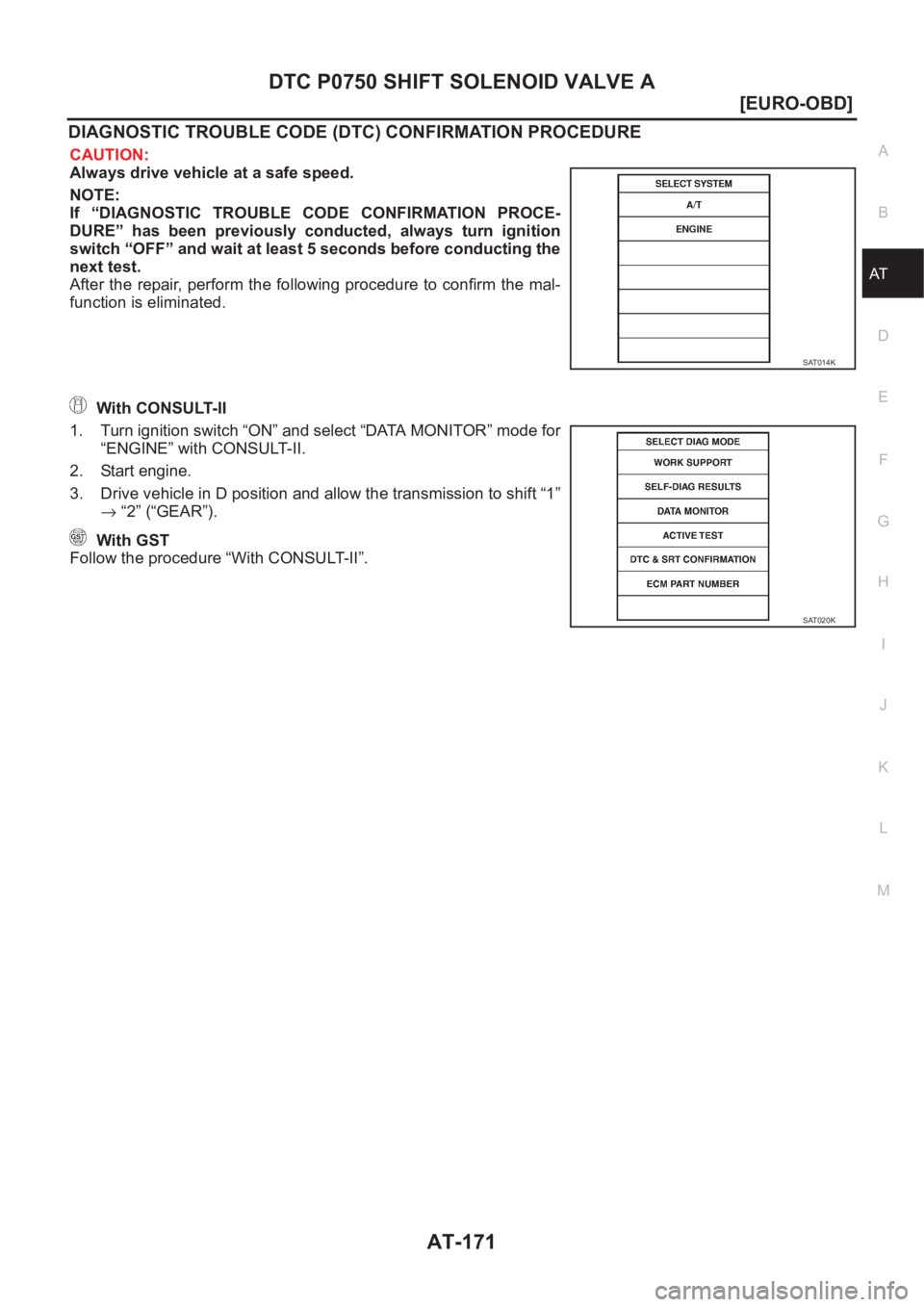

DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION PROCEDURE
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If “DIAGNOSTIC TROUBLE CODE CONFIRMATION PROCE-
DURE” has been previously conducted, always turn ignition
switch “OFF” and wait at least 5 seconds before conducting the
next test.
After the repair, perform the following procedure to confirm the mal-
function is eliminated.
With CONSULT-II
1. Turn ignition switch “ON” and select “DATA MONITOR” mode for
“ENGINE” with CONSULT-II.
2. Start engine.
3. Drive vehicle in D position and allow the transmission to shift “1”
→ “2” (“GEAR”).
With GST
Follow the procedure “With CONSULT-II”.
SAT014K
SAT020K
Page 2250 of 3833
AT-172
[EURO-OBD]
DTC P0750 SHIFT SOLENOID VALVE A

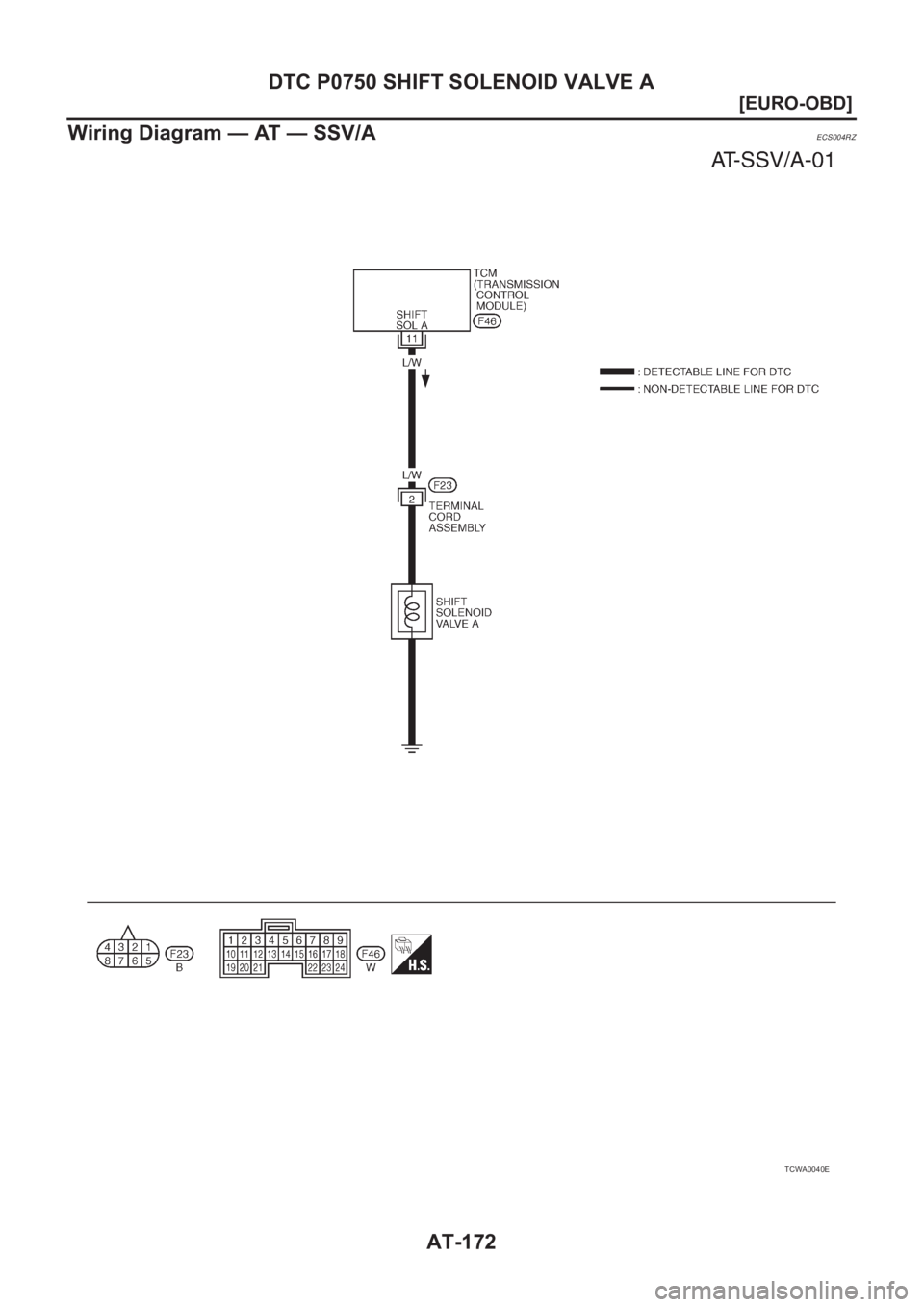

Wiring Diagram — AT — SSV/A
ECS004RZ
TCWA0040E
Page 2251 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual DTC P0750 SHIFT SOLENOID VALVE A
AT-173
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
Diagnostic ProcedureECS004S0
1.CHECK VALVE RESISTANCE
1. Turn ignition switch to “OFF” position.
2. Disconnect terminal NISSAN X-TRAIL 2001 Service Repair Manual DTC P0750 SHIFT SOLENOID VALVE A
AT-173
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
Diagnostic ProcedureECS004S0
1.CHECK VALVE RESISTANCE
1. Turn ignition switch to “OFF” position.
2. Disconnect terminal](/manual-img/5/57405/w960_57405-2250.png)
DTC P0750 SHIFT SOLENOID VALVE A
AT-173
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
Diagnostic ProcedureECS004S0
1.CHECK VALVE RESISTANCE
1. Turn ignition switch to “OFF” position.
2. Disconnect terminal cord assembly connector in engine compartment.
3. Check resistance between terminal 2 and ground.
OK or NG
OK >> GO TO 2.
NG >>1.Remove control valve assembly. Refer to AT- 4 1 4 ,
"REMOVAL" .
2. Check the following items:
–Shift solenoid valve A
Refer to AT- 1 7 4 , "
Component Inspection" .
–Harness of terminal cord assembly for short or open
2.CHECK POWER SOURCE CIRCUIT
1. Turn ignition switch to “OFF” position.
2. Disconnect TCM harness connector.
3. Check continuity between terminal 2 and TCM harness connector terminal 11.
If OK, check harness for short to ground and short to power.
4. Reinstall any part removed.
OK or NG
OK >> GO TO 3.
NG >> Repair open circuit or short to ground or short to power
in harness or connectors.
3.CHECK DTC
Perform Diagnostic Trouble Code (DTC) confirmation procedure. Refer to AT- 1 7 1 , "
DIAGNOSTIC TROUBLE
CODE (DTC) CONFIRMATION PROCEDURE" .
OK or NG
OK >>INSPECTION END
NG >> 1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector. Resistance: 20 - 30Ω
SCIA0719E
Continuity should exist.
SCIA0720E
Page 2252 of 3833
AT-174
[EURO-OBD]
DTC P0750 SHIFT SOLENOID VALVE A

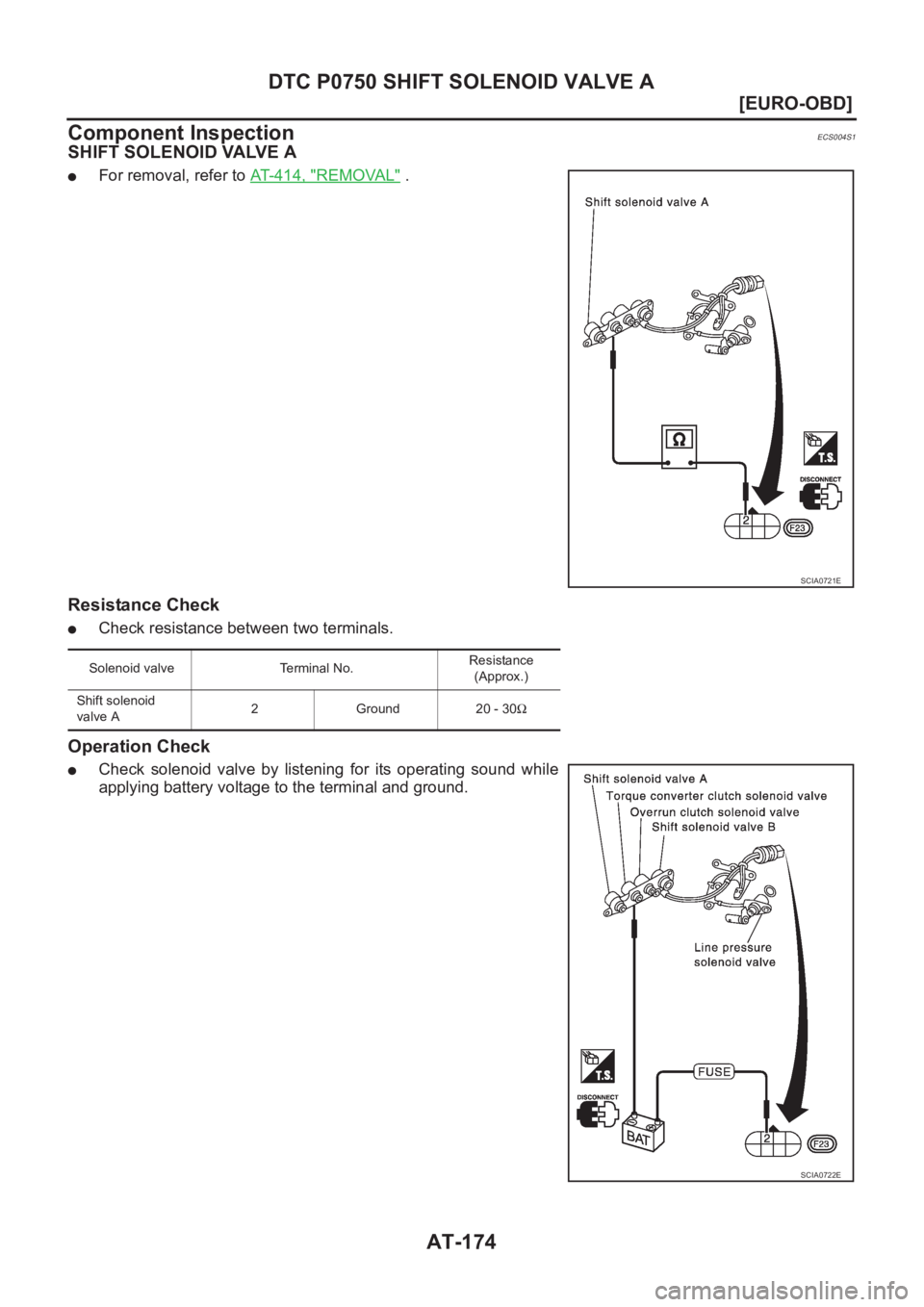

Component Inspection
ECS004S1
SHIFT SOLENOID VALVE A
●For removal, refer to AT-414, "REMOVAL" .
Resistance Check
●Check resistance between two terminals.
Operation Check
●Check solenoid valve by listening for its operating sound while
applying battery voltage to the terminal and ground.
SCIA0721E
Solenoid valve Terminal No.Resistance
(Approx.)
Shift solenoid
valve A2 Ground 20 - 30Ω
SCIA0722E
Page 2253 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual DTC P0755 SHIFT SOLENOID VALVE B
AT-175
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
DTC P0755 SHIFT SOLENOID VALVE BPFP:31940
DescriptionECS004S2
Shift solenoid valves A and B are turned “ON” or “OFF NISSAN X-TRAIL 2001 Service Repair Manual DTC P0755 SHIFT SOLENOID VALVE B
AT-175
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
DTC P0755 SHIFT SOLENOID VALVE BPFP:31940
DescriptionECS004S2
Shift solenoid valves A and B are turned “ON” or “OFF](/manual-img/5/57405/w960_57405-2252.png)
DTC P0755 SHIFT SOLENOID VALVE B
AT-175
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
DTC P0755 SHIFT SOLENOID VALVE BPFP:31940
DescriptionECS004S2
Shift solenoid valves A and B are turned “ON” or “OFF” by the TCM
in response to signals sent from the PNP switch, vehicle speed and
throttle position sensors. Gears will then be shifted to the optimum
position.
TCM TERMINALS AND REFERENCE VALUE
Remarks: Specification data are reference values.
ON BOARD DIAGNOSIS LOGIC
SCIA0718E
Gear position 1 2 3 4
Shift solenoid valve A ON (Closed) OFF (Open) OFF (Open) ON (Closed)
Shift solenoid valve B ON (Closed) ON (Closed) OFF (Open) OFF (Open)
Te r m i -
nal No.Wire color Item ConditionJudgement stan-
dard
(Approx.)
12 L/YShift solenoid
valve BWhen shift solenoid valve B oper-
ates.
(When driving in “D
1 ” or “D2 ”.)Battery voltage
When shift solenoid valve B does not
operate.
(When driving in “D
3 ” or “D4 ”.)0V
Diagnostic trouble code Malfunction is detected when... Check items (Possible cause)
: SFT SOL B/CIRC
TCM detects an improper voltage drop
when it tries to operate the solenoid valve.
●Harness or connectors
(The solenoid circuit is open or shorted.)
●Shift solenoid valve B
: P0755
Page 2254 of 3833
AT-176
[EURO-OBD]
DTC P0755 SHIFT SOLENOID VALVE B
DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION PROCEDURE
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If “DIAGNOSTIC TROUBLE CODE CONFIRMATION PROCE-
DURE” has been previously conducted, always turn ignition
switch “OFF” and wait at least 5 seconds before conducting the
next test.
After the repair, perform the following procedure to confirm the mal-
function is eliminated.
With CONSULT-II
1. Turn ignition switch “ON” and select “DATA MONITOR” mode for
“ENGINE” with CONSULT-II.
2. Start engine.
3. Drive vehicle in D position and allow the transmission to shift 1
→ 2 → 3 (“GEAR”).
With GST
Follow the procedure “With CONSULT-II”.
SAT014K
SAT020K
Page 2255 of 3833
DTC P0755 SHIFT SOLENOID VALVE B
AT-177
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

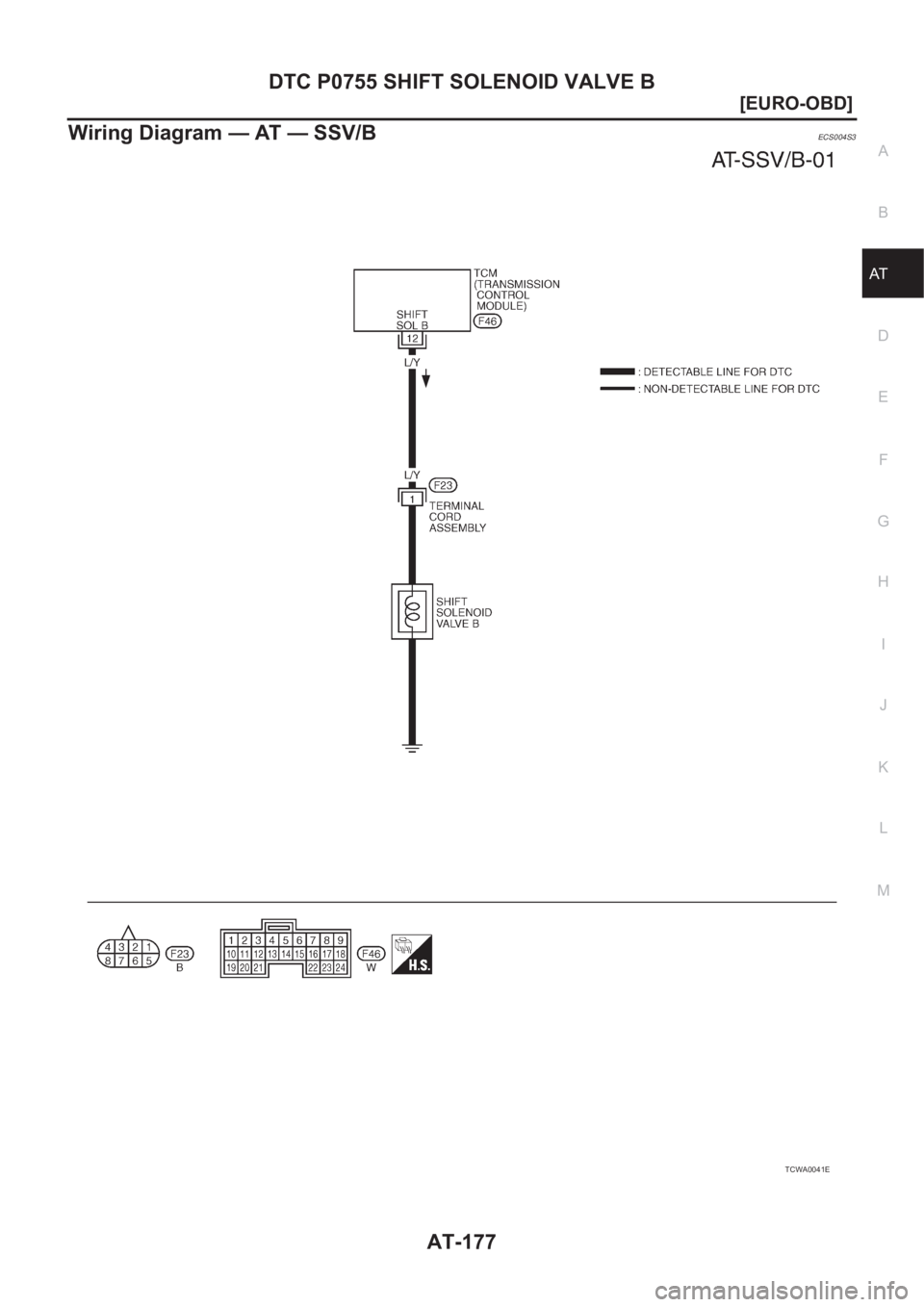

Wiring Diagram — AT — SSV/BECS004S3
TCWA0041E
Page 2256 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual AT-178
[EURO-OBD]
DTC P0755 SHIFT SOLENOID VALVE B
Diagnostic Procedure
ECS004S4
1. CHECK VALVE RESISTANCE
1. Turn ignition switch to “OFF” position.
2. Disconnect terminal cord assembly connector NISSAN X-TRAIL 2001 Service Repair Manual AT-178
[EURO-OBD]
DTC P0755 SHIFT SOLENOID VALVE B
Diagnostic Procedure
ECS004S4
1. CHECK VALVE RESISTANCE
1. Turn ignition switch to “OFF” position.
2. Disconnect terminal cord assembly connector](/manual-img/5/57405/w960_57405-2255.png)
AT-178
[EURO-OBD]
DTC P0755 SHIFT SOLENOID VALVE B
Diagnostic Procedure
ECS004S4
1. CHECK VALVE RESISTANCE
1. Turn ignition switch to “OFF” position.
2. Disconnect terminal cord assembly connector in engine compartment.
3. Check resistance between terminal 1 and ground.
OK or NG
OK >> GO TO 2.
NG >> 1. Remove control valve assembly. Refer to AT- 4 1 4 ,
"REMOVAL" .
2. Check the following items:
–Shift solenoid valve B
Refer to AT-179, "
Component Inspection" .
–Harness of terminal cord assembly for short or open
2. CHECK POWER SOURCE CIRCUIT
1. Turn ignition switch to “OFF” position.
2. Disconnect TCM harness connector.
3. Check continuity between terminal 12 and TCM harness connector terminal 1.
If OK, check harness for short to ground and short to power.
4. Reinstall any part removed.
OK or NG
OK >> GO TO 3.
NG >> Repair open circuit or short to ground or short to power
in harness or connectors.
3. CHECK DTC
Perform Diagnostic Trouble Code (DTC) confirmation procedure. Refer to AT- 1 7 6 , "
DIAGNOSTIC TROUBLE
CODE (DTC) CONFIRMATION PROCEDURE" .
OK or NG
OK >>INSPECTION END
NG >> 1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector. Resistance: 5 - 20Ω
SCIA0723E
Continuity should exist.
SCIA0724E
