Page 3265 of 3833
HEATED SEAT
SE-5
C
D
E
F
G
H
J
K
L
MA
B
SE
Wiring Diagram–H/SEAT (RHD MODELS)EIS001P2
TIWA0048E
Page 3266 of 3833
SE-6

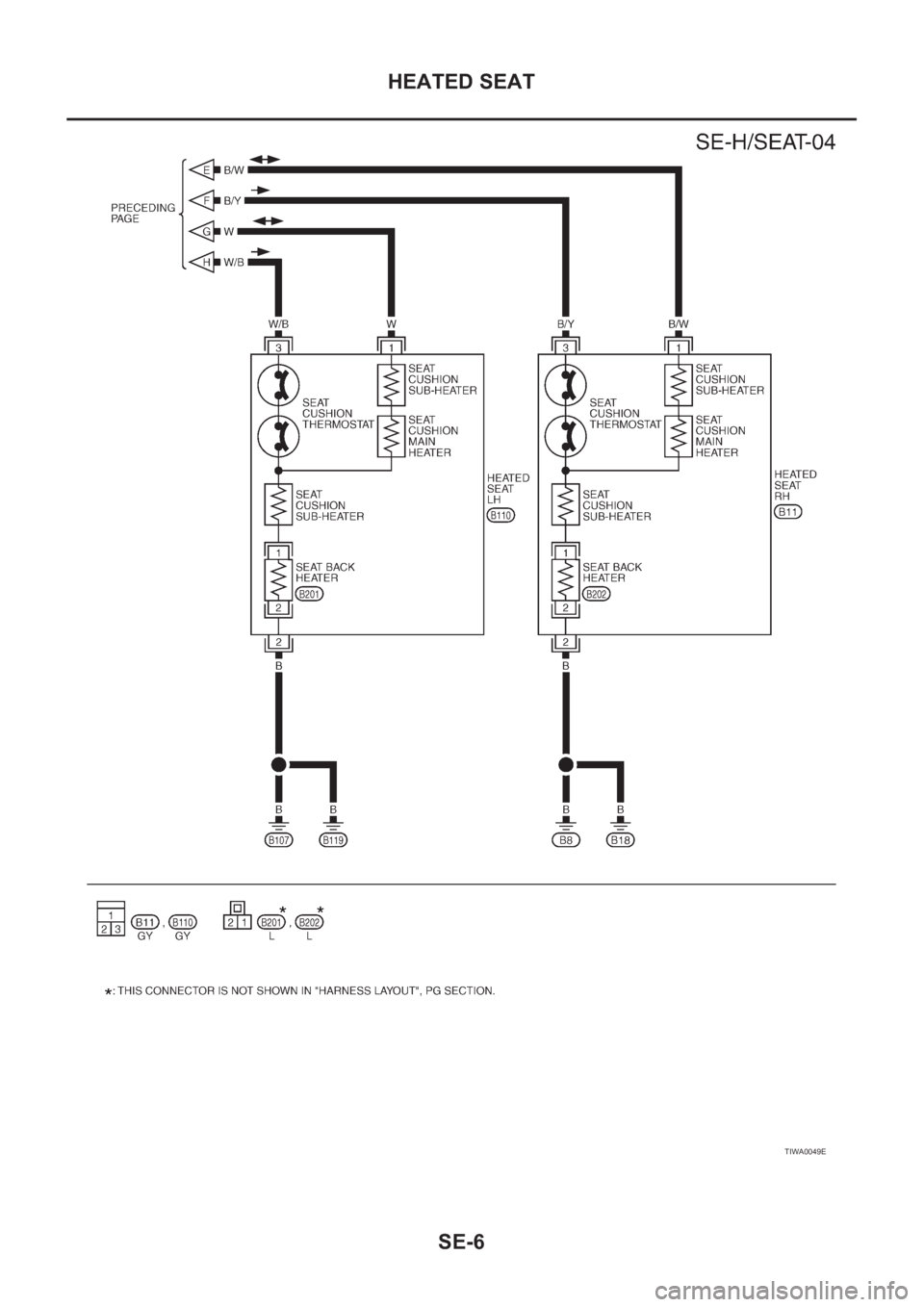

HEATED SEAT
TIWA0049E
Page 3267 of 3833
FRONT SEAT
SE-7
C
D
E
F
G
H
J
K
L
MA
B
SE

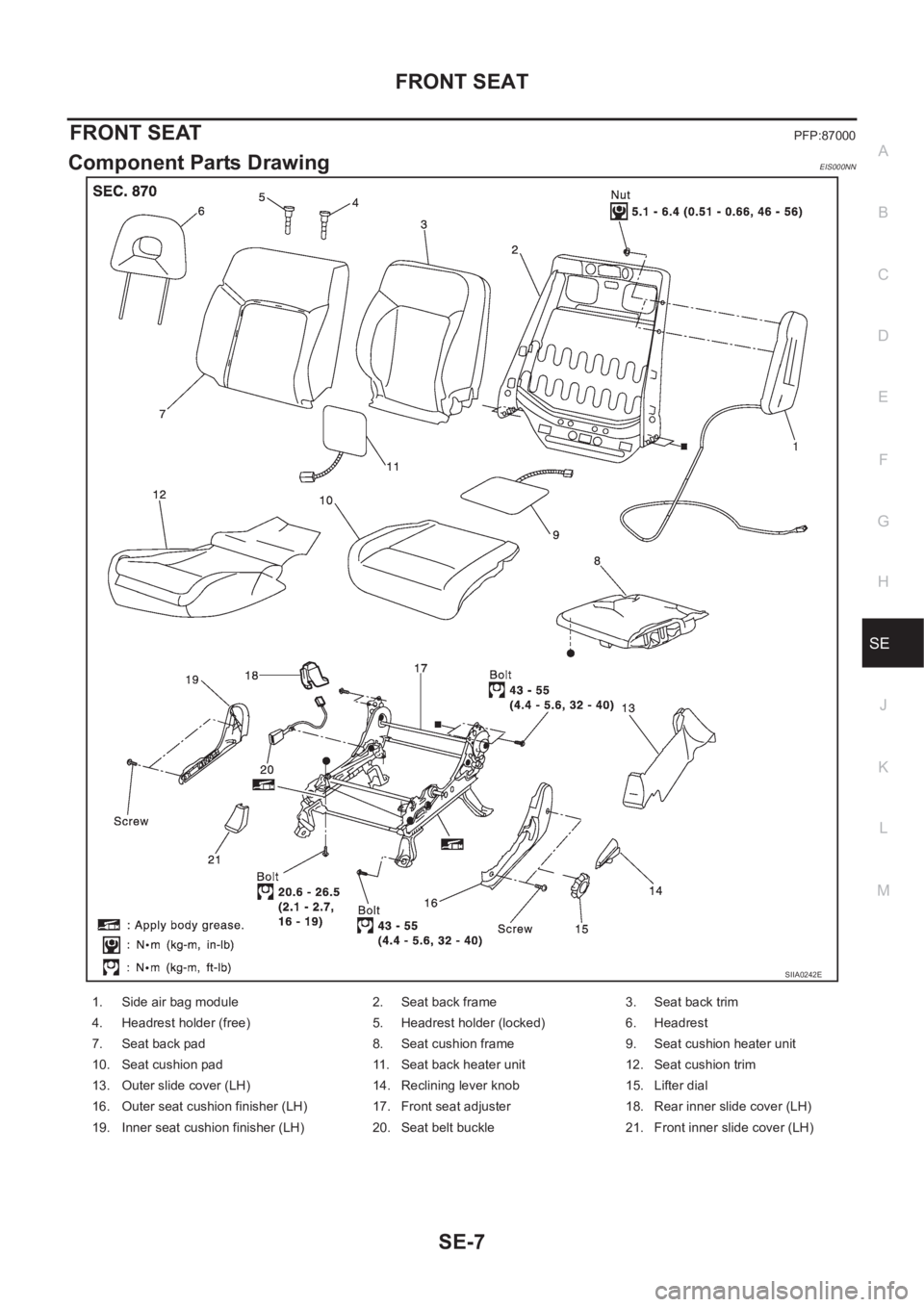

FRONT SEATPFP:87000
Component Parts DrawingEIS000NN
SIIA0242E
1. Side air bag module 2. Seat back frame 3. Seat back trim
4. Headrest holder (free) 5. Headrest holder (locked) 6. Headrest
7. Seat back pad 8. Seat cushion frame 9. Seat cushion heater unit
10. Seat cushion pad 11. Seat back heater unit 12. Seat cushion trim
13. Outer slide cover (LH) 14. Reclining lever knob 15. Lifter dial
16. Outer seat cushion finisher (LH) 17. Front seat adjuster 18. Rear inner slide cover (LH)
19. Inner seat cushion finisher (LH) 20. Seat belt buckle 21. Front inner slide cover (LH)
Page 3268 of 3833
SE-8
FRONT SEAT

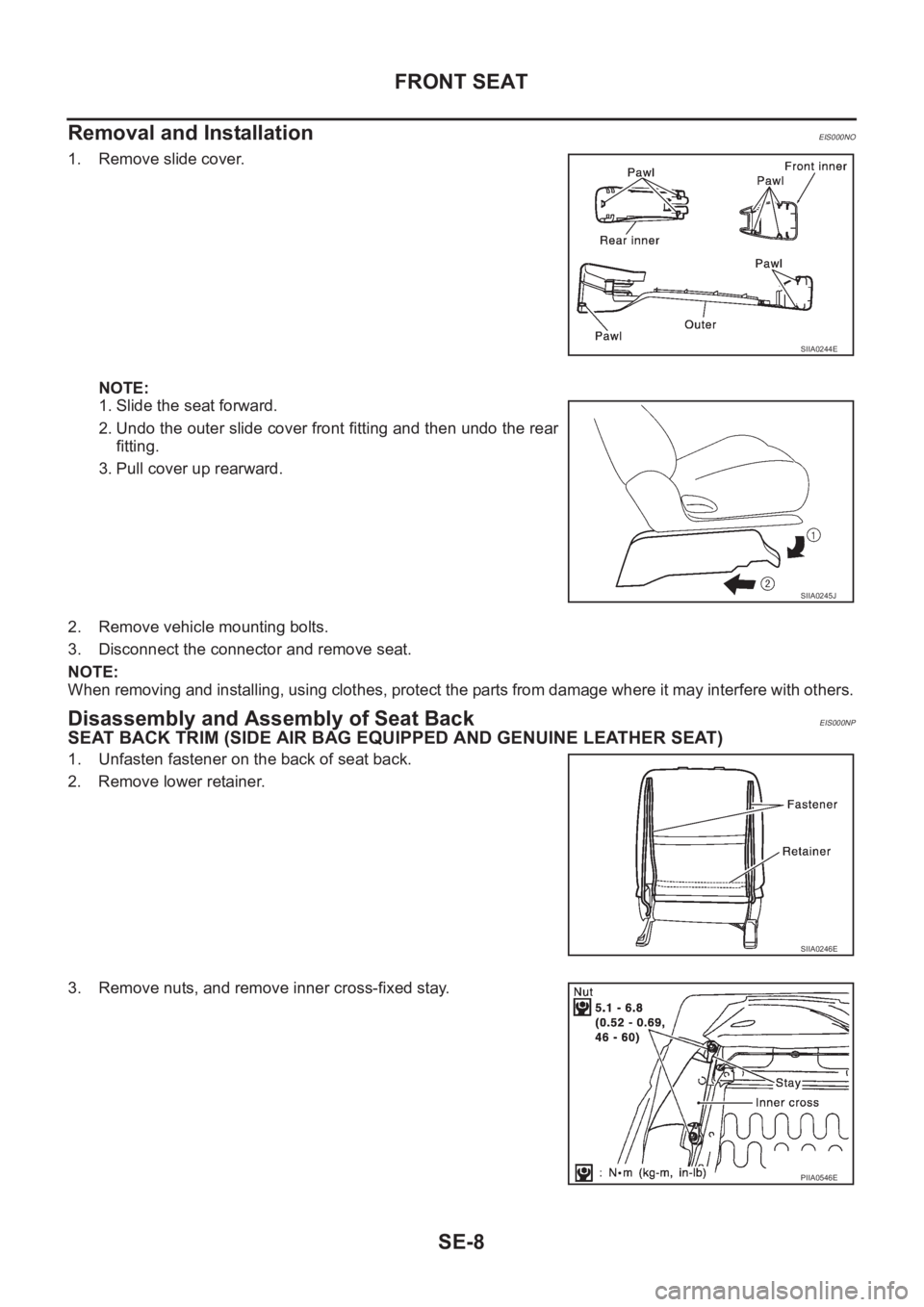

Removal and Installation
EIS000NO
1. Remove slide cover.
NOTE:
1. Slide the seat forward.
2. Undo the outer slide cover front fitting and then undo the rear
fitting.
3. Pull cover up rearward.
2. Remove vehicle mounting bolts.
3. Disconnect the connector and remove seat.
NOTE:
When removing and installing, using clothes, protect the parts from damage where it may interfere with others.
Disassembly and Assembly of Seat BackEIS000NP
SEAT BACK TRIM (SIDE AIR BAG EQUIPPED AND GENUINE LEATHER SEAT)
1. Unfasten fastener on the back of seat back.
2. Remove lower retainer.
3. Remove nuts, and remove inner cross-fixed stay.
SIIA0244E
SIIA0245J
SIIA0246E
PIIA0546E
Page 3269 of 3833

FRONT SEAT
SE-9
C
D
E
F
G
H
J
K
L
MA
B
SE

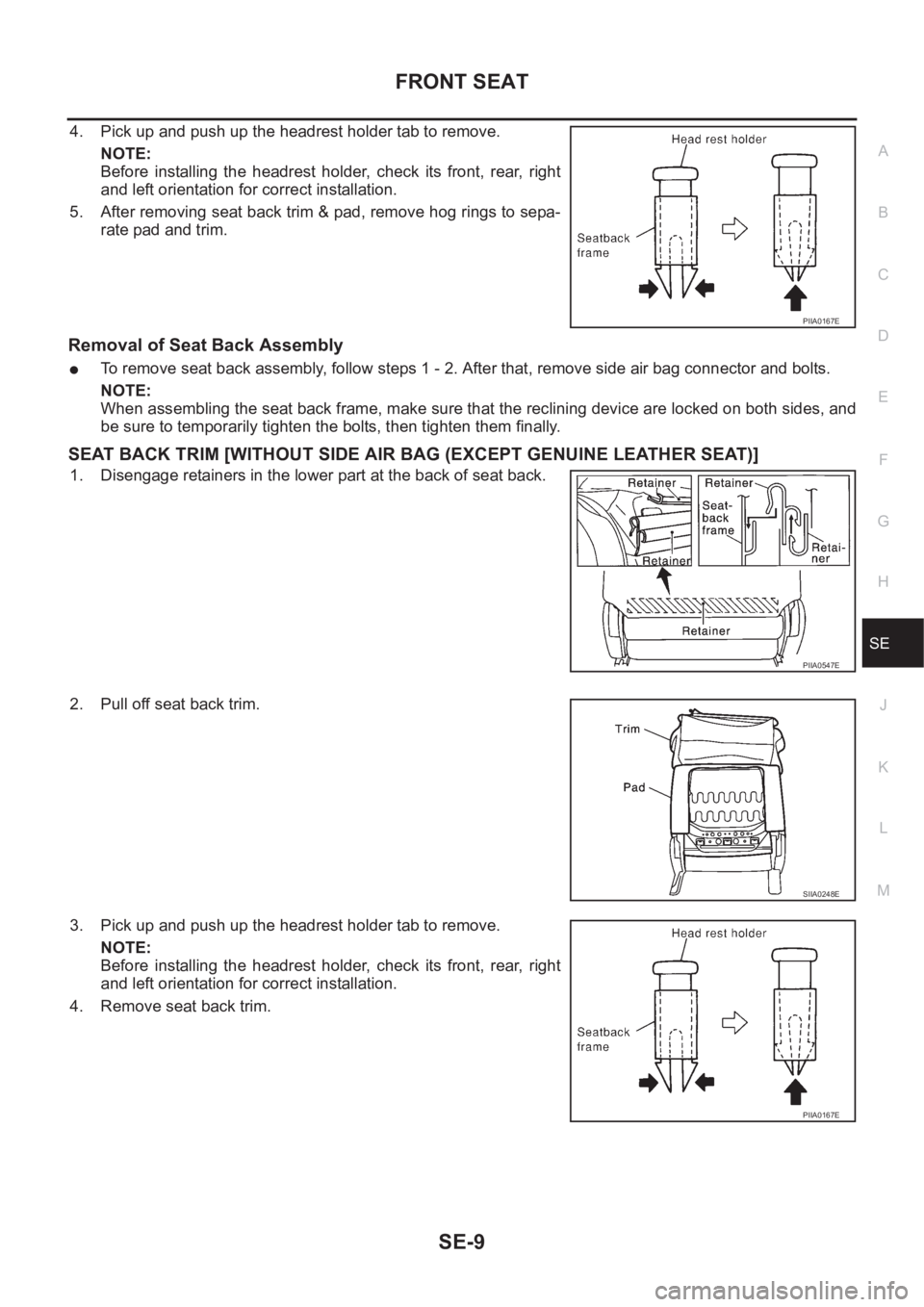

4. Pick up and push up the headrest holder tab to remove.
NOTE:
Before installing the headrest holder, check its front, rear, right
and left orientation for correct installation.
5. After removing seat back trim & pad, remove hog rings to sepa-
rate pad and trim.
Removal of Seat Back Assembly
●To remove seat back assembly, follow steps 1 - 2. After that, remove side air bag connector and bolts.
NOTE:
When assembling the seat back frame, make sure that the reclining device are locked on both sides, and
be sure to temporarily tighten the bolts, then tighten them finally.
SEAT BACK TRIM [WITHOUT SIDE AIR BAG (EXCEPT GENUINE LEATHER SEAT ) ]
1. Disengage retainers in the lower part at the back of seat back.
2. Pull off seat back trim.
3. Pick up and push up the headrest holder tab to remove.
NOTE:
Before installing the headrest holder, check its front, rear, right
and left orientation for correct installation.
4. Remove seat back trim.
PIIA0167E
PIIA0547E
SIIA0248E
PIIA0167E
Page 3270 of 3833
SE-10
FRONT SEAT
Removal of Seat Back Assembly
●To remove seat back assembly, follow steps 1 - 2. After that, remove bolts.
NOTE:
When assembling the seat back frame, make sure that the reclining device are locked on both sides, and
be sure to temporarily tighten the bolts, then tighten them finally.
Disassembly and Assembly of Seat Cushion TrimEIS000NQ
1. Pull up tabs of reclining lever from inside. Slide the knob forward
for removal.
2. Hang a wire on the snap ring, and pull upward to remove.
Remove lifter dial.
3. Remove seat harness and bolts from back of seat cushion.
NOTE:
When installing bolts, make sure both sides of the slide are locked.
Be sure to temporarily tighten the bolts before final tightening.
4. Remove retainer from back side of the cushion.
5. Pull off trim and remove hog rings.
PIIA0548E
PIIA0549E
SIIA0249E
SIIA0046E
Page 3271 of 3833
REAR SEAT
SE-11
C
D
E
F
G
H
J
K
L
MA
B
SE

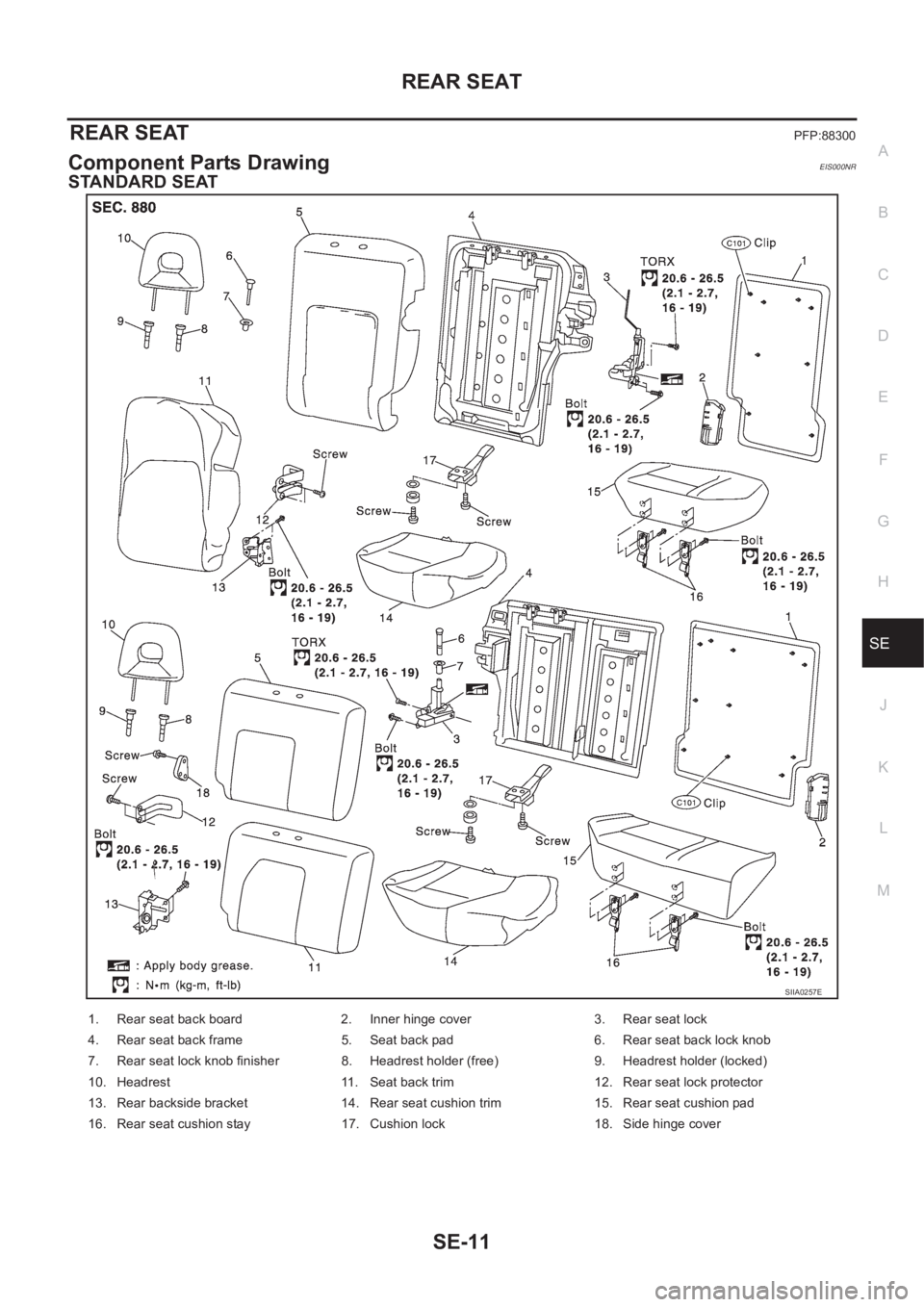

REAR SEATPFP:88300
Component Parts DrawingEIS000NR
STANDARD SEAT
SIIA0257E
1. Rear seat back board 2. Inner hinge cover 3. Rear seat lock
4. Rear seat back frame 5. Seat back pad 6. Rear seat back lock knob
7. Rear seat lock knob finisher 8. Headrest holder (free) 9. Headrest holder (locked)
10. Headrest 11. Seat back trim 12. Rear seat lock protector
13. Rear backside bracket 14. Rear seat cushion trim 15. Rear seat cushion pad
16. Rear seat cushion stay 17. Cushion lock 18. Side hinge cover
Page 3272 of 3833
SE-12
REAR SEAT

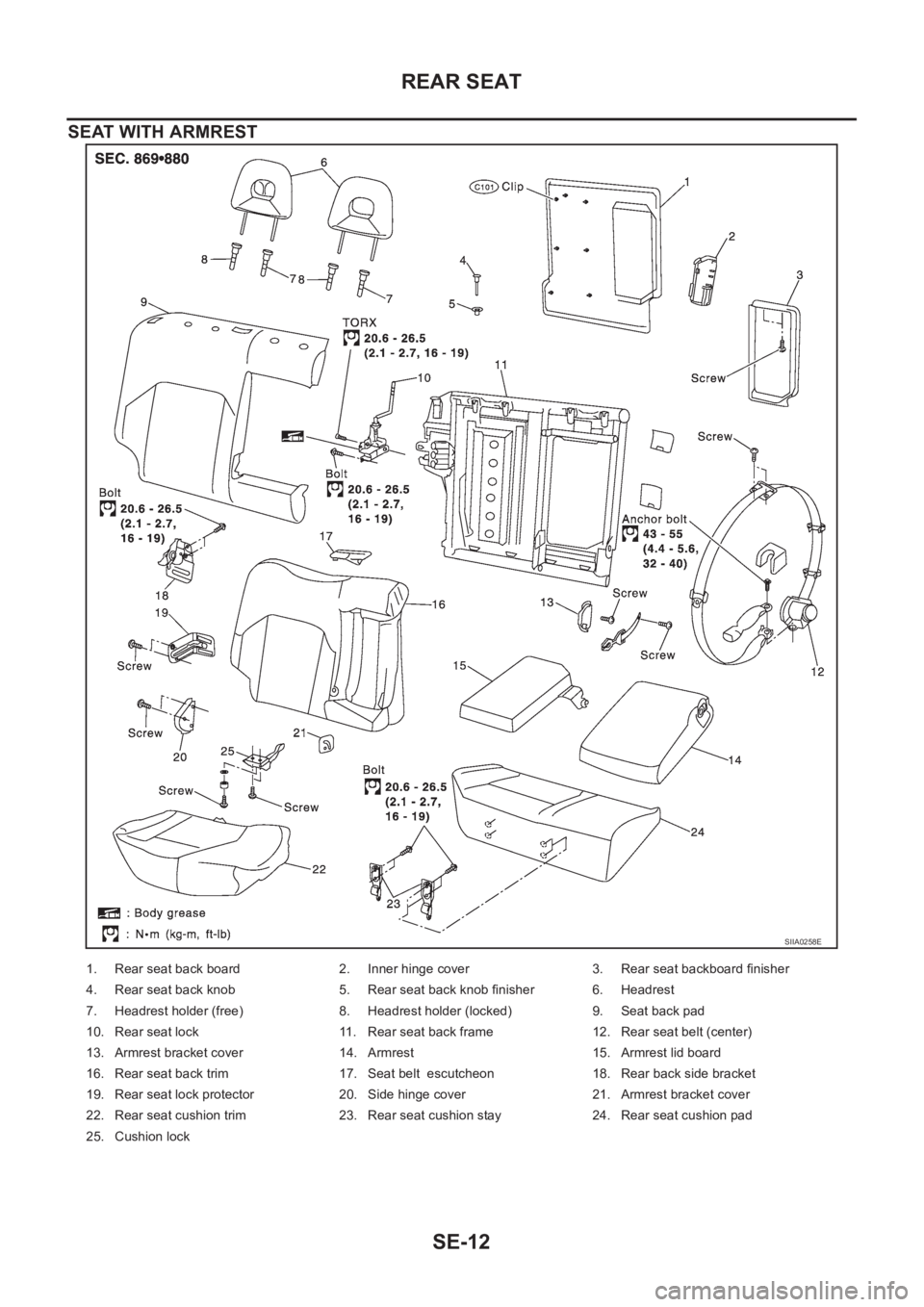

SEAT WITH ARMREST
SIIA0258E
1. Rear seat back board 2. Inner hinge cover 3. Rear seat backboard finisher
4. Rear seat back knob 5. Rear seat back knob finisher 6. Headrest
7. Headrest holder (free) 8. Headrest holder (locked) 9. Seat back pad
10. Rear seat lock 11. Rear seat back frame 12. Rear seat belt (center)
13. Armrest bracket cover 14. Armrest 15. Armrest lid board
16. Rear seat back trim 17. Seat belt escutcheon 18. Rear back side bracket
19. Rear seat lock protector 20. Side hinge cover 21. Armrest bracket cover
22. Rear seat cushion trim 23. Rear seat cushion stay 24. Rear seat cushion pad
25. Cushion lock
