NISSAN X-TRAIL 2001 Service Repair Manual DTC P1217 ENGINE OVER TEMPERATURE
EC-1051
[QR20(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
ECM Terminals and Reference ValueEBS00N14
Specification data are reference values and are measured between eac

DTC P1217 ENGINE OVER TEMPERATURE
EC-1051
[QR20(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
ECM Terminals and Reference ValueEBS00N14
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
On Board Diagnosis LogicEBS00N15
If the cooling fan or another component in the cooling system malfunctions, engine coolant temperature will
rise.
When the engine coolant temperature reaches an abnormally high temperature condition, a malfunction is
indicated.
This self-diagnosis has the one trip detection logic.
CAUTION:
When a malfunction is indicated, be sure to replace the coolant. Refer to CO-29, "
Changing Engine
Coolant" . Also, replace the engine oil. Refer to LU-19, "Changing Engine Oil" .
1. Fill radiator with coolant up to specified level with a filling speed of 2 liters per minute. Be sure to
use coolant with the proper mixture ratio. Refer to MA-18, "
Engine Coolant Mixture Ratio" .
2. After refilling coolant, run engine to ensure that no water-flow noise is emitted.
COOLING FAN
●Engine: After warming up, idle
the engine
●Air conditioner switch: OFFEngine coolant temperature is 94°C
(201°F) or lessOFF
Engine coolant temperature is
between 95°C (203°F) and 104°C
(219°F)LOW
Engine coolant temperature is 105°C
(221°F) or moreHIGH MONITOR ITEM CONDITION SPECIFICATION
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
27 LG/BCooling fan relay
(High)[Engine is running]
●Cooling fan is not operating
●Cooling fan is operating at low speedBATTERY VOLTAGE
(11 - 14V)
[Engine is running]
●Cooling fan is operating at high speed0 - 1.0V
37 LGCooling fan relay
(Low)[Engine is running]
●Cooling fan is not operatingBATTERY VOLTAGE
(11 - 14V)
[Engine is running]
●Cooling fan is operating0 - 1.0V
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1217
1217Engine over tempera-
ture (Overheat)
●Cooling fan does not operate properly (Over-
heat).
●Cooling fan system does not operate prop-
erly (Overheat).
●Engine coolant was not added to the system
using the proper filling method.
●Harness or connectors
(The cooling fan circuit is open or
shorted.)
●Cooling fan
●Radiator hose
●Radiator
●Radiator cap
●Water pump
●Thermostat
For more information, refer to EC-1062,
"Main 12 Causes of Overheating" .

Page 1402 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual EC-1052
[QR20(WITH EURO-OBD)]
DTC P1217 ENGINE OVER TEMPERATURE
Overall Function Check
EBS00N16
Use this procedure to check the overall function of the cooling fan. During this check, a DTC might not

Page 1403 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual DTC P1217 ENGINE OVER TEMPERATURE
EC-1053
[QR20(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
8. Make sure that cooling fan operates at low speed.
If NG, go to EC-1055, "
Diagnostic Procedure" .
I

Page 1404 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual EC-1054
[QR20(WITH EURO-OBD)]
DTC P1217 ENGINE OVER TEMPERATURE

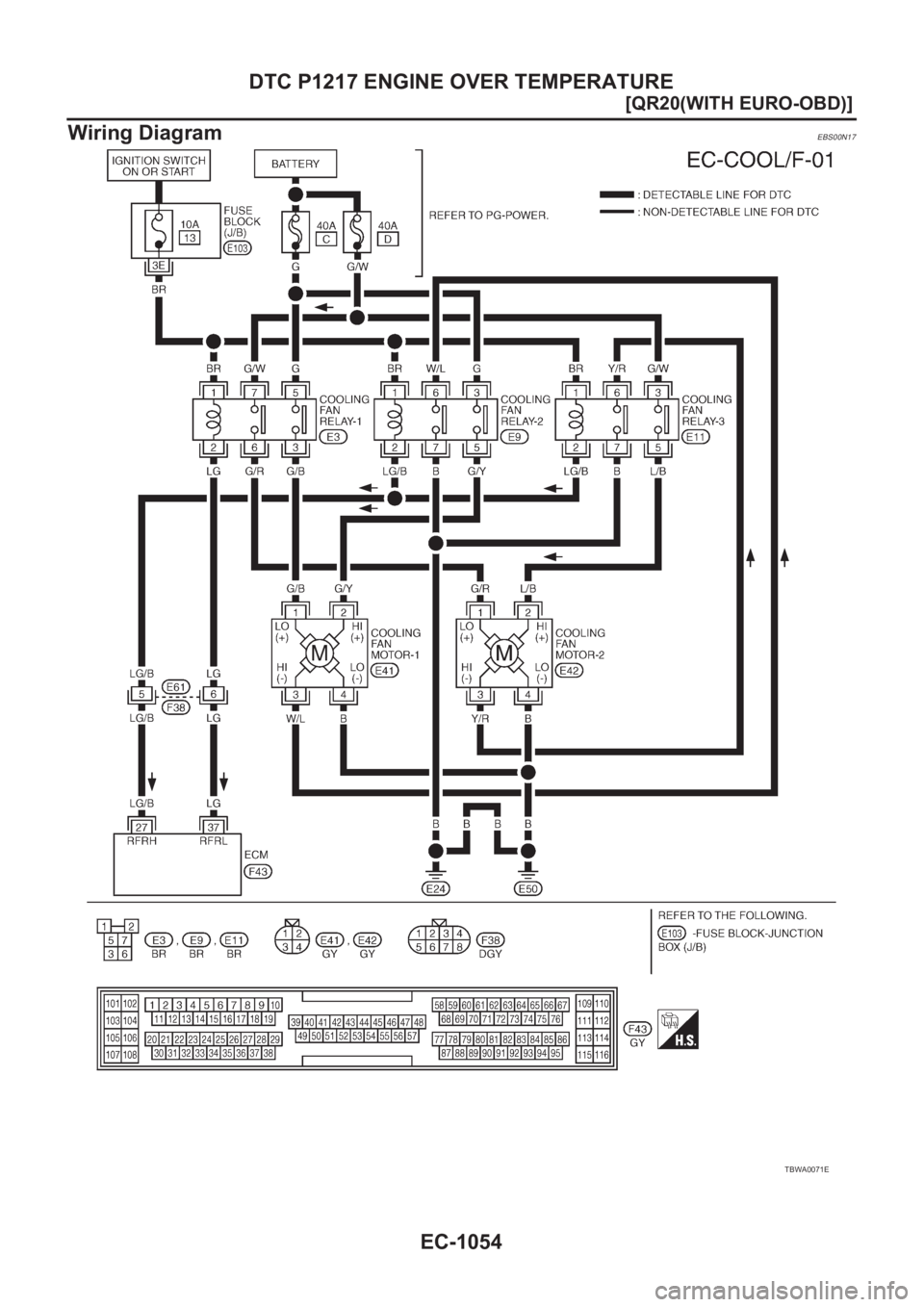

Wiring Diagram
