Page 2857 of 3833
TROUBLE DIAGNOSIS
BRC-73
[ESP/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC

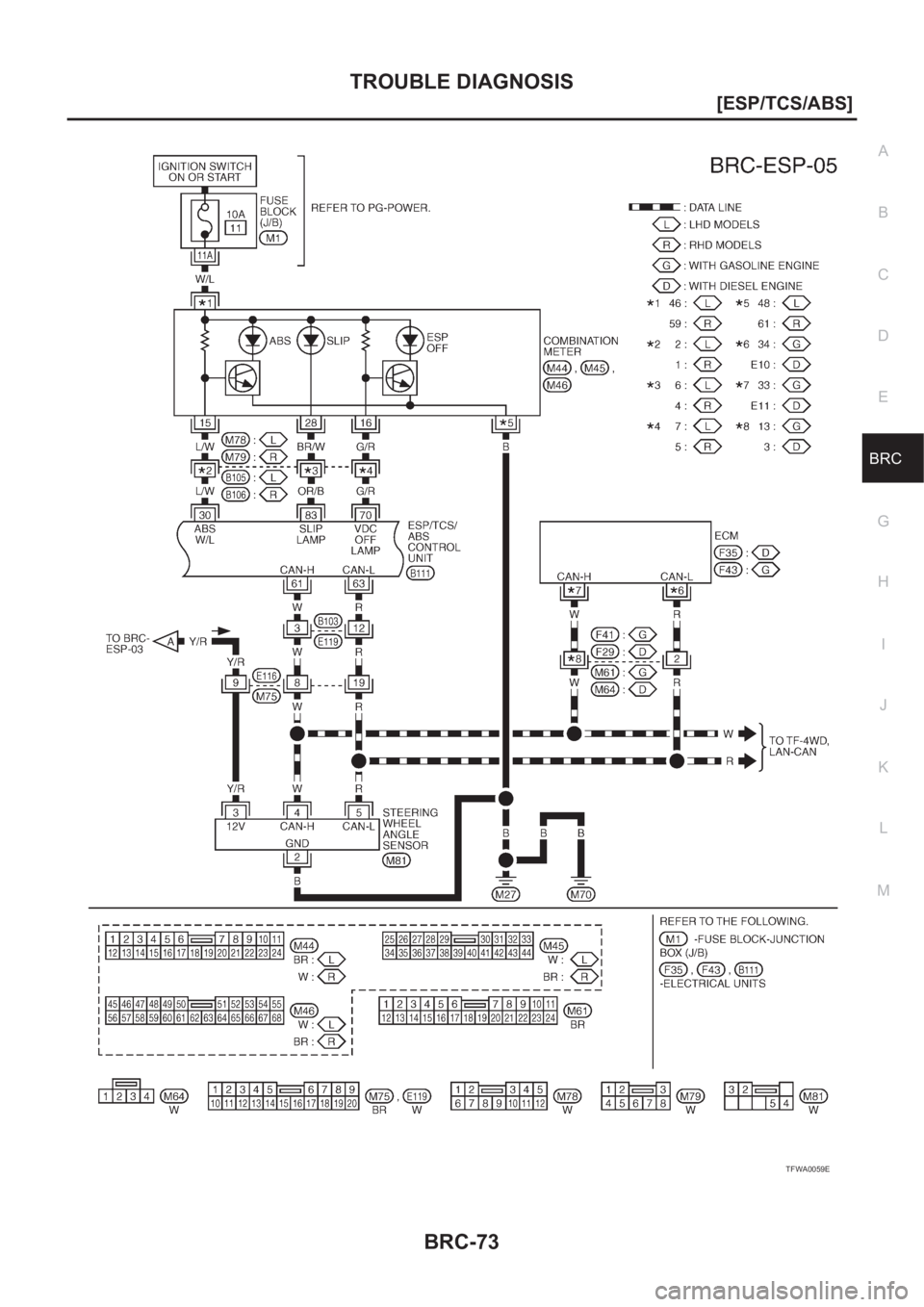

TFWA0059E
Page 2858 of 3833
BRC-74
[ESP/TCS/ABS]
TROUBLE DIAGNOSIS

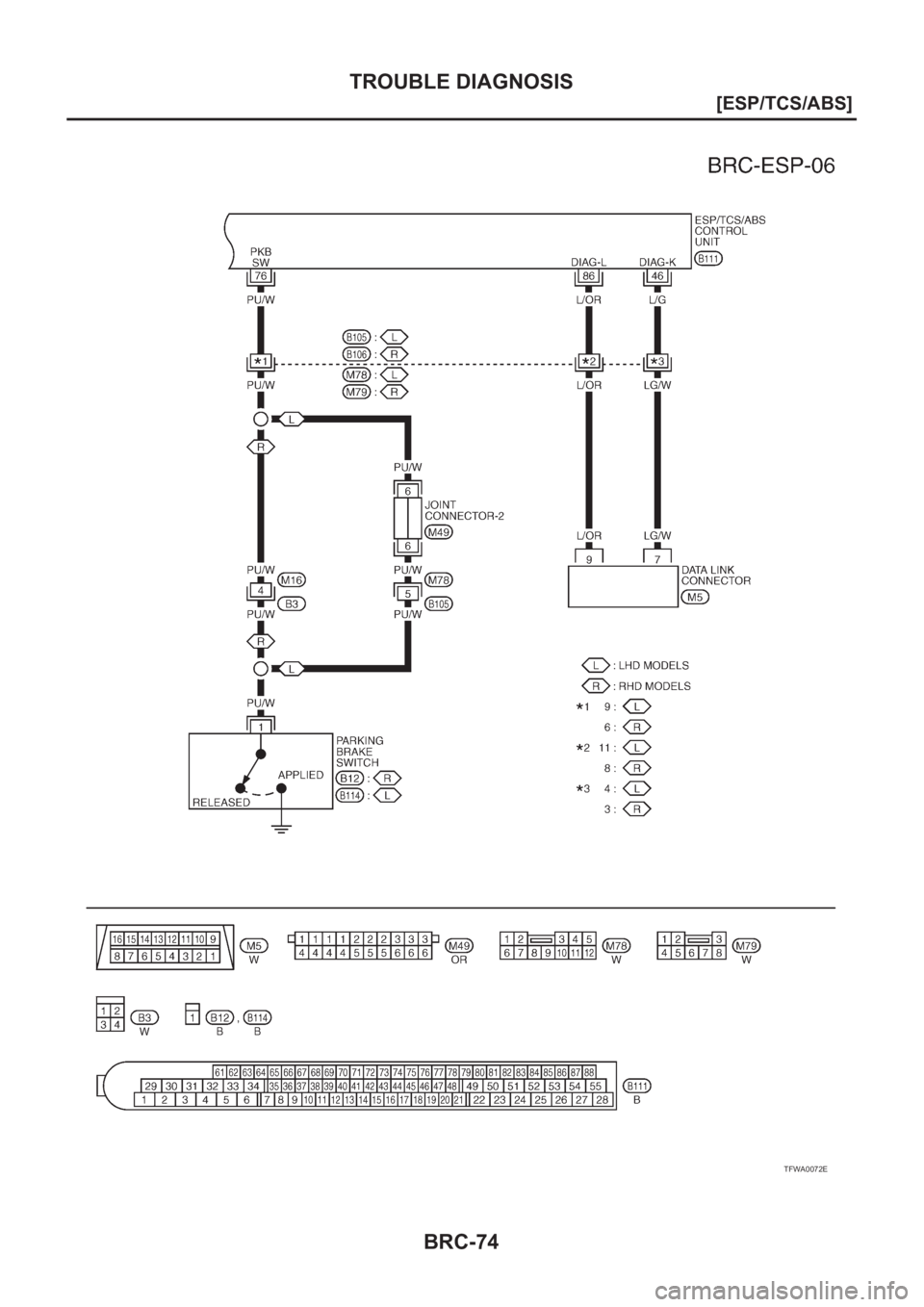

TFWA0072E
Page 2859 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual TROUBLE DIAGNOSIS
BRC-75
[ESP/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Control Unit Input/Output Signal StandardEFS001A6
STANDARDS USING A CIRCUIT TESTER AND OSCILLOSCOPE
CAUTION:
Connect the connectors NISSAN X-TRAIL 2001 Service Repair Manual TROUBLE DIAGNOSIS
BRC-75
[ESP/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Control Unit Input/Output Signal StandardEFS001A6
STANDARDS USING A CIRCUIT TESTER AND OSCILLOSCOPE
CAUTION:
Connect the connectors](/manual-img/5/57405/w960_57405-2858.png)
TROUBLE DIAGNOSIS
BRC-75
[ESP/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Control Unit Input/Output Signal StandardEFS001A6
STANDARDS USING A CIRCUIT TESTER AND OSCILLOSCOPE
CAUTION:
Connect the connectors for the ESP/TCS/ABS control unit and actuator, and turn the ignition switch
ON.
SFIA0896E
Measure-
ment termi-
nalMeasuring point Standard value (Note 1)(Reference) Check
items for malfunc-
tion
+–
1
Body
groundPower supply Ignition switch ON Battery voltage (Approx. 12V)
Control unit power
supply circuit
2Actuator motor relay,
actuator relay power
supply and steering
wheel angle sensor
power supplyIgnition switch ON Battery voltage (Approx. 12V)
7 Actuator motor relayActuator motor being driven
(“Active test ”mode with CON-
SULT-II)Approx. 0V
Actuator motor,
motor relay, and
circuit
Actuator motor while the vehicle
is stoppedBattery voltage (Approx. 12V)
36 Actuator relayWhen actuator relay is active.
(the engine running)Approx. 0V
Actuator relay and
circuit
When actuator relay is inactive.
(Fail-safe, engine starts.)Battery voltage (Approx. 12V)
20 Actuator motor monitorWhen actuator relay is active.
(the engine running)Battery voltage (Approx. 12V)
Actuator motor
monitor circuit
When actuator relay is inactive.
(Fail-safe, engine starts.)Approx. 0V
3
Body
groundFront LH wheel outlet
solenoid valve
Solenoid valve activated
(In “active test” mode of CON-
SULT-II) or actuator relay inac-
tive (in fail-safe mode)
When solenoid valve is inactive
and actuator relay active (when
ignition switch ON)Approx. 0V
Battery voltage (Approx. 12V)Solenoid valve and
circuit 4Rear RH wheel outlet
solenoid valve
5Front LH wheel inlet
solenoid valve
6Rear RH wheel inlet
solenoid valve
25Rear LH wheel outlet
solenoid valve
26Front RH wheel inlet
solenoid valve
53Rear LH wheel inlet sole-
noid valve
55Front RH wheel outlet
solenoid valve
Page 2860 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual BRC-76
[ESP/TCS/ABS]
TROUBLE DIAGNOSIS
49
Body
groundPrimary-side ESP
switch-over solenoid
valve 1 (USV)When switch-over solenoid
valve is active (in “active test”
mode of CONSULT-II)
Or, whe NISSAN X-TRAIL 2001 Service Repair Manual BRC-76
[ESP/TCS/ABS]
TROUBLE DIAGNOSIS
49
Body
groundPrimary-side ESP
switch-over solenoid
valve 1 (USV)When switch-over solenoid
valve is active (in “active test”
mode of CONSULT-II)
Or, whe](/manual-img/5/57405/w960_57405-2859.png)
BRC-76
[ESP/TCS/ABS]
TROUBLE DIAGNOSIS
49
Body
groundPrimary-side ESP
switch-over solenoid
valve 1 (USV)When switch-over solenoid
valve is active (in “active test”
mode of CONSULT-II)
Or, when actuator relay inactive
(when fail-safe)
When switch-over solenoid
valve is inactive and actuator
relay is active (when ignition
switch ON)Approx. 0V
Battery voltage (Approx. 12V)Switch-over sole-
noid valve and cir-
cuit 50Secondary-side ESP
switch-over solenoid
valve 1 (USV)
52Secondary-side ESP
switch-over solenoid
valve 2 (HSV)
54Primary-side ESP
switch-over solenoid
valve 2 (HSV)
8 10 Front LH wheel sensor
Wheel rotated [Approx. 30 km/h
(19 MPH)] (Note 2)Pulse generation
: Approx. 200 HzWheel speed sen-
sor and circuit 11 12 Rear RH wheel sensor
13 14 Rear LH wheel sensor
15 16 Front RH wheel sensor
48Body
groundStop lamp signalDepress brake pedal. Battery voltage (Approx. 12V)
Stop lamp switch
and circuit
Release the brake pedal. Approx. 0V
44
Body
groundESP OFF switchESP OFF switch is pressed. Approx. 10V
ESP OFF switch
and circuit
ESP OFF switch is released. Approx. 12V
61CAN communication
input/output signal (H)Ignition switch ON
–
63CAN communication
input/output signal (L)Ignition switch ON Measure-
ment termi-
nalMeasuring point Standard value (Note 1)(Reference) Check
items for malfunc-
tion
+–
PBIA0224J
PBIA0223J
Page 2861 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual TROUBLE DIAGNOSIS
BRC-77
[ESP/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
(Note 1): When the standard value is checked using a circuit tester for voltage measurement, the connector terminals should not extend NISSAN X-TRAIL 2001 Service Repair Manual TROUBLE DIAGNOSIS
BRC-77
[ESP/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
(Note 1): When the standard value is checked using a circuit tester for voltage measurement, the connector terminals should not extend](/manual-img/5/57405/w960_57405-2860.png)
TROUBLE DIAGNOSIS
BRC-77
[ESP/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
(Note 1): When the standard value is checked using a circuit tester for voltage measurement, the connector terminals should not extend
forcefully.
(Note 2): Check the pressure of the tire in normal condition.
(Note 3): ON/OFF timing of the ABS warning lamp
ON: For approximately 0.5 seconds after the ignition switch is turned ON, or when a malfunction is detected.
OFF: Approximately 0.5 seconds after the ignition switch is turned ON (when the system is in normal operation).
(Note 4): ON/OFF timing of the ESP OFF indicator lamp
ON: For approximately 0.5 seconds after the ignition switch is turned ON, or when a malfunction is detected ESP OFF switch is ON. 67
Body
groundPressure sensorIgnition switch ON Approx. 0V
Pressure sensor
and circuit 68When ignition switch ON and
brake pedal released.Approx. 0.6V
69 Ignition switch ON Approx. 0V
18 Side G sensor Ignition switch ON Approx. 2.5VYaw rate and Side
G sensor and cir-
cuit
34
Yaw rate and Side G
sensorIgnition switch ON Battery voltage (Approx. 12V)
Yaw rate and Side
G sensor and cir-
cuit 77 Ignition switch ON
78 Ignition switch ON Approx. 2.5V
79
Yaw rate sensorIgnition switch ON
Ya w r a t e s e n s o r
and circuit
80 Ignition switch ON Approx. 0V
30 ABS warning lampABS warning lamp turns on
(Note 3)Approx. 0V
ABS warning lamp
and circuit
ABS warning lamp turns off
(note 3)Battery voltage (Approx. 12V)
70 ESP OFF indicator lampESP OFF indicator lamp turns
on (Note 4)Approx. 0V
ESP OFF warning
lamp and circuit
ESP OFF indicator lamp turns
off (note 4)Battery voltage (Approx. 12V)
83 SLIP indicator lampWhen SLIP indicator lamp is ON
(Note 5)Approx. 0V
SLIP indicator
lamp and circuit
SLIP indicator lamp turns off
(note 5)Battery voltage (Approx. 12V)
40 Brake fluid level warning
switchBrake fluid is not enough Battery voltage (Approx. 12V) Brake fluid level
warning switch and
circuit
Brake fluid is enough Approx. 0V
76Body
groundParking brake signalApply the parking brake. Battery voltage (Approx. 12V)
Parking brake
switch and circuit
Release the parking brake. Approx. 0V Measure-
ment termi-
nalMeasuring point Standard value (Note 1)(Reference) Check
items for malfunc-
tion
+–
SFIA0150E
SFIA0151E
Page 2862 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual BRC-78
[ESP/TCS/ABS]
TROUBLE DIAGNOSIS
OFF: Approximately 0.5 seconds after the ignition switch is turned ON (when the system is in normal operation) or when ESP OFF
switch is OFF. NISSAN X-TRAIL 2001 Service Repair Manual BRC-78
[ESP/TCS/ABS]
TROUBLE DIAGNOSIS
OFF: Approximately 0.5 seconds after the ignition switch is turned ON (when the system is in normal operation) or when ESP OFF
switch is OFF.](/manual-img/5/57405/w960_57405-2861.png)
BRC-78
[ESP/TCS/ABS]
TROUBLE DIAGNOSIS
OFF: Approximately 0.5 seconds after the ignition switch is turned ON (when the system is in normal operation) or when ESP OFF
switch is OFF.
(Note 5): SLIP indicator lamp ON/OFF timing
ON: For approximately 0.5 seconds after the ignition switch is turned ON, or when a malfunction is detected.
OFF: Approximately 0.5 seconds after the ignition switch is turned ON (when the system is in normal operation) and ESP/TCS function
is not activated.
Flashing: ESP/TCS function is active during driving.
STANDARDS WITH CONSULT-II
CAUTION:
The displayed item is the data calculated by the control unit, so it may indicate a normal value even if
an output circuit (harness) is open or shorted.
Data monitor item ContentsData monitor
(Reference) Check items
for malfunction
ConditionReference value in
normal operation
FR RH SENSOR
FR LH SENSOR
RR RH SENSOR
RR LH SENSORWheel speed Vehicle stopped 0 [km/h (MPH)]
Wheel sensor circuit
During driving (Note 1)Almost in accor-
dance with the
speedometer dis-
play (within ±10%)
ACCEL POS SIGOpen/close condition
of throttle valve (linked
with accelerator pedal)Accelerator pedal not
depressed (ignition switch is
ON)0%Control unit communica-
tion circuit between the
ESP/TCS/ABS control
unit and ECM Accelerator pedal depressed
(ignition switch is ON)0 – 100%
ENG RPMWith the engine run-
ningWith the engine stopped 0rpm
Engine speed signal cir-
cuit
Engine runningAlmost in accor-
dance with
tachometer display
STR ANGLE SIGSteering wheel angle
detected by steering
wheel angle sensorStraight-ahead condition Approx. 0 deg
Steering wheel angle
sensor and circuit
Steering – 720 to 720deg
YAW RATE SENYaw rate detected by
yaw rate sensorVehicle stopped Approx. 0 d/s
Yaw rate sensor and cir-
cuit
During driving – 70 to 70d/s
SIDE G-SENSORTransverse accelera-
tion detected by side G
sensorVehicle stopped
Approx. 0 m/s
2
Side G sensor and circuit
During driving
– 24.3 to 24.1m/s2
PRESS SENSORBrake fluid pressure
detected by pressure
sensorWith the ignition switch
turned ON and brake pedal
released.Approx. 0 bar
Pressure sensor and cir-
cuit
With the ignition switch
turned ON and brake pedal
depressed.– 40 to 300bar
BATTERY VOLTBattery voltage sup-
plied to the ESP/TCS/
ABS control unitIgnition switch ON 10 – 16VESP/TCS/ABS control
unit power supply circuit
and ground circuit
MOTOR RELAYMotor relay
ON/OFF conditionABS not activated. OFF
Motor relay and circuit
ABS activated. ON
ACTUATOR RLYActuator relay
ON/OFF conditionIgnition ON and Vehicle
stopped.OFF
Actuator relay and circuit
Engine running and Vehicle
stopped.ON
STOP LAMP SWOperating status of
brake pedalDepress brake pedal. ON
Stop lamp switch circuit
Release the brake pedal. OFF
Page 2863 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual TROUBLE DIAGNOSIS
BRC-79
[ESP/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
PARK BRAKE SW Parking brake statusParking brake activated ON
Parking brake switch cir-
cuit
Parking brake not activated OFF
OFF SWESP NISSAN X-TRAIL 2001 Service Repair Manual TROUBLE DIAGNOSIS
BRC-79
[ESP/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
PARK BRAKE SW Parking brake statusParking brake activated ON
Parking brake switch cir-
cuit
Parking brake not activated OFF
OFF SWESP](/manual-img/5/57405/w960_57405-2862.png)
TROUBLE DIAGNOSIS
BRC-79
[ESP/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
PARK BRAKE SW Parking brake statusParking brake activated ON
Parking brake switch cir-
cuit
Parking brake not activated OFF
OFF SWESP OFF SW
ON/OFF conditionESP OFF switch ON
(When ESP OFF indicator
lamp is ON.)ON
ESP OFF switch circuit
ESP OFF switch OFF
(When ESP OFF indicator
lamp is OFF.)OFF
ABS WARN LAMPABS warning lamp sta-
tus (Note 2)When ABS warning lamp is
ON.ON
ABS warning lamp circuit
When ABS warning lamp is
OFF.OFF
OFF LAMPESP OFF indicator
lamp status (Note 3)When ESP OFF indicator
lamp is ON.ON
ESP OFF indicator lamp
circuit
When ESP OFF indicator
lamp is OFF.OFF
SLIP LAMPSLIP indicator lamp
status (Note 4)When SLIP indicator lamp is
ONON
SLIP indicator lamp cir-
cuit
When SLIP indicator lamp is
OFF.OFF
FR LH IN SOL
FR LH OUT SOL
FR RH IN SOL
FR RH OUT SOL
RR LH IN SOL
RR LH OUT SOL
RR RH IN SOL
RR RH OUT SOLSolenoid valve opera-
tionActuator (solenoid valve) is
active (“Active Test ”with CON-
SULT-II) or actuator relay is
inactive (in fail-safe mode).ON
Solenoid valve and cir-
cuit
When the actuator (solenoid
valve) is not active and actua-
tor relay is active (ignition
switch ON).OFF
USV [FR-PL]
UISV [FL-RR]
HSV [FR-RL]
HSV [FL-RR]ESP switch-over sole-
noid valve statusWhen the actuator (switch-
over solenoid valve) is active
(“Active test” with CONSULT-
II) or the actuator relay is inac-
tive (when fail-safe mode).ON
Switch-over solenoid
valve and circuit
When the actuator (switch-
over solenoid valve) is inactive
or the actuator relay is active
(ignition switch ON).OFF
V/R OUTPUTActuator relay acti-
vated
(ON/OFF)When the actuator relay is
active (the engine is running).ON
Actuator relay and circuit When the actuator relay is not
active (before the engine get
started and in the fail-safe
mode).OFF
M/R OUTPUTActuator motor and
motor relay status (ON/
OFF)When the actuator motor and
motor relay are active (“Active
test” with CONSULT-II).ON
Actuator motor, motor
relay, and circuit
When the actuator motor and
motor relay are inactive.OFF Data monitor item ContentsData monitor
(Reference) Check items
for malfunction
ConditionReference value in
normal operation
Page 2864 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual BRC-80
[ESP/TCS/ABS]
TROUBLE DIAGNOSIS
(Note 1): Check the pressure of the tire in normal condition.
(Note 2): ON/OFF timing of the ABS warning lamp
ON: For approximately 0.5 seconds after the ignitio NISSAN X-TRAIL 2001 Service Repair Manual BRC-80
[ESP/TCS/ABS]
TROUBLE DIAGNOSIS
(Note 1): Check the pressure of the tire in normal condition.
(Note 2): ON/OFF timing of the ABS warning lamp
ON: For approximately 0.5 seconds after the ignitio](/manual-img/5/57405/w960_57405-2863.png)
BRC-80
[ESP/TCS/ABS]
TROUBLE DIAGNOSIS
(Note 1): Check the pressure of the tire in normal condition.
(Note 2): ON/OFF timing of the ABS warning lamp
ON: For approximately 0.5 seconds after the ignition switch is turned ON, or when a malfunction is detected.
OFF: Approximately 0.5 seconds after the ignition switch is turned ON (when the system is in normal operation).
(Note 3): ON/OFF timing of the ESP OFF indicator lamp
ON: For approximately 0.5 seconds after the ignition switch is turned ON, or when a malfunction is detected ESP OFF switch is ON.
OFF: Approximately 0.5 seconds after the ignition switch is turned ON (when the system is in normal operation) or when ESP OFF
switch is OFF.
(Note 4): SLIP indicator lamp ON/OFF timing
ON: For approximately 0.5 seconds after the ignition switch is turned ON, or when a malfunction is detected.
OFF: Approximately 0.5 seconds after the ignition switch is turned ON (when the system is in normal operation) and ESP/TCS function
is not activated.
Flashing: ESP/TCS function is active during driving.
Functions of CONSULT-IIEFS001A7
CONSULT-II MAINLY FUNCTION APPLICATION TO ESP/TCS/ABS
×: Applicable
–: Not applicableFLUID LEV SWBrake fluid level warn-
ing switch status.W he n br ak e fl ui d l e v el w a r n in g
switch is ON.ON
Brake fluid level warning
switch, brake warning
lamp and circuit. When brake fluid lever warning
switch is OFF.OFF
EBD FAIL SIG
ABS FAIL SIG
TCS FAIL SIG
VDC FAIL SIGSystem fail signal sta-
tusMalfunctions condition
(When system failed)OFFEBD system
ABS system
TCS system
ESP system Data monitor item ContentsData monitor
(Reference) Check items
for malfunction
ConditionReference value in
normal operation
Item Self-diagnosis Data monitor Active test
Wheel sensors××–
Solenoid valves×××
Switch-over solenoid valves×××
Stop lamp switch××–
Yaw rate sensor×××
Side G sensor×××
Press sensor×××
Steering wheel angle sensor×××
Actuator relay×××
Motor relay×××
ABS warning lamp –××
Battery voltage××–
ESP/TCS/ABS C/U×––
ESP actuator motor×××
CAN communication××–
Engine speed signal –×–
ESP OFF switch –×–
ESP OFF indicator lamp –××
SLIP indicator lamp –××
Throttle angle –×–
