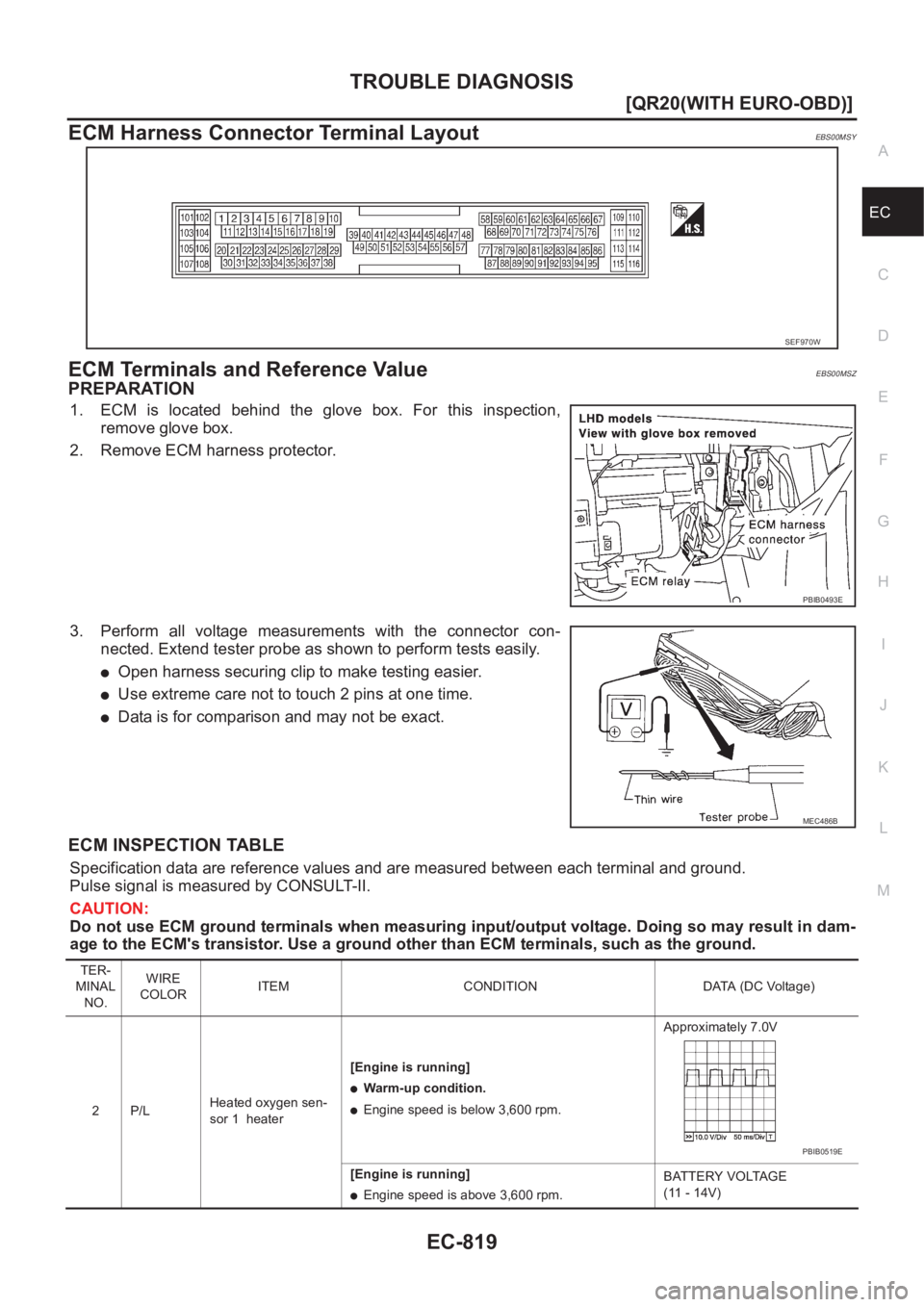

TROUBLE DIAGNOSIS
EC-819
[QR20(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
ECM Harness Connector Terminal LayoutEBS00MSY
ECM Terminals and Reference ValueEBS00MSZ
PREPARATION
1. ECM is located behind the glove box. For this inspection,
remove glove box.
2. Remove ECM harness protector.
3. Perform all voltage measurements with the connector con-
nected. Extend tester probe as shown to perform tests easily.
●Open harness securing clip to make testing easier.
●Use extreme care not to touch 2 pins at one time.
●Data is for comparison and may not be exact.
ECM INSPECTION TABLE
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
SEF970W
PBIB0493E
MEC486B
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
2P/LHeated oxygen sen-
sor 1 heater[Engine is running]
●Warm-up condition.
●Engine speed is below 3,600 rpm.Approximately 7.0V
[Engine is running]
●Engine speed is above 3,600 rpm.BATTERY VOLTAGE
(11 - 14V)
PBIB0519E
Page 1170 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual EC-820
[QR20(WITH EURO-OBD)]
TROUBLE DIAGNOSIS
4PU/RHeated oxygen sen-
sor 2 heater[Engine is running]
●Engine speed is below 3,800 rpm.
●After driving for 2 minutes at a speed of 70 km/h
(43 MP NISSAN X-TRAIL 2001 Service Repair Manual EC-820
[QR20(WITH EURO-OBD)]
TROUBLE DIAGNOSIS
4PU/RHeated oxygen sen-
sor 2 heater[Engine is running]
●Engine speed is below 3,800 rpm.
●After driving for 2 minutes at a speed of 70 km/h
(43 MP](/manual-img/5/57405/w960_57405-1169.png)
EC-820
[QR20(WITH EURO-OBD)]
TROUBLE DIAGNOSIS
4PU/RHeated oxygen sen-
sor 2 heater[Engine is running]
●Engine speed is below 3,800 rpm.
●After driving for 2 minutes at a speed of 70 km/h
(43 MPH) or more.0 - 1.0V
[Ignition switch “ON”]
●Engine stopped
[Engine is running]
●Engine speed is above 3,800 rpm.BATTERY VOLTAGE
(11 - 14V)
12 R/BCounter current
return[Ignition switch “ON”]BATTERY VOLTAGE
(11 - 14V)
13 PEVAP canister purge
volume control sole-
noid valve[Engine is running]
●Idle speedBATTERY VOLTAGE
(11 - 14V)
[Engine is running]
●Engine speed is about 2,000 rpmApproximately 10V
18 R/Y MI[Ignition switch “ON”]0 - 1.0V
[Engine is running]
●Idle speedBATTERY VOLTAGE
(11 - 14V)
20 W/GECM relay
(Self shut-off)[Engine is running]
[Ignition switch “OFF”]
●For 3 seconds after turning ignition switch “OFF”0 - 1.0V
[Ignition switch “OFF”]
●3 seconds passed after turning ignition switch
“OFF”BATTERY VOLTAGE
(11 - 14V)
21
22
23
24BR
PU
L/R
GY/RIgnition signal No. 1
Ignition signal No. 2
Ignition signal No. 3
Ignition signal No. 4[Engine is running]
●Warm-up condition
●Idle speed0 - 0.1V
[Engine is running]
●Warm-up condition
●Engine speed is 2,000 rpm.0 - 0.2V
26 L Air conditioner relay[Engine is running]
●Both A/C switch and blower switch are “ON”
(Compressor operates).0 - 1.0V
[Engine is running]
●A/C switch is “OFF”.BATTERY VOLTAGE
(11 - 14V) TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
PBIB0520E
PBIB0521E
PBIB0522E
Page 1171 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual TROUBLE DIAGNOSIS
EC-821
[QR20(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
27 LG/BCooling fan relay
(High)[Engine is running]
●Cooling fan is not operating
●Cooling fan is operating at low speedBAT NISSAN X-TRAIL 2001 Service Repair Manual TROUBLE DIAGNOSIS
EC-821
[QR20(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
27 LG/BCooling fan relay
(High)[Engine is running]
●Cooling fan is not operating
●Cooling fan is operating at low speedBAT](/manual-img/5/57405/w960_57405-1170.png)
TROUBLE DIAGNOSIS
EC-821
[QR20(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
27 LG/BCooling fan relay
(High)[Engine is running]
●Cooling fan is not operating
●Cooling fan is operating at low speedBATTERY VOLTAGE
(11 - 14V)
[Engine is running]
●Cooling fan is operating at high speed0 - 1.0V
29 B/P Fuel pump relay[Ignition switch “ON”]
●For 1 seconds after turning ignition switch “ON”
[Engine is running]0 - 1.0V
[Ignition switch “ON”]
●More than 1 seconds after turning ignition switch
“ON”.BATTERY VOLTAGE
(11 - 14V)
30 PU/WAir conditioner cut
signal[Engine is running]
●Both A/C switch and blower switch are “ON”
(Compressor operates).Approximately 0V
[Engine is running]
●A/C switch is “ON”
(Compressor not operates).Approximately 4.6V
33B/W
(With A/T)
W
(With M/T)CAN communication
line[Ignition switch “ON”]Approximately 2.6V
Output voltage varies with the
communication status.
34L/R
(With A/T)
R
(With M/T)CAN communication
line[Ignition switch “ON”]Approximately 2.4V
Output voltage varies with the
communication status.
36 L/OR Tachometer signal[Engine is running]
●Warm-up condition
●Idle speed6 - 7V
[Engine is running]
●Engine speed is 2,500 rpm6 - 7V
37 LGCooling fan relay
(Low)[Engine is running]
●Cooling fan is not operatingBATTERY VOLTAGE
(11 - 14V)
[Engine is running]
●Cooling fan is operating0 - 1.0V
40 P Stop lamp switch[Engine is running]
●Brake pedal releasedApproximately 0V
[Engine is running]
●Brake pedal depressedBATTERY VOLTAGE
(11 - 14V)
41 B/Y Start signal[Ignition switch “ON”]Approximately 0V
[Ignition switch “START”]9 - 14V TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
PBIB0523E
PBIB0524E
Page 1172 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual EC-822
[QR20(WITH EURO-OBD)]
TROUBLE DIAGNOSIS
42 B/R Ignition switch[Ignition switch “OFF”]0V
[Ignition switch “ON”]BATTERY VOLTAGE
(11 - 14V)
43 G/OR PNP switch[Ignition switch “ON”]
● NISSAN X-TRAIL 2001 Service Repair Manual EC-822
[QR20(WITH EURO-OBD)]
TROUBLE DIAGNOSIS
42 B/R Ignition switch[Ignition switch “OFF”]0V
[Ignition switch “ON”]BATTERY VOLTAGE
(11 - 14V)
43 G/OR PNP switch[Ignition switch “ON”]
●](/manual-img/5/57405/w960_57405-1171.png)
EC-822
[QR20(WITH EURO-OBD)]
TROUBLE DIAGNOSIS
42 B/R Ignition switch[Ignition switch “OFF”]0V
[Ignition switch “ON”]BATTERY VOLTAGE
(11 - 14V)
43 G/OR PNP switch[Ignition switch “ON”]
●Gear position is “P” or “N”.Approximately 0V
[Ignition switch “ON”]
●Except the above gear positionA/T model
BATTERY VOLTAGE
(11 - 14V)
M/T model
Approximately 5V
50 LG Data link connector[Ignition switch “ON”]
●CONSULT-II or GST is disconnected.Approximately 5V
52 R/WElectrical load signal
(Rear window defog-
ger signal)[Ignition switch “ON”]
●Rear window defogger switch is “ON”BATTERY VOLTAGE
(11 - 14V)
[Ignition switch “ON”]
●Rear window defogger switch is “OFF”Approximately 0V
53 R/YElectrical load signal
(Headlamp signal)[Ignition switch “ON”]
●Lighting switch is “2ND” positionBATTERY VOLTAGE
(11 - 14V)
[Ignition switch “ON”]
●Lighting switch is “OFF”Approximately 0V
55 LG/BHeater fan switch sig-
nal[Ignition switch “ON”]
●Heater fan control switch is “ON”Approximately 0V
[Ignition switch “ON”]
●Heater fan control switch is “OFF”Approximately 5V
58 B Sensors' ground[Engine is running]
●Warm-up condition
●Idle speedApproximately 0V
59
60
106
108B
B
B/Y
B/YECM ground[Engine is running]
●Idle speedEngine ground
63 L/WCamshaft position
sensor (PHASE)[Engine is running]
●Warm-up condition
●Idle speed1.0 - 4.0V
[Engine is running]
●Engine speed is 2,000 rpm.1.0 - 4.0V
64 OR/LAccelerator pedal
position sensor 2
power supply[Ignition switch “ON”]Approximately 2.5V TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
PBIB0525E
PBIB0526E
Page 1173 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual TROUBLE DIAGNOSIS
EC-823
[QR20(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC65 RSensor's power sup-
ply[Ignition switch “ON”]Approximately 5V
66 W/LPower supply for
ECM (Buck-up)[Ignition switch NISSAN X-TRAIL 2001 Service Repair Manual TROUBLE DIAGNOSIS
EC-823
[QR20(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC65 RSensor's power sup-
ply[Ignition switch “ON”]Approximately 5V
66 W/LPower supply for
ECM (Buck-up)[Ignition switch](/manual-img/5/57405/w960_57405-1172.png)
TROUBLE DIAGNOSIS
EC-823
[QR20(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC65 RSensor's power sup-
ply[Ignition switch “ON”]Approximately 5V
66 W/LPower supply for
ECM (Buck-up)[Ignition switch “OFF”]BATTERY VOLTAGE
(11 - 14V)
67 PPower steering pres-
sure sensor[Engine is running]
●Steering wheel is being turned.0.5 - 4.0V
[Engine is running]
●Steering wheel is not being turned.0.4 - 0.8V
71 PU/RCrankshaft position
sensor (POS)[Engine is running]
●Warm-up condition
●Idle speedApproximately 3V
[Engine is running]
●Engine speed is 2,000 rpmApproximately 3V
72 OR Mass air flow sensor[Engine is running]
●Warm-up condition
●Idle speed1.1 - 1.5V
[Engine is running]
●Warm-up condition
●Engine speed is 2,500 rpm.1.6 - 2.0V
73 WThrottle position sen-
sor 1[Ignition switch “ON”]
●Engine stopped
●Gear position is “D” (A/T model)
●Gear position is “1st” (M/T model)
●Accelerator pedal fully releasedMore than 0.36V
[Ignition switch “ON”]
●Engine stopped
●Gear position is “D” (A/T model)
●Gear position is “1st” (M/T model)
●Accelerator pedal fully depressedLess than 4.75V TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
PBIB0527E
PBIB0528E
Page 1174 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual EC-824
[QR20(WITH EURO-OBD)]
TROUBLE DIAGNOSIS
74 GThrottle position sen-
sor 2[Ignition switch “ON”]
●Engine stopped
●Gear position is “D” (A/T model)
●Gear position is “1st” (M/T m NISSAN X-TRAIL 2001 Service Repair Manual EC-824
[QR20(WITH EURO-OBD)]
TROUBLE DIAGNOSIS
74 GThrottle position sen-
sor 2[Ignition switch “ON”]
●Engine stopped
●Gear position is “D” (A/T model)
●Gear position is “1st” (M/T m](/manual-img/5/57405/w960_57405-1173.png)
EC-824
[QR20(WITH EURO-OBD)]
TROUBLE DIAGNOSIS
74 GThrottle position sen-
sor 2[Ignition switch “ON”]
●Engine stopped
●Gear position is “D” (A/T model)
●Gear position is “1st” (M/T model)
●Accelerator pedal fully releasedLess than 4.75V
[Ignition switch “ON”]
●Engine stopped
●Gear position is “D” (A/T model)
●Gear position is “1st” (M/T model)
●Accelerator pedal fully depressedMore than 0.36V
75 R/LAccelerator pedal
position sensor 1[Ignition switch “ON”]
●Engine stopped
●Accelerator pedal fully released0.41 - 0.71V
[Ignition switch “ON”]
●Engine stopped
●Accelerator pedal fully depressedMore than 3.9V
76 B/WAccelerator pedal
position sensor 2[Ignition switch “ON”]
●Engine stopped
●Accelerator pedal fully released0.09 - 0.48V
[Ignition switch “ON”]
●Engine stopped
●Accelerator pedal fully depressedMore than 1.9V
80 B/PMass air flow sensor
ground[Engine is running]
●Warm-up condition
●Idle speedApproximately 0V
81 L/B Vehicle speed sensor[Engine is running]
●Lift up the vehicle
●Vehicle speed is 40 km/h (25MPH)Approximately 2.3V
82 W Knock sensor[Engine is running]
●Idle speedApproximately 2.5V
83 R/LRefrigerant pressure
sensor[Engine is running]
●Warm-up condition
●Both A/C switch and blower switch are “ON”.
(Compressor operates.)1.0 - 4.0V
84 Y/GIntake air tempera-
ture sensor[Engine is running]Approximately 0 - 4.8V
Output voltage varies with intake
air temperature.
86 LAccelerator pedal
position sensor 2
ground[Ignition switch “ON”]Approximately 0V
90 WAccelerator pedal
position sensor sig-
nal output[Ignition switch “ON”]
●Accelerator pedal fully released0.41 - 0.71V
[Ignition switch “ON”]
●Accelerator pedal fully depressedMore than 3.9V TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
PBIB0531E
Page 1175 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual TROUBLE DIAGNOSIS
EC-825
[QR20(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC92 G/WHeated oxygen sen-
sor 1[Engine is running]●Warm-up condition
●Engine speed is 2,000 rpm.0 - Approximately 1.0V (Perio NISSAN X-TRAIL 2001 Service Repair Manual TROUBLE DIAGNOSIS
EC-825
[QR20(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC92 G/WHeated oxygen sen-
sor 1[Engine is running]●Warm-up condition
●Engine speed is 2,000 rpm.0 - Approximately 1.0V (Perio](/manual-img/5/57405/w960_57405-1174.png)
TROUBLE DIAGNOSIS
EC-825
[QR20(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC92 G/WHeated oxygen sen-
sor 1[Engine is running]●Warm-up condition
●Engine speed is 2,000 rpm.0 - Approximately 1.0V (Periodi-
cally change)
93 BR/YEngine coolant tem-
perature sensor[Engine is running]Approximately 0 - 4.8V
Output voltage varies with
engine coolant temperature.
95 OR/BHeated oxygen sen-
sor 2[Engine is running]
●Warm-up condition
●Engine speed is 2,000 rpm.0 - Approximately 1.0V
101
102
103
104R/B
Y/B
G/B
L/BInjector No. 1
Injector No. 2
Injector No. 3
Injector No. 4[Engine is running]
●Warm-up condition
●Idle speedBATTERY VOLTAGE
(11 - 14V)
[Engine is running]
●Warm-up condition
●Engine speed is 2,000 rpmBATTERY VOLTAGE
(11 - 14V)
107 Y/RIntake valve timing
control solenoid valve[Engine is running]
●Warm-up condition
●Idle speedBATTERY VOLTAGE
(11 - 14V)
[Engine is running]
●Warm-up condition
●When revving engine up to 2,000 rpm quicklyApproximately 4V - BATTERY
VOLTAGE (11 - 14V)
109
111W
WPower supply for
ECM[Ignition switch “ON”]BATTERY VOLTAGE
(11 - 14V)
11 2 W / RThrottle control motor
relay[Ignition switch “OFF”]BATTERY VOLTAGE
(11 - 14V)
[Ignition switch “ON”]0 - 1.0V
11 3 W / BThrottle control motor
relay power supply[Ignition switch “ON”]BATTERY VOLTAGE
(11 - 14V) TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
PBIB0529E
PBIB0530E
PBIB0532E
Page 1176 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual EC-826
[QR20(WITH EURO-OBD)]
TROUBLE DIAGNOSIS
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
CONSULT-II FunctionEBS00MT0
FUNCTION
*1 The following emission NISSAN X-TRAIL 2001 Service Repair Manual EC-826
[QR20(WITH EURO-OBD)]
TROUBLE DIAGNOSIS
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
CONSULT-II FunctionEBS00MT0
FUNCTION
*1 The following emission](/manual-img/5/57405/w960_57405-1175.png)
EC-826
[QR20(WITH EURO-OBD)]
TROUBLE DIAGNOSIS
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
CONSULT-II FunctionEBS00MT0
FUNCTION
*1 The following emission-related diagnostic information is cleared when the ECM memory is erased.
1. Diagnostic trouble codes
2. 1st trip diagnostic trouble codes
3. Freeze frame data
4. 1st trip freeze frame data
5. System readiness test (SRT) codes
6. Test values
7. Others11 4 RThrottle control motor
(Open)[Ignition switch “ON”]
●Engine stopped
●Gear position is “D” (A/T model)
●Gear position is “1st” (M/T model)
●Accelerator pedal is depressing0 - 14V
11 5 B / YThrottle control motor
ground[Engine is running]
●Idle speedApproximately 0V
11 6 GThrottle control motor
(Close)[Ignition switch “ON”]
●Engine stopped
●Gear position is “D” (A/T model)
●Gear position is “1st” (M/T model)
●Accelerator pedal is releasing0 - 14V TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
PBIB0533E
PBIB0534E
Diagnostic test mode Function
Work supportThis mode enables a technician to adjust some devices faster and more accurately by following the
indications on the CONSULT-II unit.
Self-diagnostic resultsSelf-diagnostic results such as 1st trip DTC, DTCs and 1st trip freeze frame data or freeze frame data
can be read and erased quickly.*1
Data monitor Input/Output data in the ECM can be read.
Data monitor (SPEC)Input/Output of the specification for Basic fuel schedule, AFM, A/F feedback control value and the
other data monitor items can be read.
Active testDiagnostic Test Mode in which CONSULT-II drives some actuators apart from the ECMs and also
shifts some parameters in a specified range.
DTC & SRT confirmation The status of system monitoring tests and the self-diagnosis status/result can be confirmed.
Function test This mode is used to inform customers when their vehicle condition requires periodic maintenance.
ECM part number ECM part number can be read.
