Page 313 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual COOLING SYSTEM
CO-7
[QR]
C
D
E
F
G
H
I
J
K
L
MA
CO
COOLING SYSTEMPFP:21020

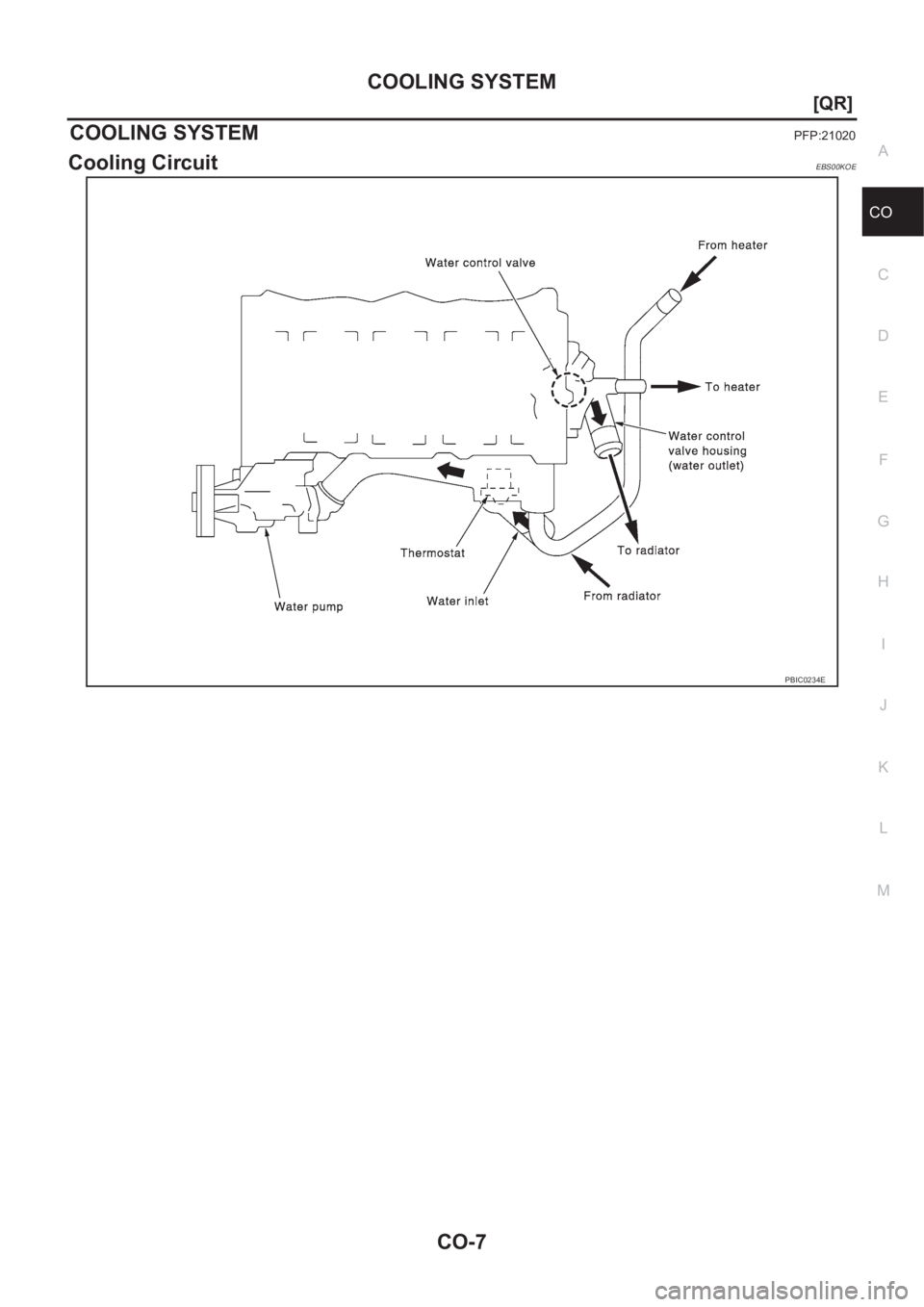

Cooling CircuitEBS00KOE
PBIC0234E

Page 314 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual CO-8
[QR]
COOLING SYSTEM

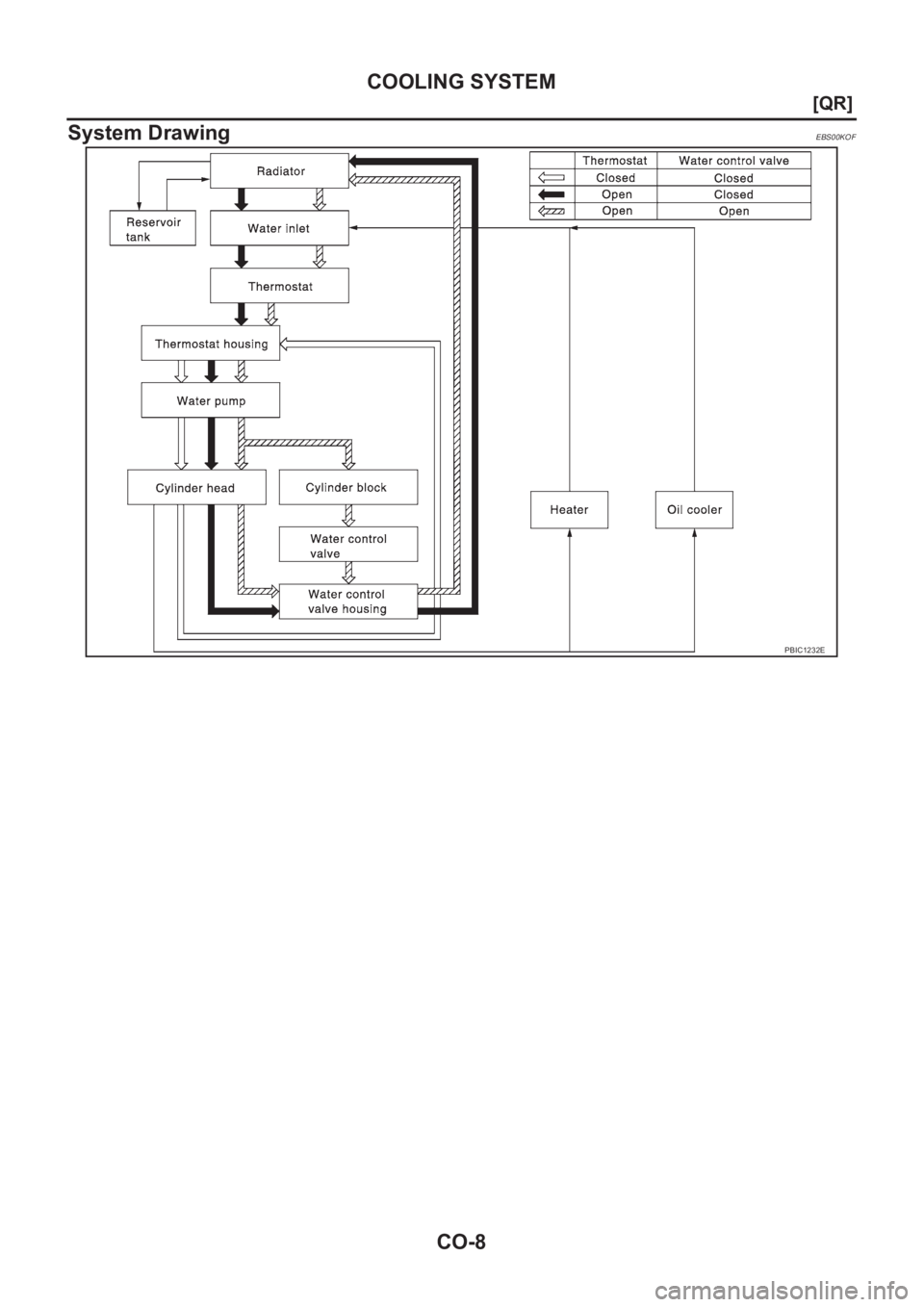

System Drawing
EBS00KOF
PBIC1232E

Page 315 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual ENGINE COOLANT
CO-9
[QR]
C
D
E
F
G
H
I
J
K
L
MA
CO
ENGINE COOLANTPFP:KQ100
InspectionEBS00KOG
LEVEL CHECK
●Check if the reservoir tank engine coolant level within MIN to
MAX when engine is

Page 316 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual CO-10
[QR]
ENGINE COOLANT
REFILLING ENGINE COOLANT
1. Install reservoir tank, radiator drain plug and cylinder block drain plug.
●Apply sealant to the thread of cylinder block drain plug.
Use Genui

CO-10
[QR]
ENGINE COOLANT
REFILLING ENGINE COOLANT
1. Install reservoir tank, radiator drain plug and cylinder block drain plug.
●Apply sealant to the thread of cylinder block drain plug.
Use Genuine Liquid Gasket or equivalent.
2. Fill radiator and reservoir tank to specified level.
●Use genuine Nissan engine coolant or equivalent in its
quality. Refer to MA-16, "
RECOMMENDED FLUIDS AND
LUBRICANTS" .
●Pour engine coolant slowly of less than 2 (1-3/4 lmp qt)
a minute to allow air in system to escape.
3. Warm up engine to normal operating temperature without radia-
tor cap installed.
●If engine coolant overflows radiator filler hole, install
radiator cap.
4. Run engine at 3,000 rpm for 10 seconds and return to idle speed
with radiator cap installed.
●Repeat two or three times.
Watch engine coolant temperature gauge so as not to overheat the engine.
5. Stop engine and cool down to less than approximately 50°C(122°F).
●Cool down using a fan to reduce the time.
●If necessary, refill radiator up to filler neck with engine coolant.
6. Refill reservoir tank to MAX level line with engine coolant.
7. Repeat steps 4 through 6 two or more times with radiator cap installed until engine coolant level no longer
drops.
8. Check cooling system for leaks with engine running.
9. Warm up engine, and check for sound of engine coolant flow while running engine from idle up to 3,000
rpm with heater temperature controller set at several position between COOL and WARM.
●Sound may be noticeable at heater unit.
10. If sound is heard, bleed air from cooling system by repeating steps 4 through 6 until engine coolant level
no longer drops.
●Clean excess engine coolant from engine.
FLUSHING COOLING SYSTEM
1. Fill radiator and reservoir tank with water and reinstall radiator cap.
2. Run engine and warm it up to normal operating temperature.
3. Rev engine two or three times under no-load.
4. Stop engine and wait until it cools down.
5. Drain water.
6. Repeat steps 1 through 5 until clear water begins to drain from radiator. Cylinder block drain plug:
: 7.8 - 11.8 N·m (0.8 -1.2 kg-m , 69 - 104 in-lb)
Engine coolant capacity (With reservoir tank):

Approx. 7.1 (6-1/4 Imp qt)
SMA182B
Reservoir tank: 0.6 (1/2 lmp qt)
SMA412B

Page 317 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual RADIATOR
CO-11
[QR]
C
D
E
F
G
H
I
J
K
L
MA
CO
RADIATORPFP:21400
Removal and InstallationEBS00KOI
WARNING:
Never remove the radiator cap when the engine is hot. Serious burns could occur from high pres

Page 318 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual CO-12
[QR]
RADIATOR

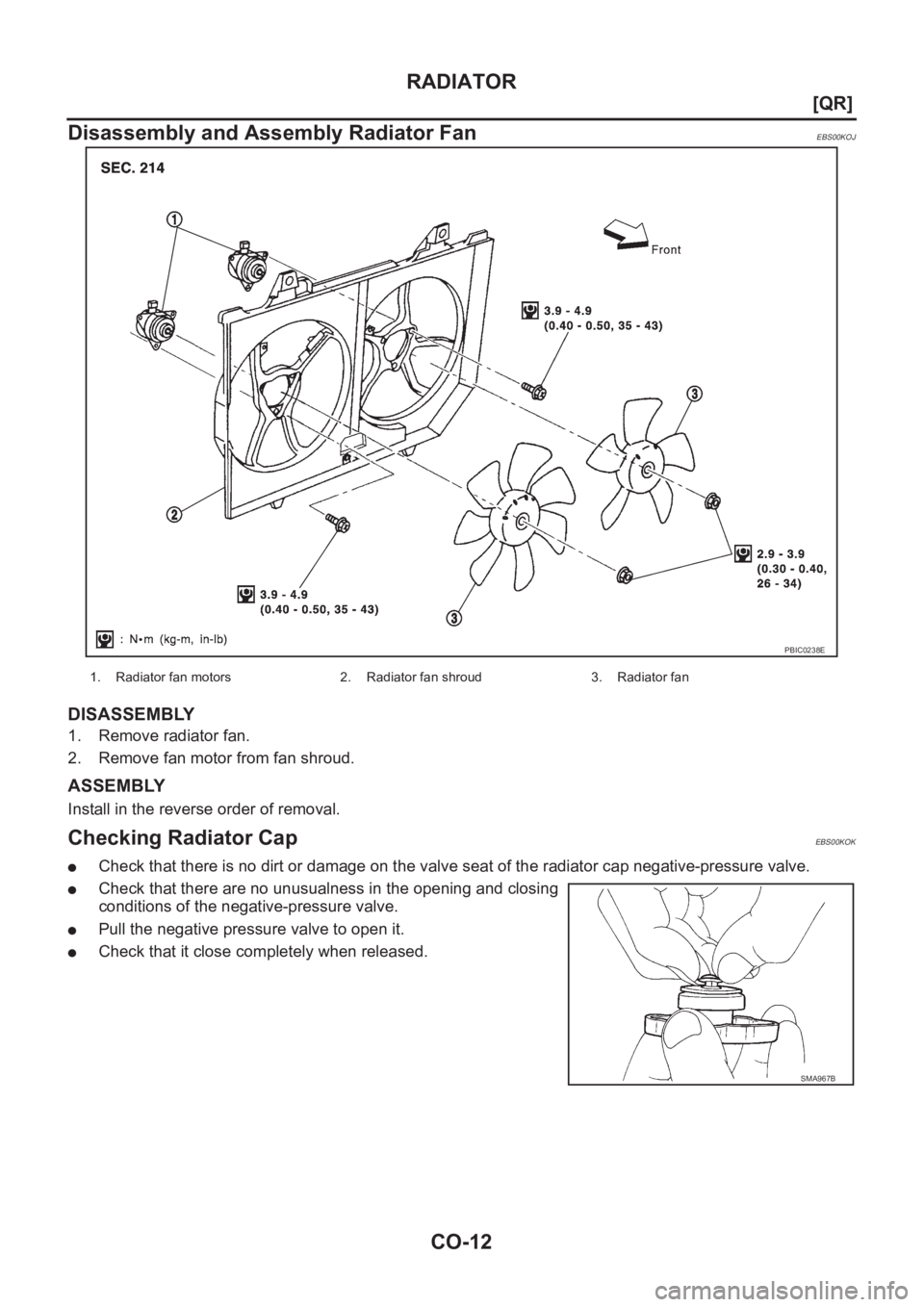

Disassembly and Assembly Radiator Fan
EBS00KOJ
DISASSEMBLY
1. Remove radiator fan.
2. Remove fan motor from fan shroud.
ASSEMBLY
Install in the reverse order of removal.
Checking R

Page 319 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual RADIATOR
CO-13
[QR]
C
D
E
F
G
H
I
J
K
L
MA
CO
●Check radiator cap relief pressure.
●When connecting the radiator cap to the tester, apply engine
coolant to the cap seal part.
●Replace

Page 320 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual CO-14
[QR]
RADIATOR (ALUMINUM TYPE)
RADIATOR (ALUMINUM TYPE)
PFP:21460

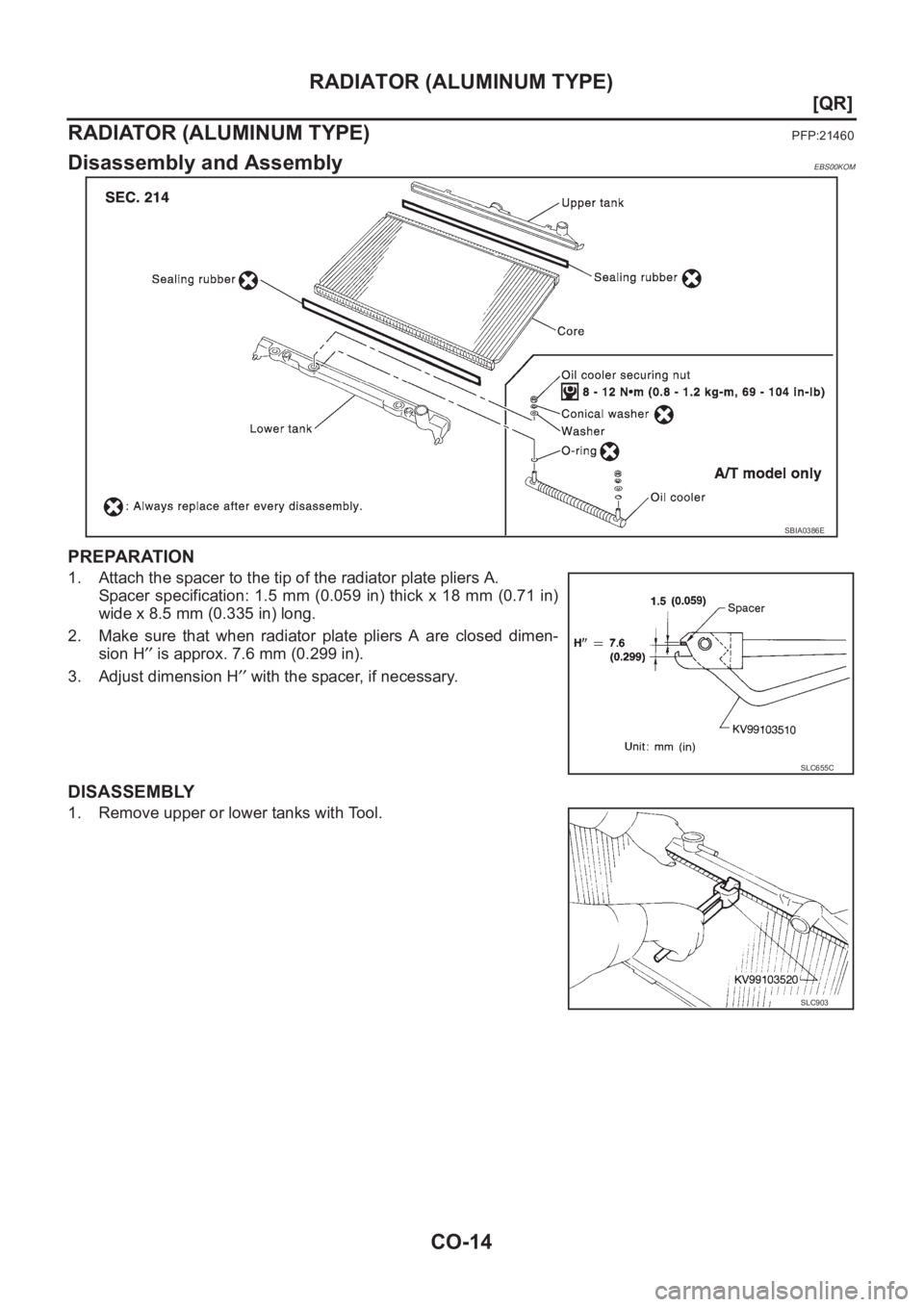

Disassembly and AssemblyEBS00KOM
PREPARATION
1. Attach the spacer to the tip of the radiator plate pliers A.
Spacer specification
