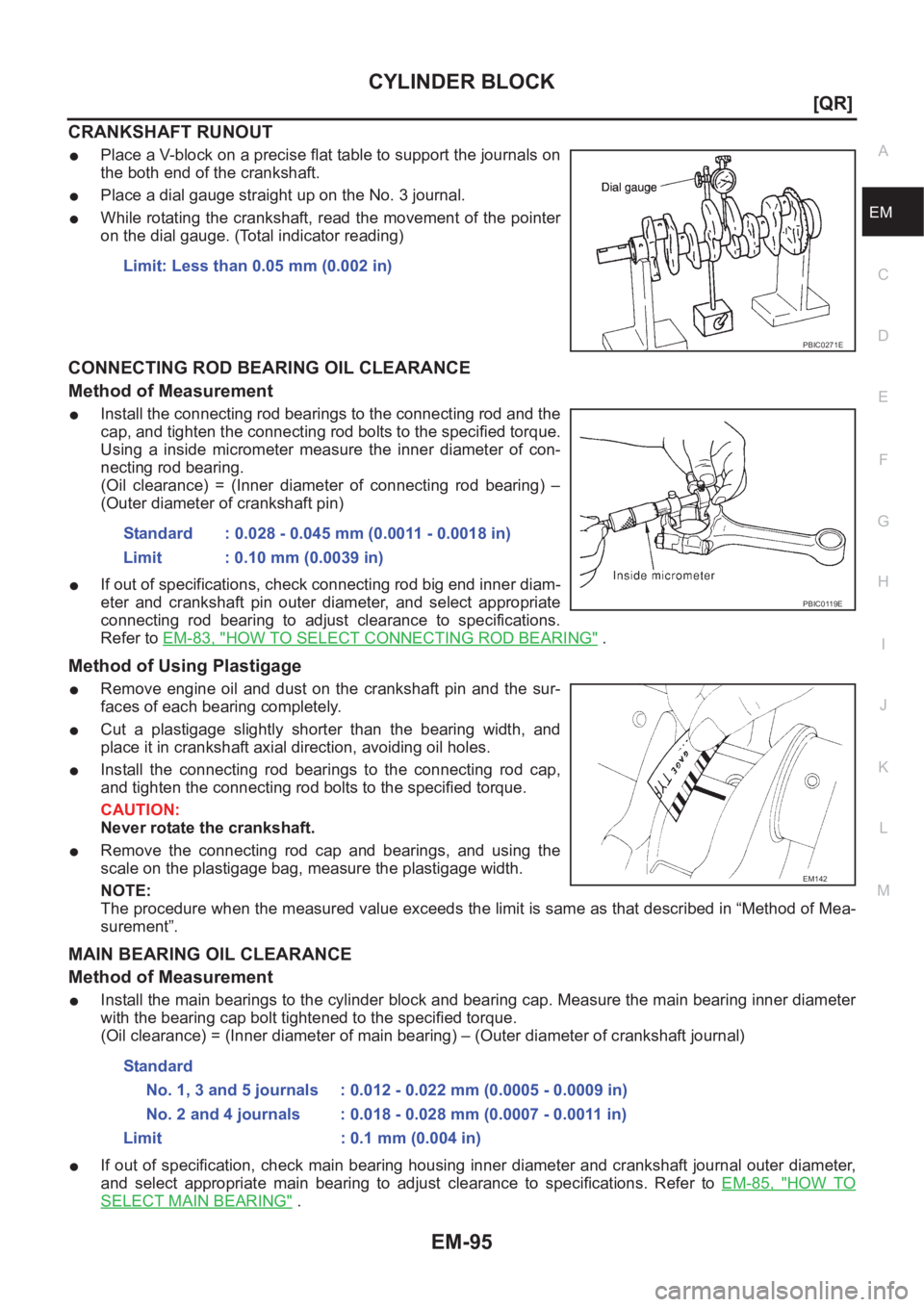

CYLINDER BLOCK
EM-95
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM
CRANKSHAFT RUNOUT
●Place a V-block on a precise flat table to support the journals on
the both end of the crankshaft.
●Place a dial gauge straight up on the No. 3 journal.
●While rotating the crankshaft, read the movement of the pointer
on the dial gauge. (Total indicator reading)
CONNECTING ROD BEARING OIL CLEARANCE
Method of Measurement
●Install the connecting rod bearings to the connecting rod and the
cap, and tighten the connecting rod bolts to the specified torque.
Using a inside micrometer measure the inner diameter of con-
necting rod bearing.
(Oil clearance) = (Inner diameter of connecting rod bearing) –
(Outer diameter of crankshaft pin)
●If out of specifications, check connecting rod big end inner diam-
eter and crankshaft pin outer diameter, and select appropriate
connecting rod bearing to adjust clearance to specifications.
Refer to EM-83, "
HOW TO SELECT CONNECTING ROD BEARING" .
Method of Using Plastigage
●Remove engine oil and dust on the crankshaft pin and the sur-
faces of each bearing completely.
●Cut a plastigage slightly shorter than the bearing width, and
place it in crankshaft axial direction, avoiding oil holes.
●Install the connecting rod bearings to the connecting rod cap,
and tighten the connecting rod bolts to the specified torque.
CAUTION:
Never rotate the crankshaft.
●Remove the connecting rod cap and bearings, and using the
scale on the plastigage bag, measure the plastigage width.
NOTE:
The procedure when the measured value exceeds the limit is same as that described in “Method of Mea-
surement”.
MAIN BEARING OIL CLEARANCE
Method of Measurement
●Install the main bearings to the cylinder block and bearing cap. Measure the main bearing inner diameter
with the bearing cap bolt tightened to the specified torque.
(Oil clearance) = (Inner diameter of main bearing) – (Outer diameter of crankshaft journal)
●If out of specification, check main bearing housing inner diameter and crankshaft journal outer diameter,
and select appropriate main bearing to adjust clearance to specifications. Refer to EM-85, "
HOW TO
SELECT MAIN BEARING" . Limit: Less than 0.05 mm (0.002 in)
PBIC0271E
Standard : 0.028 - 0.045 mm (0.0011 - 0.0018 in)
Limit : 0.10 mm (0.0039 in)
PBIC0119E
EM142
Standard
No. 1, 3 and 5 journals : 0.012 - 0.022 mm (0.0005 - 0.0009 in)
No. 2 and 4 journals : 0.018 - 0.028 mm (0.0007 - 0.0011 in)
Limit : 0.1 mm (0.004 in)
Page 146 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual EM-96
[QR]
CYLINDER BLOCK
Method of Using Plastigage
●Remove engine oil and dust on the crankshaft journal and the
surfaces of each bearing completely.
●Cut a plastigage slightly sh NISSAN X-TRAIL 2001 Service Repair Manual EM-96
[QR]
CYLINDER BLOCK
Method of Using Plastigage
●Remove engine oil and dust on the crankshaft journal and the
surfaces of each bearing completely.
●Cut a plastigage slightly sh](/manual-img/5/57405/w960_57405-145.png)

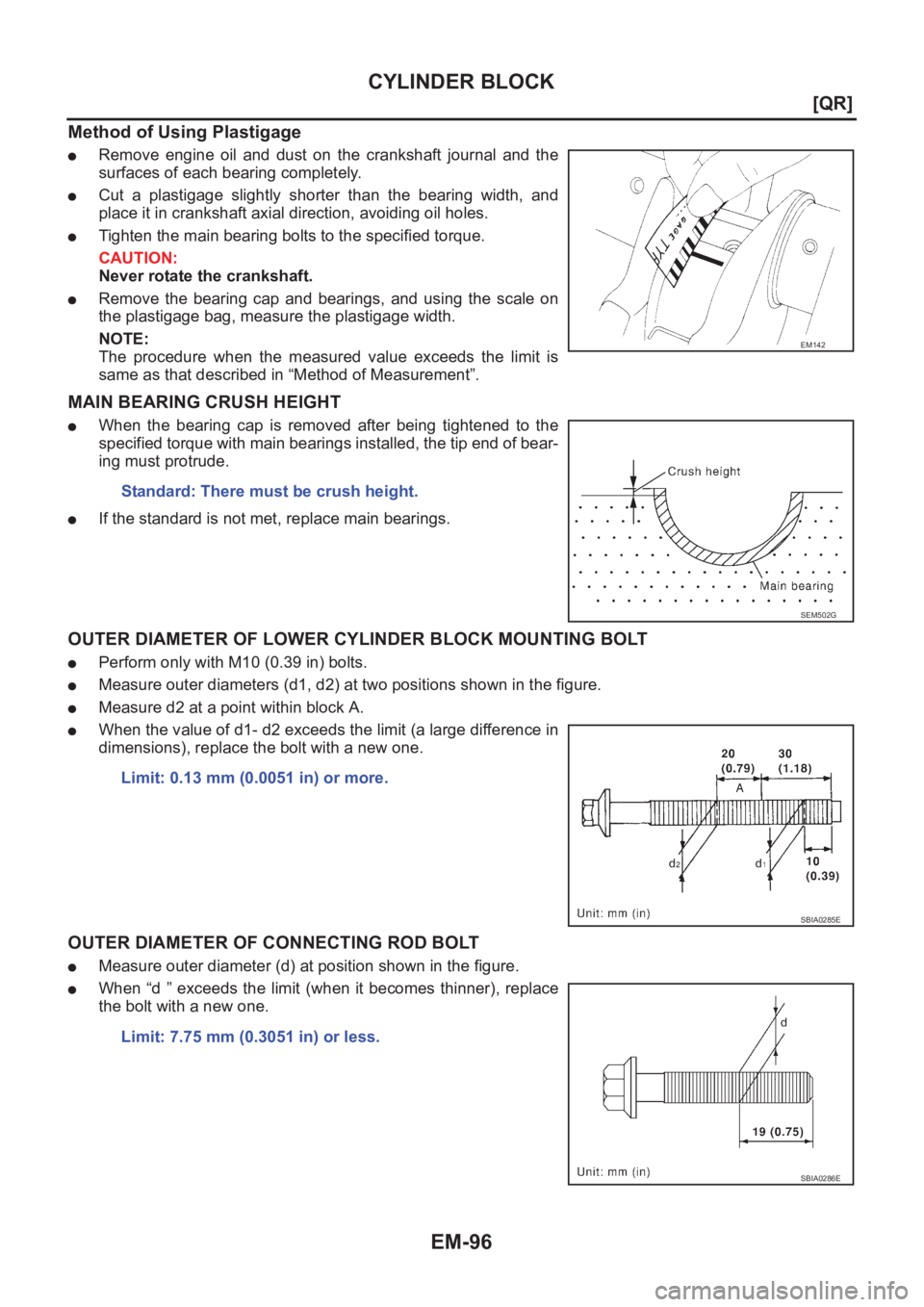

EM-96
[QR]
CYLINDER BLOCK
Method of Using Plastigage
●Remove engine oil and dust on the crankshaft journal and the
surfaces of each bearing completely.
●Cut a plastigage slightly shorter than the bearing width, and
place it in crankshaft axial direction, avoiding oil holes.
●Tighten the main bearing bolts to the specified torque.
CAUTION:
Never rotate the crankshaft.
●Remove the bearing cap and bearings, and using the scale on
the plastigage bag, measure the plastigage width.
NOTE:
The procedure when the measured value exceeds the limit is
same as that described in “Method of Measurement”.
MAIN BEARING CRUSH HEIGHT
●When the bearing cap is removed after being tightened to the
specified torque with main bearings installed, the tip end of bear-
ing must protrude.
●If the standard is not met, replace main bearings.
OUTER DIAMETER OF LOWER CYLINDER BLOCK MOUNTING BOLT
●Perform only with M10 (0.39 in) bolts.
●Measure outer diameters (d1, d2) at two positions shown in the figure.
●Measure d2 at a point within block A.
●When the value of d1- d2 exceeds the limit (a large difference in
dimensions), replace the bolt with a new one.
OUTER DIAMETER OF CONNECTING ROD BOLT
●Measure outer diameter (d) at position shown in the figure.
●When “d ” exceeds the limit (when it becomes thinner), replace
the bolt with a new one.
EM142
Standard: There must be crush height.
SEM502G
Limit: 0.13 mm (0.0051 in) or more.
SBIA0285E
Limit: 7.75 mm (0.3051 in) or less.
SBIA0286E
Page 147 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual CYLINDER BLOCK
EM-97
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM
MOVEMENT AMOUNT OF FLYWHEEL (M/T MODELS)
NOTE:
●Inspection for double mass flywheel only.
●Do not disassembly double mass flywheel.
Flywheel Def NISSAN X-TRAIL 2001 Service Repair Manual CYLINDER BLOCK
EM-97
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM
MOVEMENT AMOUNT OF FLYWHEEL (M/T MODELS)
NOTE:
●Inspection for double mass flywheel only.
●Do not disassembly double mass flywheel.
Flywheel Def](/manual-img/5/57405/w960_57405-146.png)

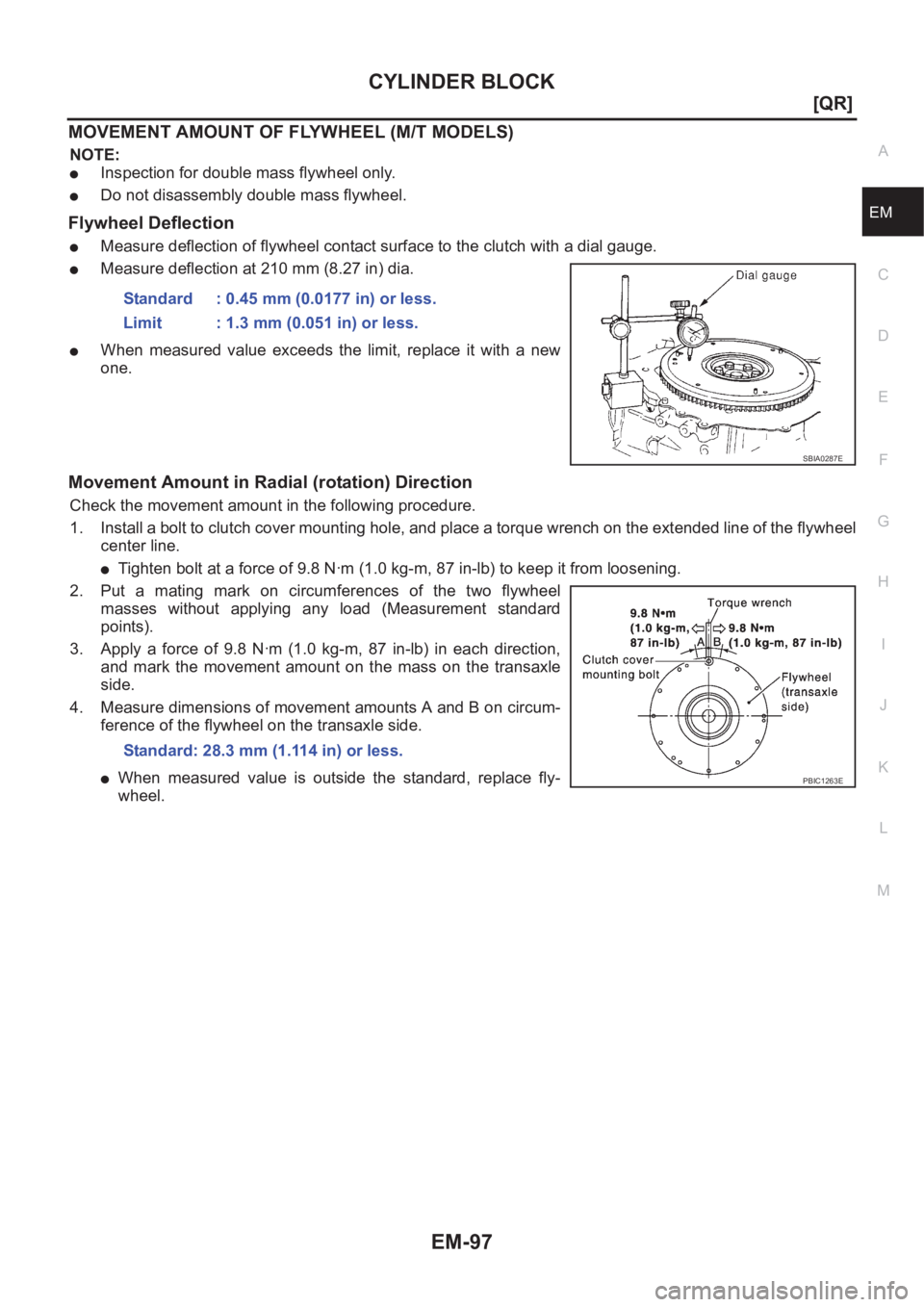

CYLINDER BLOCK
EM-97
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM
MOVEMENT AMOUNT OF FLYWHEEL (M/T MODELS)
NOTE:
●Inspection for double mass flywheel only.
●Do not disassembly double mass flywheel.
Flywheel Deflection
●Measure deflection of flywheel contact surface to the clutch with a dial gauge.
●Measure deflection at 210 mm (8.27 in) dia.
●When measured value exceeds the limit, replace it with a new
one.
Movement Amount in Radial (rotation) Direction
Check the movement amount in the following procedure.
1. Install a bolt to clutch cover mounting hole, and place a torque wrench on the extended line of the flywheel
center line.
●Tighten bolt at a force of 9.8 N·m (1.0 kg-m, 87 in-lb) to keep it from loosening.
2. Put a mating mark on circumferences of the two flywheel
masses without applying any load (Measurement standard
points).
3. Apply a force of 9.8 N·m (1.0 kg-m, 87 in-lb) in each direction,
and mark the movement amount on the mass on the transaxle
side.
4. Measure dimensions of movement amounts A and B on circum-
ference of the flywheel on the transaxle side.
●When measured value is outside the standard, replace fly-
wheel.Standard : 0.45 mm (0.0177 in) or less.
Limit : 1.3 mm (0.051 in) or less.
SBIA0287E
Standard: 28.3 mm (1.114 in) or less.
PBIC1263E
Page 148 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual EM-98
[QR]
SERVICE DATA AND SPECIFICATIONS (SDS)
SERVICE DATA AND SPECIFICATIONS (SDS)
PFP:00030
Standard and LimitEBS00KNX
GENERAL SPECIFICATIONS
DRIVE BELTS
INTAKE MANIFOLD AND EXHAUST MANIFOLD
Unit NISSAN X-TRAIL 2001 Service Repair Manual EM-98
[QR]
SERVICE DATA AND SPECIFICATIONS (SDS)
SERVICE DATA AND SPECIFICATIONS (SDS)
PFP:00030
Standard and LimitEBS00KNX
GENERAL SPECIFICATIONS
DRIVE BELTS
INTAKE MANIFOLD AND EXHAUST MANIFOLD
Unit](/manual-img/5/57405/w960_57405-147.png)

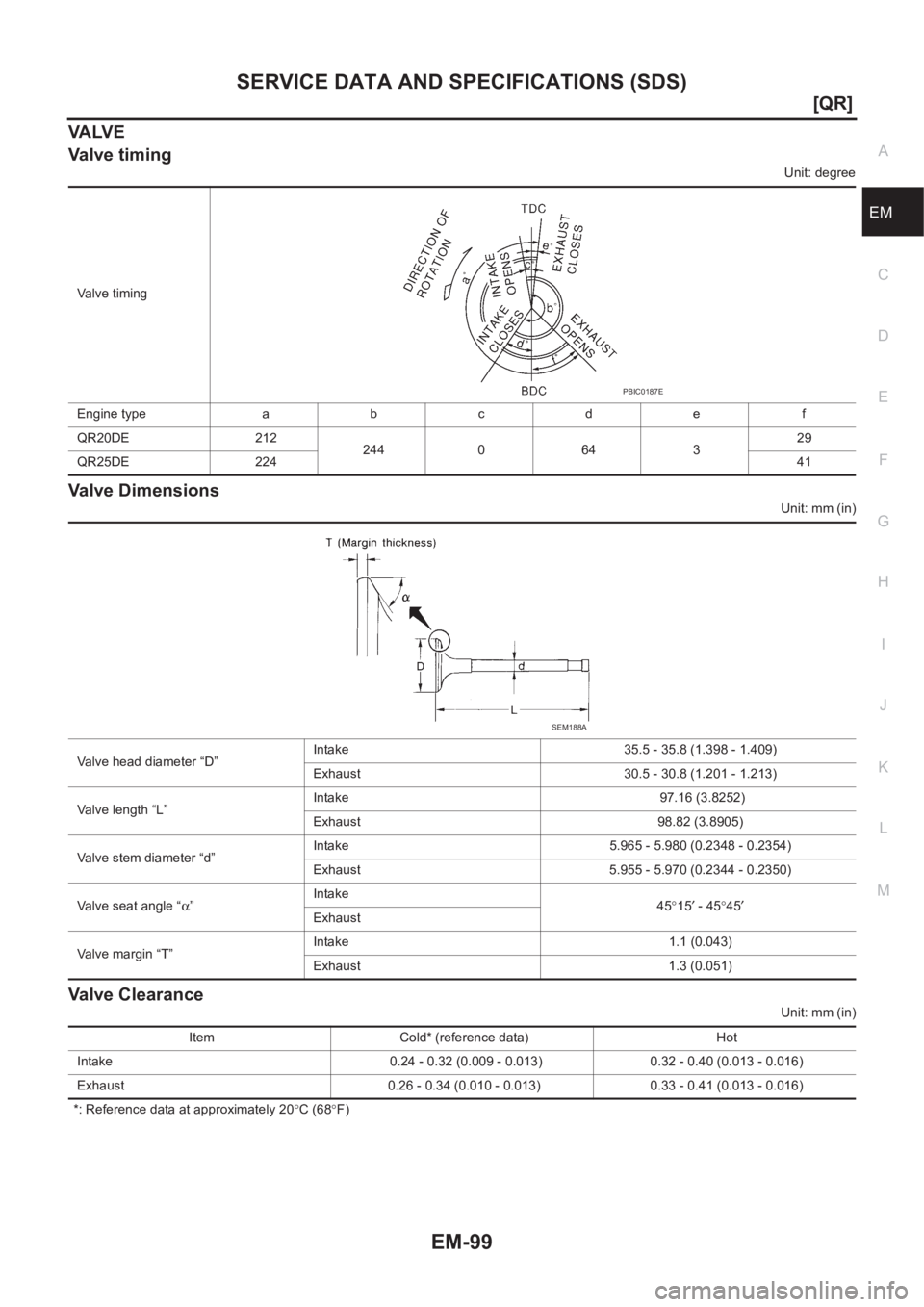

EM-98
[QR]
SERVICE DATA AND SPECIFICATIONS (SDS)
SERVICE DATA AND SPECIFICATIONS (SDS)
PFP:00030
Standard and LimitEBS00KNX
GENERAL SPECIFICATIONS
DRIVE BELTS
INTAKE MANIFOLD AND EXHAUST MANIFOLD
Unit: mm (in)
SPARK PLUG
CYLINDER HEAD
Unit: mm (in) Engine typeQR20DE QR25DE
Cylinder arrangement4.in-line
Displacement
cm
3 (cu in)1,998 (121.92) 2,488 (151.82)
Bore and stroke mm (in) 89.0 x 80.3 (3.504 x 3.161) 89.0 x 100.0 (3.504 x 3.937)
Valve arrangementDOHC
Firing order1-3-4-2
Number of piston ringsCompression 2
Oil 1
Compression ratio 9.0 9.5
Compression pressure
kPa (bar, kg/cm
2 , psi) / 250 rpmStandard 1,190 (11.9, 12.1, 173) 1,250 (12.5, 12.8, 181.3)
Minimum 990 (9.9, 10.1, 144) 1,060 (10.6, 10.8, 153.7)
Differential limit between cylinders 100 (1.0, 1.0, 14)
Tension of drive belts Auto adjustment by auto-tensioner
Item Limit
Surface distortionIntake manifold collector 0.1 (0.004)
Intake manifold 0.1 (0.004)
Exhaust manifold 0.3 (0.012)
MakeNGK
Standard typeLFR5A-11
Hot typeLFR4A-11
Cold typeLFR6A-11
Spark plug gap mm (in) 1.0 - 1.1 (0.039 - 0.043)
Item Limit
Head surface distortion 0.1 (0.004)
PBIC0283E

Page 149 of 3833
SERVICE DATA AND SPECIFICATIONS (SDS)
EM-99
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM
VA LV E
Valve timing
Unit: degree
Valve Dimensions
Unit: mm (in)
Valve Clearance
Unit: mm (in)
*: Reference data at approximately 20°C (68°F) Valve timing
Engine type a b c d e f
QR20DE 212
244 0 64 329
QR25DE 22441
PBIC0187E
Valve head diameter “D”Intake 35.5 - 35.8 (1.398 - 1.409)
Exhaust 30.5 - 30.8 (1.201 - 1.213)
Valve length “L”Intake 97.16 (3.8252)
Exhaust 98.82 (3.8905)
Valve stem diameter “d”Intake 5.965 - 5.980 (0.2348 - 0.2354)
Exhaust 5.955 - 5.970 (0.2344 - 0.2350)
Valve seat angle “α”Intake
45°15′ - 45°45′
Exhaust
Valve margin “T”Intake 1.1 (0.043)
Exhaust 1.3 (0.051)
SEM188A
Item Cold* (reference data) Hot
Intake 0.24 - 0.32 (0.009 - 0.013) 0.32 - 0.40 (0.013 - 0.016)
Exhaust 0.26 - 0.34 (0.010 - 0.013) 0.33 - 0.41 (0.013 - 0.016)
Page 150 of 3833
EM-100
[QR]
SERVICE DATA AND SPECIFICATIONS (SDS)
Available Valve Lifter
Valve Spring
Thickness mm (in) Identification mark
6.96 (0.2740) 696
6.98 (0.2748) 698
7.00 (0.2756) 700
7.02 (0.2764) 702
7.04 (0.2772) 704
7.06 (0.2780) 706
7.08 (0.2787) 708
7.10 (0.2795) 710
7.12 (0.2803) 712
7.14 (0.2811) 714
7.16 (0.2819) 716
7.18 (0.2827) 718
7.20 (0.2835) 720
7.22 (0.2843) 722
7.24 (0.2850) 724
7.26 (0.2858) 726
7.28 (0.2866) 728
7.30 (0.2874) 730
7.32 (0.2882) 732
7.34 (0.2890) 734
7.36 (0.2898) 736
7.38 (0.2906) 738
7.40 (0.2913) 740
7.42 (0.2921) 742
744 (0.2929) 744
7.46 (0.2937) 746
KBIA0119E
Free height
mm (in) StandardIntake 44.84 - 45.34 (1.7654 - 1.7850)
Exhaust 45.28 - 45.78 (1.7827 - 1.8024)
Pressure
N (kg, lb) at height mm (in)Standard Intake and exhaust 151 - 175 (15.4 - 17.8, 34 - 39) at 35.30 (1.390)
Out-of-square mm (in) Less than 1.9 (0.0748)
Page 151 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual SERVICE DATA AND SPECIFICATIONS (SDS)
EM-101
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM
Valve Lifter
Unit: mm (in)
Valve Guide
Unit: mm (in)
Valve Seat
Unit: mm (in) Item NISSAN X-TRAIL 2001 Service Repair Manual SERVICE DATA AND SPECIFICATIONS (SDS)
EM-101
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM
Valve Lifter
Unit: mm (in)
Valve Guide
Unit: mm (in)
Valve Seat
Unit: mm (in) Item](/manual-img/5/57405/w960_57405-150.png)
SERVICE DATA AND SPECIFICATIONS (SDS)
EM-101
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM
Valve Lifter
Unit: mm (in)
Valve Guide
Unit: mm (in)
Valve Seat
Unit: mm (in) Item Standard
Valve lifter outer diameter 33.965 - 33.980 (1.3372 - 1.3378)
Lifter guide inner diameter 34.000 - 34.021 (1.3386 - 1.3394)
Clearance between lifter and lifter guide 0.020 - 0.056 (0.0008 - 0.0022)
Item Standard part Service part
Valve guide Outer diameter 10.023 - 10.034 (0.3946 - 0.3950) 10.223 - 10.234 (0.4025 - 0.4029)
Inner diameter (Finished size) 6.000 - 6.018 (0.2362 - 0.2369)
Cylinder head valve guide hole diameter 9.975 - 9.996 (0.3927 - 0.3935) 10.175 - 10.196 (0.4006 - 0.4014)
Interference fit of valve guide 0.027 - 0.059 (0.0011 - 0.0023)
Stem to guide clearanceIntake 0.020 - 0.053 (0.0008 - 0.0021)
Exhaust 0.030 - 0.063 (0.0012 - 0.0025)
Projection length “L”Intake 10.1 - 10.3 (0.398 - 0.406)
Exhaust 10.0 - 10.4 (0.394 - 0.409)
PBIC0184E
Item Standard part Service part
Cylinder head seat recess diameter (D)Intake 36.500 - 36.516 (1.4370 - 1.4376) 37.000 - 37.016 (1.4567 - 1.4573)
Exhaust 31.500 - 31.516 (1.2402 - 1.2408) 32.000 - 32.016(1.2598 - 1.2605)
Valve seat interference fitIntake 0.081 - 0.113 (0.0032 - 0.0044)
Exhaust 0.084 - 0.116 (0.0033 - 0.0046)
Valve seat outer diameter (d)Intake 36.597 - 36.613 (1.4408 - 1.4415) 37.097 - 37.113 (1.4605 - 1.4611)
Exhaust 31.600 - 31.616 (1.2441 - 1.2447) 32.100 - 32.116 (1.2638 - 1.2644)
PBIC0284E
Page 152 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual EM-102
[QR]
SERVICE DATA AND SPECIFICATIONS (SDS)
CAMSHAFT AND CAMSHAFT BEARING
Unit: mm (in)
CYLINDER BLOCK
Unit: mm (in) Item Standard
Camshaft runout [TIR] (Total indicator reading) Less than 0.0 NISSAN X-TRAIL 2001 Service Repair Manual EM-102
[QR]
SERVICE DATA AND SPECIFICATIONS (SDS)
CAMSHAFT AND CAMSHAFT BEARING
Unit: mm (in)
CYLINDER BLOCK
Unit: mm (in) Item Standard
Camshaft runout [TIR] (Total indicator reading) Less than 0.0](/manual-img/5/57405/w960_57405-151.png)
EM-102
[QR]
SERVICE DATA AND SPECIFICATIONS (SDS)
CAMSHAFT AND CAMSHAFT BEARING
Unit: mm (in)
CYLINDER BLOCK
Unit: mm (in) Item Standard
Camshaft runout [TIR] (Total indicator reading) Less than 0.04 (0.0016)
Cam height “A”Intake 45.665 - 45.855 (1.7978 - 1.8053)
ExhaustQR20DE 42.825 - 43.015 (1.6860 - 1.6935)
QR25DE 43.975 - 44.165 (1.7313 - 1.7388)
Outer diameter of camshaft journalNo. 1 27.935 - 27.955 (1.0998 - 1.1006)
No. 2, 3, 4 and 5 23.435 - 23.455 (0.9226 - 0.9234)
Inner diameter of camshaft bracketNo. 1 28.000 - 28.021 (1.1024 - 1.1032)
No. 2, 3, 4 and 5 23.500 - 23.521 (0.9252 - 0.9260)
Camshaft journal clearance 0.045 - 0.086 (0.0018 - 0.0034)
Camshaft end play0.115 - 0.188 (0.0045 - 0.0074)
Camshaft sprocket runout [TIR] (Total indicator reading) Less than 0.15 (0.0059)
SEM671
Surface flatness Limit 0.1 (0.004)
Cylinder boreInner diameterStandardGrade No. 1 89.000 - 89.010 (3.5039 - 3.5043)
Grade No. 2 89.010 - 89.020 (3.5043 - 3.5047)
Grade No. 3 89.020 - 89.030 (3.5047 - 3.5051)
Wear limit 0.2 (0.008)
Out-of-round (X − Y) Less than 0.015 (0.0006)
Ta p e r ( C− A) Less than 0.01 (0.0004)
PBIC0281E
