2001 NISSAN X-TRAIL Service Repair Manual

battery location tire size sat nav check engine mirror key fob battery

Page 3457 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual SC-1
STARTING & CHARGING SYSTEM
K ELECTRICAL
CONTENTS
C
D
E
F
G
H
I
J
L
M
SECTION
A
B
SC
STARTING & CHARGING SYSTEM
PRECAUTIONS .......................................................... 2
Precautio

SC-1
STARTING & CHARGING SYSTEM
K ELECTRICAL
CONTENTS
C
D
E
F
G
H
I
J
L
M
SECTION
A
B
SC
STARTING & CHARGING SYSTEM
PRECAUTIONS .......................................................... 2
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” .................................................................. 2
Wiring Diagrams and Trouble Diagnosis .................. 2
BATTERY .................................................................... 3
How to Handle Battery ............................................. 3
METHODS OF PREVENTING OVER-DIS-
CHARGE ............................................................... 3
CHECKING ELECTROLYTE LEVEL .................... 3
SPECIFIC GRAVITY CHECK ............................... 4
Battery Test and Charging Chart .............................. 5
CHART I ................................................................ 5
CHART II ............................................................... 6
A: SLOW CHARGE ............................................... 7
B: STANDARD CHARGE ...................................... 8
C: QUICK CHARGE ............................................ 10
Removal and Installation ......................................... 11
CHARGING SYSTEM ............................................... 12
System Description ................................................ 12
Wiring Diagram — CHARGE — ............................. 13
Trouble Diagnoses ................................................. 14
WITH IC REGULATOR ....................................... 14
MALFUNCTION INDICATOR .............................. 14
Removal and Installation ........................................ 15
REMOVAL (QR ENGINE MODELS) ................... 15
REMOVAL (YD ENGINE MODELS) ................... 15
INSTALLATION ................................................... 15
Disassembly and Assembly ................................... 16
Disassembly ........................................................... 17
REAR COVER .................................................... 17
REAR BEARING ................................................. 18Inspection ............................................................... 18
ROTOR CHECK .................................................. 18
BRUSH CHECK .................................................. 18
PULLEY CHECK(WITH CLUTCH TYPE) ............ 18
STATOR CHECK ................................................. 18
Assembly ................................................................ 19
RING FITTING IN REAR BEARING .................... 19
REAR COVER INSTALLATION ........................... 19
STARTING SYSTEM ................................................. 20
System Description ................................................. 20
M/T MODELS ...................................................... 20
A/T MODELS ....................................................... 20
Wiring Diagram — START —/M/T models ............. 21
Wiring Diagram — START —/A/T models .............. 22
Trouble Diagnoses ..............................................
... 23
Removal and Installation ........................................ 24
REMOVAL ........................................................... 24
INSTALLATION ................................................... 24
Disassembly and Assembly .................................... 25
Inspection ............................................................... 28
MAGNETIC SWITCH CHECK ............................. 28
PINION/CLUTCH CHECK ................................... 28
BRUSH CHECK .................................................. 28
YOKE CHECK ..................................................... 29
ARMATURE CHECK ........................................... 30
Assembly ................................................................ 31
PINION PROTRUSION LENGTH ADJUST-
MENT .................................................................. 31
SERVICE DATA AND SPECIFICATIONS (SDS) ...... 33
Battery .................................................................... 33
Starter ..................................................................... 33
Alternator ................................................................ 33

Page 3458 of 3833

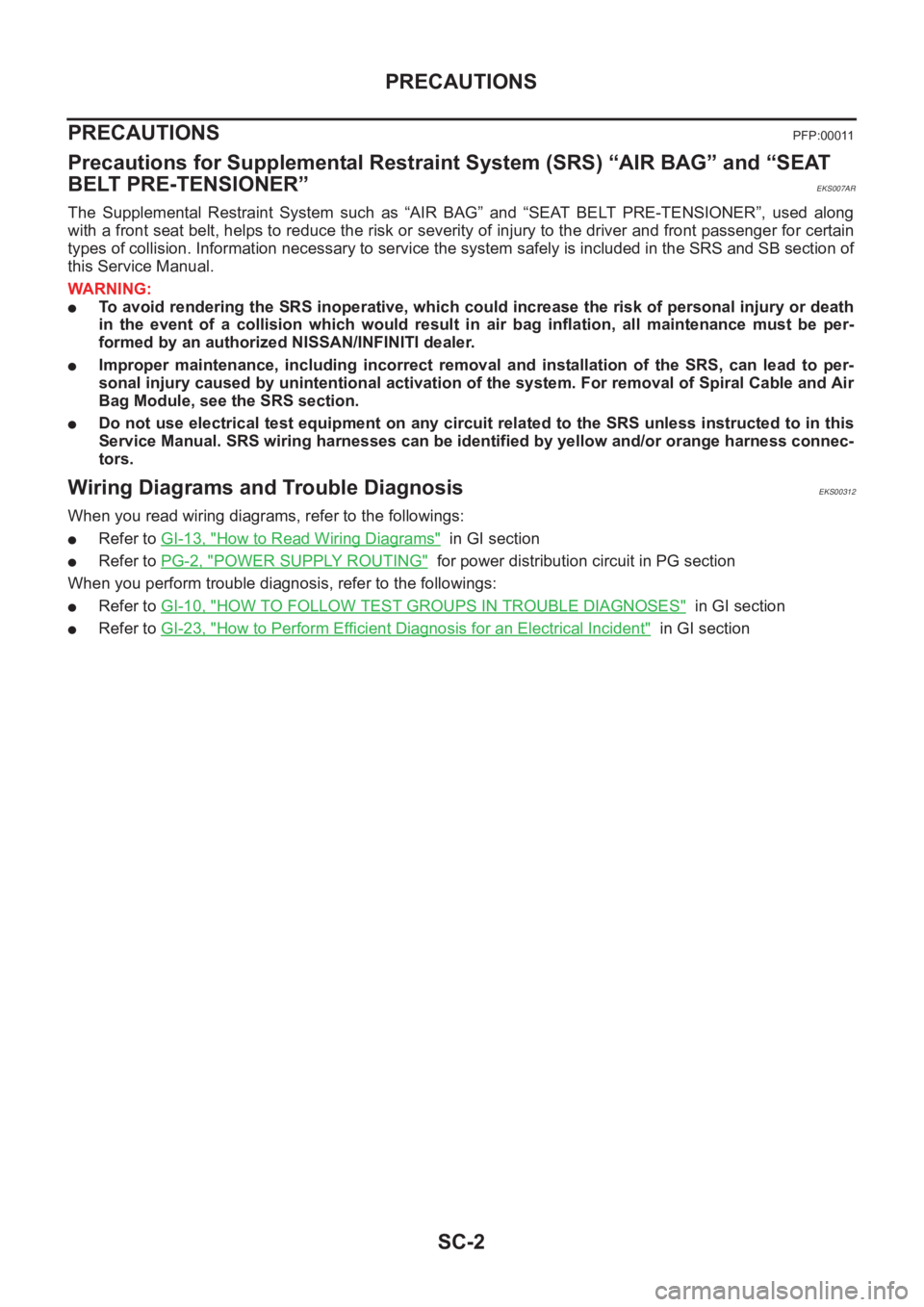

NISSAN X-TRAIL 2001 Service Repair Manual SC-2
PRECAUTIONS
PRECAUTIONS
PFP:00011
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
EKS007AR
The Supplemental Restraint System such as �

Page 3459 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual BATTERY
SC-3
C
D
E
F
G
H
I
J
L
MA
B
SC
BATTERY PFP:00011
How to Handle Battery EKS00313
CAUTION:
●If it becomes necessary to start the engine with a booster battery and jumper cables, use a 12-volt

Page 3460 of 3833

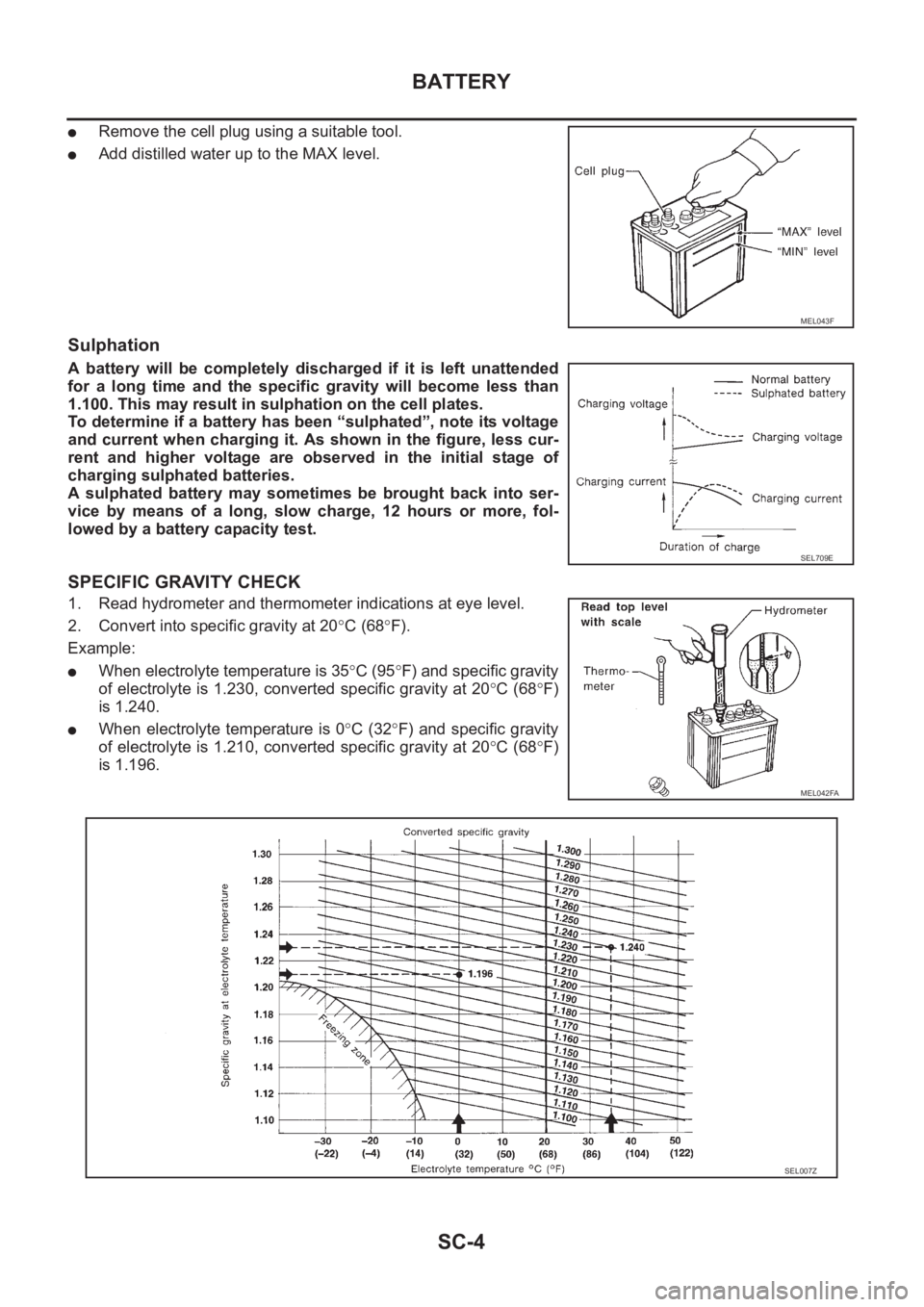

NISSAN X-TRAIL 2001 Service Repair Manual SC-4
BATTERY
●Remove the cell plug using a suitable tool.
●Add distilled water up to the MAX level.
Sulphation
A battery will be completely discharged if it is left unattended
for a lo

Page 3461 of 3833

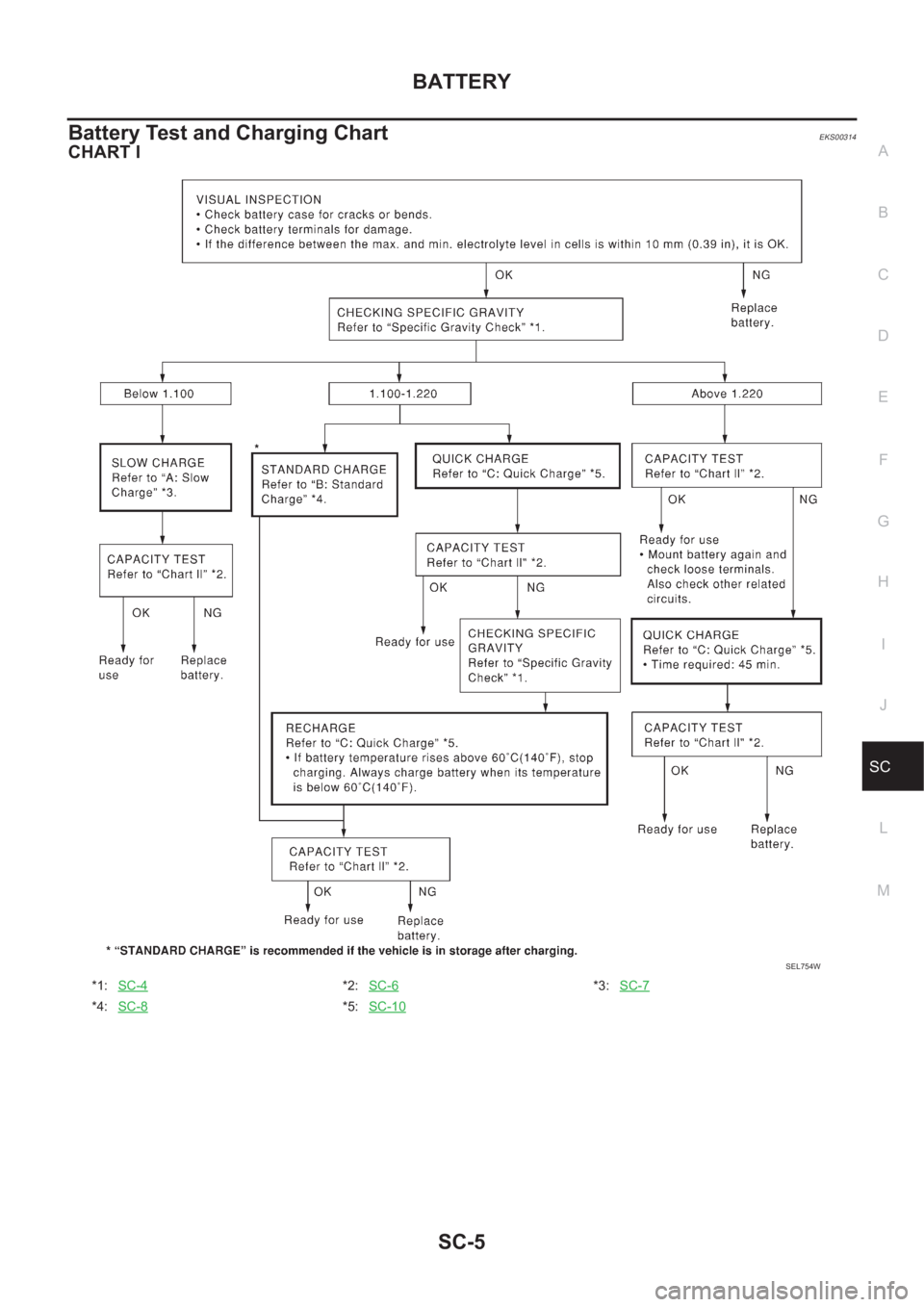

NISSAN X-TRAIL 2001 Service Repair Manual BATTERY
SC-5
C
D
E
F
G
H
I
J
L
MA
B
SC
Battery Test and Charging ChartEKS00314
CHART I
*1:SC-4*2:SC-6*3:SC-7
*4:SC-8*5:SC-10
SEL754W

Page 3462 of 3833

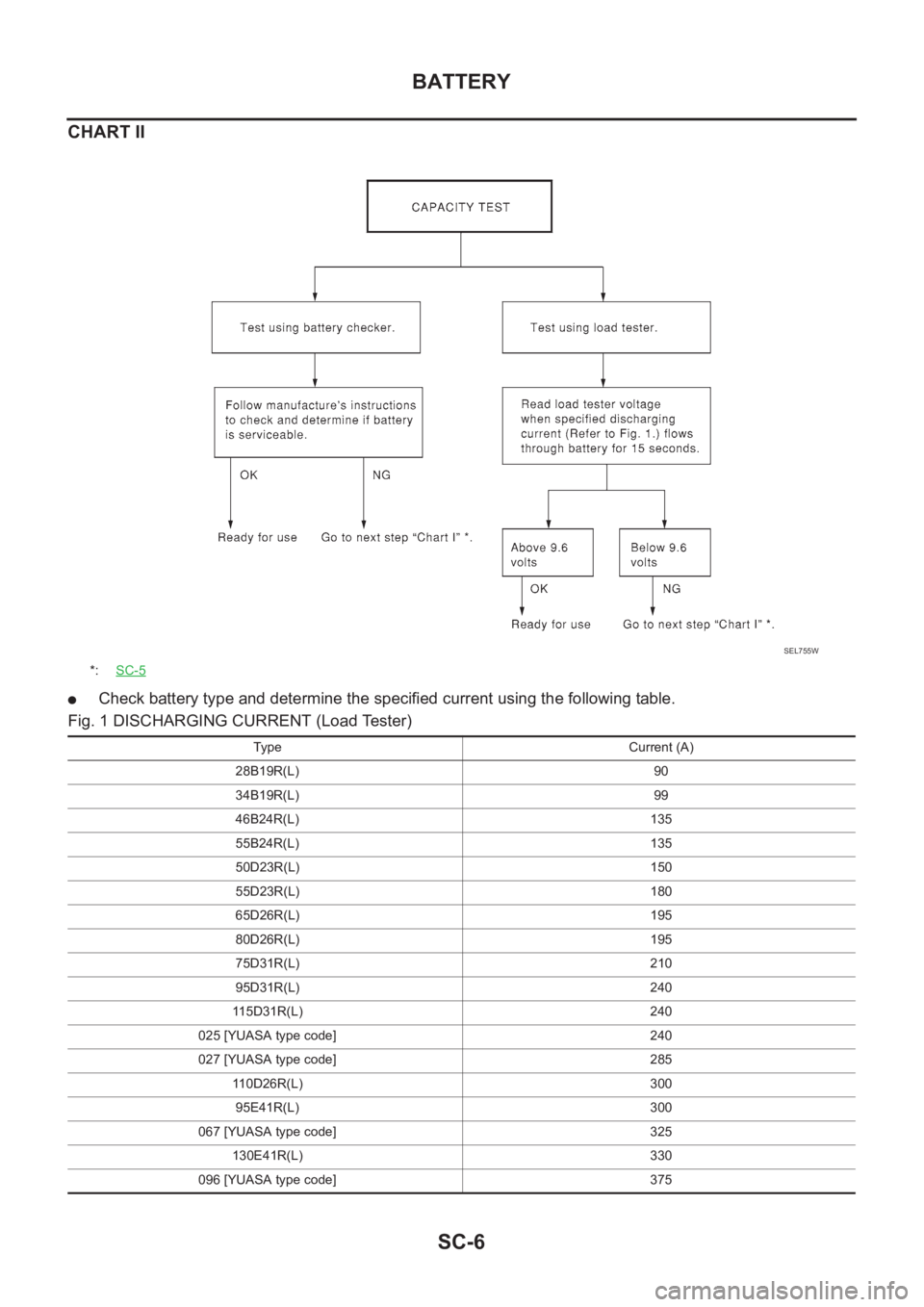

NISSAN X-TRAIL 2001 Service Repair Manual SC-6
BATTERY
CHART II
●Check battery type and determine the specified current using the following table.
Fig. 1 DISCHARGING CURRENT (Load Tester)
*:SC-5
SEL755W
Type Current (A)
28B19R(L) 90
34B19R(

Page 3463 of 3833

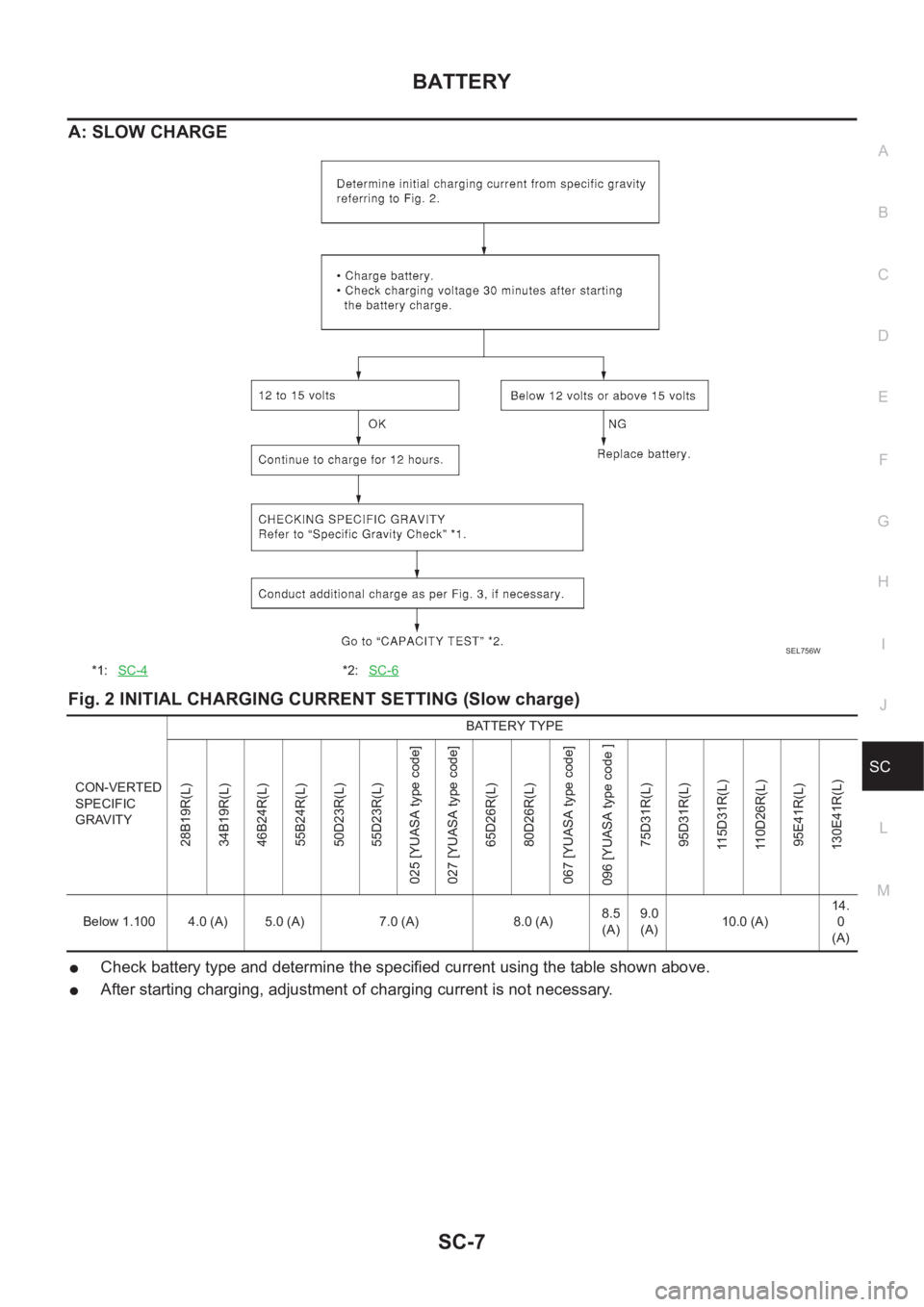

NISSAN X-TRAIL 2001 Service Repair Manual BATTERY
SC-7
C
D
E
F
G
H
I
J
L
MA
B
SC
A: SLOW CHARGE
Fig. 2 INITIAL CHARGING CURRENT SETTING (Slow charge)
●Check battery type and determine the specified current using the table shown above.
●Af

Page 3464 of 3833

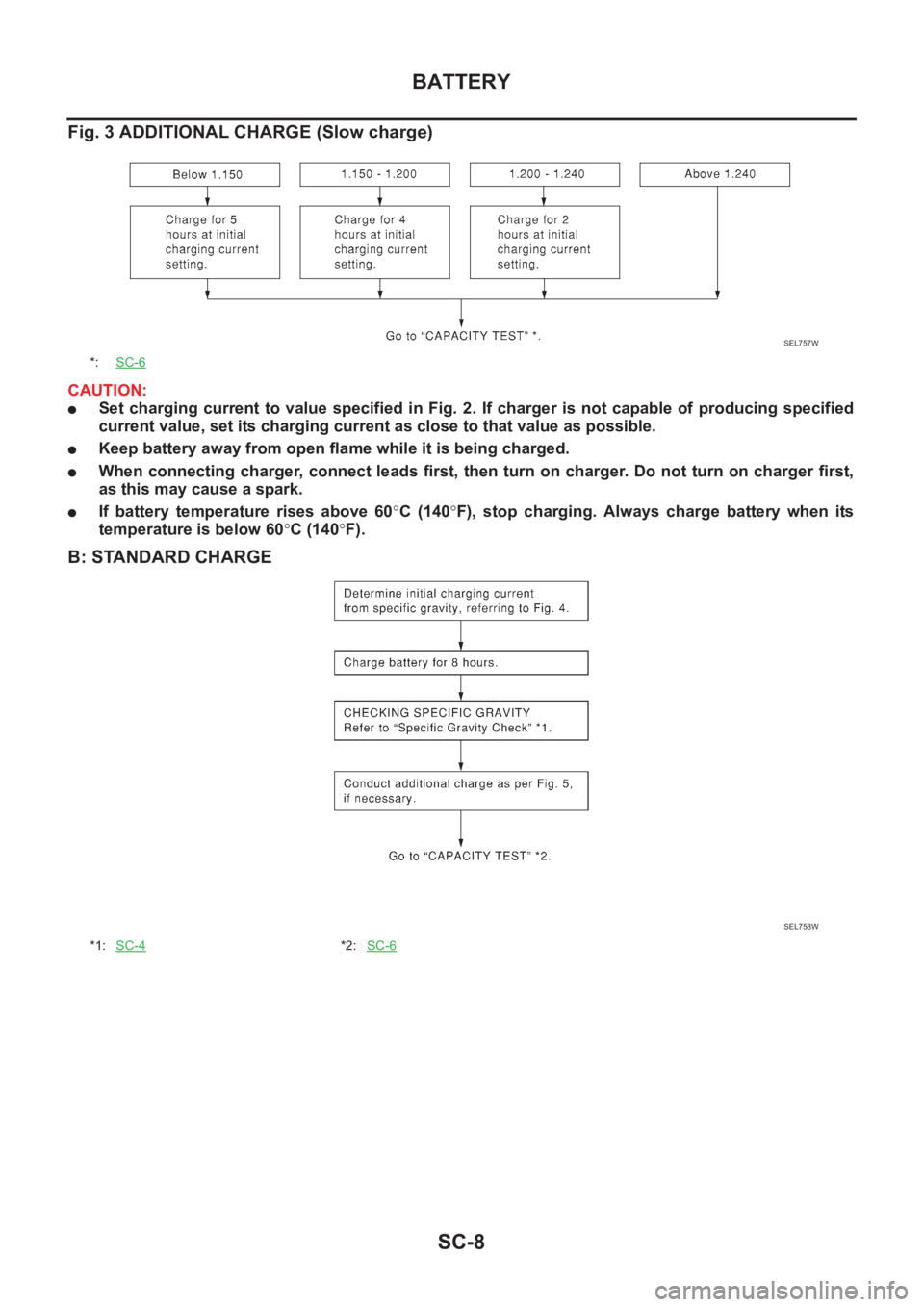

NISSAN X-TRAIL 2001 Service Repair Manual SC-8
BATTERY
Fig. 3 ADDITIONAL CHARGE (Slow charge)
CAUTION:
●Set charging current to value specified in Fig. 2. If charger is not capable of producing specified
current value, set i
