Removal and InstallationEIS000MX
●Bumper fascia is made of resin. Do not apply strong force to it, and be careful to prevent contact with oil.
Page 3227 of 3833
FRONT BUMPER
EI-7
C
D
E
F
G
H
J
K
L
MA
B
EI

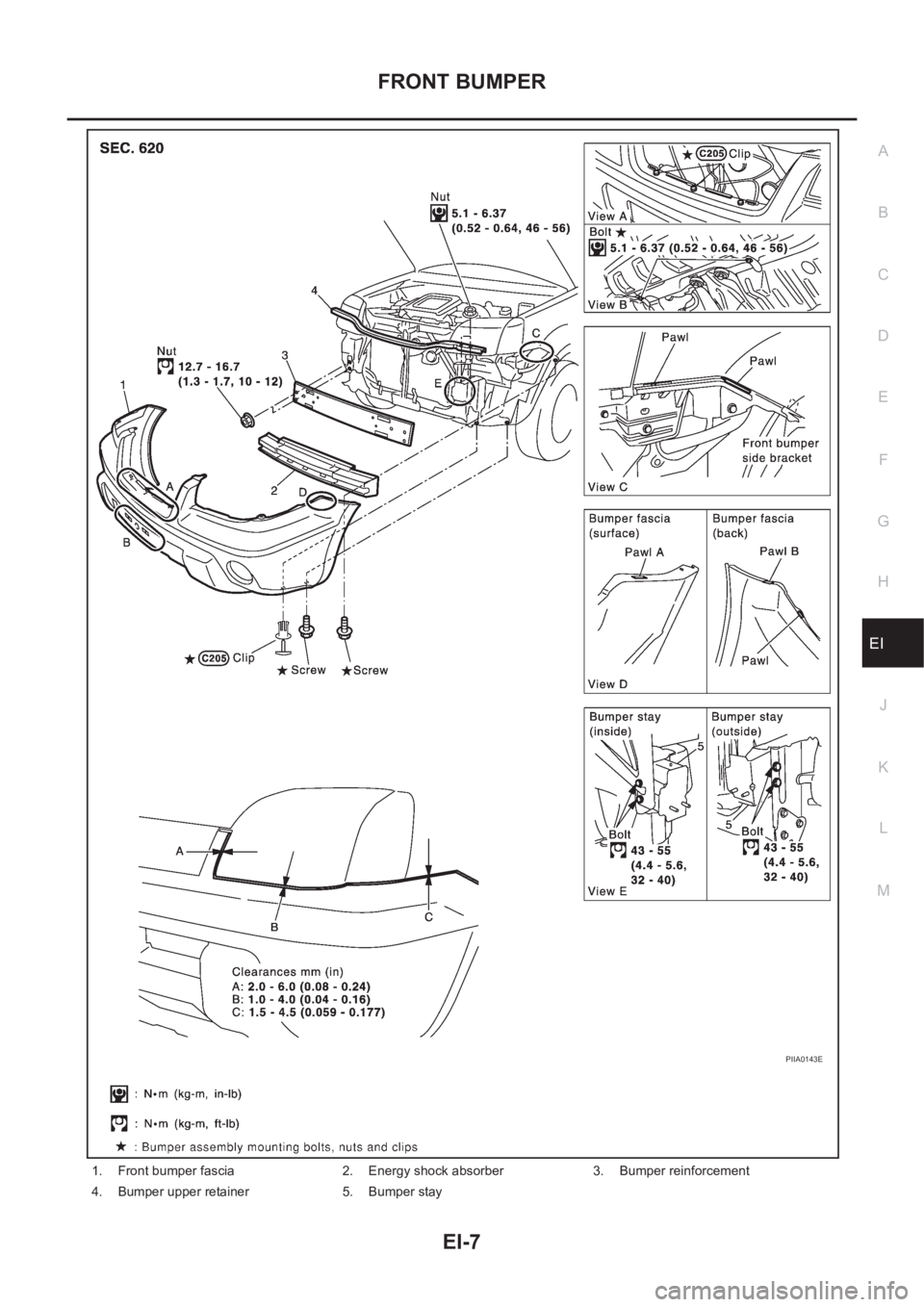

1. Front bumper fascia 2. Energy shock absorber 3. Bumper reinforcement
4. Bumper upper retainer 5. Bumper stay
PIIA0143E

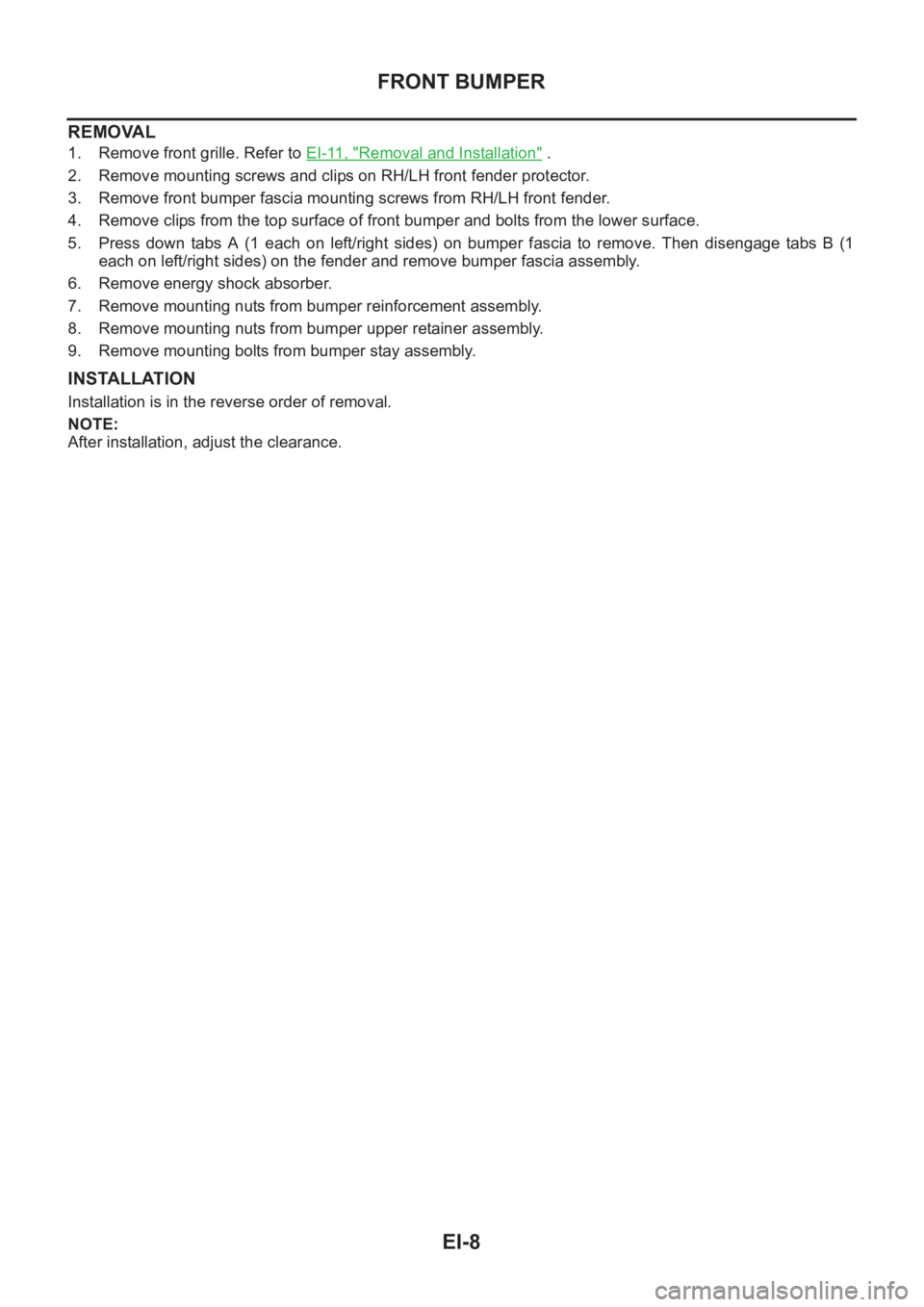

Page 3228 of 3833
EI-8
FRONT BUMPER
REMOVAL
1. Remove front grille. Refer to EI-11, "Removal and Installation" .
2. Remove mounting screws and clips on RH/LH front fender protector.
3. Remove front bumper fascia mounting screws from RH/LH front fender.
4. Remove clips from the top surface of front bumper and bolts from the lower surface.
5. Press down tabs A (1 each on left/right sides) on bumper fascia to remove. Then disengage tabs B (1
each on left/right sides) on the fender and remove bumper fascia assembly.
6. Remove energy shock absorber.
7. Remove mounting nuts from bumper reinforcement assembly.
8. Remove mounting nuts from bumper upper retainer assembly.
9. Remove mounting bolts from bumper stay assembly.
INSTALLATION
Installation is in the reverse order of removal.
NOTE:
After installation, adjust the clearance.
Page 3229 of 3833
REAR BUMPER
EI-9
C
D
E
F
G
H
J
K
L
MA
B
EI
REAR BUMPERPFP:H5022
Removal and InstallationEIS000MY
●Bumper fascia is made of resin. Do not apply strong force to it, and be careful to prevent contact with oil.
REMOVAL
1. Remove mounting nuts on rear bumper protector.
2. Remove RH/LH chipping protector.
3. Remove mounting screws on RH/LH rear fender protector.
4. Remove mounting bolts and clips on rear bumper fascia.
5. Spread bumper fascia toward the outside and remove it from the side clips.

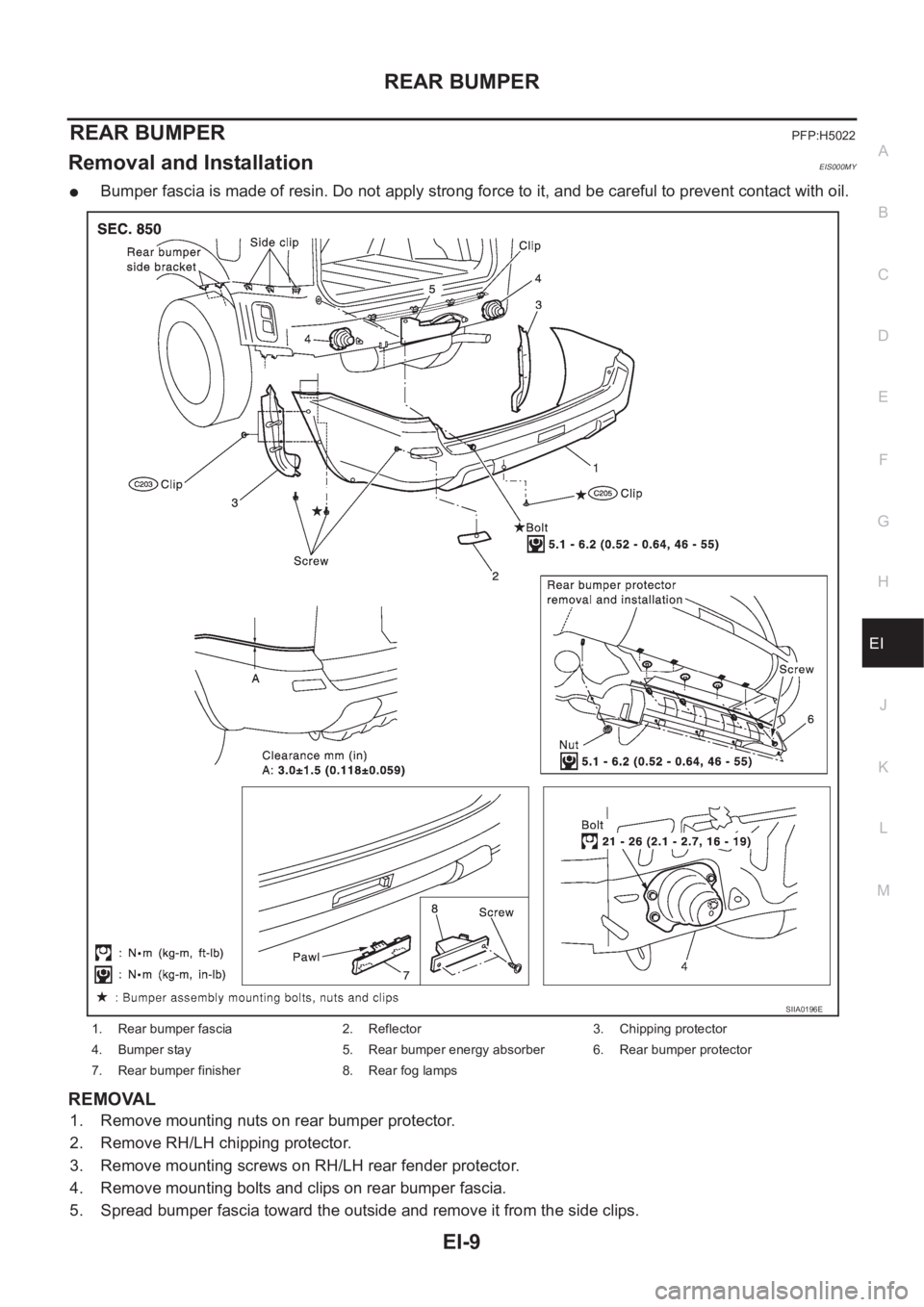

1. Rear bumper fascia 2. Reflector 3. Chipping protector
4. Bumper stay 5. Rear bumper energy absorber 6. Rear bumper protector
7. Rear bumper finisher 8. Rear fog lamps
SIIA0196E

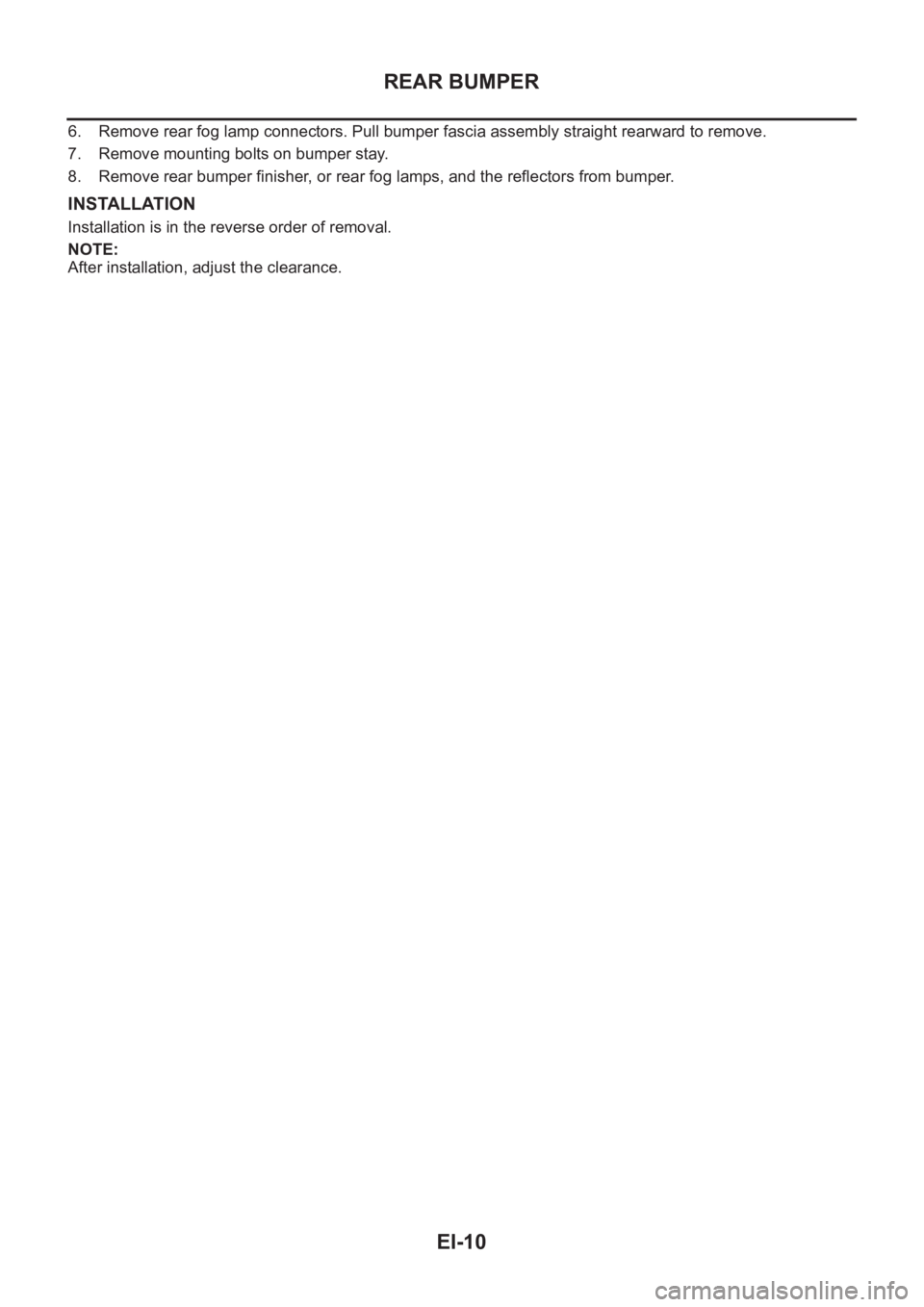

Page 3230 of 3833
EI-10
REAR BUMPER
6. Remove rear fog lamp connectors. Pull bumper fascia assembly straight rearward to remove.
7. Remove mounting bolts on bumper stay.
8. Remove rear bumper finisher, or rear fog lamps, and the reflectors from bumper.
INSTALLATION
Installation is in the reverse order of removal.
NOTE:
After installation, adjust the clearance.
Page 3231 of 3833
FRONT GRILLE
EI-11
C
D
E
F
G
H
J
K
L
MA
B
EI
FRONT GRILLEPFP:62310
Removal and InstallationEIS000MZ
REMOVAL

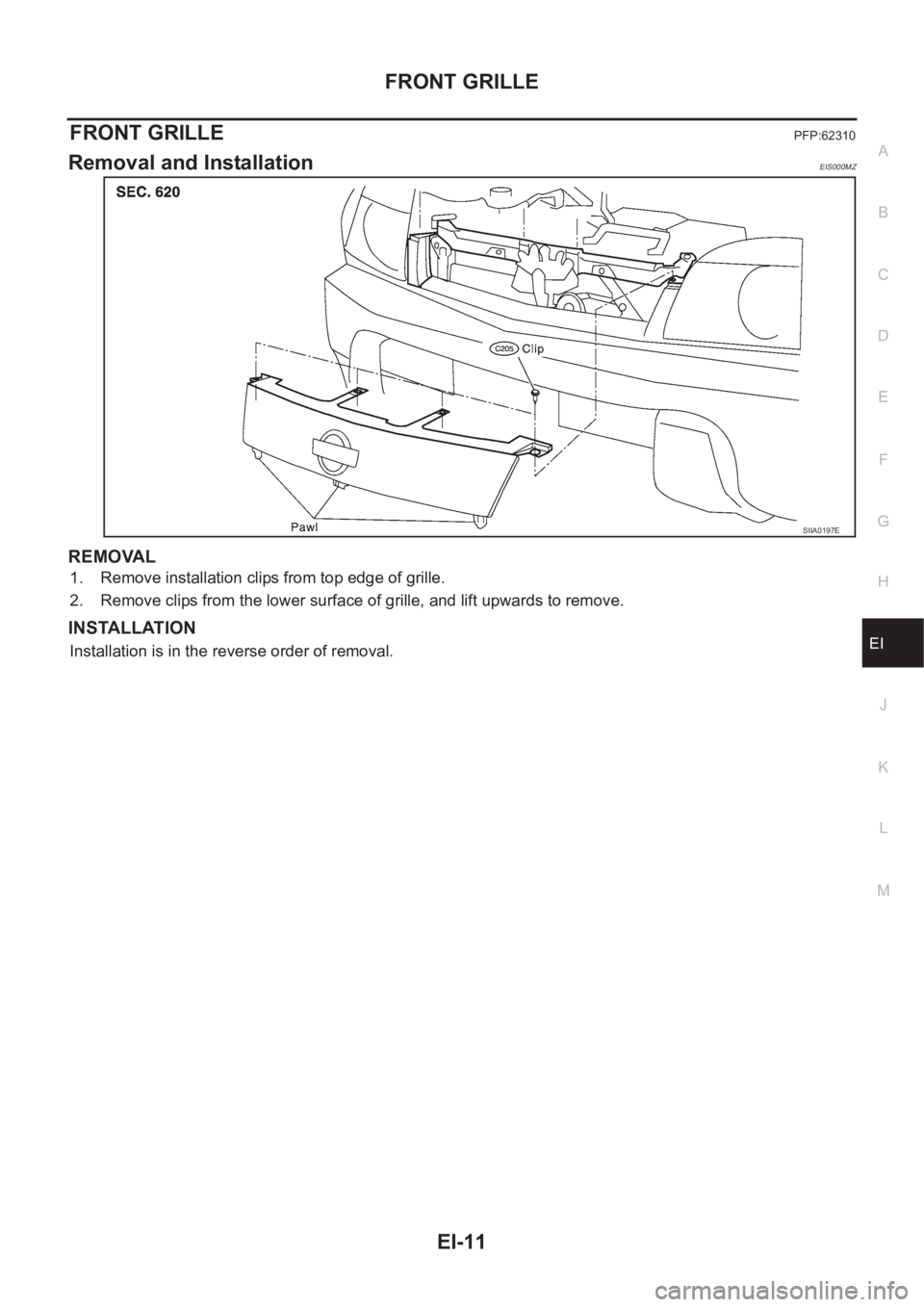

1. Remove installation clips from top edge of grille.
2. Remove clips from the lower surface of grille, and lift upwards to remove.
INSTALLATION
Installation is in the reverse order of removal.
SIIA0197E
Page 3232 of 3833
EI-12
COWL TOP
COWL TOP
PFP:66100
Removal and InstallationEIS000N0
REMOVAL

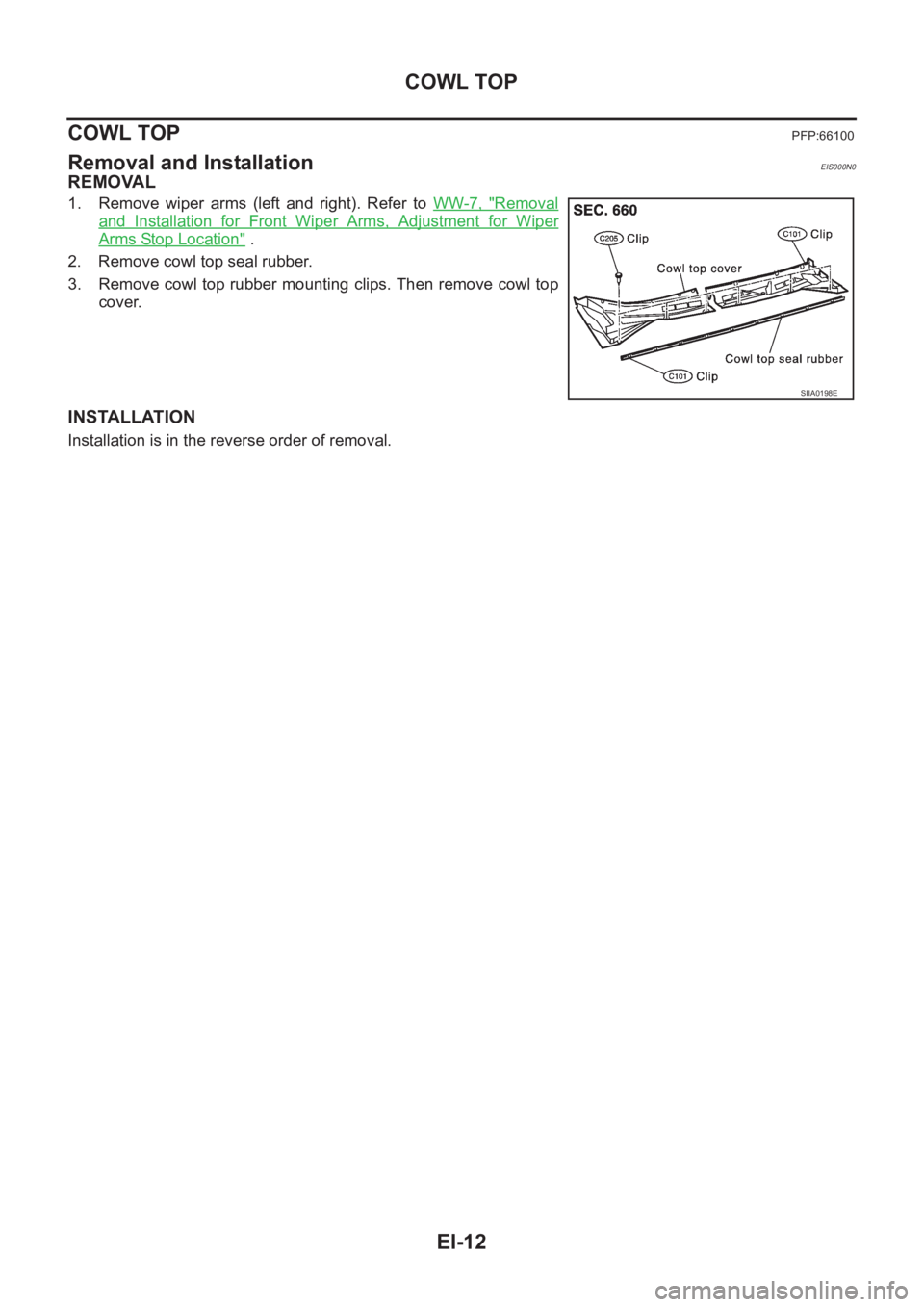

1. Remove wiper arms (left and right). Refer to WW-7, "Removal
