Page 2417 of 3833
TROUBLE DIAGNOSES FOR SYMPTOMS

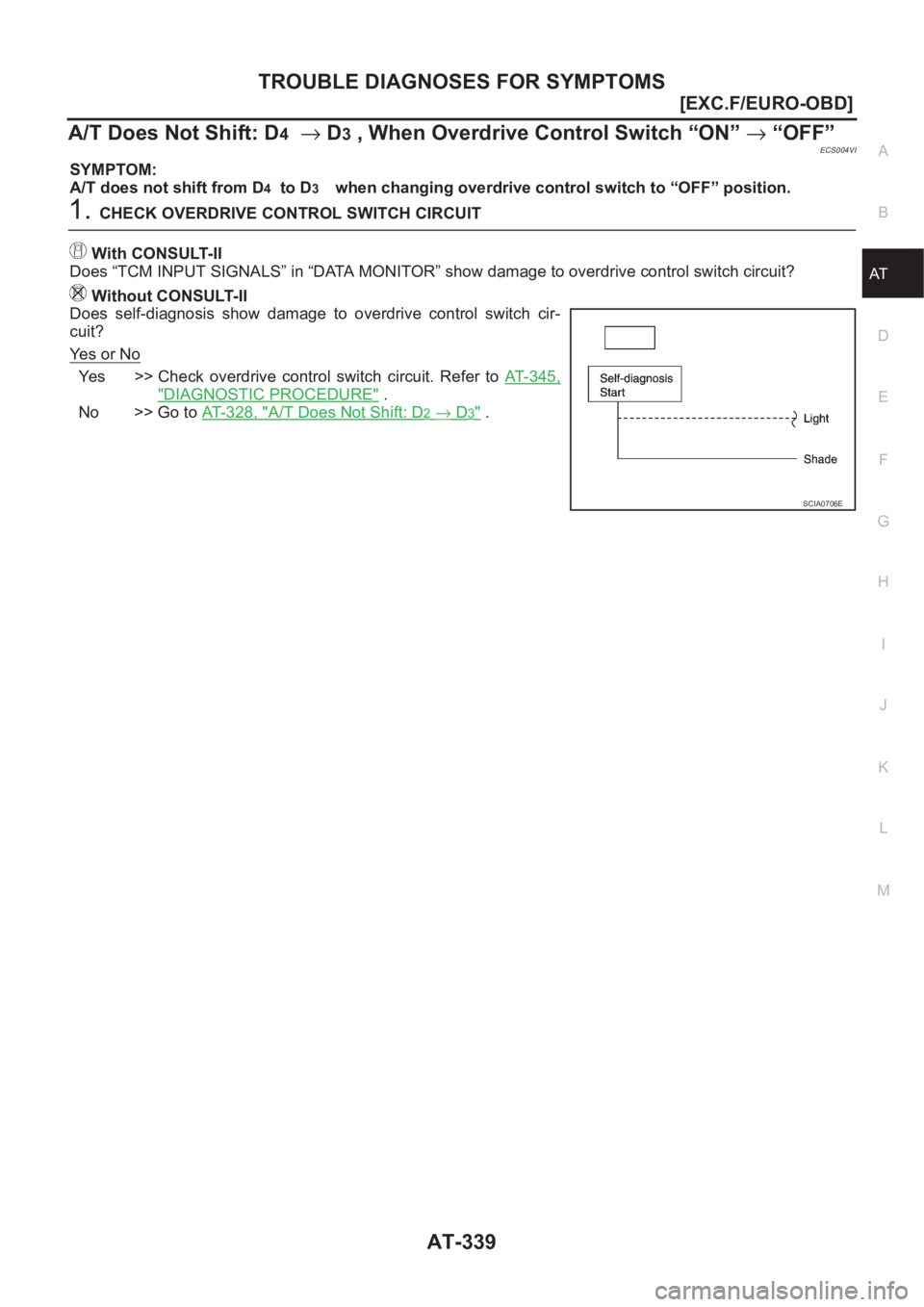

AT-339
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
A/T Does Not Shift: D4→ D3 , When Overdrive Control Switch “ON” → “OFF”ECS004VI
SYMPTOM:
A/T does not shift from D
4 to D3 when changing overdrive control switch to “OFF” position.
1.CHECK OVERDRIVE CONTROL SWITCH CIRCUIT
With CONSULT-II
Does “TCM INPUT SIGNALS” in “DATA MONITOR” show damage to overdrive control switch circuit?
Without CONSULT-II
Does self-diagnosis show damage to overdrive control switch cir-
cuit?
Ye s o r N o
Yes >> Check overdrive control switch circuit. Refer to AT- 3 4 5 ,
"DIAGNOSTIC PROCEDURE" .
No >> Go to AT-328, "
A/T Does Not Shift: D2→ D3" .
SCIA0706E
Page 2418 of 3833

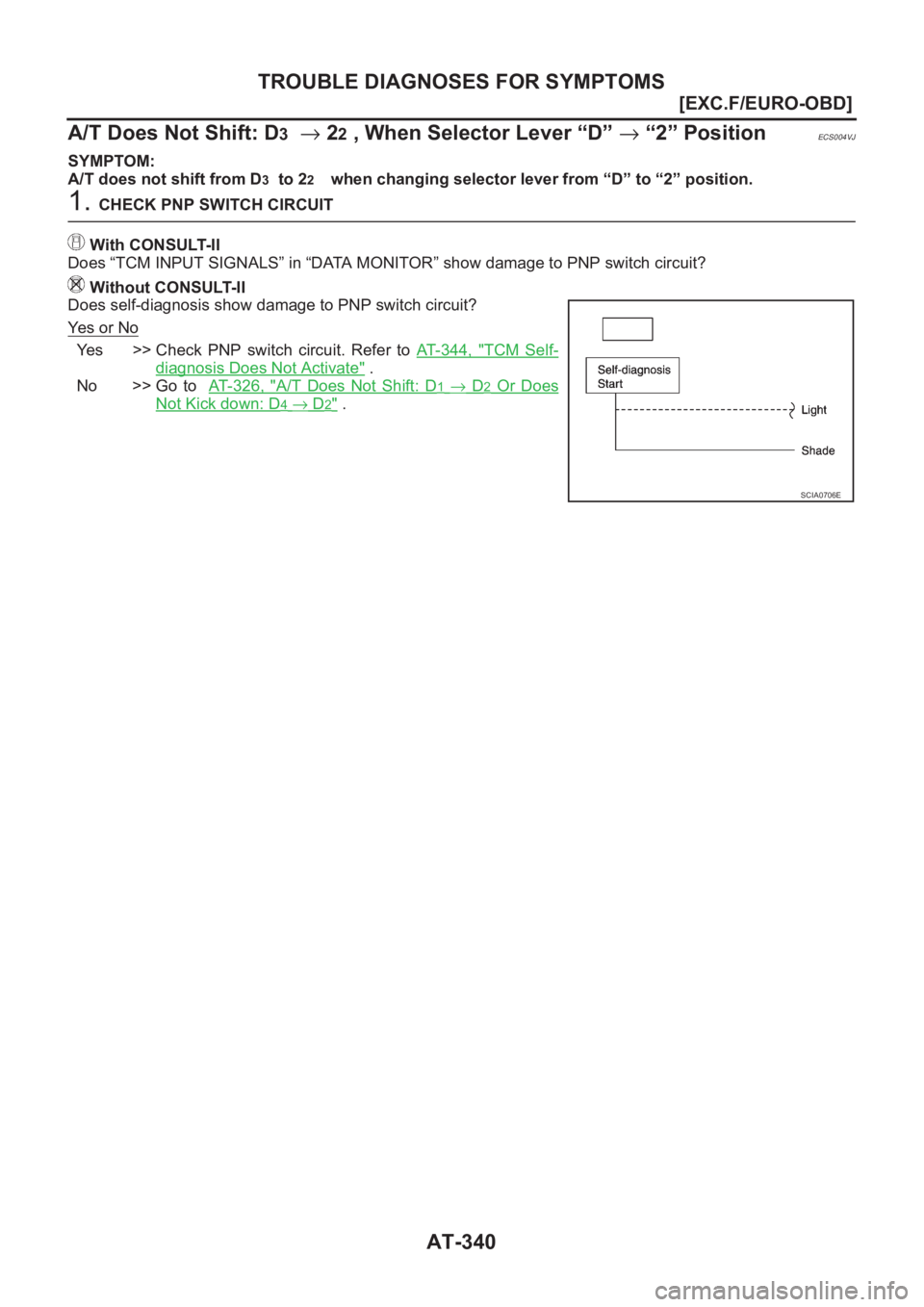

AT-340
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS
A/T Does Not Shift: D
3→ 22 , When Selector Lever “D” → “2” PositionECS004VJ
SYMPTOM:
A/T does not shift from D
3 to 22 when changing selector lever from “D” to “2” position.
1. CHECK PNP SWITCH CIRCUIT
With CONSULT-II
Does “TCM INPUT SIGNALS” in “DATA MONITOR” show damage to PNP switch circuit?
Without CONSULT-II
Does self-diagnosis show damage to PNP switch circuit?
Ye s o r N o
Yes >> Check PNP switch circuit. Refer to AT- 3 4 4 , "TCM Self-
diagnosis Does Not Activate" .
No >> Go to AT- 3 2 6 , "
A/T Does Not Shift: D1→ D2 Or Does
Not Kick down: D4→ D2" .
SCIA0706E
Page 2419 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual TROUBLE DIAGNOSES FOR SYMPTOMS
AT-341
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
A/T Does Not Shift: 22→ 11 , When Selector Lever “2” → “1” PositionECS004VK
SYMPTOM:
A/T does not shift fro NISSAN X-TRAIL 2001 Service Repair Manual TROUBLE DIAGNOSES FOR SYMPTOMS
AT-341
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
A/T Does Not Shift: 22→ 11 , When Selector Lever “2” → “1” PositionECS004VK
SYMPTOM:
A/T does not shift fro](/manual-img/5/57405/w960_57405-2418.png)
TROUBLE DIAGNOSES FOR SYMPTOMS
AT-341
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
A/T Does Not Shift: 22→ 11 , When Selector Lever “2” → “1” PositionECS004VK
SYMPTOM:
A/T does not shift from 2
2 to 11 when changing selector lever from “2” to “1” position.
1.CHECK PNP SWITCH CIRCUIT
With CONSULT-II
Does “TCM INPUT SIGNALS” in “DATA MONITOR” show damage to PNP switch circuit?
Without CONSULT-II
Does self-diagnosis show damage to PNP switch circuit?
Ye s o r N o
Yes >> Check PNP switch circuit. Refer to AT- 3 4 4 , "TCM Self-
diagnosis Does Not Activate" .
No >> GO TO 2
2.CHECK CONTROL CABLE
Check control cable. Refer to AT-416, "
Control Cable Adjustment" .
OK or NG
OK >> GO TO 3.
NG >> Adjust control cable. Refer to AT- 4 1 6 , "
Control Cable
Adjustment" .
3.CHECK VEHICLE SPEED SENSOR·A/T (REVOLUTION SENSOR) AND CHECK VEHICLE SPEED
SENSOR·MTR CIRCUIT
Check vehicle speed sensor·A/T (revolution sensor) and vehicle speed sensor·MTR circuit. Refer to AT- 3 5 3 ,
"VEHICLE SPEED SENSOR·A/T (REVOLUTION SENSOR)" and AT-358, "DTC VEHICLE SPEED SENSOR
MTR" (Except for Euro-OBD).
OK or NG
OK >> GO TO 4.
NG >> Repair or replace vehicle speed sensor·A/T (revolution sensor) and vehicle speed sensor·MTR
circuits.
SCIA0706E
SAT023JB
Page 2420 of 3833

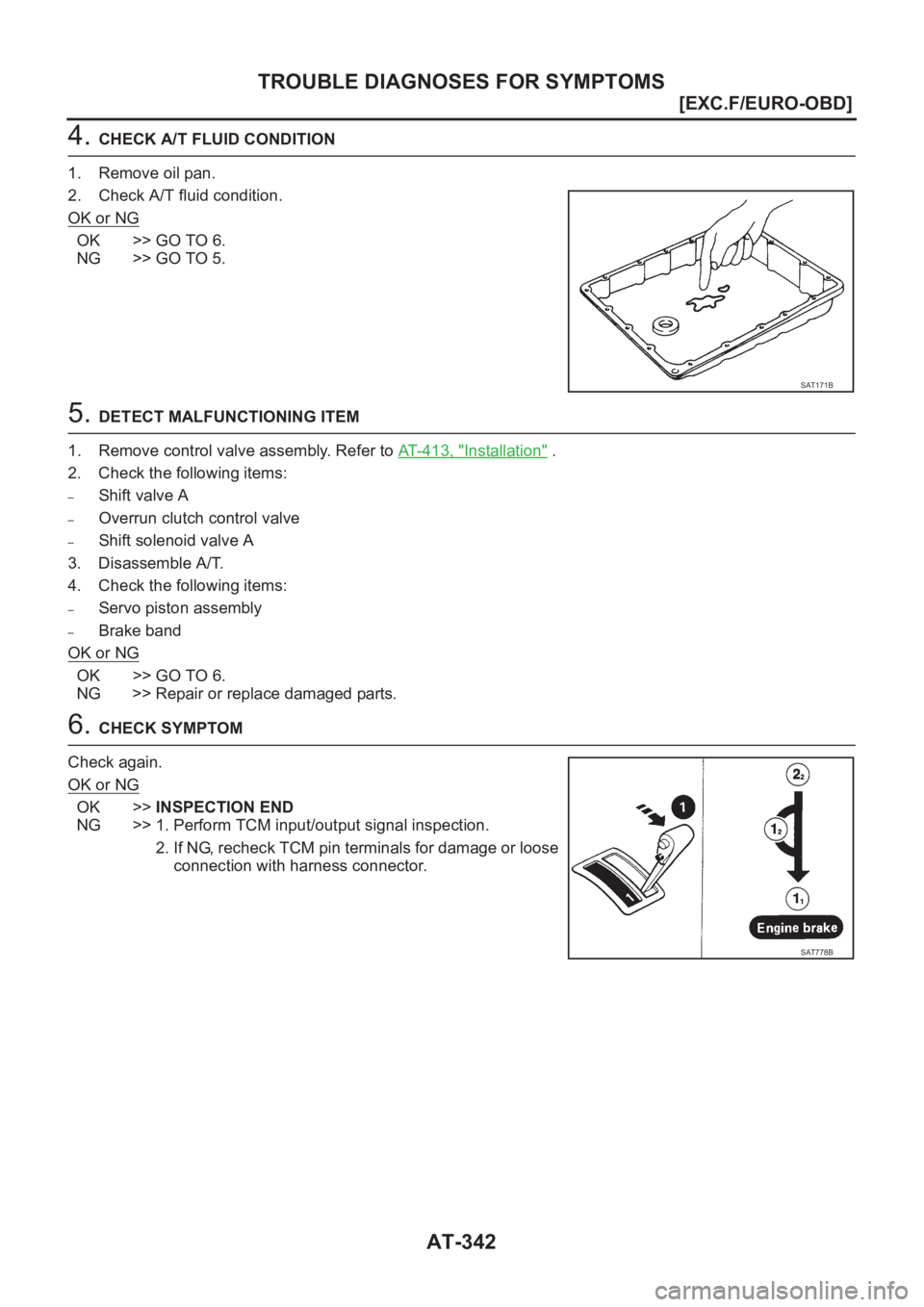

AT-342
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS
4. CHECK A/T FLUID CONDITION
1. Remove oil pan.
2. Check A/T fluid condition.
OK or NG
OK >> GO TO 6.
NG >> GO TO 5.
5. DETECT MALFUNCTIONING ITEM
1. Remove control valve assembly. Refer to AT- 4 1 3 , "
Installation" .
2. Check the following items:
–Shift valve A
–Overrun clutch control valve
–Shift solenoid valve A
3. Disassemble A/T.
4. Check the following items:
–Servo piston assembly
–Brake band
OK or NG
OK >> GO TO 6.
NG >> Repair or replace damaged parts.
6. CHECK SYMPTOM
Check again.
OK or NG
OK >>INSPECTION END
NG >> 1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose
connection with harness connector.
SAT171B
SAT778B
Page 2421 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual TROUBLE DIAGNOSES FOR SYMPTOMS
AT-343
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
Vehicle Does Not Decelerate By Engine BrakeECS004VL
SYMPTOM:
Vehicle does not decelerate by engine brake when shifting NISSAN X-TRAIL 2001 Service Repair Manual TROUBLE DIAGNOSES FOR SYMPTOMS
AT-343
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
Vehicle Does Not Decelerate By Engine BrakeECS004VL
SYMPTOM:
Vehicle does not decelerate by engine brake when shifting](/manual-img/5/57405/w960_57405-2420.png)
TROUBLE DIAGNOSES FOR SYMPTOMS
AT-343
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
Vehicle Does Not Decelerate By Engine BrakeECS004VL
SYMPTOM:
Vehicle does not decelerate by engine brake when shifting from 2
2 (12 ) to 11 .
1.CHECK PNP SWITCH CIRCUIT
With CONSULT-II
Does “TCM INPUT SIGNALS” in “DATA MONITOR” show damage to PNP switch circuit?
Without CONSULT-II
Does self-diagnosis show damage to PNP switch circuit?
Ye s o r N o
Yes >> Check PNP switch circuit. Refer to AT- 3 4 4 , "TCM Self-
diagnosis Does Not Activate" .
No >> GO TO 2
2.CHECK CONTROL CABLE
Check control cable. Refer to AT-416, "
Control Cable Adjustment" .
OK or NG
OK >> GO TO 3.
NG >> Adjust control cable. Refer to AT- 4 1 6 , "
Control Cable
Adjustment" .
3.CHECK VEHICLE SPEED SENSOR·A/T (REVOLUTION SENSOR) AND CHECK VEHICLE SPEED
SENSOR·MTR CIRCUIT
Check vehicle speed sensor·A/T (revolution sensor) and vehicle speed sensor·MTR circuit. Refer to AT- 3 5 3 ,
"VEHICLE SPEED SENSOR·A/T (REVOLUTION SENSOR)" and AT-358, "DTC VEHICLE SPEED SENSOR
MTR" (Except for Euro-OBD).
OK or NG
OK >> GO TO 4.
NG >> Repair or replace vehicle speed sensor·A/T (revolution sensor) and vehicle speed sensor·MTR
circuits.
SCIA0706E
SAT023JB
Page 2422 of 3833
AT-344
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS
4. CHECK A/T FLUID CONDITION
1. Remove oil pan.
2. Check A/T fluid condition.
OK or NG
OK >> GO TO 6.
NG >> GO TO 5.
5. DETECT MALFUNCTIONING ITEM
1. Remove control valve assembly. Refer to AT- 4 1 3 , "
Installation" .
2. Check the following items:
–Shift valve A
–Overrun clutch control valve
–Shift solenoid valve A
3. Disassemble A/T.
4. Check the following items:
–Overrun clutch assembly
–Low & reverse bake assembly
OK or NG
OK >> GO TO 6.
NG >> Repair or replace damaged parts.
6. CHECK SYMPTOM
Check again.
OK or NG
OK >>INSPECTION END
NG >> 1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose
connection with harness connector.
TCM Self-diagnosis Does Not ActivateECS004VM
SYMPTOM:
O/D OFF indicator lamp does not come on in TCM self-diagnostic procedure even if the lamp circuit is
good.
SAT171B
SAT778B
Page 2423 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual TROUBLE DIAGNOSES FOR SYMPTOMS
AT-345
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
DESCRIPTION
●PNP switch
The PNP switch assembly includes a transmission position
switch. The transmission p NISSAN X-TRAIL 2001 Service Repair Manual TROUBLE DIAGNOSES FOR SYMPTOMS
AT-345
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
DESCRIPTION
●PNP switch
The PNP switch assembly includes a transmission position
switch. The transmission p](/manual-img/5/57405/w960_57405-2422.png)
TROUBLE DIAGNOSES FOR SYMPTOMS
AT-345
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
DESCRIPTION
●PNP switch
The PNP switch assembly includes a transmission position
switch. The transmission position switch detects the selector
lever position and sends a signal to the TCM.
●Overdrive control switch
Detects the overdrive control switch position (ON or OFF) and
sends a signal to the TCM.
●Closed throttle position signal and wide-open throttle position
signal
ECM judges throttle opening based on a signal from accelerator
pedal position sensor, and sends the signal via CAN communi-
cation to TCM.
DIAGNOSTIC PROCEDURE
1.CHECK PNP SWITCH CIRCUIT (WITH CONSULT-II)
With CONSULT-II
1. Turn ignition switch to “ON” position.
(Do not start engine.)
2. Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Read out “P/N”, “R”, “D”, “2” and “1” position switches moving selector lever to each position.
Check that the signal of the selector lever position is indicated
properly.
OK or NG
OK >> GO TO 3.
NG >> Check the following items:
●PNP switch (Refer to AT- 3 4 9 , "COMPONENT
INSPECTION" .)
●Harness for short or open between ignition switch and
PNP switch
●Harness for short or open between PNP switch and
TCM
●Diode (P, N positions)
SCIA0752E
SCIA0776E
PBIB0498E
SAT701J
Page 2424 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual AT-346
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS
2. CHECK PNP SWITCH CIRCUIT (WITHOUT CONSULT-II)
Without CONSULT-II
1. Turn ignition switch to “ON” position. (Do not start engine.)
2. Check NISSAN X-TRAIL 2001 Service Repair Manual AT-346
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS
2. CHECK PNP SWITCH CIRCUIT (WITHOUT CONSULT-II)
Without CONSULT-II
1. Turn ignition switch to “ON” position. (Do not start engine.)
2. Check](/manual-img/5/57405/w960_57405-2423.png)
AT-346
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS
2. CHECK PNP SWITCH CIRCUIT (WITHOUT CONSULT-II)
Without CONSULT-II
1. Turn ignition switch to “ON” position. (Do not start engine.)
2. Check voltage between TCM terminals 26, 27, 34, 35, 36 and
ground while moving selector lever through each position.
OK or NG
OK >> GO TO 4.
NG >> Check the following items:
●PNP switch (Refer to AT- 3 4 9 , "COMPONENT
INSPECTION" .)
●Harness for short or open between ignition switch and
PNP switch
●Harness for short or open between PNP switch and TCM
●Diode (P, N positions)
3. CHECK OVERDRIVE CONTROL SWITCH CIRCUIT (WITH CONSULT-II)
With CONSULT-II
1. Turn ignition switch to “ON” position.
(Do not start engine.)
2. Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Read out “OVERDRIVE SWITCH”.
Check the signal of the overdrive control switch is indicated properly.
(Overdrive control switch “ON” displayed on CONSULT-II means
overdrive “OFF”.)
OK or NG
OK >> GO TO 5.
NG >> Check the following items:
●Overdrive control switch (Refer to AT- 3 4 9 , "COMPO-
NENT INSPECTION" .)
●Harness for short or open between TCM and over-
drive control switch
●Harness of ground circuit for overdrive control switch
for short or open Voltage:
B: Battery voltage
0: 0V
Lever positionTerminal No.
36 35 34 27 26
P, N B 0 0 0 0
R0B000
D00B00
2000B0
10000B
SCIA0777E
SAT645J
