2001 NISSAN X-TRAIL Service Repair Manual

steering wheel fuel additives cruise control sensor key start stop button

Page 1001 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual DTC P2138 APP SENSOR
EC-651
[QR25(WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC P2138 APP SENSORPFP:18002
Component DescriptionEBS00NJY
The accelerator pedal position sensor is installed on

DTC P2138 APP SENSOR
EC-651
[QR25(WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC P2138 APP SENSORPFP:18002
Component DescriptionEBS00NJY
The accelerator pedal position sensor is installed on the upper end
of the accelerator pedal assembly. The sensor detects the accelera-
tor position and sends a signal to the ECM.
Accelerator pedal position sensor has two sensors. These sensors
are a kind of potentiometers which transform the accelerator pedal
position into output voltage, and emit the voltage signal to the ECM.
In addition, these sensors detect the opening and closing speed of
the accelerator pedal and feed the voltage signals to the ECM. The
ECM judges the current opening angle of the accelerator pedal from
these signals and controls the throttle control motor based on these
signals.
Idle position of the accelerator pedal is determined by the ECM
receiving the signal from the accelerator pedal position sensor. The ECM uses this signal for the engine oper-
ation such as fuel cut.
CONSULT-II Reference Value in Data Monitor ModeEBS00NJZ
Specification data are reference values.
*:Accelerator pedal position sensor 2 signal is converted by ECM. Thus, it differs from ECM terminal voltage.
ECM Terminals and Reference ValueEBS00NK0
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
PBIB0146E
MONITOR ITEM CONDITION SPECIFICATION
ACCEL SEN1
●Ignition switch: ON
(Engine stopped)Accelerator pedal: Fully released 0.41 - 0.72V
Accelerator pedal: Fully depressed 3.2 - 4.9V
ACCEL SEN2*
●Ignition switch: ON
(Engine stopped)Accelerator pedal: Fully released 0.15 - 0.98V
Accelerator pedal: Fully depressed 2.98 - 4.9V
CLSD THL POS
●Ignition switch: ON
(Engine stopped)Accelerator pedal: Fully released ON
Accelerator pedal: Slightly depressed OFF
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
58 B Sensors' ground[Engine is running]
●Warm-up condition
●Idle speedApproximately 0V
64 OR/LAccelerator pedal position
sensor 2 power supply[Ignition switch “ON”]Approximately 2.5V
65 R Sensor's power supply[Ignition switch “ON”]Approximately 5V
75 R/LAccelerator pedal position
sensor 1[Ignition switch “ON”]
●Engine stopped
●Accelerator pedal fully released0.41 - 0.72V
[Ignition switch “ON”]
●Engine stopped
●Accelerator pedal fully depressedMore than 3.2V

Page 1002 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual EC-652
[QR25(WITHOUT EURO-OBD)]
DTC P2138 APP SENSOR
On Board Diagnosis Logic
EBS00NK1
This self-diagnosis has the one trip detection logic.
FAIL-SAFE MODE
When the malfunction is detected, the ECM en

EC-652
[QR25(WITHOUT EURO-OBD)]
DTC P2138 APP SENSOR
On Board Diagnosis Logic
EBS00NK1
This self-diagnosis has the one trip detection logic.
FAIL-SAFE MODE
When the malfunction is detected, the ECM enters fail-safe mode and the MI lights up.
DTC Confirmation ProcedureEBS00NK2
NOTE:
If “DTC Confirmation Procedure” has been previously conducted, always turn ignition switch “OFF” and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10V at idle.
WITH CONSULT-II
1. Turn ignition switch “ON”.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Start engine and let it idle for 1 second.
4. If DTC is detected, go to EC-654, "
Diagnostic Procedure" .
WITHOUT CONSULT-II
1. Start engine and let it idle for 1 second.
2. Turn ignition switch “OFF”, wait at least 10 seconds and then turn “ON”.
3. Perform “Diagnostic Test Mode II (Self-diagnostic results)” with ECM.
4. If DTC is detected, go to EC-654, "
Diagnostic Procedure" .
76 W/BAccelerator pedal position
sensor 2[Ignition switch “ON”]
●Engine stopped
●Accelerator pedal fully released0.15 - 0.48V
[Ignition switch “ON”]
●Engine stopped
●Accelerator pedal fully depressedMore than 1.49V
86 LAccelerator pedal position
sensor 2 ground[Ignition switch “ON”]Approximately 0V TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P2138
2138Accelerator pedal position
sensor circuit range/perfor-
mance problemRationally incorrect voltage is sent to ECM
compared with the signals from APP sensor
1 and APP sensor 2.
●Harness or connector
(The APP sensor 1 and 2 circuit is open
or shorted.)
●Accelerator pedal position sensor 1 and
2
Engine operating condition in fail-safe mode
The ECM controls the electric throttle control actuator in regulating the throttle opening in order for the idle position to be within +10
degrees.
The ECM regulates the opening speed of the throttle valve to be slower than the normal condition.
So, the acceleration will be poor.
SEF058Y

Page 1003 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual DTC P2138 APP SENSOR
EC-653
[QR25(WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Wiring DiagramEBS00NK3
TBWA0325E

Page 1004 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual EC-654
[QR25(WITHOUT EURO-OBD)]
DTC P2138 APP SENSOR
Diagnostic Procedure
EBS00NK4
1. RETIGHTEN GROUND SCREWS
1. Turn ignition switch “OFF”.
2. Loosen and retighten engine ground screws.
>> GO TO

Page 1005 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual DTC P2138 APP SENSOR
EC-655
[QR25(WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
4.CHECK APP SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch “OFF”.
2. Check harness continuity betwe

Page 1006 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual EC-656
[QR25(WITHOUT EURO-OBD)]
DTC P2138 APP SENSOR
10. CHECK INTERMITTENT INCIDENT
Refer to EC-506, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
Component InspectionEBS0

Page 1007 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual HO2S1 HEATER
EC-657
[QR25(WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
HO2S1 HEATERPFP:22690
DescriptionEBS00NC5
SYSTEM DESCRIPTION
The ECM performs ON/OFF duty control of the heated oxygen

Page 1008 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual EC-658
[QR25(WITHOUT EURO-OBD)]
HO2S1 HEATER

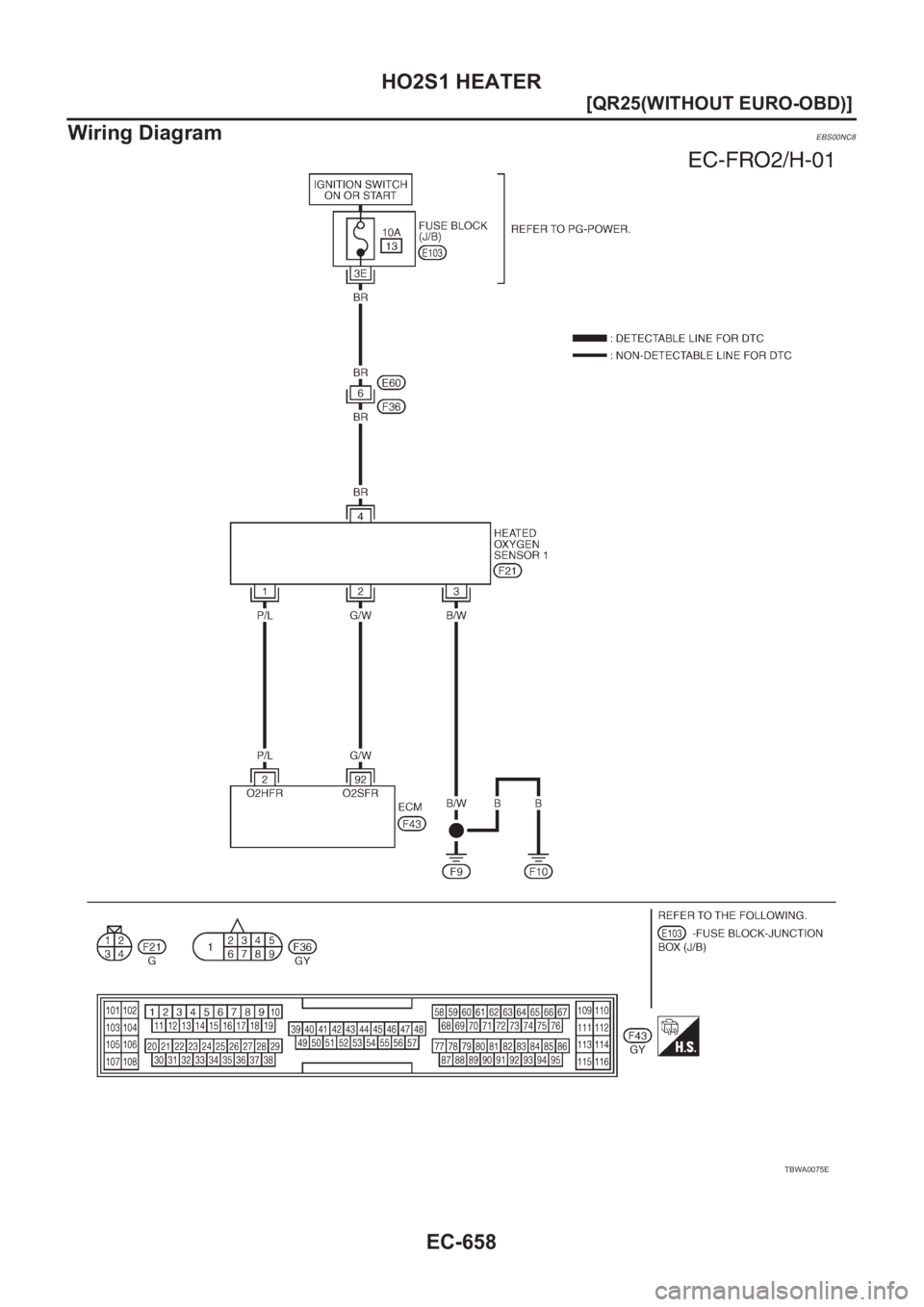

Wiring Diagram
EBS00NC8
TBWA0075E
