NISSAN X-TRAIL 2001  Service Repair Manual POWER WINDOW SYSTEM
GW-41
C
D
E
F
G
H
J
K
L
MA
B
GW

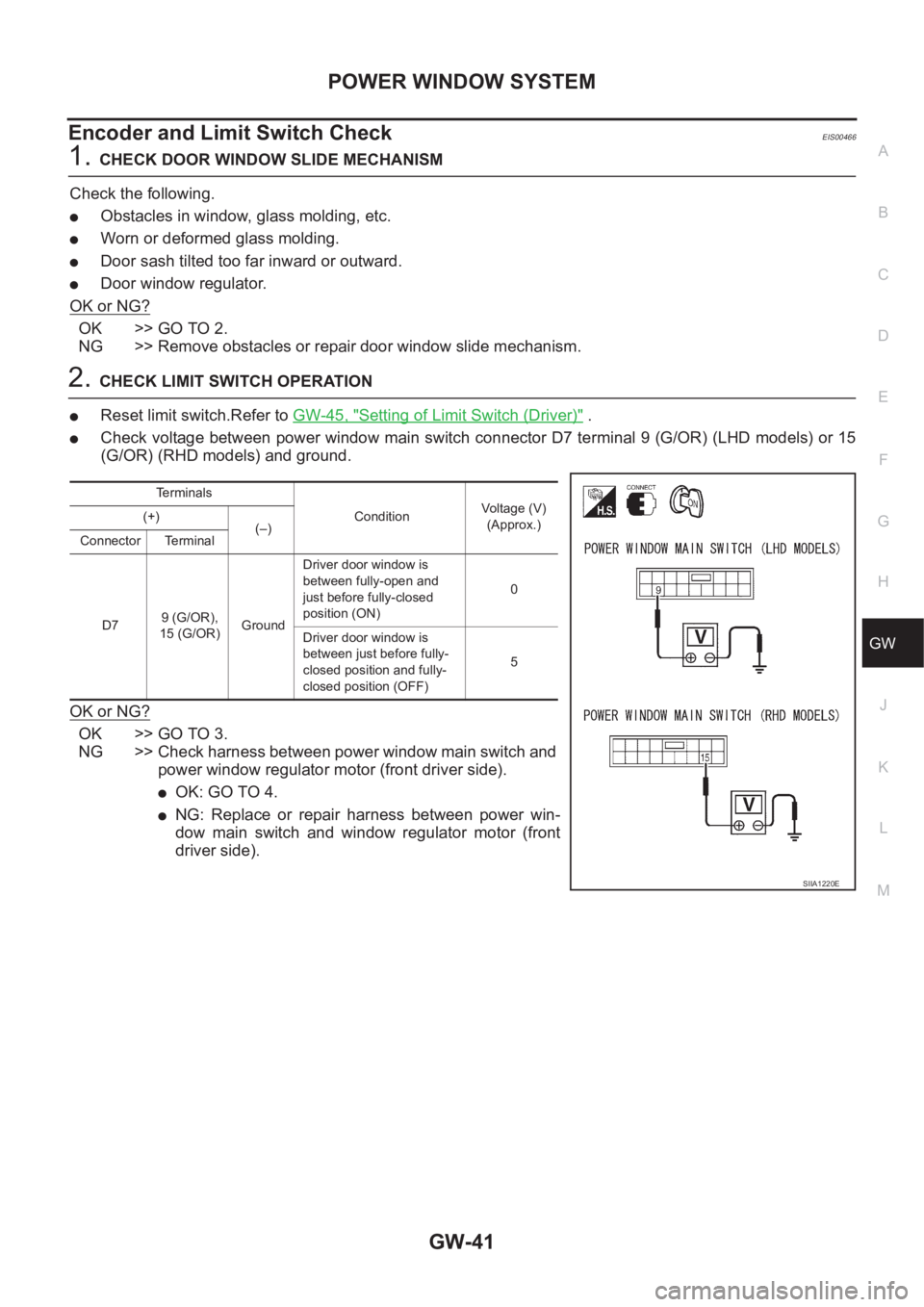

Encoder and Limit Switch CheckEIS00466
1.CHECK DOOR WINDOW SLIDE MECHANISM
Check the following.
●Obstacles in window, glass molding, etc.
●Worn

Page 3194 of 3833

NISSAN X-TRAIL 2001  Service Repair Manual GW-42
POWER WINDOW SYSTEM

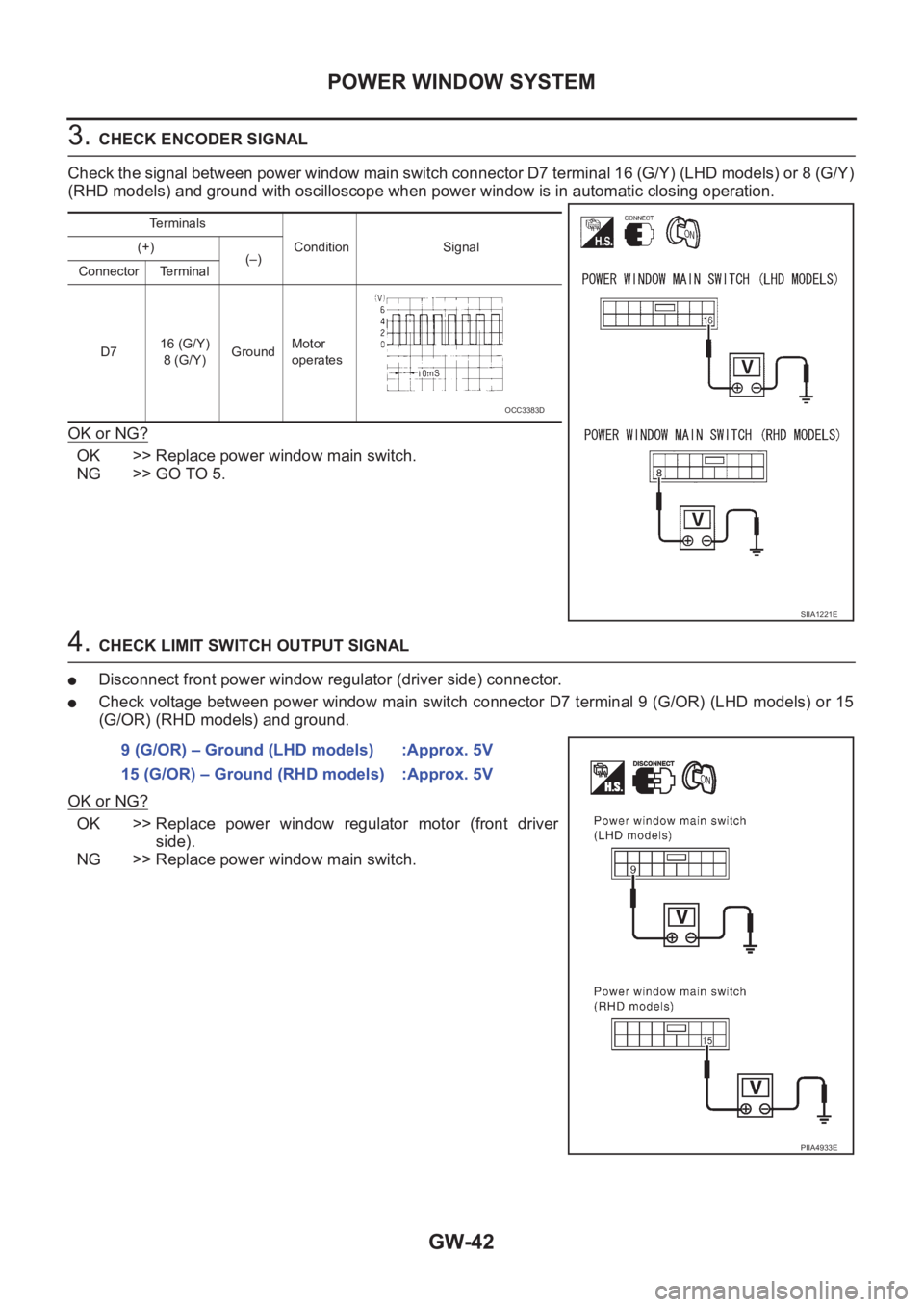

3. CHECK ENCODER SIGNAL
Check the signal between power window main switch connector D7 terminal 16 (G/Y) (LHD models) or 8 (G/Y)
(RHD models) and ground with oscilloscope whe

Page 3195 of 3833

NISSAN X-TRAIL 2001  Service Repair Manual POWER WINDOW SYSTEM
GW-43
C
D
E
F
G
H
J
K
L
MA
B
GW

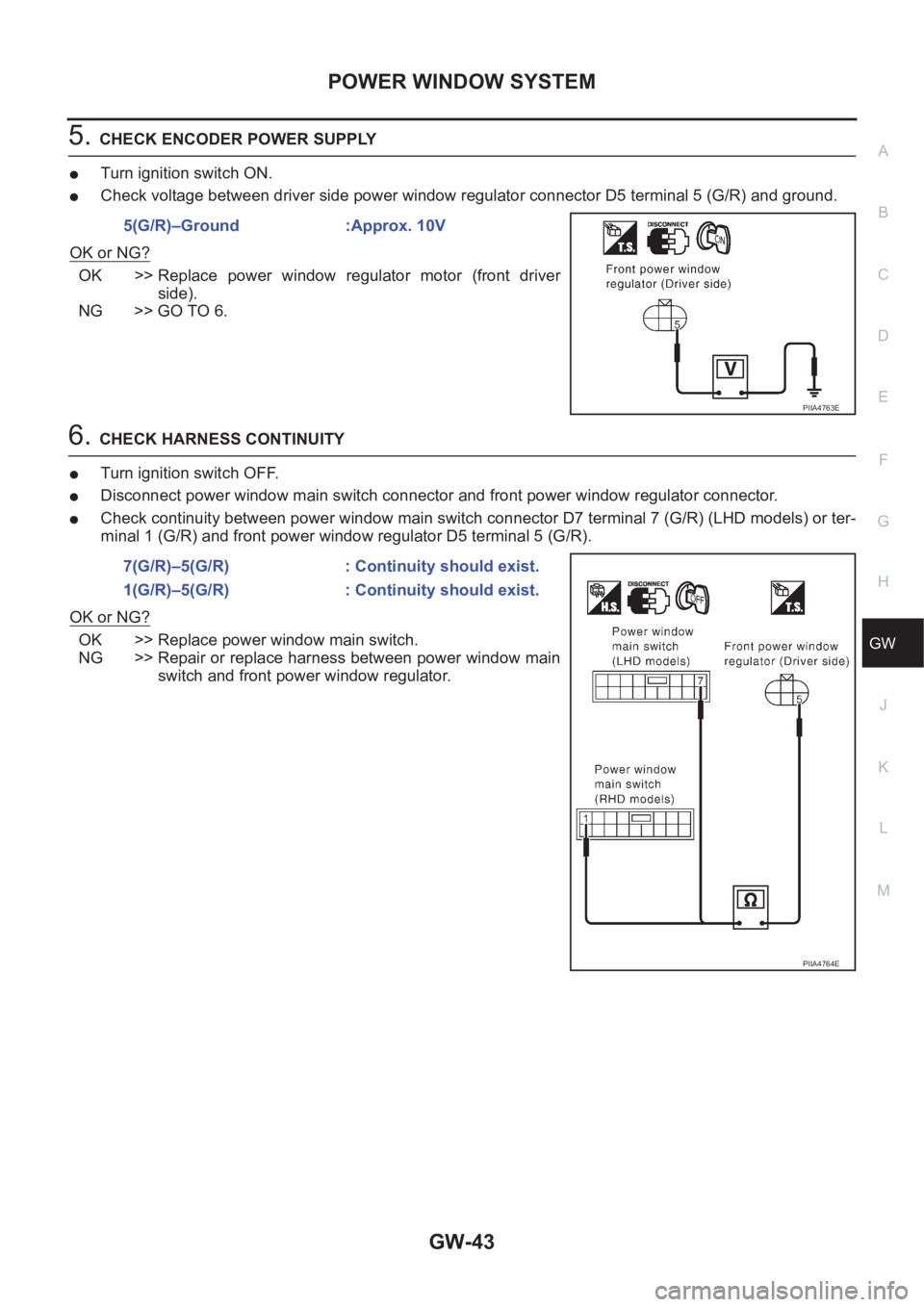

5.CHECK ENCODER POWER SUPPLY
●Turn ignition switch ON.
●Check voltage between driver side power window regulator connector D5 terminal 5 (G/R) a

Page 3196 of 3833

NISSAN X-TRAIL 2001  Service Repair Manual GW-44
FRONT DOOR GLASS AND REGULATOR
FRONT DOOR GLASS AND REGULATOR
PFP:80300

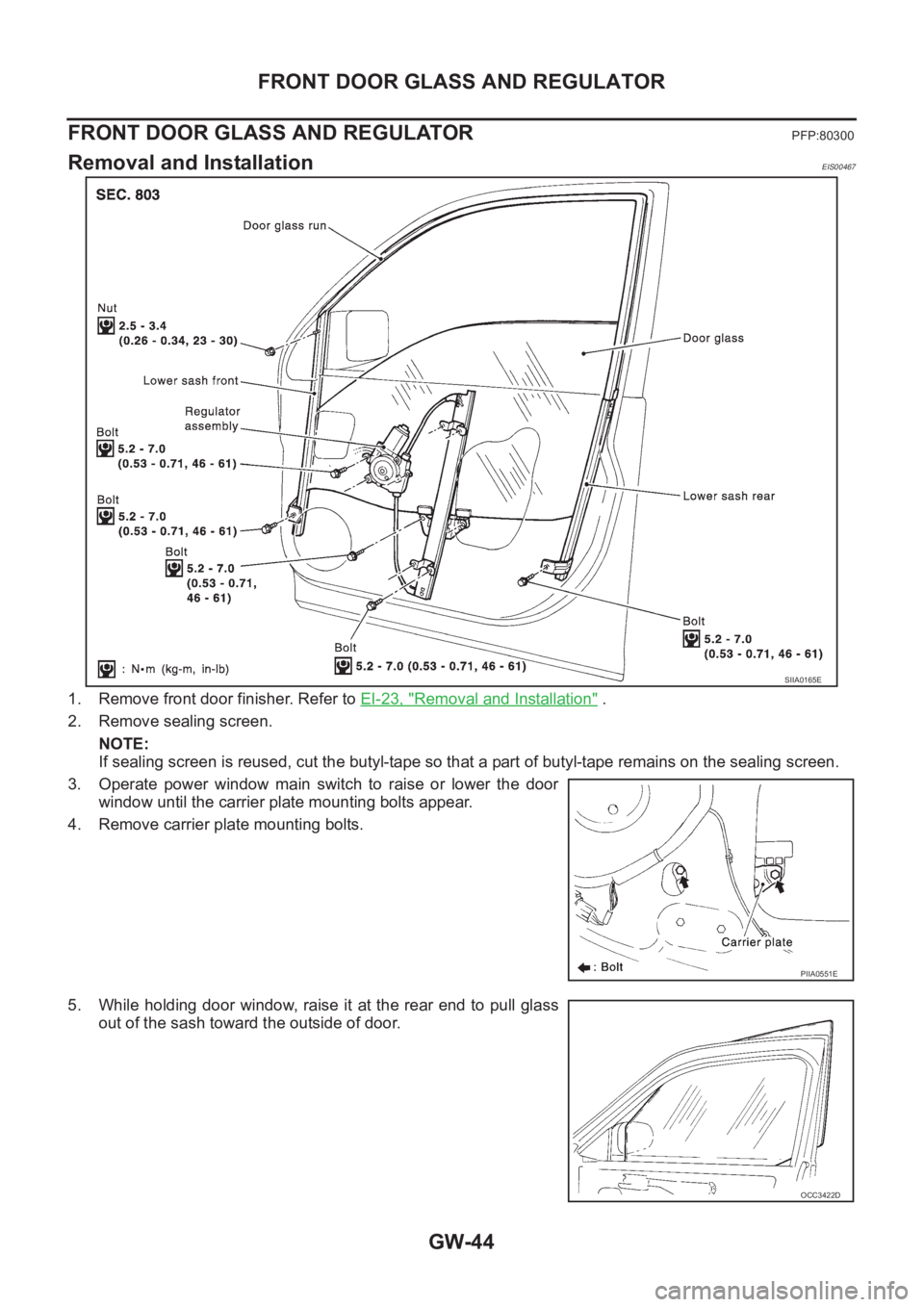

Removal and InstallationEIS00467
1. Remove front door finisher. Refer to EI-23, "Removal and Installation" .
2. Re

Page 3197 of 3833

NISSAN X-TRAIL 2001  Service Repair Manual FRONT DOOR GLASS AND REGULATOR
GW-45
C
D
E
F
G
H
J
K
L
MA
B
GW

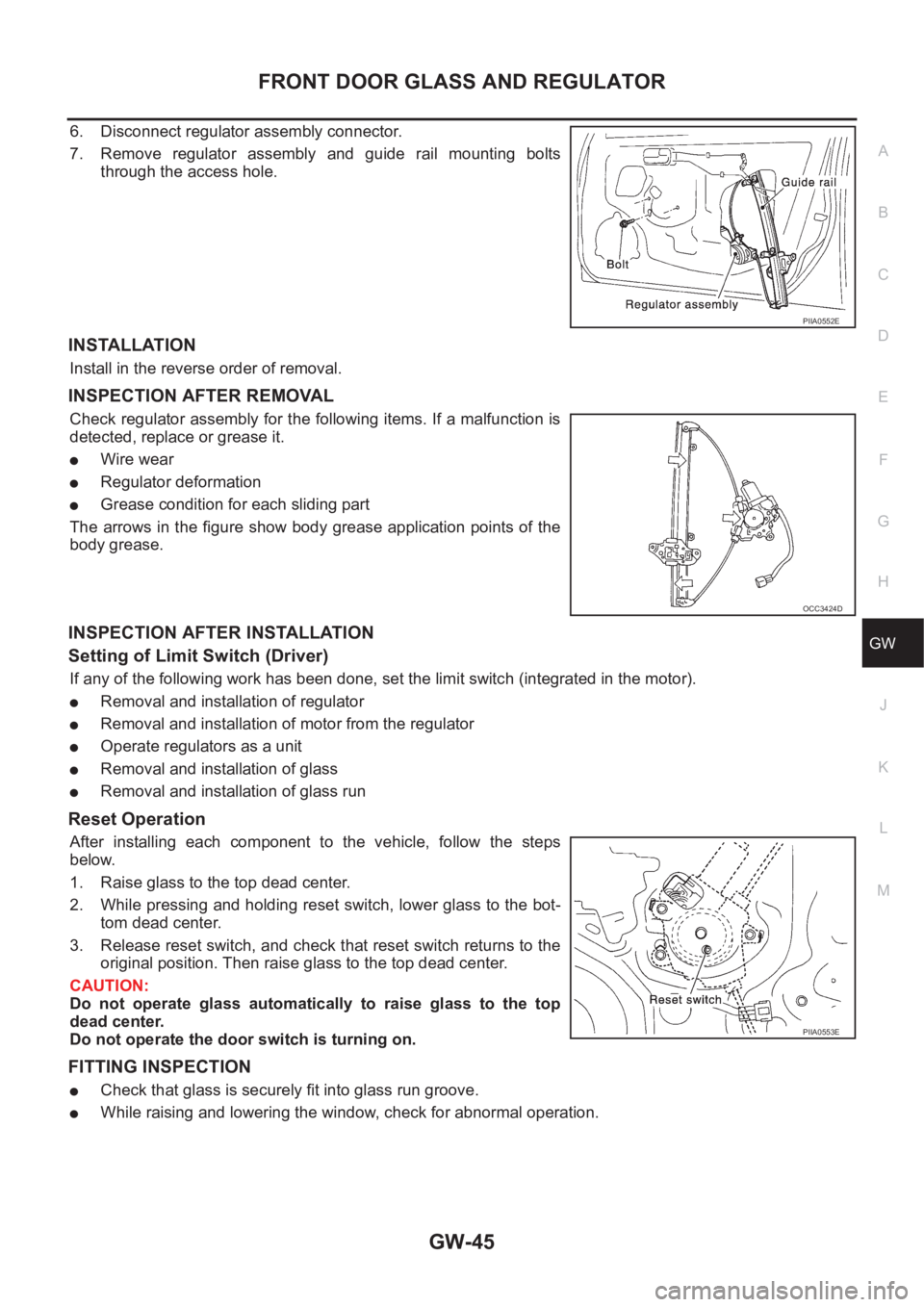

6. Disconnect regulator assembly connector.
7. Remove  regulator  assembly  and  guide  rail  mounting  bolts
through the access hole.
IN

Page 3198 of 3833

NISSAN X-TRAIL 2001  Service Repair Manual GW-46
REAR DOOR GLASS AND REGULATOR
REAR DOOR GLASS AND REGULATOR
PFP:82300

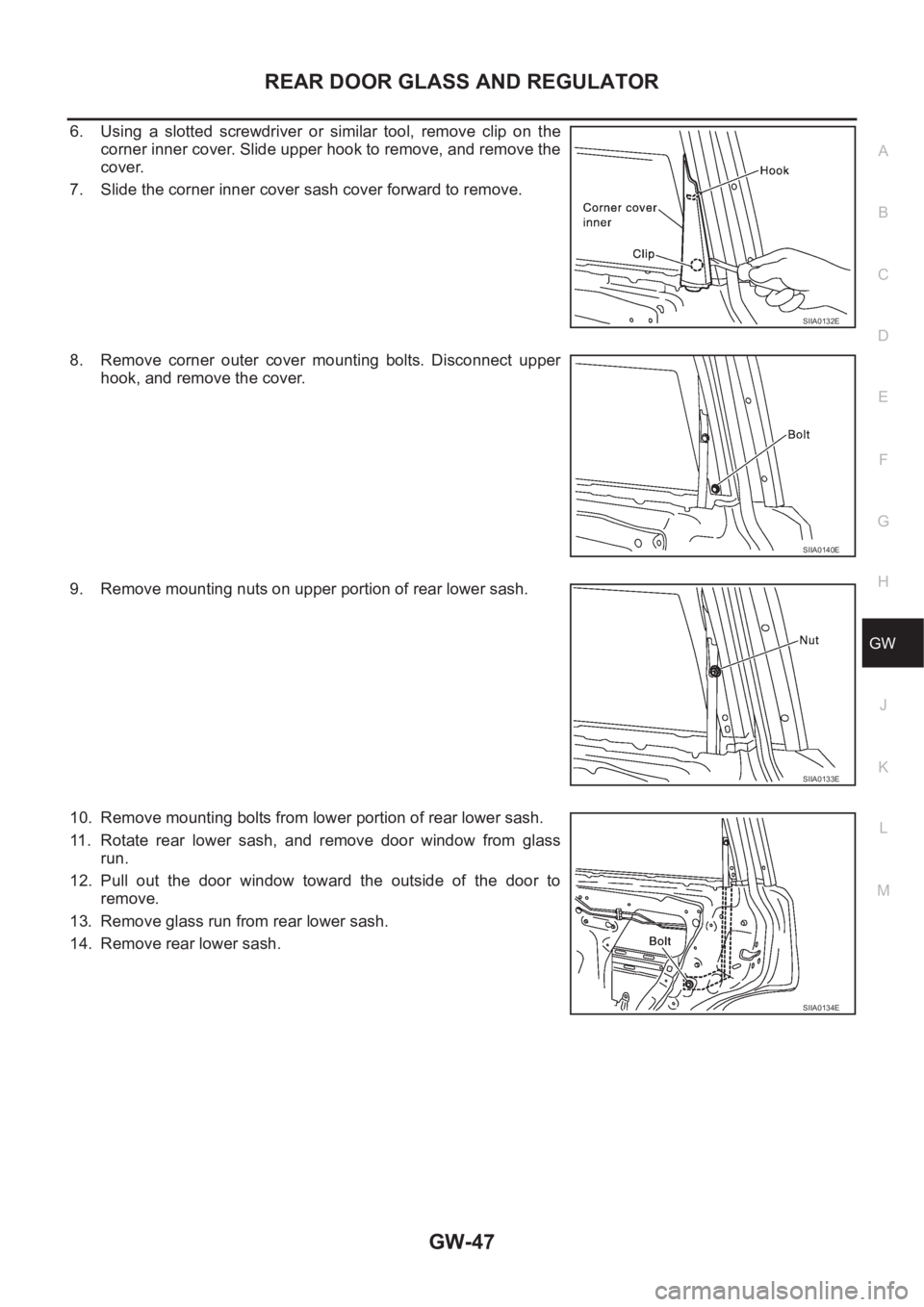

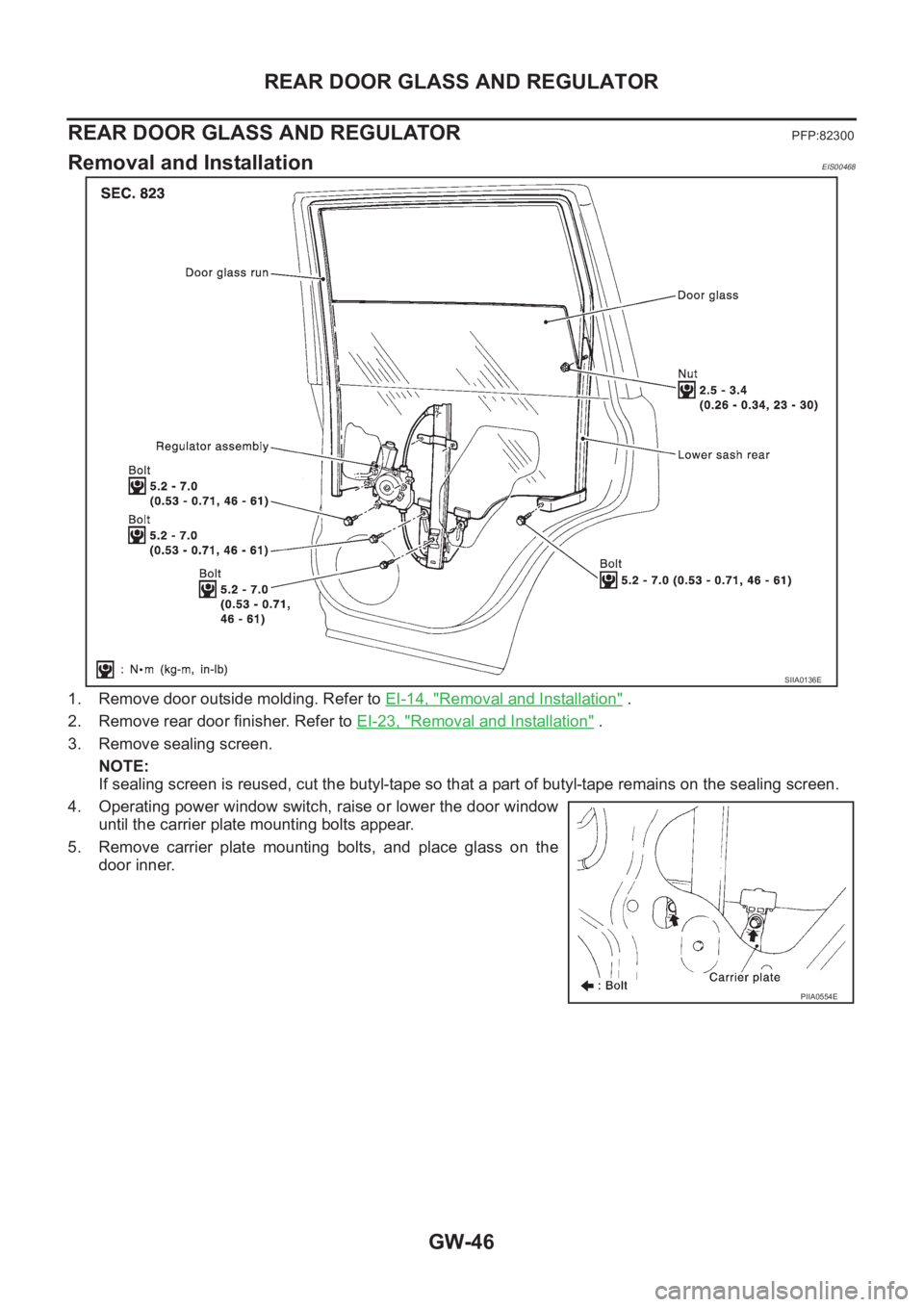

Removal and InstallationEIS00468
1. Remove door outside molding. Refer to EI-14, "Removal and Installation" .
2. Rem

Page 3199 of 3833

NISSAN X-TRAIL 2001  Service Repair Manual REAR DOOR GLASS AND REGULATOR
GW-47
C
D
E
F
G
H
J
K
L
MA
B
GW

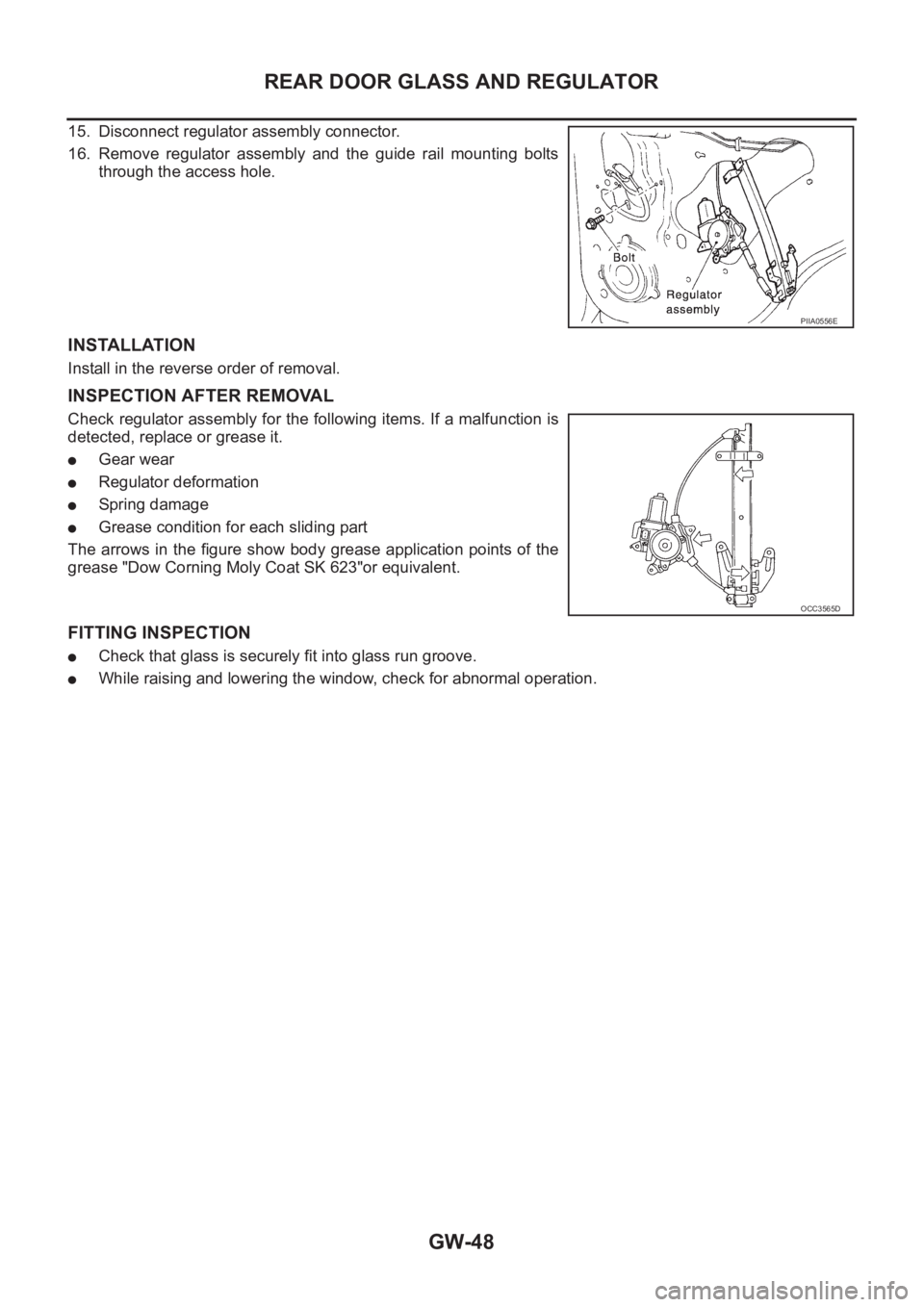

6. Using  a  slotted  screwdriver  or  similar  tool,  remove  clip  on  the
corner inner cover. Slide upper hook to remove, and remove th

Page 3200 of 3833

NISSAN X-TRAIL 2001  Service Repair Manual GW-48
REAR DOOR GLASS AND REGULATOR
15. Disconnect regulator assembly connector.
16. Remove  regulator  assembly  and  the  guide  rail  mounting  bolts
through the access hole.
INSTALLATION
Install i
