PNP SWITCH
EC-707
[QR25(WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

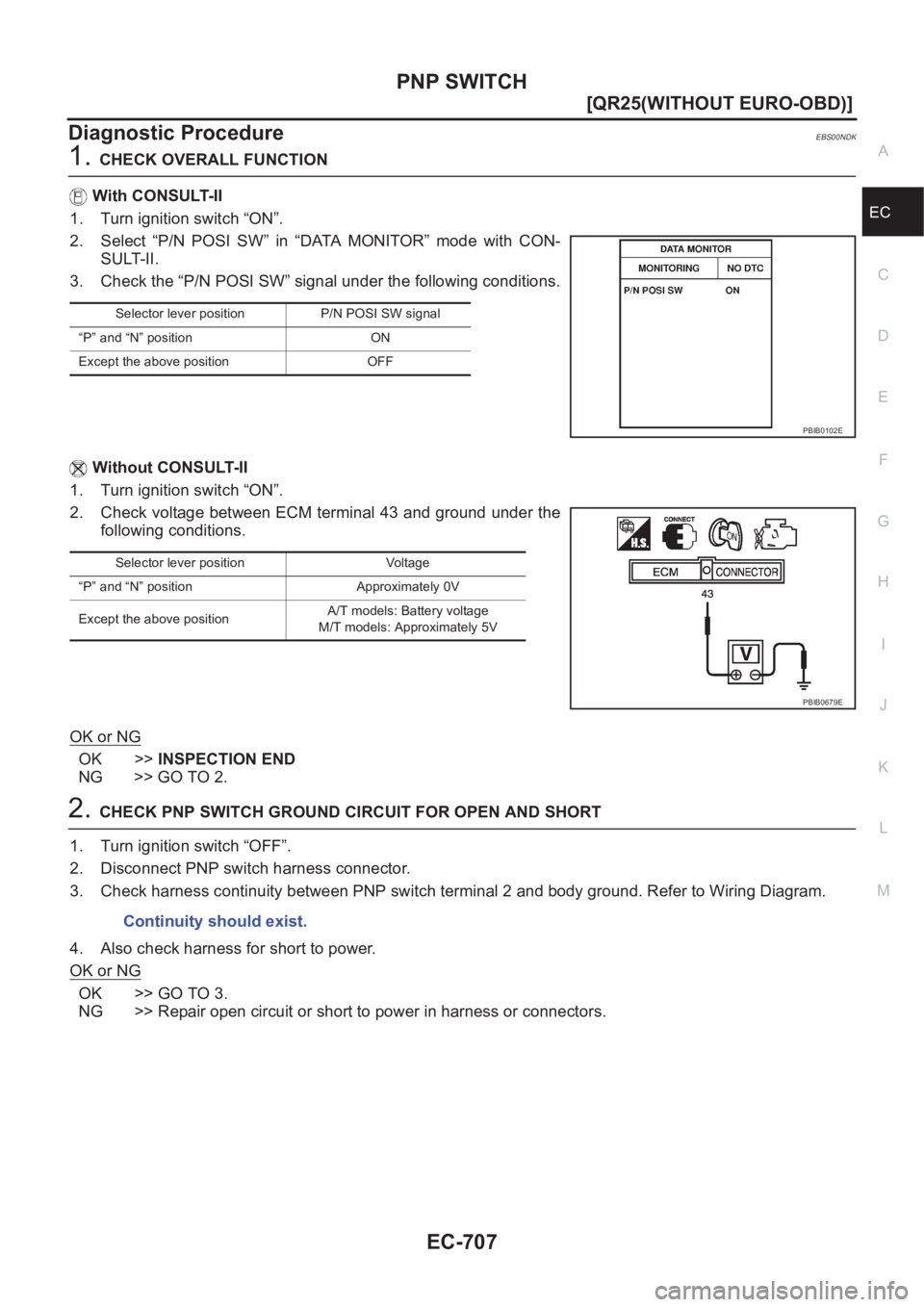

Diagnostic ProcedureEBS00NDK
1.CHECK OVERALL FUNCTION
With CONSULT-II
1. Turn ignition switch “ON”.
2. Select “P/N POSI SW” in “DATA MONITOR” mode with CON-
SULT-II.
3. Check the “P/N POSI SW” signal under the following conditions.
Without CONSULT-II
1. Turn ignition switch “ON”.
2. Check voltage between ECM terminal 43 and ground under the
following conditions.
OK or NG
OK >>INSPECTION END
NG >> GO TO 2.
2.CHECK PNP SWITCH GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch “OFF”.
2. Disconnect PNP switch harness connector.
3. Check harness continuity between PNP switch terminal 2 and body ground. Refer to Wiring Diagram.
4. Also check harness for short to power.
OK or NG
OK >> GO TO 3.
NG >> Repair open circuit or short to power in harness or connectors.
Selector lever position P/N POSI SW signal
“P” and “N” position ON
Except the above position OFF
PBIB0102E
Selector lever position Voltage
“P” and “N” position Approximately 0V
Except the above positionA/T models: Battery voltage
M/T models: Approximately 5V
PBIB0679E
Continuity should exist.
Page 1058 of 3833
EC-708
[QR25(WITHOUT EURO-OBD)]
PNP SWITCH

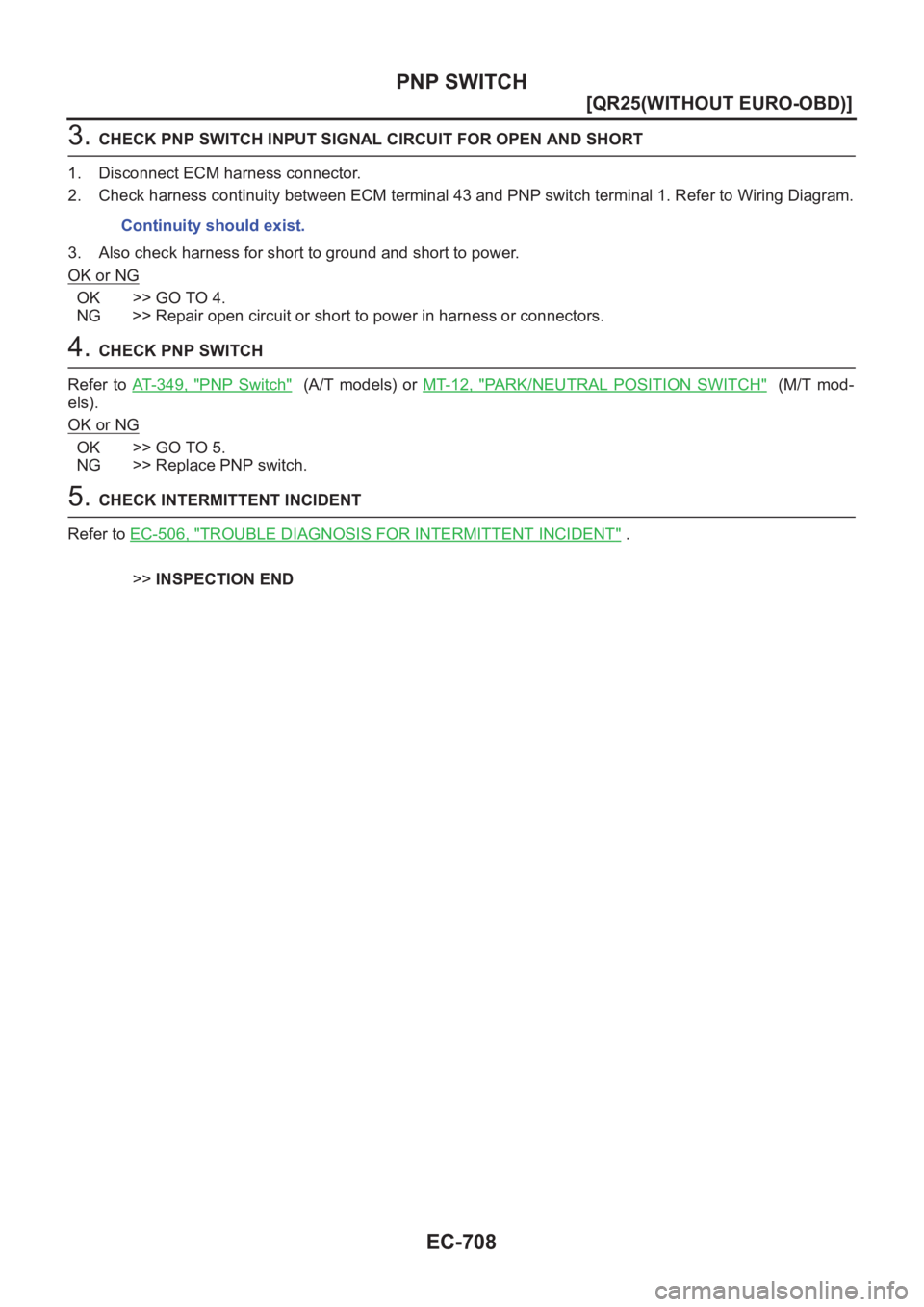

3. CHECK PNP SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminal 43 and PNP switch terminal 1. Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to power in harness or connectors.
4. CHECK PNP SWITCH
Refer to AT- 3 4 9 , "
PNP Switch" (A/T models) or MT-12, "PARK/NEUTRAL POSITION SWITCH" (M/T mod-
els).
OK or NG
OK >> GO TO 5.
NG >> Replace PNP switch.
5. CHECK INTERMITTENT INCIDENT
Refer to EC-506, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END Continuity should exist.
Page 1059 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual INJECTOR CIRCUIT
EC-709
[QR25(WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
INJECTOR CIRCUITPFP:16600
Component DescriptionEBS00NKD
The fuel injector is a small, precise solenoid valve. When NISSAN X-TRAIL 2001 Service Repair Manual INJECTOR CIRCUIT
EC-709
[QR25(WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
INJECTOR CIRCUITPFP:16600
Component DescriptionEBS00NKD
The fuel injector is a small, precise solenoid valve. When](/manual-img/5/57405/w960_57405-1058.png)
INJECTOR CIRCUIT
EC-709
[QR25(WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
INJECTOR CIRCUITPFP:16600
Component DescriptionEBS00NKD
The fuel injector is a small, precise solenoid valve. When the ECM
supplies a ground to the injector circuit, the coil in the injector is
energized. The energized coil pulls the needle valve back and allows
fuel to flow through the injector into the intake manifold. The amount
of fuel injected depends upon the injection pulse duration. Pulse
duration is the length of time the injector remains open. The ECM
controls the injection pulse duration based on engine fuel needs.
CONSULT-II Reference Value in Data Monitor ModeEBS00NKE
Specification data are reference values.
ECM Terminals and Reference ValueEBS00NKF
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
SEF375Z
MONITOR ITEM CONDITION SPECIFICATION
B/FUEL SCHDL
●Engine: After warming up
●Shift lever: N
●Air conditioner switch: OFF
●No-loadIdle 2.5 - 3.5 msec
2,000 rpm 2.5 - 3.5 msec
INJ PULSE-B1
●Engine: After warming up
●Shift lever: N
●Air conditioner switch: OFF
●No-loadIdle 2.0 - 3.0 msec
2,000 rpm 1.9 - 2.9 msec
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
101
102
103
104R/B
Y/B
G/B
L/BInjector No. 1
Injector No. 2
Injector No. 3
Injector No. 4[Engine is running]
●Warm-up condition
●Idle speedBATTERY VOLTAGE
(11 - 14V)
[Engine is running]
●Warm-up condition
●Engine speed is 2,000 rpmBATTERY VOLTAGE
(11 - 14V)
PBIB0529E
PBIB0530E
Page 1060 of 3833
EC-710
[QR25(WITHOUT EURO-OBD)]
INJECTOR CIRCUIT

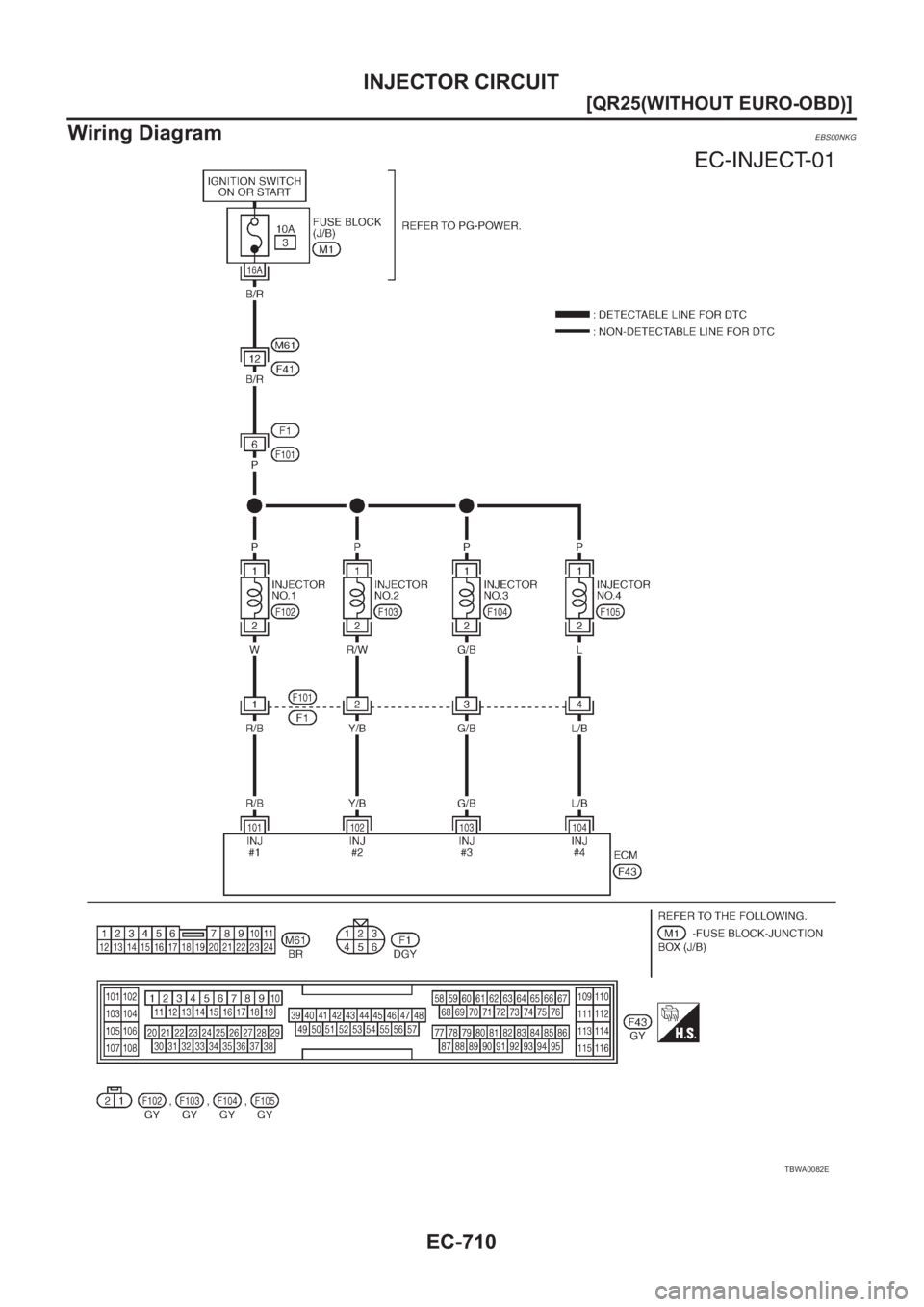

Wiring Diagram
EBS00NKG
TBWA0082E
Page 1061 of 3833
INJECTOR CIRCUIT
EC-711
[QR25(WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Diagnostic ProcedureEBS00NKH
1.INSPECTION START
Turn ignition switch to “START”.
Is any cylinder ignited?
Ye s o r N o
Ye s > > G O T O 2 .
No >> GO TO 3.
2.CHECK OVERALL FUNCTION
With CONSULT-II
1. Start engine.
2. Perform “POWER BALANCE” in “ACTIVE TEST” mode with
CONSULT-II.
3. Make sure that each circuit produces a momentary engine
speed drop.
Without CONSULT-II
1. Start engine.
2. Listen to each injector operating sound.
Clicking noise should be heard.
OK or NG
OK >>INSPECTION END
NG >> GO TO 3.
PBIB0133E
MEC703B
Page 1062 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual EC-712
[QR25(WITHOUT EURO-OBD)]
INJECTOR CIRCUIT
3. CHECK INJECTOR POWER SUPPLY CIRCUIT
1. Turn ignition switch “OFF”.
2. Disconnect injector harness connector.
3. Turn ignition switch “ON”.
4 NISSAN X-TRAIL 2001 Service Repair Manual EC-712
[QR25(WITHOUT EURO-OBD)]
INJECTOR CIRCUIT
3. CHECK INJECTOR POWER SUPPLY CIRCUIT
1. Turn ignition switch “OFF”.
2. Disconnect injector harness connector.
3. Turn ignition switch “ON”.
4](/manual-img/5/57405/w960_57405-1061.png)
EC-712
[QR25(WITHOUT EURO-OBD)]
INJECTOR CIRCUIT

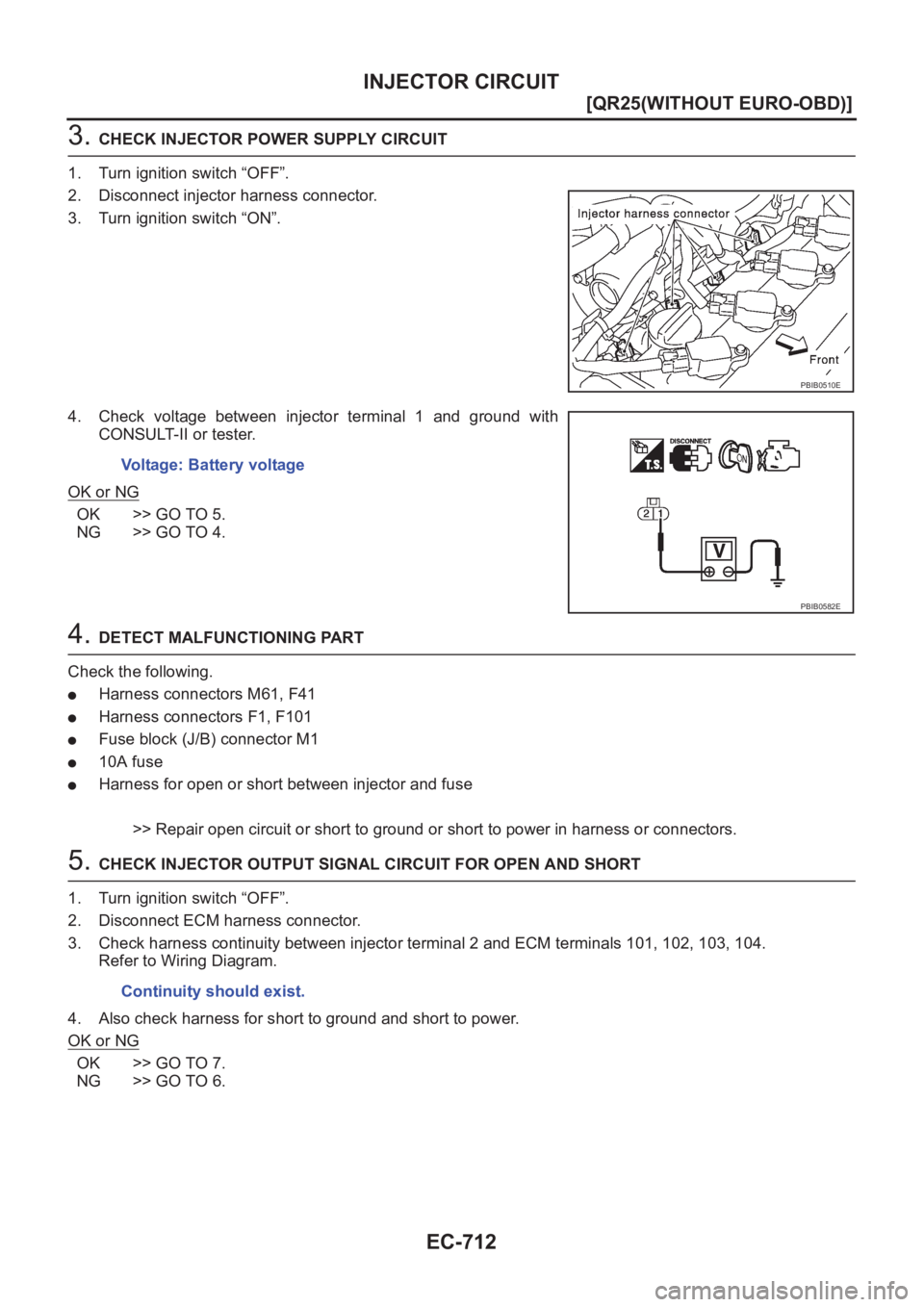

3. CHECK INJECTOR POWER SUPPLY CIRCUIT
1. Turn ignition switch “OFF”.
2. Disconnect injector harness connector.
3. Turn ignition switch “ON”.
4. Check voltage between injector terminal 1 and ground with
CONSULT-II or tester.
OK or NG
OK >> GO TO 5.
NG >> GO TO 4.
4. DETECT MALFUNCTIONING PART
Check the following.
●Harness connectors M61, F41
●Harness connectors F1, F101
●Fuse block (J/B) connector M1
●10A fuse
●Harness for open or short between injector and fuse
>> Repair open circuit or short to ground or short to power in harness or connectors.
5. CHECK INJECTOR OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch “OFF”.
2. Disconnect ECM harness connector.
3. Check harness continuity between injector terminal 2 and ECM terminals 101, 102, 103, 104.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 7.
NG >> GO TO 6.
PBIB0510E
Voltage: Battery voltage
PBIB0582E
Continuity should exist.
Page 1063 of 3833
INJECTOR CIRCUIT
EC-713
[QR25(WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
6.DETECT MALFUNCTIONING PART
Check the following.
●Harness connectors F1, F101
●Harness for open or short between injector and ECM
>> Repair open circuit or short to ground or short to power in harness or connectors.

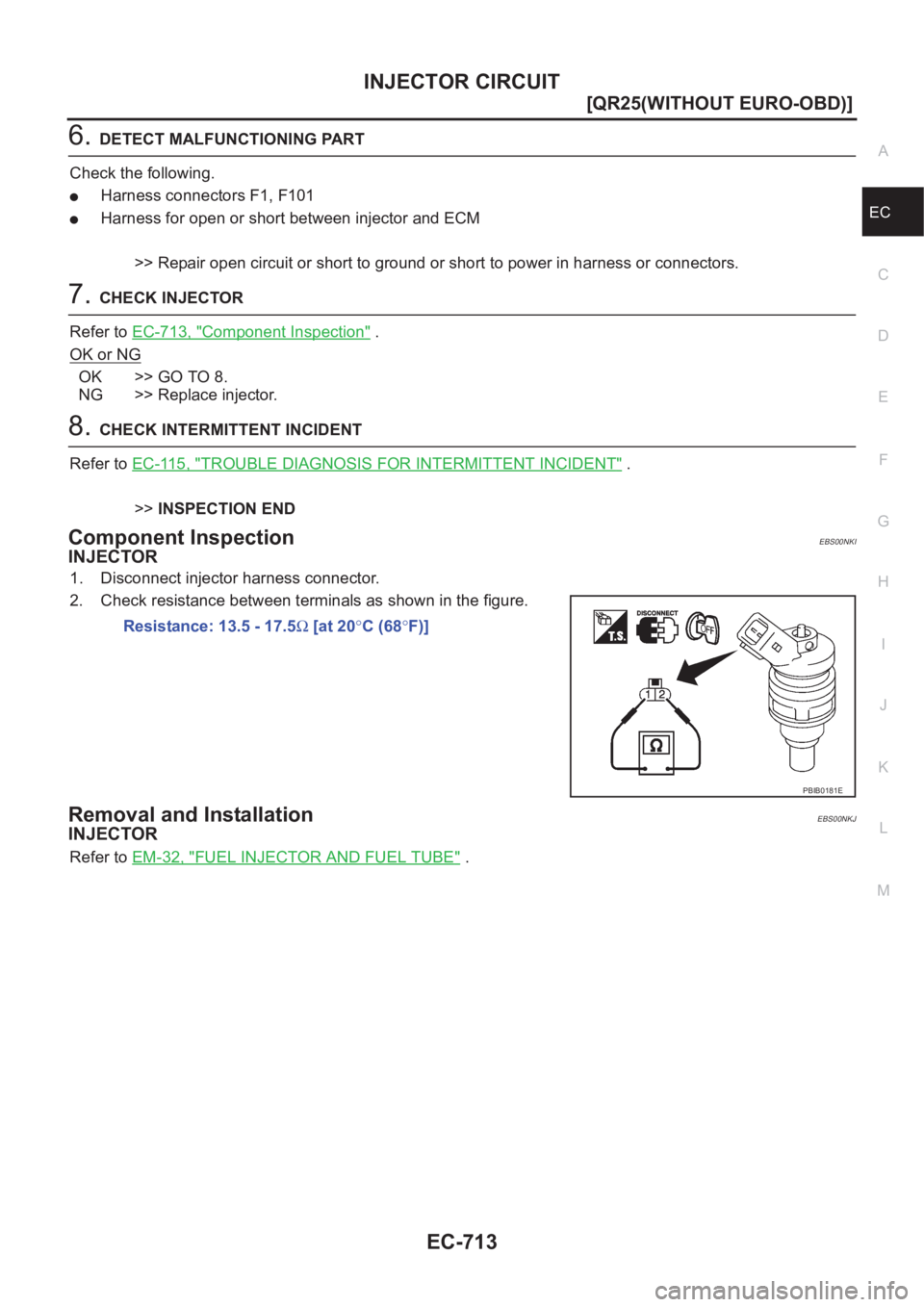

7.CHECK INJECTOR
Refer to EC-713, "
Component Inspection" .
OK or NG
OK >> GO TO 8.
NG >> Replace injector.
8.CHECK INTERMITTENT INCIDENT
Refer to EC-115, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
Component InspectionEBS00NKI
INJECTOR
1. Disconnect injector harness connector.
2. Check resistance between terminals as shown in the figure.
Removal and InstallationEBS00NKJ
INJECTOR
Refer to EM-32, "FUEL INJECTOR AND FUEL TUBE" . Resistance: 13.5 - 17.5Ω [at 20°C (68°F)]
PBIB0181E
Page 1064 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual EC-714
[QR25(WITHOUT EURO-OBD)]
VIAS
VIAS
PFP:14956
DescriptionEBS00NKK
SYSTEM DESCRIPTION
When the engine is running at low or medium speed, the power valve is fully closed. Under this condition, the NISSAN X-TRAIL 2001 Service Repair Manual EC-714
[QR25(WITHOUT EURO-OBD)]
VIAS
VIAS
PFP:14956
DescriptionEBS00NKK
SYSTEM DESCRIPTION
When the engine is running at low or medium speed, the power valve is fully closed. Under this condition, the](/manual-img/5/57405/w960_57405-1063.png)
EC-714
[QR25(WITHOUT EURO-OBD)]
VIAS
VIAS
PFP:14956
DescriptionEBS00NKK
SYSTEM DESCRIPTION
When the engine is running at low or medium speed, the power valve is fully closed. Under this condition, the
effective suction port length is equivalent to the total length of the intake manifold collector's suction port
including the intake valve. This long suction port provides increased air intake which results in improved suc-
tion efficiency and higher torque generation.
The surge tank and one-way valve are provided. When engine is running at high speed, the ECM sends the
signal to the VIAS control solenoid valve. This signal introduces the intake manifold vacuum into the power
valve actuator and therefore opens the power valve to two suction passages together in the collector.
Under this condition, the effective port length is equivalent to the length of the suction port provided indepen-
dently for each cylinder. This shortened port length results in enhanced engine output with reduced suction
resistance under high speeds.
COMPONENT DESCRIPTION
Power Valve
The power valve is installed in intake manifold collector and used to
control the suction passage of the variable induction air control sys-
tem. It is set in the fully closed or fully opened position by the power
valve actuator operated by the vacuum stored in the surge tank. The
vacuum in the surge tank is controlled by the VIAS control solenoid
valve.
Sensor Input Signal to ECM ECM function Actuator
Mass air flow sensor Amount of intake air
VIAS control VIAS control solenoid valve Throttle position sensor Throttle position
Accelerator pedal position sensor Accelerator pedal position
Ignition switch Start signal
Crankshaft position sensor (POS)
Camshaft position sensor (PHASE)Engine speed
Engine coolant temperature sensor Engine coolant temperature
PBIB0843E
PBIB0946E
