2001 NISSAN X-TRAIL Service Repair Manual

Page 2849 of 3833

NISSAN X-TRAIL 2001  Service Repair Manual TROUBLE DIAGNOSIS
BRC-65
[ESP/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC

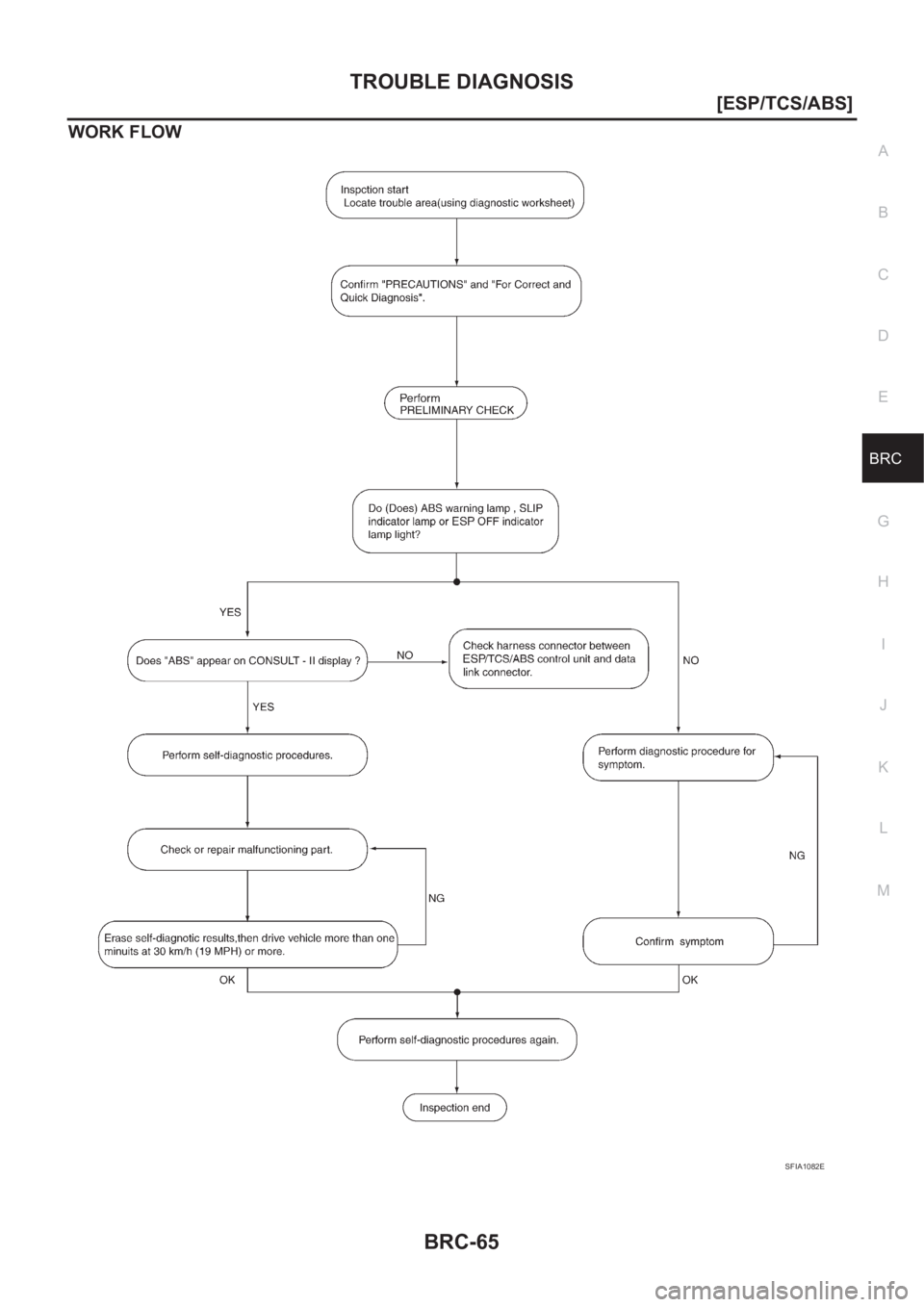

WORK FLOW
SFIA1082E

Page 2850 of 3833

NISSAN X-TRAIL 2001  Service Repair Manual BRC-66
[ESP/TCS/ABS]
TROUBLE DIAGNOSIS

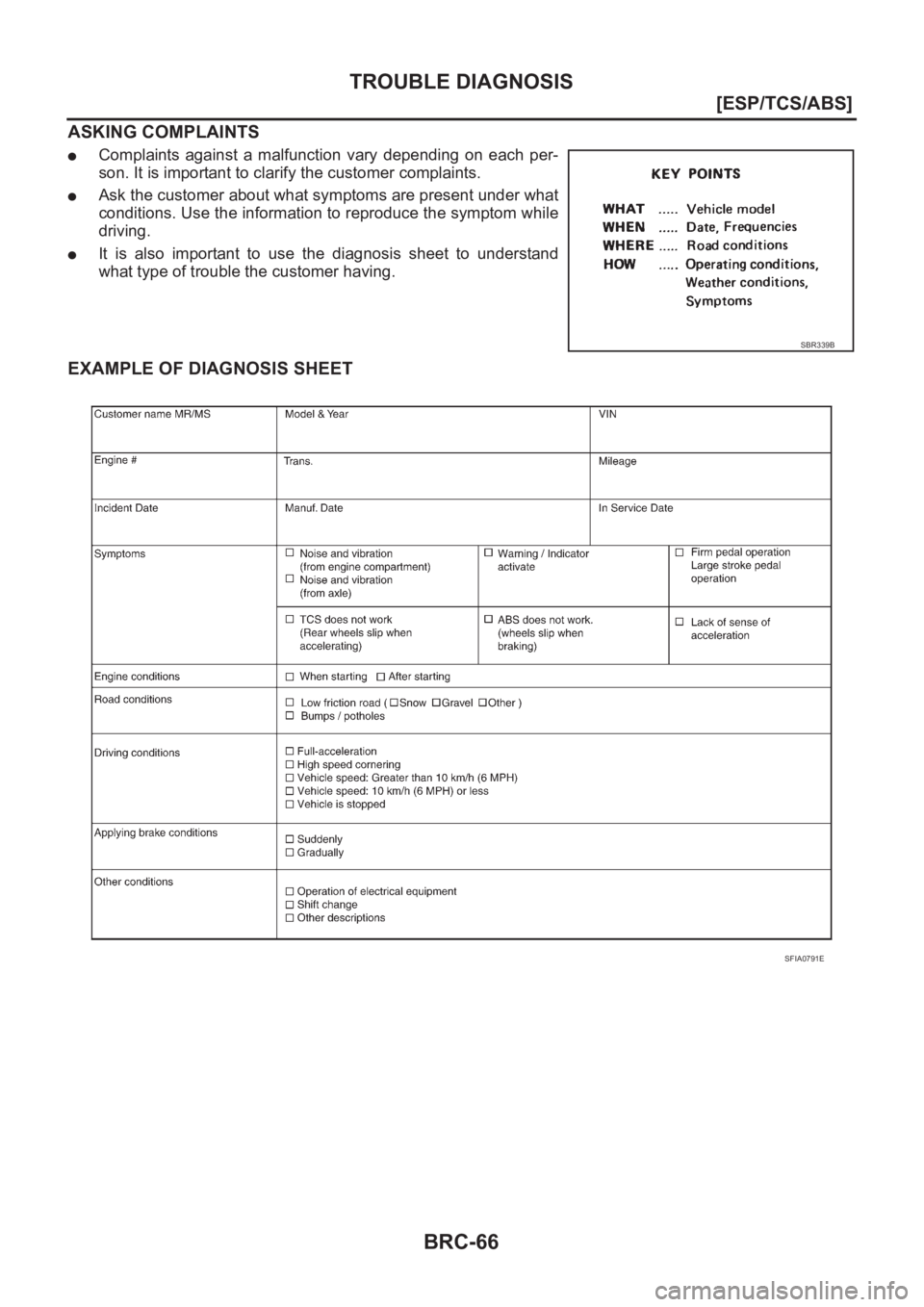

ASKING COMPLAINTS
●Complaints  against  a  malfunction  vary  depending  on  each  per-
son. It is important to clarify the customer complaints.
●Ask the cus

Page 2851 of 3833

NISSAN X-TRAIL 2001  Service Repair Manual TROUBLE DIAGNOSIS
BRC-67
[ESP/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC

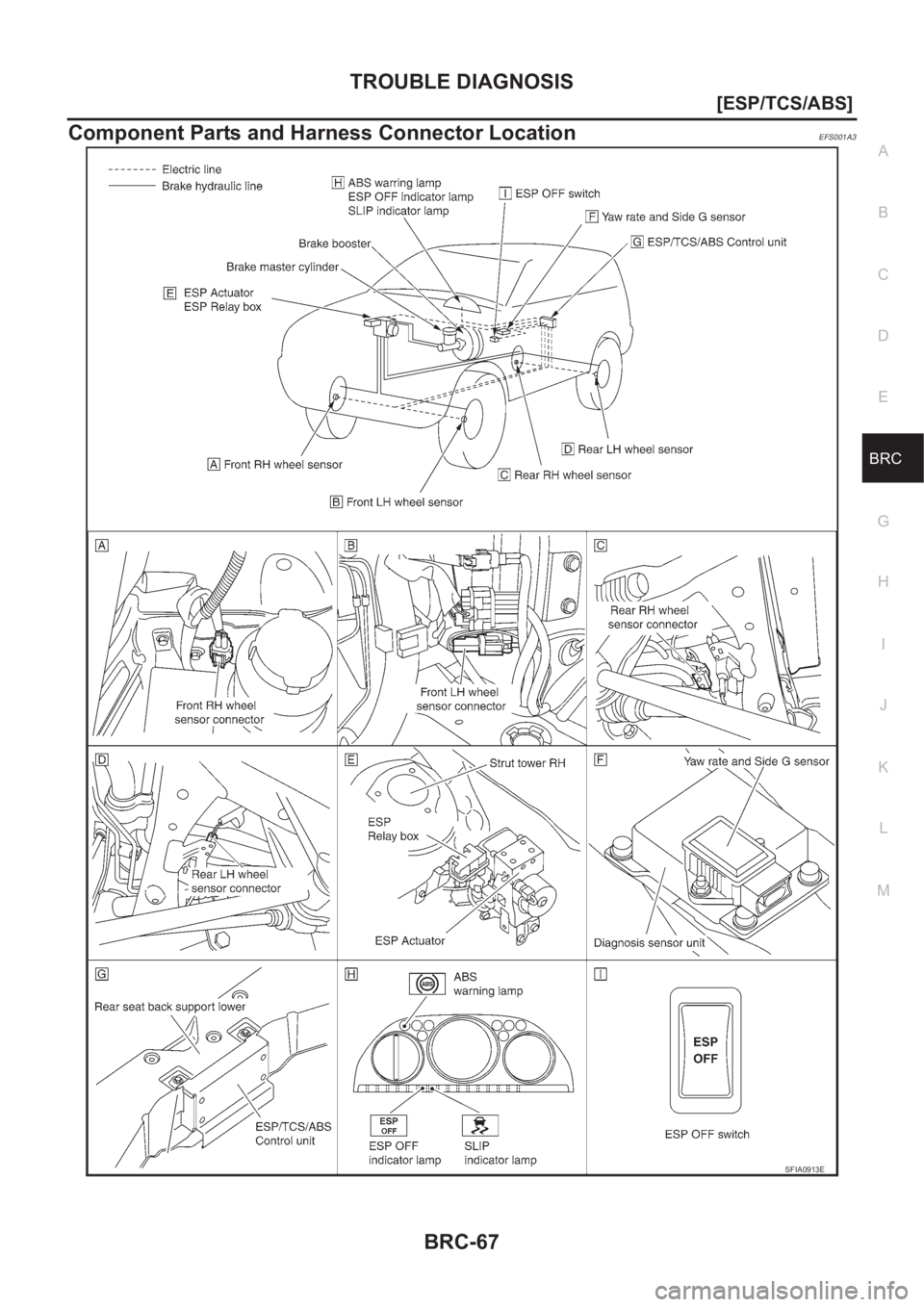

Component Parts and Harness Connector Location EFS001A3
SFIA0913E

Page 2852 of 3833

NISSAN X-TRAIL 2001  Service Repair Manual BRC-68
[ESP/TCS/ABS]
TROUBLE DIAGNOSIS
Schematic
EFS001A4
TFWA0055E

Page 2853 of 3833

NISSAN X-TRAIL 2001  Service Repair Manual TROUBLE DIAGNOSIS
BRC-69
[ESP/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC

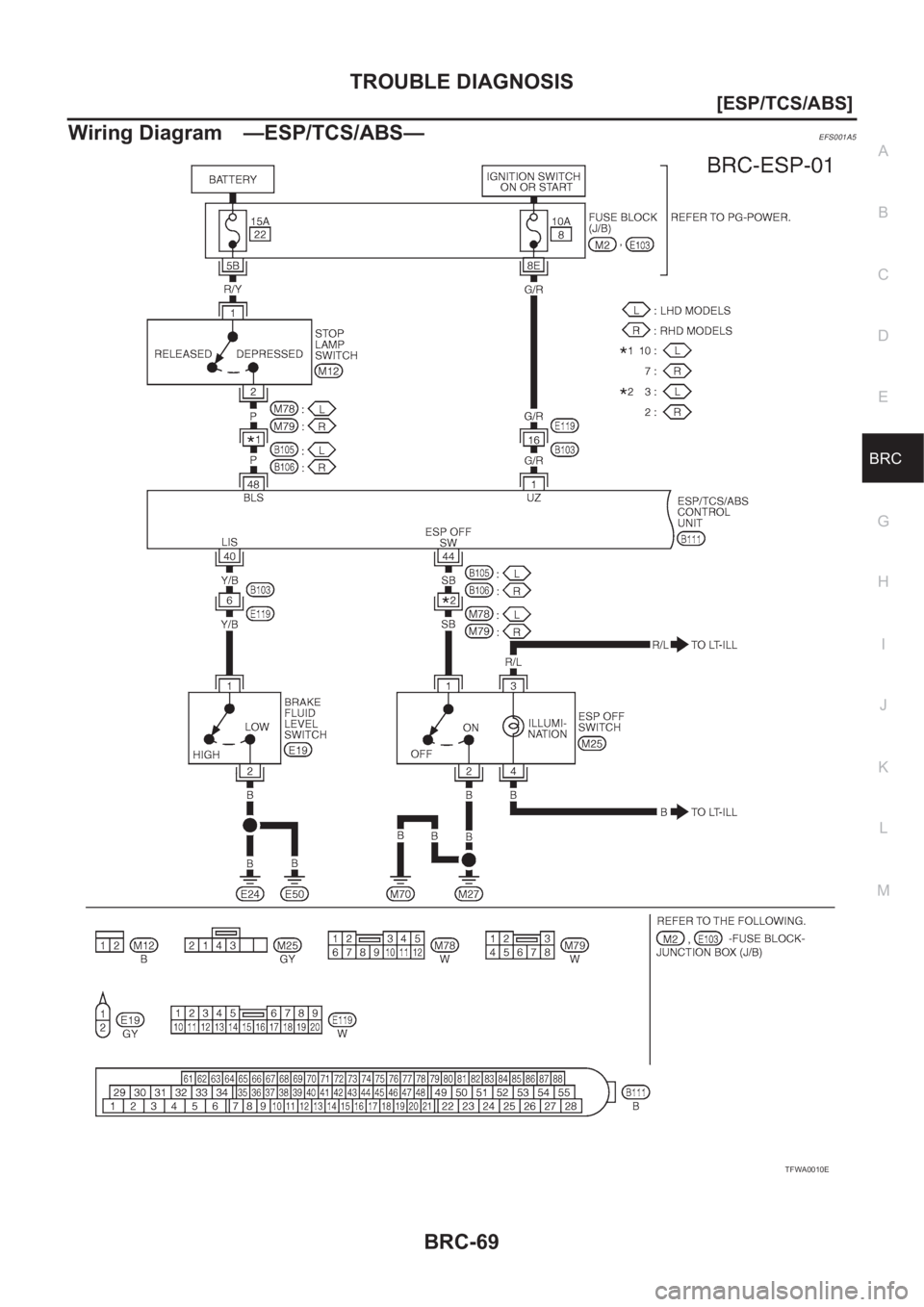

Wiring Diagram —ESP/TCS/ABS—EFS001A5
TFWA0010E

Page 2854 of 3833

NISSAN X-TRAIL 2001  Service Repair Manual BRC-70
[ESP/TCS/ABS]
TROUBLE DIAGNOSIS

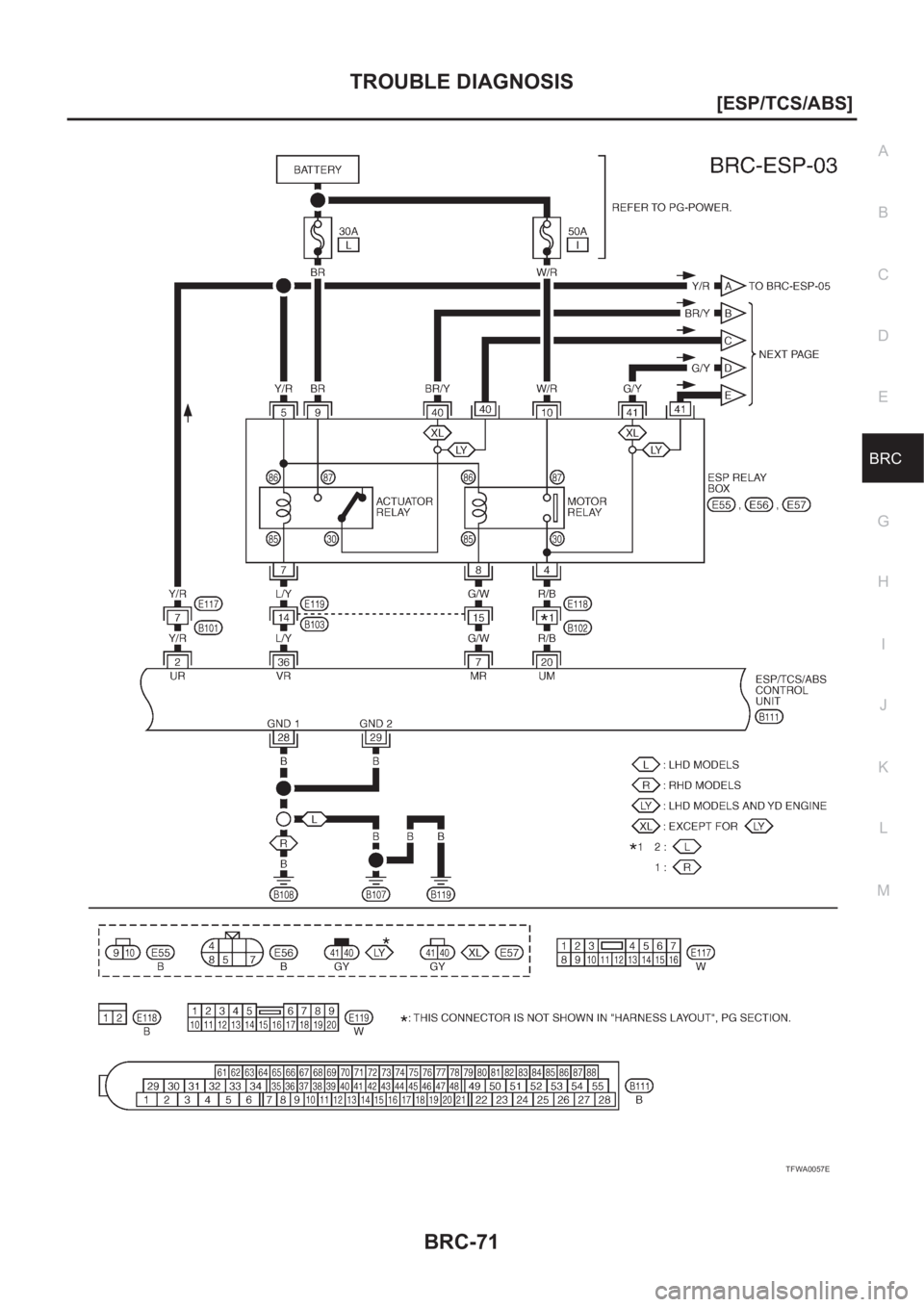

TFWA0056E

Page 2855 of 3833

NISSAN X-TRAIL 2001  Service Repair Manual TROUBLE DIAGNOSIS
BRC-71
[ESP/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC

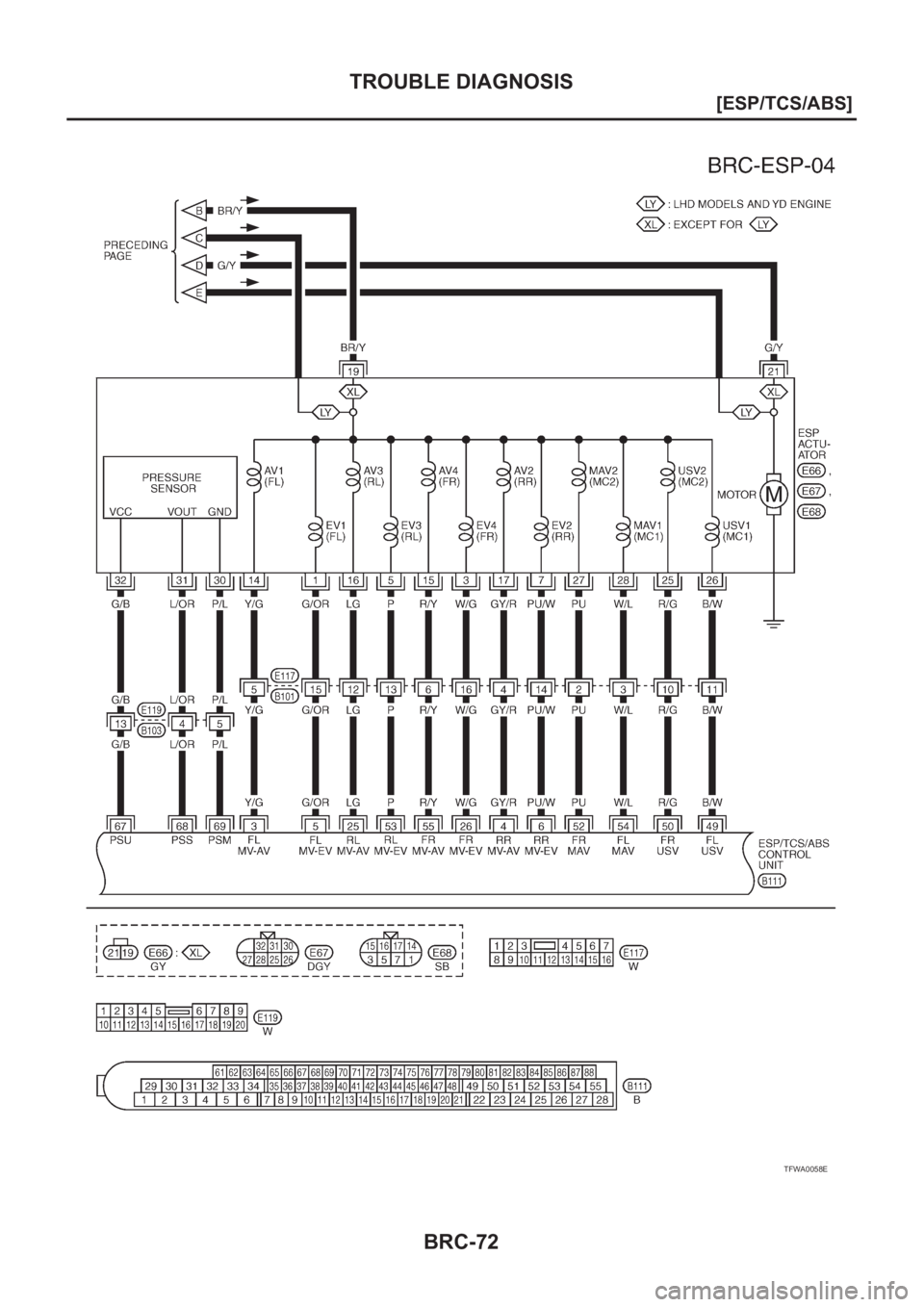

TFWA0057E

Page 2856 of 3833

NISSAN X-TRAIL 2001  Service Repair Manual BRC-72
[ESP/TCS/ABS]
TROUBLE DIAGNOSIS

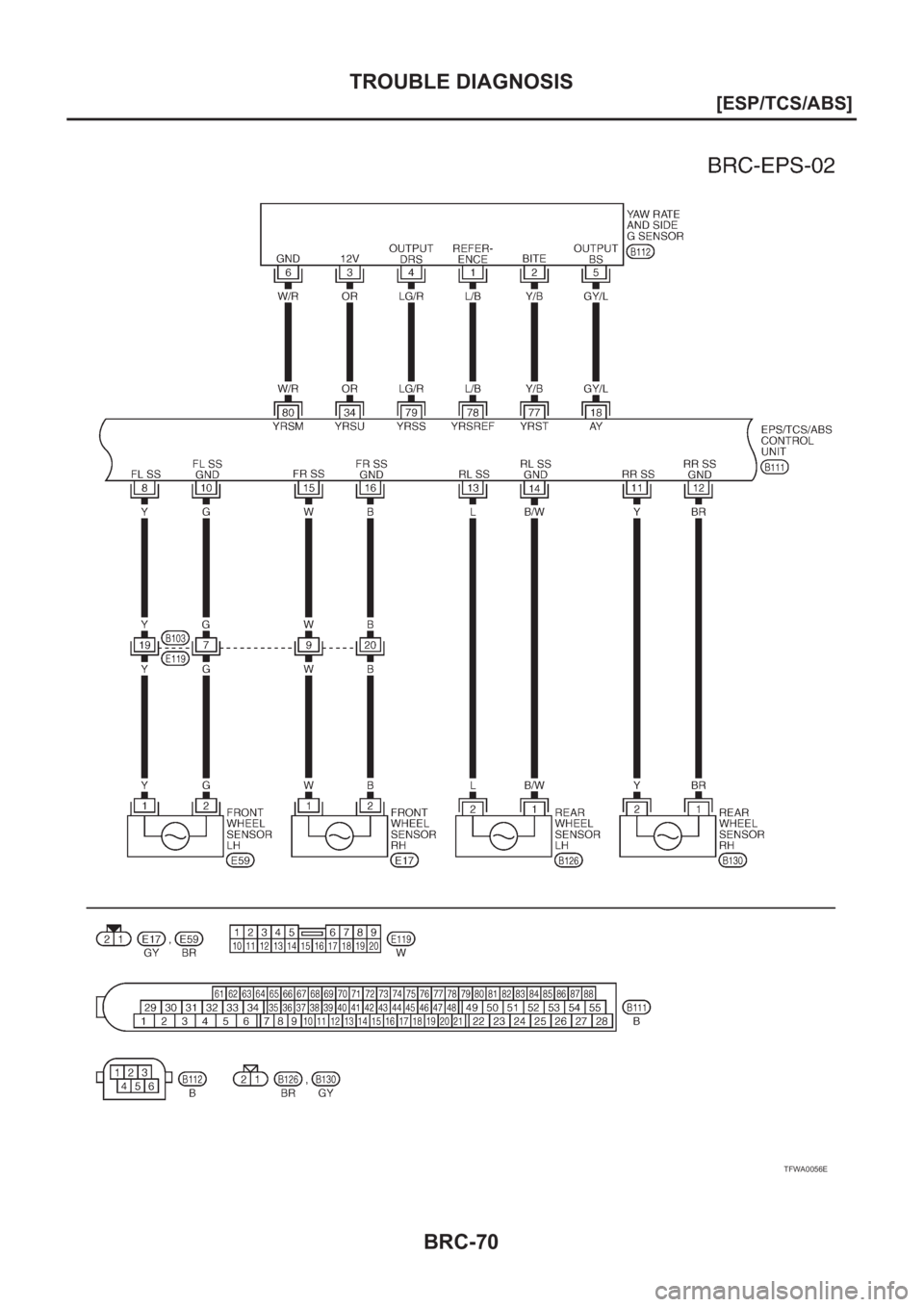

TFWA0058E
