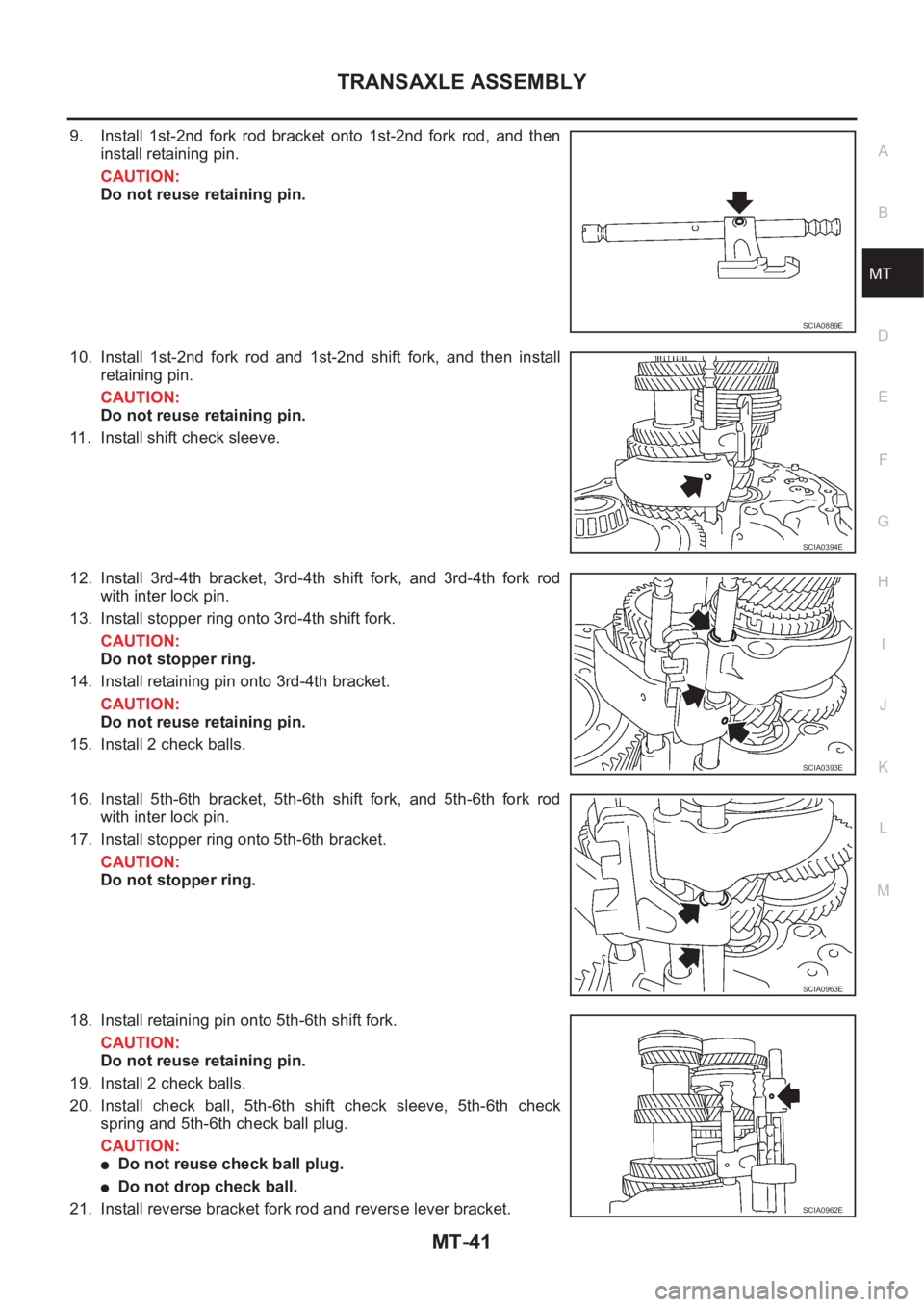

Page 2017 of 3833

TRANSAXLE ASSEMBLY
MT-41
D
E
F
G
H
I
J
K
L
MA
B
MT
9. Install 1st-2nd fork rod bracket onto 1st-2nd fork rod, and then
install retaining pin.
CAUTION:
Do not reuse retaining pin.
10. Install 1st-2nd fork rod and 1st-2nd shift fork, and then install
retaining pin.
CAUTION:
Do not reuse retaining pin.
11. Install shift check sleeve.
12. Install 3rd-4th bracket, 3rd-4th shift fork, and 3rd-4th fork rod
with inter lock pin.
13. Install stopper ring onto 3rd-4th shift fork.
CAUTION:
Do not stopper ring.
14. Install retaining pin onto 3rd-4th bracket.
CAUTION:
Do not reuse retaining pin.
15. Install 2 check balls.
16. Install 5th-6th bracket, 5th-6th shift fork, and 5th-6th fork rod
with inter lock pin.
17. Install stopper ring onto 5th-6th bracket.
CAUTION:
Do not stopper ring.
18. Install retaining pin onto 5th-6th shift fork.
CAUTION:
Do not reuse retaining pin.
19. Install 2 check balls.
20. Install check ball, 5th-6th shift check sleeve, 5th-6th check
spring and 5th-6th check ball plug.
CAUTION:
●Do not reuse check ball plug.
●Do not drop check ball.
21. Install reverse bracket fork rod and reverse lever bracket.
SCIA0889E
SCIA0394E
SCIA0393E
SCIA0963E
SCIA0962E

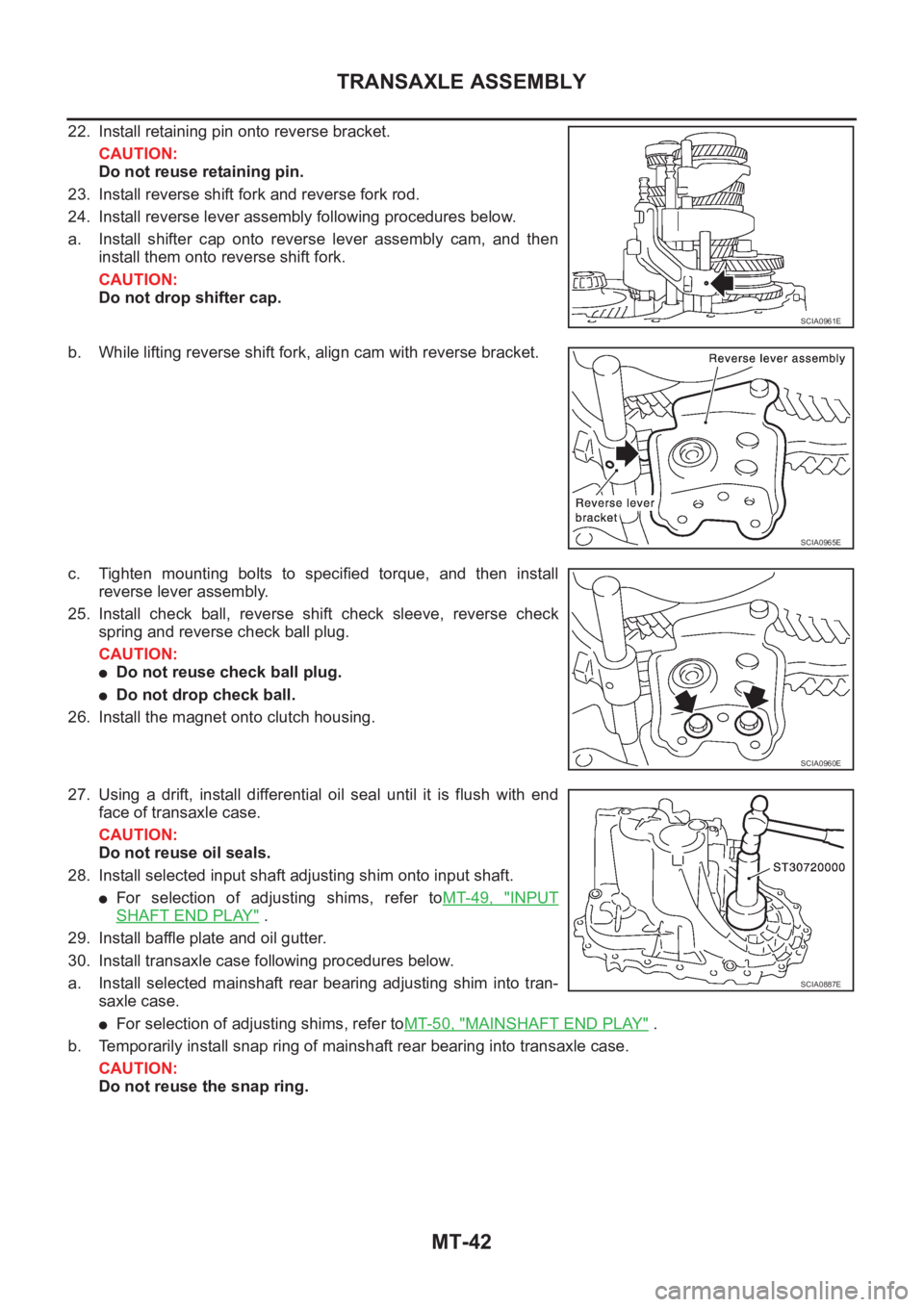

Page 2018 of 3833

MT-42
TRANSAXLE ASSEMBLY
22. Install retaining pin onto reverse bracket.
CAUTION:
Do not reuse retaining pin.
23. Install reverse shift fork and reverse fork rod.
24. Install reverse lever assembly following procedures below.
a. Install shifter cap onto reverse lever assembly cam, and then
install them onto reverse shift fork.
CAUTION:
Do not drop shifter cap.
b. While lifting reverse shift fork, align cam with reverse bracket.
c. Tighten mounting bolts to specified torque, and then install
reverse lever assembly.
25. Install check ball, reverse shift check sleeve, reverse check
spring and reverse check ball plug.
CAUTION:
●Do not reuse check ball plug.
●Do not drop check ball.
26. Install the magnet onto clutch housing.
27. Using a drift, install differential oil seal until it is flush with end
face of transaxle case.
CAUTION:
Do not reuse oil seals.
28. Install selected input shaft adjusting shim onto input shaft.
●For selection of adjusting shims, refer toMT-49, "INPUT
SHAFT END PLAY" .
29. Install baffle plate and oil gutter.
30. Install transaxle case following procedures below.
a. Install selected mainshaft rear bearing adjusting shim into tran-
saxle case.
●For selection of adjusting shims, refer toMT-50, "MAINSHAFT END PLAY" .
b. Temporarily install snap ring of mainshaft rear bearing into transaxle case.
CAUTION:
Do not reuse the snap ring.
SCIA0961E
SCIA0965E
SCIA0960E
SCIA0887E

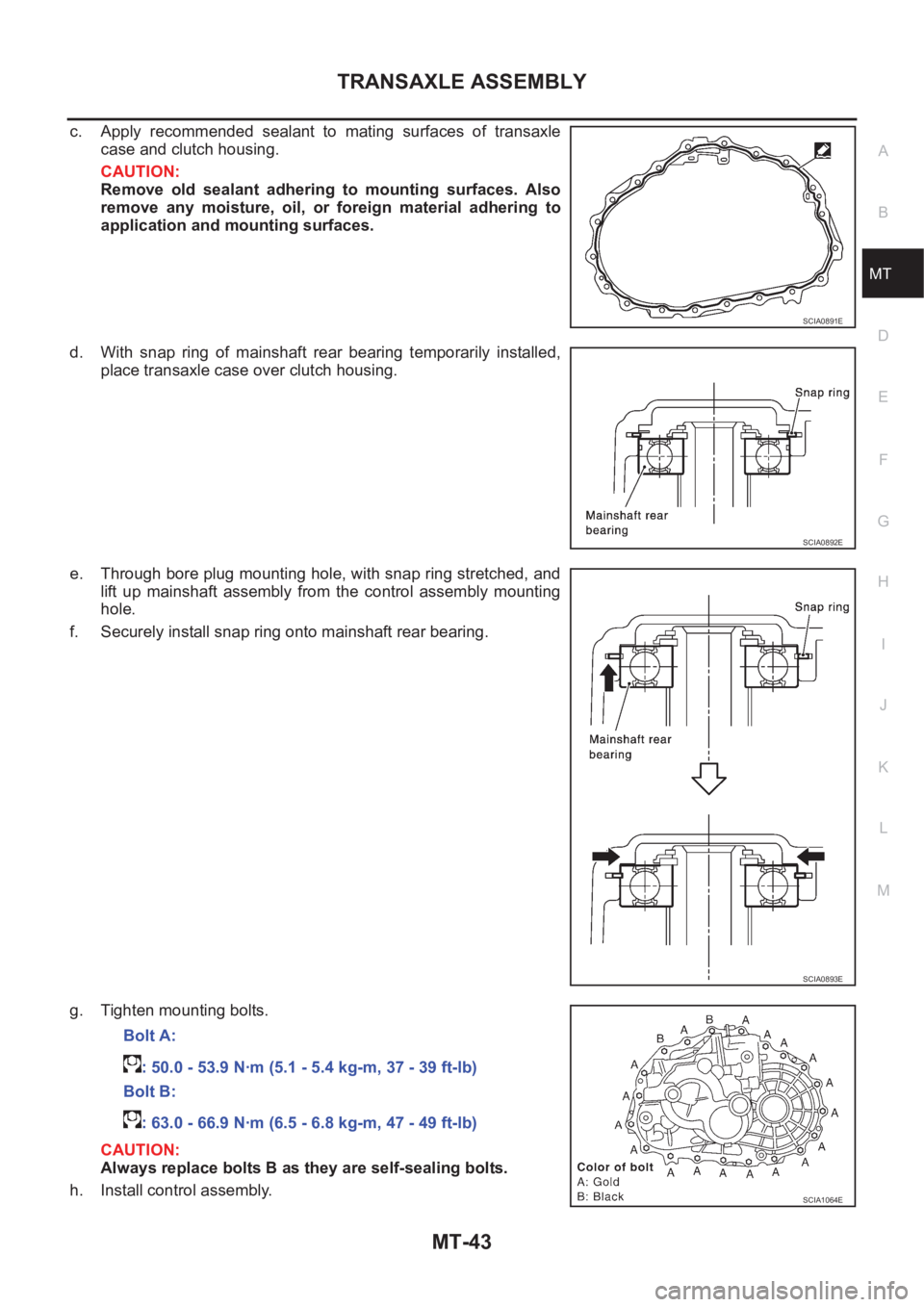

Page 2019 of 3833
TRANSAXLE ASSEMBLY
MT-43
D
E
F
G
H
I
J
K
L
MA
B
MT
c. Apply recommended sealant to mating surfaces of transaxle
case and clutch housing.
CAUTION:
Remove old sealant adhering to mounting surfaces. Also
remove any moisture, oil, or foreign material adhering to
application and mounting surfaces.
d. With snap ring of mainshaft rear bearing temporarily installed,
place transaxle case over clutch housing.
e. Through bore plug mounting hole, with snap ring stretched, and
lift up mainshaft assembly from the control assembly mounting
hole.
f. Securely install snap ring onto mainshaft rear bearing.
g. Tighten mounting bolts.
CAUTION:
Always replace bolts B as they are self-sealing bolts.
h. Install control assembly.
SCIA0891E
SCIA0892E
SCIA0893E
Bolt A:
: 50.0 - 53.9 N·m (5.1 - 5.4 kg-m, 37 - 39 ft-lb)
Bolt B:
: 63.0 - 66.9 N·m (6.5 - 6.8 kg-m, 47 - 49 ft-lb)
SCIA1064E

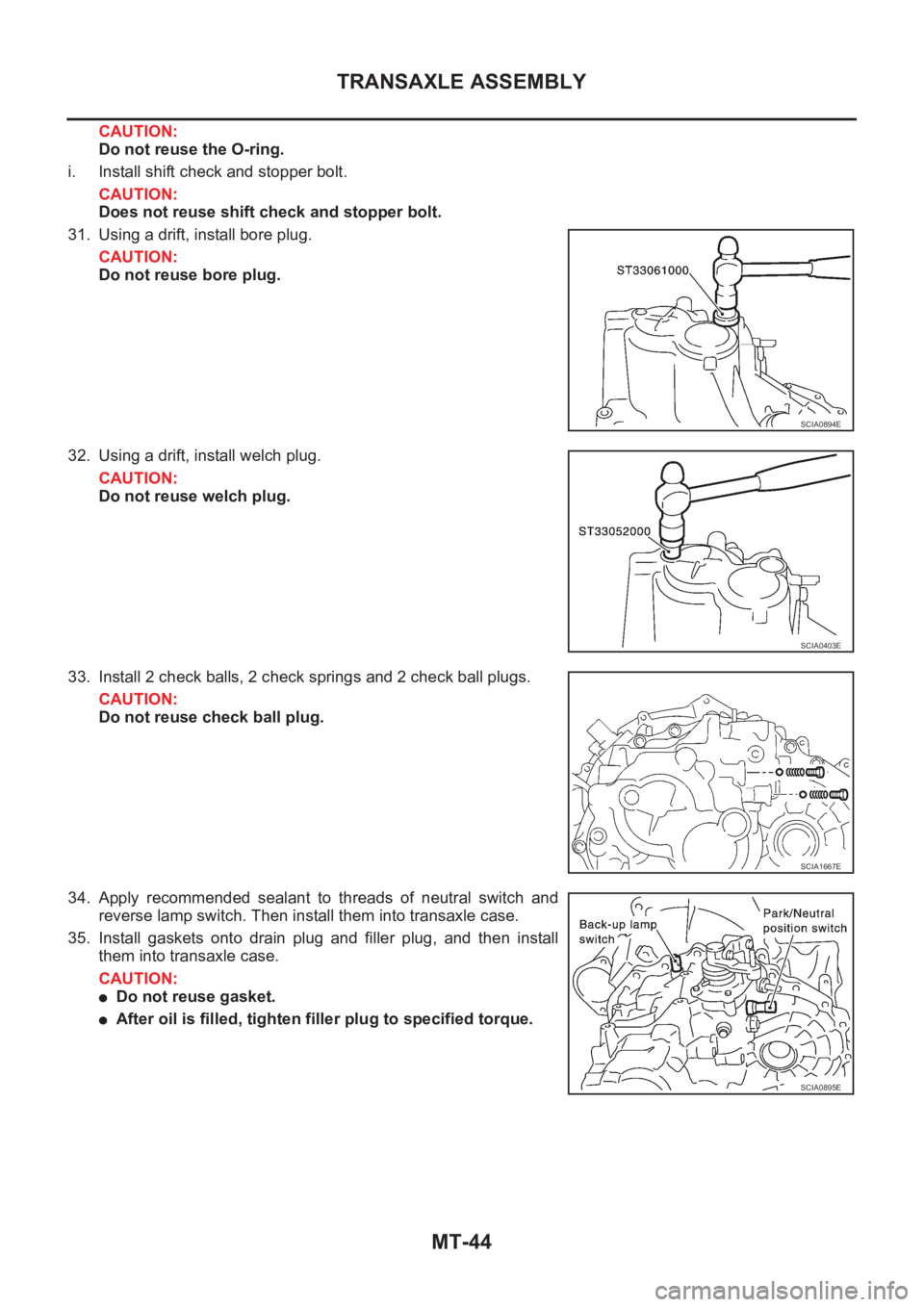

Page 2020 of 3833
MT-44
TRANSAXLE ASSEMBLY
CAUTION:
Do not reuse the O-ring.
i. Install shift check and stopper bolt.
CAUTION:
Does not reuse shift check and stopper bolt.
31. Using a drift, install bore plug.
CAUTION:
Do not reuse bore plug.
32. Using a drift, install welch plug.
CAUTION:
Do not reuse welch plug.
33. Install 2 check balls, 2 check springs and 2 check ball plugs.
CAUTION:
Do not reuse check ball plug.
34. Apply recommended sealant to threads of neutral switch and
reverse lamp switch. Then install them into transaxle case.
35. Install gaskets onto drain plug and filler plug, and then install
them into transaxle case.
CAUTION:
●Do not reuse gasket.
●After oil is filled, tighten filler plug to specified torque.
SCIA0894E
SCIA0403E
SCIA1667E
SCIA0895E

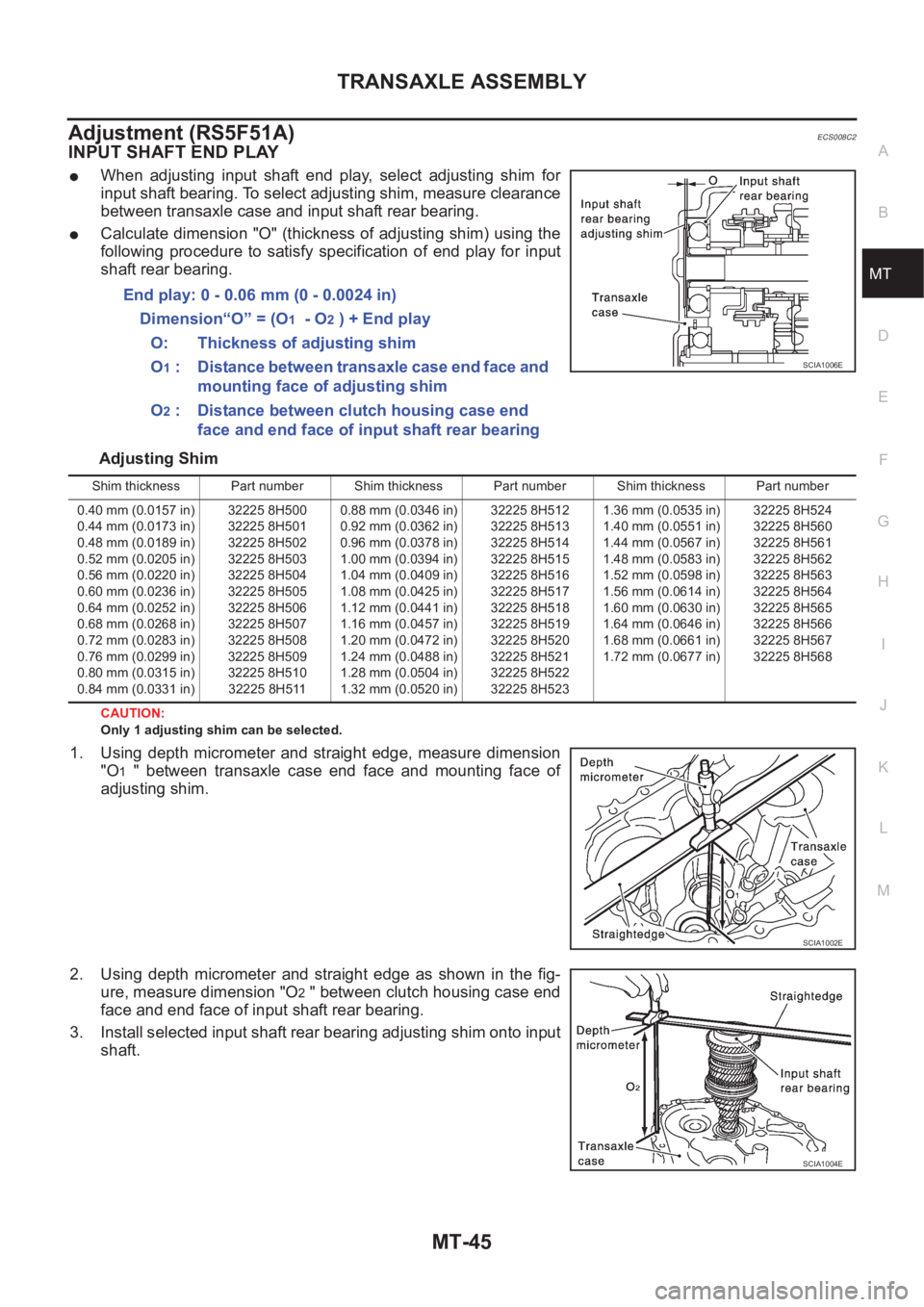

Page 2021 of 3833

TRANSAXLE ASSEMBLY
MT-45
D
E
F
G
H
I
J
K
L
MA
B
MT
Adjustment (RS5F51A)ECS008C2
INPUT SHAFT END PLAY
●When adjusting input shaft end play, select adjusting shim for
input shaft bearing. To select adjusting shim, measure clearance
between transaxle case and input shaft rear bearing.
●Calculate dimension "O" (thickness of adjusting shim) using the
following procedure to satisfy specification of end play for input
shaft rear bearing.
Adjusting Shim
CAUTION:
Only 1 adjusting shim can be selected.
1. Using depth micrometer and straight edge, measure dimension
"O
1 " between transaxle case end face and mounting face of
adjusting shim.
2. Using depth micrometer and straight edge as shown in the fig-
ure, measure dimension "O
2 " between clutch housing case end
face and end face of input shaft rear bearing.
3. Install selected input shaft rear bearing adjusting shim onto input
shaft.End play: 0 - 0.06 mm (0 - 0.0024 in)
Dimension“O” = (O
1 - O2 ) + End play
O: Thickness of adjusting shim
O
1 : Distance between transaxle case end face and
mounting face of adjusting shim
O
2 : Distance between clutch housing case end
face and end face of input shaft rear bearing
SCIA1006E
Shim thickness Part number Shim thickness Part number Shim thickness Part number
0.40 mm (0.0157 in)
0.44 mm (0.0173 in)
0.48 mm (0.0189 in)
0.52 mm (0.0205 in)
0.56 mm (0.0220 in)
0.60 mm (0.0236 in)
0.64 mm (0.0252 in)
0.68 mm (0.0268 in)
0.72 mm (0.0283 in)
0.76 mm (0.0299 in)
0.80 mm (0.0315 in)
0.84 mm (0.0331 in)32225 8H500
32225 8H501
32225 8H502
32225 8H503
32225 8H504
32225 8H505
32225 8H506
32225 8H507
32225 8H508
32225 8H509
32225 8H510
32225 8H5110.88 mm (0.0346 in)
0.92 mm (0.0362 in)
0.96 mm (0.0378 in)
1.00 mm (0.0394 in)
1.04 mm (0.0409 in)
1.08 mm (0.0425 in)
1.12 mm (0.0441 in)
1.16 mm (0.0457 in)
1.20 mm (0.0472 in)
1.24 mm (0.0488 in)
1.28 mm (0.0504 in)
1.32 mm (0.0520 in)32225 8H512
32225 8H513
32225 8H514
32225 8H515
32225 8H516
32225 8H517
32225 8H518
32225 8H519
32225 8H520
32225 8H521
32225 8H522
32225 8H5231.36 mm (0.0535 in)
1.40 mm (0.0551 in)
1.44 mm (0.0567 in)
1.48 mm (0.0583 in)
1.52 mm (0.0598 in)
1.56 mm (0.0614 in)
1.60 mm (0.0630 in)
1.64 mm (0.0646 in)
1.68 mm (0.0661 in)
1.72 mm (0.0677 in)32225 8H524
32225 8H560
32225 8H561
32225 8H562
32225 8H563
32225 8H564
32225 8H565
32225 8H566
32225 8H567
32225 8H568
SCIA1002E
SCIA1004E

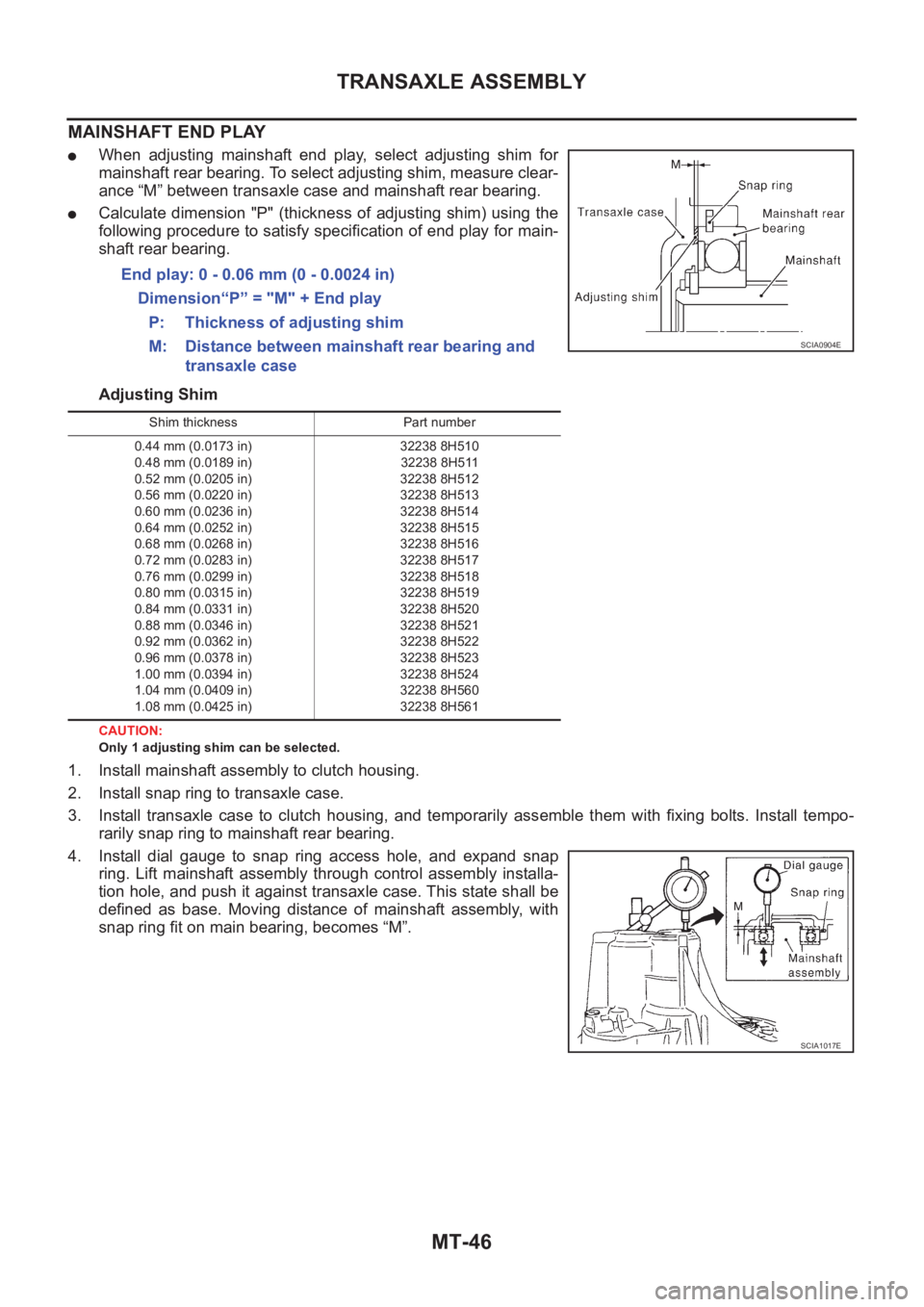

Page 2022 of 3833

MT-46
TRANSAXLE ASSEMBLY
MAINSHAFT END PLAY
●When adjusting mainshaft end play, select adjusting shim for
mainshaft rear bearing. To select adjusting shim, measure clear-
ance “M” between transaxle case and mainshaft rear bearing.
●Calculate dimension "P" (thickness of adjusting shim) using the
following procedure to satisfy specification of end play for main-
shaft rear bearing.
Adjusting Shim
CAUTION:
Only 1 adjusting shim can be selected.
1. Install mainshaft assembly to clutch housing.
2. Install snap ring to transaxle case.
3. Install transaxle case to clutch housing, and temporarily assemble them with fixing bolts. Install tempo-
rarily snap ring to mainshaft rear bearing.
4. Install dial gauge to snap ring access hole, and expand snap
ring. Lift mainshaft assembly through control assembly installa-
tion hole, and push it against transaxle case. This state shall be
defined as base. Moving distance of mainshaft assembly, with
snap ring fit on main bearing, becomes “M”.End play: 0 - 0.06 mm (0 - 0.0024 in)
Dimension“P” = "M" + End play
P: Thickness of adjusting shim
M: Distance between mainshaft rear bearing and
transaxle case
SCIA0904E
Shim thickness Part number
0.44 mm (0.0173 in)
0.48 mm (0.0189 in)
0.52 mm (0.0205 in)
0.56 mm (0.0220 in)
0.60 mm (0.0236 in)
0.64 mm (0.0252 in)
0.68 mm (0.0268 in)
0.72 mm (0.0283 in)
0.76 mm (0.0299 in)
0.80 mm (0.0315 in)
0.84 mm (0.0331 in)
0.88 mm (0.0346 in)
0.92 mm (0.0362 in)
0.96 mm (0.0378 in)
1.00 mm (0.0394 in)
1.04 mm (0.0409 in)
1.08 mm (0.0425 in)32238 8H510
32238 8H511
32238 8H512
32238 8H513
32238 8H514
32238 8H515
32238 8H516
32238 8H517
32238 8H518
32238 8H519
32238 8H520
32238 8H521
32238 8H522
32238 8H523
32238 8H524
32238 8H560
32238 8H561
SCIA1017E

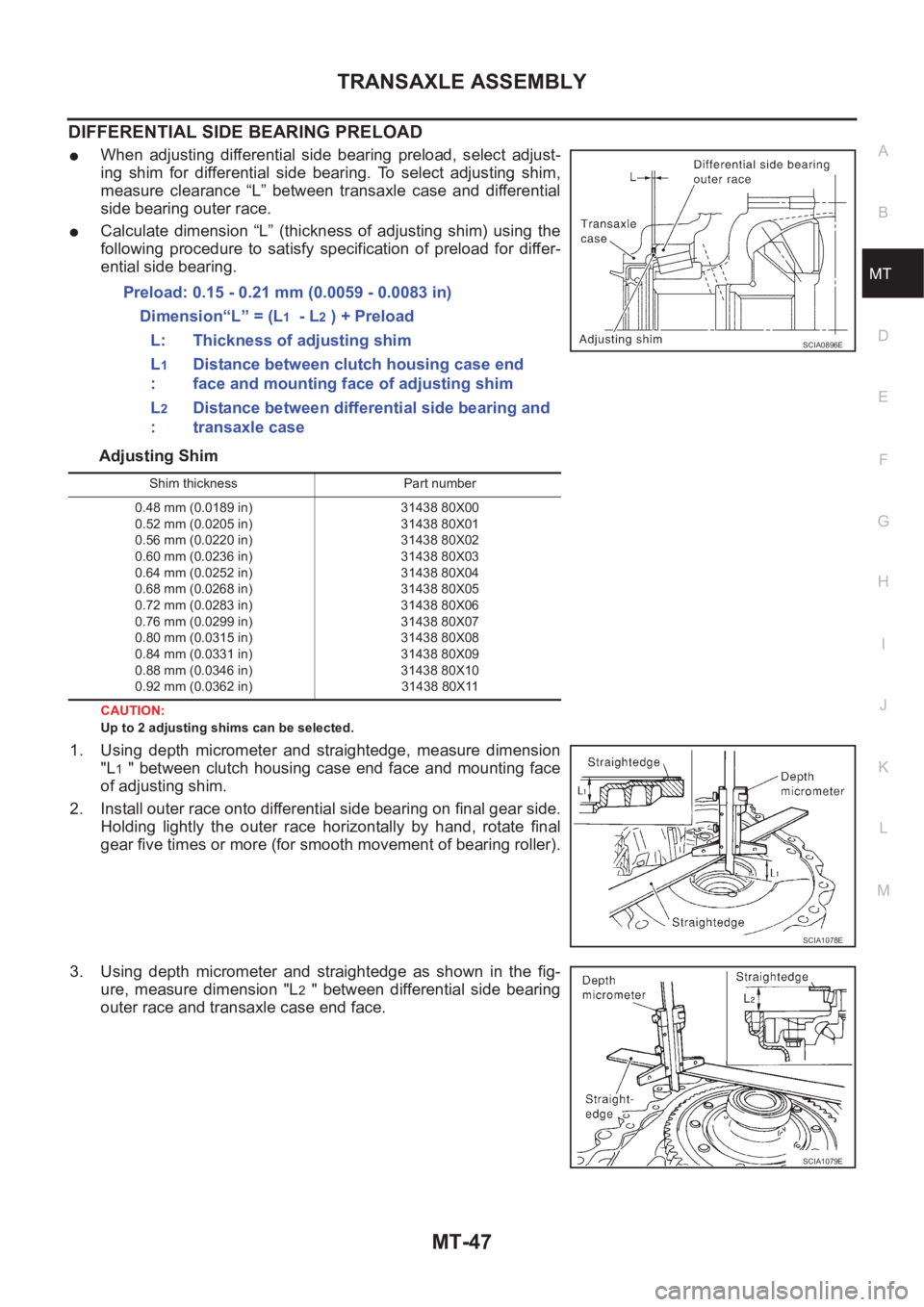

Page 2023 of 3833

TRANSAXLE ASSEMBLY
MT-47
D
E
F
G
H
I
J
K
L
MA
B
MT
DIFFERENTIAL SIDE BEARING PRELOAD
●When adjusting differential side bearing preload, select adjust-
ing shim for differential side bearing. To select adjusting shim,
measure clearance “L” between transaxle case and differential
side bearing outer race.
●Calculate dimension “L” (thickness of adjusting shim) using the
following procedure to satisfy specification of preload for differ-
ential side bearing.
Adjusting Shim
CAUTION:
Up to 2 adjusting shims can be selected.
1. Using depth micrometer and straightedge, measure dimension
"L
1 " between clutch housing case end face and mounting face
of adjusting shim.
2. Install outer race onto differential side bearing on final gear side.
Holding lightly the outer race horizontally by hand, rotate final
gear five times or more (for smooth movement of bearing roller).
3. Using depth micrometer and straightedge as shown in the fig-
ure, measure dimension "L
2 " between differential side bearing
outer race and transaxle case end face.Preload: 0.15 - 0.21 mm (0.0059 - 0.0083 in)
Dimension“L” = (L
1 - L2 ) + Preload
L: Thickness of adjusting shim
L
1
:Distance between clutch housing case end
face and mounting face of adjusting shim
L
2
:Distance between differential side bearing and
transaxle case
SCIA0896E
Shim thickness Part number
0.48 mm (0.0189 in)
0.52 mm (0.0205 in)
0.56 mm (0.0220 in)
0.60 mm (0.0236 in)
0.64 mm (0.0252 in)
0.68 mm (0.0268 in)
0.72 mm (0.0283 in)
0.76 mm (0.0299 in)
0.80 mm (0.0315 in)
0.84 mm (0.0331 in)
0.88 mm (0.0346 in)
0.92 mm (0.0362 in)31438 80X00
31438 80X01
31438 80X02
31438 80X03
31438 80X04
31438 80X05
31438 80X06
31438 80X07
31438 80X08
31438 80X09
31438 80X10
31438 80X11
SCIA1078E
SCIA1079E

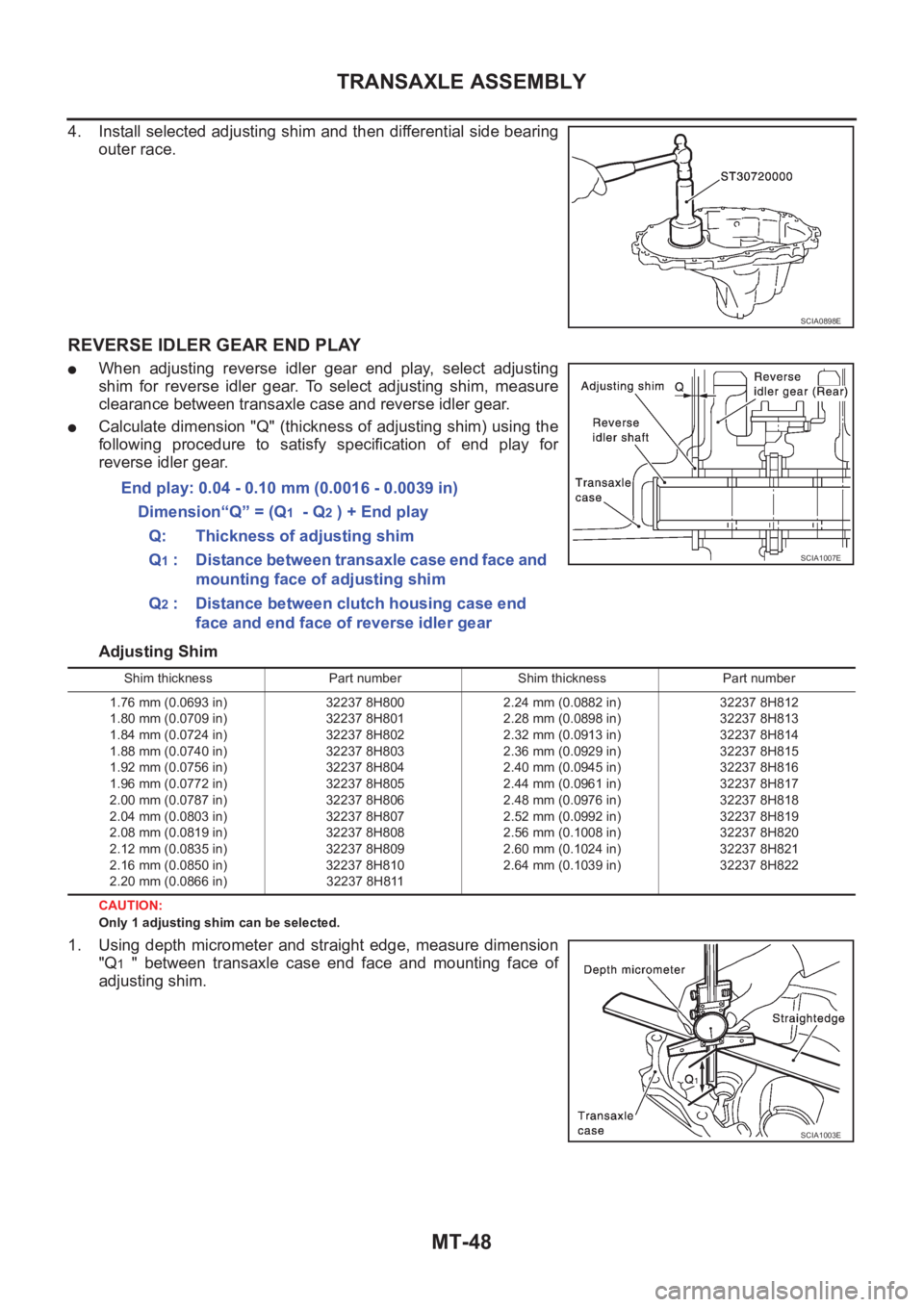

Page 2024 of 3833

MT-48
TRANSAXLE ASSEMBLY
4. Install selected adjusting shim and then differential side bearing
outer race.
REVERSE IDLER GEAR END PLAY
●When adjusting reverse idler gear end play, select adjusting
shim for reverse idler gear. To select adjusting shim, measure
clearance between transaxle case and reverse idler gear.
●Calculate dimension "Q" (thickness of adjusting shim) using the
following procedure to satisfy specification of end play for
reverse idler gear.
Adjusting Shim
CAUTION:
Only 1 adjusting shim can be selected.
1. Using depth micrometer and straight edge, measure dimension
"Q
1 " between transaxle case end face and mounting face of
adjusting shim.
SCIA0898E
End play: 0.04 - 0.10 mm (0.0016 - 0.0039 in)
Dimension“Q” = (Q
1 - Q2 ) + End play
Q: Thickness of adjusting shim
Q
1 : Distance between transaxle case end face and
mounting face of adjusting shim
Q
2 : Distance between clutch housing case end
face and end face of reverse idler gear
SCIA1007E
Shim thickness Part number Shim thickness Part number
1.76 mm (0.0693 in)
1.80 mm (0.0709 in)
1.84 mm (0.0724 in)
1.88 mm (0.0740 in)
1.92 mm (0.0756 in)
1.96 mm (0.0772 in)
2.00 mm (0.0787 in)
2.04 mm (0.0803 in)
2.08 mm (0.0819 in)
2.12 mm (0.0835 in)
2.16 mm (0.0850 in)
2.20 mm (0.0866 in)32237 8H800
32237 8H801
32237 8H802
32237 8H803
32237 8H804
32237 8H805
32237 8H806
32237 8H807
32237 8H808
32237 8H809
32237 8H810
32237 8H8112.24 mm (0.0882 in)
2.28 mm (0.0898 in)
2.32 mm (0.0913 in)
2.36 mm (0.0929 in)
2.40 mm (0.0945 in)
2.44 mm (0.0961 in)
2.48 mm (0.0976 in)
2.52 mm (0.0992 in)
2.56 mm (0.1008 in)
2.60 mm (0.1024 in)
2.64 mm (0.1039 in)32237 8H812
32237 8H813
32237 8H814
32237 8H815
32237 8H816
32237 8H817
32237 8H818
32237 8H819
32237 8H820
32237 8H821
32237 8H822
SCIA1003E
