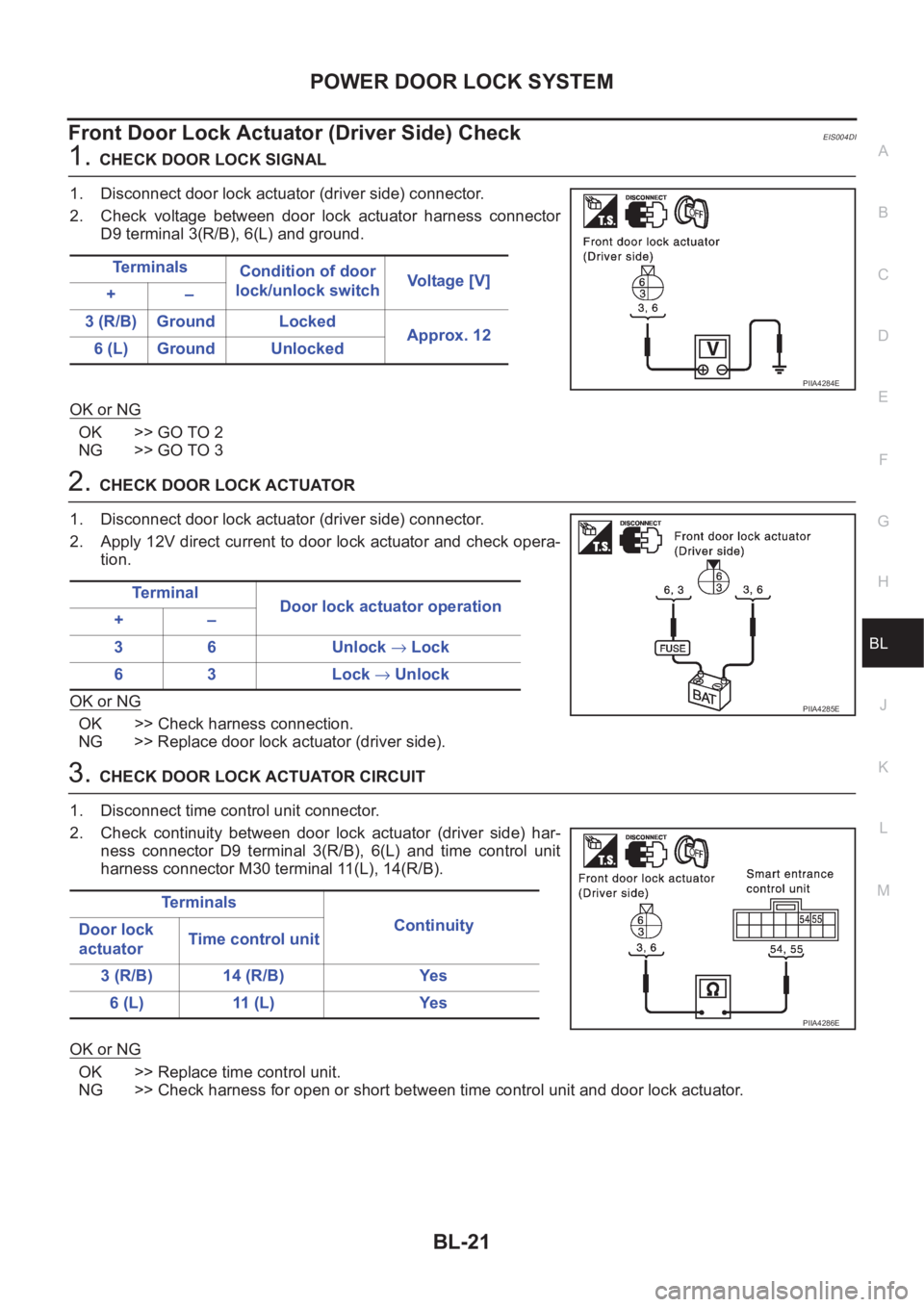

NISSAN X-TRAIL 2001 Service Repair Manual POWER DOOR LOCK SYSTEM BL-21 C D E F G H J K L MA B BL Front Door Lock Actuator (Driver Side) CheckEIS004DI 1.CHECK DOOR LOCK SIGNAL 1. Disconnect door lock actuator (driver side) connector. 2. Check

Page 3074 of 3833

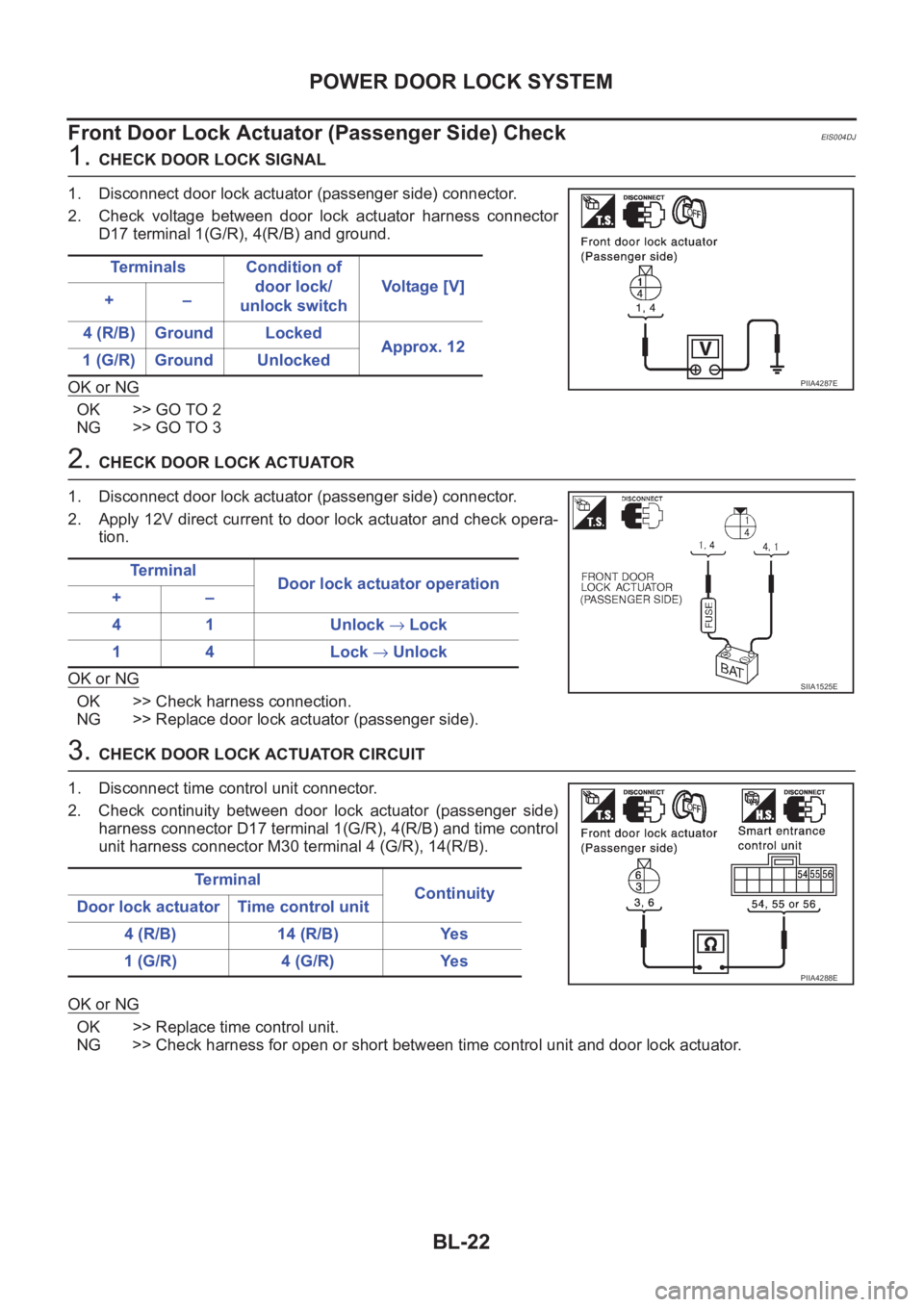

NISSAN X-TRAIL 2001 Service Repair Manual BL-22 POWER DOOR LOCK SYSTEM Front Door Lock Actuator (Passenger Side) Check EIS004DJ 1. CHECK DOOR LOCK SIGNAL 1. Disconnect door lock actuator (passenger side) connector. 2. Check voltage between

Page 3075 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual POWER DOOR LOCK SYSTEM BL-23 C D E F G H J K L MA B BL Rear Door Lock Actuator LH CheckEIS004DK 1.CHECK DOOR LOCK SIGNAL 1. Disconnect rear door lock actuator LH connector. 2. Check voltage between

Page 3076 of 3833

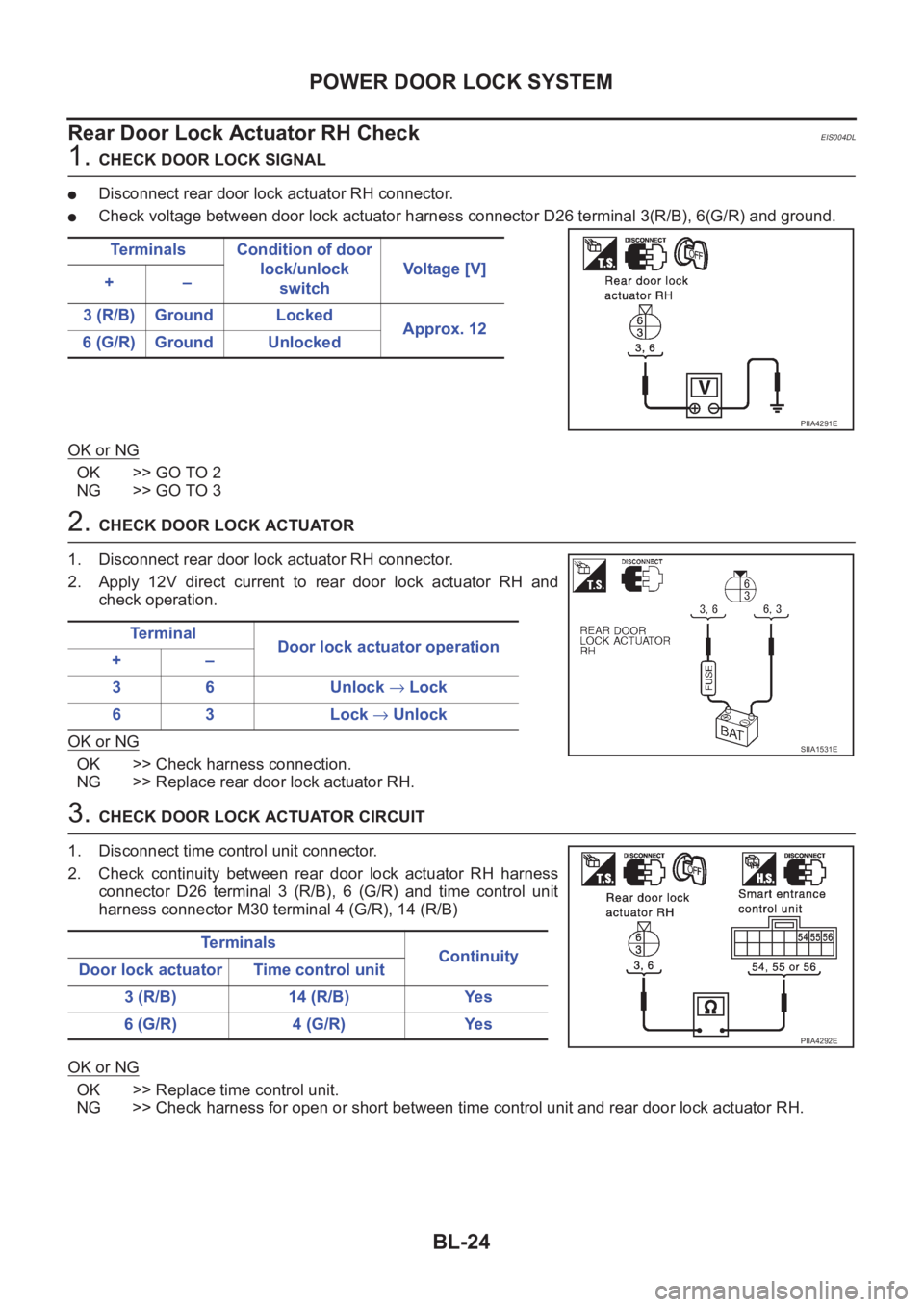

NISSAN X-TRAIL 2001 Service Repair Manual BL-24 POWER DOOR LOCK SYSTEM Rear Door Lock Actuator RH Check EIS004DL 1. CHECK DOOR LOCK SIGNAL ●Disconnect rear door lock actuator RH connector. ●Check voltage between door lock actuator harness

Page 3077 of 3833

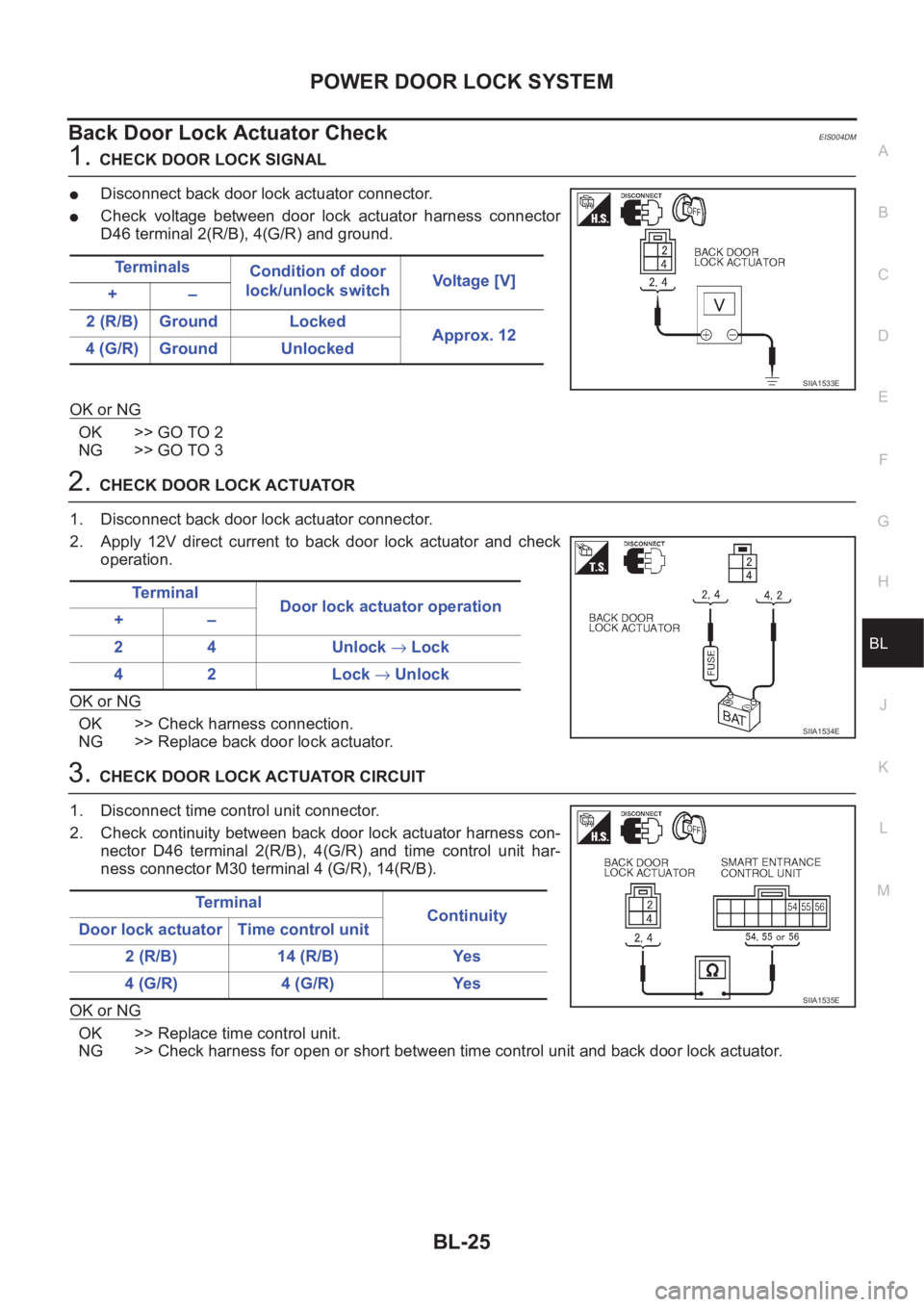

NISSAN X-TRAIL 2001 Service Repair Manual POWER DOOR LOCK SYSTEM BL-25 C D E F G H J K L MA B BL Back Door Lock Actuator CheckEIS004DM 1.CHECK DOOR LOCK SIGNAL ●Disconnect back door lock actuator connector. ●Check voltage between door

Page 3078 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual BL-26 POWER DOOR LOCK SYSTEM Door Switch Check EIS004DN 1. CHECK DOOR SWITCH INPUT SIGNAL 1. Turn ignition switch OFF. 2. Check voltage between time control unit harness connector M31 terminal 30(R) a

Page 3079 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual POWER DOOR LOCK SYSTEM BL-27 C D E F G H J K L MA B BL 2.CHECK FRONT DOOR UNLOCK SENSOR 1. Disconnect driver's door unlock sensor connector. 2. Check continuity between door unlock sensor terminal

Page 3080 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual BL-28 POWER DOOR LOCK SYSTEM 2. CHECK KEY SWITCH (INSERT) 1. Disconnect key switch connector. 2. Check continuity between key switch terminals 1 and 2. OK or NG OK >> Check the following. ●10A fuse
