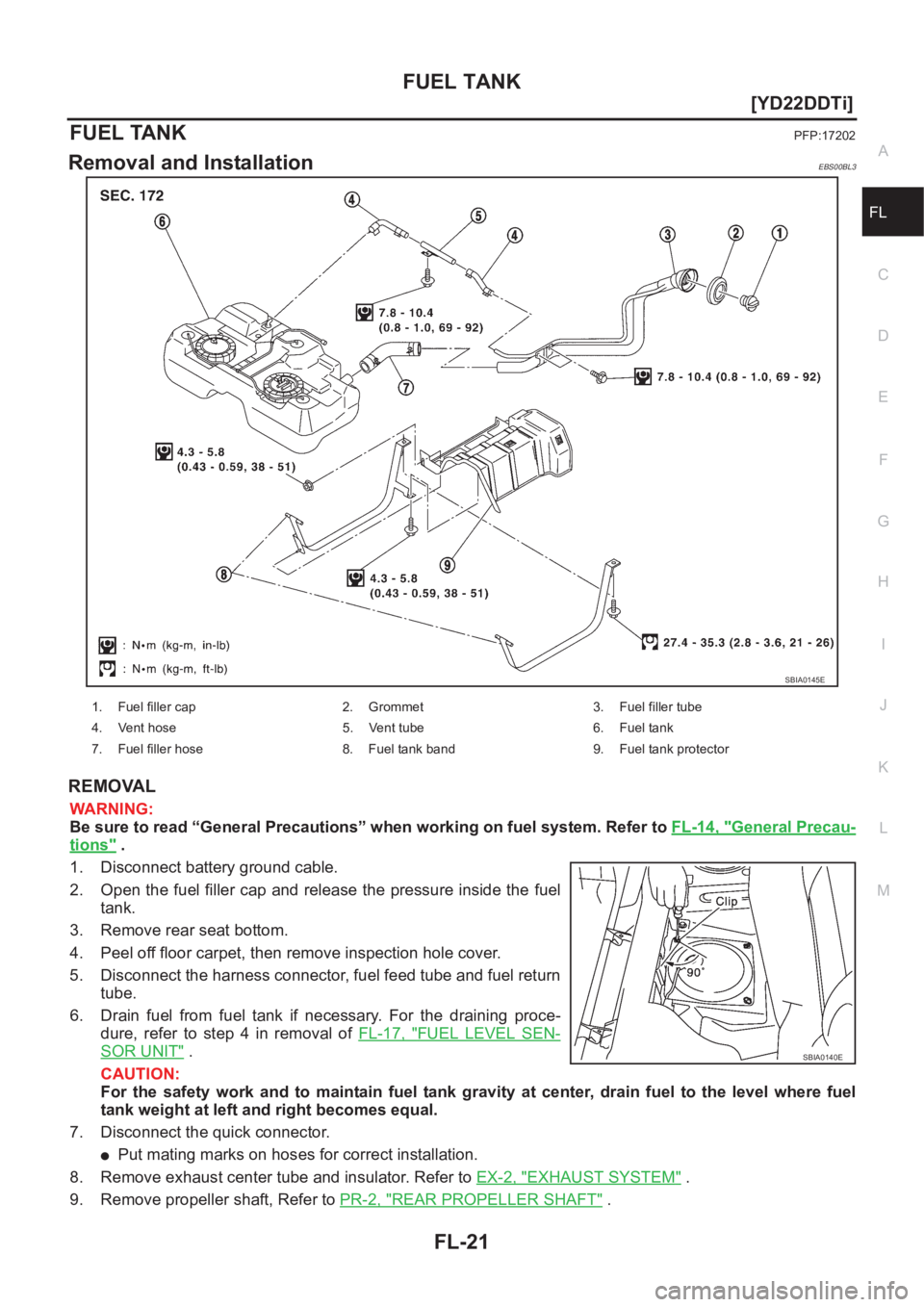

FUEL TANK
FL-21
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
FL
FUEL TANKPFP:17202
Removal and InstallationEBS00BL3
REMOVAL
WARNING:
Be sure to read “General Precautions” when working on fuel system. Refer to FL-14, "
General Precau-
tions" .
1. Disconnect battery ground cable.
2. Open the fuel filler cap and release the pressure inside the fuel
tank.
3. Remove rear seat bottom.
4. Peel off floor carpet, then remove inspection hole cover.
5. Disconnect the harness connector, fuel feed tube and fuel return
tube.
6. Drain fuel from fuel tank if necessary. For the draining proce-
dure, refer to step 4 in removal of FL-17, "
FUEL LEVEL SEN-
SOR UNIT" .
CAUTION:
For the safety work and to maintain fuel tank gravity at center, drain fuel to the level where fuel
tank weight at left and right becomes equal.
7. Disconnect the quick connector.
●Put mating marks on hoses for correct installation.
8. Remove exhaust center tube and insulator. Refer to EX-2, "
EXHAUST SYSTEM" .
9. Remove propeller shaft, Refer to PR-2, "
REAR PROPELLER SHAFT" .
SBIA0145E
1. Fuel filler cap 2. Grommet 3. Fuel filler tube
4. Vent hose 5. Vent tube 6. Fuel tank
7. Fuel filler hose 8. Fuel tank band 9. Fuel tank protector
SBIA0140E
Page 1946 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual FL-22
[YD22DDTi]
FUEL TANK
10. Using a transmission jack, support the bottom of the rear final
drive.
11. Remove the mounting nuts on the rear suspension member, and
lower the transmission NISSAN X-TRAIL 2001 Service Repair Manual FL-22
[YD22DDTi]
FUEL TANK
10. Using a transmission jack, support the bottom of the rear final
drive.
11. Remove the mounting nuts on the rear suspension member, and
lower the transmission](/manual-img/5/57405/w960_57405-1945.png)

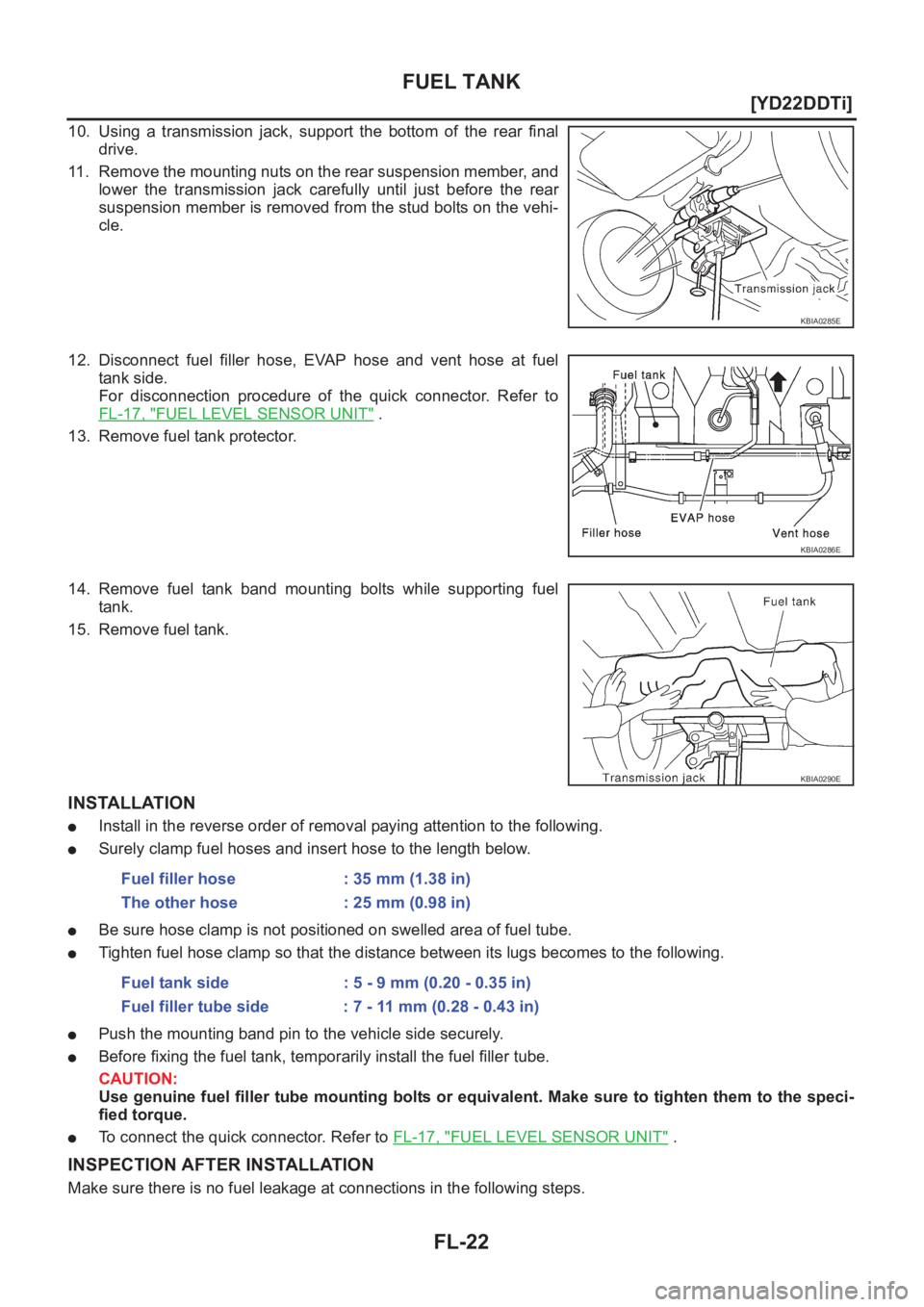

FL-22
[YD22DDTi]
FUEL TANK
10. Using a transmission jack, support the bottom of the rear final
drive.
11. Remove the mounting nuts on the rear suspension member, and
lower the transmission jack carefully until just before the rear
suspension member is removed from the stud bolts on the vehi-
cle.
12. Disconnect fuel filler hose, EVAP hose and vent hose at fuel
tank side.
For disconnection procedure of the quick connector. Refer to
FL-17, "
FUEL LEVEL SENSOR UNIT" .
13. Remove fuel tank protector.
14. Remove fuel tank band mounting bolts while supporting fuel
tank.
15. Remove fuel tank.
INSTALLATION
●Install in the reverse order of removal paying attention to the following.
●Surely clamp fuel hoses and insert hose to the length below.
●Be sure hose clamp is not positioned on swelled area of fuel tube.
●Tighten fuel hose clamp so that the distance between its lugs becomes to the following.
●Push the mounting band pin to the vehicle side securely.
●Before fixing the fuel tank, temporarily install the fuel filler tube.
CAUTION:
Use genuine fuel filler tube mounting bolts or equivalent. Make sure to tighten them to the speci-
fied torque.
●To connect the quick connector. Refer to FL-17, "FUEL LEVEL SENSOR UNIT" .
INSPECTION AFTER INSTALLATION
Make sure there is no fuel leakage at connections in the following steps.
KBIA0285E
KBIA0286E
KBIA0290E
Fuel filler hose : 35 mm (1.38 in)
The other hose : 25 mm (0.98 in)
Fuel tank side : 5 - 9 mm (0.20 - 0.35 in)
Fuel filler tube side : 7 - 11 mm (0.28 - 0.43 in)
Page 1947 of 3833

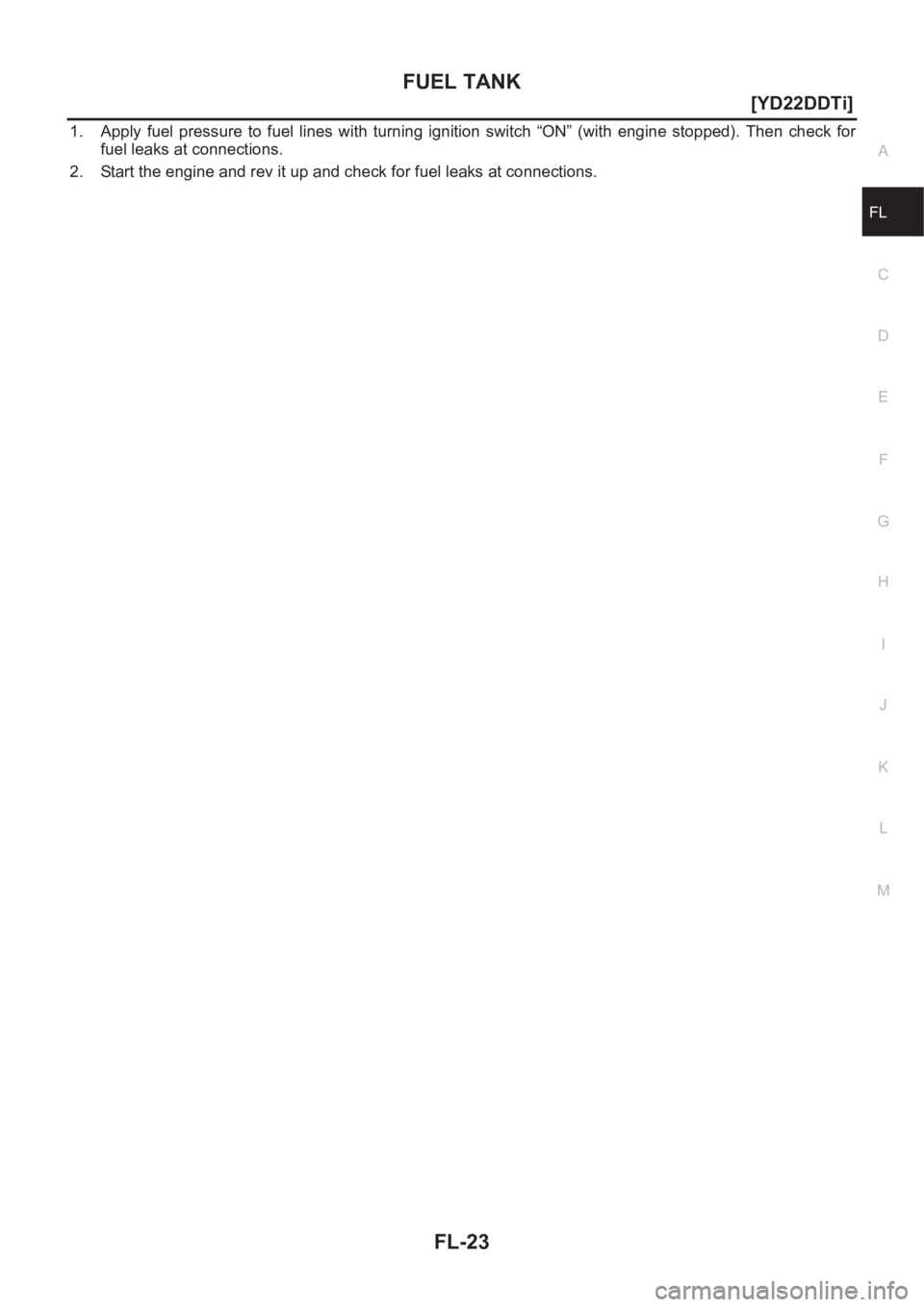

FUEL TANK
FL-23
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
FL
1. Apply fuel pressure to fuel lines with turning ignition switch “ON” (with engine stopped). Then check for
fuel leaks at connections.
2. Start the engine and rev it up and check for fuel leaks at connections.
Page 1948 of 3833

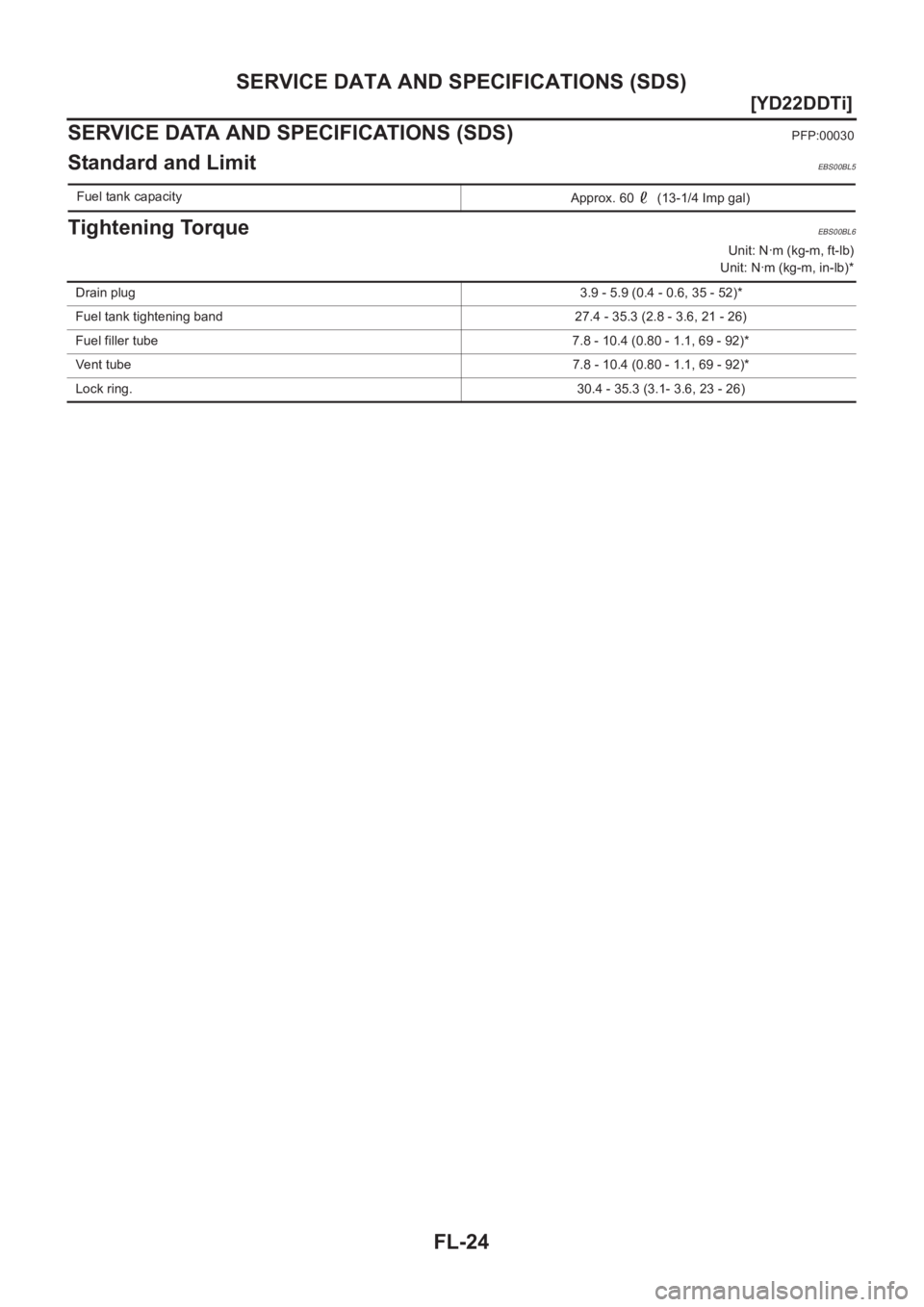

FL-24
[YD22DDTi]
SERVICE DATA AND SPECIFICATIONS (SDS)
SERVICE DATA AND SPECIFICATIONS (SDS)
PFP:00030
Standard and LimitEBS00BL5
Tightening TorqueEBS00BL6
Unit: N·m (kg-m, ft-lb)
Unit: N·m (kg-m, in-lb)* Fuel tank capacity
Approx. 60 (13-1/4 Imp gal)
Drain plug3.9 - 5.9 (0.4 - 0.6, 35 - 52)*
Fuel tank tightening band 27.4 - 35.3 (2.8 - 3.6, 21 - 26)
Fuel filler tube 7.8 - 10.4 (0.80 - 1.1, 69 - 92)*
Vent tube7.8 - 10.4 (0.80 - 1.1, 69 - 92)*
Lock ring.30.4 - 35.3 (3.1- 3.6, 23 - 26)
Page 1949 of 3833
EX-1
EXHAUST SYSTEM
B ENGINE
CONTENTS
C
D
E
F
G
H
I
J
K
L
M
SECTION
A
EX
EXHAUST SYSTEM
EXHAUST SYSTEM ................................................... 2
Checking Exhaust System ....................................... 2
Removal and Installation .......................................... 2
QR20DE AND QR25DE ........................................ 2
YD22DDTI ............................................................. 3
REMOVAL ............................................................. 3
INSTALLATION ..................................................... 3
INSPECTION AFTER INSTALLATION ................. 4SERVICE DATA AND SPECIFICATIONS (SDS) ........ 5
Tightening Torque ..................................................... 5
QR20DE AND QR25DE ........................................ 5
YD22DDTI ............................................................. 5
Page 1950 of 3833

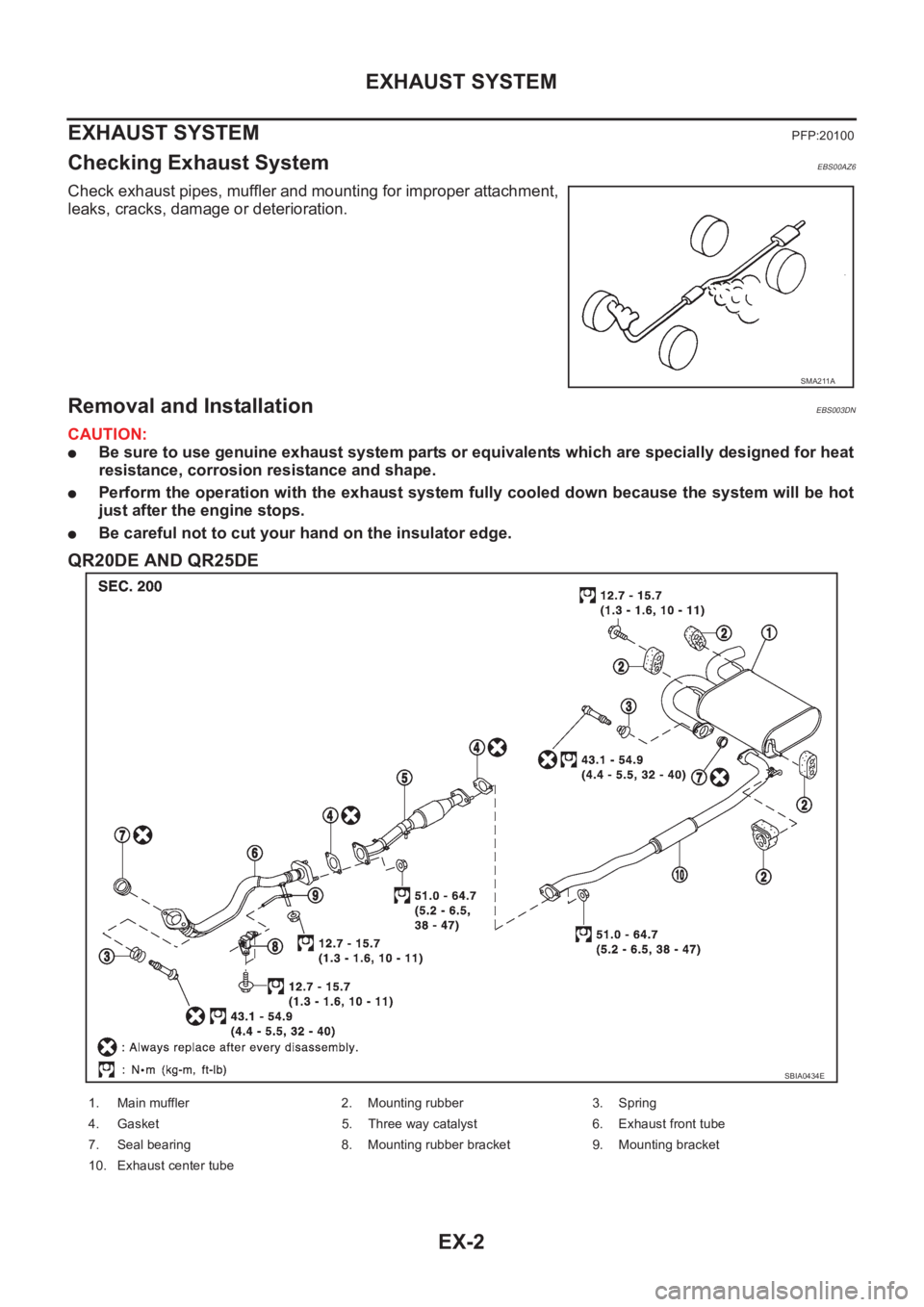

EX-2
EXHAUST SYSTEM
EXHAUST SYSTEM
PFP:20100
Checking Exhaust SystemEBS00AZ6
Check exhaust pipes, muffler and mounting for improper attachment,
leaks, cracks, damage or deterioration.
Removal and InstallationEBS003DN
CAUTION:
●Be sure to use genuine exhaust system parts or equivalents which are specially designed for heat
resistance, corrosion resistance and shape.
●Perform the operation with the exhaust system fully cooled down because the system will be hot
just after the engine stops.
●Be careful not to cut your hand on the insulator edge.
QR20DE AND QR25DE
SMA211A
SBIA0434E
1. Main muffler 2. Mounting rubber 3. Spring
4. Gasket 5. Three way catalyst 6. Exhaust front tube
7. Seal bearing 8. Mounting rubber bracket 9. Mounting bracket
10. Exhaust center tube
Page 1951 of 3833

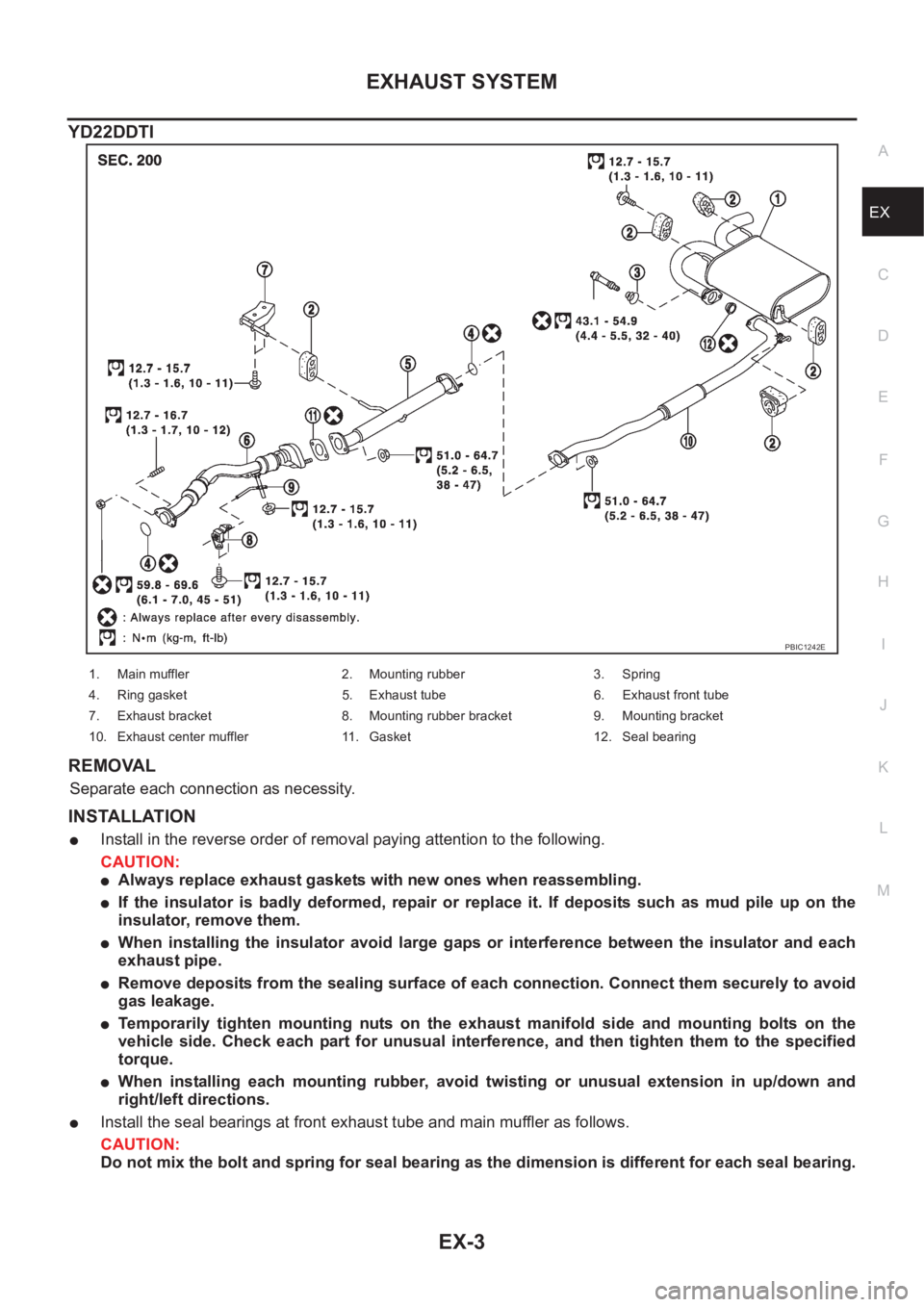

EXHAUST SYSTEM
EX-3
C
D
E
F
G
H
I
J
K
L
MA
EX
YD22DDTI
REMOVAL
Separate each connection as necessity.
INSTALLATION
●Install in the reverse order of removal paying attention to the following.
CAUTION:
●Always replace exhaust gaskets with new ones when reassembling.
●If the insulator is badly deformed, repair or replace it. If deposits such as mud pile up on the
insulator, remove them.
●When installing the insulator avoid large gaps or interference between the insulator and each
exhaust pipe.
●Remove deposits from the sealing surface of each connection. Connect them securely to avoid
gas leakage.
●Temporarily tighten mounting nuts on the exhaust manifold side and mounting bolts on the
vehicle side. Check each part for unusual interference, and then tighten them to the specified
torque.
●When installing each mounting rubber, avoid twisting or unusual extension in up/down and
right/left directions.
●Install the seal bearings at front exhaust tube and main muffler as follows.
CAUTION:
Do not mix the bolt and spring for seal bearing as the dimension is different for each seal bearing.
PBIC1242E
1. Main muffler 2. Mounting rubber 3. Spring
4. Ring gasket 5. Exhaust tube 6. Exhaust front tube
7. Exhaust bracket 8. Mounting rubber bracket 9. Mounting bracket
10. Exhaust center muffler 11. Gasket 12. Seal bearing
Page 1952 of 3833

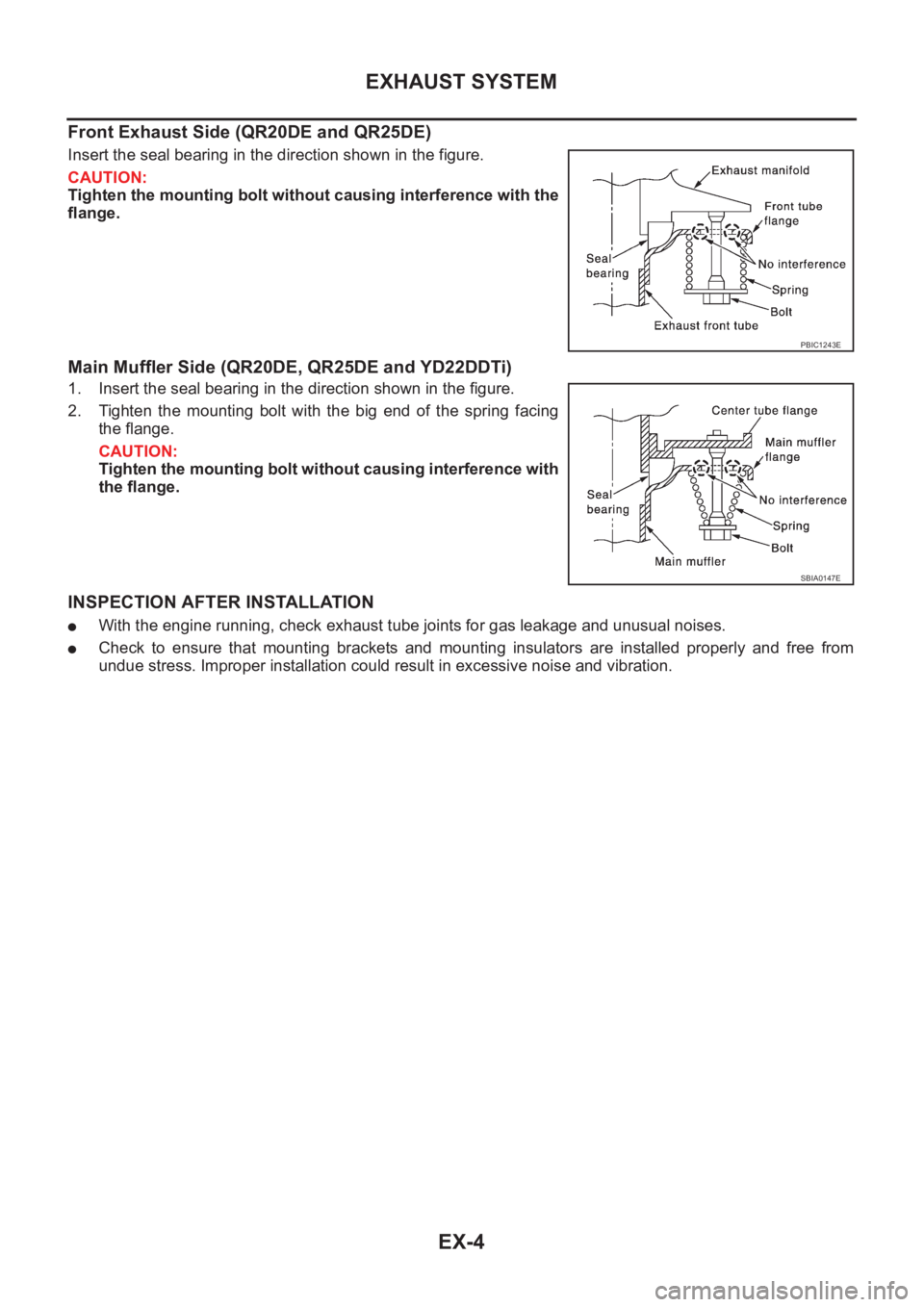

EX-4
EXHAUST SYSTEM
Front Exhaust Side (QR20DE and QR25DE)
Insert the seal bearing in the direction shown in the figure.
CAUTION:
Tighten the mounting bolt without causing interference with the
flange.
Main Muffler Side (QR20DE, QR25DE and YD22DDTi)
1. Insert the seal bearing in the direction shown in the figure.
2. Tighten the mounting bolt with the big end of the spring facing
the flange.
CAUTION:
Tighten the mounting bolt without causing interference with
the flange.
INSPECTION AFTER INSTALLATION
●With the engine running, check exhaust tube joints for gas leakage and unusual noises.
●Check to ensure that mounting brackets and mounting insulators are installed properly and free from
undue stress. Improper installation could result in excessive noise and vibration.
PBIC1243E
SBIA0147E
