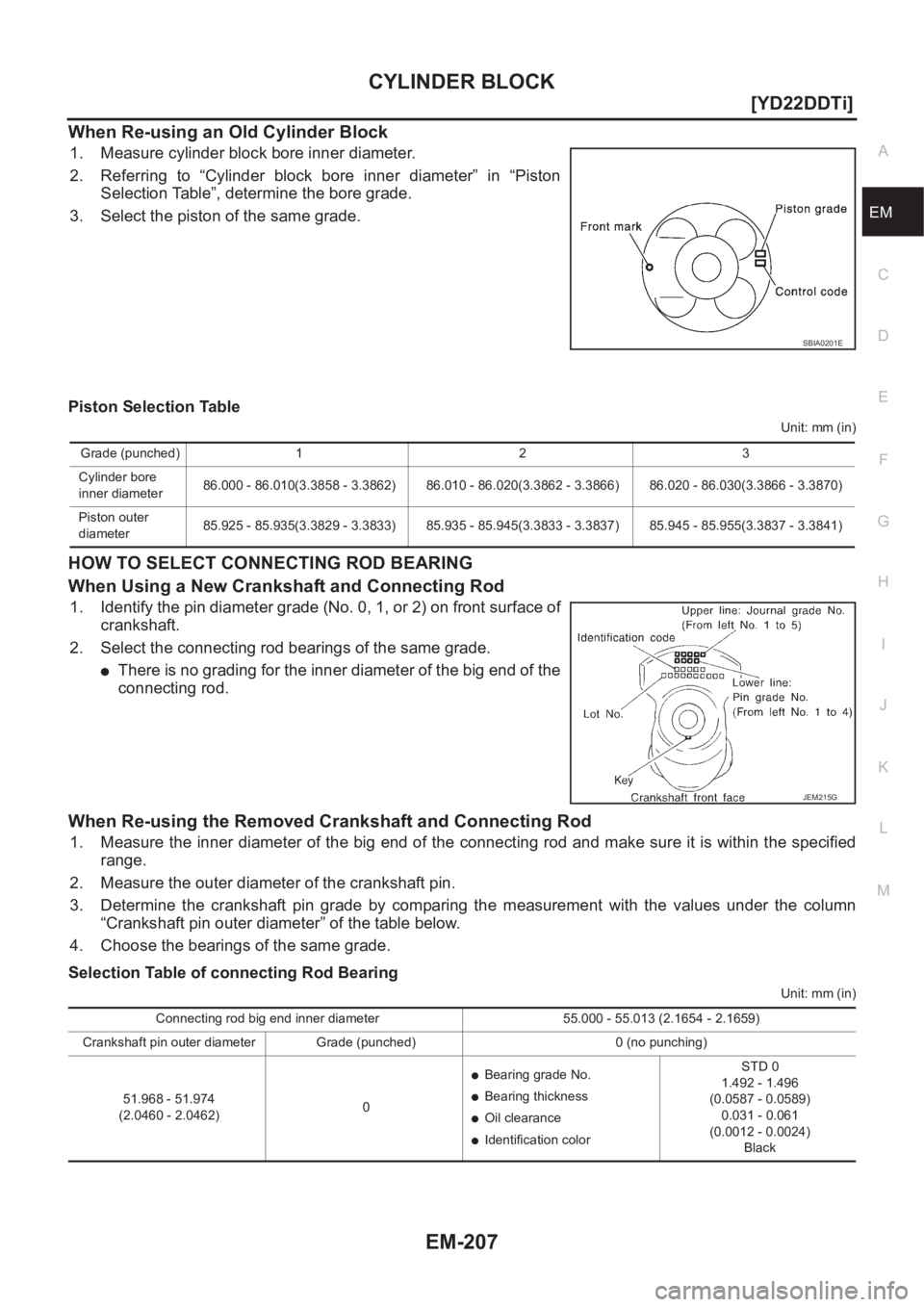

Page 257 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual CYLINDER BLOCK
EM-207
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM
When Re-using an Old Cylinder Block
1. Measure cylinder block bore inner diameter.
2. Referring to “Cylinder block bore inner diamete NISSAN X-TRAIL 2001 Service Repair Manual CYLINDER BLOCK
EM-207
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM
When Re-using an Old Cylinder Block
1. Measure cylinder block bore inner diameter.
2. Referring to “Cylinder block bore inner diamete](/manual-img/5/57405/w960_57405-256.png)
CYLINDER BLOCK
EM-207
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM
When Re-using an Old Cylinder Block
1. Measure cylinder block bore inner diameter.
2. Referring to “Cylinder block bore inner diameter” in “Piston
Selection Table”, determine the bore grade.
3. Select the piston of the same grade.
Piston Selection Table
Unit: mm (in)
HOW TO SELECT CONNECTING ROD BEARING
When Using a New Crankshaft and Connecting Rod
1. Identify the pin diameter grade (No. 0, 1, or 2) on front surface of
crankshaft.
2. Select the connecting rod bearings of the same grade.
●There is no grading for the inner diameter of the big end of the
connecting rod.
When Re-using the Removed Crankshaft and Connecting Rod
1. Measure the inner diameter of the big end of the connecting rod and make sure it is within the specified
range.
2. Measure the outer diameter of the crankshaft pin.
3. Determine the crankshaft pin grade by comparing the measurement with the values under the column
“Crankshaft pin outer diameter” of the table below.
4. Choose the bearings of the same grade.
Selection Table of connecting Rod Bearing
Unit: mm (in)
SBIA0201E
Grade (punched) 1 2 3
Cylinder bore
inner diameter86.000 - 86.010(3.3858 - 3.3862) 86.010 - 86.020(3.3862 - 3.3866) 86.020 - 86.030(3.3866 - 3.3870)
Piston outer
diameter85.925 - 85.935(3.3829 - 3.3833) 85.935 - 85.945(3.3833 - 3.3837) 85.945 - 85.955(3.3837 - 3.3841)
JEM215G
Connecting rod big end inner diameter 55.000 - 55.013 (2.1654 - 2.1659)
Crankshaft pin outer diameter Grade (punched) 0 (no punching)
51.968 - 51.974
(2.0460 - 2.0462)0
●Bearing grade No.
●Bearing thickness
●Oil clearance
●Identification colorSTD 0
1.492 - 1.496
(0.0587 - 0.0589)
0.031 - 0.061
(0.0012 - 0.0024)
Black

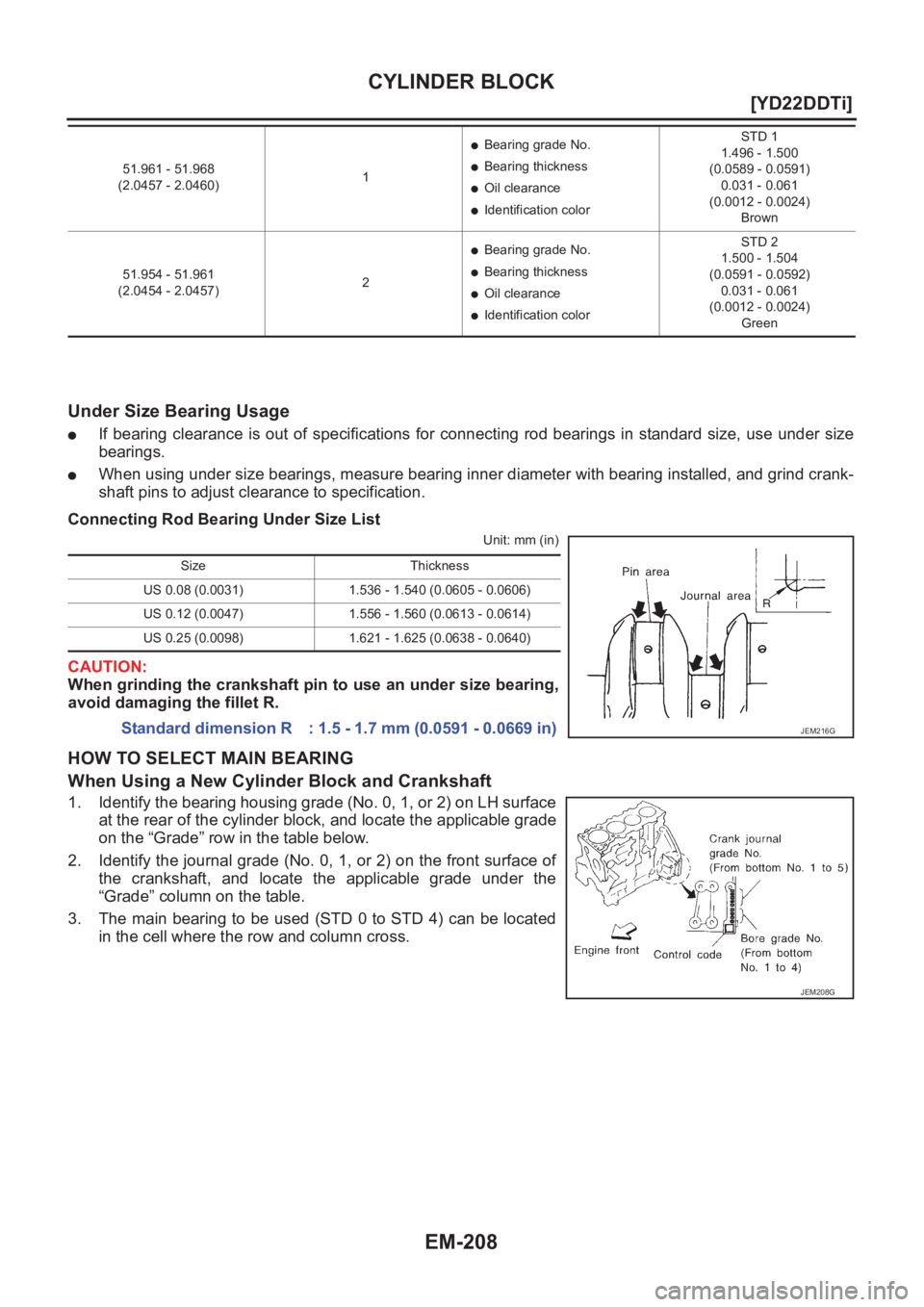

Page 258 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual EM-208
[YD22DDTi]
CYLINDER BLOCK
Under Size Bearing Usage
●If bearing clearance is out of specifications for connecting rod bearings in standard size, use under size
bearings.
●Whe NISSAN X-TRAIL 2001 Service Repair Manual EM-208
[YD22DDTi]
CYLINDER BLOCK
Under Size Bearing Usage
●If bearing clearance is out of specifications for connecting rod bearings in standard size, use under size
bearings.
●Whe](/manual-img/5/57405/w960_57405-257.png)
EM-208
[YD22DDTi]
CYLINDER BLOCK
Under Size Bearing Usage
●If bearing clearance is out of specifications for connecting rod bearings in standard size, use under size
bearings.
●When using under size bearings, measure bearing inner diameter with bearing installed, and grind crank-
shaft pins to adjust clearance to specification.
Connecting Rod Bearing Under Size List
Unit: mm (in)
CAUTION:
When grinding the crankshaft pin to use an under size bearing,
avoid damaging the fillet R.
HOW TO SELECT MAIN BEARING
When Using a New Cylinder Block and Crankshaft
1. Identify the bearing housing grade (No. 0, 1, or 2) on LH surface
at the rear of the cylinder block, and locate the applicable grade
on the “Grade” row in the table below.
2. Identify the journal grade (No. 0, 1, or 2) on the front surface of
the crankshaft, and locate the applicable grade under the
“Grade” column on the table.
3. The main bearing to be used (STD 0 to STD 4) can be located
in the cell where the row and column cross.
51.961 - 51.968
(2.0457 - 2.0460)1
●Bearing grade No.
●Bearing thickness
●Oil clearance
●Identification colorSTD 1
1.496 - 1.500
(0.0589 - 0.0591)
0.031 - 0.061
(0.0012 - 0.0024)
Brown
51.954 - 51.961
(2.0454 - 2.0457)2
●Bearing grade No.
●Bearing thickness
●Oil clearance
●Identification colorSTD 2
1.500 - 1.504
(0.0591 - 0.0592)
0.031 - 0.061
(0.0012 - 0.0024)
Green
Size Thickness
US 0.08 (0.0031) 1.536 - 1.540 (0.0605 - 0.0606)
US 0.12 (0.0047) 1.556 - 1.560 (0.0613 - 0.0614)
US 0.25 (0.0098) 1.621 - 1.625 (0.0638 - 0.0640)
Standard dimension R : 1.5 - 1.7 mm (0.0591 - 0.0669 in)JEM216G
JEM208G
Page 259 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual CYLINDER BLOCK
EM-209
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM
When Re-using Removed Cylinder Block and Crankshaft
1. Measure the inner diameter of cylinder block main bearing hous-
ing.
2. Locate the a NISSAN X-TRAIL 2001 Service Repair Manual CYLINDER BLOCK
EM-209
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM
When Re-using Removed Cylinder Block and Crankshaft
1. Measure the inner diameter of cylinder block main bearing hous-
ing.
2. Locate the a](/manual-img/5/57405/w960_57405-258.png)
CYLINDER BLOCK
EM-209
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM
When Re-using Removed Cylinder Block and Crankshaft
1. Measure the inner diameter of cylinder block main bearing hous-
ing.
2. Locate the applicable cell where the measurement falls, on
“Inner diameter of Cylinder block main bearing housing” row on
the table.
3. Measure the outer diameter of the crankshaft journal.
4. Locate the applicable cell where the measurement falls, under
“Crankshaft journal outer diameter” column on the table.
5. The main bearing to be used (STD 0 to STD 4) can be located in
the cell where the row and column cross.
Main Bearing Grade Table
Unit: mm (in)
Under Size Bearing Usage
●If bearing clearance is out of specifications for main bearings in standard size, use under size bearings.
●When using under size bearings, measure bearing inner diameter with bearing installed, and grind crank-
shaft journals to adjust clearance to specification.
JEM215G
Inner diameter of Cylinder block main bearing housing66.654 - 66.663
(2.6242 - 2.6245)66.663 - 66.672
(2.6245 - 2.6249)66.672 - 66.681
(2.6249 - 2.6252)
Crankshaft journal
outer diameterGrade
(punched)012
62.967 - 62.975
(2.4790 - 2.4793)0
●Bearing grade No.
●Bearing thickness
●Oil clearance
●Identification colorSTD 0
1.816 - 1.820
(0.0715 - 0.0717)
0.039 - 0.066
(0.0015 - 0.0026)
BlackSTD 1
1.820 - 1.824
(0.0717 - 0.0718)
0.039 - 0.066
(0.0015 - 0.0026)
BrownSTD 2
1.824 - 1.828
(0.0718 - 0.0720)
0.039 - 0.066
(0.0015 - 0.0026)
Green
62.959 - 62.967
(2.4787 - 2.6790)1
●Bearing grade No.
●Bearing thickness
●Oil clearance
●Identification colorSTD 1
1.820 - 1.824
(0.0717 - 0.0718)
0.039 - 0.066
(0.0015 - 0.0026)
BrownSTD 2
1.824 - 1.828
(0.0718 - 0.0720)
0.039 - 0.066
(0.0015 - 0.0026)
GreenSTD 3
1.828 - 1.832
(0.0720 - 0.0721)
0.039 - 0.066
(0.0015 - 0.0026)
Ye l l o w
62.951 - 62.959
(2.4784 - 2.4787)2
●Bearing grade No.
●Bearing thickness
●Oil clearance
●Identification colorSTD 2
1.824 - 1.828
(0.0718 - 0.0720)
0.039 - 0.066
(0.0015 - 0.0026)
GreenSTD 3
1.828 - 1.832
(0.0720 - 0.0721)
0.039 - 0.066
(0.0015 - 0.0026)
Ye l l o wSTD 4
1.832 - 1.836
(0.0721 - 0.0723)
0.039 - 0.066
(0.0015 - 0.0026)
Blue

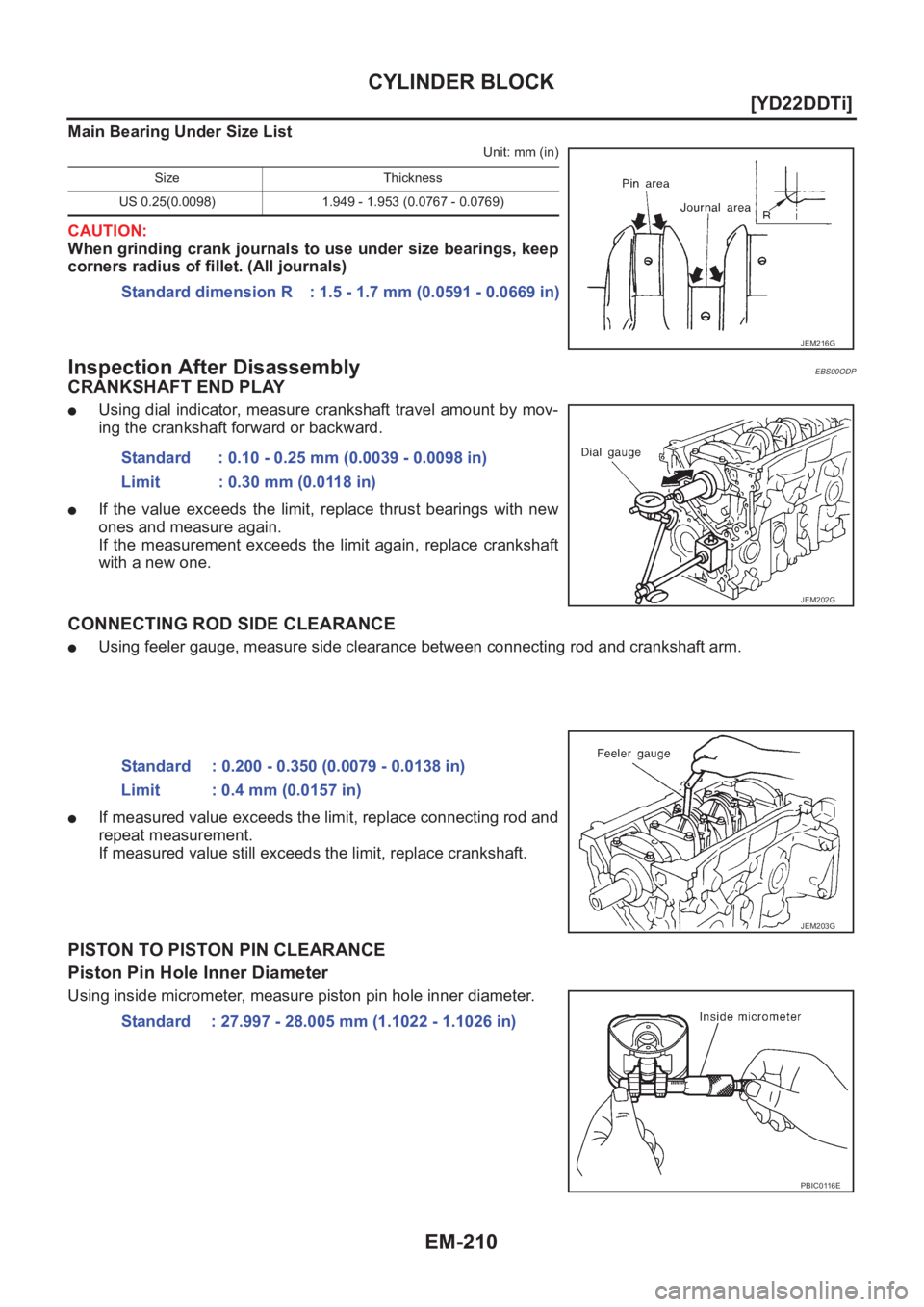

Page 260 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual EM-210
[YD22DDTi]
CYLINDER BLOCK
Main Bearing Under Size List
Unit: mm (in)
CAUTION:
When grinding crank journals to use under size bearings, keep
corners radius of fillet. (All journals)
Inspection NISSAN X-TRAIL 2001 Service Repair Manual EM-210
[YD22DDTi]
CYLINDER BLOCK
Main Bearing Under Size List
Unit: mm (in)
CAUTION:
When grinding crank journals to use under size bearings, keep
corners radius of fillet. (All journals)
Inspection](/manual-img/5/57405/w960_57405-259.png)
EM-210
[YD22DDTi]
CYLINDER BLOCK
Main Bearing Under Size List
Unit: mm (in)
CAUTION:
When grinding crank journals to use under size bearings, keep
corners radius of fillet. (All journals)
Inspection After DisassemblyEBS00ODP
CRANKSHAFT END PLAY
●Using dial indicator, measure crankshaft travel amount by mov-
ing the crankshaft forward or backward.
●If the value exceeds the limit, replace thrust bearings with new
ones and measure again.
If the measurement exceeds the limit again, replace crankshaft
with a new one.
CONNECTING ROD SIDE CLEARANCE
●Using feeler gauge, measure side clearance between connecting rod and crankshaft arm.
●If measured value exceeds the limit, replace connecting rod and
repeat measurement.
If measured value still exceeds the limit, replace crankshaft.
PISTON TO PISTON PIN CLEARANCE
Piston Pin Hole Inner Diameter
Using inside micrometer, measure piston pin hole inner diameter.
Size Thickness
US 0.25(0.0098) 1.949 - 1.953 (0.0767 - 0.0769)
Standard dimension R : 1.5 - 1.7 mm (0.0591 - 0.0669 in)
JEM216G
Standard : 0.10 - 0.25 mm (0.0039 - 0.0098 in)
Limit : 0.30 mm (0.0118 in)
JEM202G
Standard : 0.200 - 0.350 (0.0079 - 0.0138 in)
Limit : 0.4 mm (0.0157 in)
JEM203G
Standard : 27.997 - 28.005 mm (1.1022 - 1.1026 in)
PBIC0116E

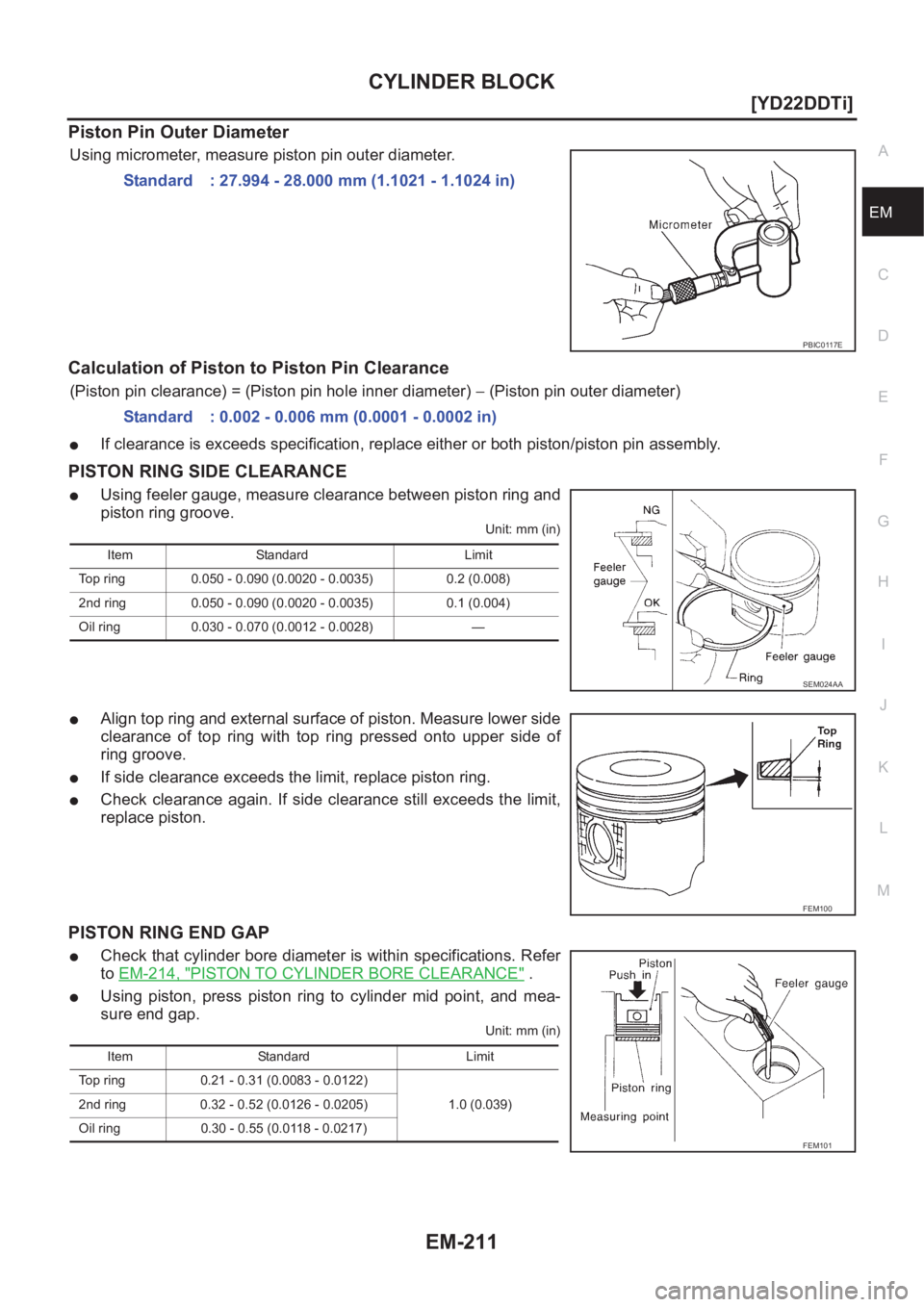

Page 261 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual CYLINDER BLOCK
EM-211
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM
Piston Pin Outer Diameter
Using micrometer, measure piston pin outer diameter.
Calculation of Piston to Piston Pin Clearance
(Piston pin clea NISSAN X-TRAIL 2001 Service Repair Manual CYLINDER BLOCK
EM-211
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM
Piston Pin Outer Diameter
Using micrometer, measure piston pin outer diameter.
Calculation of Piston to Piston Pin Clearance
(Piston pin clea](/manual-img/5/57405/w960_57405-260.png)
CYLINDER BLOCK
EM-211
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM
Piston Pin Outer Diameter
Using micrometer, measure piston pin outer diameter.
Calculation of Piston to Piston Pin Clearance
(Piston pin clearance) = (Piston pin hole inner diameter) − (Piston pin outer diameter)
●If clearance is exceeds specification, replace either or both piston/piston pin assembly.
PISTON RING SIDE CLEARANCE
●Using feeler gauge, measure clearance between piston ring and
piston ring groove.
Unit: mm (in)
●Align top ring and external surface of piston. Measure lower side
clearance of top ring with top ring pressed onto upper side of
ring groove.
●If side clearance exceeds the limit, replace piston ring.
●Check clearance again. If side clearance still exceeds the limit,
replace piston.
PISTON RING END GAP
●Check that cylinder bore diameter is within specifications. Refer
to EM-214, "

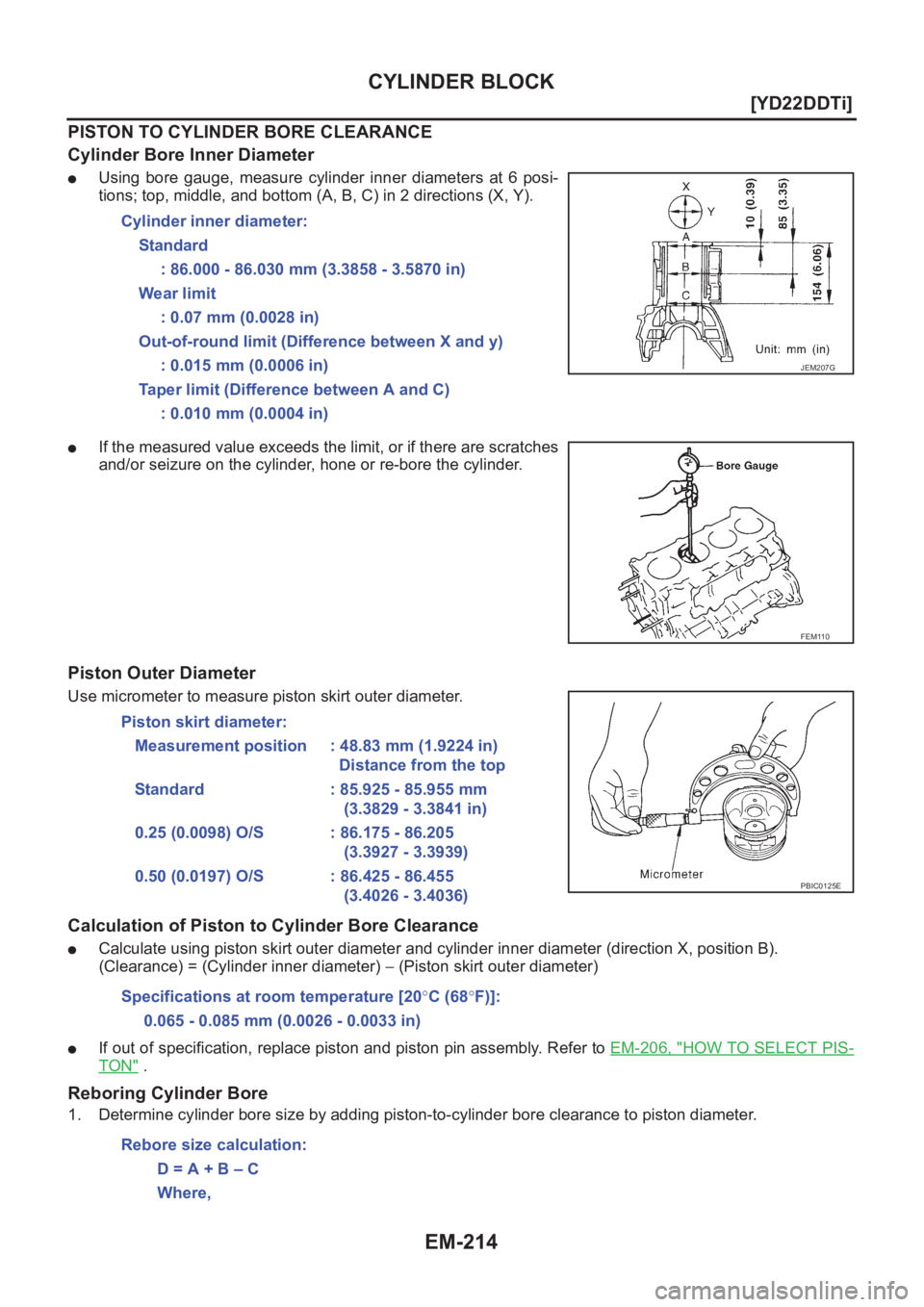

PISTON TO CYLINDER BORE CLEARANCE" .
●Using piston, press piston ring to cylinder mid point, and mea-
sure end gap.
Unit: mm (in)
Standard : 27.994 - 28.000 mm (1.1021 - 1.1024 in)
PBIC0117E
Standard : 0.002 - 0.006 mm (0.0001 - 0.0002 in)
Item Standard Limit
Top ring 0.050 - 0.090 (0.0020 - 0.0035) 0.2 (0.008)
2nd ring 0.050 - 0.090 (0.0020 - 0.0035) 0.1 (0.004)
Oil ring 0.030 - 0.070 (0.0012 - 0.0028) —
SEM024AA
FEM100
Item Standard Limit
Top ring 0.21 - 0.31 (0.0083 - 0.0122)
1.0 (0.039) 2nd ring 0.32 - 0.52 (0.0126 - 0.0205)
Oil ring 0.30 - 0.55 (0.0118 - 0.0217)
FEM101
Page 262 of 3833

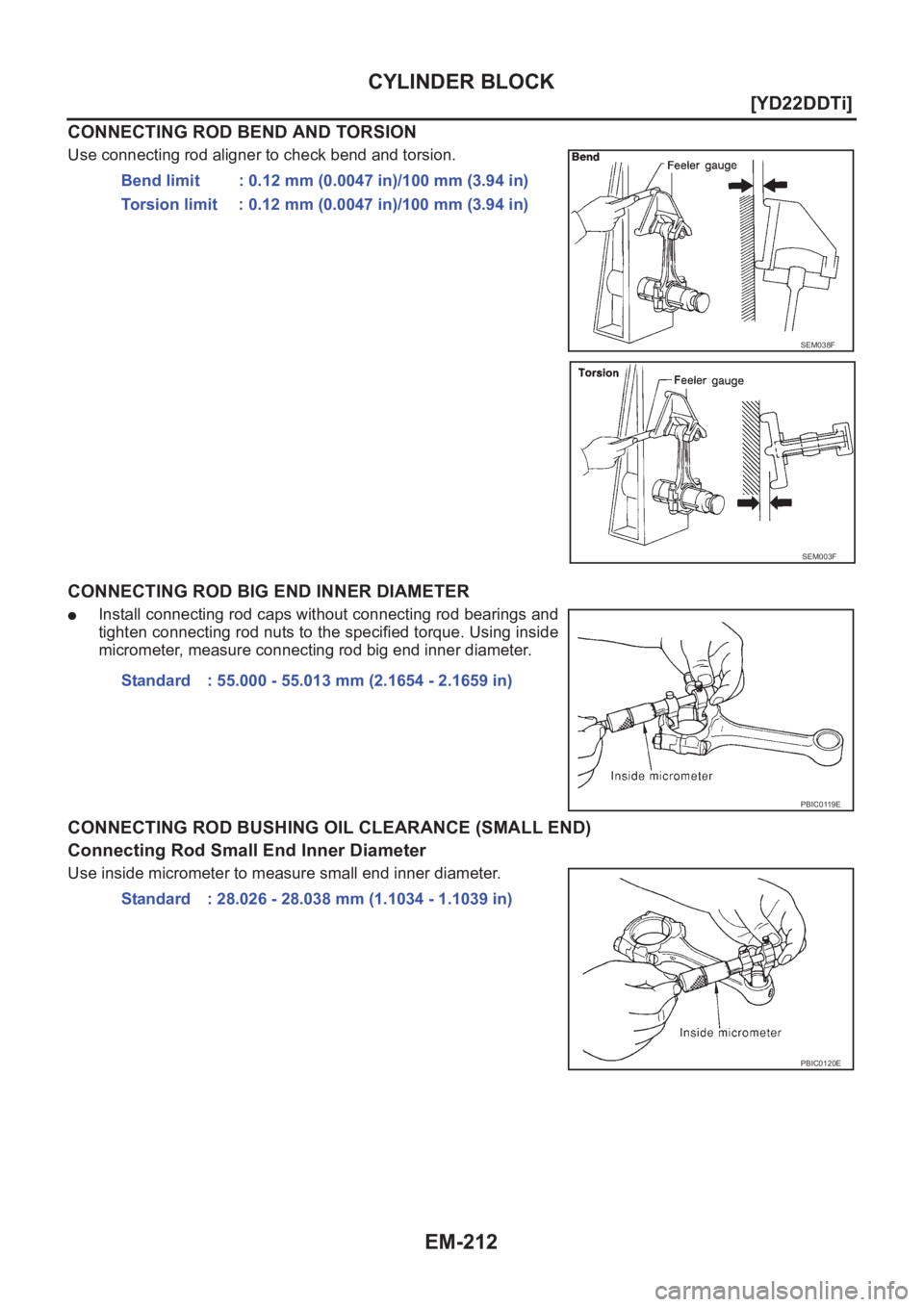

EM-212
[YD22DDTi]
CYLINDER BLOCK
CONNECTING ROD BEND AND TORSION
Use connecting rod aligner to check bend and torsion.
CONNECTING ROD BIG END INNER DIAMETER
●Install connecting rod caps without connecting rod bearings and
tighten connecting rod nuts to the specified torque. Using inside
micrometer, measure connecting rod big end inner diameter.
CONNECTING ROD BUSHING OIL CLEARANCE (SMALL END)
Connecting Rod Small End Inner Diameter
Use inside micrometer to measure small end inner diameter.Bend limit : 0.12 mm (0.0047 in)/100 mm (3.94 in)
Torsion limit : 0.12 mm (0.0047 in)/100 mm (3.94 in)
SEM038F
SEM003F
Standard : 55.000 - 55.013 mm (2.1654 - 2.1659 in)
PBIC0119E
Standard : 28.026 - 28.038 mm (1.1034 - 1.1039 in)
PBIC0120E
Page 263 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual CYLINDER BLOCK
EM-213
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM
Piston Pin Outer Diameter
Use micrometer to measure piston pin outer diameter.
Calculation of Connecting Rod Bushing Clearance
(Connecting ro NISSAN X-TRAIL 2001 Service Repair Manual CYLINDER BLOCK
EM-213
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM
Piston Pin Outer Diameter
Use micrometer to measure piston pin outer diameter.
Calculation of Connecting Rod Bushing Clearance
(Connecting ro](/manual-img/5/57405/w960_57405-262.png)
CYLINDER BLOCK
EM-213
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM
Piston Pin Outer Diameter
Use micrometer to measure piston pin outer diameter.
Calculation of Connecting Rod Bushing Clearance
(Connecting rod small end bushing clearance) = (Connecting rod small end inner diameter) − (Piston pin outer
diameter)
●If out of specifications, replace connecting rod and/or piston and piston pin assembly. Refer to EM-207,
"HOW TO SELECT CONNECTING ROD BEARING" .
CYLINDER BLOCK TOP SURFACE DISTORTION
●Using scraper, remove gasket installed onto cylinder block sur-
face. Remove contamination such as engine oil, scale, and car-
bon.
CAUTION:
Keep broken pieces of gasket clear of engine oil and engine
coolant passages.
●Use straightedge and feeler gauge to check block upper surface
for distortion.
MAIN BEARING HOUSING INNER DIAMETER
●Without installing main bearings, install main bearing caps, and
tighten bolts to the specified torque.
●Measure the inner diameter of main bearing housing with a bore
gauge.
●If the measurement is out of the specified range, replace cylin-
der block and main bearing caps.Standard : 27.994 - 28.000 mm (1.1021 - 1.1024 in)
PBIC0117E
Standard : 0.026 - 0.044 mm (0.0010 - 0.0017 in)
Limit : 0.057 mm (0.0022 in)
Limit : 0.1 mm (0.004 in)
SEM501G
Standard : 66.654 - 66.681 mm (2.6242 - 2.6252 in)
JEM214G
Page 264 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual EM-214
[YD22DDTi]
CYLINDER BLOCK
PISTON TO CYLINDER BORE CLEARANCE
Cylinder Bore Inner Diameter
●Using bore gauge, measure cylinder inner diameters at 6 posi-
tions; top, middle, and bottom NISSAN X-TRAIL 2001 Service Repair Manual EM-214
[YD22DDTi]
CYLINDER BLOCK
PISTON TO CYLINDER BORE CLEARANCE
Cylinder Bore Inner Diameter
●Using bore gauge, measure cylinder inner diameters at 6 posi-
tions; top, middle, and bottom](/manual-img/5/57405/w960_57405-263.png)
EM-214
[YD22DDTi]
CYLINDER BLOCK
PISTON TO CYLINDER BORE CLEARANCE
Cylinder Bore Inner Diameter
●Using bore gauge, measure cylinder inner diameters at 6 posi-
tions; top, middle, and bottom (A, B, C) in 2 directions (X, Y).
●If the measured value exceeds the limit, or if there are scratches
and/or seizure on the cylinder, hone or re-bore the cylinder.
Piston Outer Diameter
Use micrometer to measure piston skirt outer diameter.
Calculation of Piston to Cylinder Bore Clearance
●Calculate using piston skirt outer diameter and cylinder inner diameter (direction X, position B).
(Clearance) = (Cylinder inner diameter) − (Piston skirt outer diameter)
●If out of specification, replace piston and piston pin assembly. Refer to EM-206, "HOW TO SELECT PIS-
TON" .
Reboring Cylinder Bore
1. Determine cylinder bore size by adding piston-to-cylinder bore clearance to piston diameter. Cylinder inner diameter:
Standard
: 86.000 - 86.030 mm (3.3858 - 3.5870 in)
Wear limit
: 0.07 mm (0.0028 in)
Out-of-round limit (Difference between X and y)
: 0.015 mm (0.0006 in)
Taper limit (Difference between A and C)
: 0.010 mm (0.0004 in)
JEM207G
FEM110
Piston skirt diameter:
Measurement position : 48.83 mm (1.9224 in)
Distance from the top
Standard : 85.925 - 85.955 mm
(3.3829 - 3.3841 in)
0.25 (0.0098) O/S : 86.175 - 86.205
(3.3927 - 3.3939)
0.50 (0.0197) O/S : 86.425 - 86.455
(3.4026 - 3.4036)
PBIC0125E
Specifications at room temperature [20°C (68°F)]:
0.065 - 0.085 mm (0.0026 - 0.0033 in)
Rebore size calculation:
D = A + B – C
Where,
