Page 2601 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual SERVICE DATA AND SPECIFICATIONS (SDS)
AT-523
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT

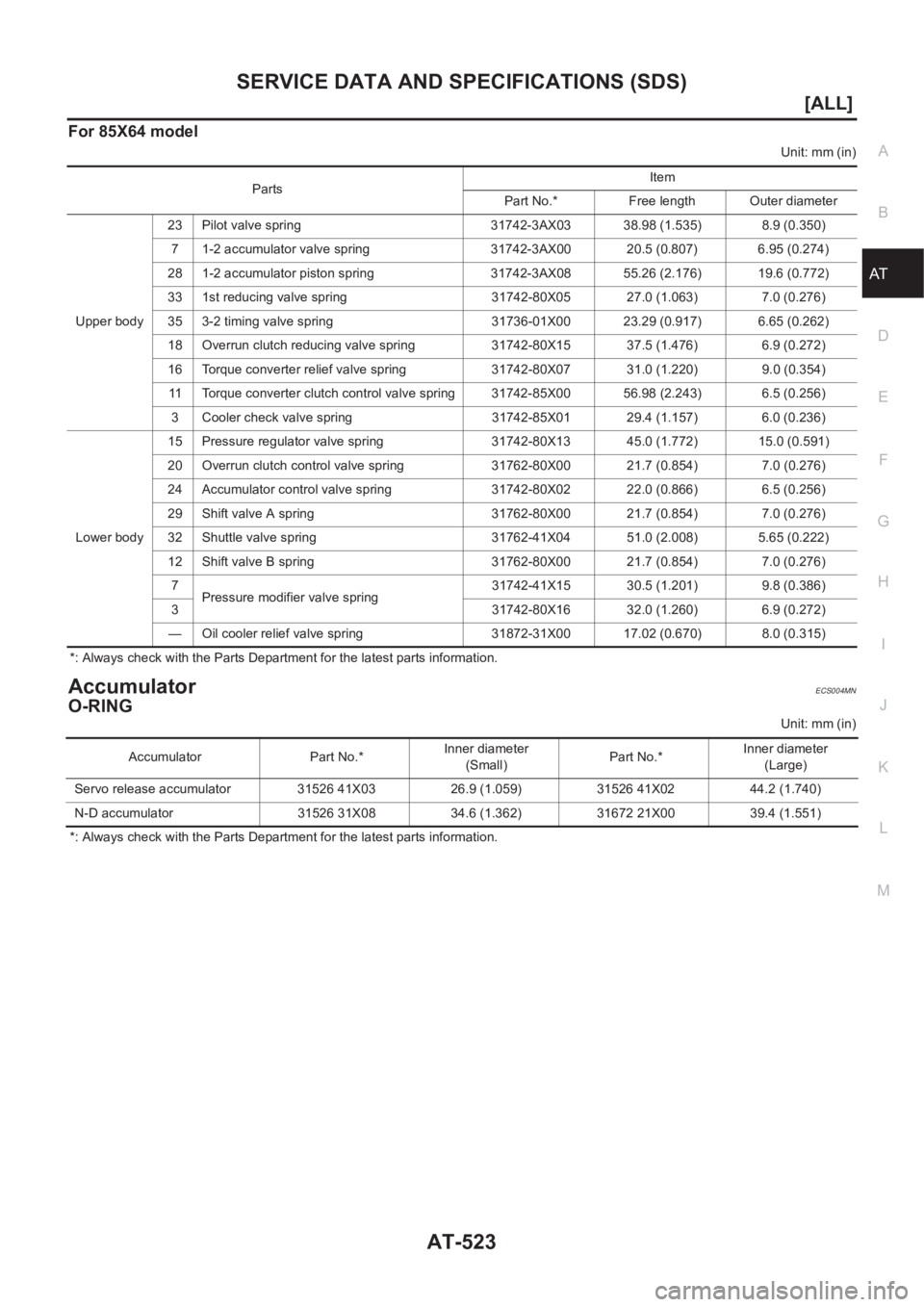

For 85X64 model
Unit: mm (in)
*: Always check with the Parts Department for the latest parts information.
AccumulatorECS004

Page 2602 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual AT-524
[ALL]
SERVICE DATA AND SPECIFICATIONS (SDS)

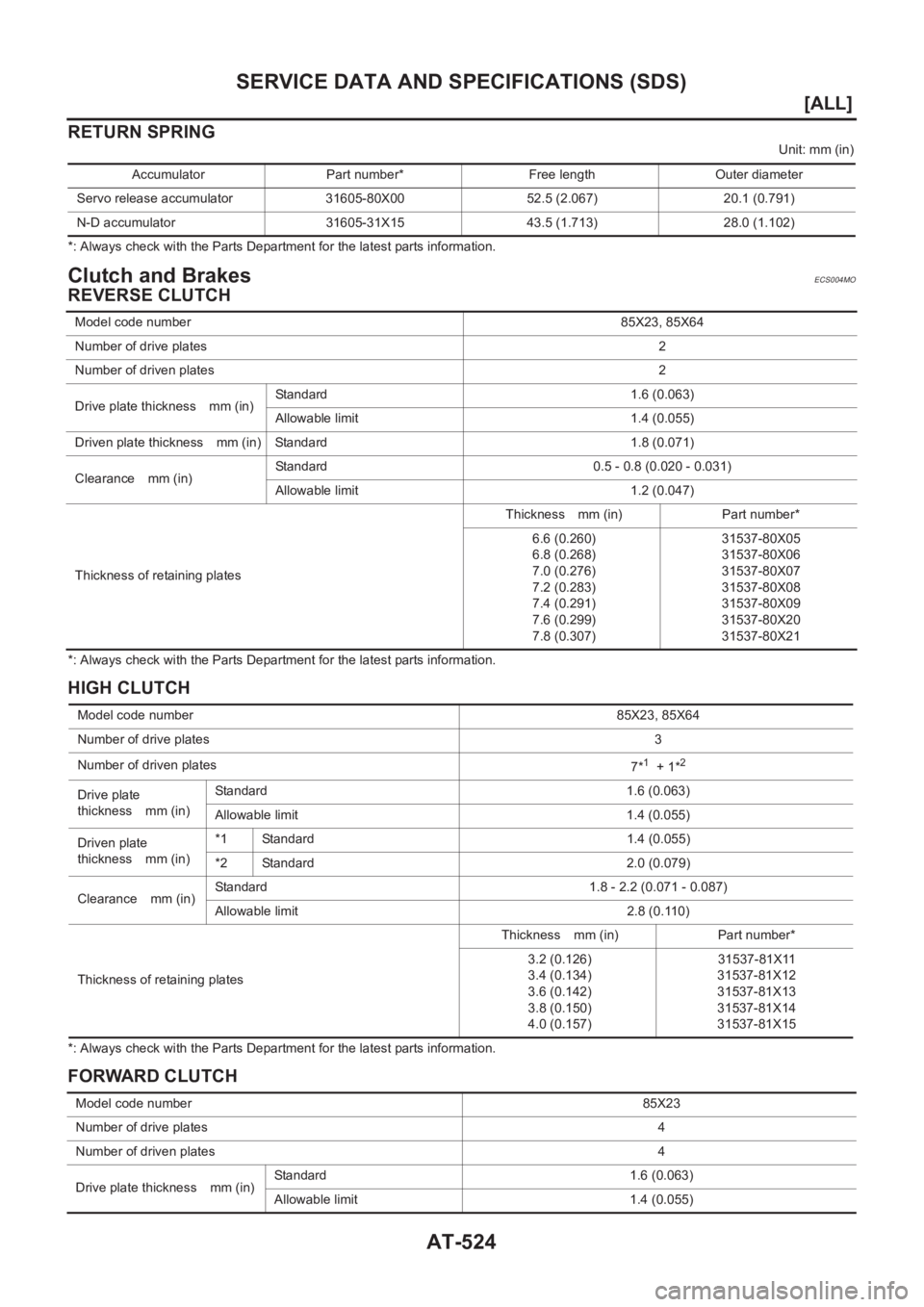

RETURN SPRING
Unit: mm (in)
*: Always check with the Parts Department for the latest parts information.
Clutch and BrakesECS004MO
REVERSE CLUTCH
*: A

Page 2603 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual SERVICE DATA AND SPECIFICATIONS (SDS)
AT-525
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT

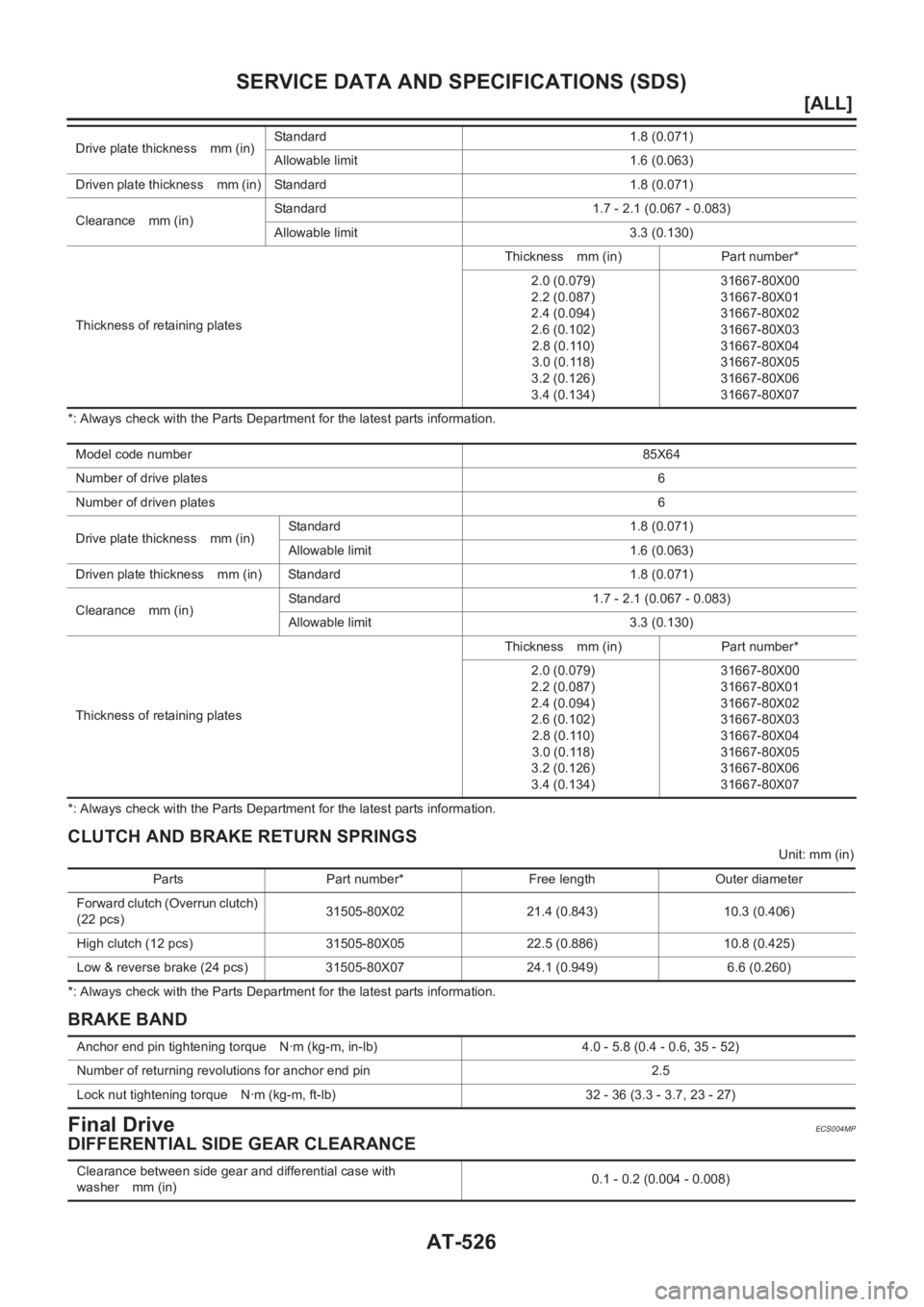

*: Always check with the Parts Department for the latest parts information.
*: Always check with the Parts Department for t

Page 2604 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual AT-526
[ALL]
SERVICE DATA AND SPECIFICATIONS (SDS)

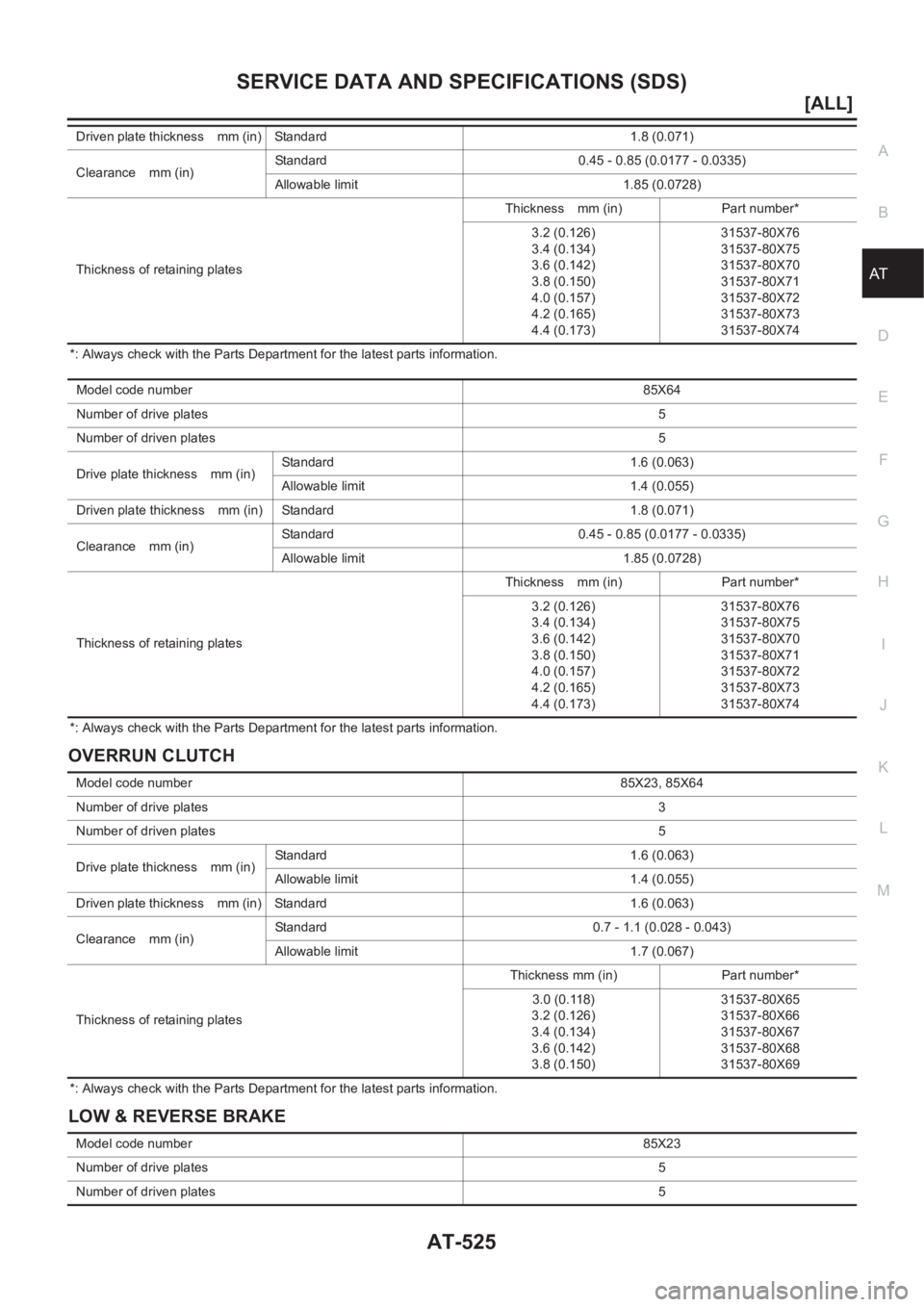

*: Always check with the Parts Department for the latest parts information.
*: Always check with the Parts Department for the latest parts informatio

Page 2605 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual SERVICE DATA AND SPECIFICATIONS (SDS)
AT-527
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT

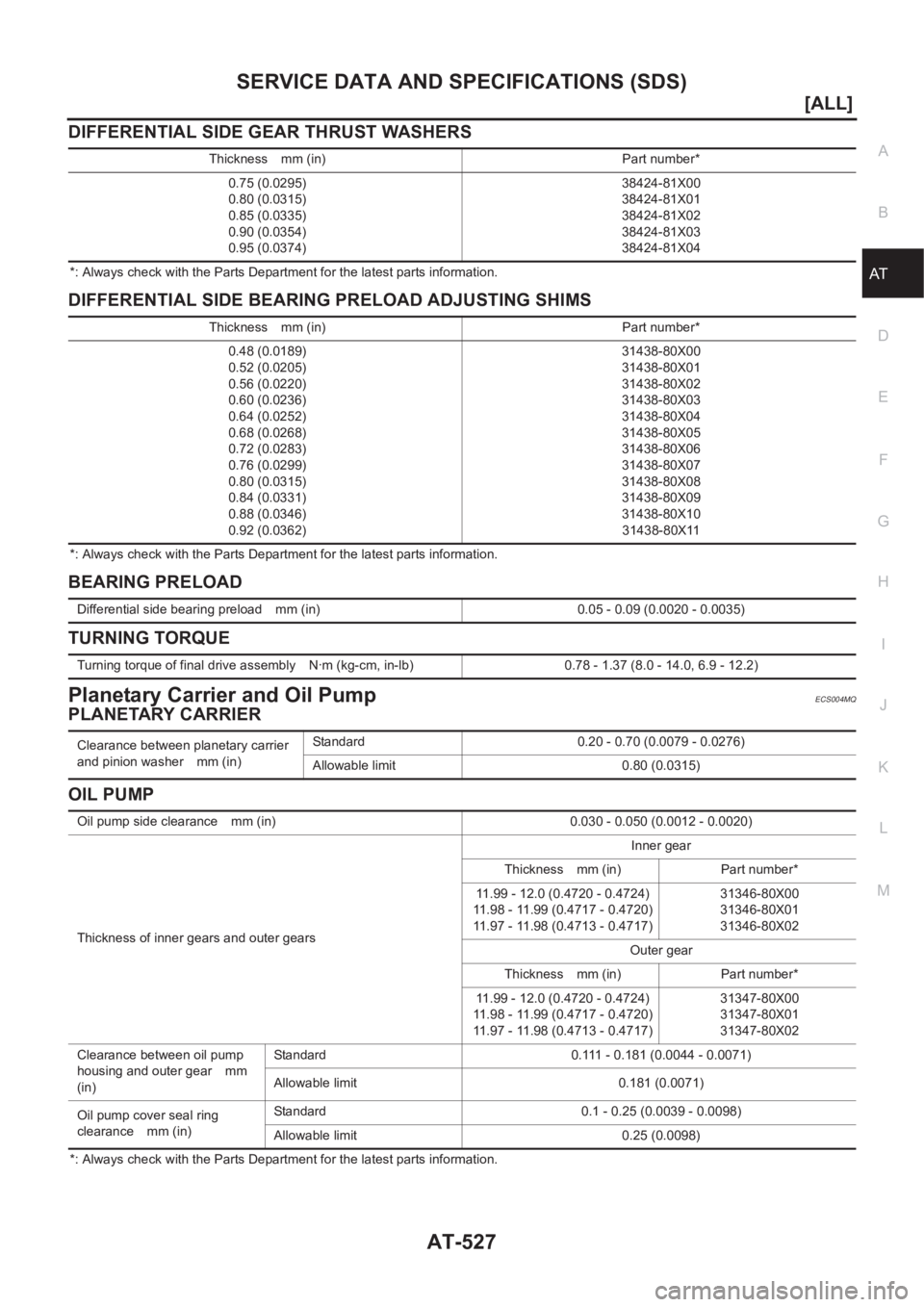

DIFFERENTIAL SIDE GEAR THRUST WASHERS
*: Always check with the Parts Department for the latest parts information.
DIFFERENT

Page 2606 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual AT-528
[ALL]
SERVICE DATA AND SPECIFICATIONS (SDS)
Input Shaft
ECS004MR
SEAL RING CLEARANCE
SEAL RING
*: Always check with the Parts Department for the latest parts information.
Reduction Pinion Gear

AT-528
[ALL]
SERVICE DATA AND SPECIFICATIONS (SDS)
Input Shaft
ECS004MR
SEAL RING CLEARANCE
SEAL RING
*: Always check with the Parts Department for the latest parts information.
Reduction Pinion GearECS004MS
TURNING TORQUE
REDUCTION PINION GEAR BEARING ADJUSTING SHIMS
Input shaft seal ring clearance mm
(in)Standard 0.08 - 0.23 (0.0031 - 0.0091)
Allowable limit 0.23 (0.0091)
Outer diameter mm (in) 1nner diameter mm (in) Width mm (in) Part number*
26 (1.024) 22.4 (0.882) 1.97 (0.078) 31525 80X02
Turning torque of reduction pinion gear N·m (kg-cm, in-lb) 0.05 - 0.39 (0.5 - 4.0, 0.43 - 3.47)
NO. Thickness mm (in) Part number NO. Thickness mm (in) Part number*
1 5.00 (0.1969) 31439-81X00 33 5.64 (0.2220) 31439-81X63
2 5.02 (0.1976) 31439-81X01 34 5.66 (0.2228) 31439-81X64
3 5.04 (0.1984) 31439-81X02 35 5.68 (0.2236) 31439-81X65
4 5.06 (0.1992) 31439-81X03 36 5.70 (0.2244) 31439-81X66
5 5.08 (0.2000) 31439-81X04 37 5.72 (0.2252) 31439-81X67
6 5.10 (0.2008) 31439-81X05 38 5.74 (0.2260) 31439-81X68
7 5.12 (0.2016) 31439-81X06 39 5.76 (0.2268) 31439-81X69
8 5.14 (0.2024) 31439-81X07 40 5.78 (0.2276) 31439-81X70
9 5.16 (0.2031) 31439-81X08 41 5.80 (0.2283) 31439-81X71
10 5.18 (0.2039) 31439-81X09 42 5.82 (0.2291) 31439-81X72
11 5.20 (0.2047) 31439-81X10 43 5.84 (0.2299) 31439-81X73
12 5.22 (0.2055) 31439-81X11 44 5.86 (0.2307) 31439-81X74
13 5.24 (0.2063) 31439-81X12 45 4.60 (0.1811) 31439-85X01
14 5.26 (0.2071) 31439-81X13 46 4.62 (0.1819) 31439-85X02
15 5.28 (0.2079) 31439-81X14 47 4.64 (0.1827) 31439-85X03
16 5.30 (0.2087) 31439-81X15 48 4.66 (0.1835) 31439-85X04
17 5.32 (0.2094) 31439-81X16 49 4.68 (0.1843) 31439 85X05
18 5.34 (0.2102) 31439-81X17 50 4.70 (0.1850) 31439 85X06
19 5.36 (0.2110) 31439-81X18 51 4.72 (0.1858) 31439 83X11
20 5.38 (0.2118) 31439-81X19 52 4.74 (0.1866) 31439 83X12
21 5.40 (0.2126) 31439-81X20 53 4.76 (0.1874) 31439 83X13
22 5.42 (0.2134) 31439-81X21 54 4.78 (0.1882) 31439 83X14
23 5.44 (0.2142) 31439-81X22 55 4.80 (0.1890) 31439 83X15
24 5.46 (0.2150) 31439-81X23 56 4.82 (0.1898) 31439 83X16
25 5.48 (0.2157) 31439-81X24 57 4.84 (0.1906) 31439 83X17
26 5.50 (0.2165) 31439-81X46 58 4.86 (0.1913) 31439 83X18
27 5.52 (0.2173) 31439-81X47 59 4.88 (0.1921) 31439 83X19
28 5.54 (0.2181) 31439-81X48 60 4.90 (0.1929) 31439 83X20
29 5.56 (0.2189) 31439-81X49 61 4.92 (0.1937) 31439 83X21
30 5.58 (0.2197) 31439-81X60 62 4.94 (0.1945) 31439 83X22
31 5.60 (0.2205) 31439-81X61 63 4.96 (0.1953) 31439 83X23
32 5.62 (0.2213) 31439-81X62 64 4.98 (0.1961) 31439 83X24

Page 2607 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual SERVICE DATA AND SPECIFICATIONS (SDS)
AT-529
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT

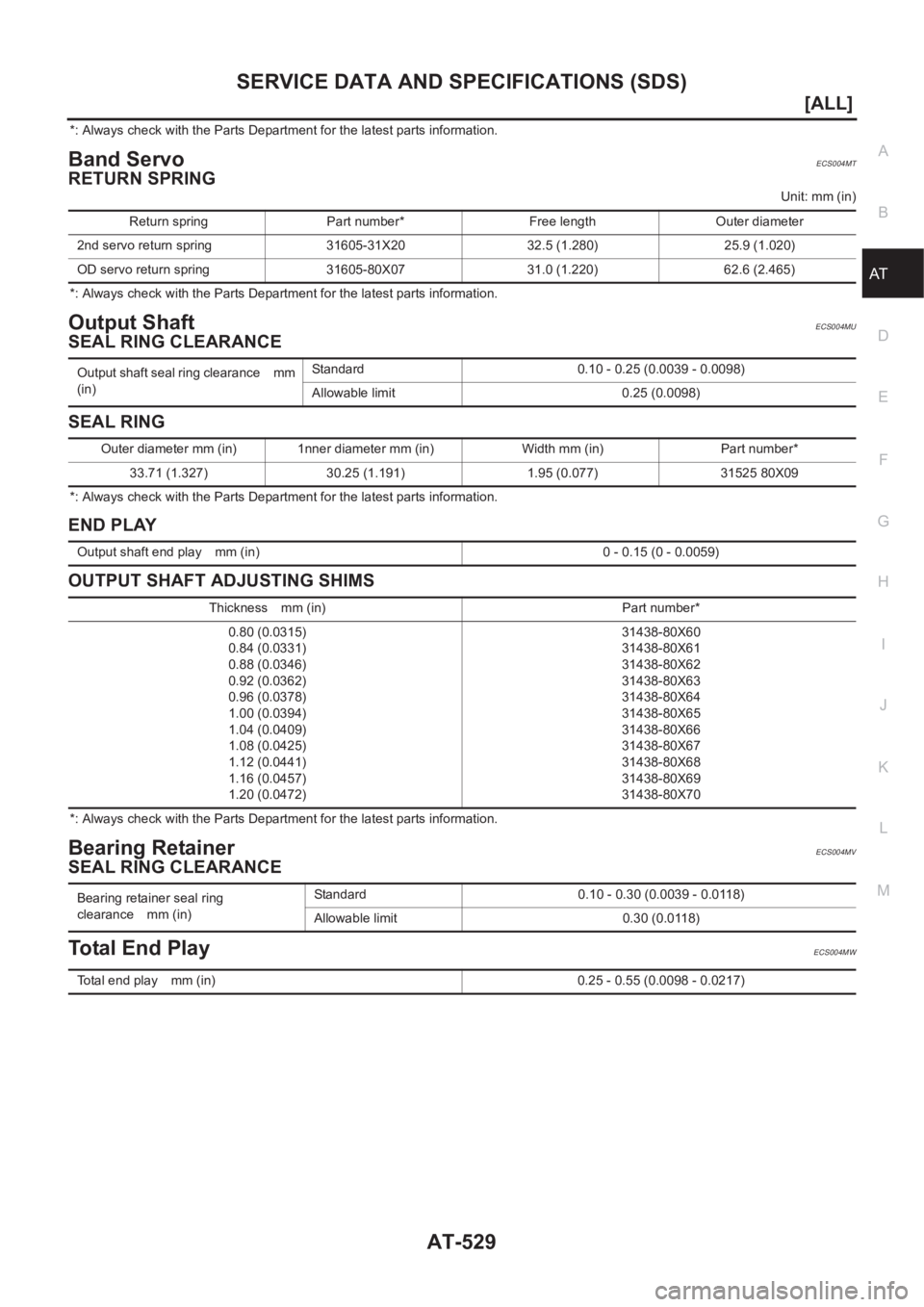

*: Always check with the Parts Department for the latest parts information.
Band ServoECS004MT
RETURN SPRING
Unit: mm (in)

Page 2608 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual AT-530
[ALL]
SERVICE DATA AND SPECIFICATIONS (SDS)
BEARING RACE FOR ADJUSTING TOTAL END PLAY
*: Always check with the Parts Department for the latest parts information.
Reverse Clutch End PlayECS004MX
