Page 697 of 3833
DTC P1706 PNP SWITCH
EC-347
[QR25(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

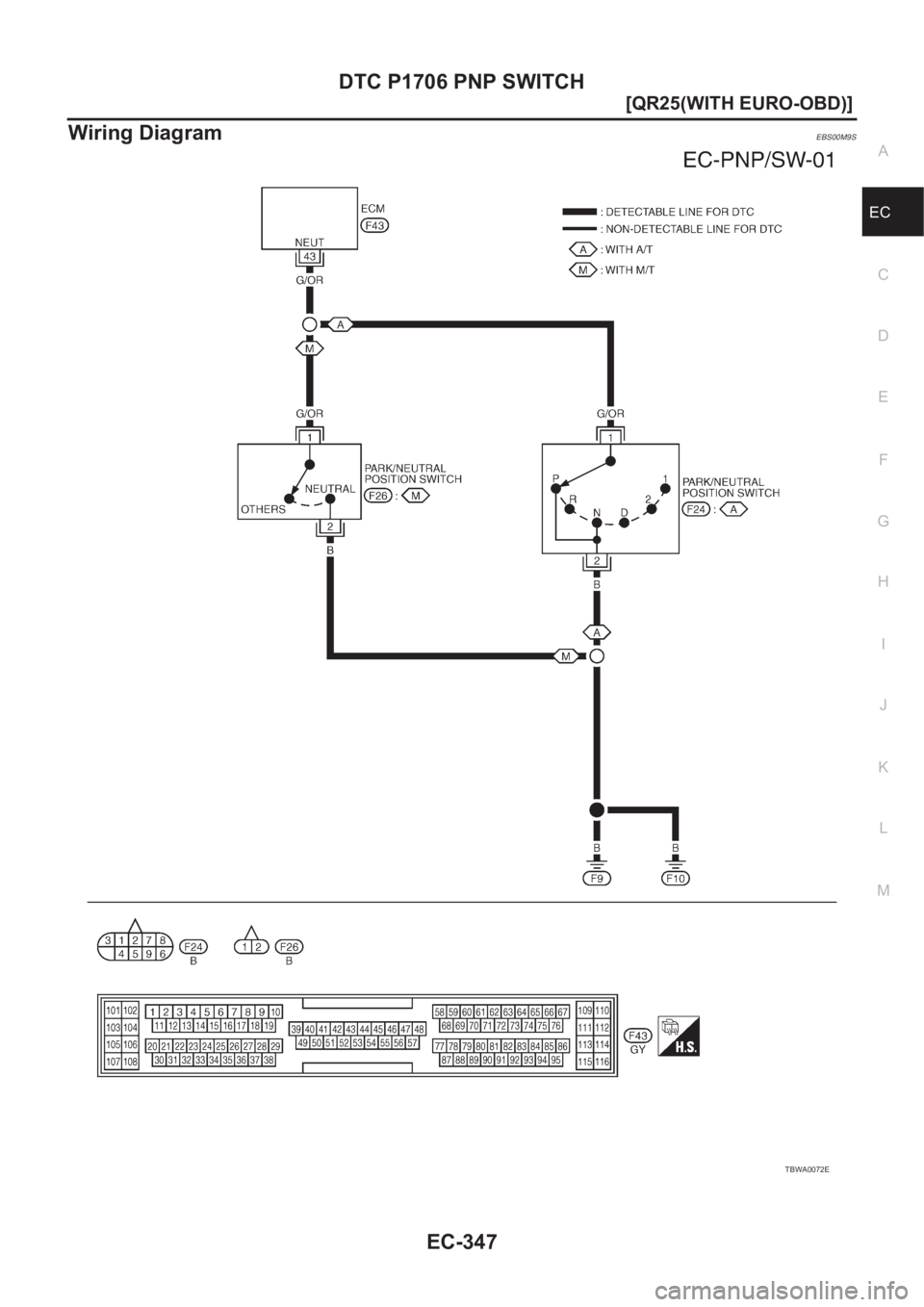

Wiring DiagramEBS00M9S
TBWA0072E
Page 698 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual EC-348
[QR25(WITH EURO-OBD)]
DTC P1706 PNP SWITCH
Diagnostic Procedure
EBS00M9T
1. CHECK PNP SWITCH GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch “OFF”.
2. Disconnect PNP switch harnes NISSAN X-TRAIL 2001 Service Repair Manual EC-348
[QR25(WITH EURO-OBD)]
DTC P1706 PNP SWITCH
Diagnostic Procedure
EBS00M9T
1. CHECK PNP SWITCH GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch “OFF”.
2. Disconnect PNP switch harnes](/manual-img/5/57405/w960_57405-697.png)

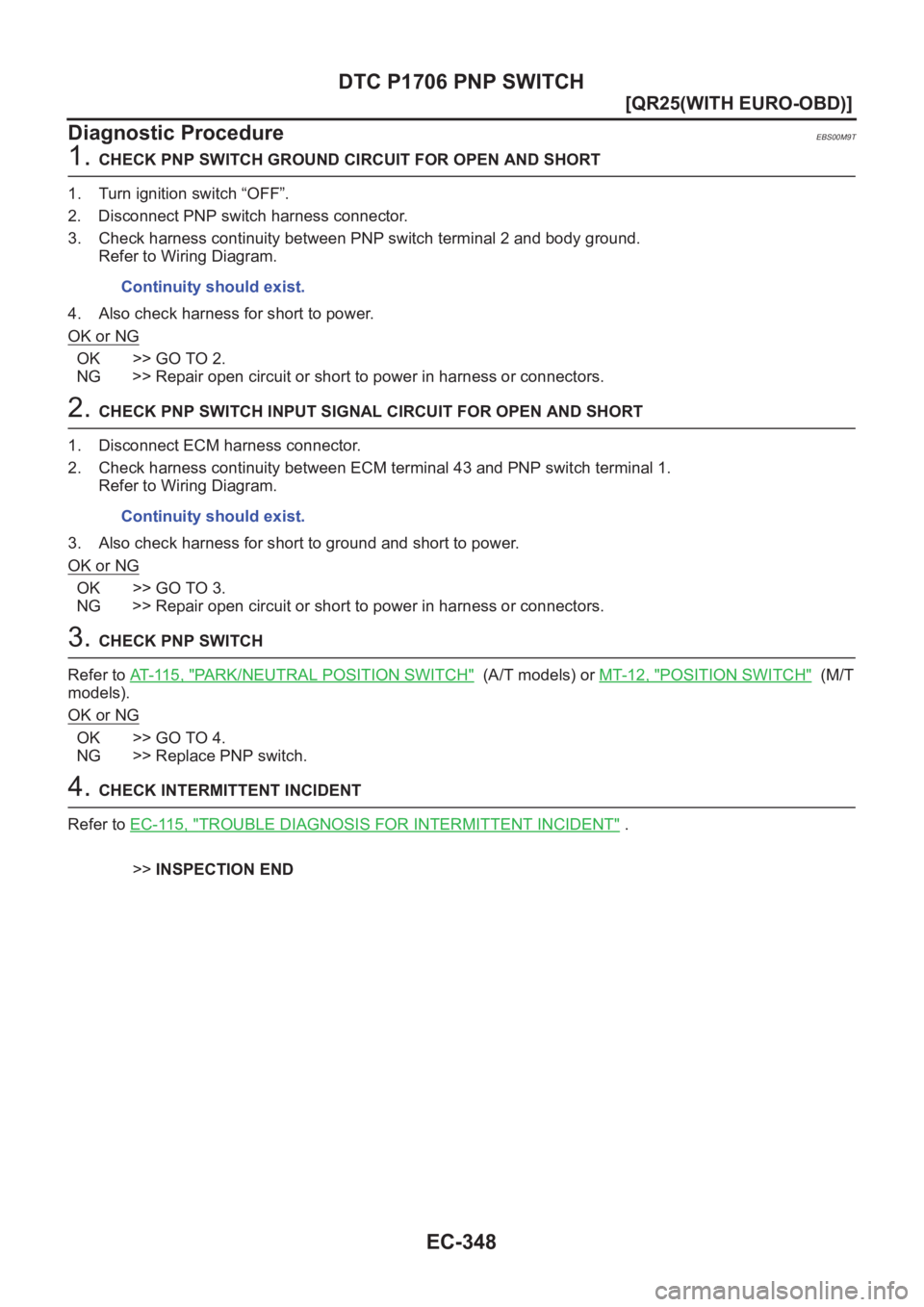

EC-348
[QR25(WITH EURO-OBD)]
DTC P1706 PNP SWITCH
Diagnostic Procedure
EBS00M9T
1. CHECK PNP SWITCH GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch “OFF”.
2. Disconnect PNP switch harness connector.
3. Check harness continuity between PNP switch terminal 2 and body ground.
Refer to Wiring Diagram.
4. Also check harness for short to power.
OK or NG
OK >> GO TO 2.
NG >> Repair open circuit or short to power in harness or connectors.
2. CHECK PNP SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminal 43 and PNP switch terminal 1.
Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 3.
NG >> Repair open circuit or short to power in harness or connectors.
3. CHECK PNP SWITCH
Refer to AT-115, "
PARK/NEUTRAL POSITION SWITCH" (A/T models) or MT-12, "POSITION SWITCH" (M/T
models).
OK or NG
OK >> GO TO 4.
NG >> Replace PNP switch.
4. CHECK INTERMITTENT INCIDENT
Refer to EC-115, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END Continuity should exist.
Continuity should exist.
Page 699 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual DTC P1805 BRAKE SWITCH
EC-349
[QR25(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC P1805 BRAKE SWITCHPFP:25320
DescriptionEBS00M9U
Brake switch signal is applied to the ECM through the stop l NISSAN X-TRAIL 2001 Service Repair Manual DTC P1805 BRAKE SWITCH
EC-349
[QR25(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC P1805 BRAKE SWITCHPFP:25320
DescriptionEBS00M9U
Brake switch signal is applied to the ECM through the stop l](/manual-img/5/57405/w960_57405-698.png)
DTC P1805 BRAKE SWITCH
EC-349
[QR25(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC P1805 BRAKE SWITCHPFP:25320
DescriptionEBS00M9U
Brake switch signal is applied to the ECM through the stop lamp switch when the brake pedal is depressed.
This signal is used mainly to decrease the engine speed when the vehicle is driving.
CONSULT-II Reference Value in Data Monitor ModeEBS00M9V
Specification data are reference values.
ECM Terminals and Reference ValueEBS00M9W
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
On Board Diagnosis LogicEBS00M9X
The MI will not light up for this diagnosis.
FAIL-SAFE MODE
When the malfunction is detected, the ECM enters in fail-safe mode.
DTC Confirmation ProcedureEBS00M9Y
WITH CONSULT-II
1. Turn ignition switch “ON”.
2. Fully depress the brake pedal for at least 5 seconds.
3. Erase the DTC with CONSULT-II.
MONITOR ITEM CONDITION SPECIFICATION
BRAKE SW
●Ignition switch: ONBrake pedal: Fully released OFF
Brake pedal: Slightly depressed ON
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
40 P Stop lamp switch[Engine is running]
●Brake pedal releasedApproximately 0V
[Engine is running]
●Brake pedal depressedBATTERY VOLTAGE
(11 - 14V)
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1805
1805Brake switchA brake switch signal is not sent to ECM for an
extremely long time while the vehicle is driving.
●Harness or connectors
(Stop lamp switch circuit is open or
shorted.)
●Stop lamp switch
Engine operation condition in fail-fail safe mode
ECM controls the electric throttle control actuator by regulating the throttle opening to a small range.Therefore,acceleration will be
poor.
Vehicle condition Driving condition
When engine is idlingNormal
When acceleratingPoor acceleration
Page 700 of 3833
EC-350
[QR25(WITH EURO-OBD)]
DTC P1805 BRAKE SWITCH
4. Select “DATA MONITOR” mode with CONSULT-II.
5. If 1st trip DTC is detected, go to EC-352, "
Diagnostic Procedure"
.
WITH GST
Follow the procedure “WITH CONSULT-II” above.
SEF058Y
Page 701 of 3833
DTC P1805 BRAKE SWITCH
EC-351
[QR25(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

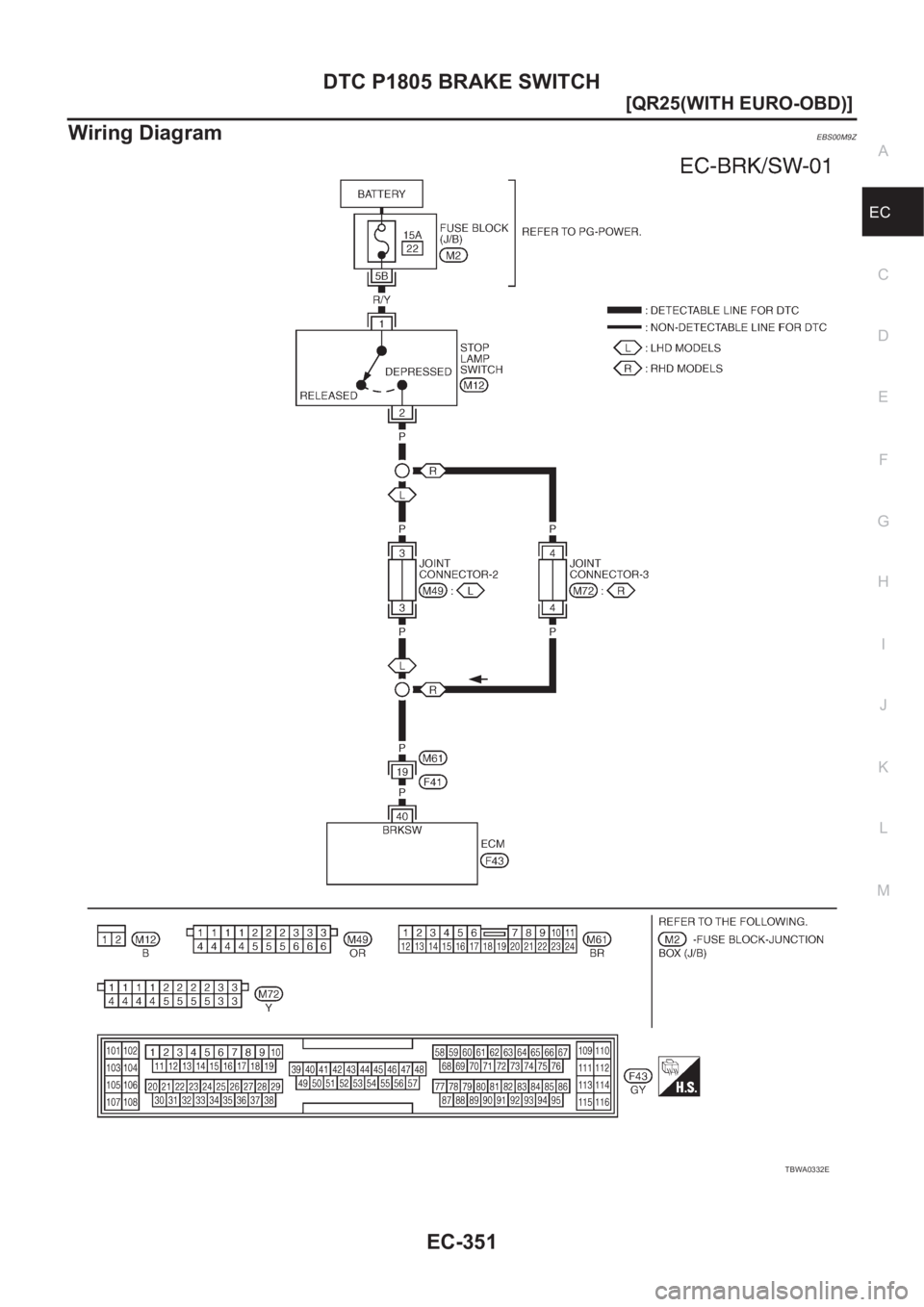

Wiring DiagramEBS00M9Z
TBWA0332E
Page 702 of 3833

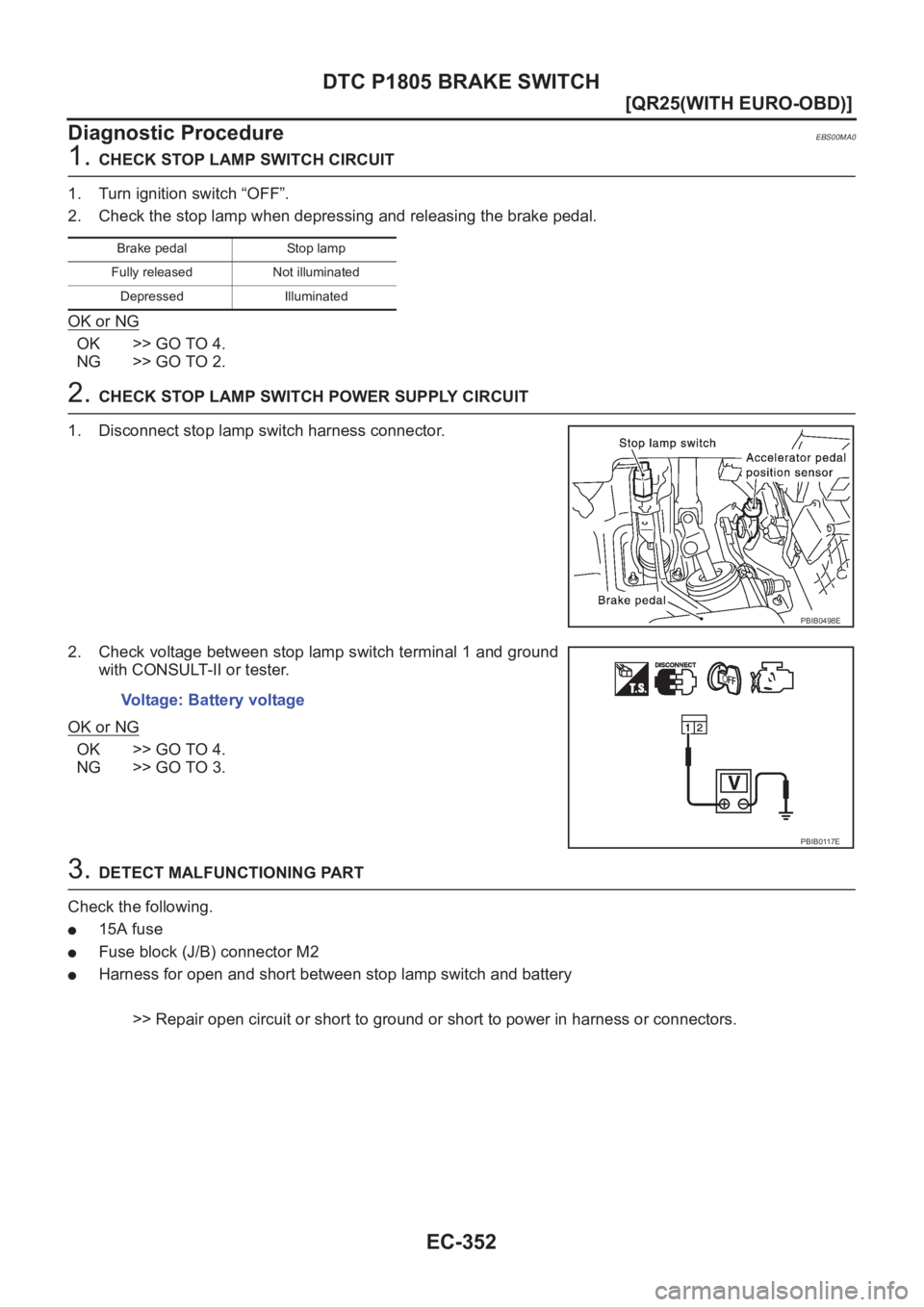

EC-352
[QR25(WITH EURO-OBD)]
DTC P1805 BRAKE SWITCH
Diagnostic Procedure
EBS00MA0
1. CHECK STOP LAMP SWITCH CIRCUIT
1. Turn ignition switch “OFF”.
2. Check the stop lamp when depressing and releasing the brake pedal.
OK or NG
OK >> GO TO 4.
NG >> GO TO 2.
2. CHECK STOP LAMP SWITCH POWER SUPPLY CIRCUIT
1. Disconnect stop lamp switch harness connector.
2. Check voltage between stop lamp switch terminal 1 and ground
with CONSULT-II or tester.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
3. DETECT MALFUNCTIONING PART
Check the following.
●15A fuse
●Fuse block (J/B) connector M2
●Harness for open and short between stop lamp switch and battery
>> Repair open circuit or short to ground or short to power in harness or connectors.
Brake pedal Stop lamp
Fully released Not illuminated
Depressed Illuminated
PBIB0498E
Voltage: Battery voltage
PBIB0117E
Page 703 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual DTC P1805 BRAKE SWITCH
EC-353
[QR25(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
4.CHECK STOP LAMP SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Disconnect ECM harness connector.
2. Check harness con NISSAN X-TRAIL 2001 Service Repair Manual DTC P1805 BRAKE SWITCH
EC-353
[QR25(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
4.CHECK STOP LAMP SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Disconnect ECM harness connector.
2. Check harness con](/manual-img/5/57405/w960_57405-702.png)
DTC P1805 BRAKE SWITCH
EC-353
[QR25(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

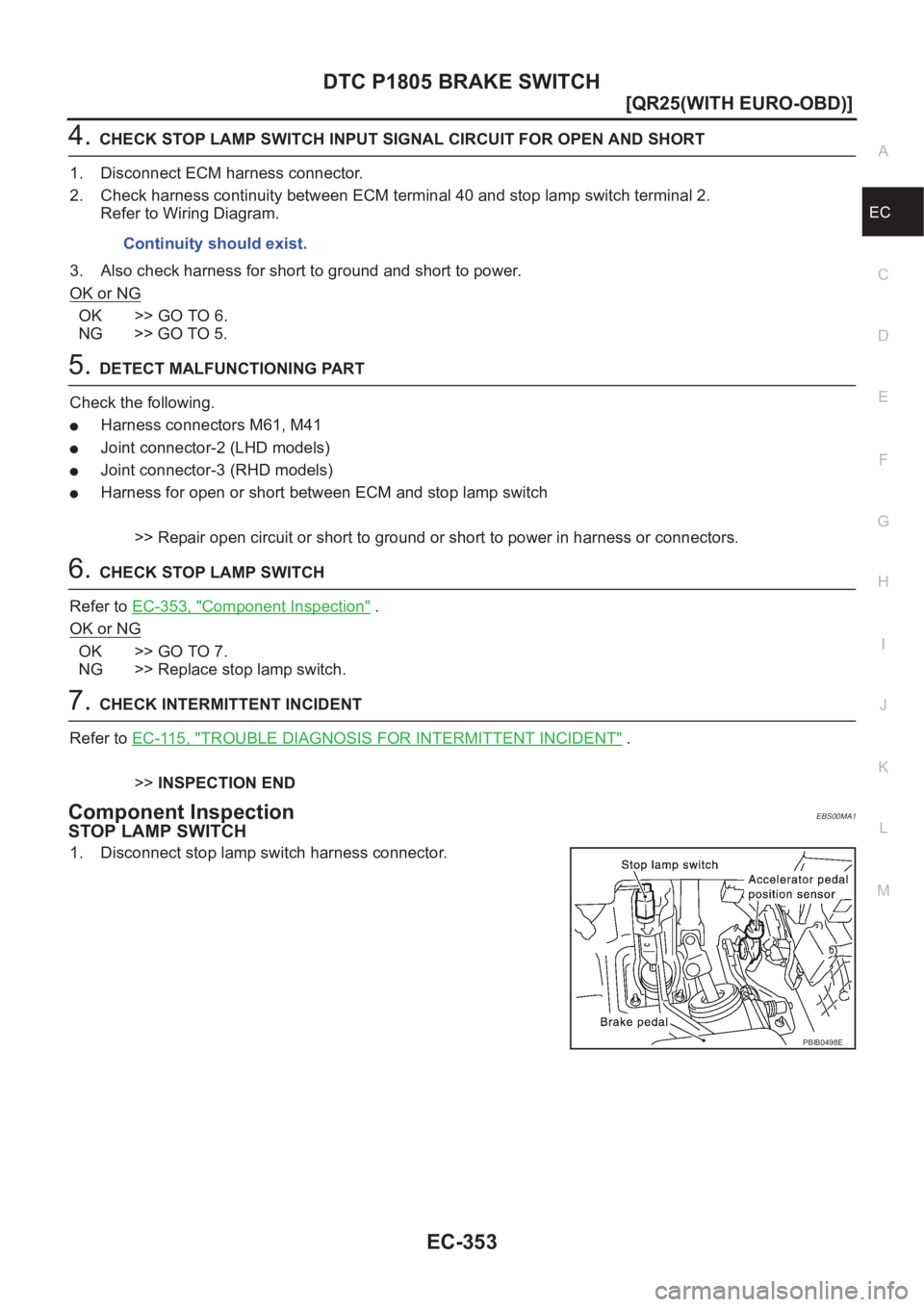

4.CHECK STOP LAMP SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminal 40 and stop lamp switch terminal 2.
Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 6.
NG >> GO TO 5.
5.DETECT MALFUNCTIONING PART
Check the following.
●Harness connectors M61, M41
●Joint connector-2 (LHD models)
●Joint connector-3 (RHD models)
●Harness for open or short between ECM and stop lamp switch
>> Repair open circuit or short to ground or short to power in harness or connectors.
6.CHECK STOP LAMP SWITCH
Refer to EC-353, "
Component Inspection" .
OK or NG
OK >> GO TO 7.
NG >> Replace stop lamp switch.
7.CHECK INTERMITTENT INCIDENT
Refer to EC-115, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
Component InspectionEBS00MA1
STOP LAMP SWITCH
1. Disconnect stop lamp switch harness connector.Continuity should exist.
PBIB0498E
Page 704 of 3833
EC-354
[QR25(WITH EURO-OBD)]
DTC P1805 BRAKE SWITCH
2. Check continuity between stop lamp switch terminals 1 and 2
under the following conditions.
3. If NG, replace stop lamp switch.
Conditions Continuity
Brake pedal fully released Should not exist.
Brake pedal depressed Should exist.
PBIB0118E
