DTC P0731 A/T 1ST GEAR FUNCTIONPFP:31940
DescriptionECS004RA
●This malfunction will not be detected while the O/D OFF indi NISSAN X-TRAIL 2001 Service Repair Manual DTC P0731 A/T 1ST GEAR FUNCTION
AT-131
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
DTC P0731 A/T 1ST GEAR FUNCTIONPFP:31940
DescriptionECS004RA
●This malfunction will not be detected while the O/D OFF indi](/manual-img/5/57405/w960_57405-2208.png)

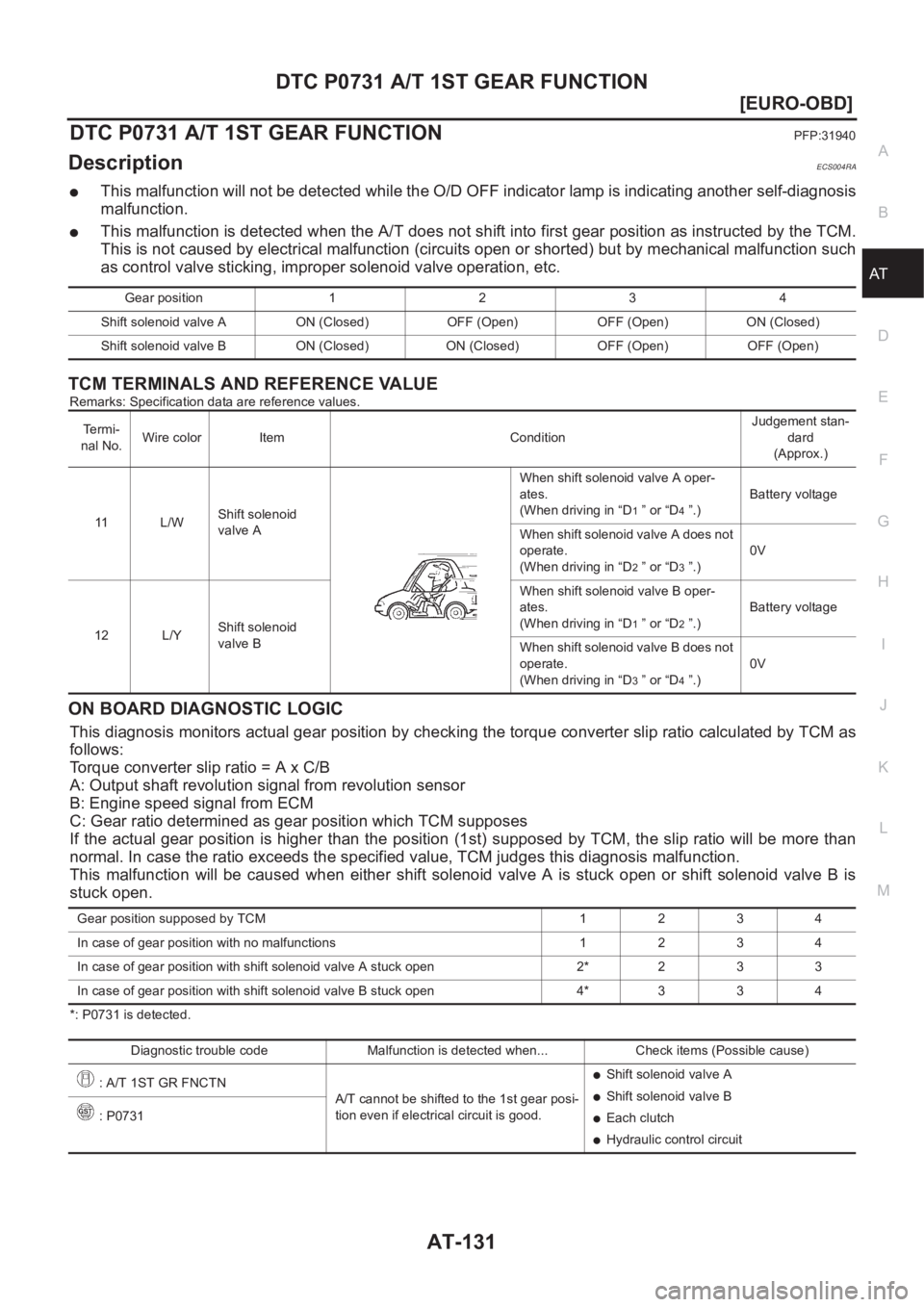

DTC P0731 A/T 1ST GEAR FUNCTION
AT-131
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
DTC P0731 A/T 1ST GEAR FUNCTIONPFP:31940
DescriptionECS004RA
●This malfunction will not be detected while the O/D OFF indicator lamp is indicating another self-diagnosis
malfunction.
●This malfunction is detected when the A/T does not shift into first gear position as instructed by the TCM.
This is not caused by electrical malfunction (circuits open or shorted) but by mechanical malfunction such
as control valve sticking, improper solenoid valve operation, etc.
TCM TERMINALS AND REFERENCE VALUE
Remarks: Specification data are reference values.
ON BOARD DIAGNOSTIC LOGIC
This diagnosis monitors actual gear position by checking the torque converter slip ratio calculated by TCM as
follows:
Torque converter slip ratio = A x C/B
A: Output shaft revolution signal from revolution sensor
B: Engine speed signal from ECM
C: Gear ratio determined as gear position which TCM supposes
If the actual gear position is higher than the position (1st) supposed by TCM, the slip ratio will be more than
normal. In case the ratio exceeds the specified value, TCM judges this diagnosis malfunction.
This malfunction will be caused when either shift solenoid valve A is stuck open or shift solenoid valve B is
stuck open.
*: P0731 is detected.Gear position 1 2 3 4
Shift solenoid valve A ON (Closed) OFF (Open) OFF (Open) ON (Closed)
Shift solenoid valve B ON (Closed) ON (Closed) OFF (Open) OFF (Open)
Te r m i -
nal No.Wire color Item ConditionJudgement stan-
dard
(Approx.)
11 L / WShift solenoid
valve AWhen shift solenoid valve A oper-
ates.
(When driving in “D
1 ” or “D4 ”.)Battery voltage
When shift solenoid valve A does not
operate.
(When driving in “D
2 ” or “D3 ”.)0V
12 L/YShift solenoid
valve BWhen shift solenoid valve B oper-
ates.
(When driving in “D
1 ” or “D2 ”.)Battery voltage
When shift solenoid valve B does not
operate.
(When driving in “D
3 ” or “D4 ”.)0V
Gear position supposed by TCM 1 2 3 4
In case of gear position with no malfunctions 1 2 3 4
In case of gear position with shift solenoid valve A stuck open2* 2 3 3
In case of gear position with shift solenoid valve B stuck open4* 3 3 4
Diagnostic trouble code Malfunction is detected when... Check items (Possible cause)
: A/T 1ST GR FNCTN
A/T cannot be shifted to the 1st gear posi-
tion even if electrical circuit is good.
●Shift solenoid valve A
●Shift solenoid valve B
●Each clutch
●Hydraulic control circuit : P0731
Page 2210 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual AT-132
[EURO-OBD]
DTC P0731 A/T 1ST GEAR FUNCTION

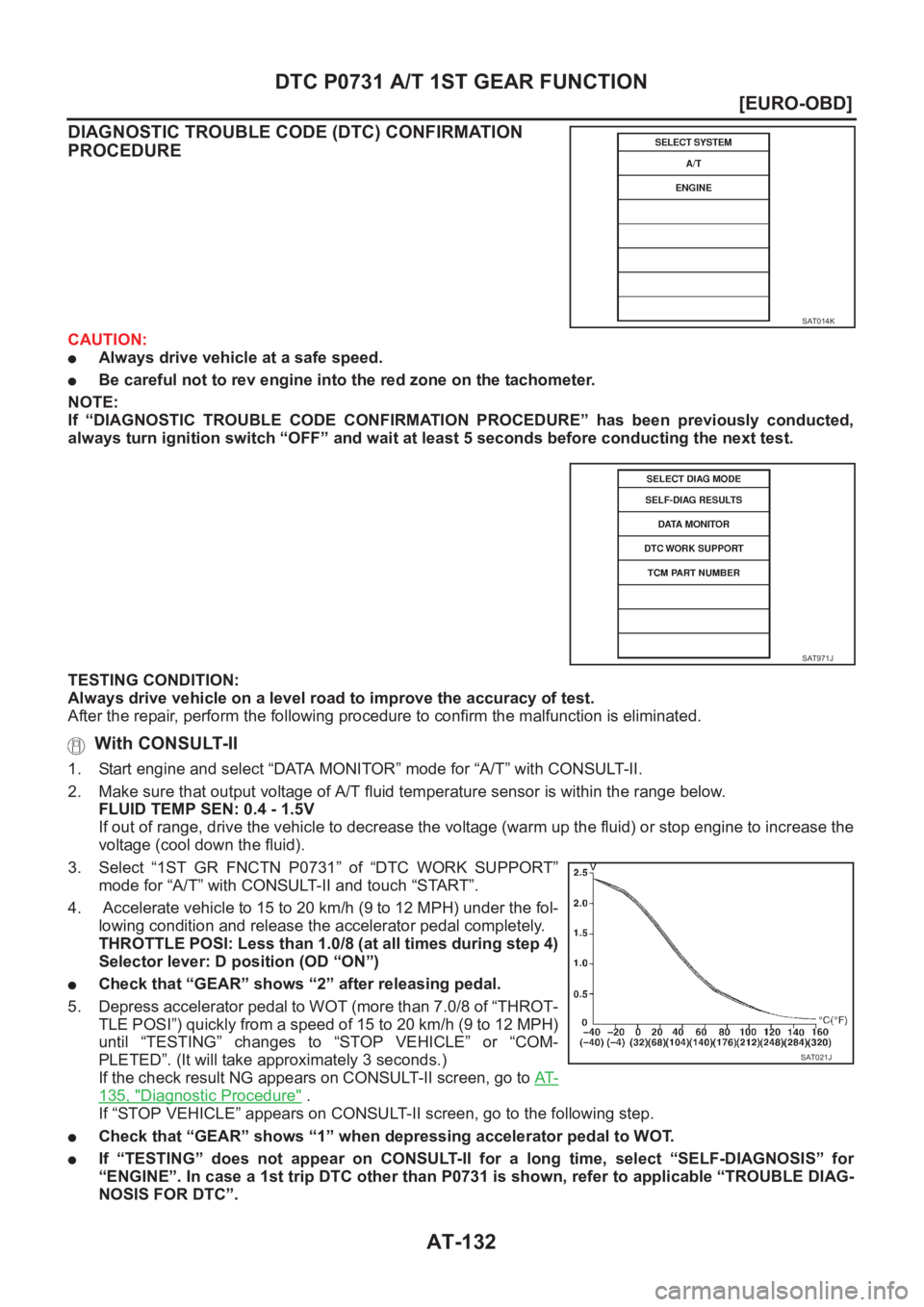

DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION
PROCEDURE
CAUTION:
●Always drive vehicle at a safe speed.
●Be careful not to rev engine into the red z NISSAN X-TRAIL 2001 Service Repair Manual AT-132
[EURO-OBD]
DTC P0731 A/T 1ST GEAR FUNCTION
DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION
PROCEDURE
CAUTION:
●Always drive vehicle at a safe speed.
●Be careful not to rev engine into the red z](/manual-img/5/57405/w960_57405-2209.png)
AT-132
[EURO-OBD]
DTC P0731 A/T 1ST GEAR FUNCTION
DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION
PROCEDURE
CAUTION:
●Always drive vehicle at a safe speed.
●Be careful not to rev engine into the red zone on the tachometer.
NOTE:
If “DIAGNOSTIC TROUBLE CODE CONFIRMATION PROCEDURE” has been previously conducted,
always turn ignition switch “OFF” and wait at least 5 seconds before conducting the next test.
TESTING CONDITION:
Always drive vehicle on a level road to improve the accuracy of test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
With CONSULT-II
1. Start engine and select “DATA MONITOR” mode for “A/T” with CONSULT-II.
2. Make sure that output voltage of A/T fluid temperature sensor is within the range below.
FLUID TEMP SEN: 0.4 - 1.5V
If out of range, drive the vehicle to decrease the voltage (warm up the fluid) or stop engine to increase the
voltage (cool down the fluid).
3. Select “1ST GR FNCTN P0731” of “DTC WORK SUPPORT”
mode for “A/T” with CONSULT-II and touch “START”.
4. Accelerate vehicle to 15 to 20 km/h (9 to 12 MPH) under the fol-
lowing condition and release the accelerator pedal completely.
THROTTLE POSI: Less than 1.0/8 (at all times during step 4)
Selector lever: D position (OD “ON”)
●Check that “GEAR” shows “2” after releasing pedal.
5. Depress accelerator pedal to WOT (more than 7.0/8 of “THROT-
TLE POSI”) quickly from a speed of 15 to 20 km/h (9 to 12 MPH)
until “TESTING” changes to “STOP VEHICLE” or “COM-
PLETED”. (It will take approximately 3 seconds.)
If the check result NG appears on CONSULT-II screen, go to AT-
135, "Diagnostic Procedure" .
If “STOP VEHICLE” appears on CONSULT-II screen, go to the following step.
●Check that “GEAR” shows “1” when depressing accelerator pedal to WOT.
●If “TESTING” does not appear on CONSULT-II for a long time, select “SELF-DIAGNOSIS” for
“ENGINE”. In case a 1st trip DTC other than P0731 is shown, refer to applicable “TROUBLE DIAG-
NOSIS FOR DTC”.
SAT014K
SAT971J
SAT021J
Page 2211 of 3833
DTC P0731 A/T 1ST GEAR FUNCTION
AT-133
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

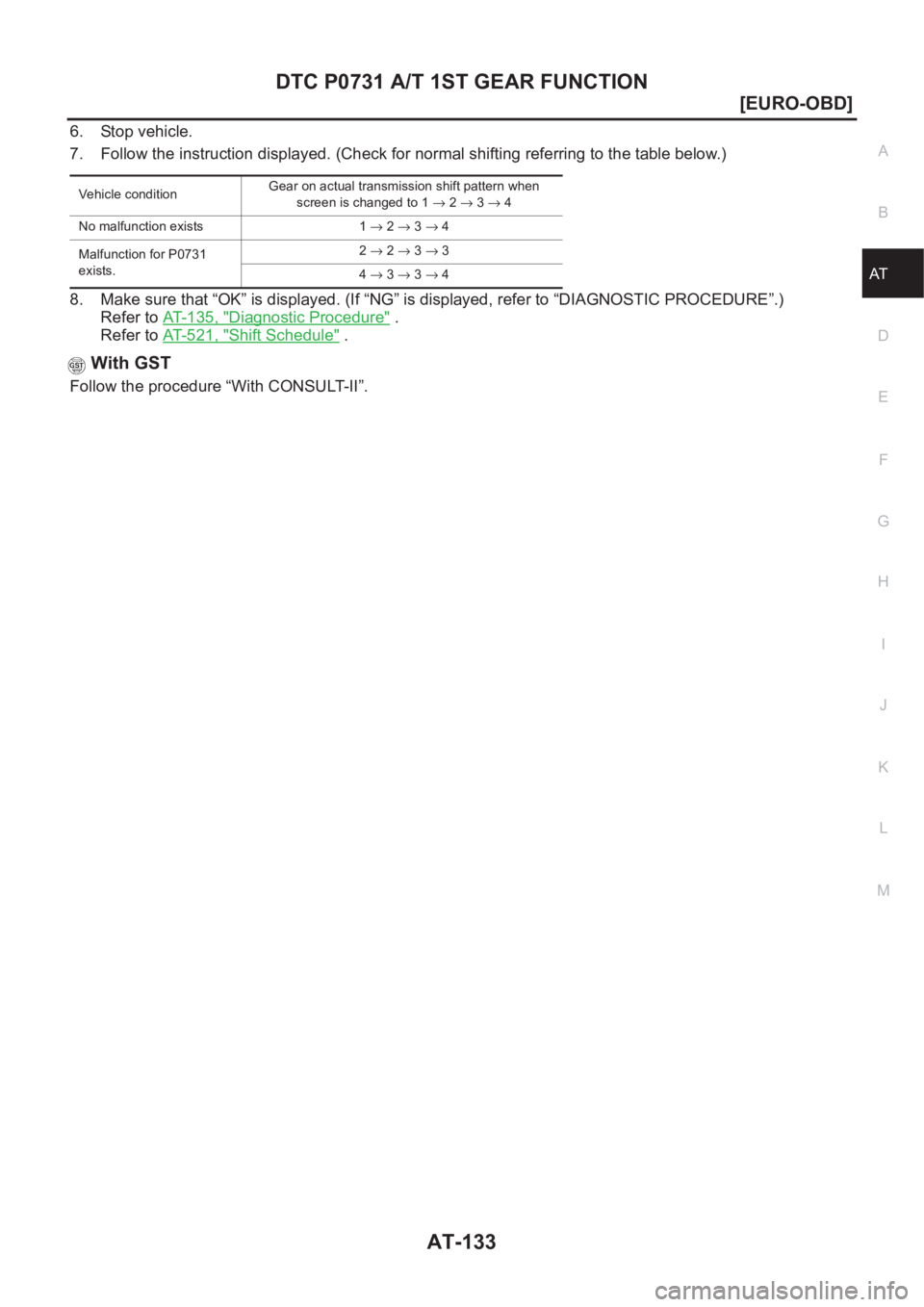

6. Stop vehicle.
7. Follow the instruction displayed. (Check for normal shifting referring to the table below.)
8. Make sure that “OK” is displayed. (If “NG” is displayed, refer to “DIAGNOSTIC PROCEDURE”.)
Refer to AT-135, "
Diagnostic Procedure" .
Refer to AT-521, "
Shift Schedule" .
With GST
Follow the procedure “With CONSULT-II”.
Vehicle conditionGear on actual transmission shift pattern when
screen is changed to 1 → 2 → 3 → 4
No malfunction exists 1 → 2 → 3 → 4
Malfunction for P0731
exists.2→ 2 → 3 → 3
4→ 3 → 3 → 4
Page 2212 of 3833
AT-134
[EURO-OBD]
DTC P0731 A/T 1ST GEAR FUNCTION

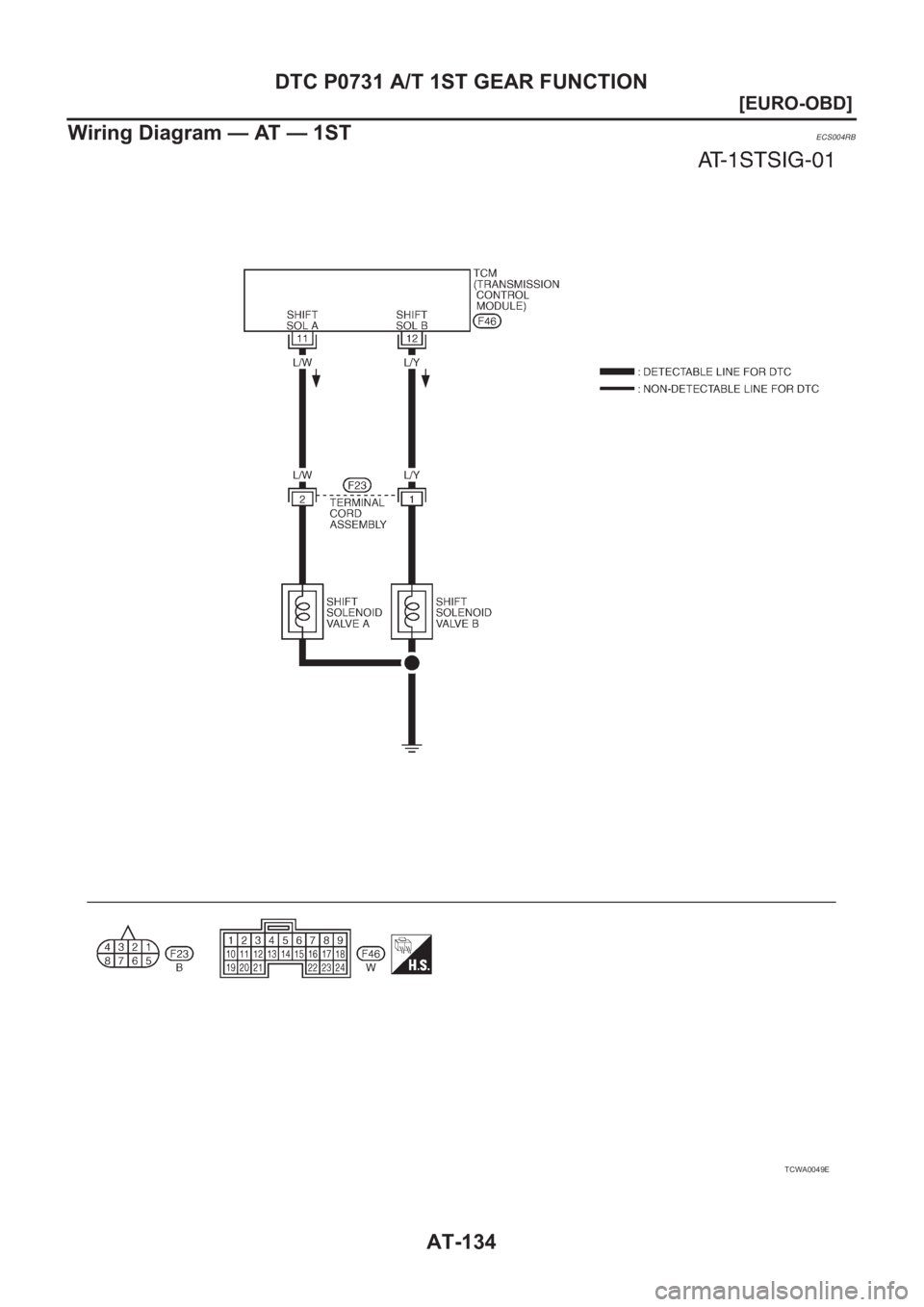

Wiring Diagram — AT — 1ST
ECS004RB
TCWA0049E
Page 2213 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual DTC P0731 A/T 1ST GEAR FUNCTION
AT-135
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
Diagnostic ProcedureECS004RC
1.CHECK SHIFT SOLENOID VALVE
1. Remove control valve assembly. Refer to AT- 4 1 4 , "
Con NISSAN X-TRAIL 2001 Service Repair Manual DTC P0731 A/T 1ST GEAR FUNCTION
AT-135
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
Diagnostic ProcedureECS004RC
1.CHECK SHIFT SOLENOID VALVE
1. Remove control valve assembly. Refer to AT- 4 1 4 , "
Con](/manual-img/5/57405/w960_57405-2212.png)
DTC P0731 A/T 1ST GEAR FUNCTION
AT-135
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

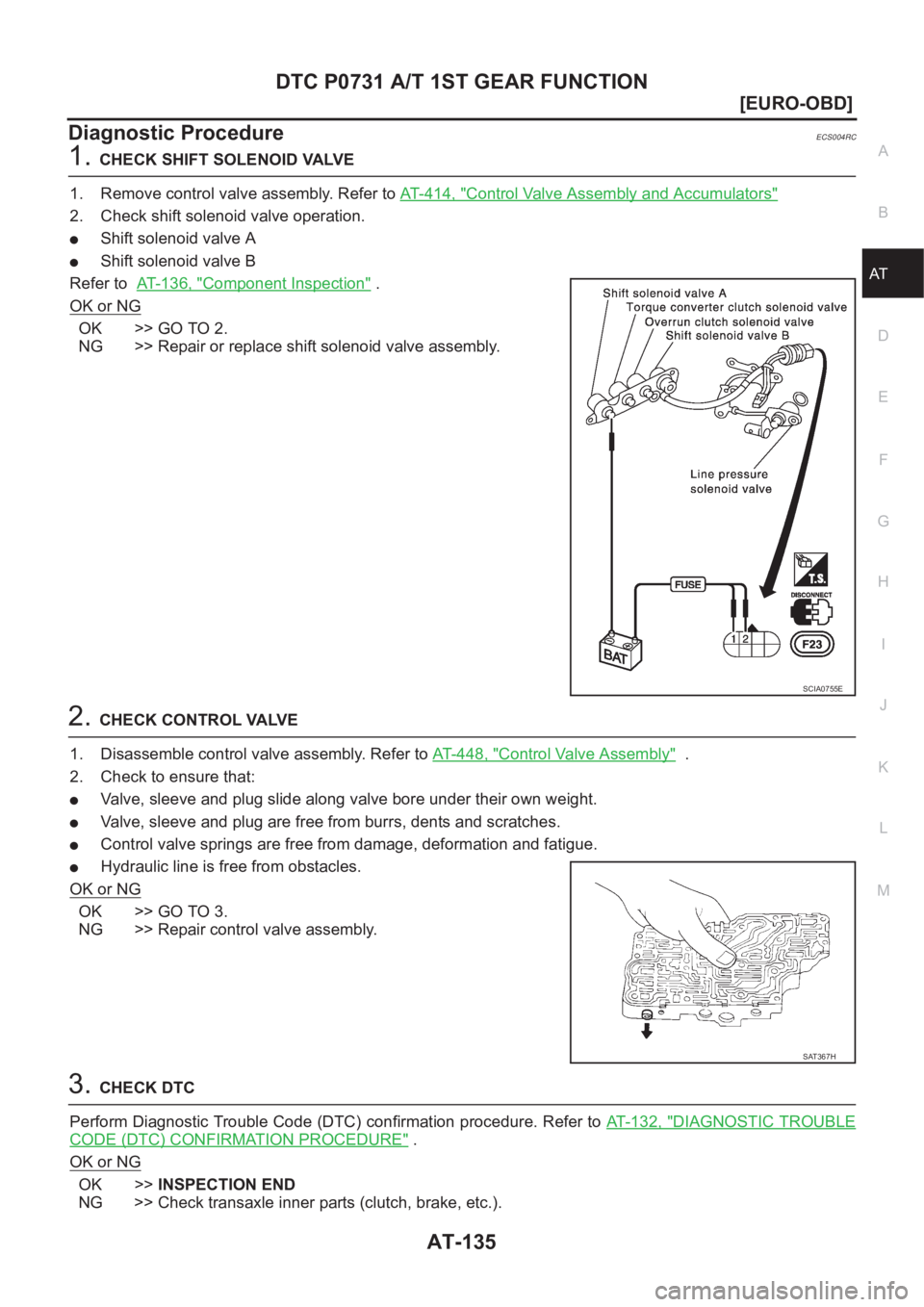

Diagnostic ProcedureECS004RC
1.CHECK SHIFT SOLENOID VALVE
1. Remove control valve assembly. Refer to AT- 4 1 4 , "
Control Valve Assembly and Accumulators"
2. Check shift solenoid valve operation.
●Shift solenoid valve A
●Shift solenoid valve B
Refer to AT-136, "
Component Inspection" .
OK or NG
OK >> GO TO 2.
NG >> Repair or replace shift solenoid valve assembly.
2.CHECK CONTROL VALVE
1. Disassemble control valve assembly. Refer to AT-448, "
Control Valve Assembly" .
2. Check to ensure that:
●Valve, sleeve and plug slide along valve bore under their own weight.
●Valve, sleeve and plug are free from burrs, dents and scratches.
●Control valve springs are free from damage, deformation and fatigue.
●Hydraulic line is free from obstacles.
OK or NG
OK >> GO TO 3.
NG >> Repair control valve assembly.
3.CHECK DTC
Perform Diagnostic Trouble Code (DTC) confirmation procedure. Refer to AT- 1 3 2 , "
DIAGNOSTIC TROUBLE
CODE (DTC) CONFIRMATION PROCEDURE" .
OK or NG
OK >>INSPECTION END
NG >> Check transaxle inner parts (clutch, brake, etc.).
SCIA0755E
SAT367H
Page 2214 of 3833
AT-136
[EURO-OBD]
DTC P0731 A/T 1ST GEAR FUNCTION
Component Inspection
ECS004RD
SHIFT SOLENOID VALVE A AND B
●For removal, refer to AT-414, "REMOVAL" .
Resistance Check
●Check resistance between two terminals.
Operation Check
●Check solenoid valve by listening for its operating sound while
applying battery voltage to the terminal and ground.
SCIA0756E
Solenoid valve Terminal No.Resistance
(Approx.)
Shift solenoid
valve A2
Ground20 - 30Ω
Shift solenoid
valve B1 5 - 20Ω
SCIA0757E
Page 2215 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual DTC P0732 A/T 2ND GEAR FUNCTION
AT-137
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
DTC P0732 A/T 2ND GEAR FUNCTIONPFP:31940
DescriptionECS004RE
●This malfunction will not be detected while the O/D OFF indi NISSAN X-TRAIL 2001 Service Repair Manual DTC P0732 A/T 2ND GEAR FUNCTION
AT-137
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
DTC P0732 A/T 2ND GEAR FUNCTIONPFP:31940
DescriptionECS004RE
●This malfunction will not be detected while the O/D OFF indi](/manual-img/5/57405/w960_57405-2214.png)

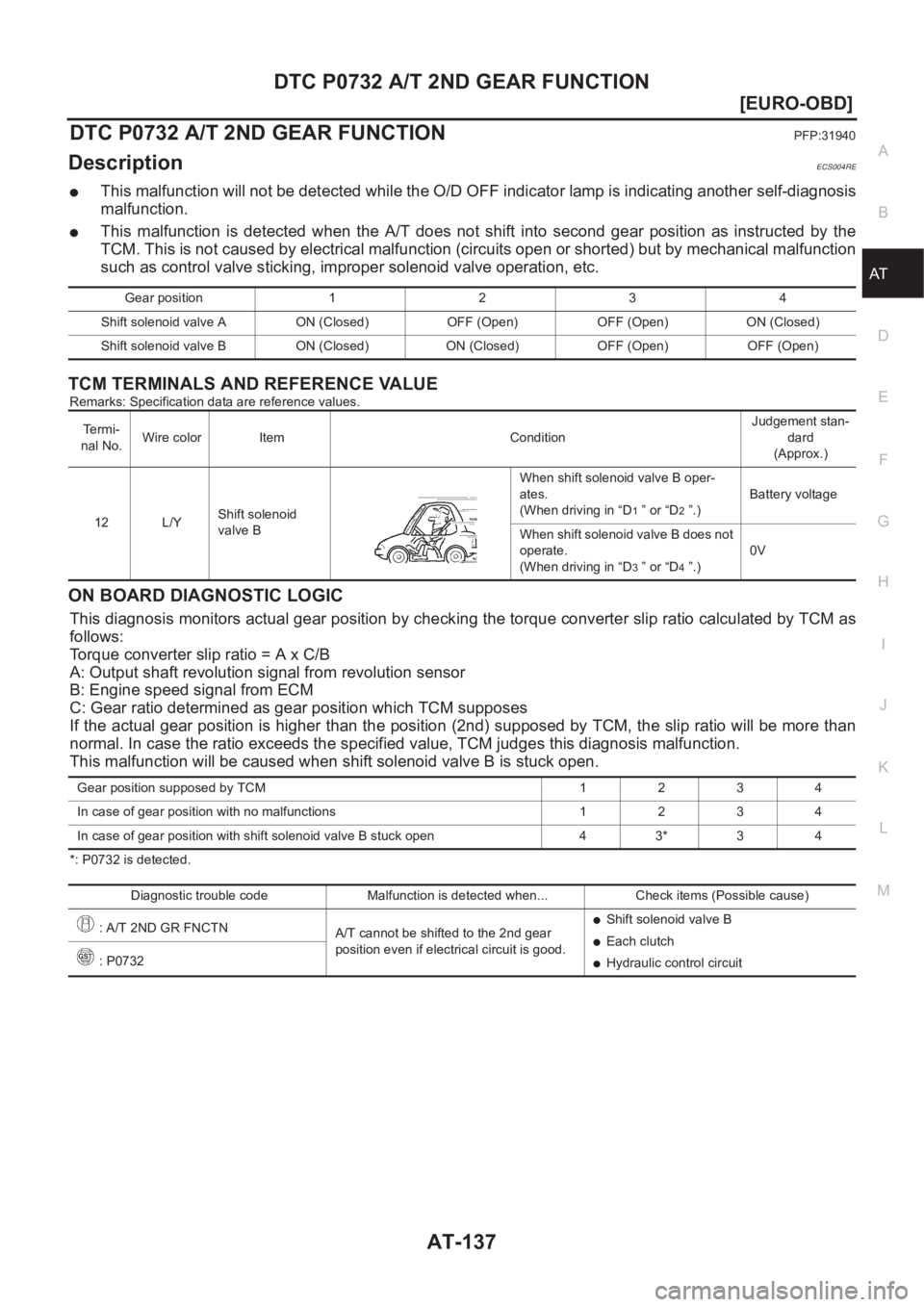

DTC P0732 A/T 2ND GEAR FUNCTION
AT-137
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
DTC P0732 A/T 2ND GEAR FUNCTIONPFP:31940
DescriptionECS004RE
●This malfunction will not be detected while the O/D OFF indicator lamp is indicating another self-diagnosis
malfunction.
●This malfunction is detected when the A/T does not shift into second gear position as instructed by the
TCM. This is not caused by electrical malfunction (circuits open or shorted) but by mechanical malfunction
such as control valve sticking, improper solenoid valve operation, etc.
TCM TERMINALS AND REFERENCE VALUE
Remarks: Specification data are reference values.
ON BOARD DIAGNOSTIC LOGIC
This diagnosis monitors actual gear position by checking the torque converter slip ratio calculated by TCM as
follows:
Torque converter slip ratio = A x C/B
A: Output shaft revolution signal from revolution sensor
B: Engine speed signal from ECM
C: Gear ratio determined as gear position which TCM supposes
If the actual gear position is higher than the position (2nd) supposed by TCM, the slip ratio will be more than
normal. In case the ratio exceeds the specified value, TCM judges this diagnosis malfunction.
This malfunction will be caused when shift solenoid valve B is stuck open.
*: P0732 is detected.Gear position 1 2 3 4
Shift solenoid valve A ON (Closed) OFF (Open) OFF (Open) ON (Closed)
Shift solenoid valve B ON (Closed) ON (Closed) OFF (Open) OFF (Open)
Te r m i -
nal No.Wire color Item ConditionJudgement stan-
dard
(Approx.)
12 L/YShift solenoid
valve BWhen shift solenoid valve B oper-
ates.
(When driving in “D
1 ” or “D2 ”.)Battery voltage
When shift solenoid valve B does not
operate.
(When driving in “D
3 ” or “D4 ”.)0V
Gear position supposed by TCM 1 2 3 4
In case of gear position with no malfunctions 1 2 3 4
In case of gear position with shift solenoid valve B stuck open43*3 4
Diagnostic trouble code Malfunction is detected when... Check items (Possible cause)
: A/T 2ND GR FNCTN
A/T cannot be shifted to the 2nd gear
position even if electrical circuit is good.
●Shift solenoid valve B
●Each clutch
●Hydraulic control circuit : P0732
Page 2216 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual AT-138
[EURO-OBD]
DTC P0732 A/T 2ND GEAR FUNCTION
DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION PROCEDURE
CAUTION:
●Always drive vehicle at a safe speed.
●Be careful not to rev engine into the NISSAN X-TRAIL 2001 Service Repair Manual AT-138
[EURO-OBD]
DTC P0732 A/T 2ND GEAR FUNCTION
DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION PROCEDURE
CAUTION:
●Always drive vehicle at a safe speed.
●Be careful not to rev engine into the](/manual-img/5/57405/w960_57405-2215.png)
AT-138
[EURO-OBD]
DTC P0732 A/T 2ND GEAR FUNCTION
DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION PROCEDURE
CAUTION:
●Always drive vehicle at a safe speed.
●Be careful not to rev engine into the red zone on the
tachometer.
NOTE:
If “DIAGNOSTIC TROUBLE CODE CONFIRMATION PROCE-
DURE” has been previously conducted, always turn ignition
switch “OFF” and wait at least 5 seconds before conducting the
next test.
TESTING CONDITION:
Always drive vehicle on a level road to improve the accuracy of
test.
After the repair, perform the following procedure to confirm the mal-
function is eliminated.
With CONSULT-II
1. Start engine and select “DATA MONITOR” mode for “A/T” with CONSULT-II.
2. Make sure that output voltage of A/T fluid temperature sensor is within the range below.
FLUID TEMP SEN: 0.4 - 1.5V
If out of range, drive the vehicle to decrease the voltage (warm up the fluid) or stop engine to increase the
voltage (cool down the fluid).
3. Select “2ND GR FNCTN P0732” of “DTC WORK SUPPORT”
mode for “A/T” with CONSULT-II and touch “START”.
4. Accelerate vehicle to 35 to 40 km/h (22 to 25 MPH) under the
following condition and release the accelerator pedal com-
pletely.
THROTTLE POSI: Less than 1.0/8 (at all times during step 4)
Selector lever: D position (OD “ON”)
●Check that “GEAR” shows “3” or “4” after releasing pedal.
5. Depress accelerator pedal to WOT (more than 7.0/8 of “THROT-
TLE POSI”) quickly from a speed of 35 to 40 km/h (22 to 25
MPH) until “TESTING” changes to “STOP VEHICLE” or “COM-
PLETED”. (It will take approximately 3 seconds.)
If the check result NG appears on CONSULT-II screen, go to AT- 1 4 1 , "
Diagnostic Procedure" .
If “STOP VEHICLE” appears on CONSULT-II screen, go to following step.
●Check that “GEAR” shows “2” when depressing accelerator pedal to WOT.
●If “TESTING” does not appear on CONSULT-II for a long time, select “SELF-DIAGNOSIS” for
“ENGINE”. In case a 1st trip DTC other than P0732 is shown, refer to applicable “TROUBLE DIAG-
NOSIS FOR DTC”.
6. Stop vehicle.
7. Follow the instruction displayed. (Check for normal shifting referring to the table below.)
SAT014K
SAT971J
Vehicle conditionGear on actual transmission shift pattern when
screen is changed to 1 → 2 → 3 → 4
SAT021J
