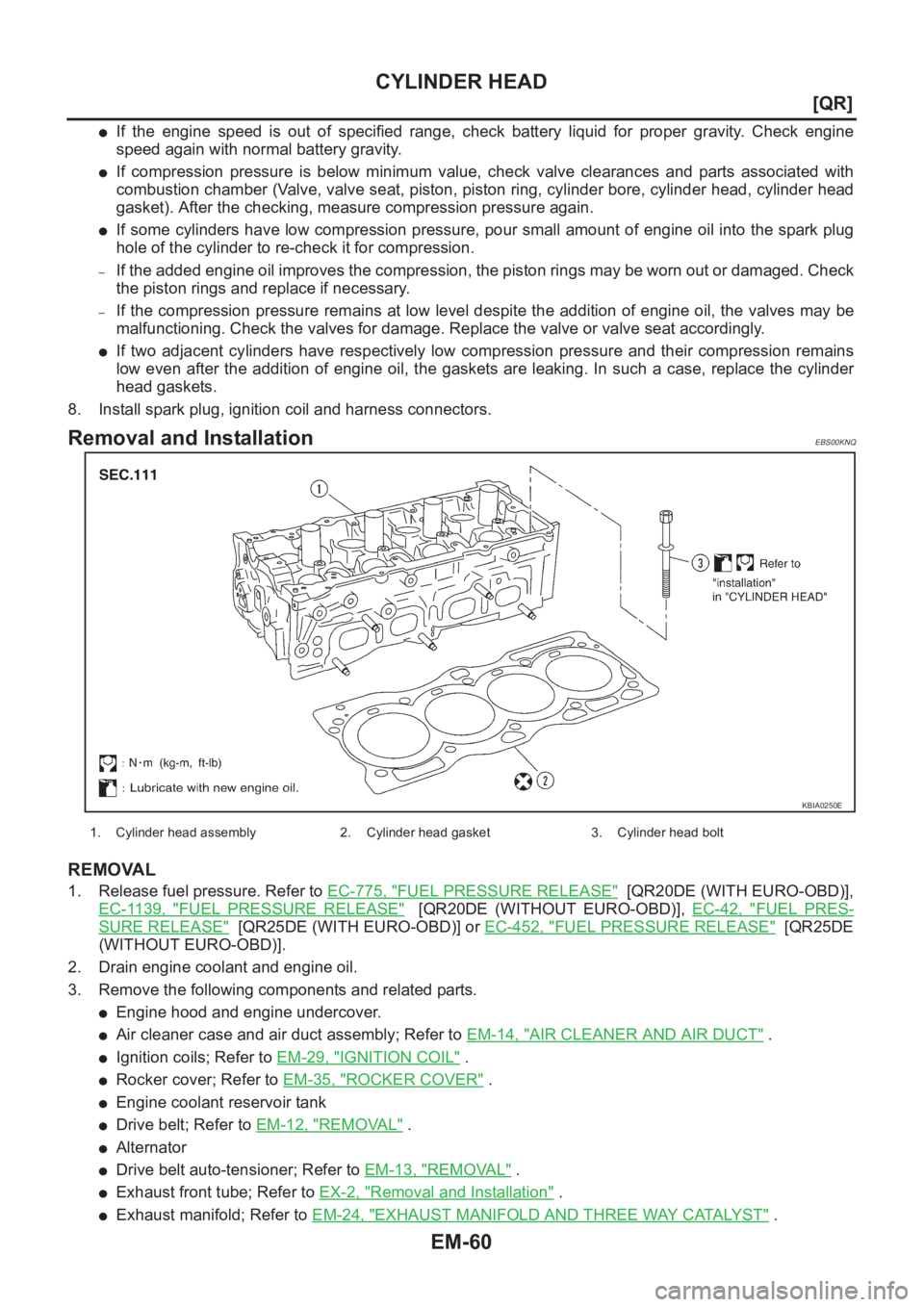

EM-60
[QR]
CYLINDER HEAD
●If the engine speed is out of specified range, check battery liquid for proper gravity. Check engine
speed again with normal battery gravity.
●If compression pressure is below minimum value, check valve clearances and parts associated with
combustion chamber (Valve, valve seat, piston, piston ring, cylinder bore, cylinder head, cylinder head
gasket). After the checking, measure compression pressure again.
●If some cylinders have low compression pressure, pour small amount of engine oil into the spark plug
hole of the cylinder to re-check it for compression.
–If the added engine oil improves the compression, the piston rings may be worn out or damaged. Check
the piston rings and replace if necessary.
–If the compression pressure remains at low level despite the addition of engine oil, the valves may be
malfunctioning. Check the valves for damage. Replace the valve or valve seat accordingly.
●If two adjacent cylinders have respectively low compression pressure and their compression remains
low even after the addition of engine oil, the gaskets are leaking. In such a case, replace the cylinder
head gaskets.
8. Install spark plug, ignition coil and harness connectors.
Removal and InstallationEBS00KNQ
REMOVAL
1. Release fuel pressure. Refer to EC-775, "FUEL PRESSURE RELEASE" [QR20DE (WITH EURO-OBD)],
EC-1139, "
FUEL PRESSURE RELEASE" [QR20DE (WITHOUT EURO-OBD)], EC-42, "FUEL PRES-
SURE RELEASE" [QR25DE (WITH EURO-OBD)] or EC-452, "FUEL PRESSURE RELEASE" [QR25DE
(WITHOUT EURO-OBD)].
2. Drain engine coolant and engine oil.
3. Remove the following components and related parts.
●Engine hood and engine undercover.
●Air cleaner case and air duct assembly; Refer to EM-14, "AIR CLEANER AND AIR DUCT" .
●Ignition coils; Refer to EM-29, "IGNITION COIL" .
●Rocker cover; Refer to EM-35, "ROCKER COVER" .
●Engine coolant reservoir tank
●Drive belt; Refer to EM-12, "REMOVAL" .
●Alternator
●Drive belt auto-tensioner; Refer to EM-13, "REMOVAL" .
●Exhaust front tube; Refer to EX-2, "Removal and Installation" .
●Exhaust manifold; Refer to EM-24, "EXHAUST MANIFOLD AND THREE WAY CATALYST" .
KBIA0250E
1. Cylinder head assembly 2. Cylinder head gasket 3. Cylinder head bolt

ENGINE ASSEMBLY

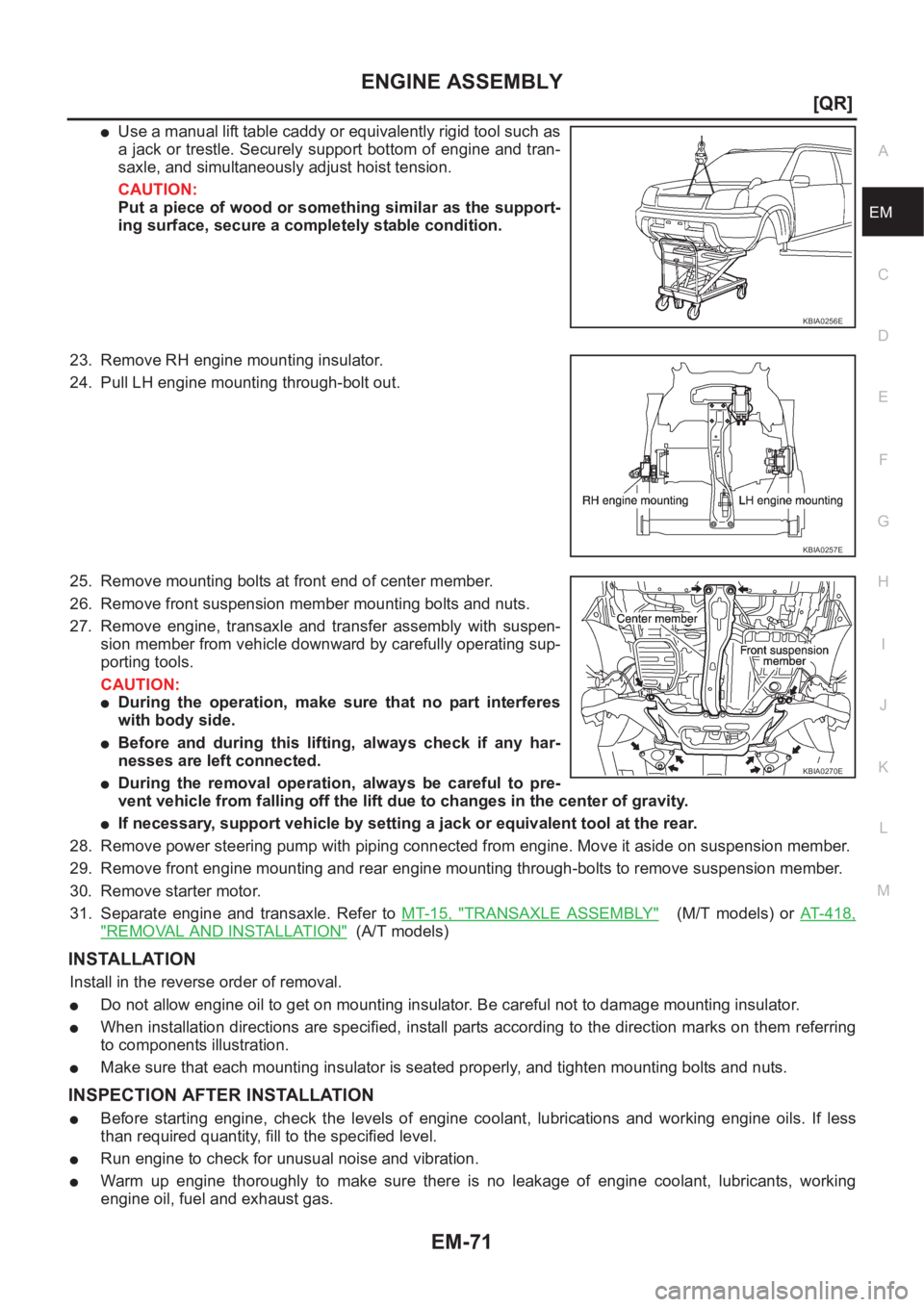

EM-71
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM
●Use a manual lift table caddy or equivalently rigid tool such as
a jack or trestle. Securely support bottom of engine and tran-
saxle, and simultaneously adjust hoist tension.
CAUTION:
Put a piece of wood or something similar as the support-
ing surface, secure a completely stable condition.
23. Remove RH engine mounting insulator.
24. Pull LH engine mounting through-bolt out.
25. Remove mounting bolts at front end of center member.
26. Remove front suspension member mounting bolts and nuts.
27. Remove engine, transaxle and transfer assembly with suspen-
sion member from vehicle downward by carefully operating sup-
porting tools.
CAUTION:
●During the operation, make sure that no part interferes
with body side.
●Before and during this lifting, always check if any har-
nesses are left connected.
●During the removal operation, always be careful to pre-
vent vehicle from falling off the lift due to changes in the center of gravity.
●If necessary, support vehicle by setting a jack or equivalent tool at the rear.
28. Remove power steering pump with piping connected from engine. Move it aside on suspension member.
29. Remove front engine mounting and rear engine mounting through-bolts to remove suspension member.
30. Remove starter motor.
31. Separate engine and transaxle. Refer to MT-15, "
TRANSAXLE ASSEMBLY" (M/T models) or AT- 4 1 8 ,
"REMOVAL AND INSTALLATION" (A/T models)
INSTALLATION
Install in the reverse order of removal.
●Do not allow engine oil to get on mounting insulator. Be careful not to damage mounting insulator.
●When installation directions are specified, install parts according to the direction marks on them referring
to components illustration.
●Make sure that each mounting insulator is seated properly, and tighten mounting bolts and nuts.
INSPECTION AFTER INSTALLATION
●Before starting engine, check the levels of engine coolant, lubrications and working engine oils. If less
than required quantity, fill to the specified level.
●Run engine to check for unusual noise and vibration.
●Warm up engine thoroughly to make sure there is no leakage of engine coolant, lubricants, working
engine oil, fuel and exhaust gas.
KBIA0256E
KBIA0257E
KBIA0270E

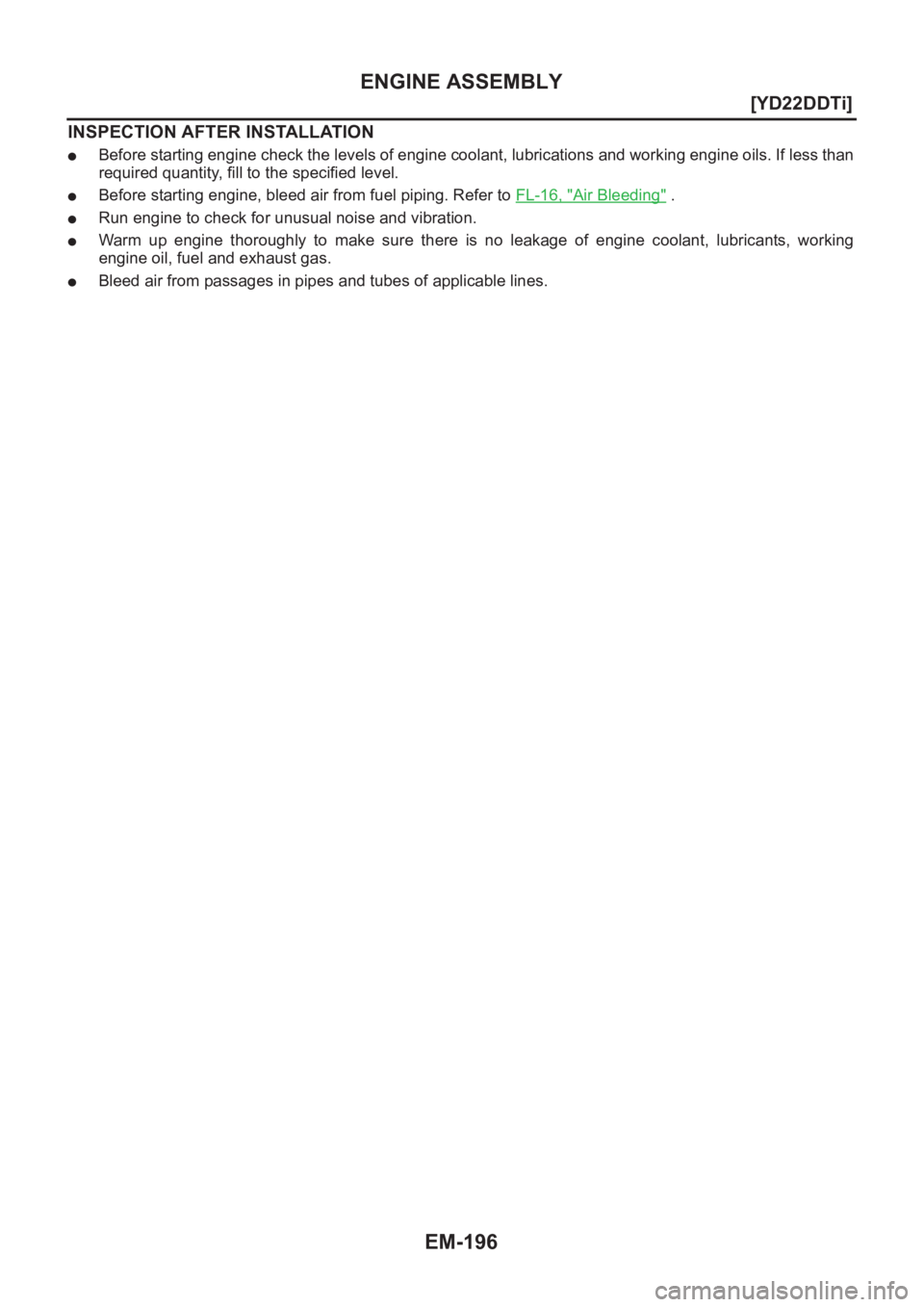

EM-196
[YD22DDTi]
ENGINE ASSEMBLY
INSPECTION AFTER INSTALLATION
●Before starting engine check the levels of engine coolant, lubrications and working engine oils. If less than
required quantity, fill to the specified level.
●Before starting engine, bleed air from fuel piping. Refer to FL-16, "Air Bleeding" .
●Run engine to check for unusual noise and vibration.
●Warm up engine thoroughly to make sure there is no leakage of engine coolant, lubricants, working
engine oil, fuel and exhaust gas.
●Bleed air from passages in pipes and tubes of applicable lines.

ENGINE OIL

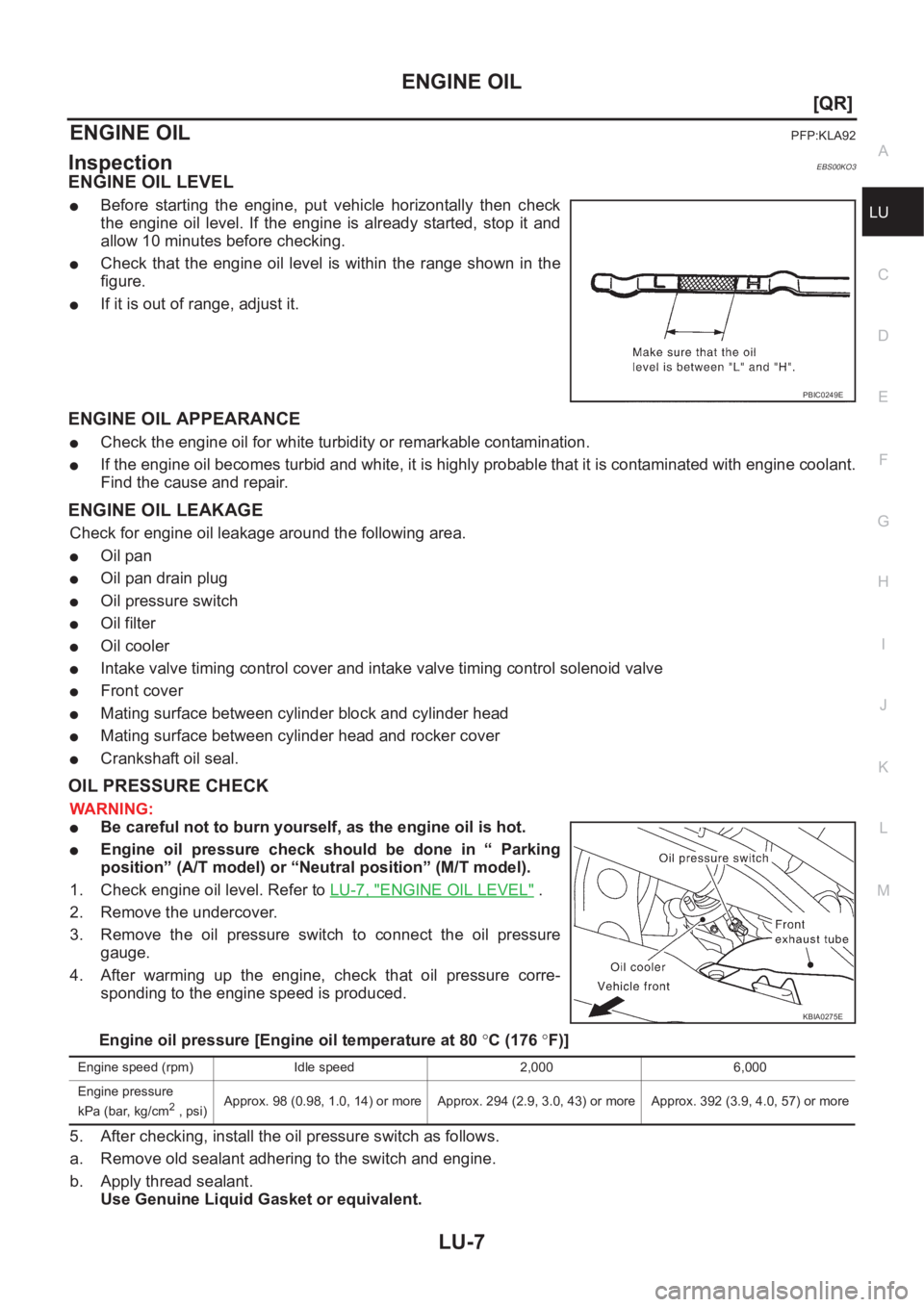

LU-7
[QR]
C
D
E
F
G
H
I
J
K
L
MA
LU
ENGINE OILPFP:KLA92
InspectionEBS00KO3
ENGINE OIL LEVEL
●Before starting the engine, put vehicle horizontally then check
the engine oil level. If the engine is already started, stop it and
allow 10 minutes before checking.
●Check that the engine oil level is within the range shown in the
figure.
●If it is out of range, adjust it.
ENGINE OIL APPEARANCE
●Check the engine oil for white turbidity or remarkable contamination.
●If the engine oil becomes turbid and white, it is highly probable that it is contaminated with engine coolant.
Find the cause and repair.
ENGINE OIL LEAKAGE
Check for engine oil leakage around the following area.
●Oil pan
●Oil pan drain plug
●Oil pressure switch
●Oil filter
●Oil cooler
●Intake valve timing control cover and intake valve timing control solenoid valve
●Front cover
●Mating surface between cylinder block and cylinder head
●Mating surface between cylinder head and rocker cover
●Crankshaft oil seal.
OIL PRESSURE CHECK
WARNING:
●Be careful not to burn yourself, as the engine oil is hot.
●Engine oil pressure check should be done in “ Parking
position” (A/T model) or “Neutral position” (M/T model).
1. Check engine oil level. Refer to LU-7, "
ENGINE OIL LEVEL" .
2. Remove the undercover.
3. Remove the oil pressure switch to connect the oil pressure
gauge.
4. After warming up the engine, check that oil pressure corre-
sponding to the engine speed is produced.
Engine oil pressure [Engine oil temperature at 80 °C (176 °F)]
5. After checking, install the oil pressure switch as follows.
a. Remove old sealant adhering to the switch and engine.
b. Apply thread sealant.
Use Genuine Liquid Gasket or equivalent.
PBIC0249E
KBIA0275E
Engine speed (rpm) Idle speed 2,000 6,000
Engine pressure
kPa (bar, kg/cm
2 , psi)Approx. 98 (0.98, 1.0, 14) or more Approx. 294 (2.9, 3.0, 43) or more Approx. 392 (3.9, 4.0, 57) or more

OIL COOLER

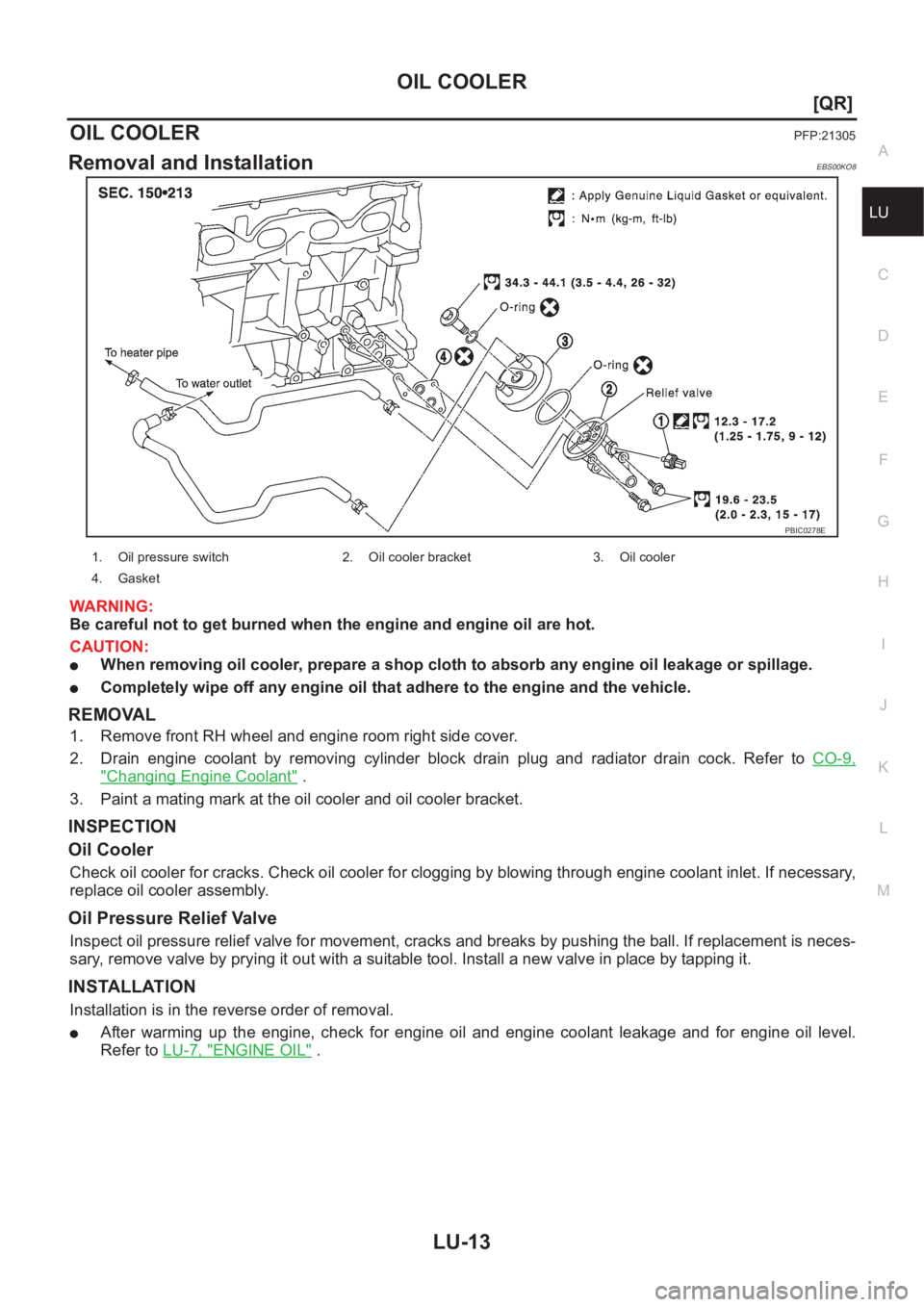

LU-13
[QR]
C
D
E
F
G
H
I
J
K
L
MA
LU
OIL COOLERPFP:21305
Removal and InstallationEBS00KO8
WARNING:
Be careful not to get burned when the engine and engine oil are hot.
CAUTION:
●When removing oil cooler, prepare a shop cloth to absorb any engine oil leakage or spillage.
●Completely wipe off any engine oil that adhere to the engine and the vehicle.
REMOVAL
1. Remove front RH wheel and engine room right side cover.
2. Drain engine coolant by removing cylinder block drain plug and radiator drain cock. Refer to CO-9,
"Changing Engine Coolant" .
3. Paint a mating mark at the oil cooler and oil cooler bracket.
INSPECTION
Oil Cooler
Check oil cooler for cracks. Check oil cooler for clogging by blowing through engine coolant inlet. If necessary,
replace oil cooler assembly.
Oil Pressure Relief Valve
Inspect oil pressure relief valve for movement, cracks and breaks by pushing the ball. If replacement is neces-
sary, remove valve by prying it out with a suitable tool. Install a new valve in place by tapping it.
INSTALLATION
Installation is in the reverse order of removal.
●After warming up the engine, check for engine oil and engine coolant leakage and for engine oil level.
Refer to LU-7, "
ENGINE OIL" .
PBIC0278E
1. Oil pressure switch 2. Oil cooler bracket 3. Oil cooler
4. Gasket

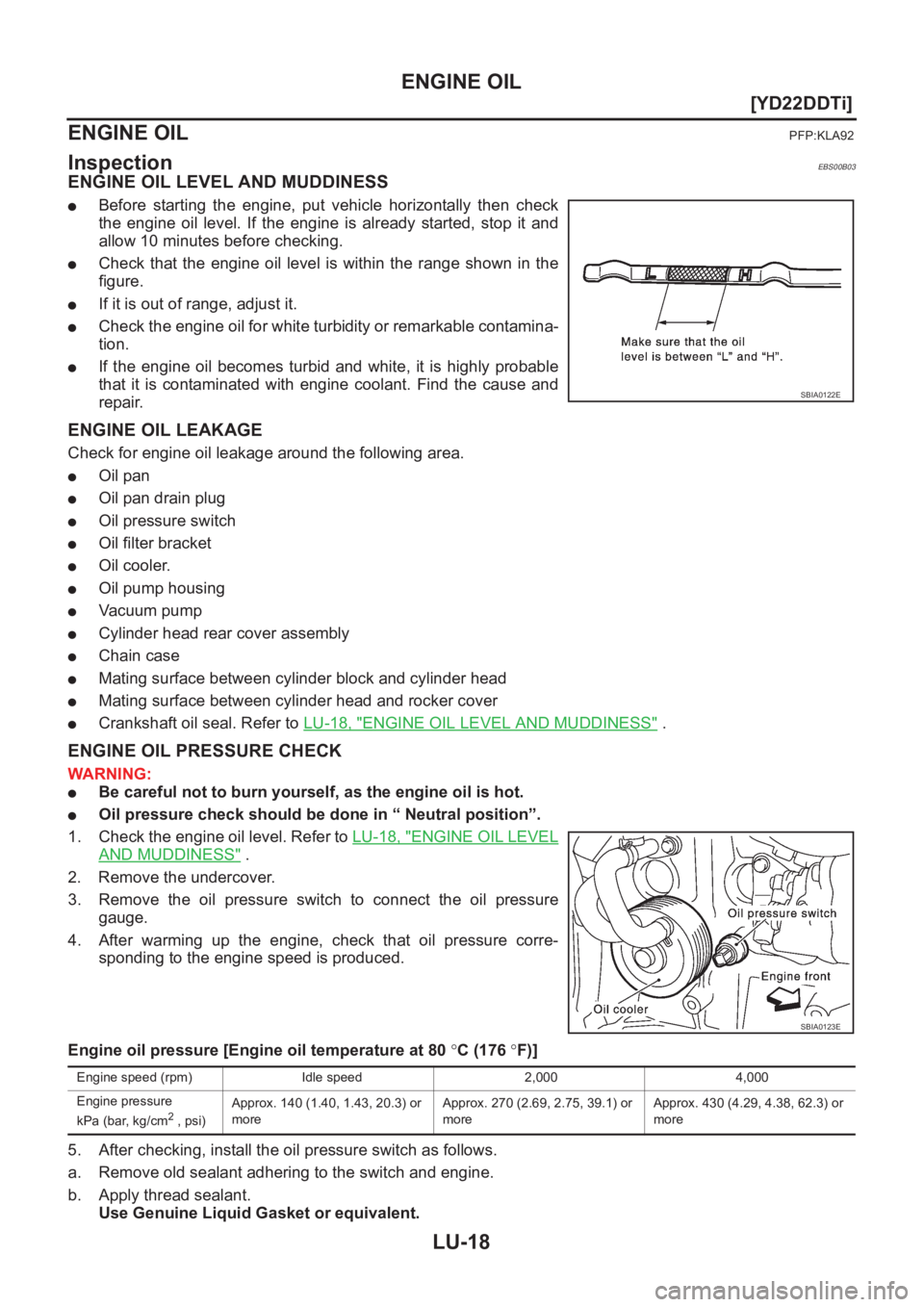

LU-18
[YD22DDTi]
ENGINE OIL
ENGINE OIL
PFP:KLA92
InspectionEBS00B03
ENGINE OIL LEVEL AND MUDDINESS
●Before starting the engine, put vehicle horizontally then check
the engine oil level. If the engine is already started, stop it and
allow 10 minutes before checking.
●Check that the engine oil level is within the range shown in the
figure.
●If it is out of range, adjust it.
●Check the engine oil for white turbidity or remarkable contamina-
tion.
●If the engine oil becomes turbid and white, it is highly probable
that it is contaminated with engine coolant. Find the cause and
repair.
ENGINE OIL LEAKAGE
Check for engine oil leakage around the following area.
●Oil pan
●Oil pan drain plug
●Oil pressure switch
●Oil filter bracket
●Oil cooler.
●Oil pump housing
●Vacuum pump
●Cylinder head rear cover assembly
●Chain case
●Mating surface between cylinder block and cylinder head
●Mating surface between cylinder head and rocker cover
●Crankshaft oil seal. Refer to LU-18, "ENGINE OIL LEVEL AND MUDDINESS" .
ENGINE OIL PRESSURE CHECK
WARNING:
●Be careful not to burn yourself, as the engine oil is hot.
●Oil pressure check should be done in “ Neutral position”.
1. Check the engine oil level. Refer to LU-18, "
ENGINE OIL LEVEL
AND MUDDINESS" .
2. Remove the undercover.
3. Remove the oil pressure switch to connect the oil pressure
gauge.
4. After warming up the engine, check that oil pressure corre-
sponding to the engine speed is produced.
Engine oil pressure [Engine oil temperature at 80 °C (176 °F)]
5. After checking, install the oil pressure switch as follows.
a. Remove old sealant adhering to the switch and engine.
b. Apply thread sealant.
Use Genuine Liquid Gasket or equivalent.
SBIA0122E
SBIA0123E
Engine speed (rpm) Idle speed 2,000 4,000
Engine pressure
kPa (bar, kg/cm
2 , psi)Approx. 140 (1.40, 1.43, 20.3) or
moreApprox. 270 (2.69, 2.75, 39.1) or
moreApprox. 430 (4.29, 4.38, 62.3) or
more

OIL COOLER

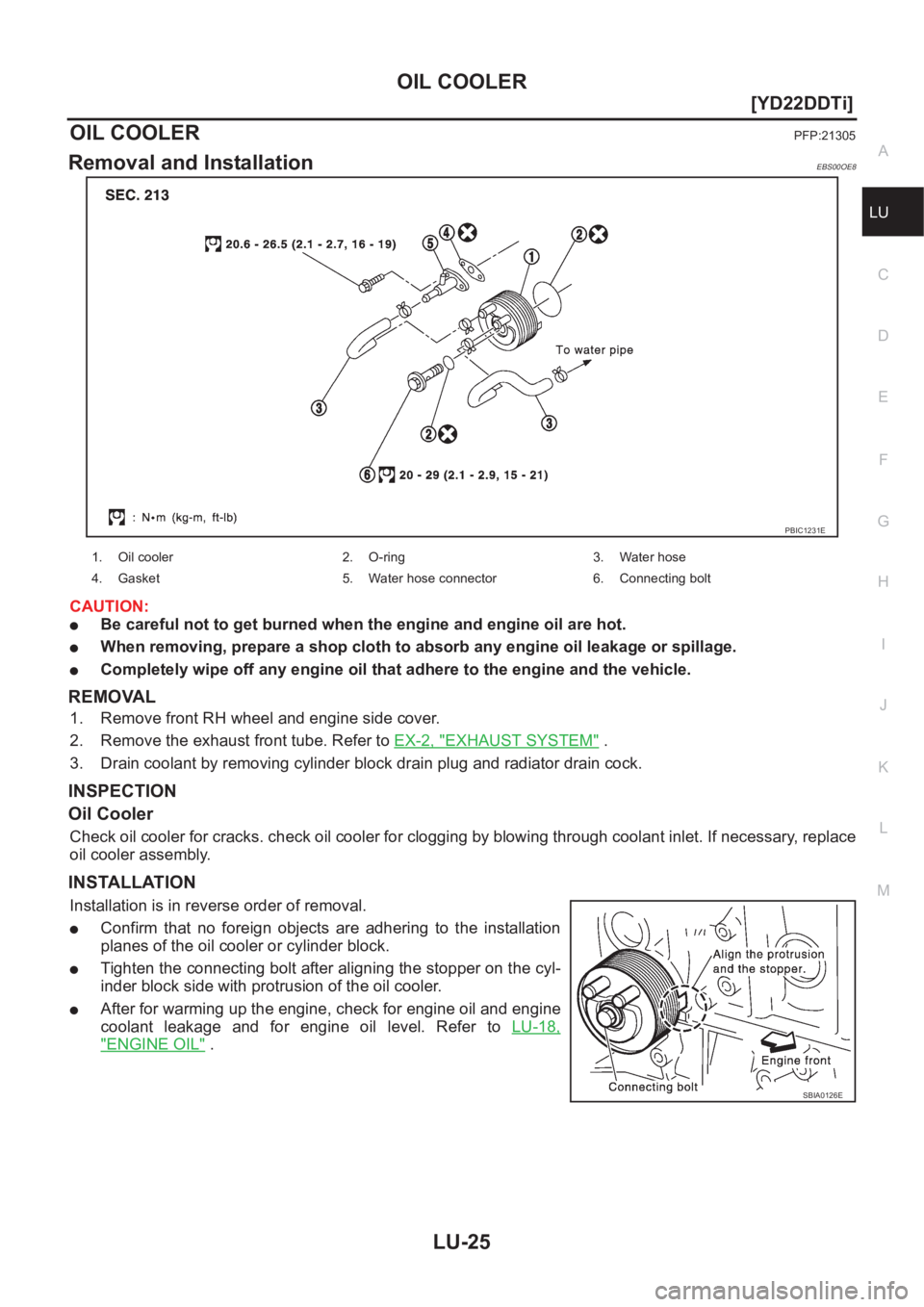

LU-25
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
LU
OIL COOLERPFP:21305
Removal and InstallationEBS00OE8
CAUTION:
●Be careful not to get burned when the engine and engine oil are hot.
●When removing, prepare a shop cloth to absorb any engine oil leakage or spillage.
●Completely wipe off any engine oil that adhere to the engine and the vehicle.
REMOVAL
1. Remove front RH wheel and engine side cover.
2. Remove the exhaust front tube. Refer to EX-2, "
EXHAUST SYSTEM" .
3. Drain coolant by removing cylinder block drain plug and radiator drain cock.
INSPECTION
Oil Cooler
Check oil cooler for cracks. check oil cooler for clogging by blowing through coolant inlet. If necessary, replace
oil cooler assembly.
INSTALLATION
Installation is in reverse order of removal.
●Confirm that no foreign objects are adhering to the installation
planes of the oil cooler or cylinder block.
●Tighten the connecting bolt after aligning the stopper on the cyl-
inder block side with protrusion of the oil cooler.
●After for warming up the engine, check for engine oil and engine
coolant leakage and for engine oil level. Refer to LU-18,
"ENGINE OIL" .
PBIC1231E
1. Oil cooler 2. O-ring 3. Water hose
4. Gasket 5. Water hose connector 6. Connecting bolt
SBIA0126E

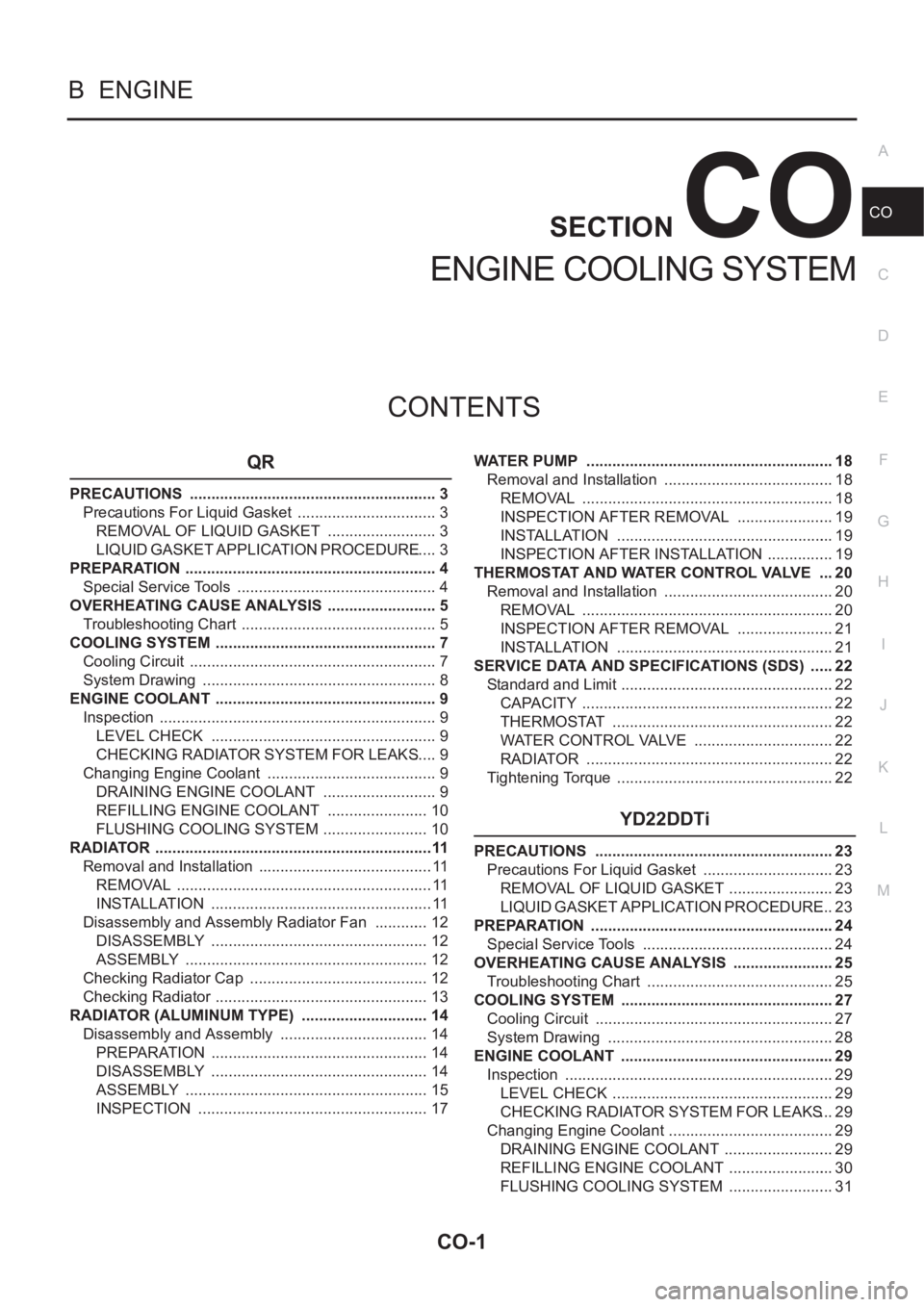

CO-1
ENGINE COOLING SYSTEM
B ENGINE
CONTENTS
C
D
E
F
G
H
I
J
K
L
M
SECTION
A
CO
ENGINE COOLING SYSTEM
QR
PRECAUTIONS .......................................................... 3
Precautions For Liquid Gasket ................................. 3
REMOVAL OF LIQUID GASKET .......................... 3
LIQUID GASKET APPLICATION PROCEDURE ..... 3
PREPARATION ........................................................... 4
Special Service Tools ............................................... 4
OVERHEATING CAUSE ANALYSIS .......................... 5
Troubleshooting Chart .............................................. 5
COOLING SYSTEM .................................................... 7
Cooling Circuit .......................................................... 7
System Drawing ....................................................... 8
ENGINE COOLANT .................................................... 9
Inspection ................................................................. 9
LEVEL CHECK ..................................................... 9
CHECKING RADIATOR SYSTEM FOR LEAKS ..... 9
Changing Engine Coolant ........................................ 9
DRAINING ENGINE COOLANT ........................... 9
REFILLING ENGINE COOLANT ........................ 10
FLUSHING COOLING SYSTEM ......................... 10
RADIATOR .................................................................11
Removal and Installation ......................................... 11
REMOVAL ............................................................ 11
INSTALLATION .................................................... 11
Disassembly and Assembly Radiator Fan ............. 12
DISASSEMBLY ................................................... 12
ASSEMBLY ......................................................... 12
Checking Radiator Cap .......................................... 12
Checking Radiator .................................................. 13
RADIATOR (ALUMINUM TYPE) .............................. 14
Disassembly and Assembly ................................... 14
PREPARATION ................................................... 14
DISASSEMBLY ................................................... 14
ASSEMBLY ......................................................... 15
INSPECTION ...................................................... 17WATER PUMP .......................................................... 18
Removal and Installation ........................................ 18
REMOVAL ........................................................... 18
INSPECTION AFTER REMOVAL ....................... 19
INSTALLATION ................................................... 19
INSPECTION AFTER INSTALLATION ................ 19
THERMOSTAT AND WATER CONTROL VALVE .... 20
Removal and Installation ........................................ 20
REMOVAL ........................................................... 20
INSPECTION AFTER REMOVAL ....................... 21
INSTALLATION ................................................
... 21
SERVICE DATA AND SPECIFICATIONS (SDS) ...... 22
Standard and Limit .................................................. 22
CAPACITY ........................................................... 22
THERMOSTAT .................................................... 22
WATER CONTROL VALVE ................................. 22
RADIATOR ....................................................... ... 22
Tightening Torque ................................................... 22
YD22DDTi
PRECAUTIONS ........................................................ 23
Precautions For Liquid Gasket ............................... 23
REMOVAL OF LIQUID GASKET ......................... 23
LIQUID GASKET APPLICATION PROCEDURE ... 23
PREPARATION ......................................................... 24
Special Service Tools ............................................. 24
OVERHEATING CAUSE ANALYSIS ........................ 25
Troubleshooting Chart ............................................ 25
COOLING SYSTEM .................................................. 27
Cooling Circuit ........................................................ 27
System Drawing ..................................................... 28
ENGINE COOLANT .................................................. 29
Inspection ............................................................... 29
LEVEL CHECK .................................................... 29
CHECKING RADIATOR SYSTEM FOR LEAKS ... 29
Changing Engine Coolant ....................................... 29
DRAINING ENGINE COOLANT .......................... 29
REFILLING ENGINE COOLANT ......................... 30
FLUSHING COOLING SYSTEM ......................... 31
