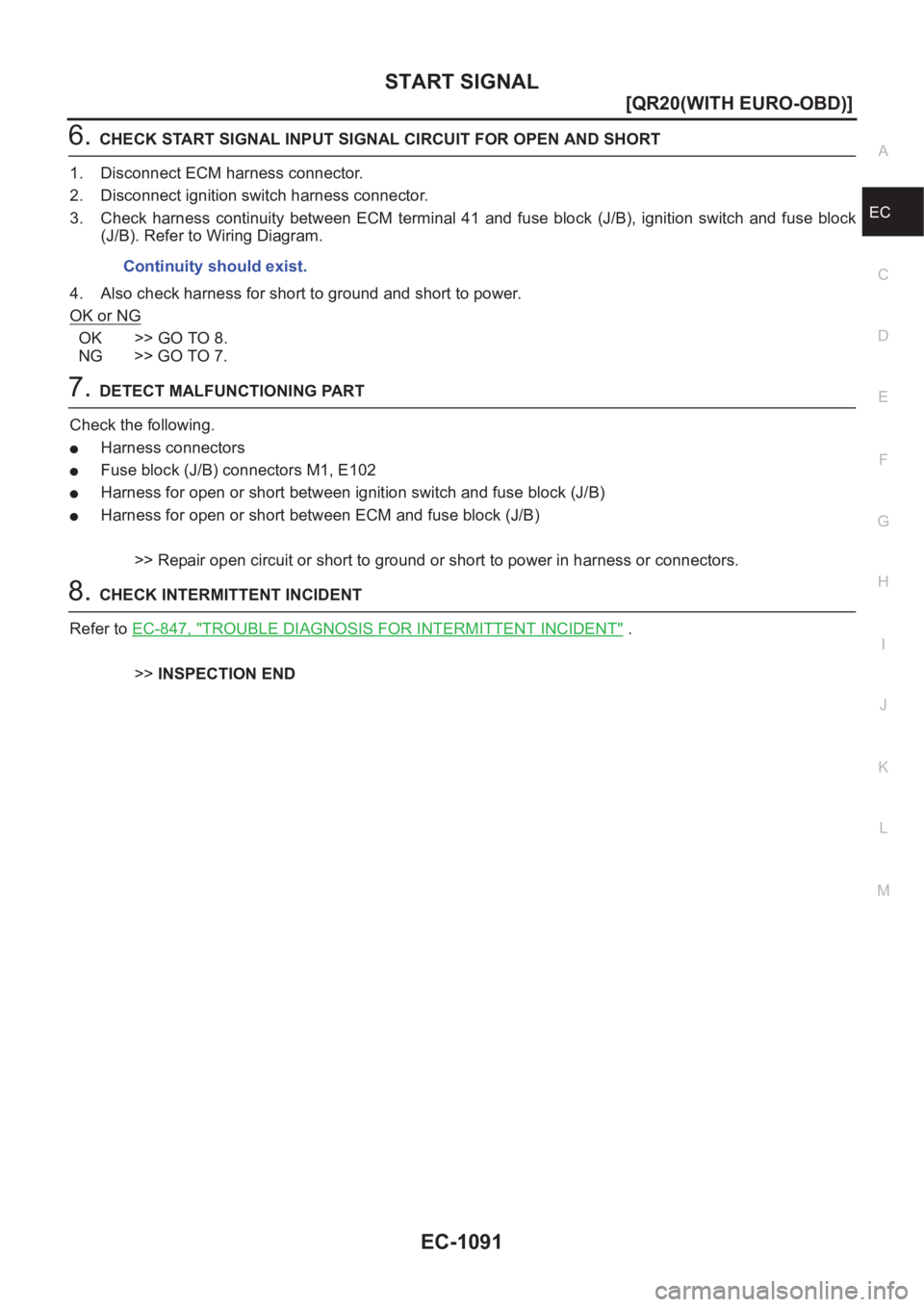

NISSAN X-TRAIL 2001 Service Repair Manual START SIGNAL EC-1091 [QR20(WITH EURO-OBD)] C D E F G H I J K L MA EC 6.CHECK START SIGNAL INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT 1. Disconnect ECM harness connector. 2. Disconnect ignition switch har

Page 1442 of 3833

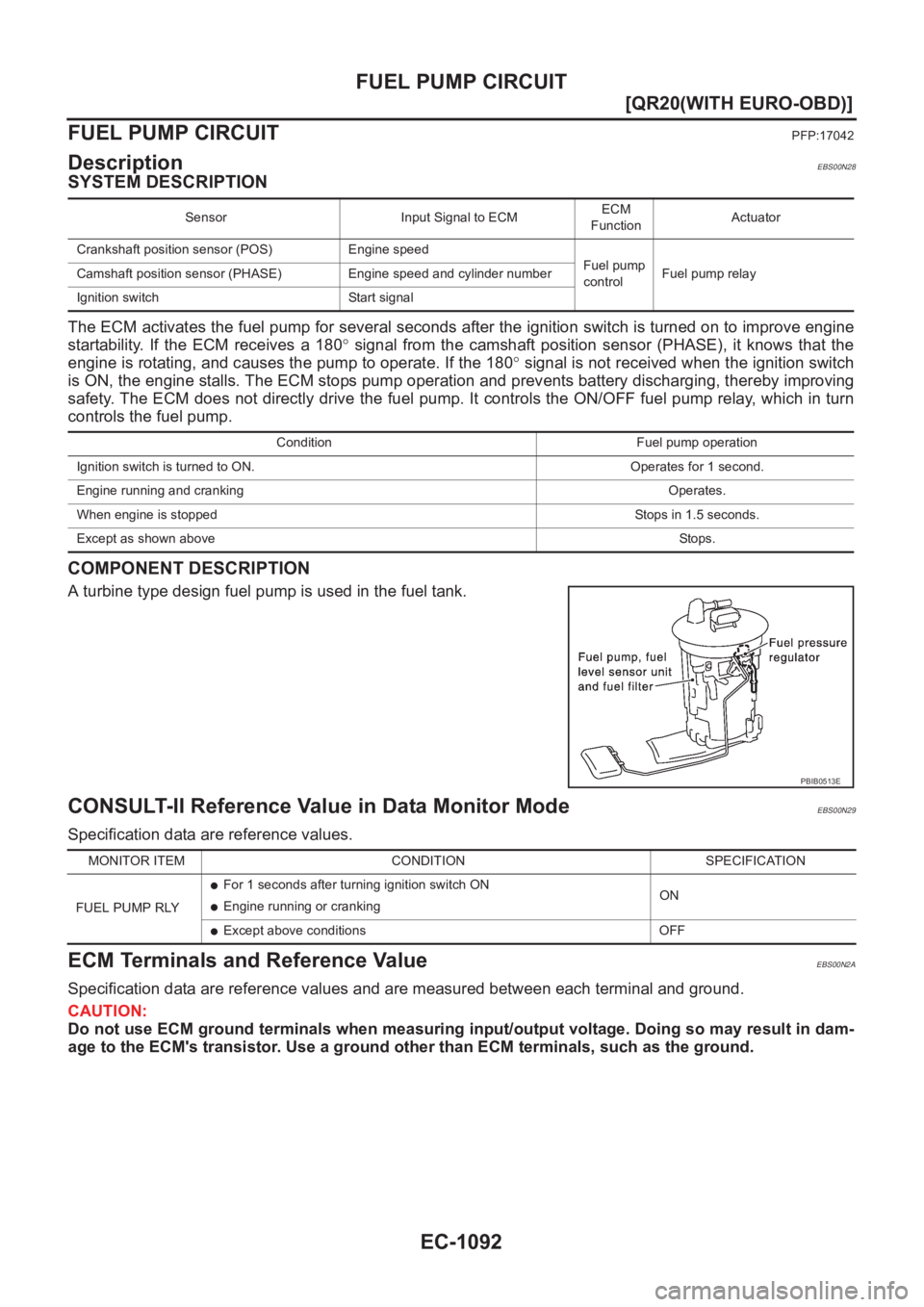

NISSAN X-TRAIL 2001 Service Repair Manual EC-1092 [QR20(WITH EURO-OBD)] FUEL PUMP CIRCUIT FUEL PUMP CIRCUIT PFP:17042 DescriptionEBS00N28 SYSTEM DESCRIPTION The ECM activates the fuel pump for several seconds after the ignition switch is turn

Page 1443 of 3833

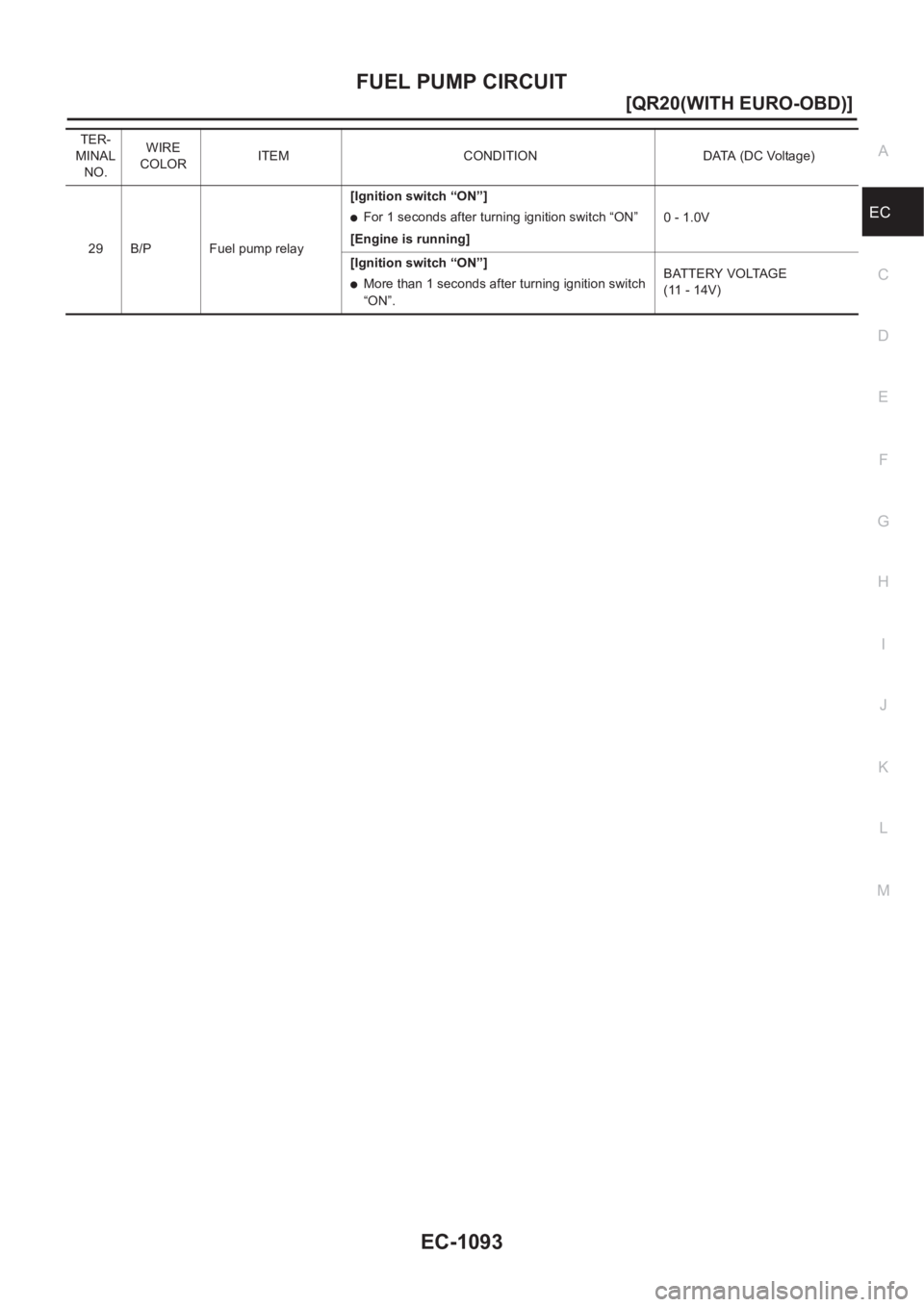

NISSAN X-TRAIL 2001 Service Repair Manual FUEL PUMP CIRCUIT EC-1093 [QR20(WITH EURO-OBD)] C D E F G H I J K L MA EC TER- MINAL NO.WIRE COLORITEM CONDITION DATA (DC Voltage) 29 B/P Fuel pump relay[Ignition switch “ON”] ●For 1 seconds a

Page 1444 of 3833

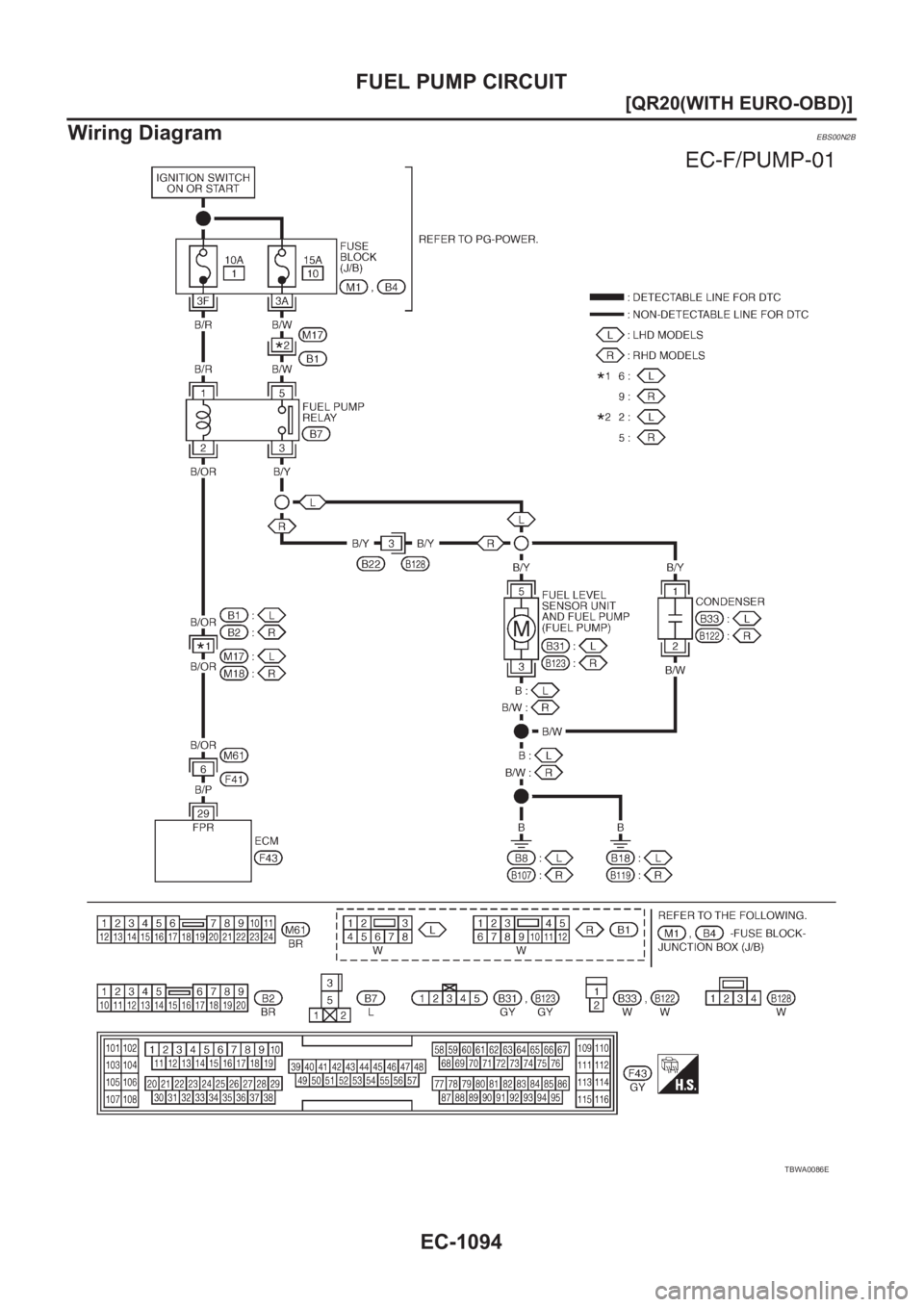

NISSAN X-TRAIL 2001 Service Repair Manual EC-1094 [QR20(WITH EURO-OBD)] FUEL PUMP CIRCUIT Wiring Diagram EBS00N2B TBWA0086E

Page 1445 of 3833

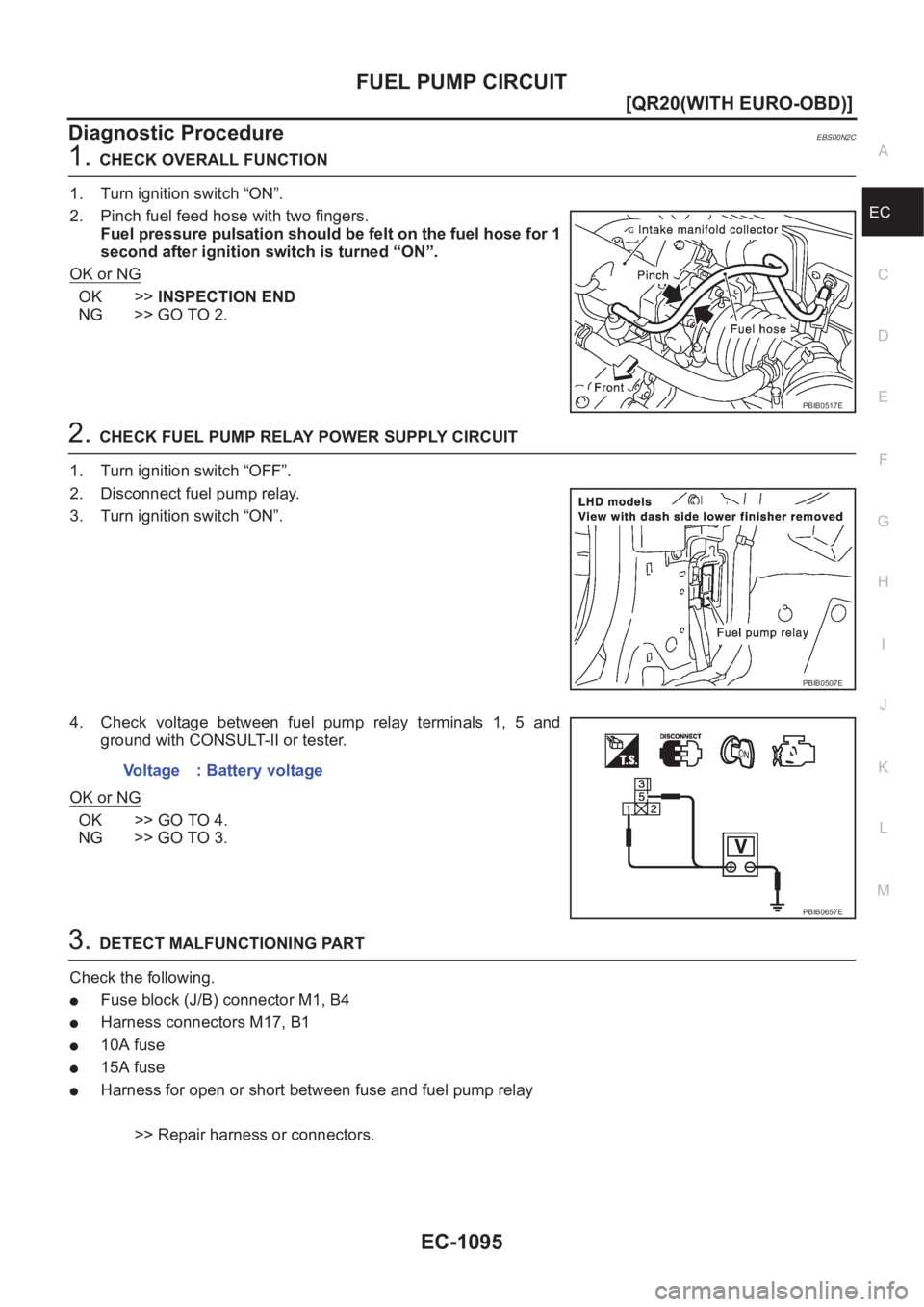

NISSAN X-TRAIL 2001 Service Repair Manual FUEL PUMP CIRCUIT EC-1095 [QR20(WITH EURO-OBD)] C D E F G H I J K L MA EC Diagnostic ProcedureEBS00N2C 1.CHECK OVERALL FUNCTION 1. Turn ignition switch “ON”. 2. Pinch fuel feed hose with two finge

Page 1446 of 3833

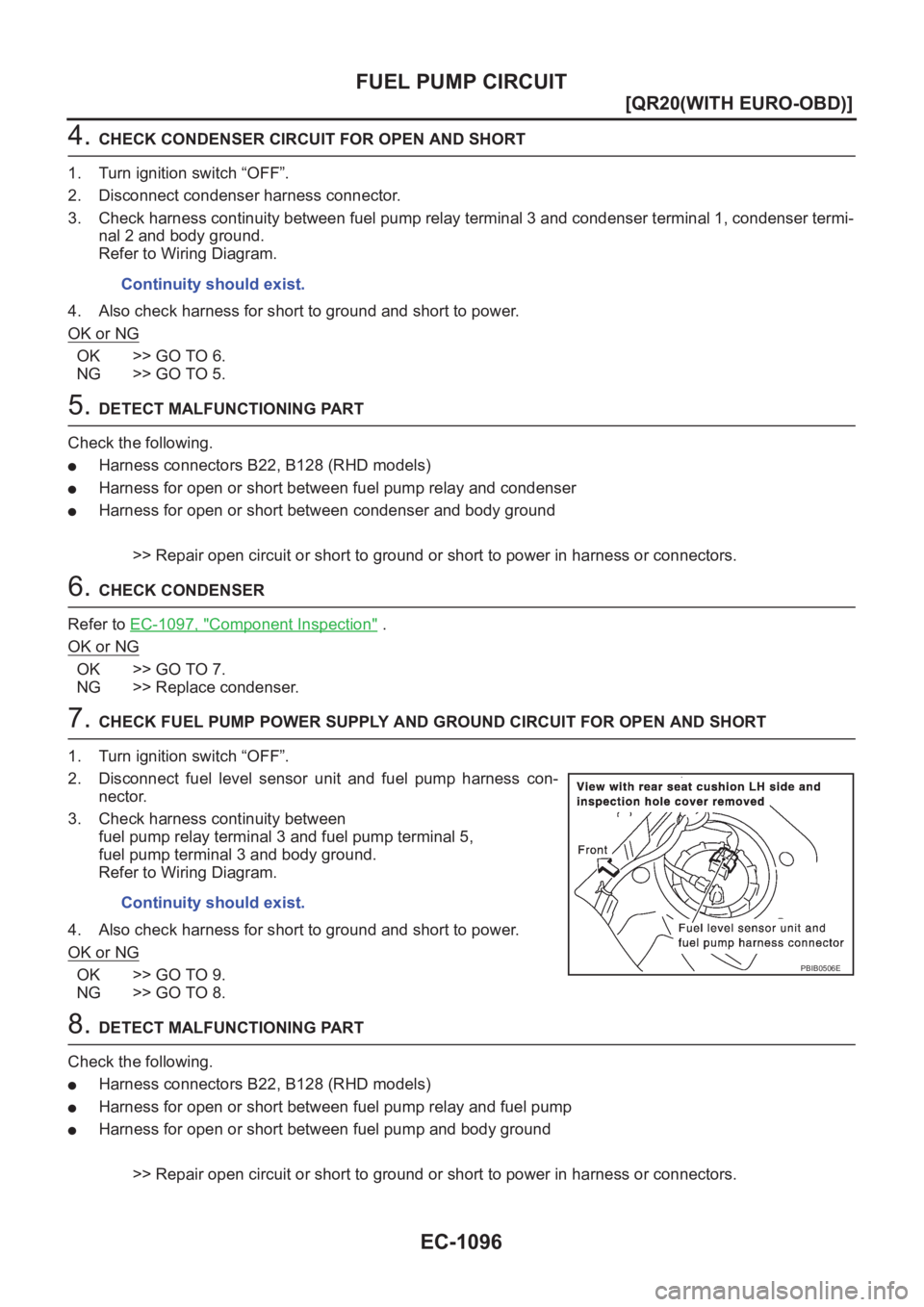

NISSAN X-TRAIL 2001 Service Repair Manual EC-1096 [QR20(WITH EURO-OBD)] FUEL PUMP CIRCUIT 4. CHECK CONDENSER CIRCUIT FOR OPEN AND SHORT 1. Turn ignition switch “OFF”. 2. Disconnect condenser harness connector. 3. Check harness continuity

Page 1447 of 3833

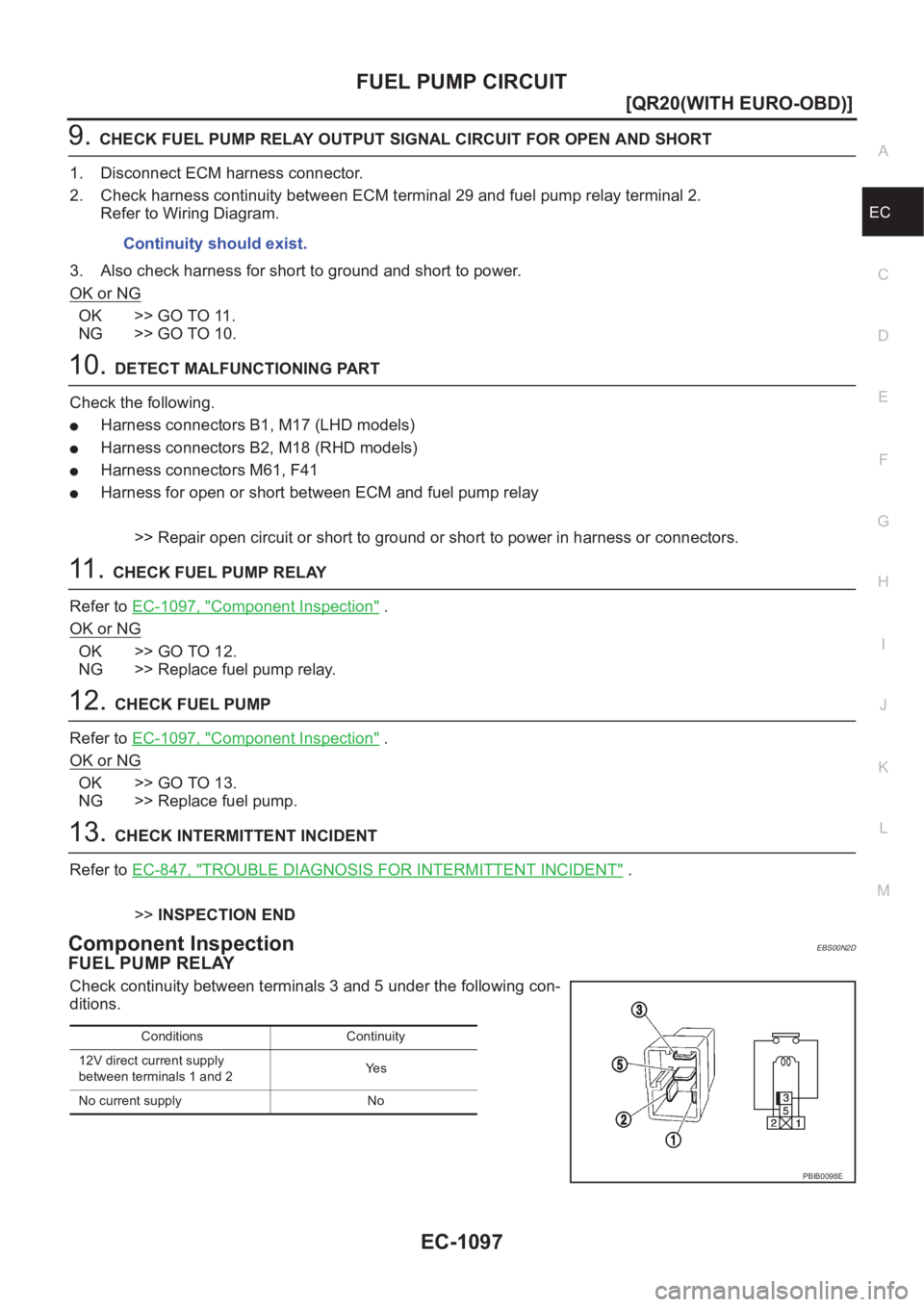

NISSAN X-TRAIL 2001 Service Repair Manual FUEL PUMP CIRCUIT EC-1097 [QR20(WITH EURO-OBD)] C D E F G H I J K L MA EC 9.CHECK FUEL PUMP RELAY OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT 1. Disconnect ECM harness connector. 2. Check harness continu

Page 1448 of 3833

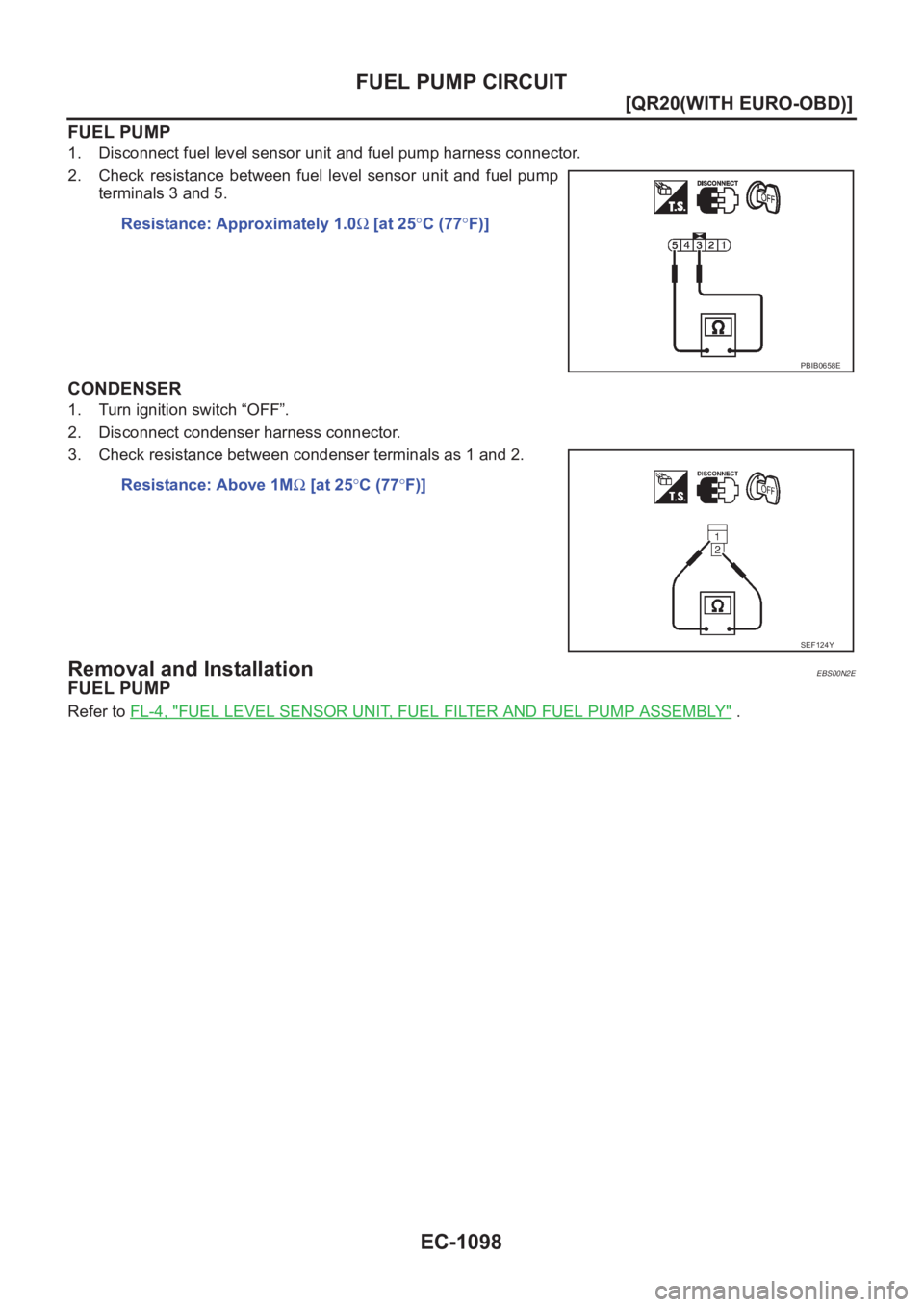

NISSAN X-TRAIL 2001 Service Repair Manual EC-1098 [QR20(WITH EURO-OBD)] FUEL PUMP CIRCUIT FUEL PUMP 1. Disconnect fuel level sensor unit and fuel pump harness connector. 2. Check resistance between fuel level sensor unit and fuel pum
