ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION
AT-45
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
1 position switch 1 POSITION SW
[ON/OFF]
X——●ON/OFF status, com-
puted from signal of 1
position SW, is dis-
played.
ASCD cruise sig-
nalASCD·CRUISE
[ON/OFF]
X——
●Status of ASCD cruise
signal is displayed.
ON... Cruising state
OFF... Normal running
state●This is displayed even
when no ASCD is
mounted.
ASCD OD cut sig-
nalASCD·OD CUT
[ON/OFF]
X——
●Status of ASCD OD
release signal is dis-
played.
ON... OD released
OFF... OD not released●This is displayed even
when no ASCD is
mounted.
Kickdown switch KICKDOWN SW
[ON/OFF]
X——
●ON/OFF status, com-
puted from signal of
kick down SW, is dis-
played.●This is displayed even
when no kick down
switch is equipped.
Closed throttle
position signalCLOSED THL/
SW
[ON/OFF]X——
●ON/OFF status, com-
puted from signal of
closed throttle position
signal, is displayed.●This means closed
throttle position signal
input via CAN com-
munication line.
Wide open throttle
position signalW/O THRL/P-
SW
[ON/OFF]
X——
●ON/OFF status, com-
puted from signal of
wide open throttle posi-
tion signal, is dis-
played.●This means wide
open throttle position
signal input via CAN
communication line.
Gear position GEAR
—— X
●Gear position data
used for computation
by TCM, is displayed.
Selector lever
positionSLCT LVR POSI
—— X
●Selector lever position
data, used for compu-
tation by TCM, is dis-
played.●A specific value used
for control is displayed
if fail-safe is activated
due to error.
Vehicle speed VEHICLE
SPEED
[km/h] or [mph]—— X
●Vehicle speed data,
used for computation
by TCM, is displayed.
Torque converter
slip ratioTC SLIP
RATIO
[0.000]———
●Ratio of engine revolu-
tion to input shaft revo-
lution of torque
converter
Torque converter
slip speedTC SLIP
SPEED
[rpm]———Difference in revolution
between input shaft revo-
lution and input shaft rev-
olution of torque
converterDisplay doesn't indicate
o rpm even if engine is
stopped.
But this isn't malfunc-
tion.
CAN communica-
tionCAN COMM
[OK/NG]—X—
CAN circuit 1CAN CIRC 1
[OK/UNKWN]—X—
CAN circuit 2CAN CIRC 2
[OK/UNKWN]—X— Item DisplayMover to center Monitor items
Description Remarks TCM
Input
signalsCAN
comm
sig-
nalsMain
signalsSelection
from
menu
TROUBLE DIAGNOSIS — INTRODUCTION
AT-59
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
4. 4-3. Cruise testAT- 7 4 , "3.
CRUISE
TEST"
AT- 7 8 ,
"Cruise Test
— Part 1"
Part-1
❏ Vehicle Cannot Be Started From D
1 , AT- 2 2 0 , "Vehicle Cannot Be Started From D1" .
❏ A/T Does Not Shift: D
1→ D2 Or Does Not Kickdown: D4→ D2 , AT-223, "A/T Does Not Shift: D1→
D2 Or Does Not Kickdown: D4→ D2" .
❏ A/T Does Not Shift: D
2→ D3 , AT- 2 2 5 , "A/T Does Not Shift: D2→ D3" .
❏ A/T Does Not Shift: D
3→ D4 , AT- 2 2 7 , "A/T Does Not Shift: D3→ D4" .
❏ A/T Does Not Perform Lock-up, AT-229, "
A/T Does Not Perform Lock-up" .
❏ A/T Does Not Hold Lock-up Condition, AT-230, "
A/T Does Not Hold Lock-up Condition" .
❏ Lock-up Is Not Released, AT-232, "
Lock-up Is Not Released" .
❏ Engine Speed Does Not Return To Idle (Light Braking D
4→ D3 ), AT-233, "Engine Speed Does Not
Return To Idle (Light Braking D4→ D3 )" .
Part-2AT- 8 1 ,
"Cruise Test
— Part 2"❏ Vehicle Does Not Start From D1 , AT- 2 3 4 , "Vehicle Does Not Start From D1" .
❏ A/T Does Not Shift: D
1→ D2 Or Does Not Kickdown: D4→ D2 , AT-223, "A/T Does Not Shift: D1→
D2 Or Does Not Kickdown: D4→ D2" .
❏ A/T Does Not Shift: D
2→ D3 , AT- 2 2 5 , "A/T Does Not Shift: D2→ D3" .
❏ A/T Does Not Shift: D
3→ D4 , AT- 2 2 7 , "A/T Does Not Shift: D3→ D4" .
Part-3AT- 8 3 ,
"Cruise Test
— Part 3"❏ A/T Does Not Shift: D4→ D3 When Overdrive Control Switch “ON” → “OFF”, AT-236, "A/T Does Not
Shift: D4→ D3 , When Overdrive Control Switch “ON”→“OFF”" .
❏ Engine Speed Does Not Return To Idle (Engine Brake In D
3 ), AT-233, "Engine Speed Does Not Return
To Idle (Light Braking D4→ D3 )" .
❏ A/T Does Not Shift: D
3→ 22 , When Selector Lever “D” → “2” Position, AT- 2 3 7 , "A/T Does Not Shift:
D3→ 22 , When Selector Lever “D”→“2” Position" .
❏ Engine Speed Does Not Return To Idle (Engine Brake In 2
2 ), AT- 2 3 3 , "Engine Speed Does Not Return
To Idle (Light Braking D4→ D3 )" .
❏ A/T Does Not Shift: 2
2→ 11 , When Selector Lever “2” → “1” Position, AT-238, "A/T Does Not Shift: 22
→ 11 , When Selector Lever “2”→“1” Position" .
❏ Vehicle Does Not Decelerate By Engine Brake, AT- 2 4 0 , "
Vehicle Does Not Decelerate By Engine
Brake" .
❏ TCM Self-diagnosis Does Not Activate (PNP & Overdrive control switches, and throttle position sensor
circuit checks), AT-241, "
TCM Self-diagnosis Does Not Activate" .
❏ SELF-DIAGNOSTIC PROCEDURE/DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION PRO-
CEDURE — Mark detected items.
❏ PNP switch, AT- 11 0 , "
DTC P0705 PARK/NEUTRAL POSITION (PNP) SWITCH" .
❏ A/T fluid temperature sensor, AT- 11 6 , "
DTC P0710 A/T FLUID TEMPERATURE SENSOR CIR-
CUIT" .
❏ Vehicle speed sensor·A/T (Revolution sensor), AT- 1 2 2 , "
DTC P0720 VEHICLE SPEED SEN-
SOR·A/T (REVOLUTION SENSOR)" .
❏ Engine speed signal, AT- 1 2 7 , "
DTC P0725 ENGINE SPEED SIGNAL" .
❏ Torque converter clutch solenoid valve, AT-158, "
DTC P0740 TORQUE CONVERTER CLUTCH
SOLENOID VALVE" .
❏ Line pressure solenoid valve, AT-163, "
DTC P0745 LINE PRESSURE SOLENOID VALVE" .
❏ Shift solenoid valve A, AT- 1 7 0 , "
DTC P0750 SHIFT SOLENOID VALVE A" .
❏ Shift solenoid valve B, AT- 1 7 5 , "
DTC P0755 SHIFT SOLENOID VALVE B" .
❏ Accelerator pedal position (App) sensor, AT-180, "
DTC P1705 ACCELERATOR PEDAL POSITION
(APP) SENSOR" .
❏ Overrun clutch solenoid valve, AT- 1 8 5 , "
DTC P1760 OVERRUN CLUTCH SOLENOID VALVE" .
❏ PNP & overdrive control switches, and throttle position sensor, AT-241, "
TCM Self-diagnosis Does
Not Activate" .
❏ A/T fluid temperature sensor and TCM power source, AT-193, "
DTC BATT/FLUID TEMP SEN (A/T
FLUID TEMP SENSOR CIRCUIT AND TCM POWER SOURCE)" .
❏ Vehicle speed sensor·MTR, AT-199, "
DTC VEHICLE SPEED SENSOR MTR" .
❏ CAN communication line, AT- 1 9 0 , "
DTC U1000 CAN COMMUNICATION LINE" .
❏ Control unit (RAM), control unit (ROM), AT-203, "
DTC CONTROL UNIT (RAM), CONTROL UNIT
(ROM)" .
❏ Control unit (EEP ROM), AT-205, "
DTC CONTROL UNIT(EEPROM)" .
❏ Battery
❏ Others

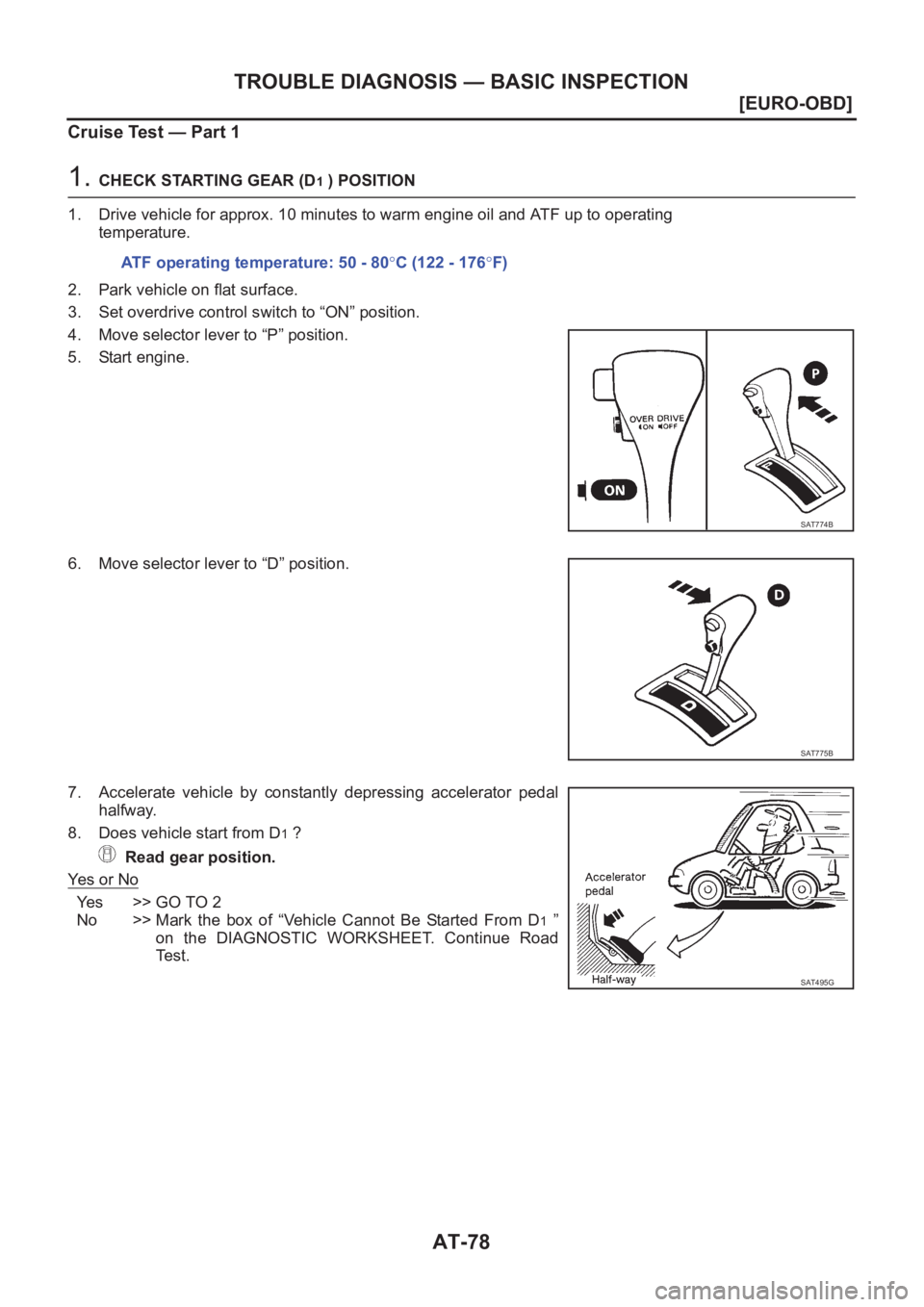

AT-78
[EURO-OBD]
TROUBLE DIAGNOSIS — BASIC INSPECTION
Cruise Test — Part 1
1. CHECK STARTING GEAR (D1 ) POSITION
1. Drive vehicle for approx. 10 minutes to warm engine oil and ATF up to operating
temperature.
2. Park vehicle on flat surface.
3. Set overdrive control switch to “ON” position.
4. Move selector lever to “P” position.
5. Start engine.
6. Move selector lever to “D” position.
7. Accelerate vehicle by constantly depressing accelerator pedal
halfway.
8. Does vehicle start from D
1 ?
Read gear position.
Ye s o r N o
Yes >> GO TO 2
No >> Mark the box of “Vehicle Cannot Be Started From D
1 ”
on the DIAGNOSTIC WORKSHEET. Continue Road
Te s t . ATF operating temperature: 50 - 80°C (122 - 176°F)
SAT774B
SAT775B
SAT495G

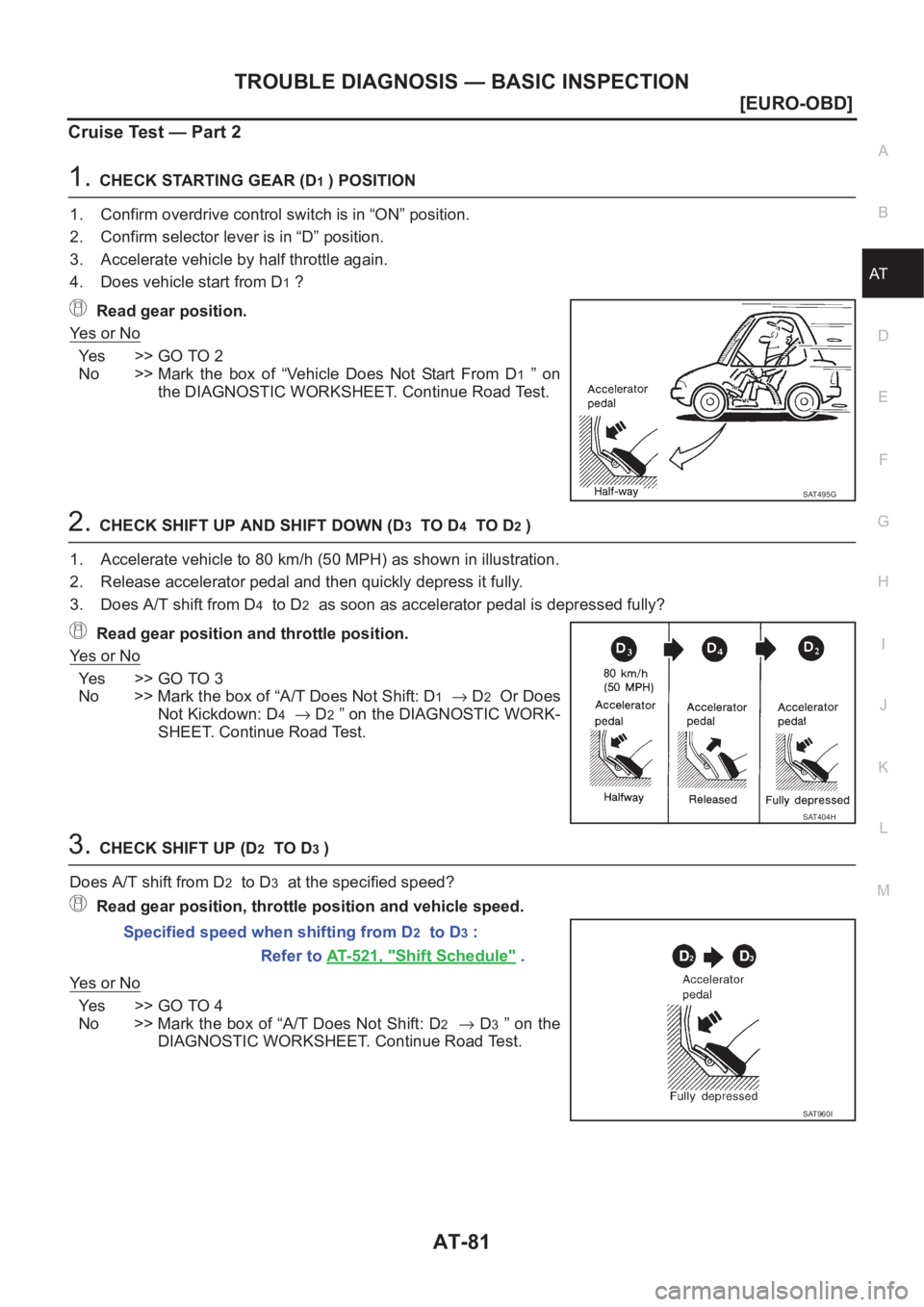

TROUBLE DIAGNOSIS — BASIC INSPECTION
AT-81
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
Cruise Test — Part 2
1.CHECK STARTING GEAR (D1 ) POSITION
1. Confirm overdrive control switch is in “ON” position.
2. Confirm selector lever is in “D” position.
3. Accelerate vehicle by half throttle again.
4. Does vehicle start from D
1 ?
Read gear position.
Ye s o r N o
Ye s > > G O T O 2
No >> Mark the box of “Vehicle Does Not Start From D
1 ” on
the DIAGNOSTIC WORKSHEET. Continue Road Test.
2.CHECK SHIFT UP AND SHIFT DOWN (D3 TO D4 TO D2 )
1. Accelerate vehicle to 80 km/h (50 MPH) as shown in illustration.
2. Release accelerator pedal and then quickly depress it fully.
3. Does A/T shift from D
4 to D2 as soon as accelerator pedal is depressed fully?
Read gear position and throttle position.
Ye s o r N o
Ye s > > G O T O 3
No >> Mark the box of “A/T Does Not Shift: D
1→ D2 Or Does
Not Kickdown: D
4→ D2 ” on the DIAGNOSTIC WORK-
SHEET. Continue Road Test.
3.CHECK SHIFT UP (D2 TO D3 )
Does A/T shift from D
2 to D3 at the specified speed?
Read gear position, throttle position and vehicle speed.
Ye s o r N o
Ye s > > G O T O 4
No >> Mark the box of “A/T Does Not Shift: D
2→ D3 ” on the
DIAGNOSTIC WORKSHEET. Continue Road Test.
SAT495G
SAT404H
Specified speed when shifting from D2 to D3 :
Refer to AT- 5 2 1 , "
Shift Schedule" .
SAT960I
TROUBLE DIAGNOSIS — BASIC INSPECTION
AT-83
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
Cruise Test — Part 3
1.CHECK SHIFT DOWN (D4 TO D3 )
1. Confirm overdrive control switch is in “ON” position.
2. Confirm selector lever is in “D” position.
3. Accelerate vehicle using half-throttle to D
4 .
4. Release accelerator pedal.
5. Set overdrive control switch to “OFF” position while driving in D
4
.
6. Does A/T shift from D
4 to D3 (O/D OFF)?
Read gear position and vehicle speed.
Ye s o r N o
Ye s > > G O T O 2
No >> Mark the box of “A/T Does Not Shift: D
4→ D3 , When Overdrive Control Switch “ON” → “OFF” on
the DIAGNOSTIC WORKSHEET. Continue Road Test.
SAT812A
SAT813A
SAT776BA

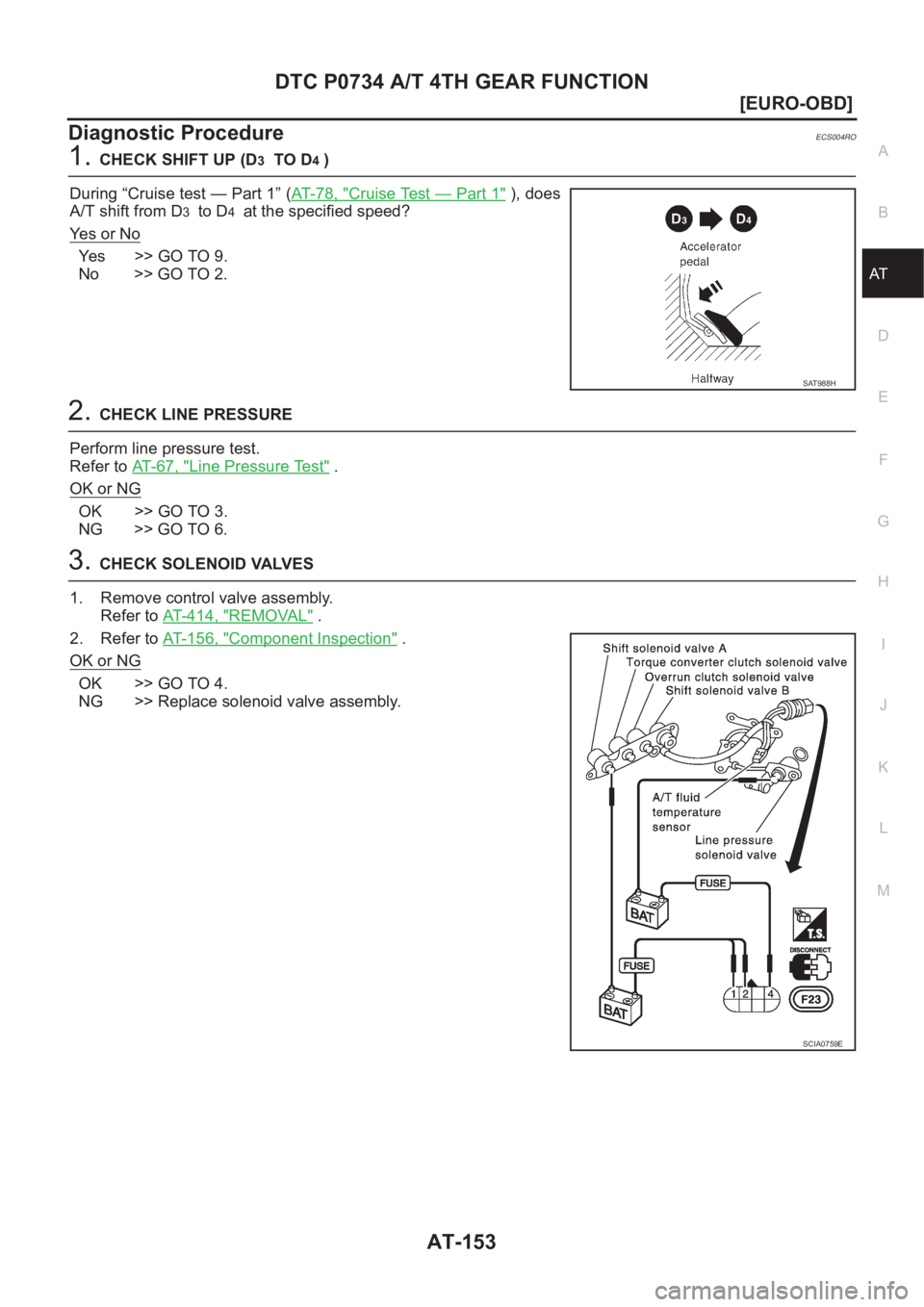

DTC P0734 A/T 4TH GEAR FUNCTION
AT-153
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
Diagnostic ProcedureECS004RO
1.CHECK SHIFT UP (D3 TO D4 )
During “Cruise test — Part 1” (AT- 7 8 , "
Cruise Test — Part 1" ), does
A/T shift from D
3 to D4 at the specified speed?
Ye s o r N o
Ye s > > G O T O 9 .
No >> GO TO 2.
2.CHECK LINE PRESSURE
Perform line pressure test.
Refer to AT-67, "
Line Pressure Test" .
OK or NG
OK >> GO TO 3.
NG >> GO TO 6.
3.CHECK SOLENOID VALVES
1. Remove control valve assembly.
Refer to AT-414, "
REMOVAL" .
2. Refer to AT-156, "
Component Inspection" .
OK or NG
OK >> GO TO 4.
NG >> Replace solenoid valve assembly.
SAT988H
SCIA0759E

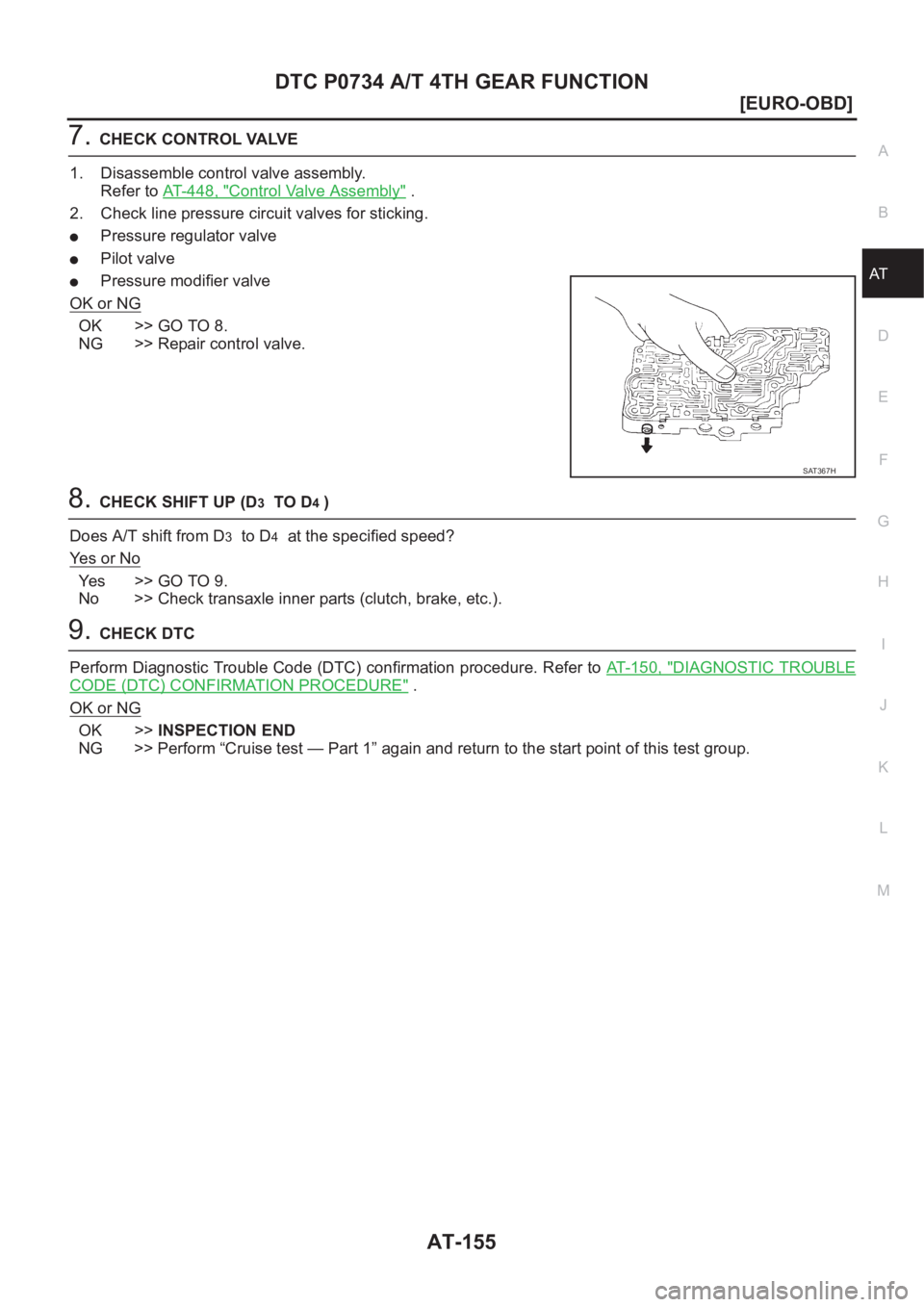

DTC P0734 A/T 4TH GEAR FUNCTION
AT-155
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
7.CHECK CONTROL VALVE
1. Disassemble control valve assembly.
Refer to AT-448, "
Control Valve Assembly" .
2. Check line pressure circuit valves for sticking.
●Pressure regulator valve
●Pilot valve
●Pressure modifier valve
OK or NG
OK >> GO TO 8.
NG >> Repair control valve.
8.CHECK SHIFT UP (D3 TO D4 )
Does A/T shift from D
3 to D4 at the specified speed?
Ye s o r N o
Ye s > > G O T O 9 .
No >> Check transaxle inner parts (clutch, brake, etc.).
9.CHECK DTC
Perform Diagnostic Trouble Code (DTC) confirmation procedure. Refer to AT- 1 5 0 , "
DIAGNOSTIC TROUBLE
CODE (DTC) CONFIRMATION PROCEDURE" .
OK or NG
OK >>INSPECTION END
NG >> Perform “Cruise test — Part 1” again and return to the start point of this test group.
SAT367H

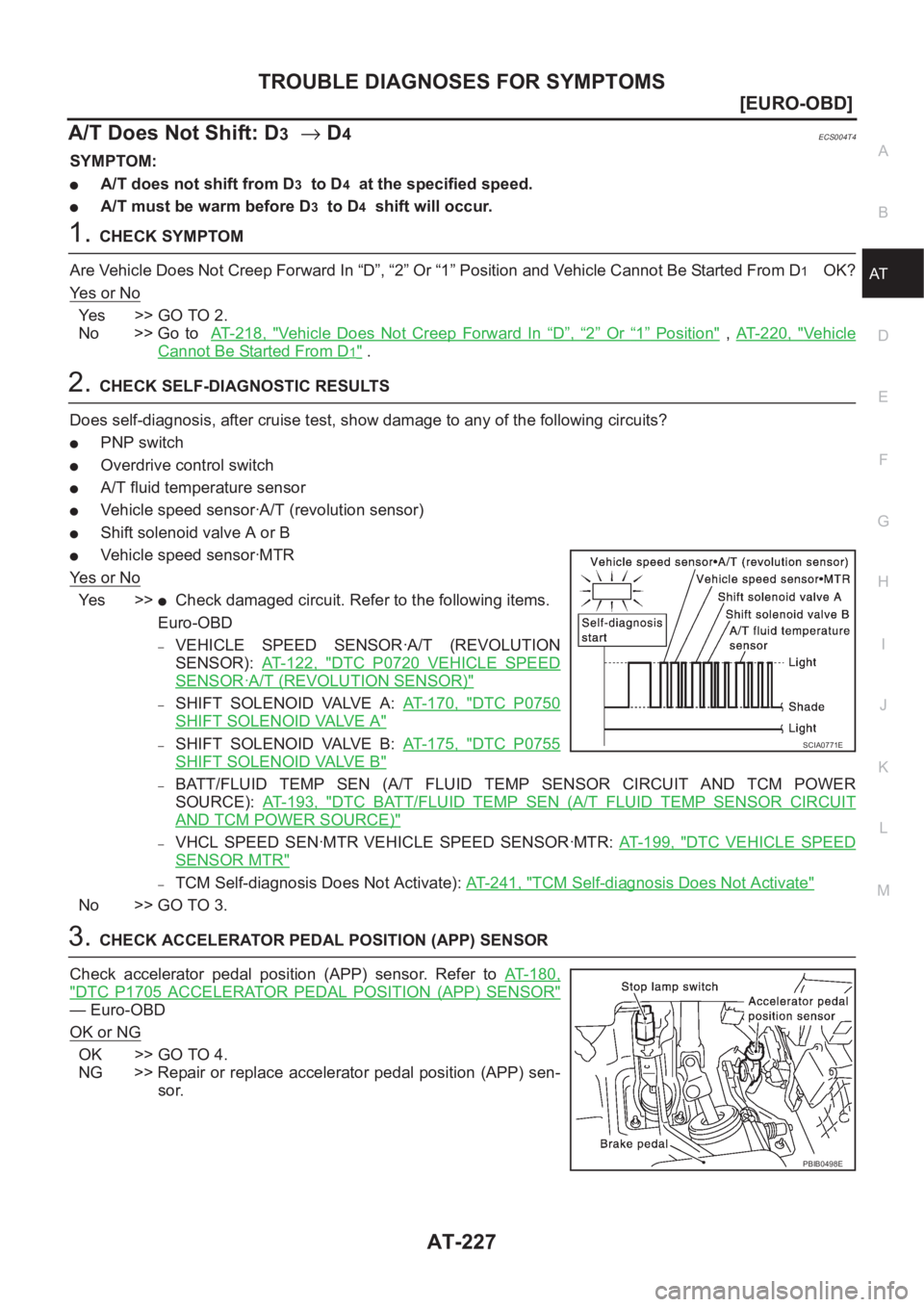

TROUBLE DIAGNOSES FOR SYMPTOMS
AT-227
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
A/T Does Not Shift: D3→ D4ECS004T4
SYMPTOM:
●A/T does not shift from D3 to D4 at the specified speed.
●A/T must be warm before D3 to D4 shift will occur.
1.CHECK SYMPTOM
Are Vehicle Does Not Creep Forward In “D”, “2” Or “1” Position and Vehicle Cannot Be Started From D
1 OK?
Ye s o r N o
Ye s > > G O T O 2 .
No >> Go to AT- 2 1 8 , "
Vehicle Does Not Creep Forward In “D”,“2” Or “1” Position" , AT- 2 2 0 , "Ve h i c l e
Cannot Be Started From D1" .
2.CHECK SELF-DIAGNOSTIC RESULTS
Does self-diagnosis, after cruise test, show damage to any of the following circuits?
●PNP switch
●Overdrive control switch
●A/T fluid temperature sensor
●Vehicle speed sensor·A/T (revolution sensor)
●Shift solenoid valve A or B
●Vehicle speed sensor·MTR
Ye s o r N o
Ye s > >●Check damaged circuit. Refer to the following items.
Euro-OBD
–VEHICLE SPEED SENSOR·A/T (REVOLUTION
SENSOR): AT- 1 2 2 , "
DTC P0720 VEHICLE SPEED
SENSOR·A/T (REVOLUTION SENSOR)"
–SHIFT SOLENOID VALVE A: AT- 1 7 0 , "DTC P0750
SHIFT SOLENOID VALVE A"
–SHIFT SOLENOID VALVE B: AT- 1 7 5 , "DTC P0755
SHIFT SOLENOID VALVE B"
–BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT AND TCM POWER
SOURCE): AT-193, "
DTC BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT
AND TCM POWER SOURCE)"
–VHCL SPEED SEN·MTR VEHICLE SPEED SENSOR·MTR: AT- 1 9 9 , "DTC VEHICLE SPEED
SENSOR MTR"
–TCM Self-diagnosis Does Not Activate): AT-241, "TCM Self-diagnosis Does Not Activate"
No >> GO TO 3.
3.CHECK ACCELERATOR PEDAL POSITION (APP) SENSOR
Check accelerator pedal position (APP) sensor. Refer to AT- 1 8 0 ,
"DTC P1705 ACCELERATOR PEDAL POSITION (APP) SENSOR"
— Euro-OBD
OK or NG
OK >> GO TO 4.
NG >> Repair or replace accelerator pedal position (APP) sen-
sor.
SCIA0771E
PBIB0498E
