2001 NISSAN X-TRAIL Service Repair Manual

Page 729 of 3833

NISSAN X-TRAIL 2001  Service Repair Manual IGNITION SIGNAL
EC-379
[QR25(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

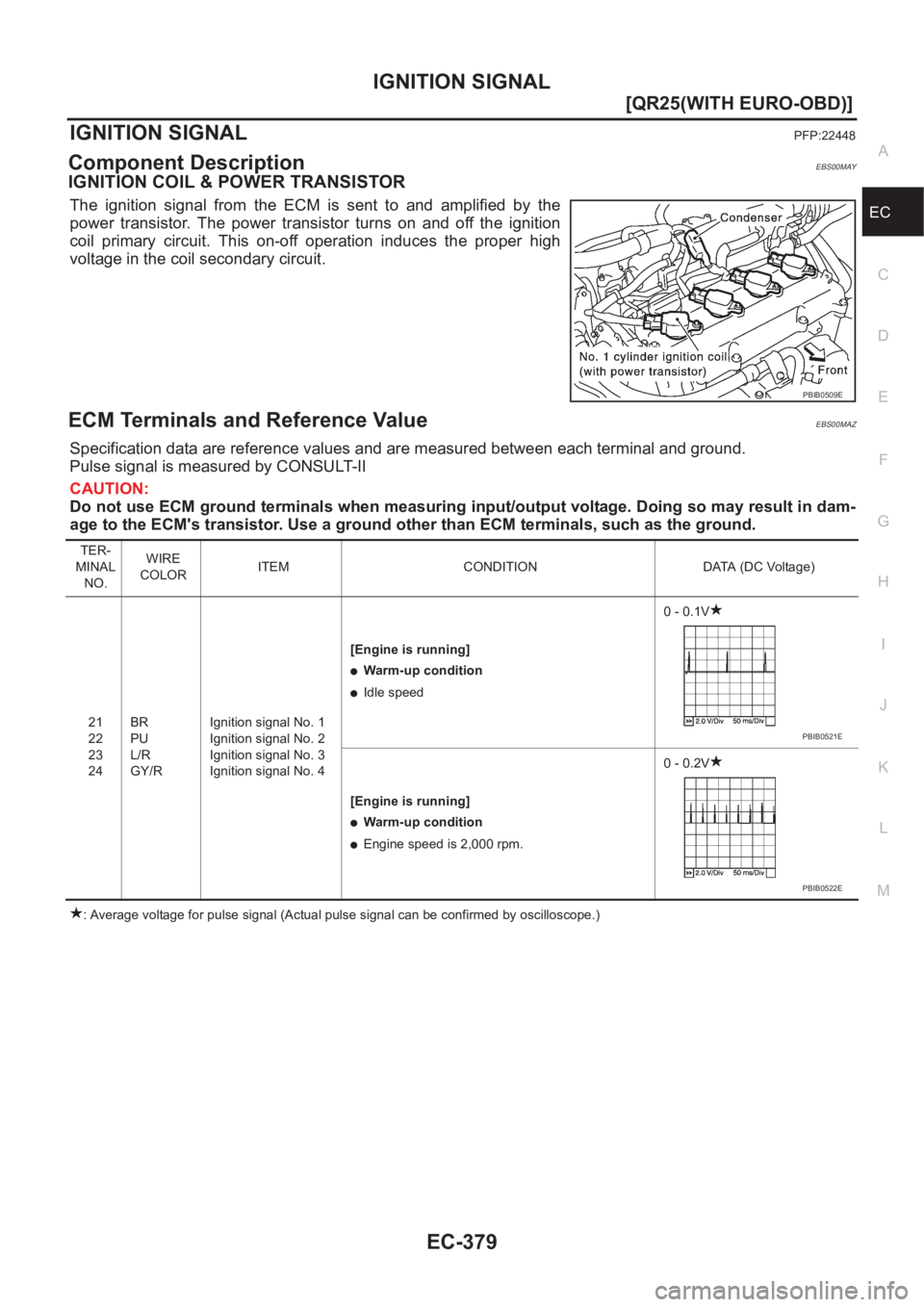

IGNITION SIGNALPFP:22448
Component DescriptionEBS00MAY
IGNITION COIL & POWER TRANSISTOR
The  ignition  signal  from  the  ECM  is

Page 730 of 3833

NISSAN X-TRAIL 2001  Service Repair Manual EC-380
[QR25(WITH EURO-OBD)]
IGNITION SIGNAL

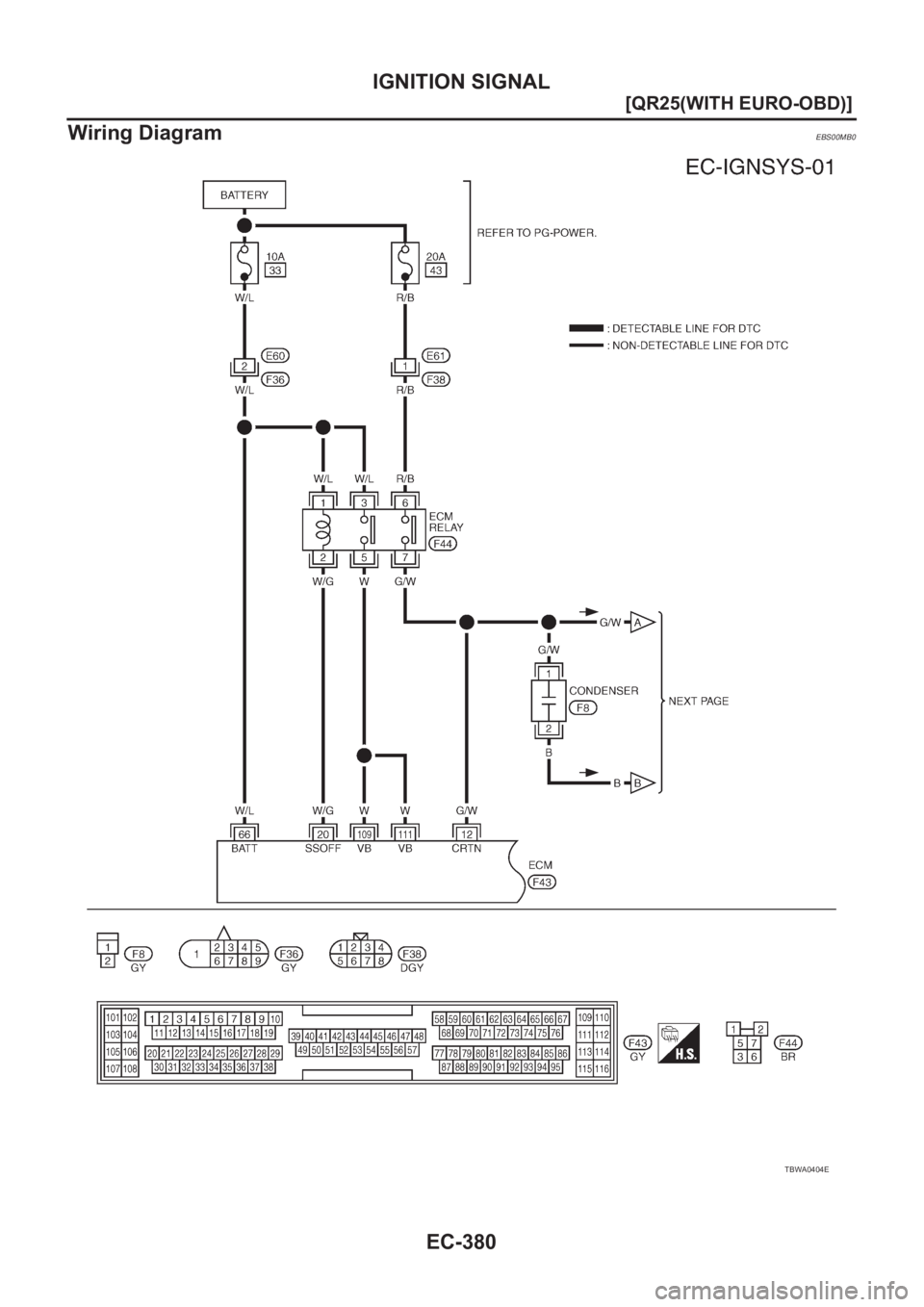

Wiring Diagram
EBS00MB0
TBWA0404E

Page 731 of 3833

NISSAN X-TRAIL 2001  Service Repair Manual IGNITION SIGNAL
EC-381
[QR25(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

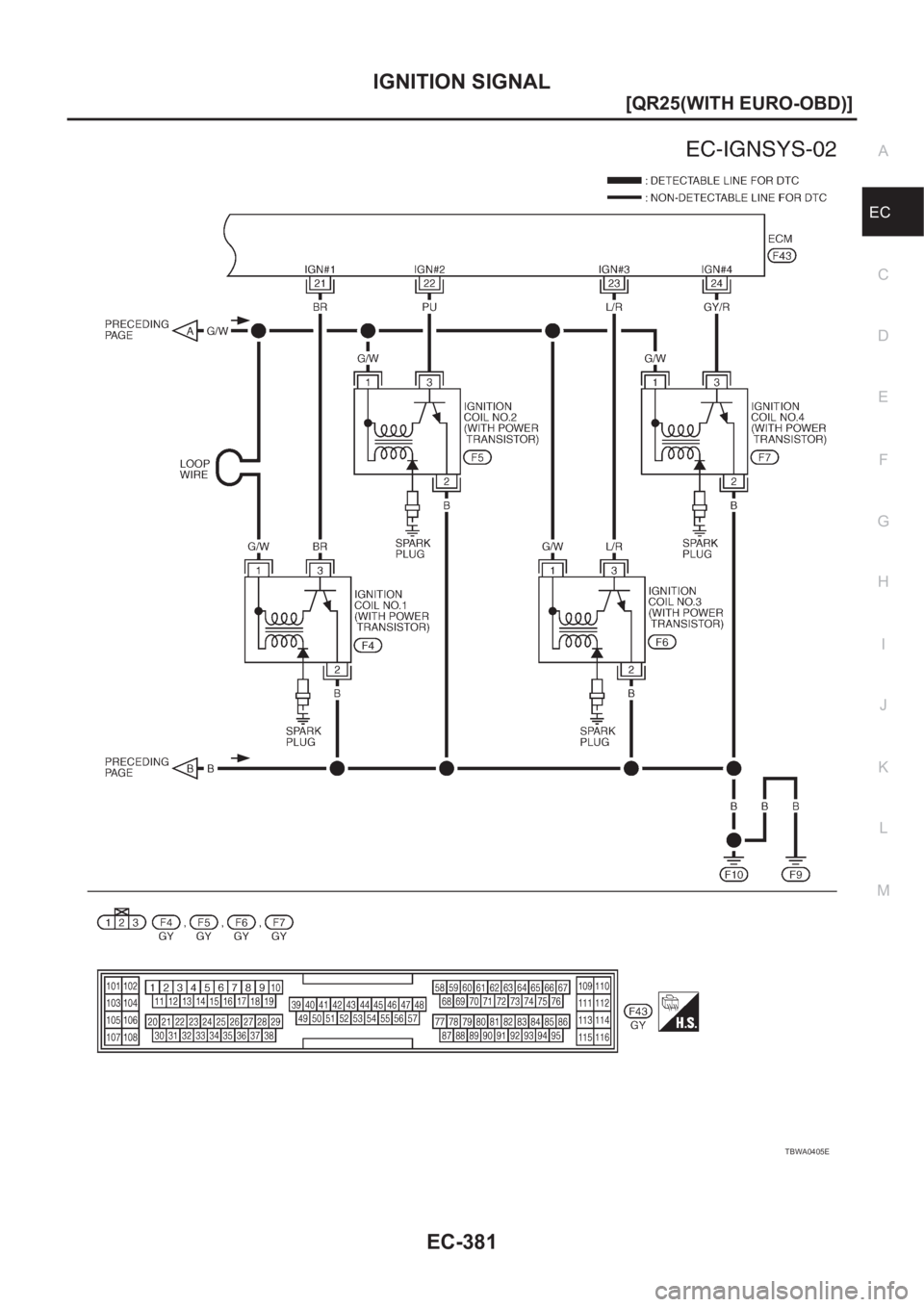

TBWA0405E

Page 732 of 3833

NISSAN X-TRAIL 2001  Service Repair Manual EC-382
[QR25(WITH EURO-OBD)]
IGNITION SIGNAL
Diagnostic Procedure
EBS00MB1
1. CHECK ENGINE START
Turn ignition switch “OFF”, and restart engine.
Is engine running?
Ye s   o r   N o
Yes (With CONSU

Page 733 of 3833

NISSAN X-TRAIL 2001  Service Repair Manual IGNITION SIGNAL
EC-383
[QR25(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

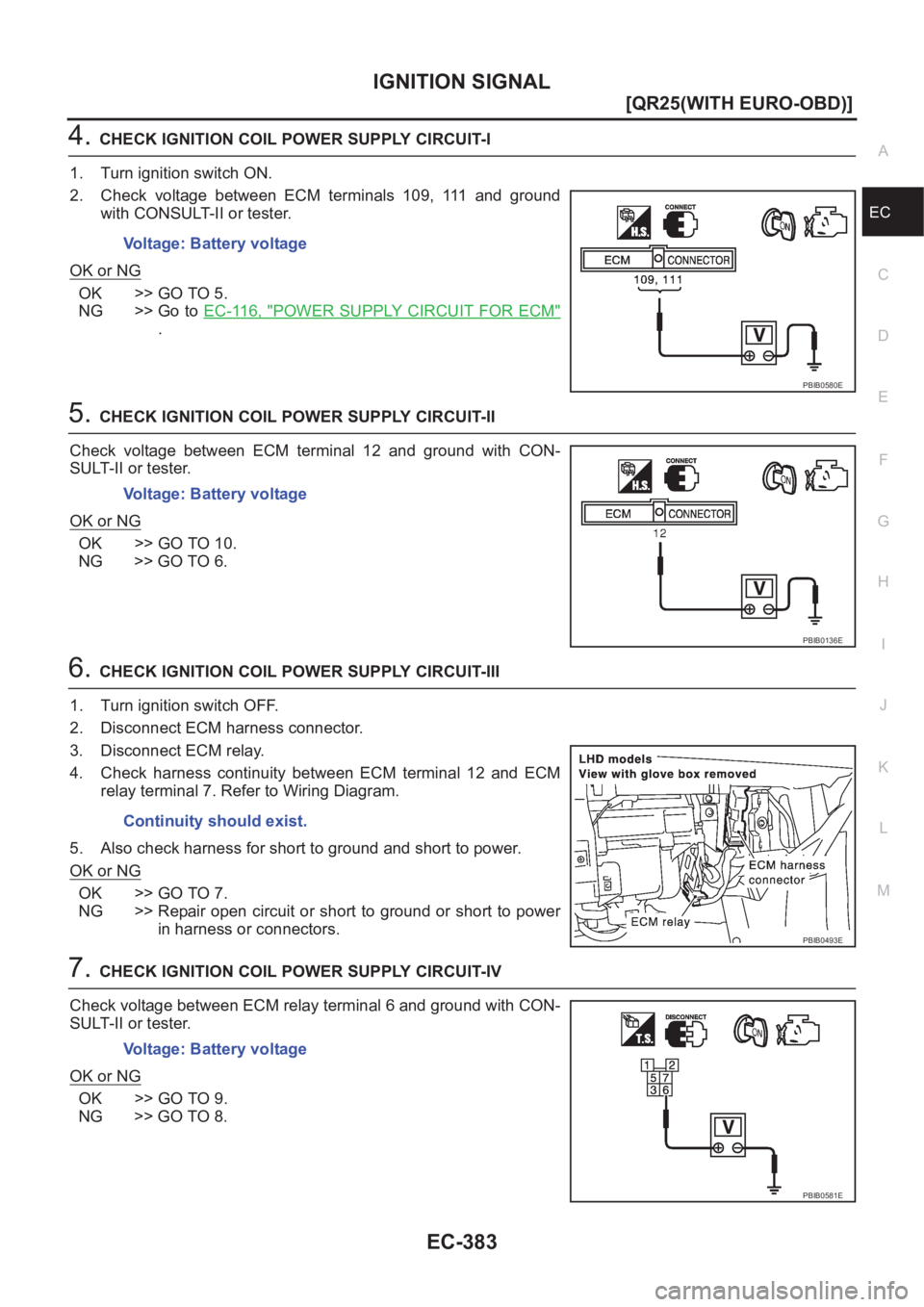

4.CHECK IGNITION COIL POWER SUPPLY CIRCUIT-I
1. Turn ignition switch ON.
2. Check  voltage  between  ECM  terminals  109,  111  a

Page 734 of 3833

NISSAN X-TRAIL 2001  Service Repair Manual EC-384
[QR25(WITH EURO-OBD)]
IGNITION SIGNAL
8. DETECT MALFUNCTIONING PART
Check the following.
●20A fuse
●Harness or connectors E61, F38
●Harness for open and short between ECM relay and fuse
>

Page 735 of 3833

NISSAN X-TRAIL 2001  Service Repair Manual IGNITION SIGNAL
EC-385
[QR25(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
12.CHECK IGNITION COIL POWER SUPPLY CIRCUIT-V
1. Turn ignition switch OFF.
2. Reconnect all harness connectors disconnected.
3. D

Page 736 of 3833

NISSAN X-TRAIL 2001  Service Repair Manual EC-386
[QR25(WITH EURO-OBD)]
IGNITION SIGNAL
15. CHECK IGNITION COIL OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminals 21,
