Page 3625 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual WARNING CHIME
DI-67
C
D
E
F
G
H
I
J
L
MA
B
DI
3.CHECK DOOR UNLOCK SENSOR CIRCUIT (RHD MODELS)
1. Disconnect door unlock sensor connector.
2. Check continuity between time control unit harness c

Page 3626 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual DI-68
WARNING CHIME

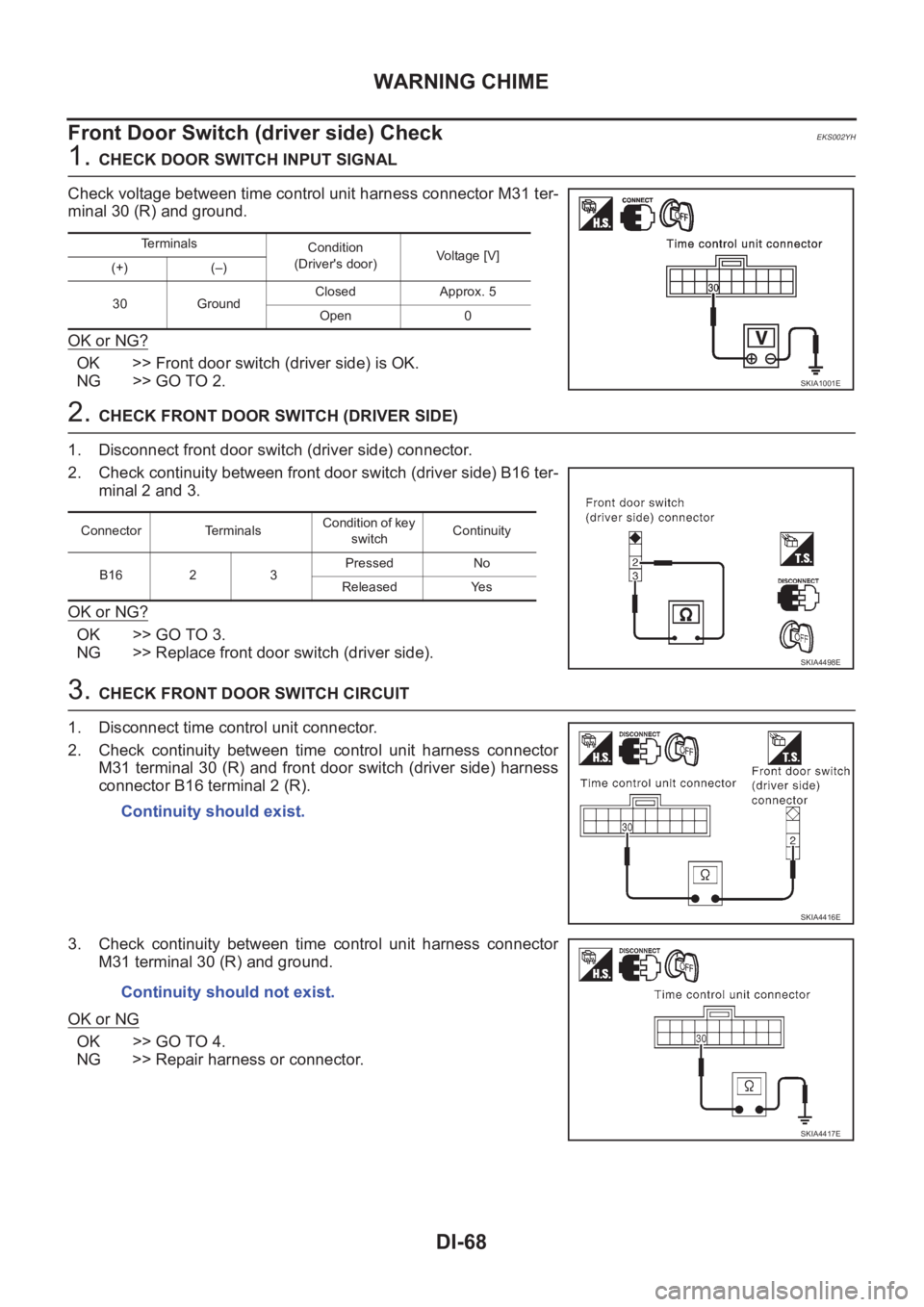

Front Door Switch (driver side) Check
EKS002YH
1. CHECK DOOR SWITCH INPUT SIGNAL
Check voltage between time control unit harness connector M31 ter-
minal 30 (R) and ground.
OK or N

Page 3627 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual WARNING CHIME
DI-69
C
D
E
F
G
H
I
J
L
MA
B
DI
4.CHECK FRONT DOOR SWITCH GROUND CIRCUIT
Check continuity between front door switch (driver side) harness
connector B16 terminal 3 (B) and ground.

Page 3628 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual DI-70
CLOCK
CLOCK
PFP:25820

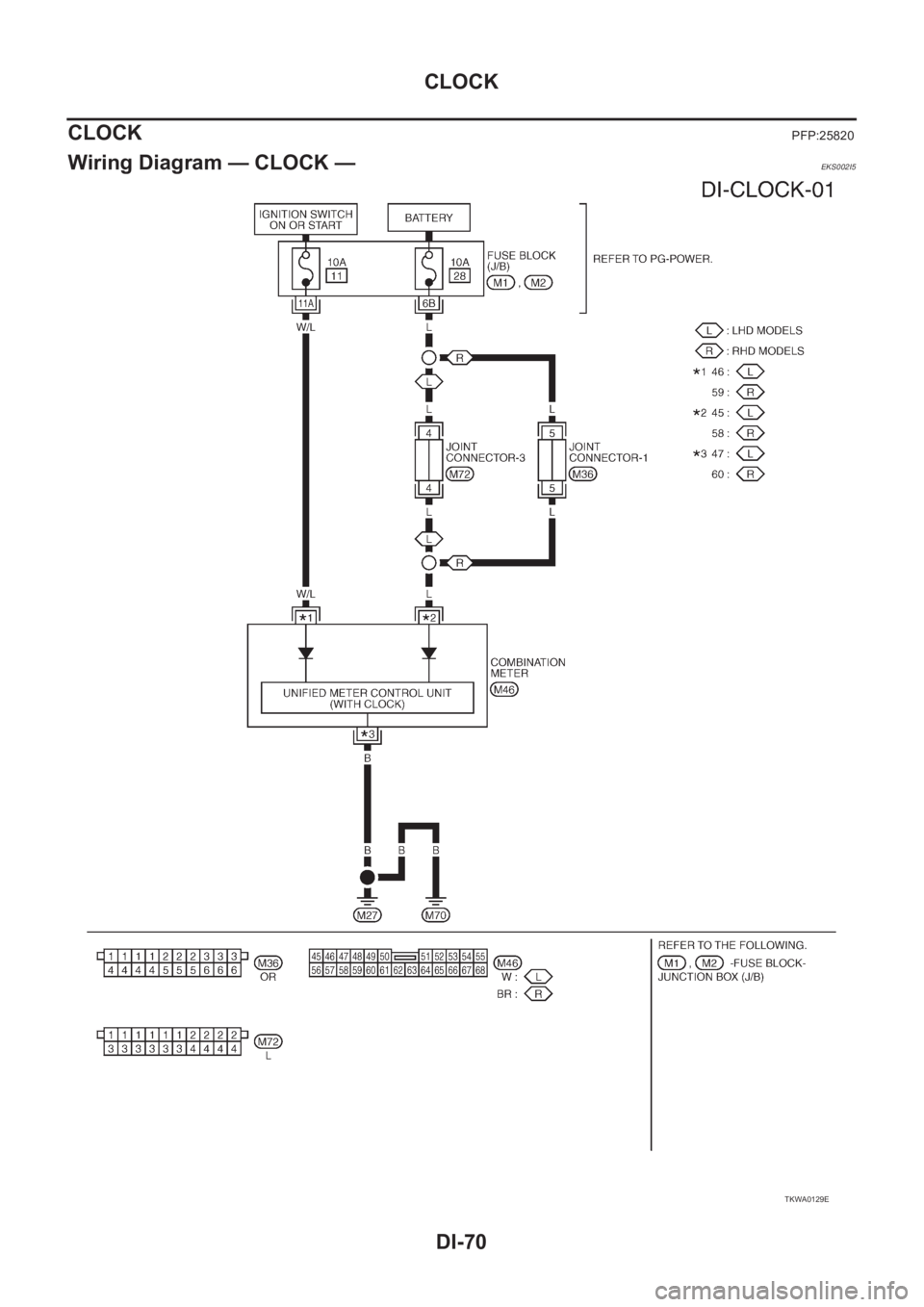

Wiring Diagram — CLOCK —EKS002I5
TKWA0129E

Page 3629 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual WW-1
WIPER, WASHER & HORN
K ELECTRICAL
CONTENTS
C
D
E
F
G
H
I
J
L
M
SECTION
A
B
WW
WIPER, WASHER & HORN
PRECAUTIONS .......................................................... 3
Precautions for Suppl

WW-1
WIPER, WASHER & HORN
K ELECTRICAL
CONTENTS
C
D
E
F
G
H
I
J
L
M
SECTION
A
B
WW
WIPER, WASHER & HORN
PRECAUTIONS .......................................................... 3
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” .................................................................. 3
Wiring Diagrams and Trouble Diagnosis .................. 3
FRONT WIPER AND WASHER SYSTEM .................. 4
System Description .................................................. 4
WIPER OPERATION ............................................ 4
WASHER OPERATION ......................................... 4
Wiring Diagram — WIPER — .................................. 6
Terminal and Reference Values for Combination
Switch ....................................................................... 7
Removal and Installation for Front Wiper Arms,
Adjustment for Wiper Arms Stop Location ............... 7
Removal and Installation for Wiper Motor and Link-
age ........................................................................... 8
REMOVAL ............................................................. 9
INSTALLATION ..................................................... 9
Washer Nozzle Adjustment .................................... 10
Washer Tube Layout .............................................. 10
Removal and Installation for Washer Nozzle .......... 11
REMOVAL ............................................................ 11
INSTALLATION .................................................... 11
Inspection for Washer Nozzle ................................. 11
CHECK VALVE .................................................... 11
Removal and Installation for Wiper and Washer
Switch ...................................................................... 11
REMOVAL ............................................................ 11
INSTALLATION .................................................... 11
Removal and Installation for Washer Tank ............. 12
Removal and Installation for Washer Pump ........... 12
REAR WIPER AND WASHER SYSTEM .................. 13
Wiring Diagram — WIP/R — .................................. 13
Terminal and Reference Values for Combination
Switch ..................................................................... 15
Removal and Installation for Rear Wiper Arms ...... 15
WIPER ARMS ..................................................... 15
Removal and Installation for Wiper Motor and Link-
age ......................................................................... 16REMOVAL ........................................................... 16
INSTALLATION ................................................... 16
Washer Nozzle Adjustment .................................... 17
Removal and Installation for Rear Washer Nozzle ... 17
REMOVAL ........................................................... 17
INSTALLATION ................................................... 17
Inspection for Washer Nozzle ................................. 17
CHECK VALVE .................................................... 17
Removal and Installation for Wiper and Washer
Switch ..................................................................... 18
Removal and Installation for Washer Tank ............. 18
Removal and Installation for Washer Pump ........... 18
Washer Tube Layout .............................................. 18
HEADLAMP WASHER ............................................. 19
System Description ................................................. 19
Wiring Diagram –HLC– ........................................... 20
Removal and Installation for Washer Nozzle .......... 21
REMOVAL ........................................................... 21
INSTALLATION ................................................... 21
Inspection for Washer Nozzle ................................. 21
CHECK VALVE .................................................... 21
Removal and Installation for Washer Tank ............. 21
Removal and Installation for Washer Pump ........... 21
Washer Tube Layout .............................................. 22
HORN ........................................................................ 23
Wiring Diagram — HORN — .................................. 23
Removal and Installation ........................................ 24
REMOVAL ........................................................... 24
INSTALLATION ................................................... 24
CIGARETTE LIGHTER ............................................. 25
Wiring Diagram — CIGAR — ................................. 25
Removal and Installation ........................................ 26
REMOVAL ........................................................... 26
INSTALLATION ................................................... 26
POWER SOCKET ..................................................... 27
Wiring Diagram –POWER SOCKET– .................... 27
Removal and Installation for Front Power Socket ... 28
REMOVAL ........................................................... 28

Page 3630 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual WW-2

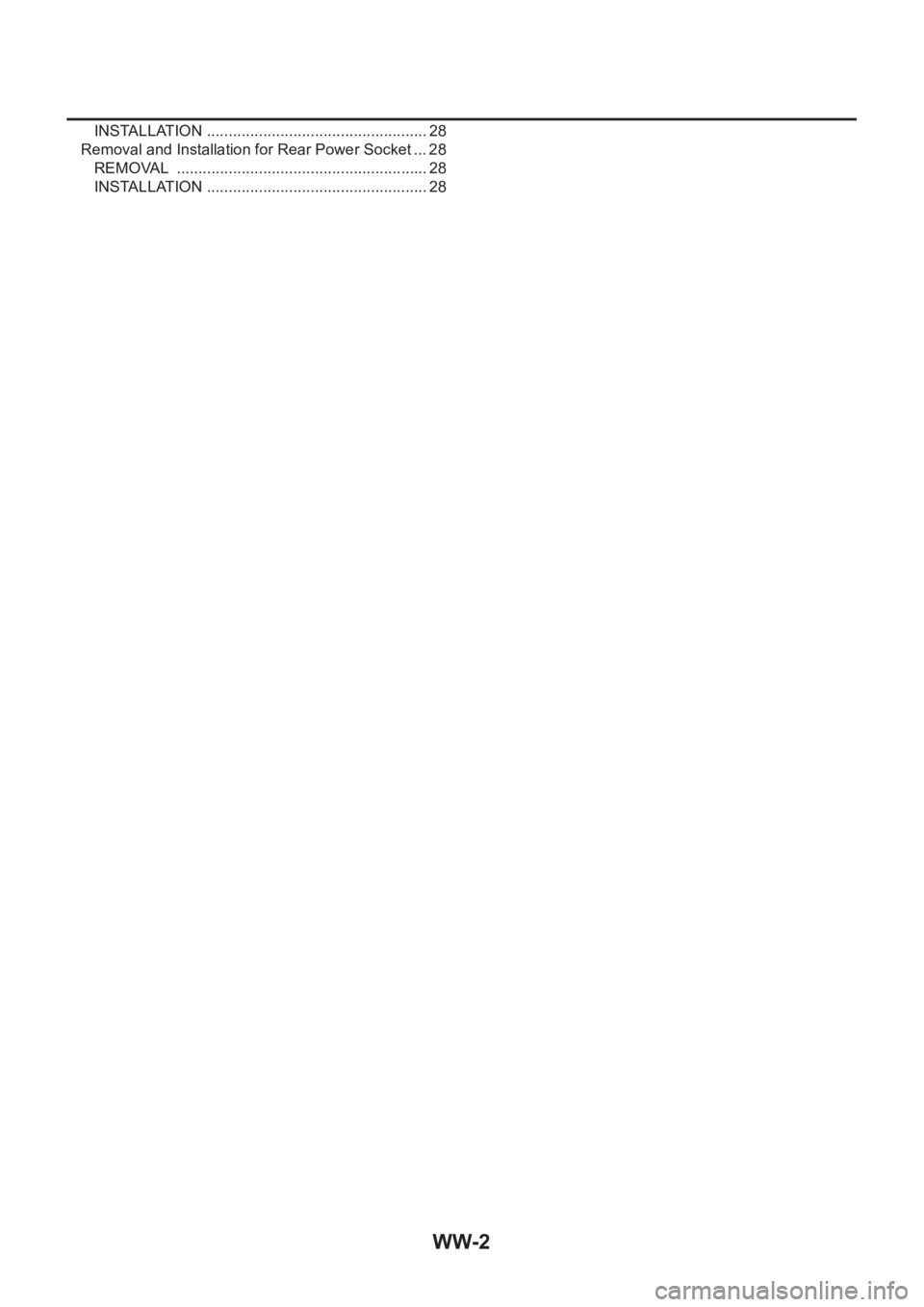

INSTALLATION .................................................... 28
Removal and Installation for Rear Power Socket ... 28
REMOVAL ........................................................... 28

Page 3631 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual PRECAUTIONS
WW-3
C
D
E
F
G
H
I
J
L
MA
B
WW

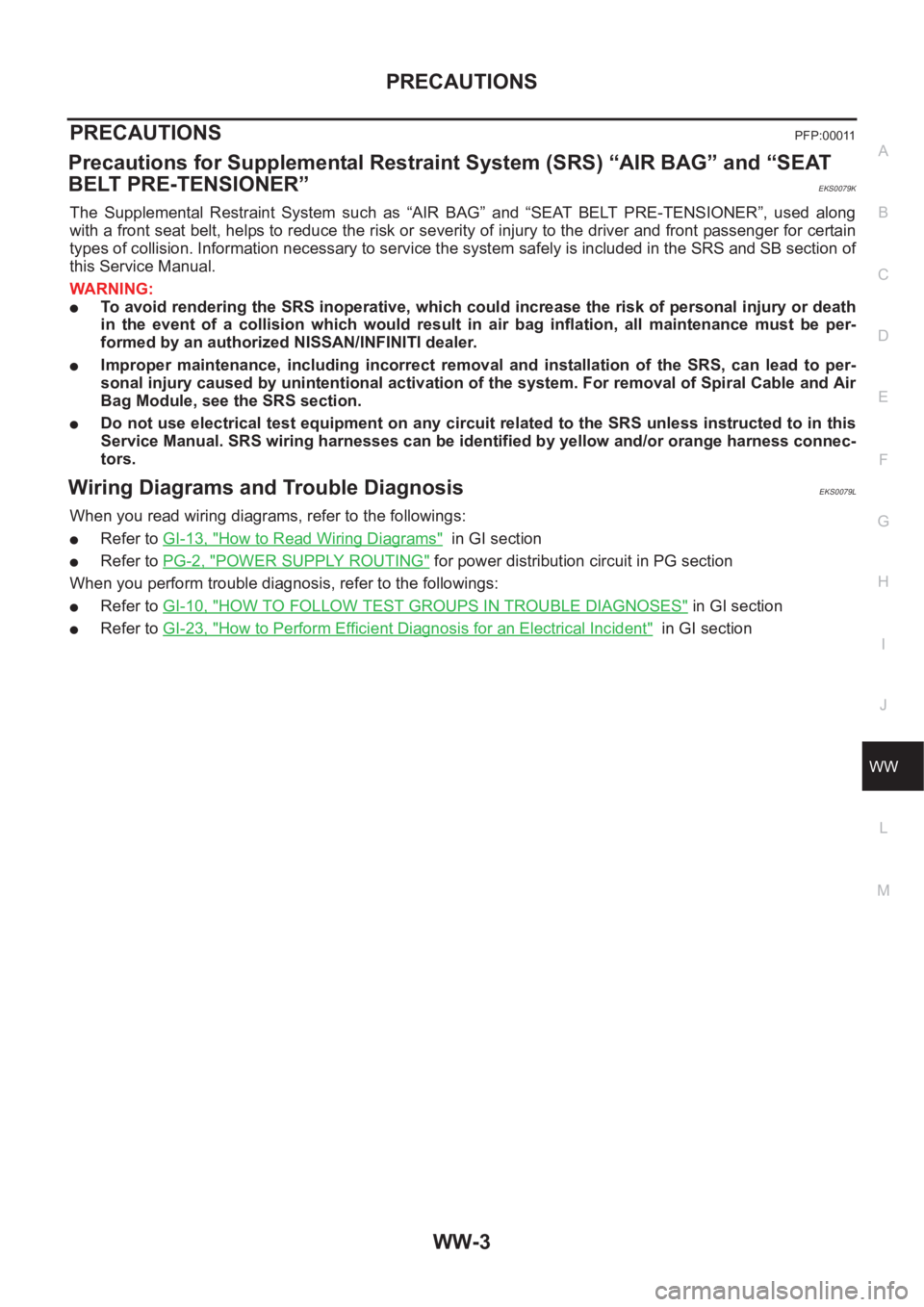

PRECAUTIONS PFP:00011
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
EKS0079K
The Supplemental Restra

Page 3632 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual WW-4
FRONT WIPER AND WASHER SYSTEM
FRONT WIPER AND WASHER SYSTEM
PFP:28810
System DescriptionEKS0032N
WIPER OPERATION
The wiper switch is controlled by a lever built into the combination switch.
There

WW-4
FRONT WIPER AND WASHER SYSTEM
FRONT WIPER AND WASHER SYSTEM
PFP:28810
System DescriptionEKS0032N
WIPER OPERATION
The wiper switch is controlled by a lever built into the combination switch.
There are three wiper switch positions:
●LO speed
●HI speed
●INT (Intermittent)
With the ignition switch in the ON or START position, power is supplied
●through 20A fuse [No. 6, located in the fuse block (J/B)]
●to front wiper motor terminal 4.
LOW AND HIGH SPEED WIPER OPERATION
Ground is supplied to front wiper and washer switch terminal 17 through body grounds E24 and E50.
When the wiper switch is placed in the LO position, ground is supplied
●through terminal 14 of the front wiper and washer switch
●to front wiper motor terminal 3.
With power and ground supplied, the wiper motor operates at low speed.
When the wiper switch is placed in the HI position, ground is supplied
●through terminal 16 of the front wiper and washer switch
●to front wiper motor terminal 1.
With power and ground supplied, the wiper motor operates at high speed.
AUTO STOP OPERATION
With wiper switch turned OFF, wiper motor will continue to operate until wiper arms reach windshield base.
When wiper arms are not located at base of windshield with wiper switch OFF, ground is provided
●from terminal 14 of the front wiper and washer switch
●to front wiper motor terminal 3, in order to continue wiper motor operation at low speed.
Ground is also supplied
●through terminal 13 of the front wiper and washer switch
●to front wiper motor terminal 2
●through terminal 6 of the front wiper motor, and
●through body grounds E24 and E50.
When wiper arms reach base of windshield, front wiper motor terminals 4 and 2 are connected instead of ter-
minals 6 and 2. Wiper motor will then stop wiper arms at the STOP position.
INTERMITTENT OPERATION
The front wiper motor operates the wiper arms one time at low speed at a set interval of approximately 1 to 13
seconds. This feature is controlled by the wiper amplifier (INT SW) combined with front wiper and washer
switch.
When the wiper switch is placed in the INT position, ground is supplied to wiper amplifier.
The desired interval time is input to wiper amplifier (INT VR) from wiper volume switch combined with front
wiper and washer switch.
Then intermittent ground is supplied
●through wiper amplifier (OUTPUT) and
●through terminal 14 of front wiper and washer switch
●to front wiper motor terminal 3
The wiper motor operates at low speed at the desired interval.
WASHER OPERATION
With the ignition switch in the ON or START position, power is supplied
●through 20A fuse [No. 6, located in the fuse block (J/B)]
●to front washer motor terminal 1.
When the lever is pulled to the WASH position, ground is supplied
