Page 249 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual CYLINDER BLOCK
EM-199
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM
e. Hoist engine and install it to the engine stand.
NOTE:
It is possible to set engine sub-attachment and engine attach-
ment to eng NISSAN X-TRAIL 2001 Service Repair Manual CYLINDER BLOCK
EM-199
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM
e. Hoist engine and install it to the engine stand.
NOTE:
It is possible to set engine sub-attachment and engine attach-
ment to eng](/manual-img/5/57405/w960_57405-248.png)

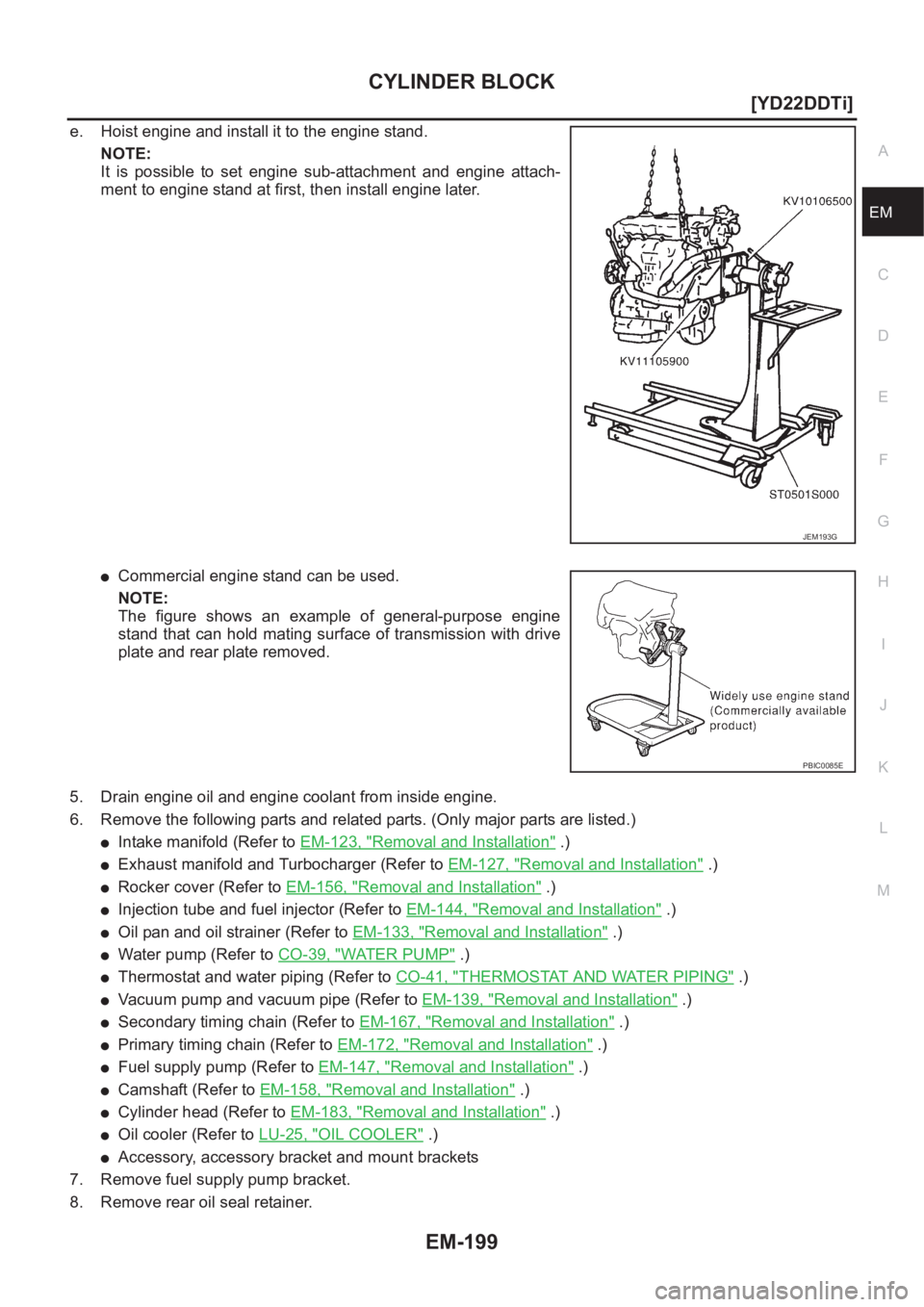

CYLINDER BLOCK
EM-199
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM
e. Hoist engine and install it to the engine stand.
NOTE:
It is possible to set engine sub-attachment and engine attach-
ment to engine stand at first, then install engine later.
●Commercial engine stand can be used.
NOTE:
The figure shows an example of general-purpose engine
stand that can hold mating surface of transmission with drive
plate and rear plate removed.
5. Drain engine oil and engine coolant from inside engine.
6. Remove the following parts and related parts. (Only major parts are listed.)
●Intake manifold (Refer to EM-123, "Removal and Installation" .)
●Exhaust manifold and Turbocharger (Refer to EM-127, "Removal and Installation" .)
●Rocker cover (Refer to EM-156, "Removal and Installation" .)
●Injection tube and fuel injector (Refer to EM-144, "Removal and Installation" .)
●Oil pan and oil strainer (Refer to EM-133, "Removal and Installation" .)
●Water pump (Refer to CO-39, "WATER PUMP" .)
●Thermostat and water piping (Refer to CO-41, "THERMOSTAT AND WATER PIPING" .)
●Vacuum pump and vacuum pipe (Refer to EM-139, "Removal and Installation" .)
●Secondary timing chain (Refer to EM-167, "Removal and Installation" .)
●Primary timing chain (Refer to EM-172, "Removal and Installation" .)
●Fuel supply pump (Refer to EM-147, "Removal and Installation" .)
●Camshaft (Refer to EM-158, "Removal and Installation" .)
●Cylinder head (Refer to EM-183, "Removal and Installation" .)
●Oil cooler (Refer to LU-25, "OIL COOLER" .)
●Accessory, accessory bracket and mount brackets
7. Remove fuel supply pump bracket.
8. Remove rear oil seal retainer.
JEM193G
PBIC0085E
Page 250 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual EM-200
[YD22DDTi]
CYLINDER BLOCK
●Insert a flat-bladed screwdriver between main bearing cap and rear oil seal retainer to remove retainer.
9. Remove rear oil seal from rear oil seal retainer.
●Pun NISSAN X-TRAIL 2001 Service Repair Manual EM-200
[YD22DDTi]
CYLINDER BLOCK
●Insert a flat-bladed screwdriver between main bearing cap and rear oil seal retainer to remove retainer.
9. Remove rear oil seal from rear oil seal retainer.
●Pun](/manual-img/5/57405/w960_57405-249.png)

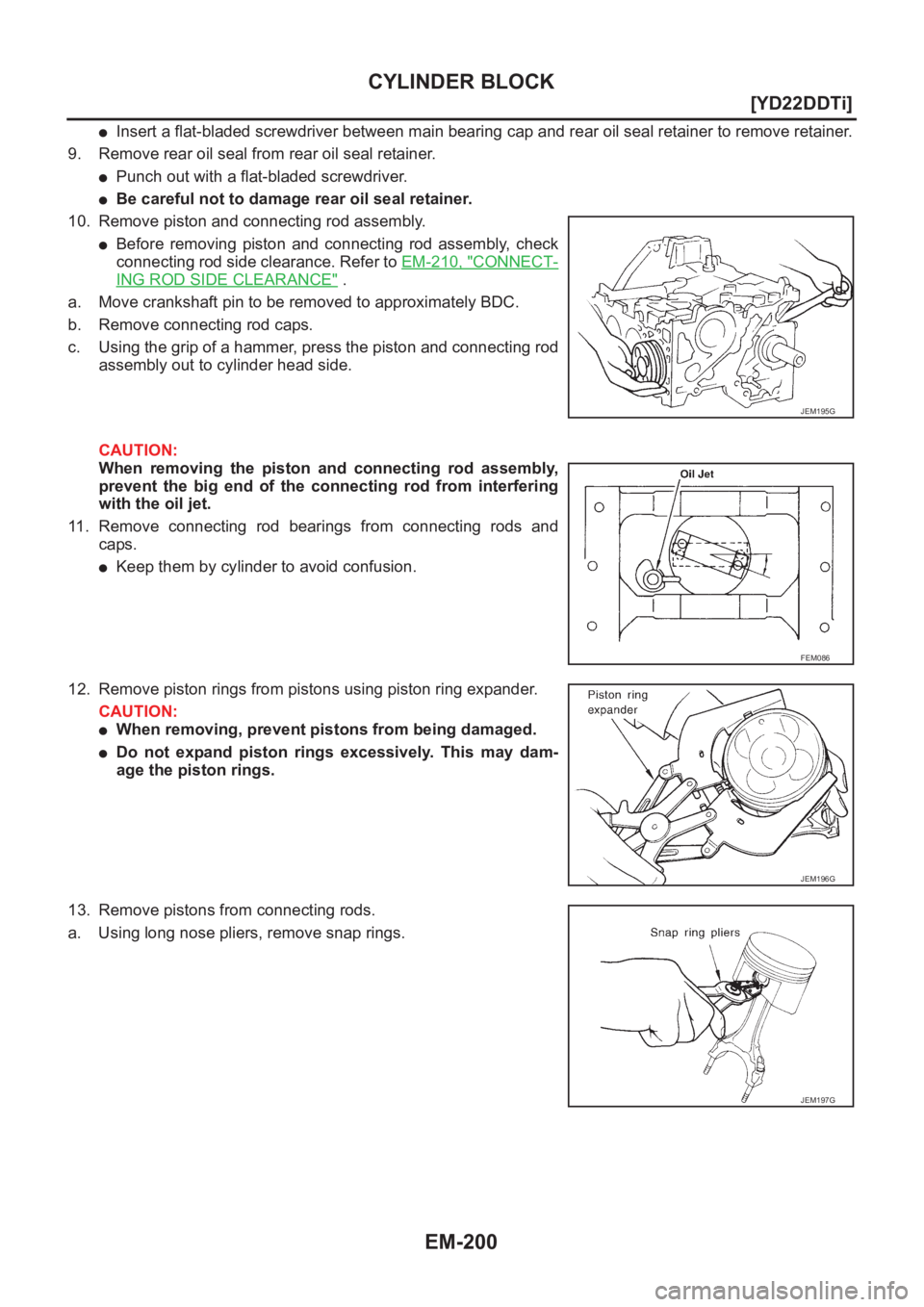

EM-200
[YD22DDTi]
CYLINDER BLOCK
●Insert a flat-bladed screwdriver between main bearing cap and rear oil seal retainer to remove retainer.
9. Remove rear oil seal from rear oil seal retainer.
●Punch out with a flat-bladed screwdriver.
●Be careful not to damage rear oil seal retainer.
10. Remove piston and connecting rod assembly.
●Before removing piston and connecting rod assembly, check
connecting rod side clearance. Refer to EM-210, "
CONNECT-
ING ROD SIDE CLEARANCE" .
a. Move crankshaft pin to be removed to approximately BDC.
b. Remove connecting rod caps.
c. Using the grip of a hammer, press the piston and connecting rod
assembly out to cylinder head side.
CAUTION:
When removing the piston and connecting rod assembly,
prevent the big end of the connecting rod from interfering
with the oil jet.
11. Remove connecting rod bearings from connecting rods and
caps.
●Keep them by cylinder to avoid confusion.
12. Remove piston rings from pistons using piston ring expander.
CAUTION:
●When removing, prevent pistons from being damaged.
●Do not expand piston rings excessively. This may dam-
age the piston rings.
13. Remove pistons from connecting rods.
a. Using long nose pliers, remove snap rings.
JEM195G
FEM086
JEM196G
JEM197G
Page 251 of 3833

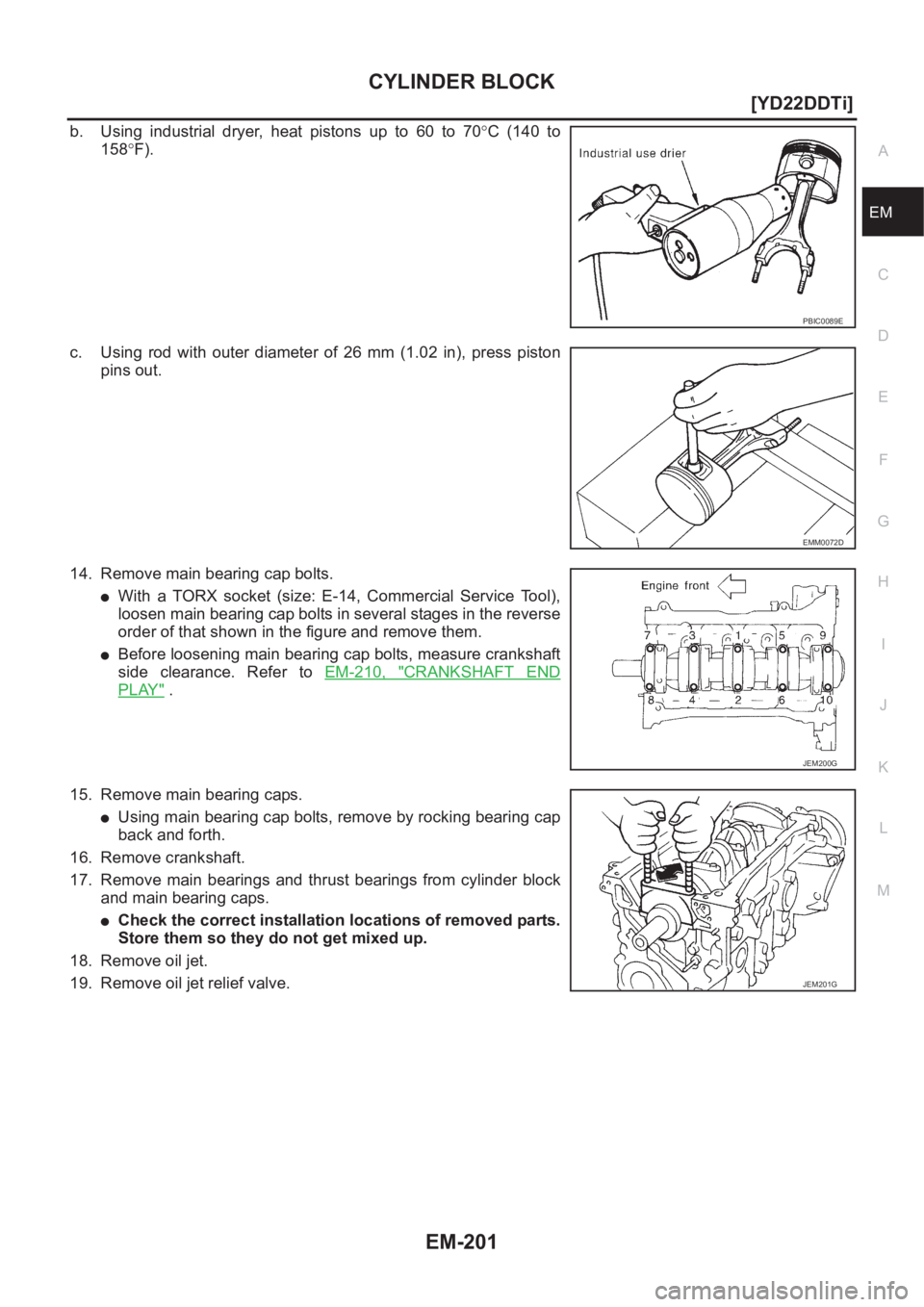

CYLINDER BLOCK
EM-201
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM
b. Using industrial dryer, heat pistons up to 60 to 70°C (140 to
158°F).
c. Using rod with outer diameter of 26 mm (1.02 in), press piston
pins out.
14. Remove main bearing cap bolts.
●With a TORX socket (size: E-14, Commercial Service Tool),
loosen main bearing cap bolts in several stages in the reverse
order of that shown in the figure and remove them.
●Before loosening main bearing cap bolts, measure crankshaft
side clearance. Refer to EM-210, "
CRANKSHAFT END
PLAY" .
15. Remove main bearing caps.
●Using main bearing cap bolts, remove by rocking bearing cap
back and forth.
16. Remove crankshaft.
17. Remove main bearings and thrust bearings from cylinder block
and main bearing caps.
●Check the correct installation locations of removed parts.
Store them so they do not get mixed up.
18. Remove oil jet.
19. Remove oil jet relief valve.
PBIC0089E
EMM0072D
JEM200G
JEM201G
Page 252 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual EM-202
[YD22DDTi]
CYLINDER BLOCK
ASSEMBLY
1. Blow air sufficiently to inside engine coolant passage, engine oil
passage, crankcase and cylinder bore to remove foreign matter.
2. Install oil jet relie NISSAN X-TRAIL 2001 Service Repair Manual EM-202
[YD22DDTi]
CYLINDER BLOCK
ASSEMBLY
1. Blow air sufficiently to inside engine coolant passage, engine oil
passage, crankcase and cylinder bore to remove foreign matter.
2. Install oil jet relie](/manual-img/5/57405/w960_57405-251.png)

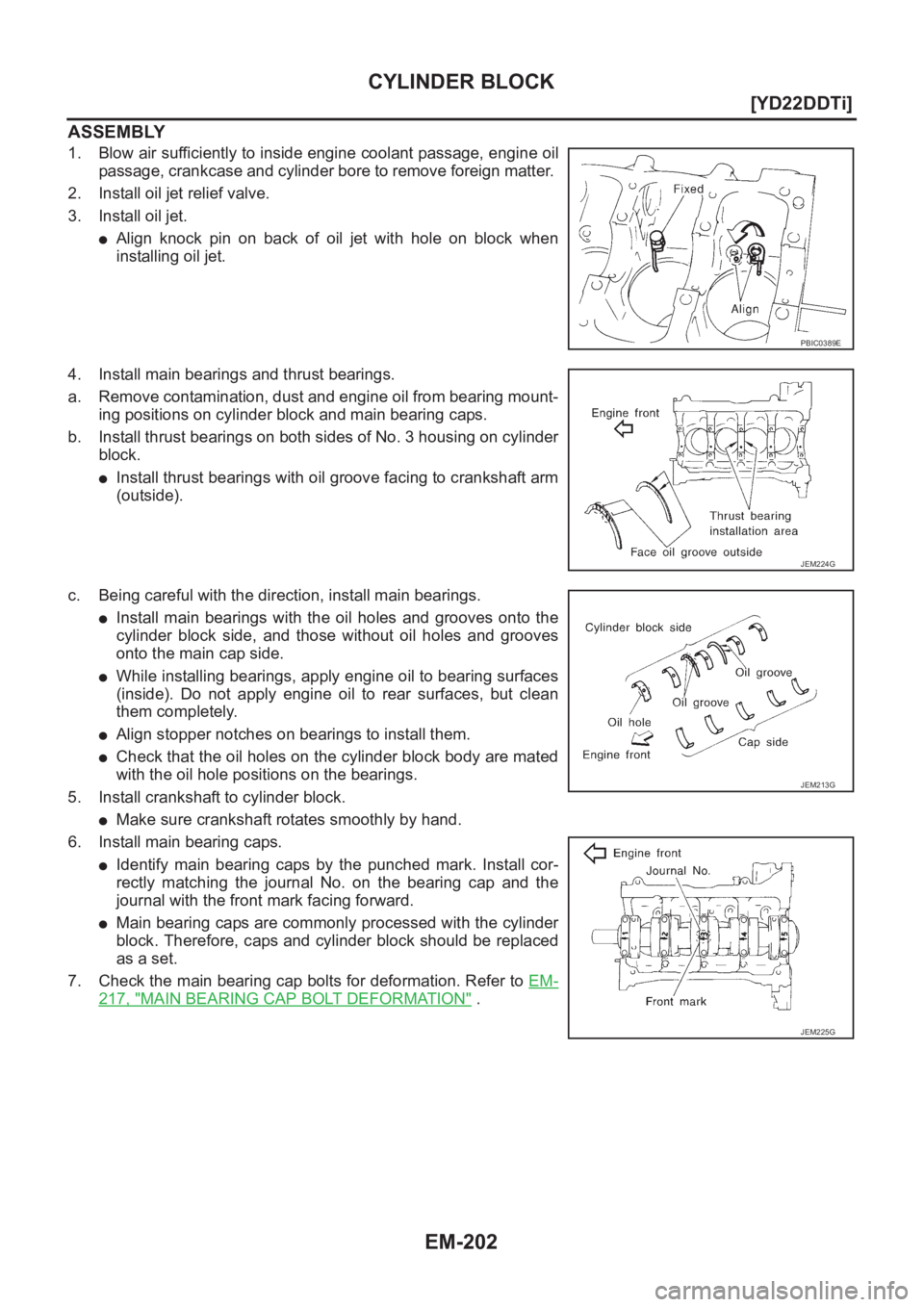

EM-202
[YD22DDTi]
CYLINDER BLOCK
ASSEMBLY
1. Blow air sufficiently to inside engine coolant passage, engine oil
passage, crankcase and cylinder bore to remove foreign matter.
2. Install oil jet relief valve.
3. Install oil jet.
●Align knock pin on back of oil jet with hole on block when
installing oil jet.
4. Install main bearings and thrust bearings.
a. Remove contamination, dust and engine oil from bearing mount-
ing positions on cylinder block and main bearing caps.
b. Install thrust bearings on both sides of No. 3 housing on cylinder
block.
●Install thrust bearings with oil groove facing to crankshaft arm
(outside).
c. Being careful with the direction, install main bearings.
●Install main bearings with the oil holes and grooves onto the
cylinder block side, and those without oil holes and grooves
onto the main cap side.
●While installing bearings, apply engine oil to bearing surfaces
(inside). Do not apply engine oil to rear surfaces, but clean
them completely.
●Align stopper notches on bearings to install them.
●Check that the oil holes on the cylinder block body are mated
with the oil hole positions on the bearings.
5. Install crankshaft to cylinder block.
●Make sure crankshaft rotates smoothly by hand.
6. Install main bearing caps.
●Identify main bearing caps by the punched mark. Install cor-
rectly matching the journal No. on the bearing cap and the
journal with the front mark facing forward.
●Main bearing caps are commonly processed with the cylinder
block. Therefore, caps and cylinder block should be replaced
as a set.
7. Check the main bearing cap bolts for deformation. Refer to EM-
217, "MAIN BEARING CAP BOLT DEFORMATION" .
PBIC0389E
JEM224G
JEM213G
JEM225G
Page 253 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual CYLINDER BLOCK
EM-203
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM
8. Tighten the main bearing cap bolts according to the following
procedure:
a. Apply engine oil to the threaded part and sea NISSAN X-TRAIL 2001 Service Repair Manual CYLINDER BLOCK
EM-203
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM
8. Tighten the main bearing cap bolts according to the following
procedure:
a. Apply engine oil to the threaded part and sea](/manual-img/5/57405/w960_57405-252.png)

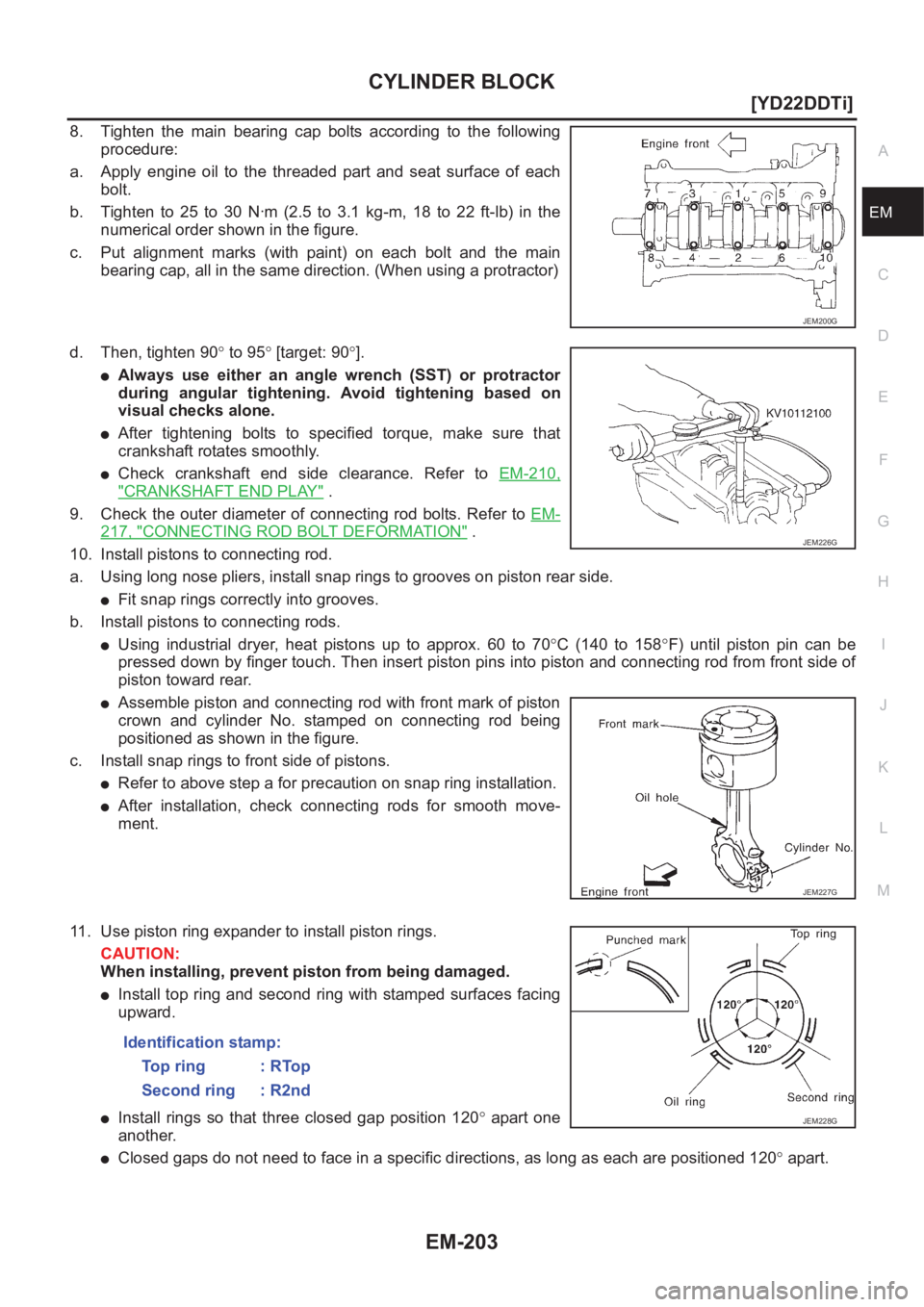

CYLINDER BLOCK
EM-203
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM
8. Tighten the main bearing cap bolts according to the following
procedure:
a. Apply engine oil to the threaded part and seat surface of each
bolt.
b. Tighten to 25 to 30 N·m (2.5 to 3.1 kg-m, 18 to 22 ft-lb) in the
numerical order shown in the figure.
c. Put alignment marks (with paint) on each bolt and the main
bearing cap, all in the same direction. (When using a protractor)
d. Then, tighten 90° to 95° [target: 90°].
●Always use either an angle wrench (SST) or protractor
during angular tightening. Avoid tightening based on
visual checks alone.
●After tightening bolts to specified torque, make sure that
crankshaft rotates smoothly.
●Check crankshaft end side clearance. Refer to EM-210,
"CRANKSHAFT END PLAY" .
9. Check the outer diameter of connecting rod bolts. Refer to EM-
217, "CONNECTING ROD BOLT DEFORMATION" .
10. Install pistons to connecting rod.
a. Using long nose pliers, install snap rings to grooves on piston rear side.
●Fit snap rings correctly into grooves.
b. Install pistons to connecting rods.
●Using industrial dryer, heat pistons up to approx. 60 to 70°C (140 to 158°F) until piston pin can be
pressed down by finger touch. Then insert piston pins into piston and connecting rod from front side of
piston toward rear.
●Assemble piston and connecting rod with front mark of piston
crown and cylinder No. stamped on connecting rod being
positioned as shown in the figure.
c. Install snap rings to front side of pistons.
●Refer to above step a for precaution on snap ring installation.
●After installation, check connecting rods for smooth move-
ment.
11. Use piston ring expander to install piston rings.
CAUTION:
When installing, prevent piston from being damaged.
●Install top ring and second ring with stamped surfaces facing
upward.
●Install rings so that three closed gap position 120° apart one
another.
●Closed gaps do not need to face in a specific directions, as long as each are positioned 120° apart.
JEM200G
JEM226G
JEM227G
Identification stamp:
To p r i n g : R To p
Second ring : R2nd
JEM228G
Page 254 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual EM-204
[YD22DDTi]
CYLINDER BLOCK
12. Install connecting rod bearings to connecting rods and caps.
●While installing connecting rod bearings, apply engine oil to
bearing surfaces (inside). Do NISSAN X-TRAIL 2001 Service Repair Manual EM-204
[YD22DDTi]
CYLINDER BLOCK
12. Install connecting rod bearings to connecting rods and caps.
●While installing connecting rod bearings, apply engine oil to
bearing surfaces (inside). Do](/manual-img/5/57405/w960_57405-253.png)

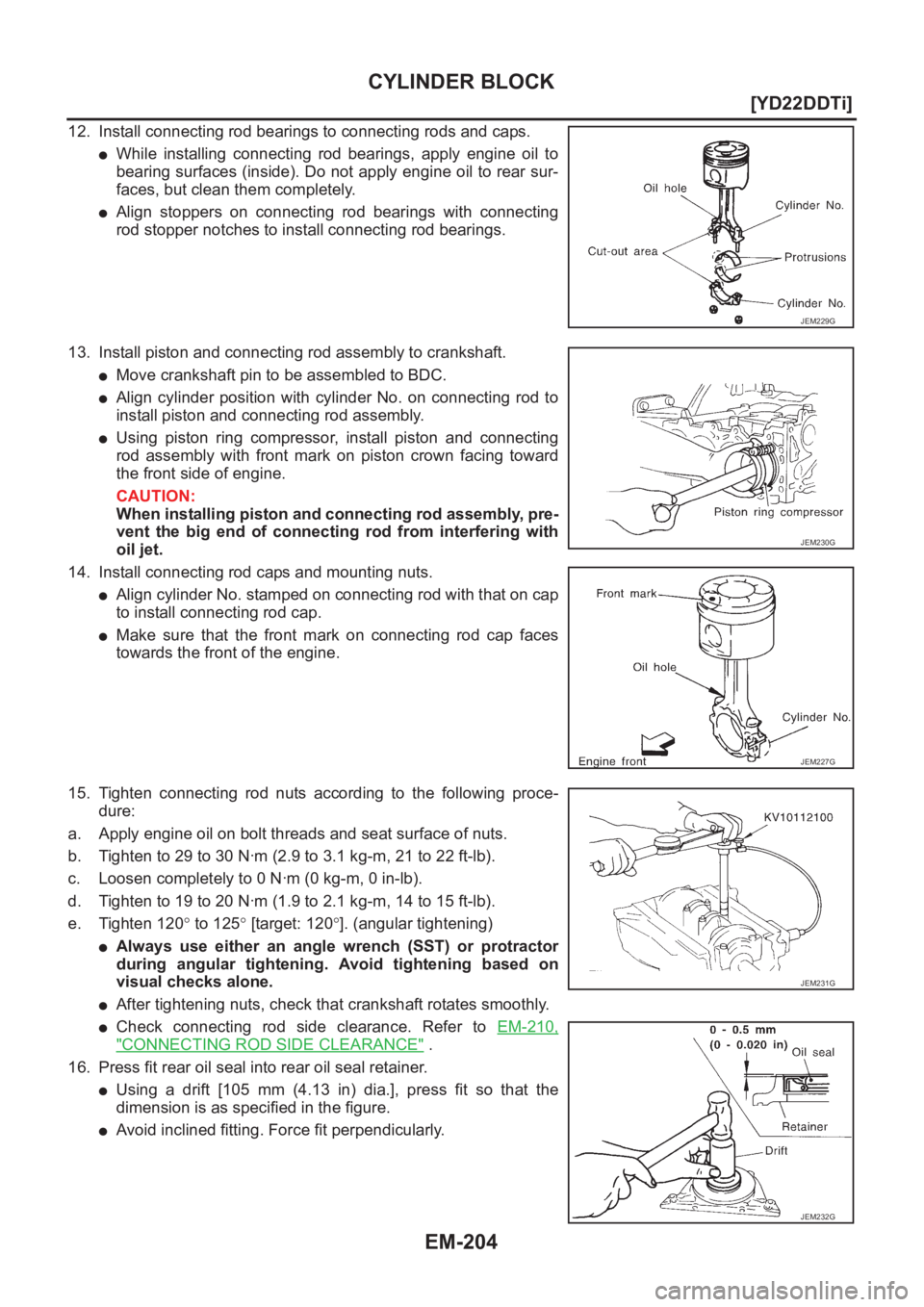

EM-204
[YD22DDTi]
CYLINDER BLOCK
12. Install connecting rod bearings to connecting rods and caps.
●While installing connecting rod bearings, apply engine oil to
bearing surfaces (inside). Do not apply engine oil to rear sur-
faces, but clean them completely.
●Align stoppers on connecting rod bearings with connecting
rod stopper notches to install connecting rod bearings.
13. Install piston and connecting rod assembly to crankshaft.
●Move crankshaft pin to be assembled to BDC.
●Align cylinder position with cylinder No. on connecting rod to
install piston and connecting rod assembly.
●Using piston ring compressor, install piston and connecting
rod assembly with front mark on piston crown facing toward
the front side of engine.
CAUTION:
When installing piston and connecting rod assembly, pre-
vent the big end of connecting rod from interfering with
oil jet.
14. Install connecting rod caps and mounting nuts.
●Align cylinder No. stamped on connecting rod with that on cap
to install connecting rod cap.
●Make sure that the front mark on connecting rod cap faces
towards the front of the engine.
15. Tighten connecting rod nuts according to the following proce-
dure:
a. Apply engine oil on bolt threads and seat surface of nuts.
b. Tighten to 29 to 30 N·m (2.9 to 3.1 kg-m, 21 to 22 ft-lb).
c. Loosen completely to 0 N·m (0 kg-m, 0 in-lb).
d. Tighten to 19 to 20 N·m (1.9 to 2.1 kg-m, 14 to 15 ft-lb).
e. Tighten 120° to 125° [target: 120°]. (angular tightening)
●Always use either an angle wrench (SST) or protractor
during angular tightening. Avoid tightening based on
visual checks alone.
●After tightening nuts, check that crankshaft rotates smoothly.
●Check connecting rod side clearance. Refer to EM-210,
"CONNECTING ROD SIDE CLEARANCE" .
16. Press fit rear oil seal into rear oil seal retainer.
●Using a drift [105 mm (4.13 in) dia.], press fit so that the
dimension is as specified in the figure.
●Avoid inclined fitting. Force fit perpendicularly.
JEM229G
JEM230G
JEM227G
JEM231G
JEM232G
Page 255 of 3833
CYLINDER BLOCK
EM-205
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM

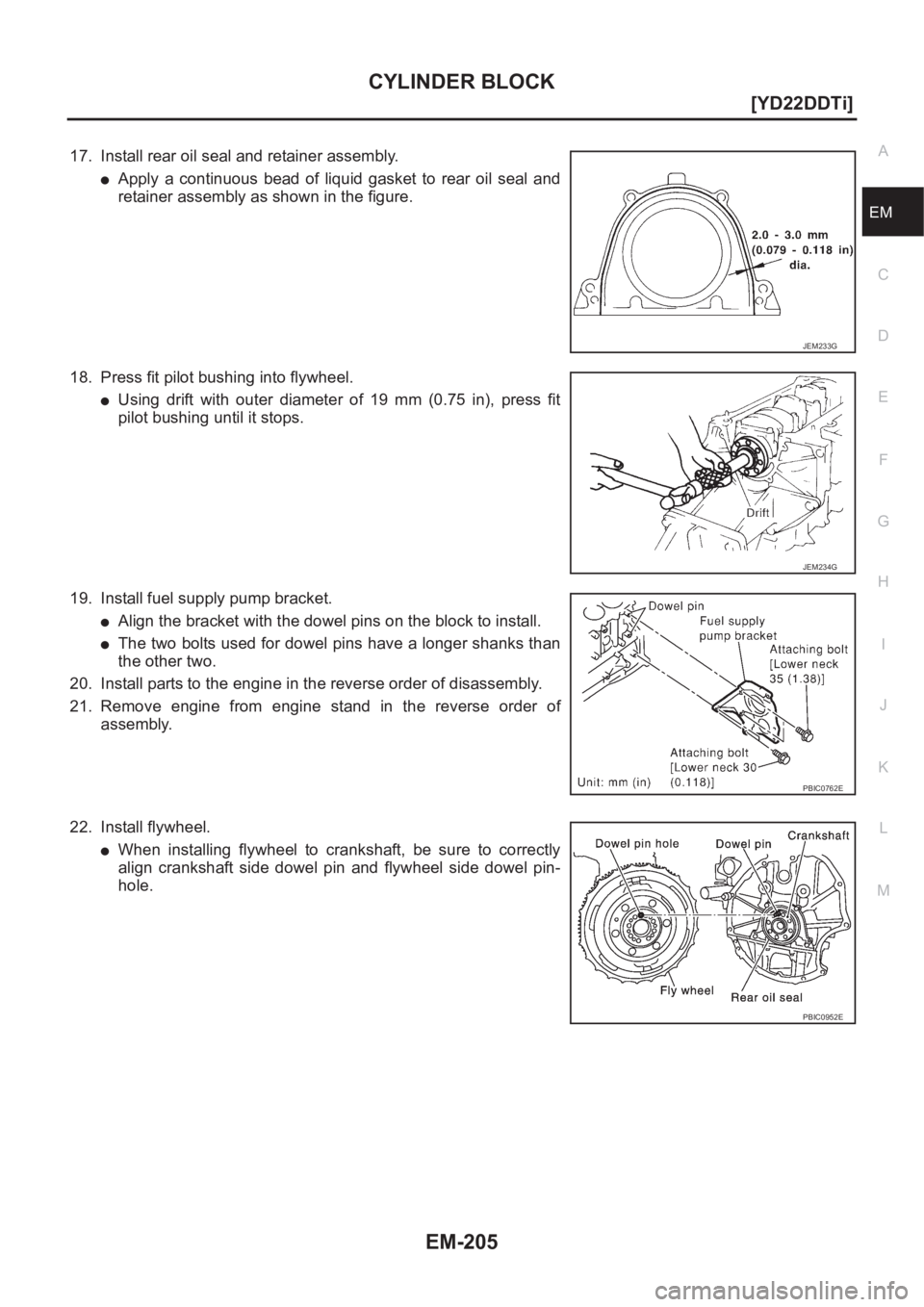

17. Install rear oil seal and retainer assembly.
●Apply a continuous bead of liquid gasket to rear oil seal and
retainer assembly as shown in the figure.
18. Press fit pilot bushing into flywheel.
●Using drift with outer diameter of 19 mm (0.75 in), press fit
pilot bushing until it stops.
19. Install fuel supply pump bracket.
●Align the bracket with the dowel pins on the block to install.
●The two bolts used for dowel pins have a longer shanks than
the other two.
20. Install parts to the engine in the reverse order of disassembly.
21. Remove engine from engine stand in the reverse order of
assembly.
22. Install flywheel.
●When installing flywheel to crankshaft, be sure to correctly
align crankshaft side dowel pin and flywheel side dowel pin-
hole.
JEM233G
JEM234G
PBIC0762E
PBIC0952E
Page 256 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual EM-206
[YD22DDTi]
CYLINDER BLOCK
●There is a mating mark on the clutch cover side, Refer it dur-
ing installation.
●Holding ring gear with ring stopper (SST), tighten securing bolts with TORX bit NISSAN X-TRAIL 2001 Service Repair Manual EM-206
[YD22DDTi]
CYLINDER BLOCK
●There is a mating mark on the clutch cover side, Refer it dur-
ing installation.
●Holding ring gear with ring stopper (SST), tighten securing bolts with TORX bit](/manual-img/5/57405/w960_57405-255.png)

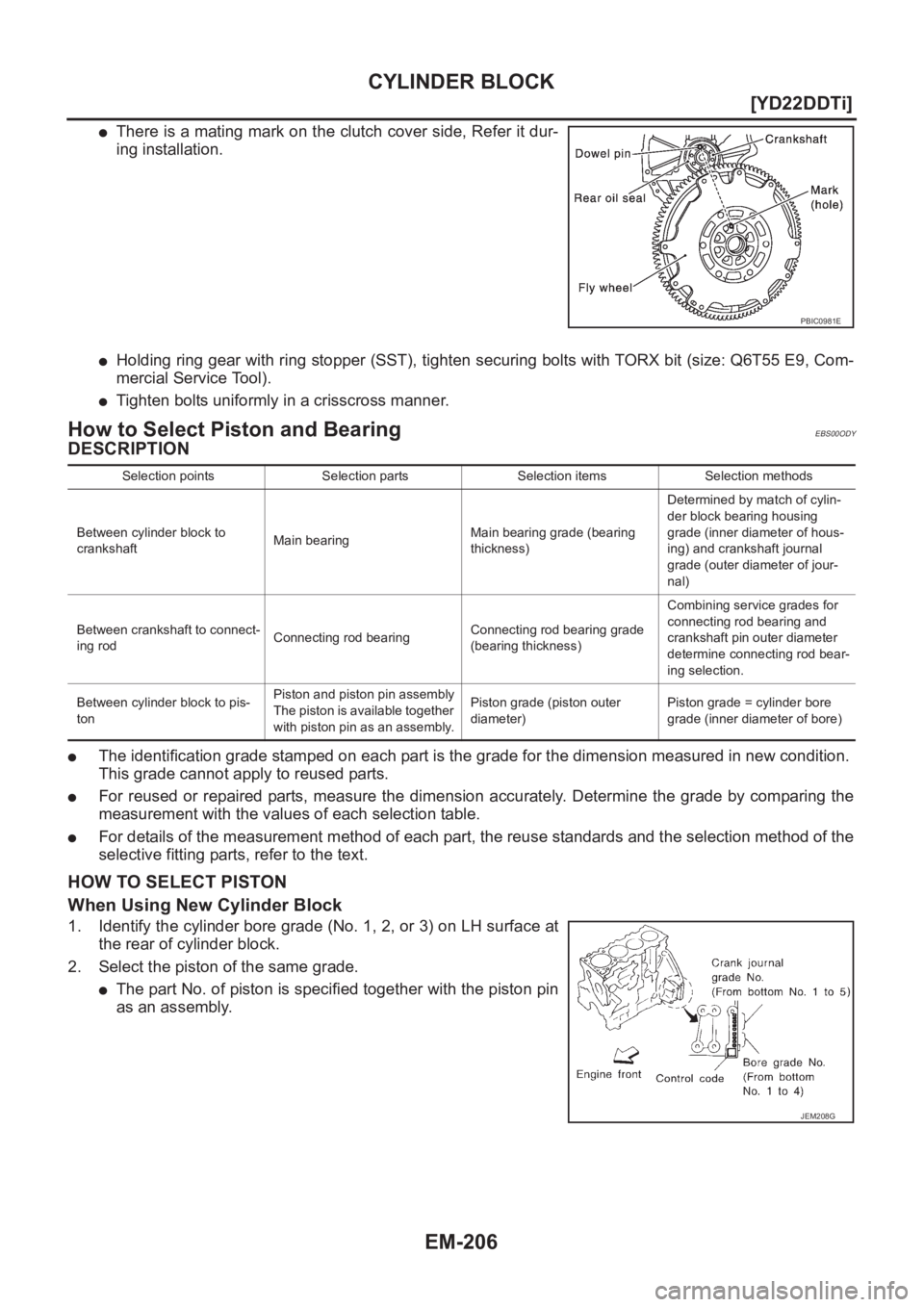

EM-206
[YD22DDTi]
CYLINDER BLOCK
●There is a mating mark on the clutch cover side, Refer it dur-
ing installation.
●Holding ring gear with ring stopper (SST), tighten securing bolts with TORX bit (size: Q6T55 E9, Com-
mercial Service Tool).
●Tighten bolts uniformly in a crisscross manner.
How to Select Piston and BearingEBS00ODY
DESCRIPTION
●The identification grade stamped on each part is the grade for the dimension measured in new condition.
This grade cannot apply to reused parts.
●For reused or repaired parts, measure the dimension accurately. Determine the grade by comparing the
measurement with the values of each selection table.
●For details of the measurement method of each part, the reuse standards and the selection method of the
selective fitting parts, refer to the text.
HOW TO SELECT PISTON
When Using New Cylinder Block
1. Identify the cylinder bore grade (No. 1, 2, or 3) on LH surface at
the rear of cylinder block.
2. Select the piston of the same grade.
●The part No. of piston is specified together with the piston pin
as an assembly.
PBIC0981E
Selection points Selection parts Selection items Selection methods
Between cylinder block to
crankshaftMain bearingMain bearing grade (bearing
thickness)Determined by match of cylin-
der block bearing housing
grade (inner diameter of hous-
ing) and crankshaft journal
grade (outer diameter of jour-
nal)
Between crankshaft to connect-
ing rodConnecting rod bearingConnecting rod bearing grade
(bearing thickness)Combining service grades for
connecting rod bearing and
crankshaft pin outer diameter
determine connecting rod bear-
ing selection.
Between cylinder block to pis-
tonPiston and piston pin assembly
The piston is available together
with piston pin as an assembly.Piston grade (piston outer
diameter)Piston grade = cylinder bore
grade (inner diameter of bore)
JEM208G
