Page 1617 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual DTC P0650 MI
EC-1267
[QR20(WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Diagnostic ProcedureEBS00N77
1.CHECK MI POWER SUPPLY
1. Turn ignition switch “OFF”.
2. Disconnect combination meter harness NISSAN X-TRAIL 2001 Service Repair Manual DTC P0650 MI
EC-1267
[QR20(WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Diagnostic ProcedureEBS00N77
1.CHECK MI POWER SUPPLY
1. Turn ignition switch “OFF”.
2. Disconnect combination meter harness](/manual-img/5/57405/w960_57405-1616.png)

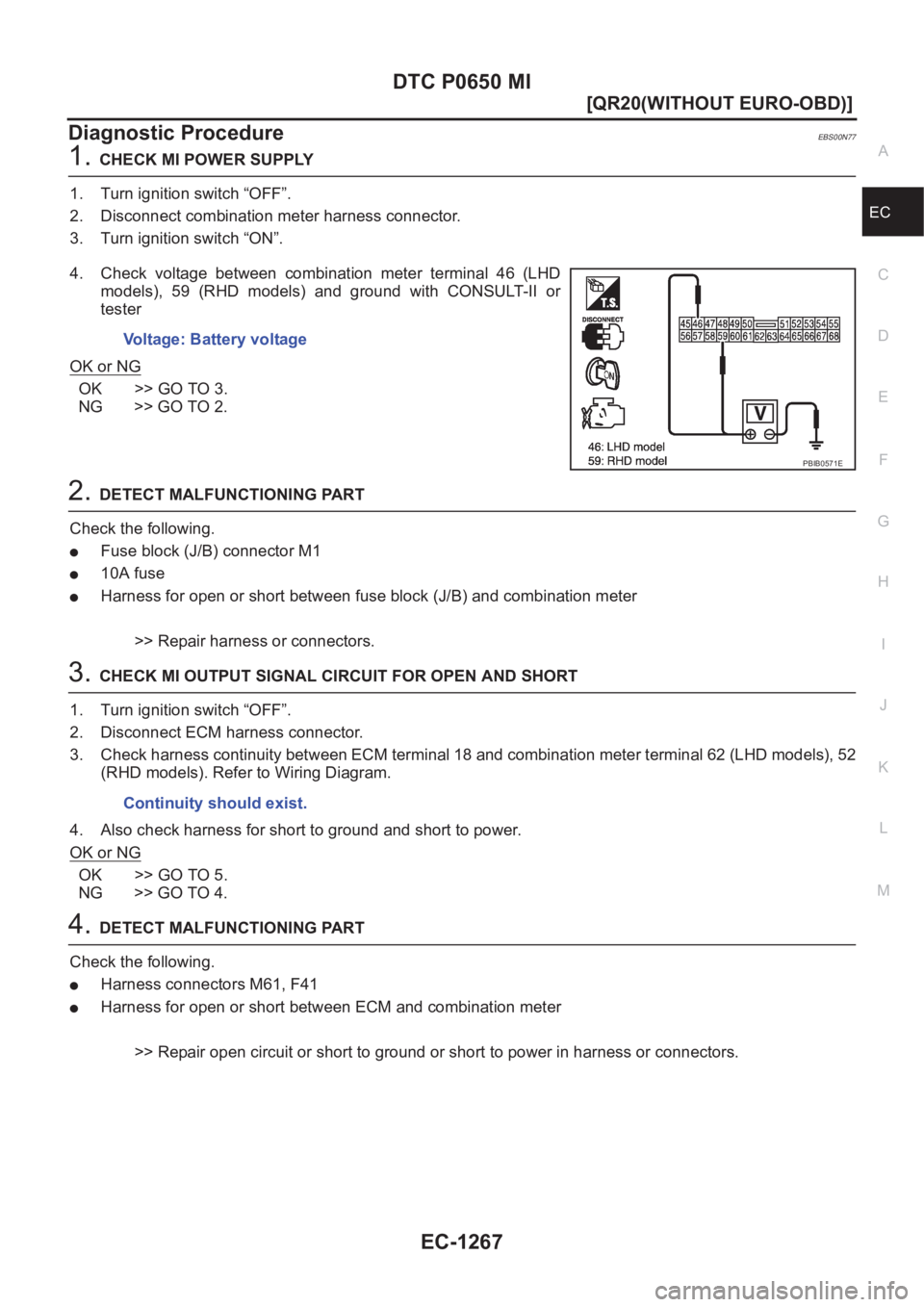

DTC P0650 MI
EC-1267
[QR20(WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Diagnostic ProcedureEBS00N77
1.CHECK MI POWER SUPPLY
1. Turn ignition switch “OFF”.
2. Disconnect combination meter harness connector.
3. Turn ignition switch “ON”.
4. Check voltage between combination meter terminal 46 (LHD
models), 59 (RHD models) and ground with CONSULT-II or
tester
OK or NG
OK >> GO TO 3.
NG >> GO TO 2.
2.DETECT MALFUNCTIONING PART
Check the following.
●Fuse block (J/B) connector M1
●10A fuse
●Harness for open or short between fuse block (J/B) and combination meter
>> Repair harness or connectors.
3.CHECK MI OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch “OFF”.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM terminal 18 and combination meter terminal 62 (LHD models), 52
(RHD models). Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> GO TO 4.
4.DETECT MALFUNCTIONING PART
Check the following.
●Harness connectors M61, F41
●Harness for open or short between ECM and combination meter
>> Repair open circuit or short to ground or short to power in harness or connectors. Voltage: Battery voltage
PBIB0571E
Continuity should exist.
Page 1618 of 3833
EC-1268
[QR20(WITHOUT EURO-OBD)]
DTC P0650 MI

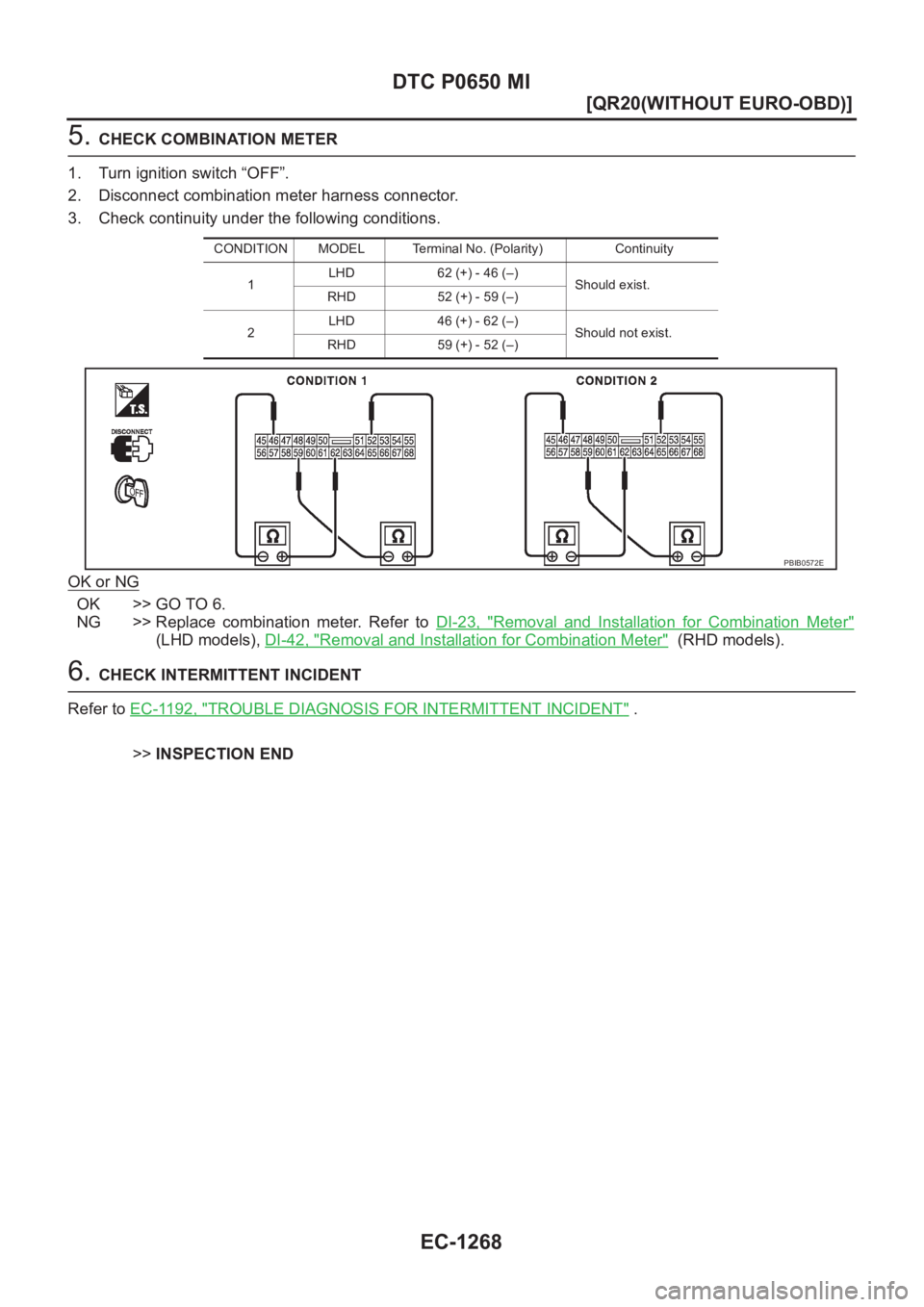

5. CHECK COMBINATION METER
1. Turn ignition switch “OFF”.
2. Disconnect combination meter harness connector.
3. Check continuity under the following conditions.
OK or NG
OK >> GO TO 6.
NG >> Replace combination meter. Refer to DI-23, "
Removal and Installation for Combination Meter"
(LHD models), DI-42, "Removal and Installation for Combination Meter" (RHD models).
6. CHECK INTERMITTENT INCIDENT
Refer to EC-1192, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
CONDITION MODEL Terminal No. (Polarity) Continuity
1LHD 62 (+) - 46 (–)
Should exist.
RHD 52 (+) - 59 (–)
2LHD 46 (+) - 62 (–)
Should not exist.
RHD 59 (+) - 52 (–)
PBIB0572E
Page 1619 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual DTC P1065 ECM POWER SUPPLY
EC-1269
[QR20(WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC P1065 ECM POWER SUPPLYPFP:23710
Component DescriptionEBS00N78
Battery voltage is supplied to the ECM even when NISSAN X-TRAIL 2001 Service Repair Manual DTC P1065 ECM POWER SUPPLY
EC-1269
[QR20(WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC P1065 ECM POWER SUPPLYPFP:23710
Component DescriptionEBS00N78
Battery voltage is supplied to the ECM even when](/manual-img/5/57405/w960_57405-1618.png)

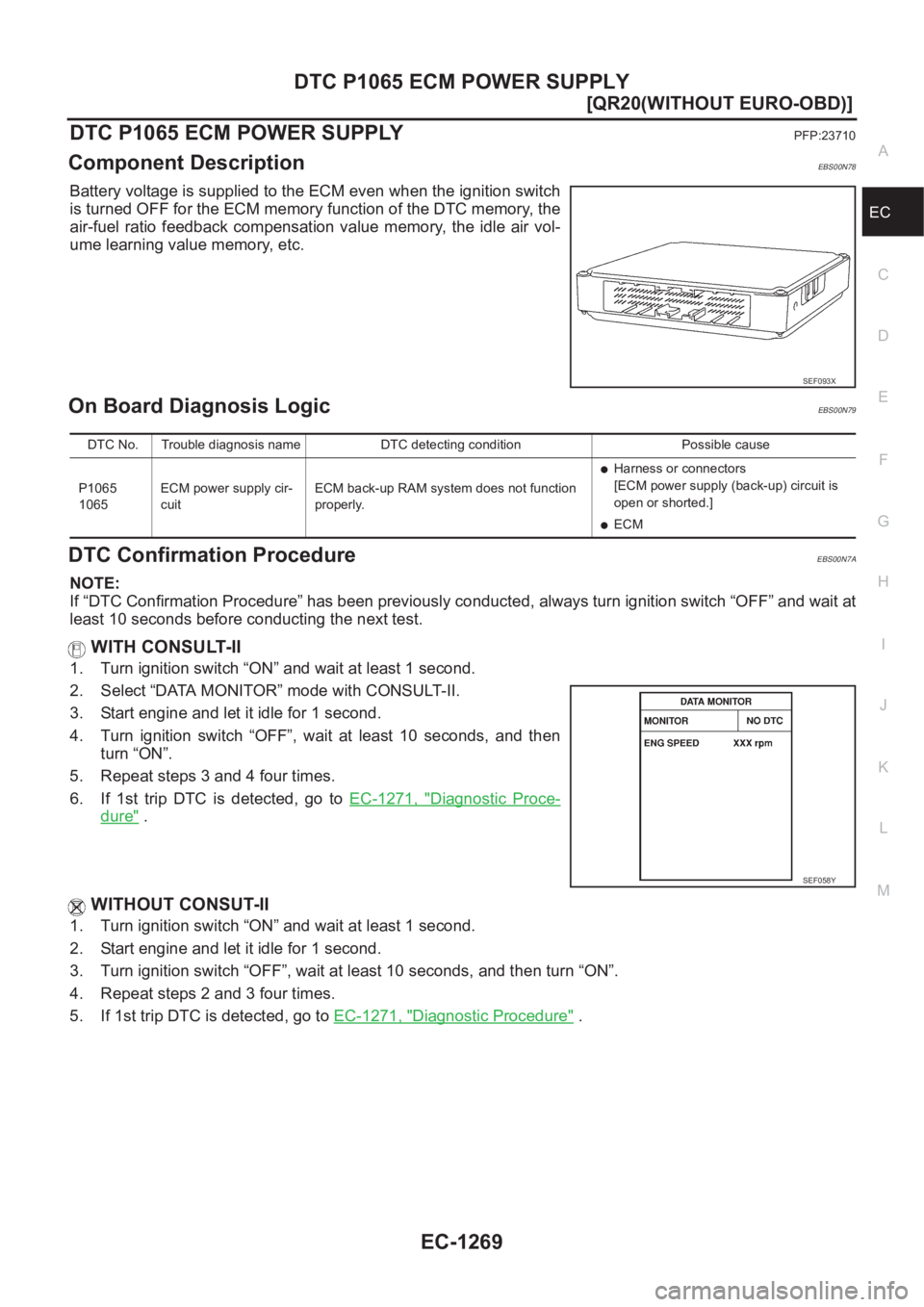

DTC P1065 ECM POWER SUPPLY
EC-1269
[QR20(WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC P1065 ECM POWER SUPPLYPFP:23710
Component DescriptionEBS00N78
Battery voltage is supplied to the ECM even when the ignition switch
is turned OFF for the ECM memory function of the DTC memory, the
air-fuel ratio feedback compensation value memory, the idle air vol-
ume learning value memory, etc.
On Board Diagnosis LogicEBS00N79
DTC Confirmation ProcedureEBS00N7A
NOTE:
If “DTC Confirmation Procedure” has been previously conducted, always turn ignition switch “OFF” and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch “ON” and wait at least 1 second.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Start engine and let it idle for 1 second.
4. Turn ignition switch “OFF”, wait at least 10 seconds, and then
turn “ON”.
5. Repeat steps 3 and 4 four times.
6. If 1st trip DTC is detected, go to EC-1271, "
Diagnostic Proce-
dure" .
WITHOUT CONSUT-II
1. Turn ignition switch “ON” and wait at least 1 second.
2. Start engine and let it idle for 1 second.
3. Turn ignition switch “OFF”, wait at least 10 seconds, and then turn “ON”.
4. Repeat steps 2 and 3 four times.
5. If 1st trip DTC is detected, go to EC-1271, "
Diagnostic Procedure" .
SEF093X
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1065
1065ECM power supply cir-
cuitECM back-up RAM system does not function
properly.
●Harness or connectors
[ECM power supply (back-up) circuit is
open or shorted.]
●ECM
SEF058Y
Page 1620 of 3833
EC-1270
[QR20(WITHOUT EURO-OBD)]
DTC P1065 ECM POWER SUPPLY

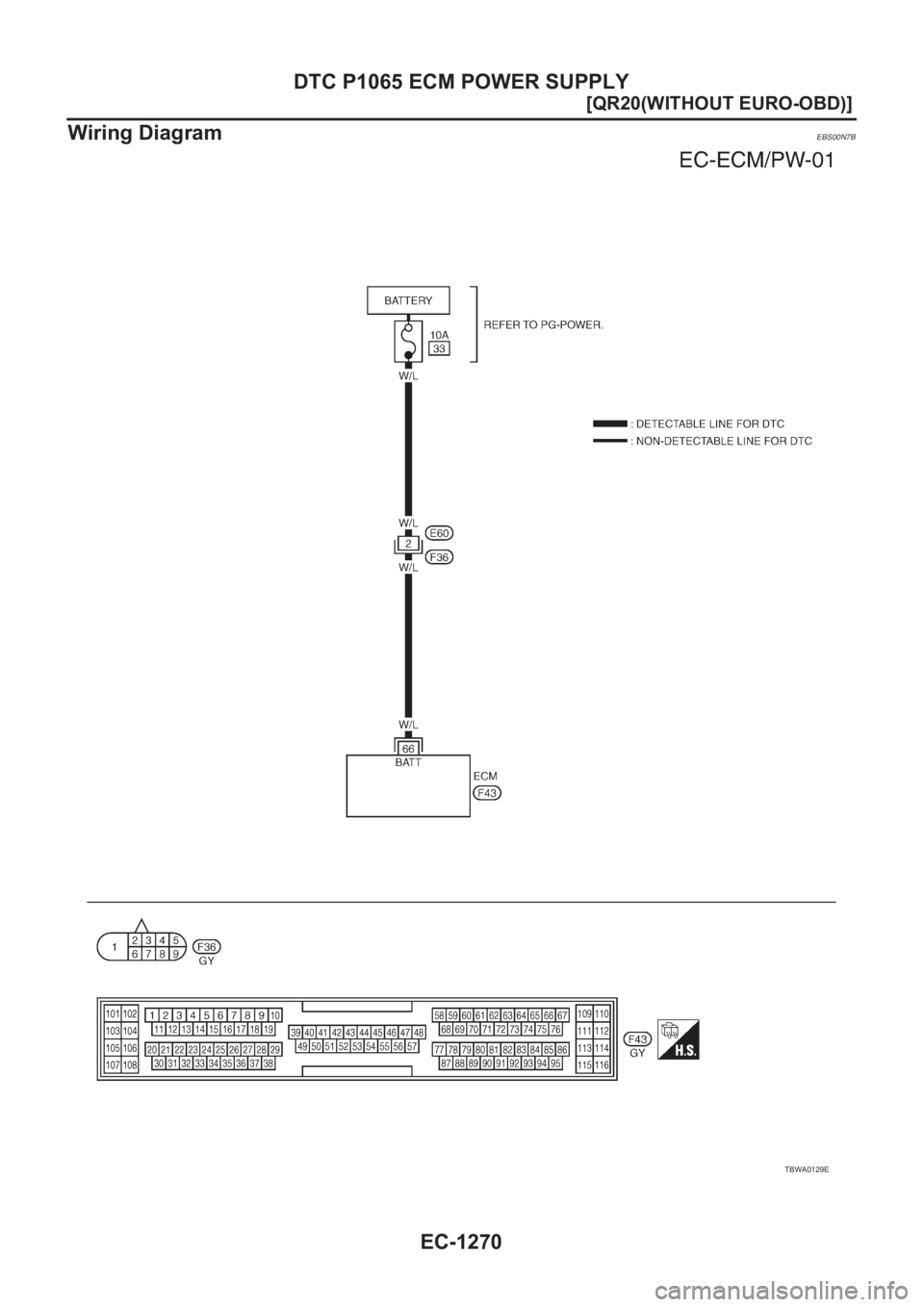

Wiring Diagram
EBS00N7B
TBWA0129E
Page 1621 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual DTC P1065 ECM POWER SUPPLY
EC-1271
[QR20(WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Diagnostic ProcedureEBS00N7C
1.CHECK ECM POWER SUPPLY
1. Turn ignition switch “OFF”.
2. Disconnect ECM harness NISSAN X-TRAIL 2001 Service Repair Manual DTC P1065 ECM POWER SUPPLY
EC-1271
[QR20(WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Diagnostic ProcedureEBS00N7C
1.CHECK ECM POWER SUPPLY
1. Turn ignition switch “OFF”.
2. Disconnect ECM harness](/manual-img/5/57405/w960_57405-1620.png)

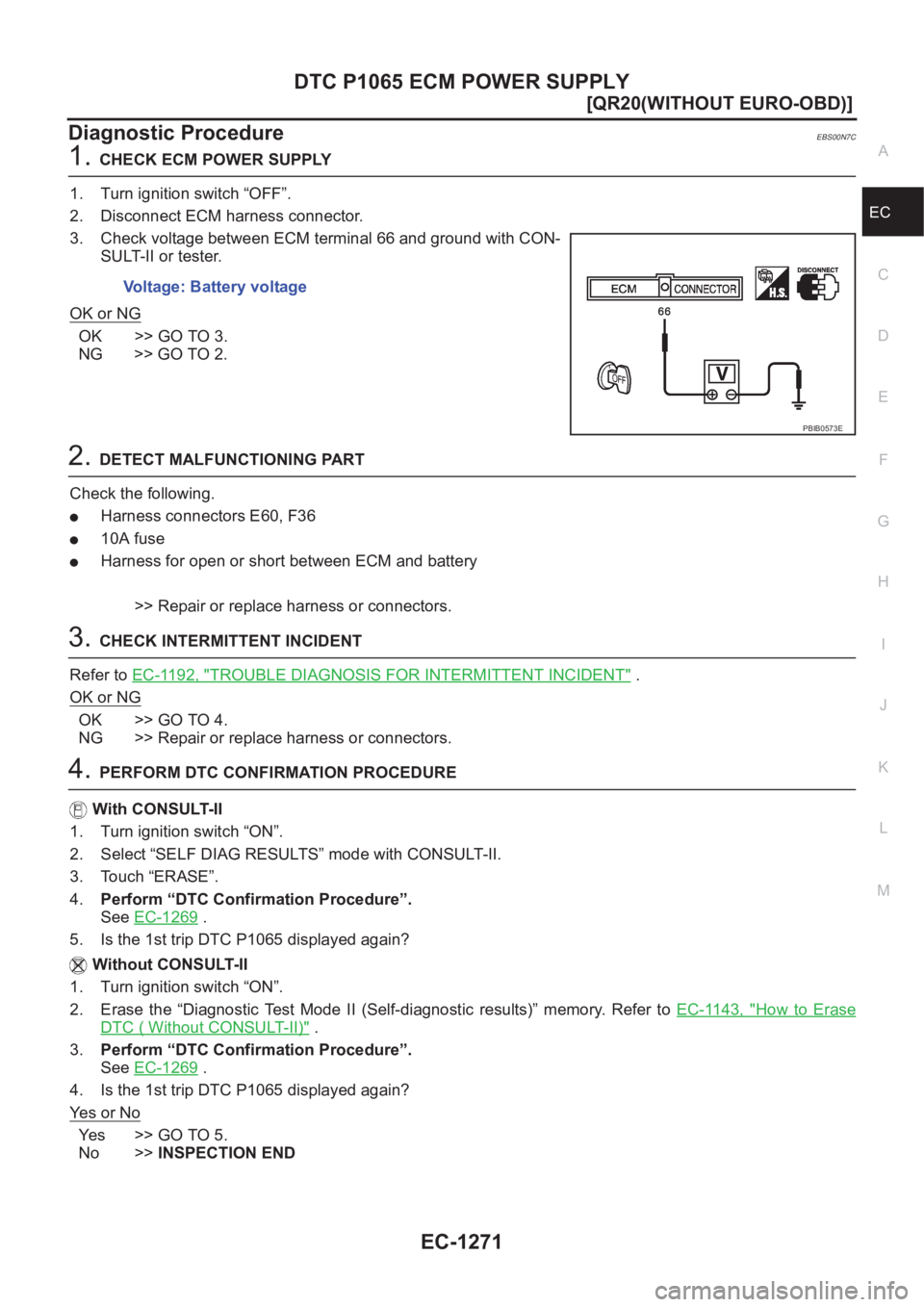

DTC P1065 ECM POWER SUPPLY
EC-1271
[QR20(WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Diagnostic ProcedureEBS00N7C
1.CHECK ECM POWER SUPPLY
1. Turn ignition switch “OFF”.
2. Disconnect ECM harness connector.
3. Check voltage between ECM terminal 66 and ground with CON-
SULT-II or tester.
OK or NG
OK >> GO TO 3.
NG >> GO TO 2.
2.DETECT MALFUNCTIONING PART
Check the following.
●Harness connectors E60, F36
●10A fuse
●Harness for open or short between ECM and battery
>> Repair or replace harness or connectors.
3.CHECK INTERMITTENT INCIDENT
Refer to EC-1192, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
OK or NG
OK >> GO TO 4.
NG >> Repair or replace harness or connectors.
4.PERFORM DTC CONFIRMATION PROCEDURE
With CONSULT-II
1. Turn ignition switch “ON”.
2. Select “SELF DIAG RESULTS” mode with CONSULT-II.
3. Touch “ERASE”.
4.Perform “DTC Confirmation Procedure”.
See EC-1269
.
5. Is the 1st trip DTC P1065 displayed again?
Without CONSULT-II
1. Turn ignition switch “ON”.
2. Erase the “Diagnostic Test Mode II (Self-diagnostic results)” memory. Refer to EC-1143, "
How to Erase
DTC ( Without CONSULT-II)" .
3.Perform “DTC Confirmation Procedure”.
See EC-1269
.
4. Is the 1st trip DTC P1065 displayed again?
Ye s o r N o
Ye s > > G O T O 5 .
No >>INSPECTION END Voltage: Battery voltage
PBIB0573E
Page 1622 of 3833
EC-1272
[QR20(WITHOUT EURO-OBD)]
DTC P1065 ECM POWER SUPPLY

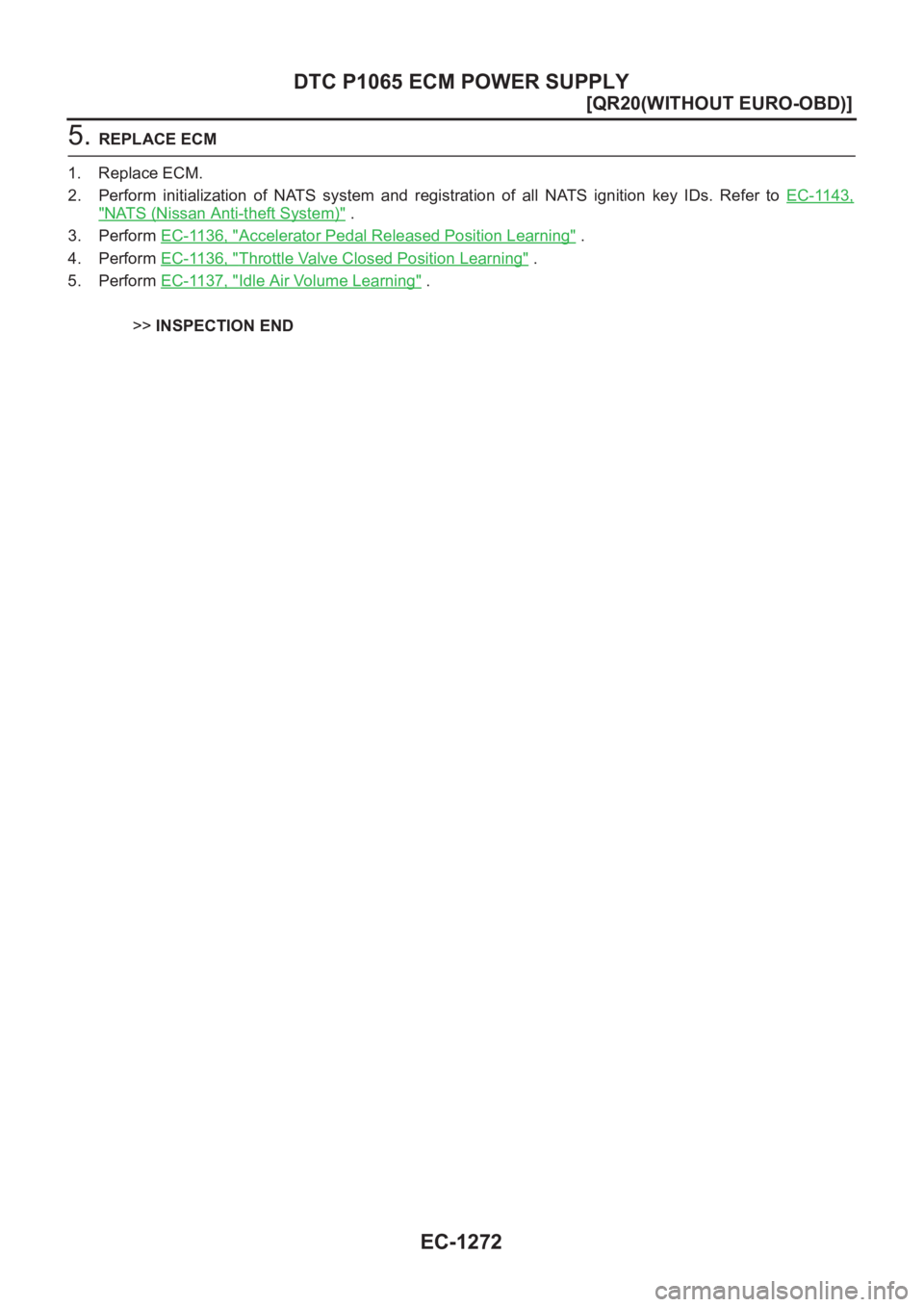

5. REPLACE ECM
1. Replace ECM.
2. Perform initialization of NATS system and registration of all NATS ignition key IDs. Refer to EC-1143,
"NATS (Nissan Anti-theft System)" .
3. Perform EC-1136, "
Accelerator Pedal Released Position Learning" .
4. Perform EC-1136, "
Throttle Valve Closed Position Learning" .
5. Perform EC-1137, "
Idle Air Volume Learning" .
>>INSPECTION END
Page 1623 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual DTC P1121 ELECTRIC THROTTLE CONTROL ACTUATOR
EC-1273
[QR20(WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC P1121 ELECTRIC THROTTLE CONTROL ACTUATORPFP:16119
DescriptionEBS00N7D
Electric Throttle Cont NISSAN X-TRAIL 2001 Service Repair Manual DTC P1121 ELECTRIC THROTTLE CONTROL ACTUATOR
EC-1273
[QR20(WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC P1121 ELECTRIC THROTTLE CONTROL ACTUATORPFP:16119
DescriptionEBS00N7D
Electric Throttle Cont](/manual-img/5/57405/w960_57405-1622.png)

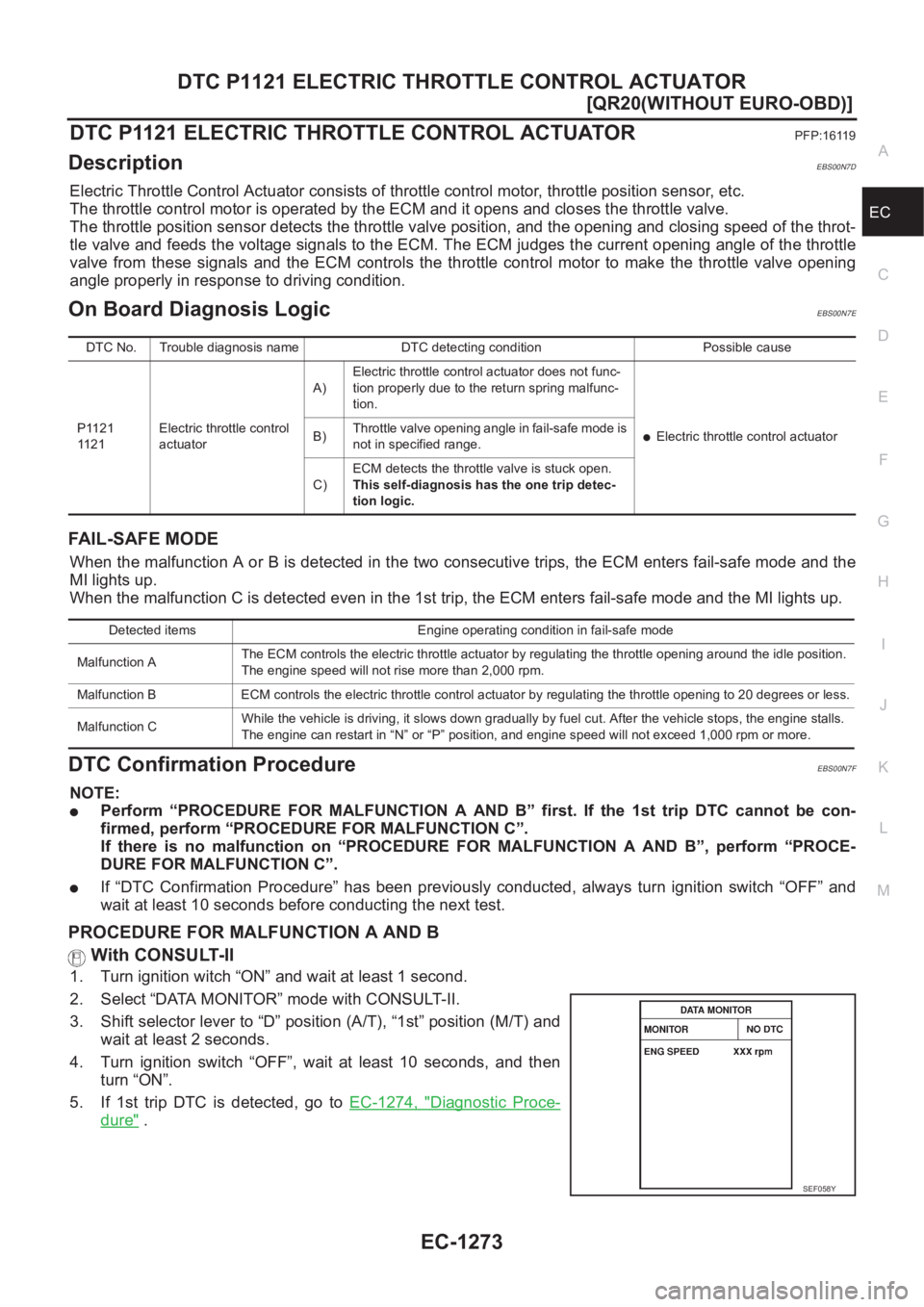

DTC P1121 ELECTRIC THROTTLE CONTROL ACTUATOR
EC-1273
[QR20(WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC P1121 ELECTRIC THROTTLE CONTROL ACTUATORPFP:16119
DescriptionEBS00N7D
Electric Throttle Control Actuator consists of throttle control motor, throttle position sensor, etc.
The throttle control motor is operated by the ECM and it opens and closes the throttle valve.
The throttle position sensor detects the throttle valve position, and the opening and closing speed of the throt-
tle valve and feeds the voltage signals to the ECM. The ECM judges the current opening angle of the throttle
valve from these signals and the ECM controls the throttle control motor to make the throttle valve opening
angle properly in response to driving condition.
On Board Diagnosis LogicEBS00N7E
FAIL-SAFE MODE
When the malfunction A or B is detected in the two consecutive trips, the ECM enters fail-safe mode and the
MI lights up.
When the malfunction C is detected even in the 1st trip, the ECM enters fail-safe mode and the MI lights up.
DTC Confirmation ProcedureEBS00N7F
NOTE:
●Perform “PROCEDURE FOR MALFUNCTION A AND B” first. If the 1st trip DTC cannot be con-
firmed, perform “PROCEDURE FOR MALFUNCTION C”.
If there is no malfunction on “PROCEDURE FOR MALFUNCTION A AND B”, perform “PROCE-
DURE FOR MALFUNCTION C”.
●If “DTC Confirmation Procedure” has been previously conducted, always turn ignition switch “OFF” and
wait at least 10 seconds before conducting the next test.
PROCEDURE FOR MALFUNCTION A AND B
With CONSULT-II
1. Turn ignition witch “ON” and wait at least 1 second.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Shift selector lever to “D” position (A/T), “1st” position (M/T) and
wait at least 2 seconds.
4. Turn ignition switch “OFF”, wait at least 10 seconds, and then
turn “ON”.
5. If 1st trip DTC is detected, go to EC-1274, "
Diagnostic Proce-
dure" .
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1121
11 2 1Electric throttle control
actuatorA)Electric throttle control actuator does not func-
tion properly due to the return spring malfunc-
tion.
●Electric throttle control actuator B)Throttle valve opening angle in fail-safe mode is
not in specified range.
C)ECM detects the throttle valve is stuck open.
This self-diagnosis has the one trip detec-
tion logic.
Detected items Engine operating condition in fail-safe mode
Malfunction AThe ECM controls the electric throttle actuator by regulating the throttle opening around the idle position.
The engine speed will not rise more than 2,000 rpm.
Malfunction B ECM controls the electric throttle control actuator by regulating the throttle opening to 20 degrees or less.
Malfunction CWhile the vehicle is driving, it slows down gradually by fuel cut. After the vehicle stops, the engine stalls.
The engine can restart in “N” or “P” position, and engine speed will not exceed 1,000 rpm or more.
SEF058Y
Page 1624 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual EC-1274
[QR20(WITHOUT EURO-OBD)]
DTC P1121 ELECTRIC THROTTLE CONTROL ACTUATOR
Without CONSULT-II
1. Turn ignition switch “ON” and wait at least 1 second.
2. Shift selector lever to “D” positi NISSAN X-TRAIL 2001 Service Repair Manual EC-1274
[QR20(WITHOUT EURO-OBD)]
DTC P1121 ELECTRIC THROTTLE CONTROL ACTUATOR
Without CONSULT-II
1. Turn ignition switch “ON” and wait at least 1 second.
2. Shift selector lever to “D” positi](/manual-img/5/57405/w960_57405-1623.png)

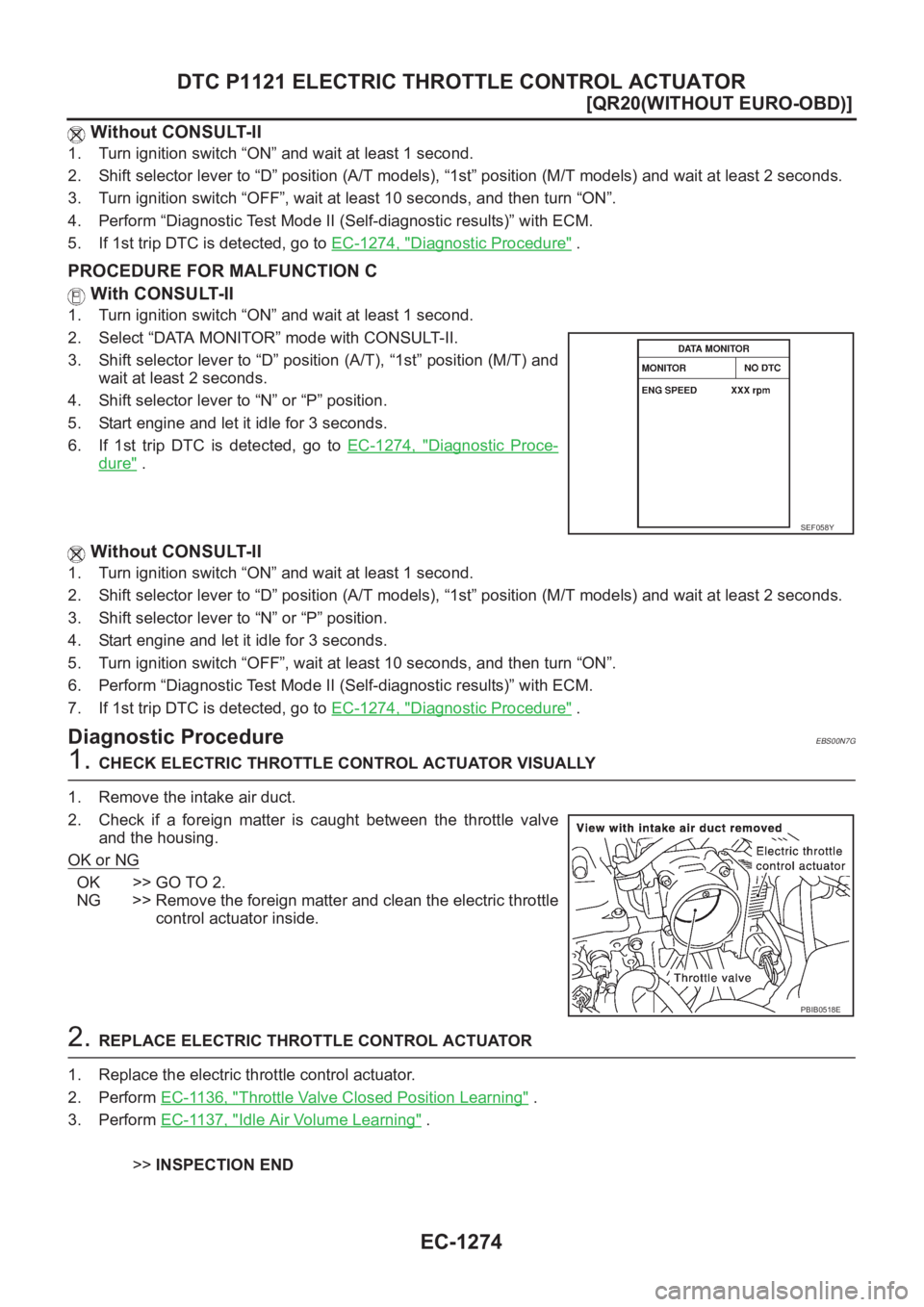

EC-1274
[QR20(WITHOUT EURO-OBD)]
DTC P1121 ELECTRIC THROTTLE CONTROL ACTUATOR
Without CONSULT-II
1. Turn ignition switch “ON” and wait at least 1 second.
2. Shift selector lever to “D” position (A/T models), “1st” position (M/T models) and wait at least 2 seconds.
3. Turn ignition switch “OFF”, wait at least 10 seconds, and then turn “ON”.
4. Perform “Diagnostic Test Mode II (Self-diagnostic results)” with ECM.
5. If 1st trip DTC is detected, go to EC-1274, "
Diagnostic Procedure" .
PROCEDURE FOR MALFUNCTION C
With CONSULT-II
1. Turn ignition switch “ON” and wait at least 1 second.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Shift selector lever to “D” position (A/T), “1st” position (M/T) and
wait at least 2 seconds.
4. Shift selector lever to “N” or “P” position.
5. Start engine and let it idle for 3 seconds.
6. If 1st trip DTC is detected, go to EC-1274, "
Diagnostic Proce-
dure" .
Without CONSULT-II
1. Turn ignition switch “ON” and wait at least 1 second.
2. Shift selector lever to “D” position (A/T models), “1st” position (M/T models) and wait at least 2 seconds.
3. Shift selector lever to “N” or “P” position.
4. Start engine and let it idle for 3 seconds.
5. Turn ignition switch “OFF”, wait at least 10 seconds, and then turn “ON”.
6. Perform “Diagnostic Test Mode II (Self-diagnostic results)” with ECM.
7. If 1st trip DTC is detected, go to EC-1274, "
Diagnostic Procedure" .
Diagnostic ProcedureEBS00N7G
1. CHECK ELECTRIC THROTTLE CONTROL ACTUATOR VISUALLY
1. Remove the intake air duct.
2. Check if a foreign matter is caught between the throttle valve
and the housing.
OK or NG
OK >> GO TO 2.
NG >> Remove the foreign matter and clean the electric throttle
control actuator inside.
2. REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR
1. Replace the electric throttle control actuator.
2. Perform EC-1136, "
Throttle Valve Closed Position Learning" .
3. Perform EC-1137, "
Idle Air Volume Learning" .
>>INSPECTION END
SEF058Y
PBIB0518E
