Page 3257 of 3833

INSTRUMENT PANEL ASSEMBLY
IP-7
C
D
E
F
G
H
J
K
L
MA
B
IP
INSTRUMENT LOWER DRIVER PANEL
●Remove screws, and pull driver-side instrument lower panel
straight forward to unfasten the clip.
MIRROR CONTROL SWITCH
1. From the back, press tab on mirror control switch to remove. Or insert a screwdriver, wrapped with a
cloth, into lower side of the switch to unfasten the lower clip.
2. Disconnect connector and then remove mirror control switch.
GPS ANTENNA
●Remove screws and Disconnect connector.
CLUSTER LID C
1. Insert a clip remover or similar tool into lower side of cluster lid C
and unfasten clip.
2. Unfasten resin tabs on upper and lower sides and remove clus-
ter lid C.
CLUSTER LID FINISHER
●Insert a clip clamp remover or similar tool into center panel gap
and unfasten clip.
AUDIO UNIT AND POCKET
Remove mounting screws on audio unit and pocket.Disconnect connector and remove audio unit and pocket.
NOTE:
During removal or installation, use cloth to protect surrounding area from damage.
SIIA0230E
SIIA0229E
PIIA3749E
Page 3258 of 3833

IP-8
INSTRUMENT PANEL ASSEMBLY
HEATER CONTROL FINISHER
●Insert a screwdriver or similar tool, wrapped with a cloth,
into lower edge (clip position). Unfasten clip and remove heater
control finisher.
CD AUTO–CHANGER AND POCKET
●Remove screws. Disconnect connector and remove CD auto changer and pocket.
NOTE:
During removal or installation, use cloth to protect surrounding area from damage.
HEATER CONTROLLER
●Remove mounting screws on heater controller.Disconnect connector and remove heater controller.
A/T OR M/T FINISHER
1. Insert a screwdriver, wrapped with a cloth, into cutout on rear
edge of finisher, and lift up to unfasten clip on rear edge of side
face.
2. Pull forward and remove finisher.
CONSOLE MASK AND CENTER CONSOLE
1. Remove screws.
2. Remove console mask, and remove center console.
LOWER INSTRUMENT COVER
●Unfasten resin clips, and pull toward vehicle rear.
INSTRUMENT LOWER CENTER PANEL
●Remove screws and then remove instrument lower center panel.
SIIA0235E
PIIA3750E
SIIA0236E
Page 3259 of 3833

INSTRUMENT PANEL ASSEMBLY
IP-9
C
D
E
F
G
H
J
K
L
MA
B
IP

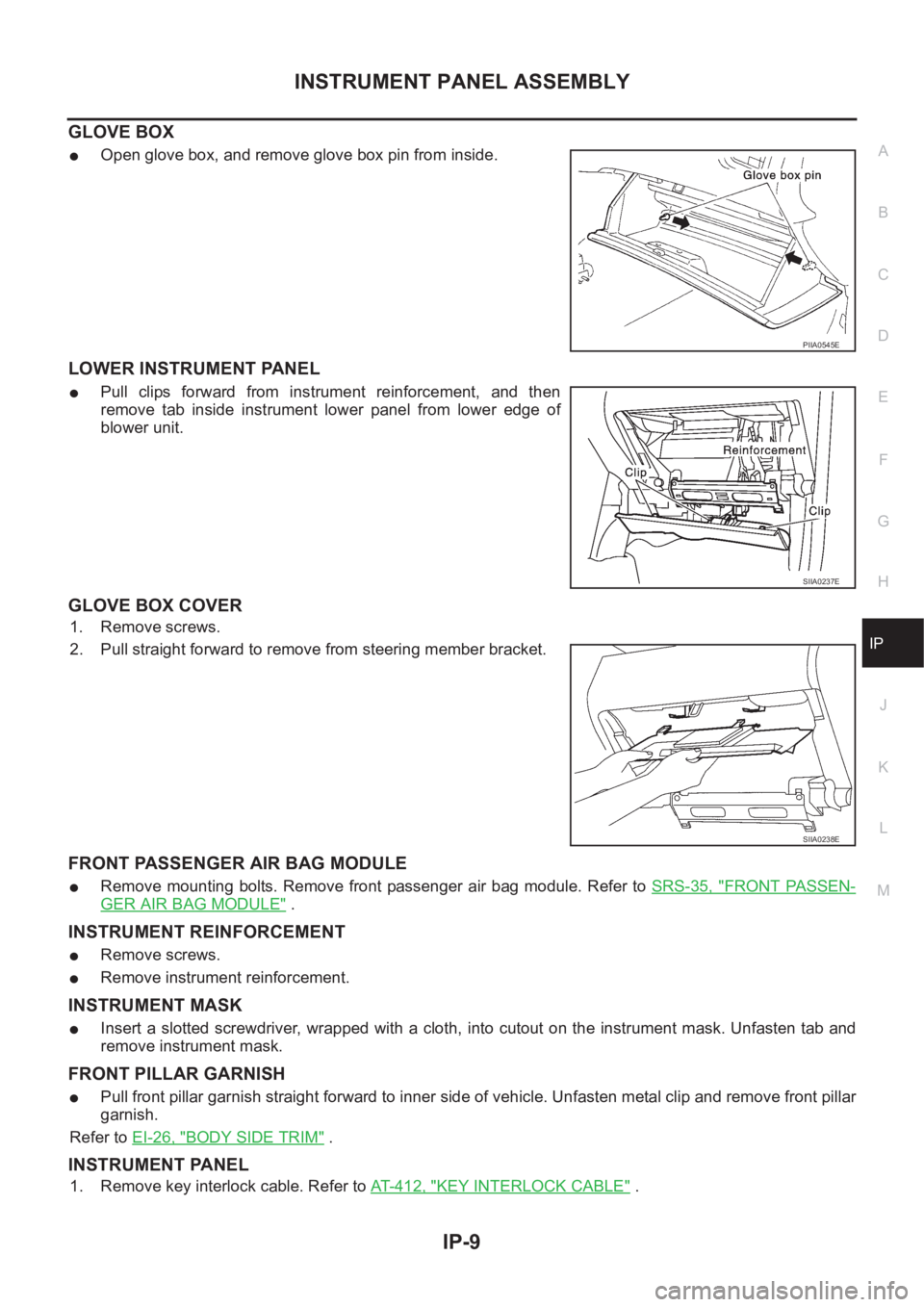

GLOVE BOX
●Open glove box, and remove glove box pin from inside.
LOWER INSTRUMENT PANEL
●Pull clips forward from instrument reinforcement, and then
remove tab inside instrument lower panel from lower edge of
blower unit.
GLOVE BOX COVER
1. Remove screws.
2. Pull straight forward to remove from steering member bracket.
FRONT PASSENGER AIR BAG MODULE
●Remove mounting bolts. Remove front passenger air bag module. Refer to SRS-35, "FRONT PASSEN-
GER AIR BAG MODULE" .
INSTRUMENT REINFORCEMENT
●Remove screws.
●Remove instrument reinforcement.
INSTRUMENT MASK
●Insert a slotted screwdriver, wrapped with a cloth, into cutout on the instrument mask. Unfasten tab and
remove instrument mask.
FRONT PILLAR GARNISH
●Pull front pillar garnish straight forward to inner side of vehicle. Unfasten metal clip and remove front pillar
garnish.
Refer to EI-26, "
BODY SIDE TRIM" .
INSTRUMENT PANEL
1. Remove key interlock cable. Refer to AT-412, "KEY INTERLOCK CABLE" .
PIIA0545E
SIIA0237E
SIIA0238E
Page 3260 of 3833
IP-10
INSTRUMENT PANEL ASSEMBLY

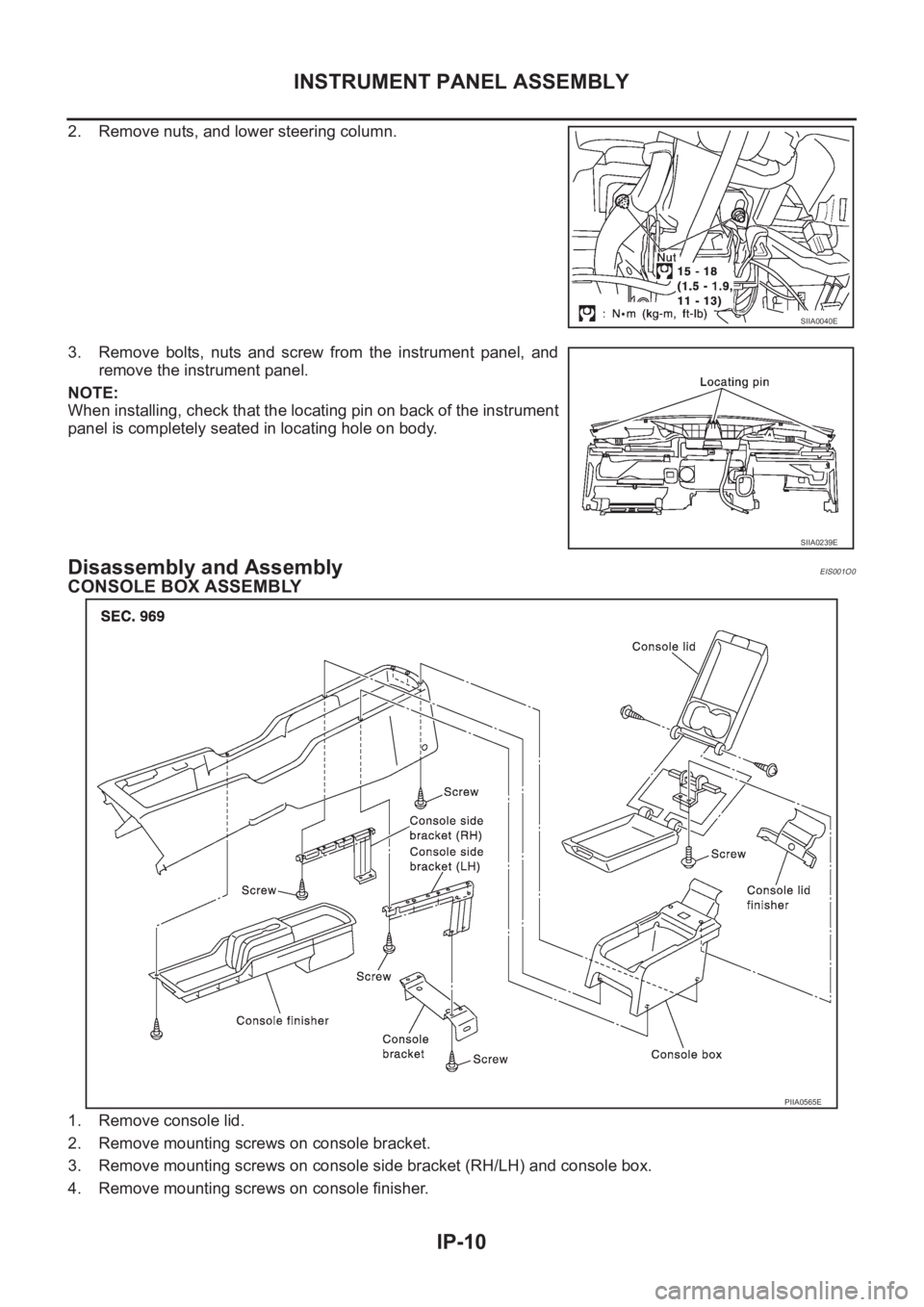

2. Remove nuts, and lower steering column.
3. Remove bolts, nuts and screw from the instrument panel, and
remove the instrument panel.
NOTE:
When installing, check that the locating pin on back of the instrument
panel is completely seated in locating hole on body.
Disassembly and AssemblyEIS001O0
CONSOLE BOX ASSEMBLY
1. Remove console lid.
2. Remove mounting screws on console bracket.
3. Remove mounting screws on console side bracket (RH/LH) and console box.
4. Remove mounting screws on console finisher.
SIIA0040E
SIIA0239E
PIIA0565E
Page 3261 of 3833

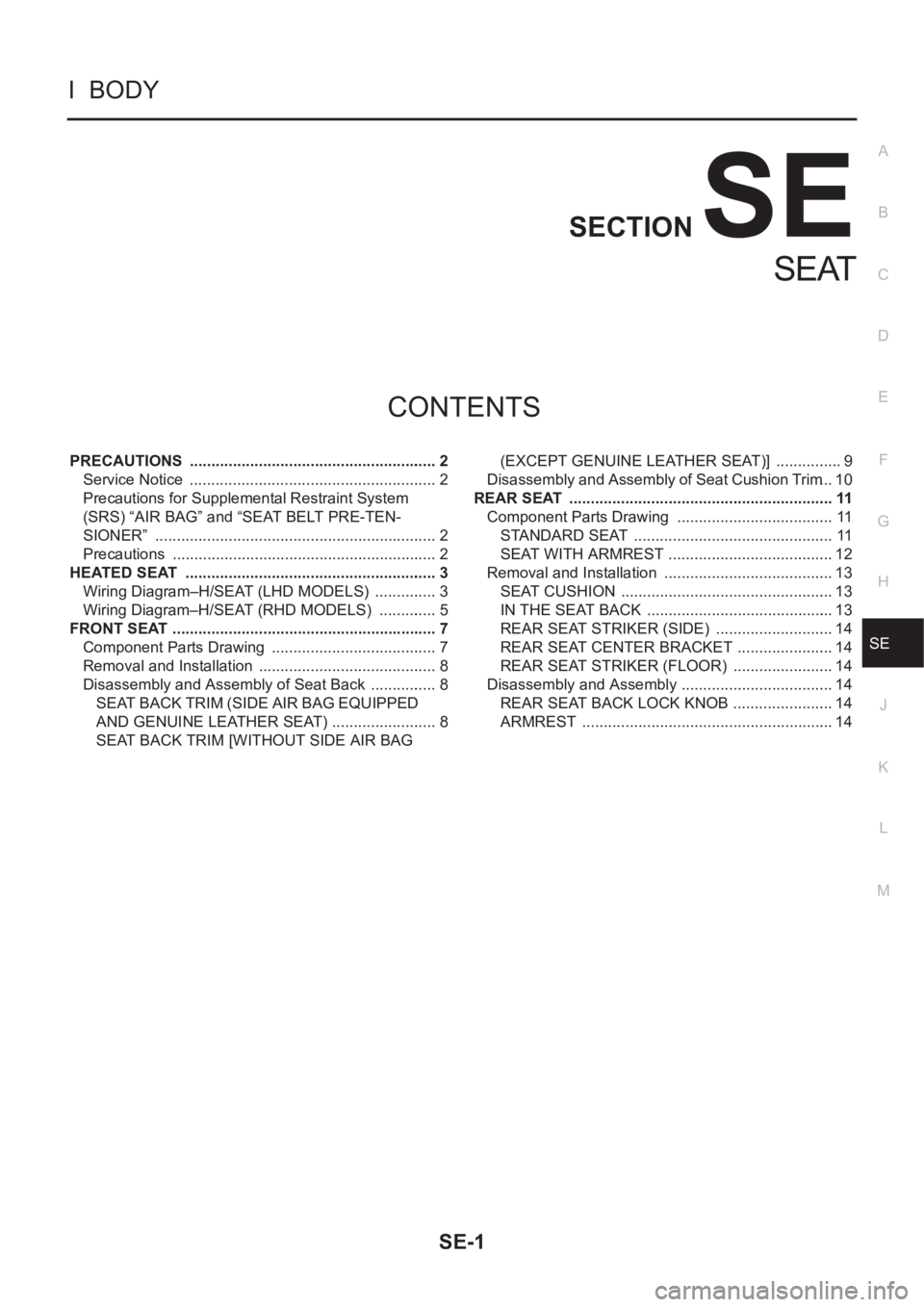

SE-1
SEAT
I BODY
CONTENTS
C
D
E
F
G
H
J
K
L
M
SECTION
A
B
SE
SEAT
PRECAUTIONS .......................................................... 2
Service Notice .......................................................... 2
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” .................................................................. 2
Precautions .............................................................. 2
HEATED SEAT ........................................................... 3
Wiring Diagram–H/SEAT (LHD MODELS) ............... 3
Wiring Diagram–H/SEAT (RHD MODELS) .............. 5
FRONT SEAT .............................................................. 7
Component Parts Drawing ....................................... 7
Removal and Installation .......................................... 8
Disassembly and Assembly of Seat Back ................ 8
SEAT BACK TRIM (SIDE AIR BAG EQUIPPED
AND GENUINE LEATHER SEAT) ......................... 8
SEAT BACK TRIM [WITHOUT SIDE AIR BAG (EXCEPT GENUINE LEATHER SEAT)] ................ 9
Disassembly and Assembly of Seat Cushion Trim ... 10
REAR SEAT .............................................................. 11
Component Parts Drawing ..................................... 11
STANDARD SEAT ............................................... 11
SEAT WITH ARMREST ....................................... 12
Removal and Installation ........................................ 13
SEAT CUSHION .................................................. 13
IN THE SEAT BACK ............................................ 13
REAR SEAT STRIKER (SIDE) ............................ 14
REAR SEAT CENTER BRACKET ....................... 14
REAR SEAT STRIKER (FLOOR) ........................ 14
Disassembly and Assembly .................................... 14
REAR SEAT BACK LOCK KNOB ........................ 14
ARMREST ........................................................ ... 14
Page 3262 of 3833

SE-2

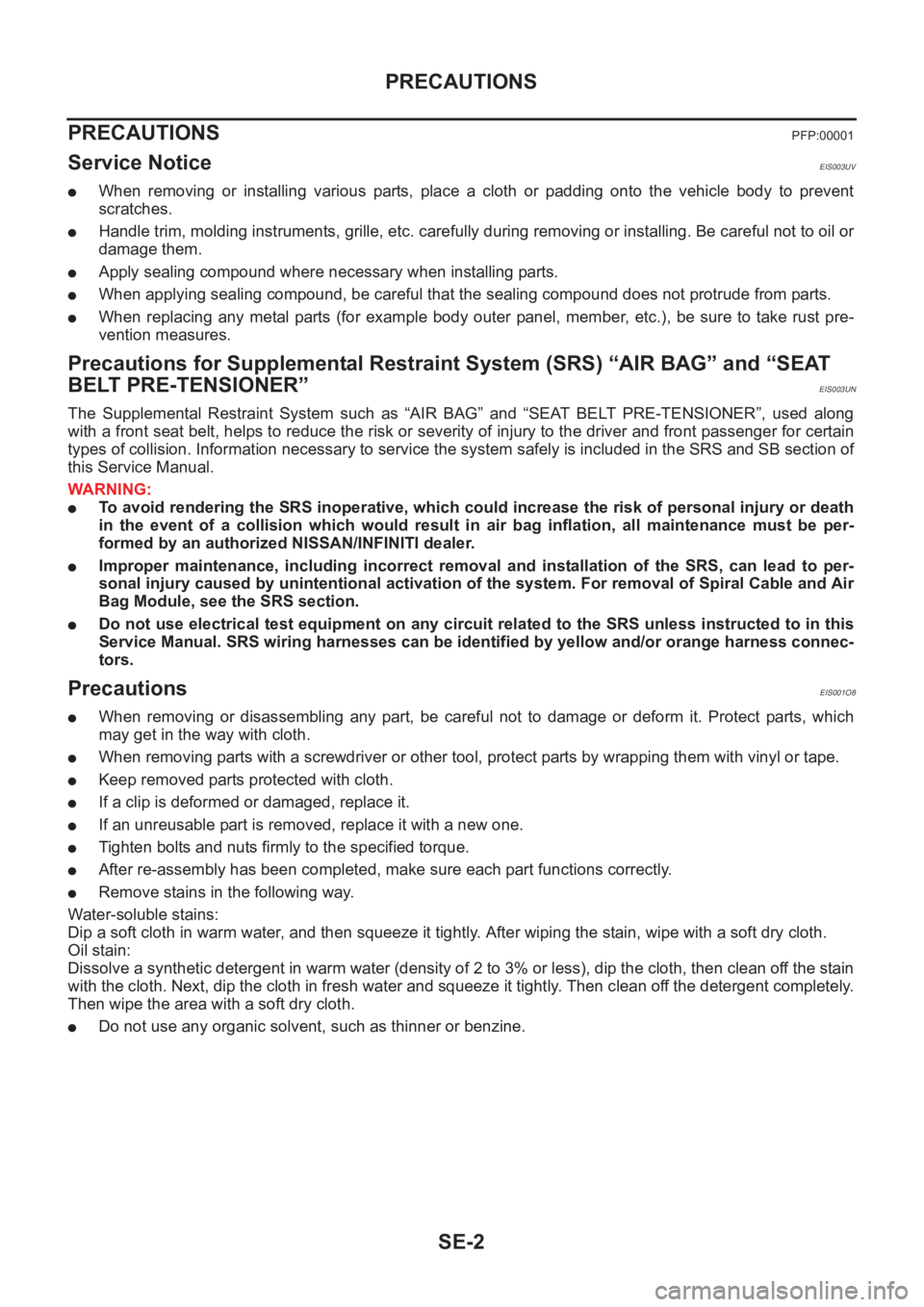

PRECAUTIONS
PRECAUTIONS
PFP:00001
Service NoticeEIS003UV
●When removing or installing various parts, place a cloth or padding onto the vehicle body to prevent
scratches.
●Handle trim, molding instruments, grille, etc. carefully during removing or installing. Be careful not to oil or
damage them.
●Apply sealing compound where necessary when installing parts.
●When applying sealing compound, be careful that the sealing compound does not protrude from parts.
●When replacing any metal parts (for example body outer panel, member, etc.), be sure to take rust pre-
vention measures.
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
EIS003UN
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the SRS and SB section of
this Service Manual.
WARNING:
●To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.
●Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.
●Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harness connec-
tors.
Precautions EIS001O8
●When removing or disassembling any part, be careful not to damage or deform it. Protect parts, which
may get in the way with cloth.
●When removing parts with a screwdriver or other tool, protect parts by wrapping them with vinyl or tape.
●Keep removed parts protected with cloth.
●If a clip is deformed or damaged, replace it.
●If an unreusable part is removed, replace it with a new one.
●Tighten bolts and nuts firmly to the specified torque.
●After re-assembly has been completed, make sure each part functions correctly.
●Remove stains in the following way.
Water-soluble stains:
Dip a soft cloth in warm water, and then squeeze it tightly. After wiping the stain, wipe with a soft dry cloth.
Oil stain:
Dissolve a synthetic detergent in warm water (density of 2 to 3% or less), dip the cloth, then clean off the stain
with the cloth. Next, dip the cloth in fresh water and squeeze it tightly. Then clean off the detergent completely.
Then wipe the area with a soft dry cloth.
●Do not use any organic solvent, such as thinner or benzine.
Page 3263 of 3833
HEATED SEAT
SE-3
C
D
E
F
G
H
J
K
L
MA
B
SE

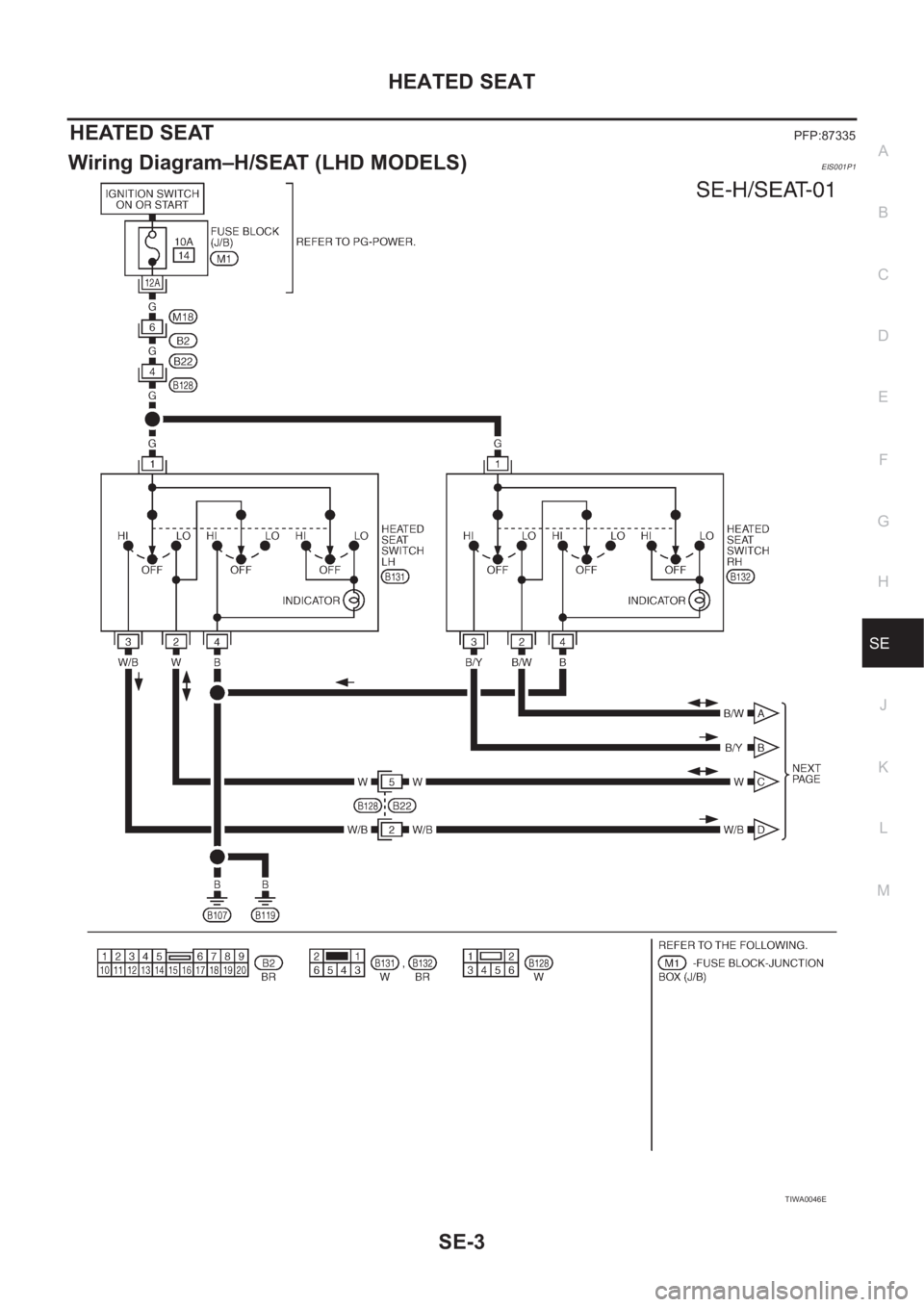

HEATED SEATPFP:87335
Wiring Diagram–H/SEAT (LHD MODELS)EIS001P1
TIWA0046E
Page 3264 of 3833

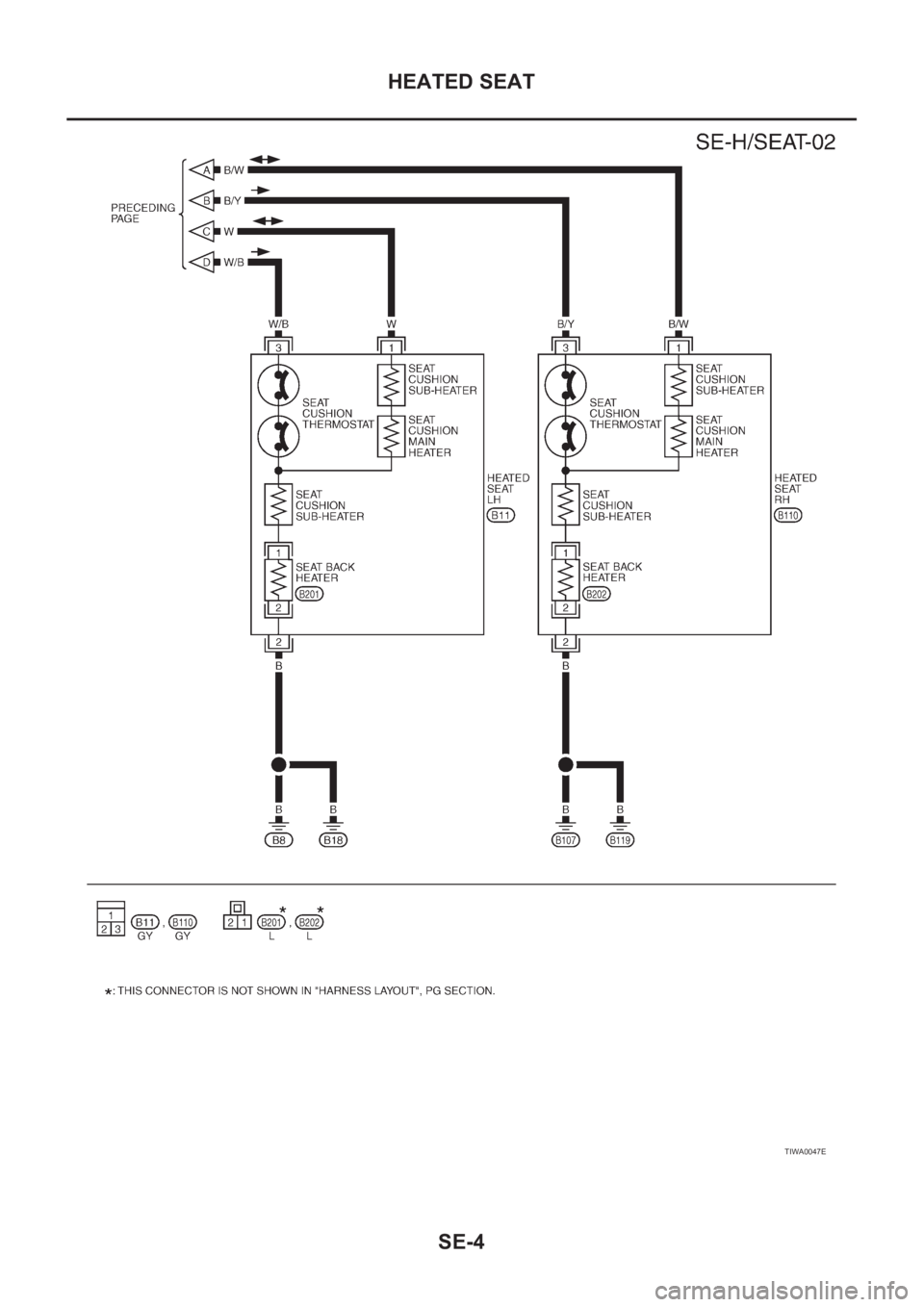

SE-4
HEATED SEAT
TIWA0047E
