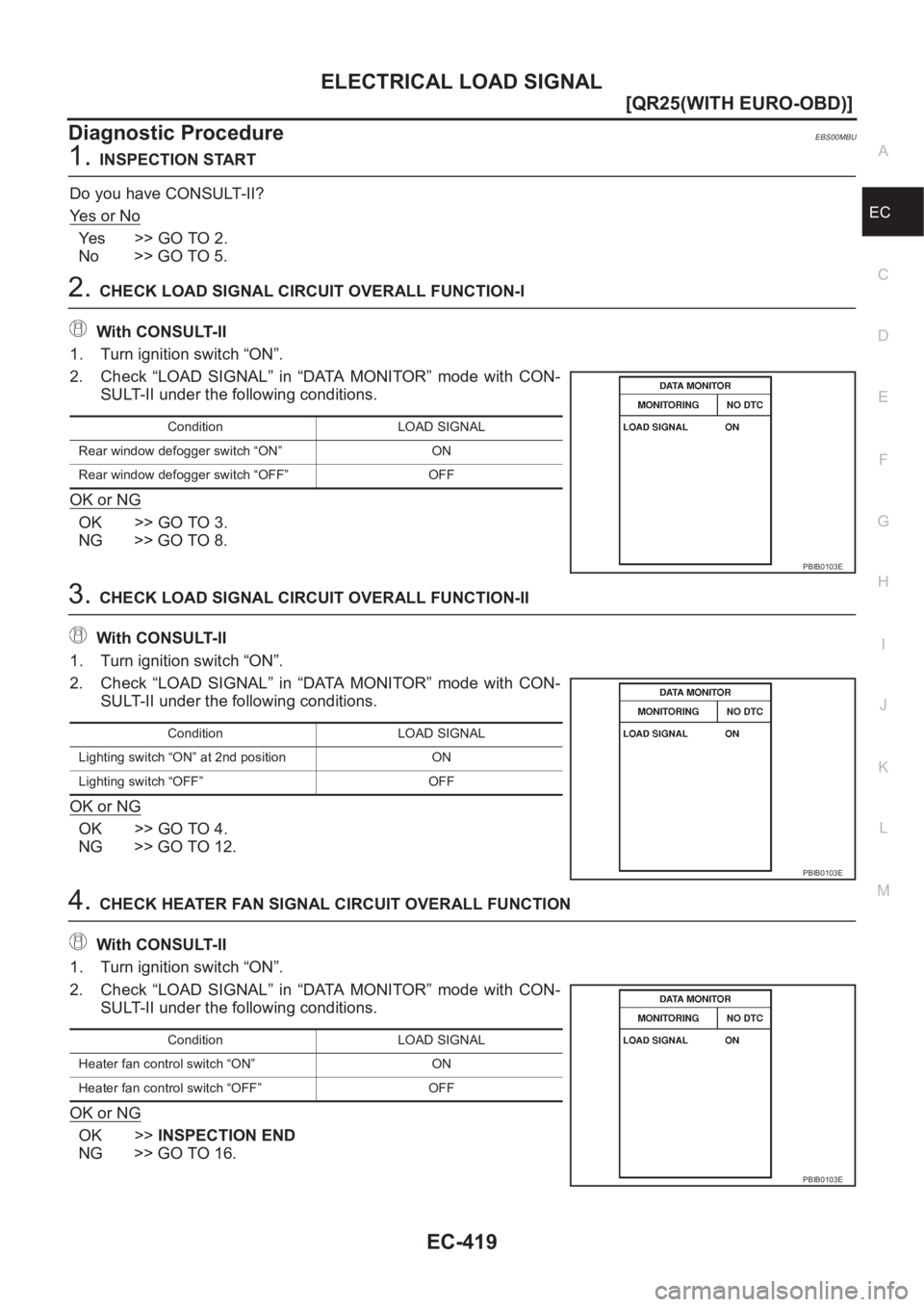

NISSAN X-TRAIL 2001 Service Repair Manual ELECTRICAL LOAD SIGNAL EC-419 [QR25(WITH EURO-OBD)] C D E F G H I J K L MA EC Diagnostic ProcedureEBS00MBU 1.INSPECTION START Do you have CONSULT-II? Ye s o r N o Ye s > > G O T O 2 . No >> GO

Page 770 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual EC-420 [QR25(WITH EURO-OBD)] ELECTRICAL LOAD SIGNAL 5. CHECK LOAD SIGNAL CIRCUIT OVERALL FUNCTION-I Without CONSULT-II 1. Turn ignition switch “ON”. 2. Check voltage between ECM terminal 52 and gr

Page 771 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual ELECTRICAL LOAD SIGNAL EC-421 [QR25(WITH EURO-OBD)] C D E F G H I J K L MA EC 9.CHECK REAR WINDOW DEFOGGER INPUT SIGNAL CIRCUIT FOR OPEN OR SHORT 1. Stop engine. 2. Disconnect ECM harness connector. 3

Page 772 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual EC-422 [QR25(WITH EURO-OBD)] ELECTRICAL LOAD SIGNAL 13. CHECK HEADLAMP INPUT SIGNAL CIRCUIT FOR OPEN OR SHORT 1. Stop engine. 2. Disconnect ECM harness connector. 3. Disconnect lighting switch harness

Page 773 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual ELECTRICAL LOAD SIGNAL EC-423 [QR25(WITH EURO-OBD)] C D E F G H I J K L MA EC 17.CHECK HEATER FAN SIGNAL CIRCUIT FOR OPEN OR SHORT 1. Stop engine. 2. Disconnect ECM harness connector. 3. Disconnect A/

Page 774 of 3833

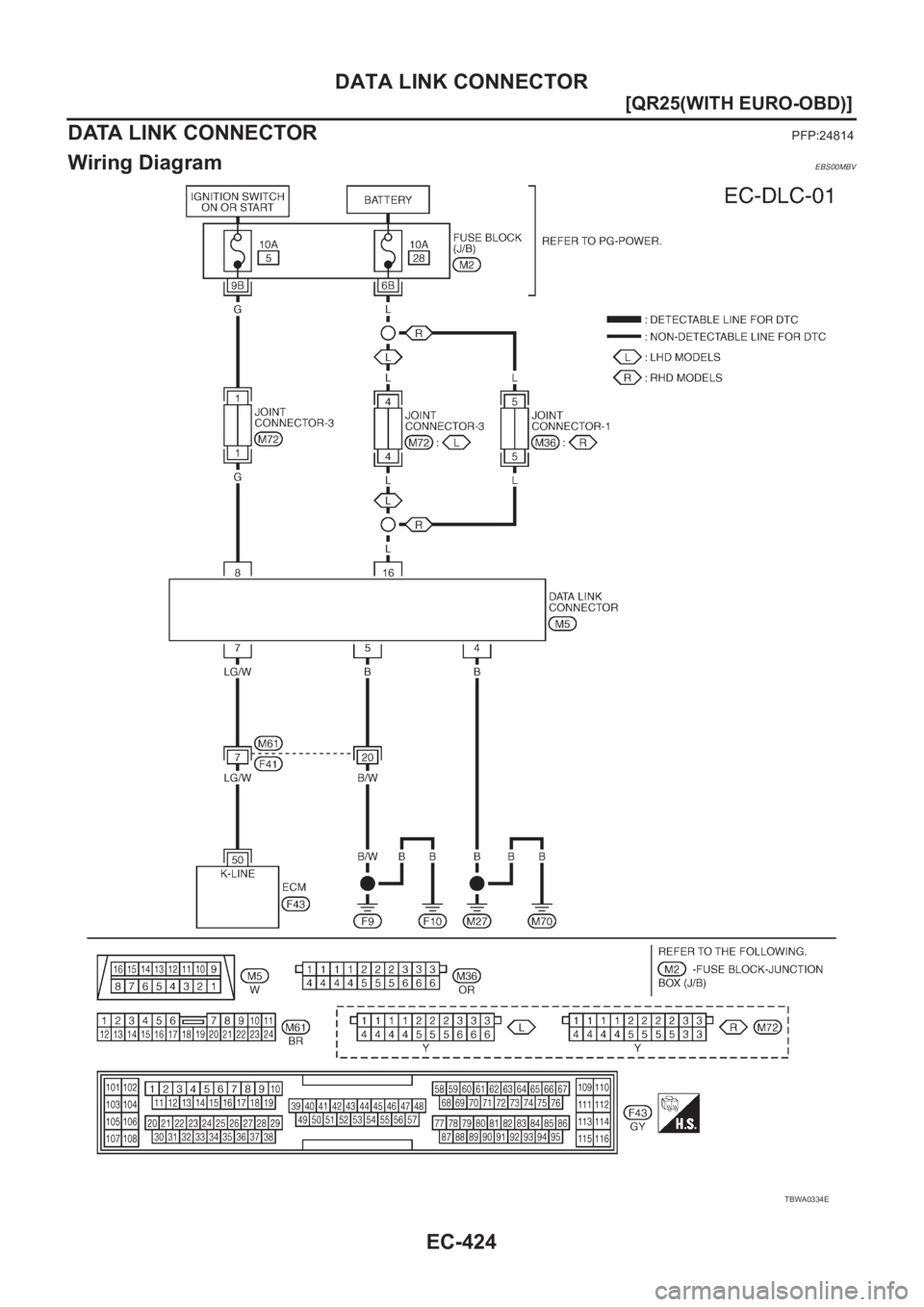

NISSAN X-TRAIL 2001 Service Repair Manual EC-424 [QR25(WITH EURO-OBD)] DATA LINK CONNECTOR DATA LINK CONNECTOR PFP:24814 Wiring DiagramEBS00MBV TBWA0334E

Page 775 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual EVAPORATIVE EMISSION SYSTEM EC-425 [QR25(WITH EURO-OBD)] C D E F G H I J K L MA EC EVAPORATIVE EMISSION SYSTEMPFP:14950 DescriptionEBS00MBW SYSTEM DESCRIPTION The evaporative emission system is used t

Page 776 of 3833

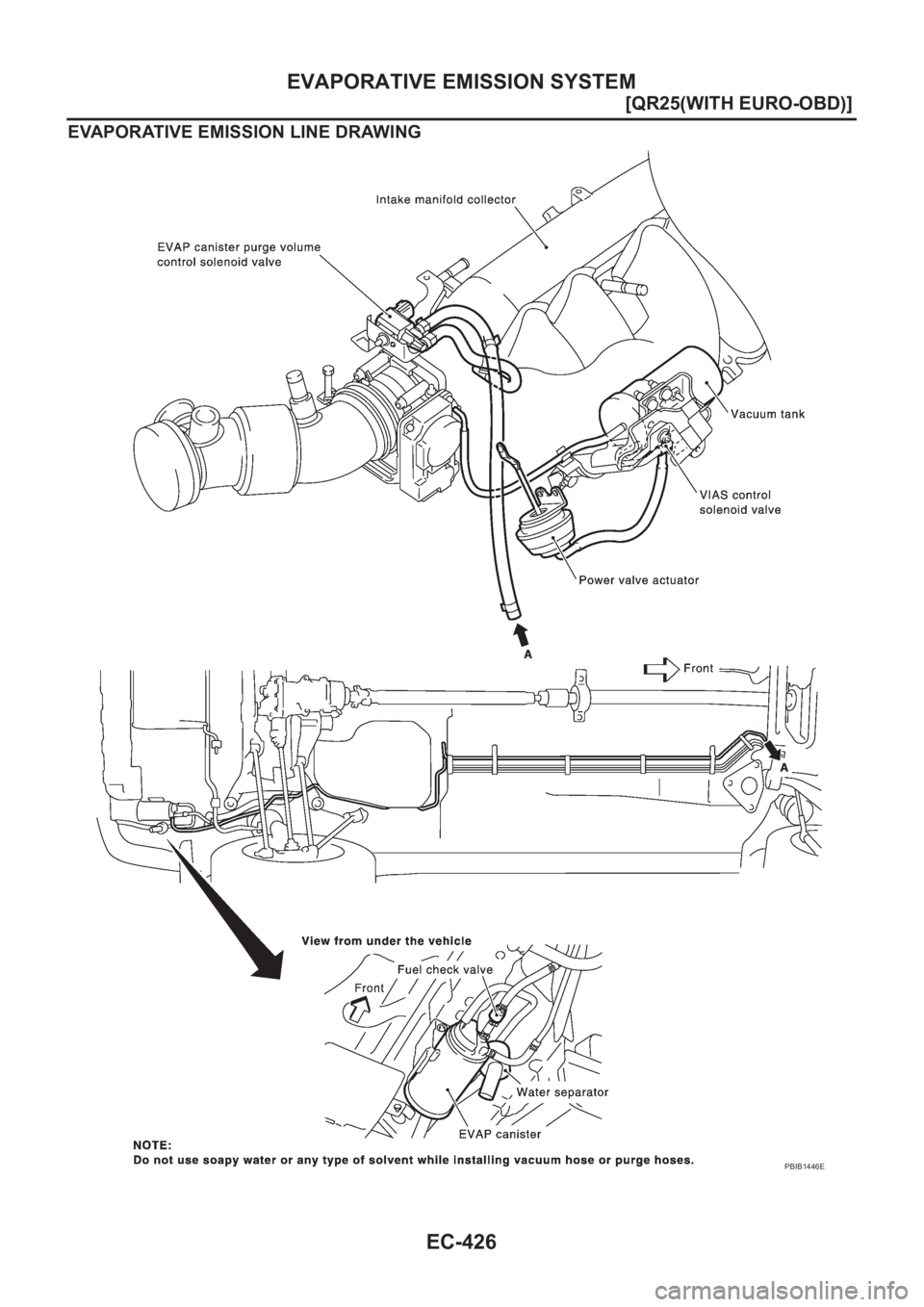

NISSAN X-TRAIL 2001 Service Repair Manual EC-426 [QR25(WITH EURO-OBD)] EVAPORATIVE EMISSION SYSTEM EVAPORATIVE EMISSION LINE DRAWING PBIB1446E
