ROOF SPOILER
EI-21
C
D
E
F
G
H
J
K
L
MA
B
EI
ROOF SPOILERPFP:96030
Removal and InstallationEIS000N7
REMOVAL
1. Remove headlining. Refer to EI-29, "Removal and Installation" .
2. Remove covers (left and right).
3. Remove roof spoiler mounting nuts (upper and lower roof surfaces).
4. Pull roof spoiler upwards. Remove tabs (1 each on left/right) which are engaged with the roof rails.
Remove roof spoiler.
INSTALLATION
Installation is in the reverse order of removal.

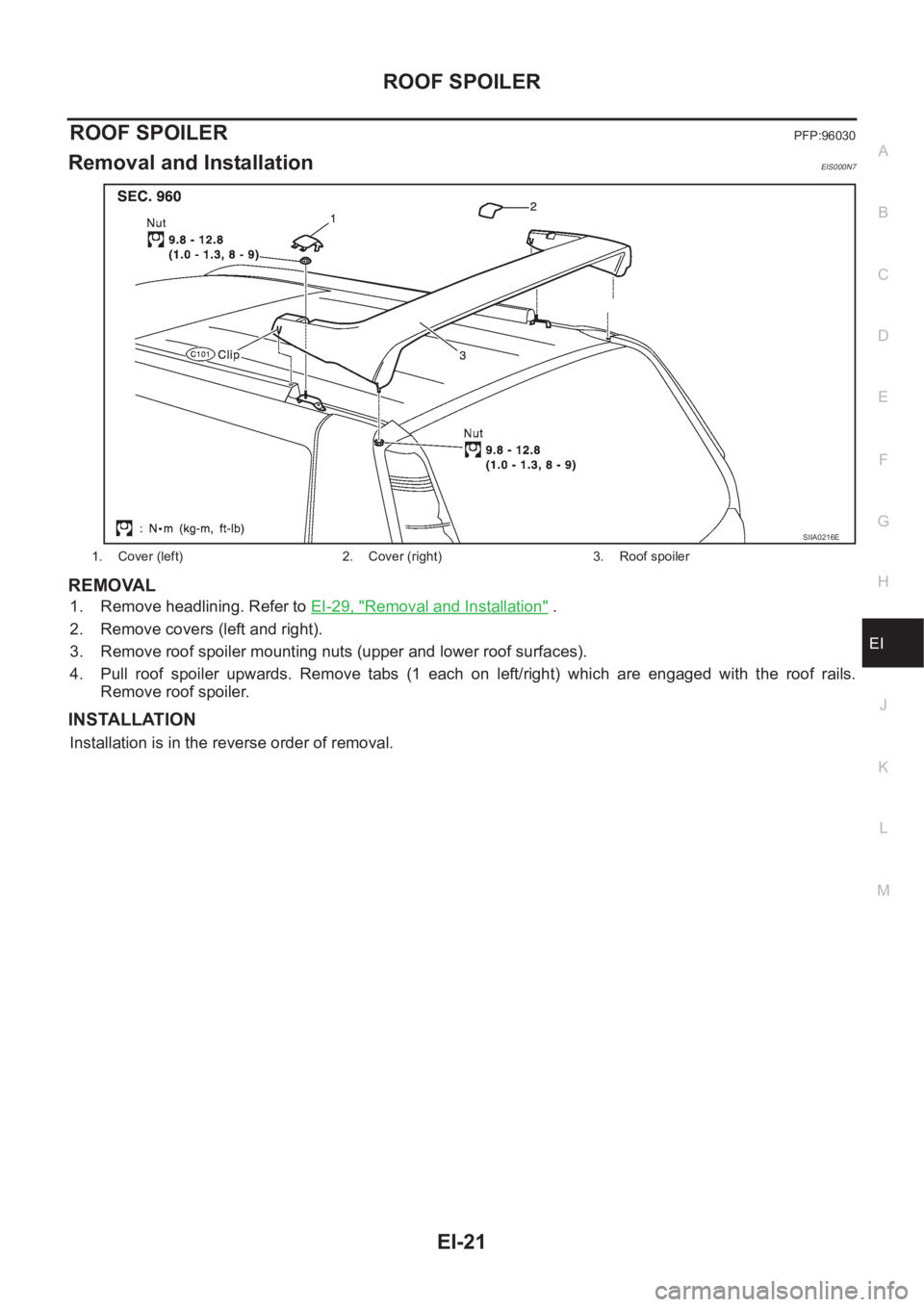

1. Cover (left) 2. Cover (right) 3. Roof spoiler
SIIA0216E
Page 3242 of 3833
EI-22
LICENSE LAMP FINISHER
LICENSE LAMP FINISHER
PFP:84810
Removal and InstallationEIS001NV
REMOVAL
1. Remove back door finisher. Refer to EI-25, "Removal and Installation"
2. Remove license plate lamp. Refer to LT-32, "LICENSE PLATE LAMP" .
3. Remove license lamp finisher mounting nuts and clips. Then remove finisher.
INSTALLATION
Installation is in the reverse order of removal.

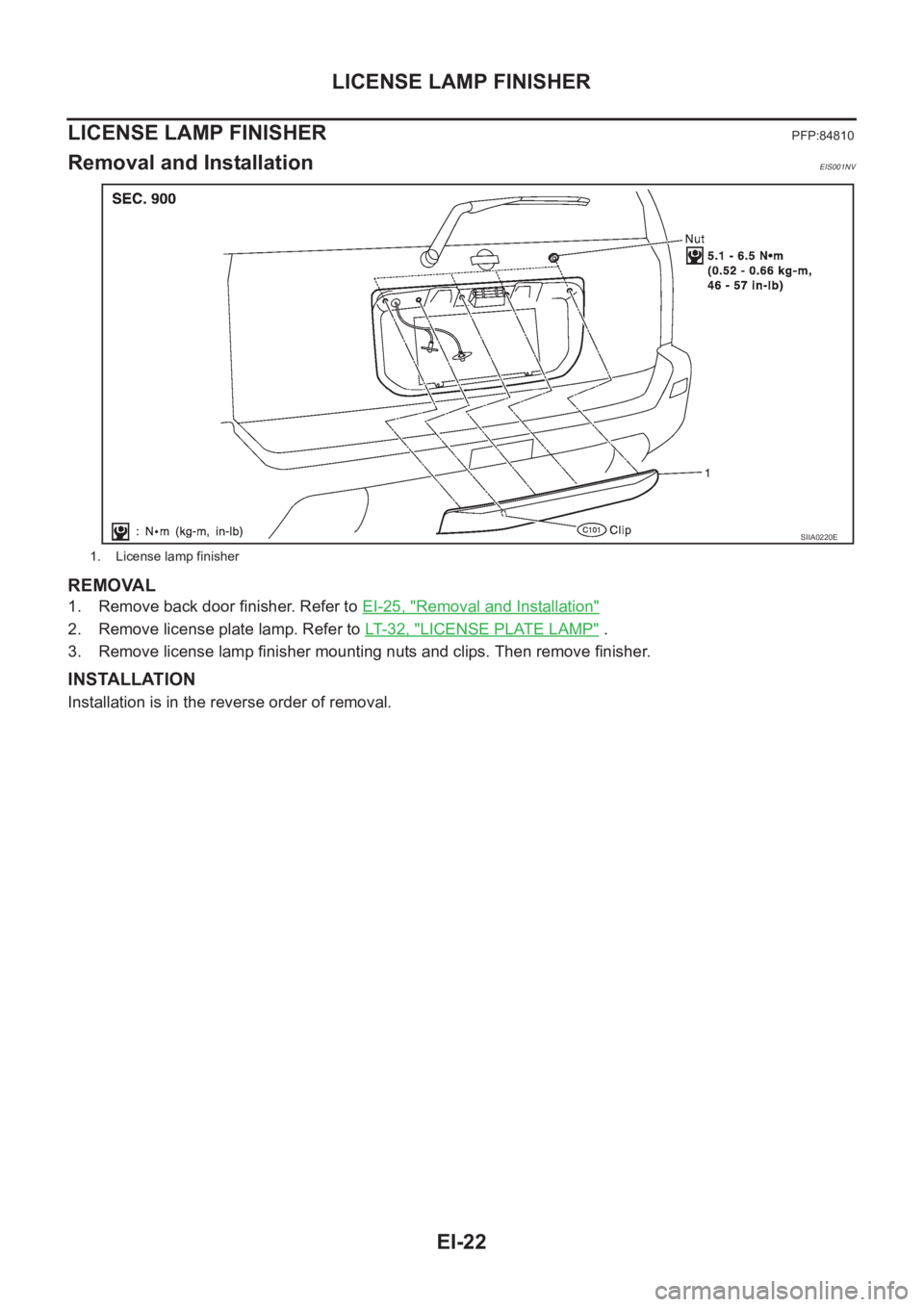

1. License lamp finisher
SIIA0220E
Page 3243 of 3833
DOOR FINISHER
EI-23
C
D
E
F
G
H
J
K
L
MA
B
EI
DOOR FINISHERPFP:80900
Removal and InstallationEIS000N9
FRONT AND REAR
1. Insert a screwdriver, wrapped with a cloth, into door trim cutout
on the inside handle escutcheon. Disengage the taps on the
front, upper side (2) and lower side (2). Slide rearwards and dis-
engage the rear-side pawls to remove.
SIIA0203E

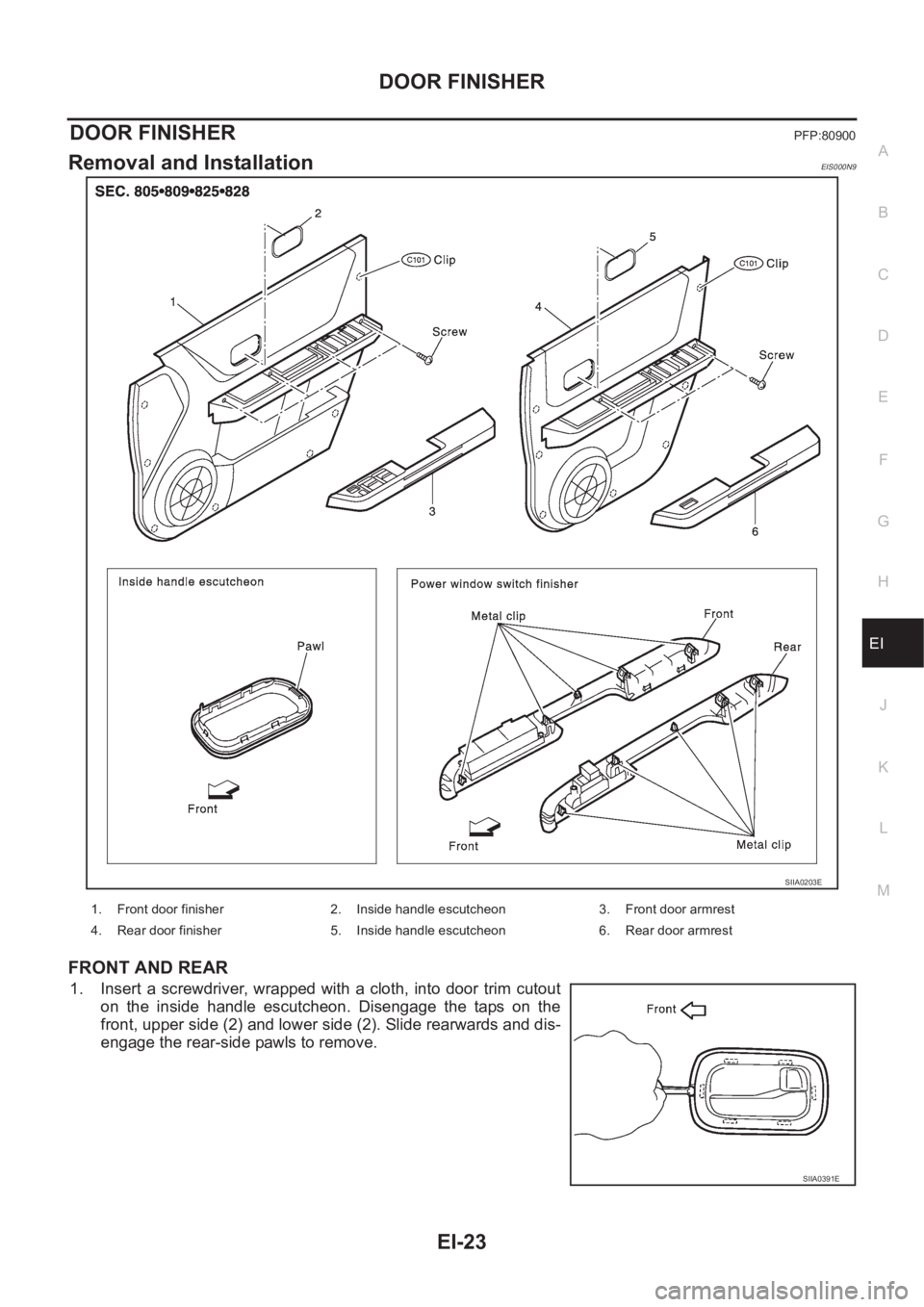

1. Front door finisher 2. Inside handle escutcheon 3. Front door armrest
4. Rear door finisher 5. Inside handle escutcheon 6. Rear door armrest
SIIA0391E
Page 3244 of 3833
EI-24
DOOR FINISHER
2. Insert a screwdriver, wrapped with a cloth, into the cutout on the
front edge of power window switch finisher. Unfasten the metal
clip on the front side.
3. Insert the screwdriver into the gap and remove metal clips, mov-
ing from front to rear.
4. Disconnect and remove power window switch connector.
5. Remove door finisher mounting screw.
6. Insert a screwdriver, wrapped with a cloth, into the cutout on the
lower part of door finisher. Unfasten the clips.
7. Pull the door finisher upwards to remove.
Installation is in the reverse order of removal.
NOTE:
●Insert a clip driver or clip clamp remover into the part shown by
the arrow (between the body side panel and the clips). Remove
finisher.
●To install the finisher, confirm clips are surely aligned with the
holes on the body side panel, then press in.
SIIA0208J
SIIA0211J
SIIA0213J
SIIA0810E
Page 3245 of 3833
BACK DOOR TRIM
EI-25
C
D
E
F
G
H
J
K
L
MA
B
EI
BACK DOOR TRIMPFP:90900
Removal and InstallationEIS000NA

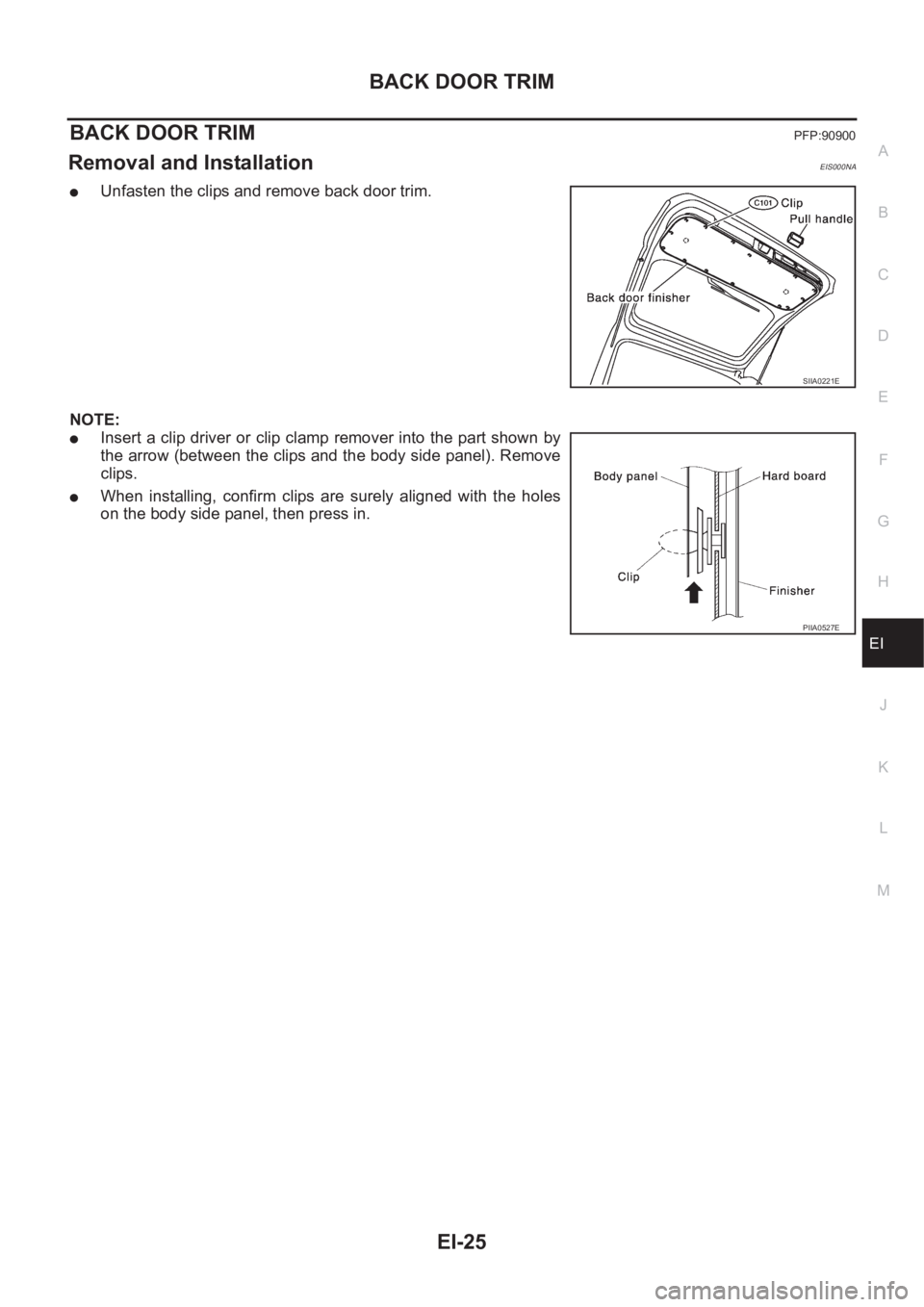

●Unfasten the clips and remove back door trim.
NOTE:
●Insert a clip driver or clip clamp remover into the part shown by
the arrow (between the clips and the body side panel). Remove
clips.
●When installing, confirm clips are surely aligned with the holes
on the body side panel, then press in.
SIIA0221E
PIIA0527E
Page 3246 of 3833
EI-26
BODY SIDE TRIM
BODY SIDE TRIM
PFP:76913
Removal and InstallationEIS000NB
CENTER PILLAR LOWER GARNISH
●Removing and installing front and rear kick panels
SIIA0217E
1. Front pillar garnish 2. Dashboard side finisher 3. Front body side welt
4. Front kick panel 5. Center pillar upper Garnish 6. Center pillar lower garnish
7. Rear body side welt 8. Rear kick panel 9. Rear pillar finisher
10. Luggage side lower Finisher 11. Front luggage floorboard 12. Luggage floor rear spacer (right)
13. Luggage floor rear spacer (center) 14. Luggage floor rear spacer (left) 15. Luggage floorboard (right)
16. Rear luggage floorboard 17. Luggage floorboard (left) 18. Luggage rear plate
19. Back door weather strip 20. Hook
Page 3247 of 3833

BODY SIDE TRIM
EI-27
C
D
E
F
G
H
J
K
L
MA
B
EI
CENTER PILLAR UPPER GARNISH
●Removing and installing the seat belt shoulder anchor. Refer to SB-3, "Removal and Installation of Front
Seat Belt"
●Removing and installing front and rear kick panels
●Removal and installation of center pillar lower garnish
LUGGAGE SIDE LOWER FINISHER
●Removal and installation of luggage floorboards and luggage floor spacers
●Removal and installation of luggage rear plate
●Removal and installation of rear kick panel
NOTE:
When removing or installing, pay attention to tab engagement with the rear pillar finisher.
REAR PILLAR FINISHER
●Removal and installation of luggage side lower finisher
●Removal and installation of rear seat belt shoulder anchor
DASHBOARD SIDE FINISHER
●Removal and installation of front kick panel
BODY SIDE WELT
●Removal and installation of kick panels
●Removal and installation of center pillar lower garnish
●Removal and installation of center pillar upper garnish
NOTE:
●Insert a screwdriver, wrapped with a cloth, into the part shown
by an arrow (between the body side panel and clips). Remove
clips.
●When installing, confirm clips are aligned with the body side
panel holes, and then press in.
SIIA0261E
SIIA0810E
Page 3248 of 3833

EI-28
FLOOR TRIM
FLOOR TRIM
PFP:74902
Removal and InstallationEIS000NC
REMOVAL
1. Remove front seat and rear seat cushions. Refer to SE-8, "Removal and Installation" in the front seat
section, and to SE-13, "
Removal and Installation" in the rear seat section.
2. Remove clips and remove rear floor carpet.
3. Remove center console.
4. Remove lower instrument cover.
5. Remove lower instrument center panel.
6. Remove floor anchor bolt of front seat belt. Refer to SB-3, "
Removal and Installation of Front Seat Belt" .
7. Remove front and rear kick panels.
8. Remove center pillar lower garnish.
9. Remove front and rear body-side welts.
10. Remove the dashboard side finisher.
11. Remove footrest.
12. Remove carpet hooks and clips.
13. Remove carpet from the carpet anchor clips.
14. Remove floor carpet.
NOTE:
●For steps 3-5, refer to IP-5, "Removal and Installation" .
●For steps 7-10, refer to EI-26, "Removal and Installation" .
INSTALLATION
Installation is in the reverse order of removal.
SIIA0222E
1. Floor carpet 2. Foot rest 3. Carpet hook
4. Model number plate cover 5. Rear floor carpet
