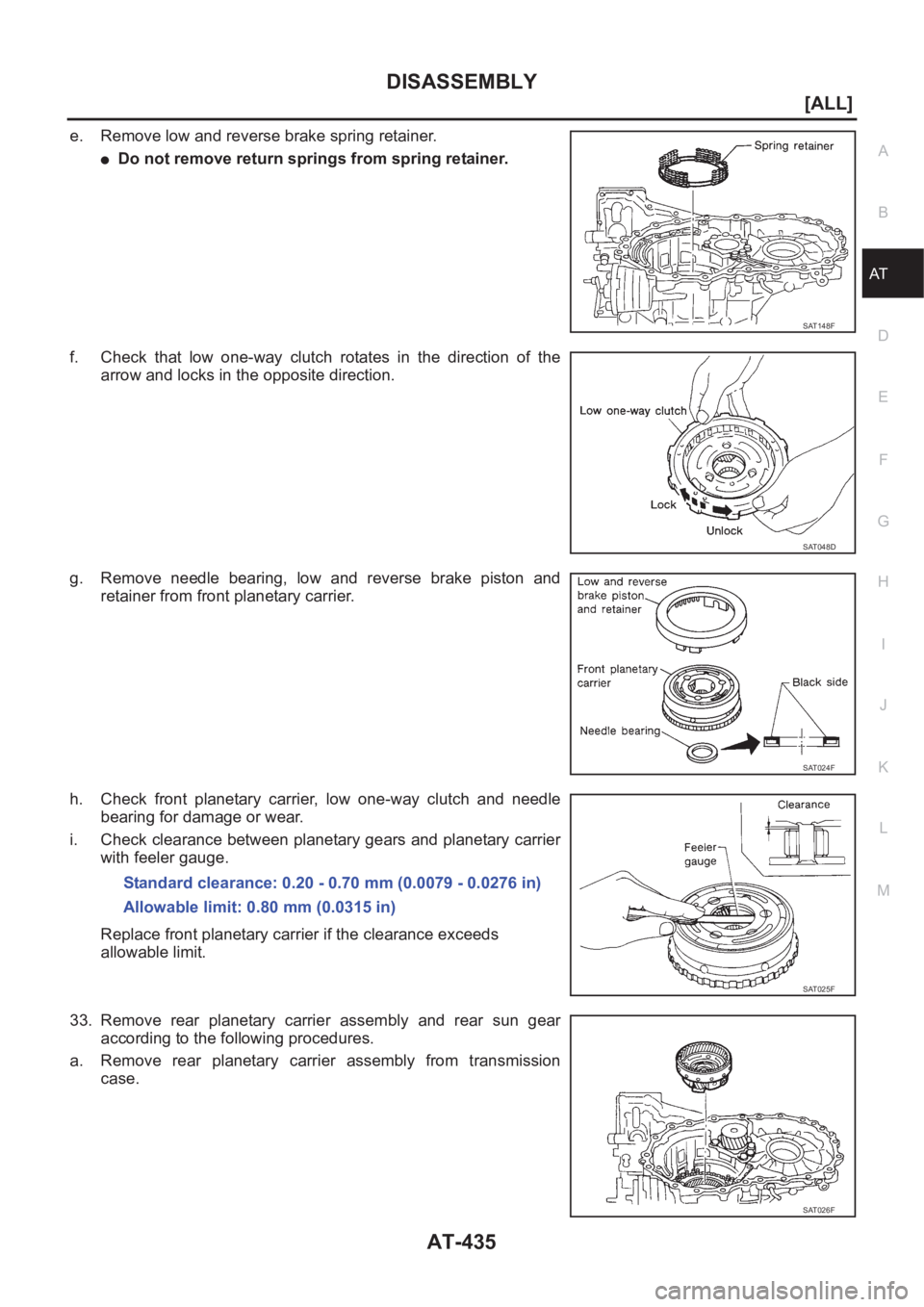

NISSAN X-TRAIL 2001 Service Repair Manual DISASSEMBLY AT-435 [ALL] D E F G H I J K L MA B AT e. Remove low and reverse brake spring retainer. ●Do not remove return springs from spring retainer. f. Check that low one-way clutch rotates in th

Page 2514 of 3833

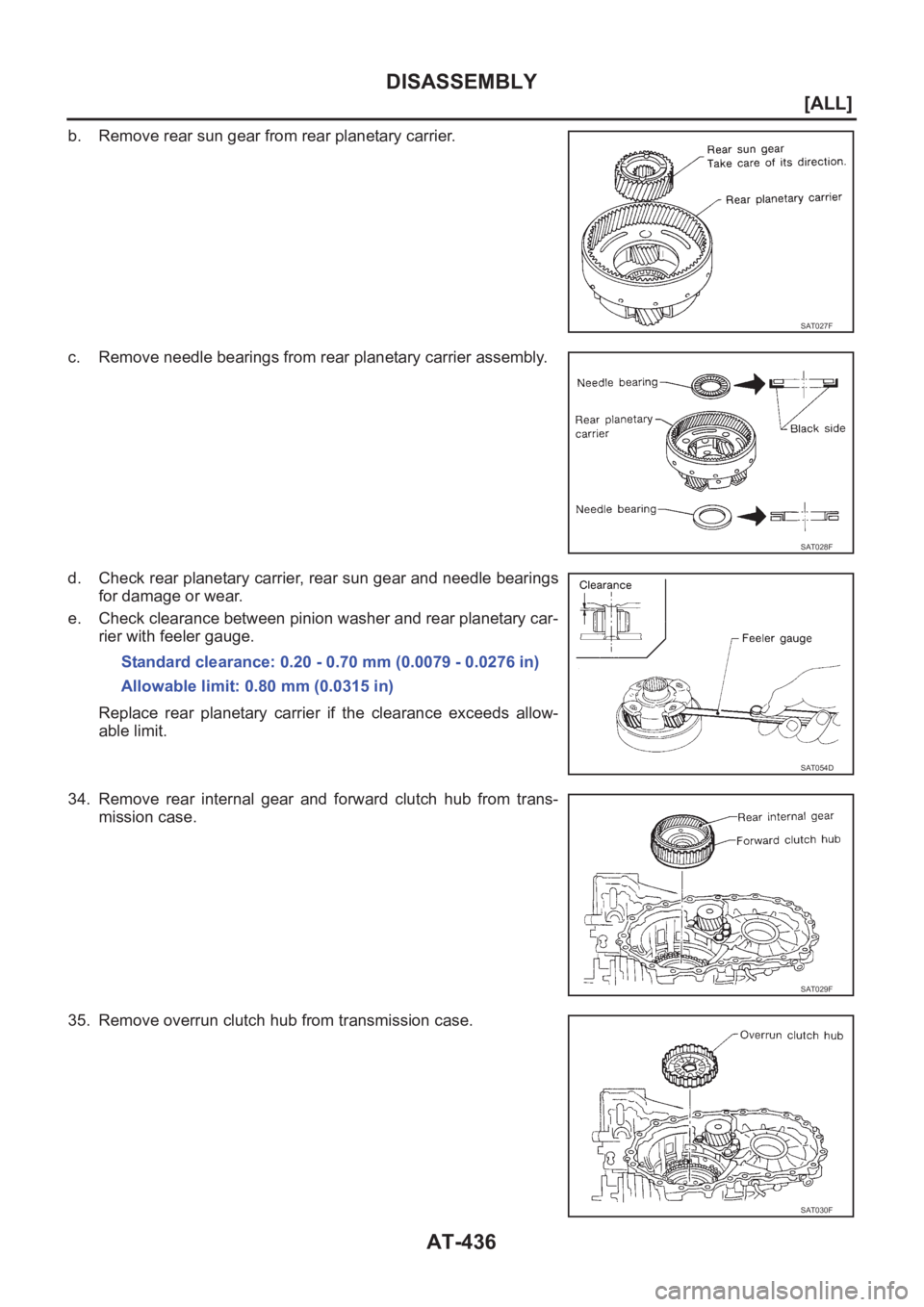

NISSAN X-TRAIL 2001 Service Repair Manual AT-436 [ALL] DISASSEMBLY b. Remove rear sun gear from rear planetary carrier. c. Remove needle bearings from rear planetary carrier assembly. d. Check rear planetary carrier, rear sun gear and needle

Page 2515 of 3833

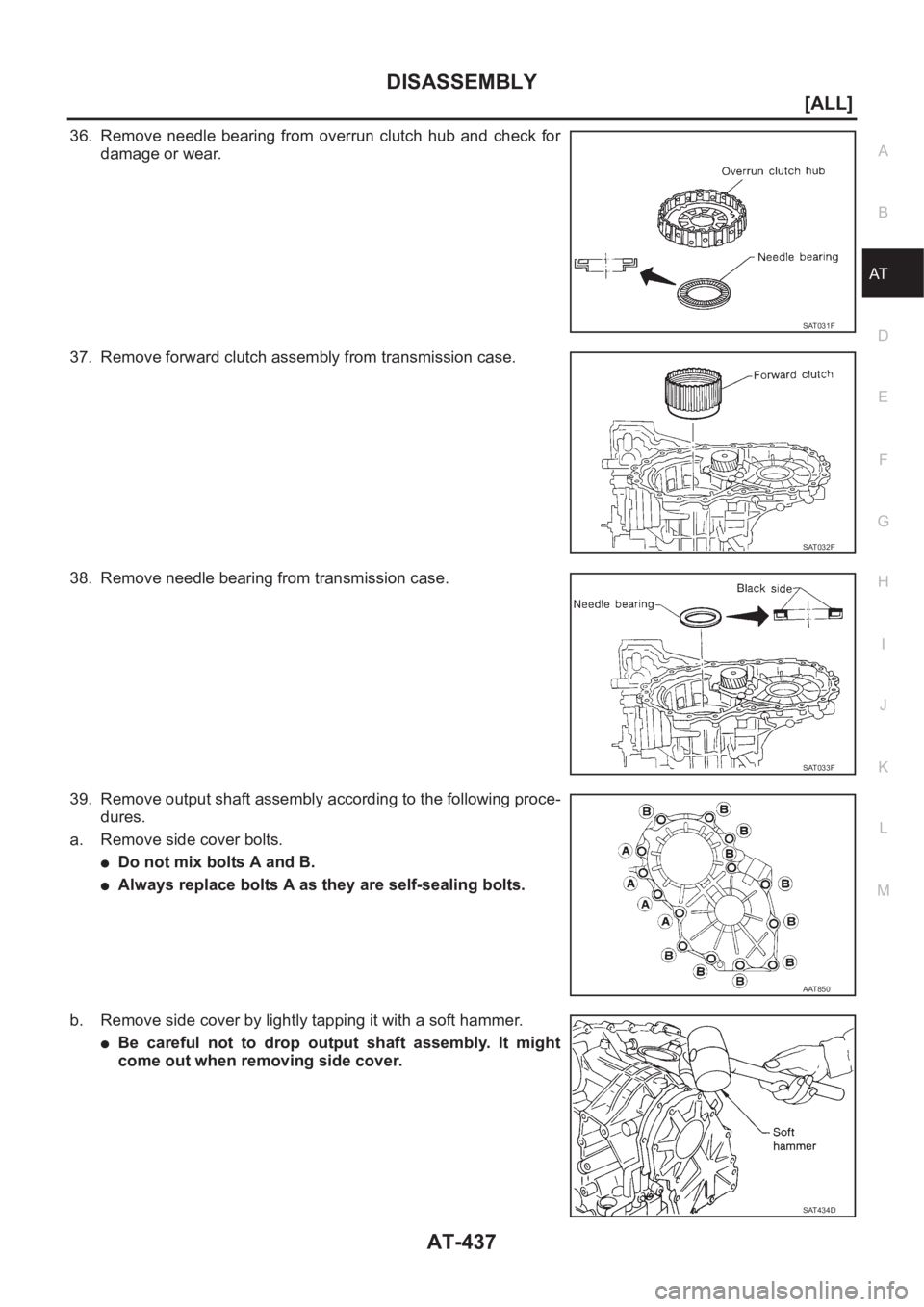

NISSAN X-TRAIL 2001 Service Repair Manual DISASSEMBLY AT-437 [ALL] D E F G H I J K L MA B AT 36. Remove needle bearing from overrun clutch hub and check for damage or wear. 37. Remove forward clutch assembly from transmission case. 3

Page 2516 of 3833

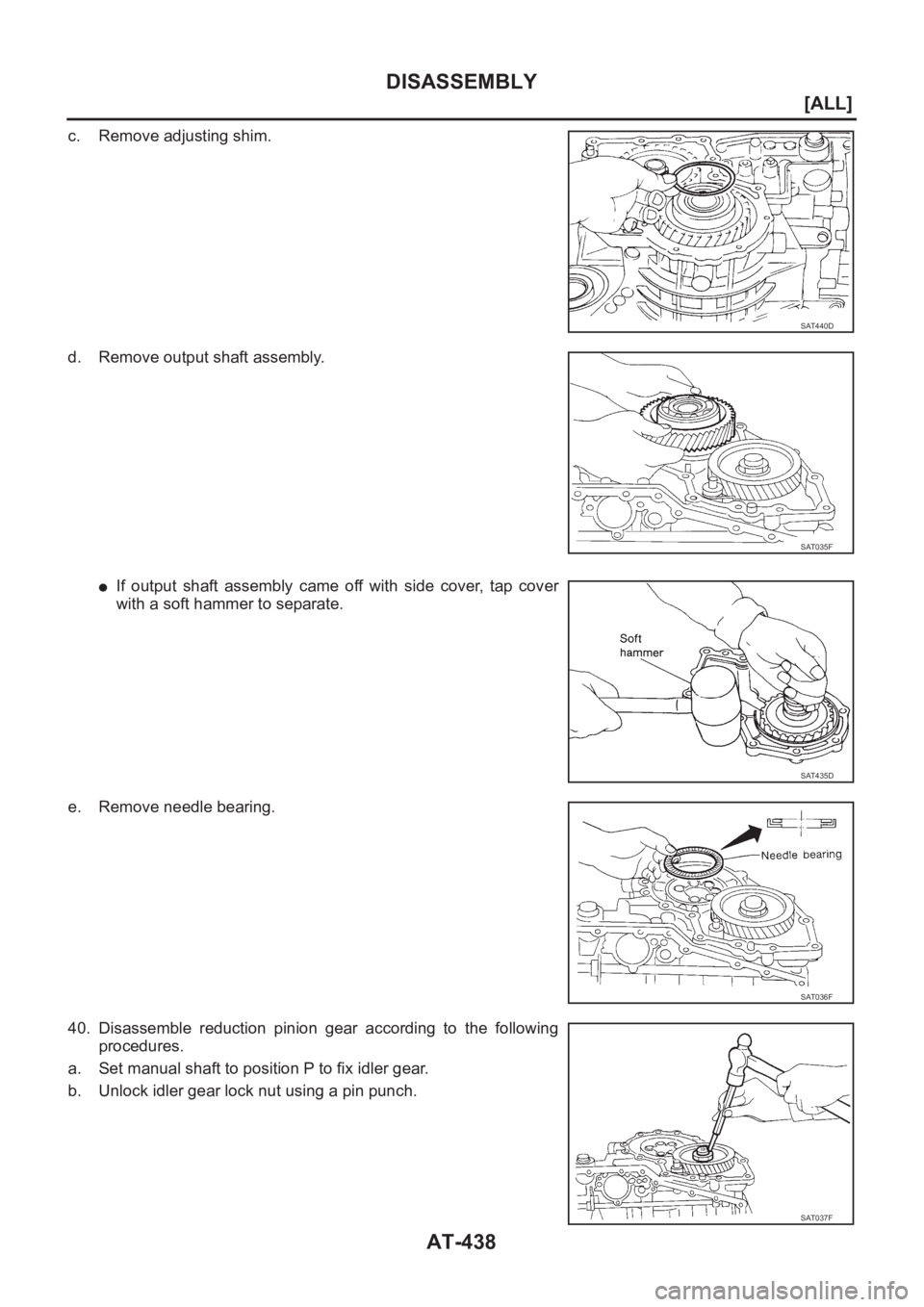

NISSAN X-TRAIL 2001 Service Repair Manual AT-438 [ALL] DISASSEMBLY c. Remove adjusting shim. d. Remove output shaft assembly. ●If output shaft assembly came off with side cover, tap cover with a soft hammer to separate. e. Remove

Page 2517 of 3833

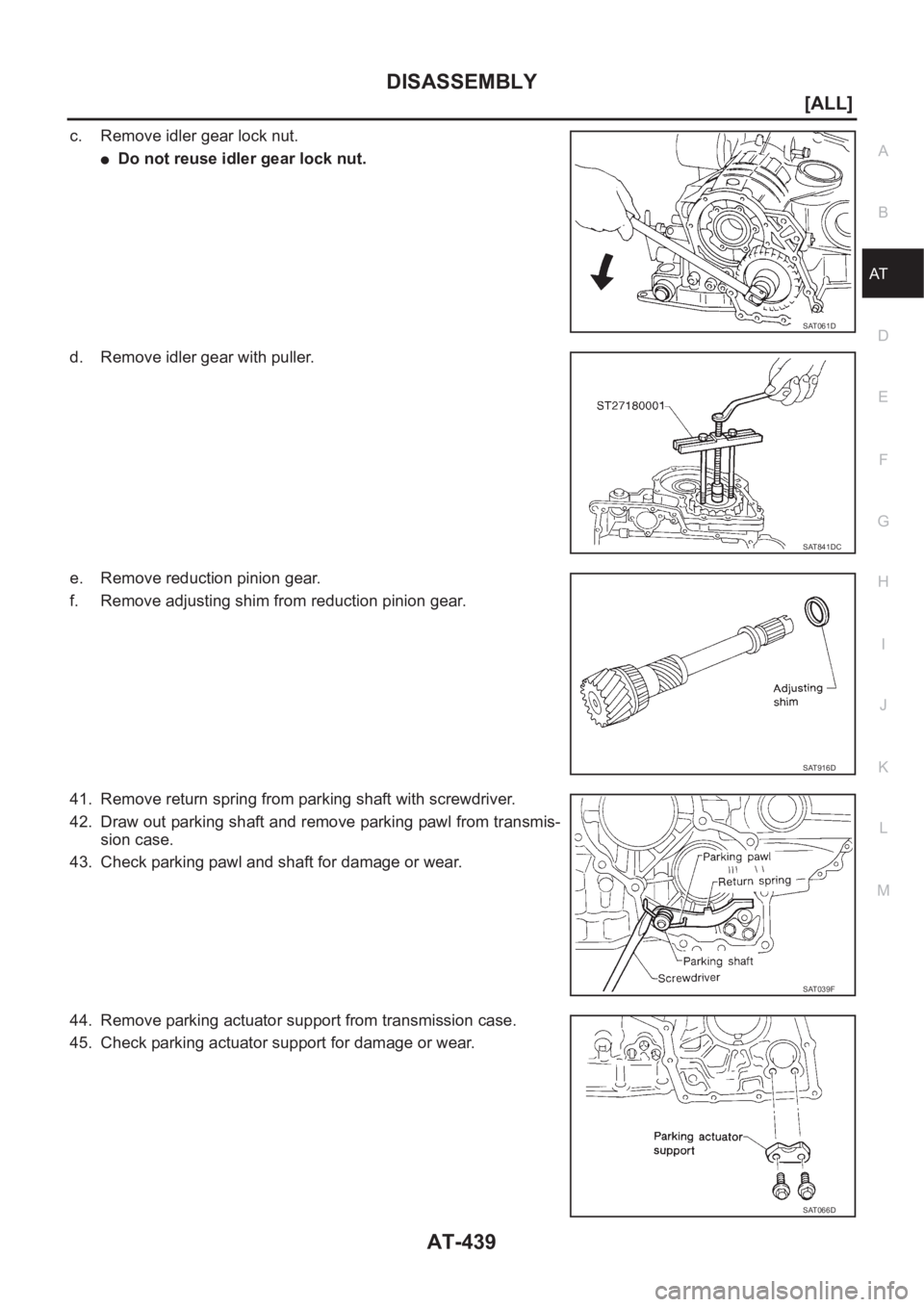

NISSAN X-TRAIL 2001 Service Repair Manual DISASSEMBLY AT-439 [ALL] D E F G H I J K L MA B AT c. Remove idler gear lock nut. ●Do not reuse idler gear lock nut. d. Remove idler gear with puller. e. Remove reduction pinion gear. f. Remove adju

Page 2518 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual AT-440 [ALL] DISASSEMBLY 46. Remove side oil seal with screwdriver from transmission case. SAT040F

Page 2519 of 3833

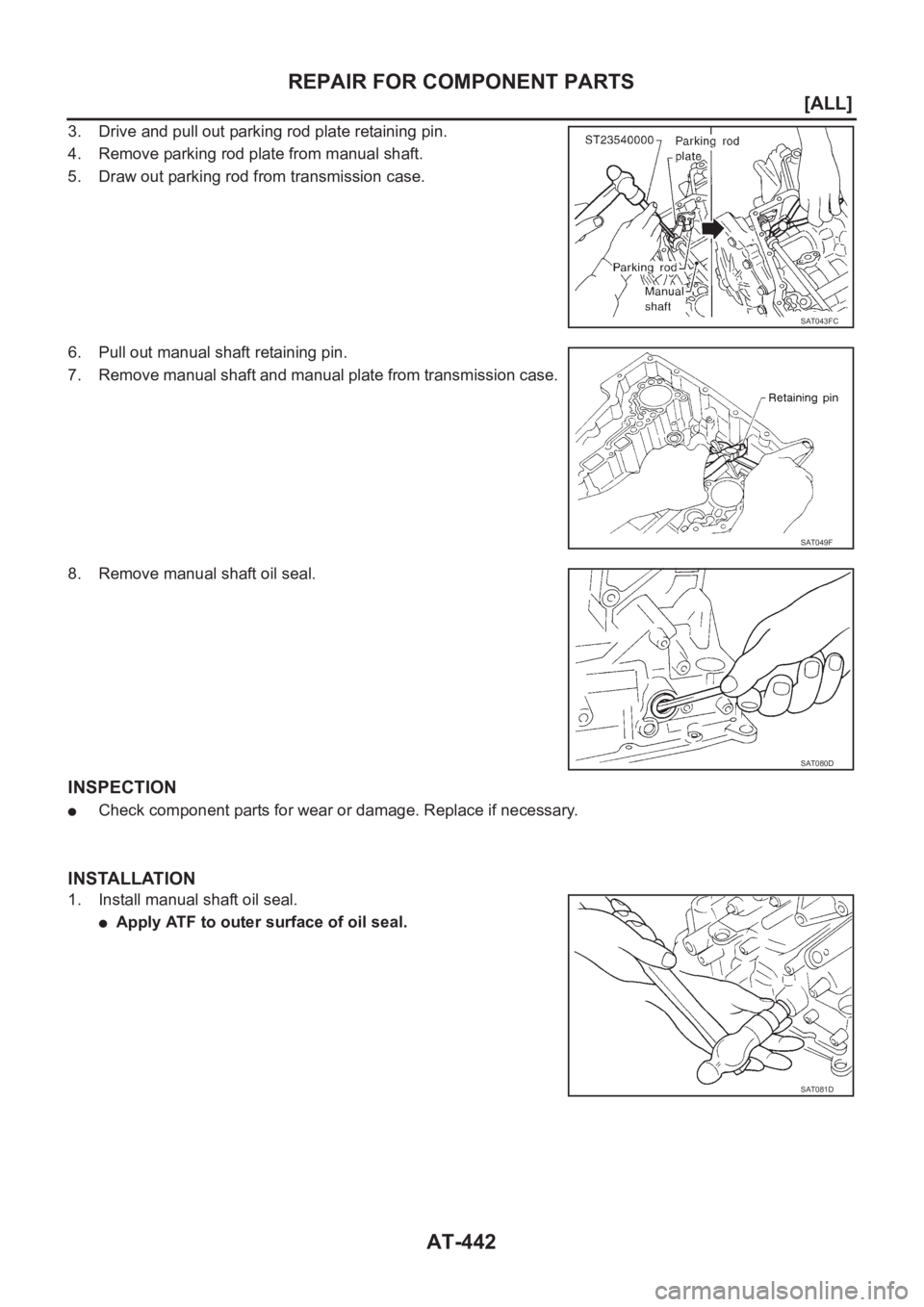

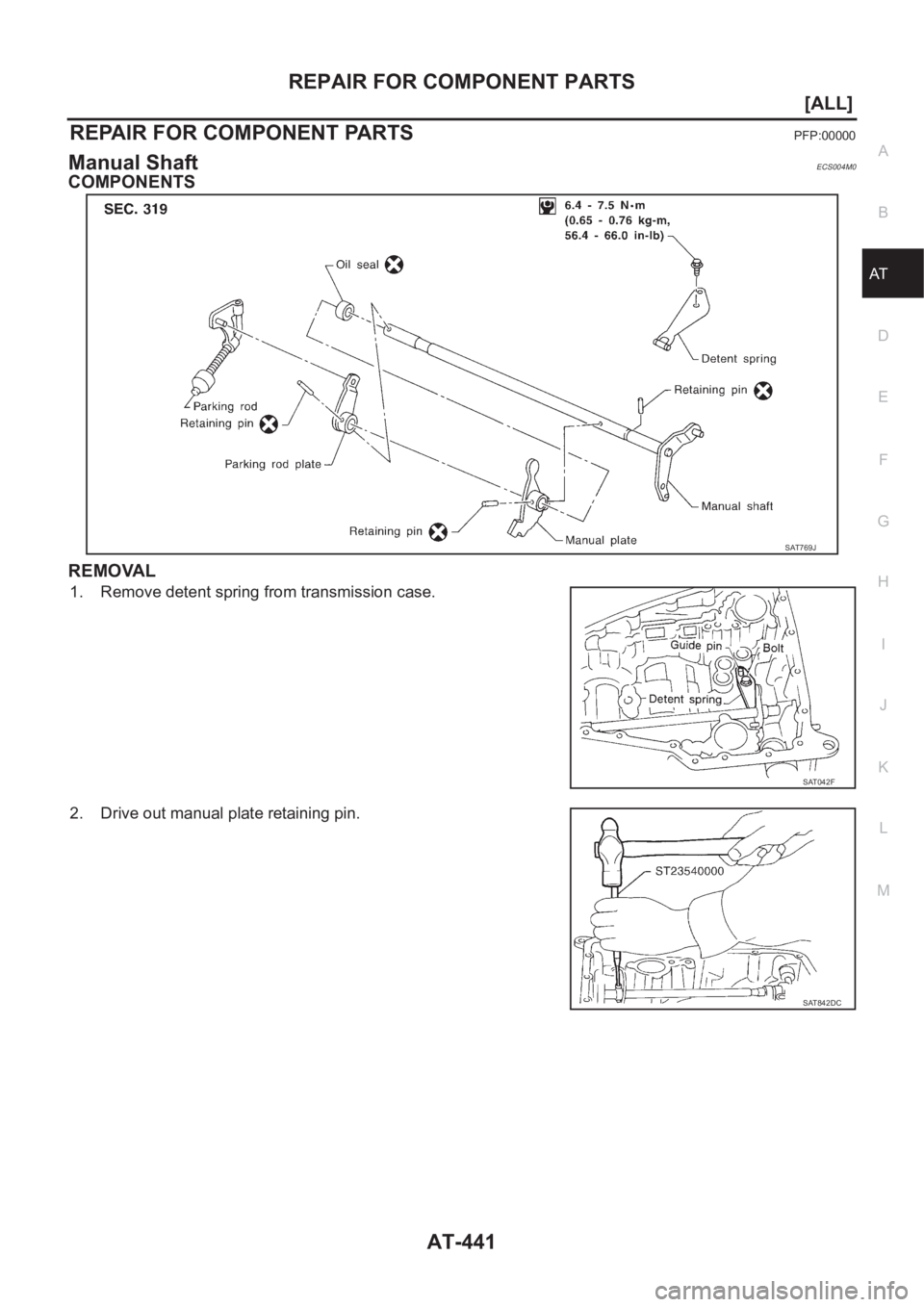

NISSAN X-TRAIL 2001 Service Repair Manual REPAIR FOR COMPONENT PARTS AT-441 [ALL] D E F G H I J K L MA B AT REPAIR FOR COMPONENT PARTSPFP:00000 Manual ShaftECS004M0 COMPONENTS REMOVAL 1. Remove detent spring from transmission case. 2. Drive o

Page 2520 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual AT-442 [ALL] REPAIR FOR COMPONENT PARTS 3. Drive and pull out parking rod plate retaining pin. 4. Remove parking rod plate from manual shaft. 5. Draw out parking rod from transmission case. 6. Pull ou
