Page 2905 of 3833
WHEEL SPEED SENSORS
BRC-121
[ESP/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC

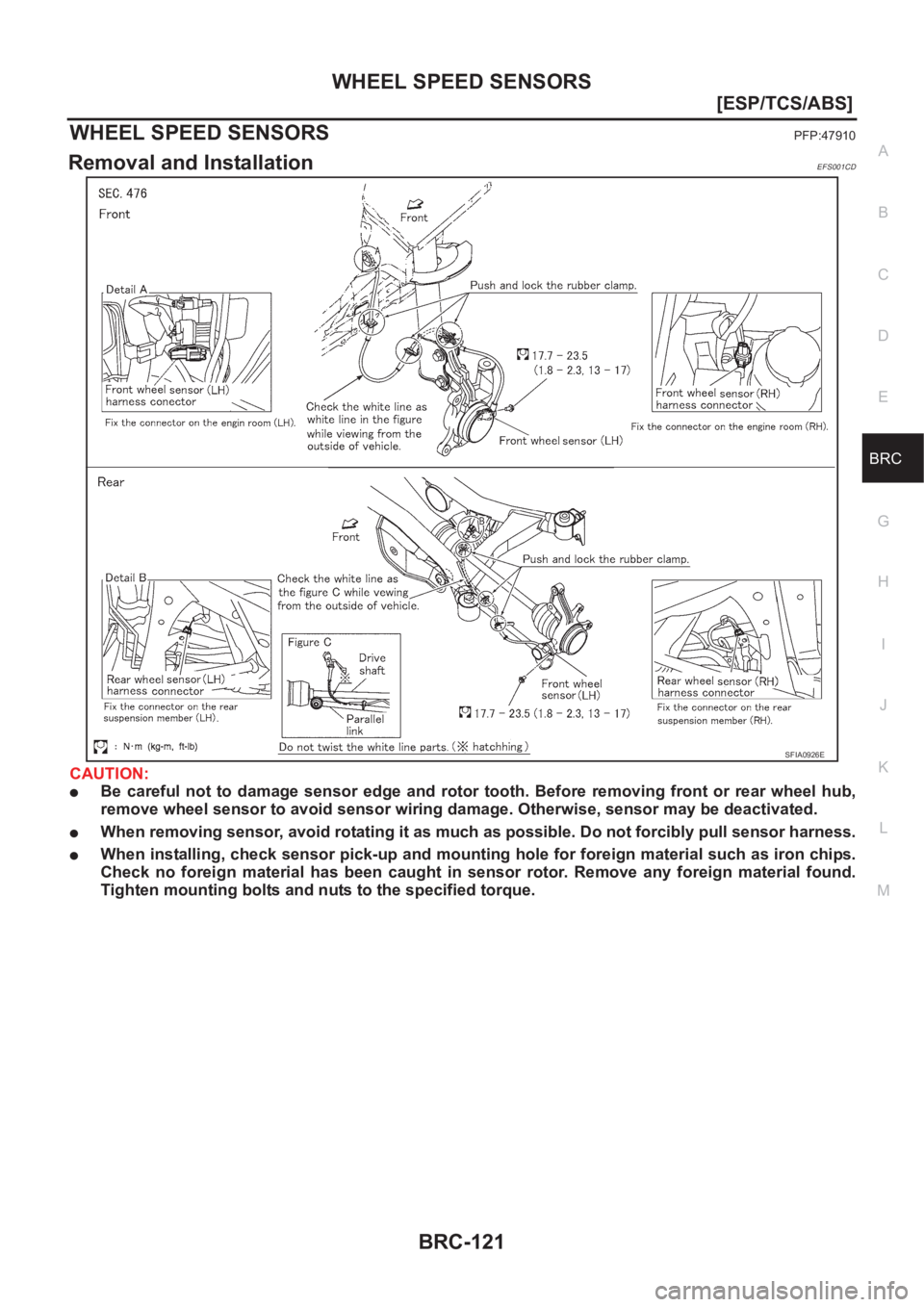

WHEEL SPEED SENSORSPFP:47910
Removal and InstallationEFS001CD
CAUTION:
●Be careful not to damage sensor edge and rotor tooth. Before removing front or rear wheel hub,
remove wheel sensor to avoid sensor wiring damage. Otherwise, sensor may be deactivated.
●When removing sensor, avoid rotating it as much as possible. Do not forcibly pull sensor harness.
●When installing, check sensor pick-up and mounting hole for foreign material such as iron chips.
Check no foreign material has been caught in sensor rotor. Remove any foreign material found.
Tighten mounting bolts and nuts to the specified torque.
SFIA0926E
Page 2906 of 3833
BRC-122
[ESP/TCS/ABS]

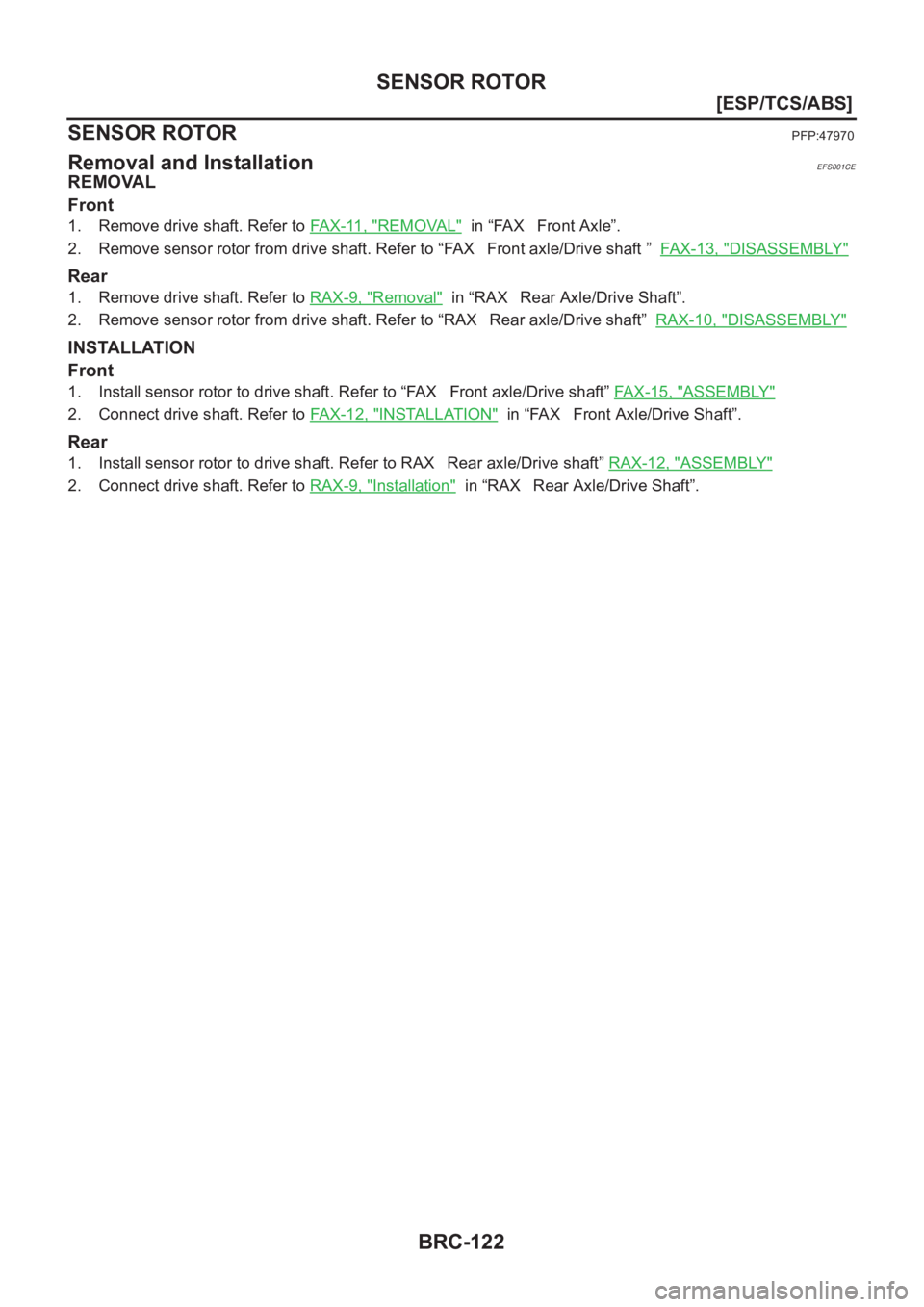

SENSOR ROTOR
SENSOR ROTOR
PFP:47970
Removal and InstallationEFS001CE
REMOVAL
Front
1. Remove drive shaft. Refer to FAX-11, "REMOVAL" in “FAX Front Axle”.
2. Remove sensor rotor from drive shaft. Refer to “FAX Front axle/Drive shaft ” FAX-13, "
DISASSEMBLY"
Rear
1. Remove drive shaft. Refer to RAX-9, "Removal" in “RAX Rear Axle/Drive Shaft”.
2. Remove sensor rotor from drive shaft. Refer to “RAX Rear axle/Drive shaft” RAX-10, "
DISASSEMBLY"
INSTALLATION
Front
1. Install sensor rotor to drive shaft. Refer to “FAX Front axle/Drive shaft” FAX-15, "ASSEMBLY"
2. Connect drive shaft. Refer to FAX-12, "INSTALLATION" in “FAX Front Axle/Drive Shaft”.
Rear
1. Install sensor rotor to drive shaft. Refer to RAX Rear axle/Drive shaft” RAX-12, "ASSEMBLY"
2. Connect drive shaft. Refer to RAX-9, "Installation" in “RAX Rear Axle/Drive Shaft”.
Page 2907 of 3833
ESP/TCS/ABS ACTUATOR AND RELAY BOX
BRC-123
[ESP/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC

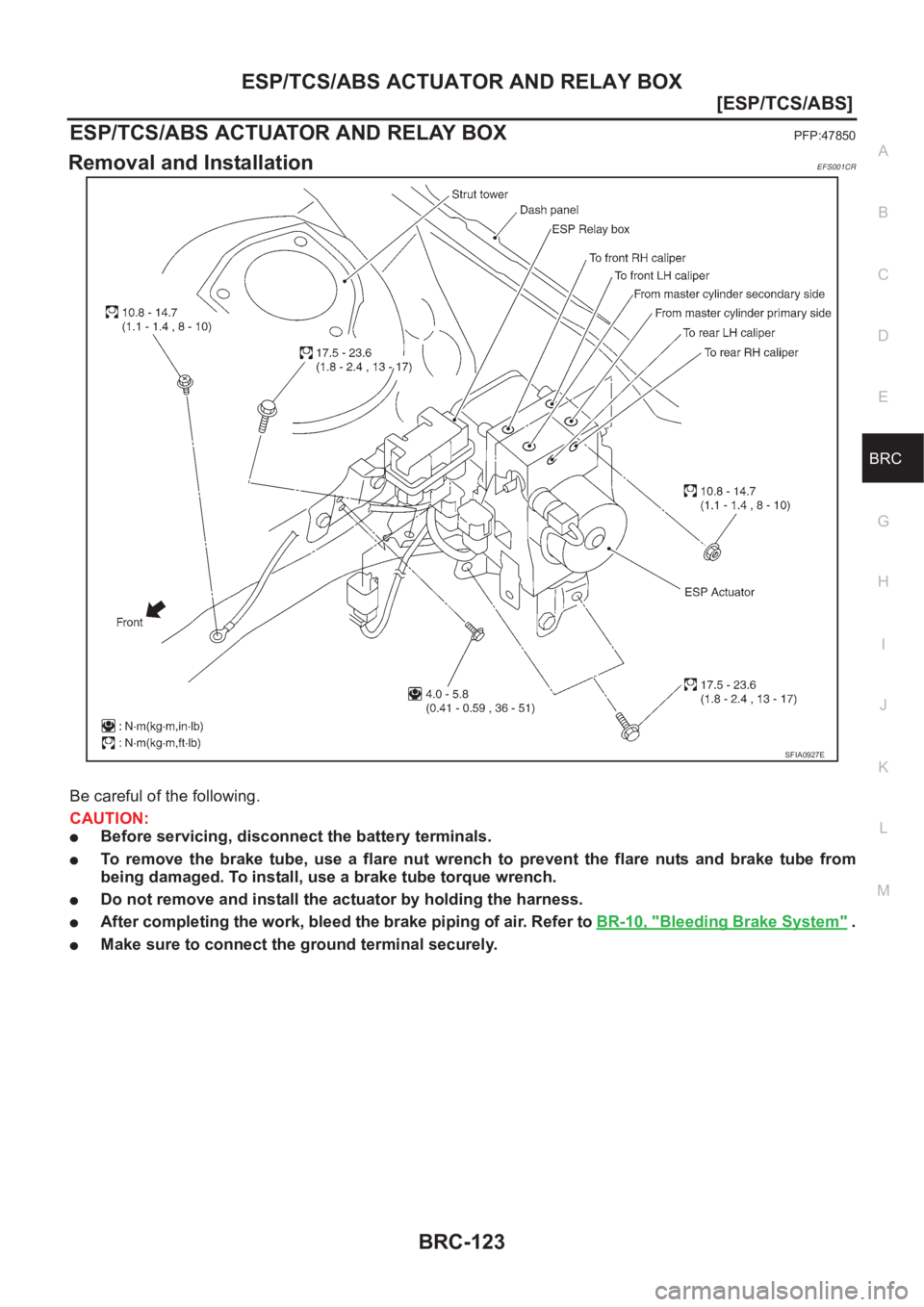

ESP/TCS/ABS ACTUATOR AND RELAY BOXPFP:47850
Removal and InstallationEFS001CR
Be careful of the following.
CAUTION:
●Before servicing, disconnect the battery terminals.
●To remove the brake tube, use a flare nut wrench to prevent the flare nuts and brake tube from
being damaged. To install, use a brake tube torque wrench.
●Do not remove and install the actuator by holding the harness.
●After completing the work, bleed the brake piping of air. Refer to BR-10, "Bleeding Brake System" .
●Make sure to connect the ground terminal securely.
SFIA0927E
Page 2908 of 3833
BRC-124
[ESP/TCS/ABS]
YAW RATE/SIDE G SENSOR
YAW RATE/SIDE G SENSOR
PFP:47931
Removal and InstallationEFS001CS
REMOVAL
1. Remove the diagnosis sensor unit. Refer to SRS-40, "DIAGNO-
SIS SENSOR UNIT" .
2. Disconnect the harness connector.
3. Remove the mounting bolts, and remove the yaw rate and side
G sensor.
CAUTION:
Do not drop or strike the yaw rate and side G sensor, because it
has little endurance against impact.
INSTALLATION
●Installation is the reverse order of removal.
CAUTION:
Do not drop or strike the yaw rate and side G sensor, because it has little endurance against impact.
SFIA0928E
Page 2909 of 3833
ESP OFF SWITCH
BRC-125
[ESP/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
ESP OFF SWITCHPFP:25145
Removal and InstallationEFS001CQ
REMOVAL
1. Remove the instrument lower driver panel. Refer to IP-7,
"INSTRUMENT LOWER DRIVER PANEL" .
2. Push the ESP OFF switch's pawls and remove the switch from
the instrument lower driver panel.
INSTALLATION
Installation is the reverse order of removal.
SFIA0390E
Page 2910 of 3833
BRC-126
[ESP/TCS/ABS]
ESP OFF SWITCH
Page 2911 of 3833

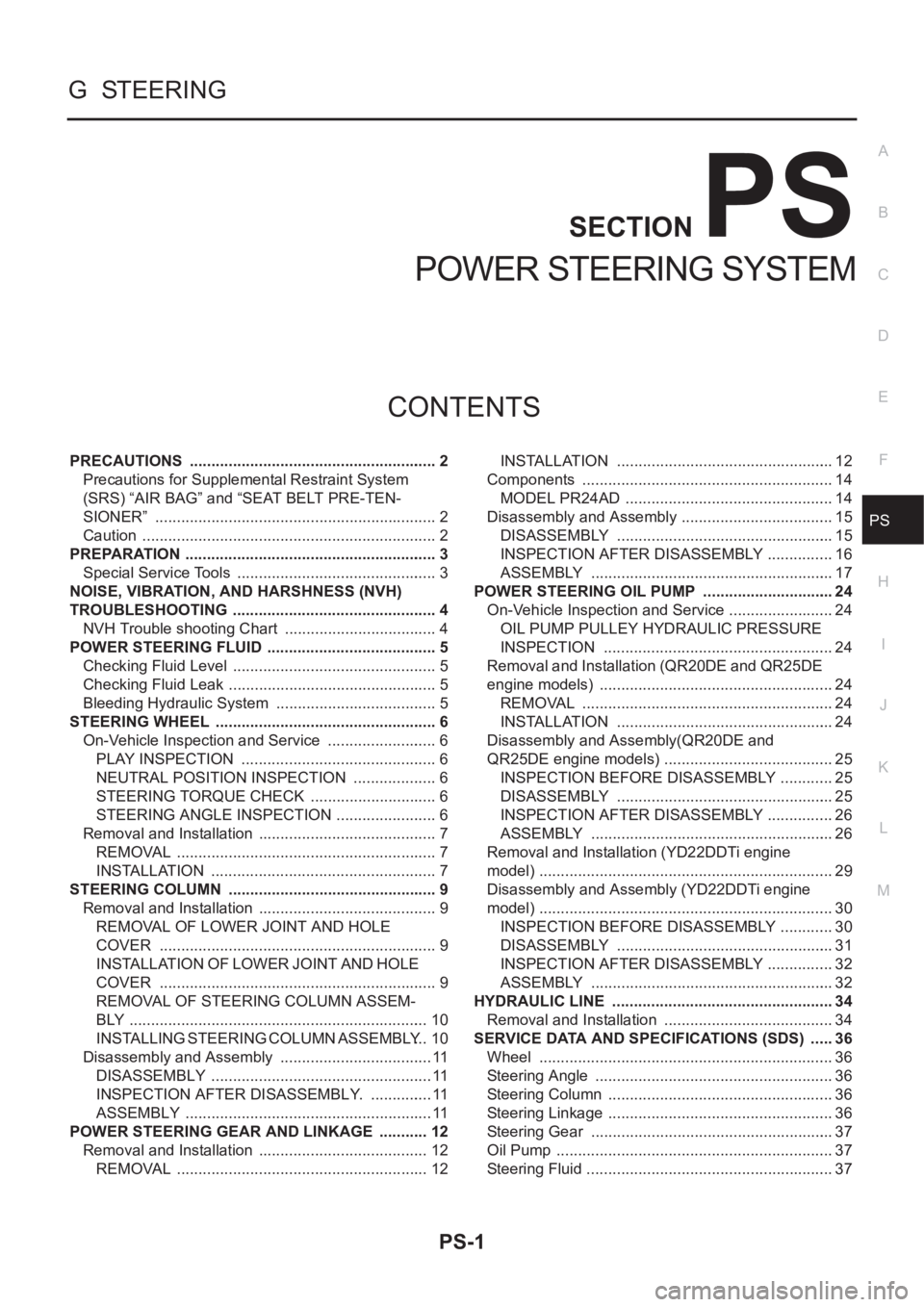

PS-1
POWER STEERING SYSTEM
G STEERING
CONTENTS
C
D
E
F
H
I
J
K
L
M
SECTION
A
B
PS
POWER STEERING SYSTEM
PRECAUTIONS .......................................................... 2
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” .................................................................. 2
Caution ..................................................................... 2
PREPARATION ........................................................... 3
Special Service Tools ............................................... 3
NOISE, VIBRATION, AND HARSHNESS (NVH)
TROUBLESHOOTING ................................................ 4
NVH Trouble shooting Chart .................................... 4
POWER STEERING FLUID ........................................ 5
Checking Fluid Level ........................................... ..... 5
Checking Fluid Leak ............................................ ..... 5
Bleeding Hydraulic System ...................................... 5
STEERING WHEEL .................................................... 6
On-Vehicle Inspection and Service .......................... 6
PLAY INSPECTION .............................................. 6
NEUTRAL POSITION INSPECTION .................... 6
STEERING TORQUE CHECK .............................. 6
STEERING ANGLE INSPECTION ........................ 6
Removal and Installation .......................................... 7
REMOVAL ............................................................. 7
INSTALLATION ..................................................... 7
STEERING COLUMN ................................................. 9
Removal and Installation .......................................... 9
REMOVAL OF LOWER JOINT AND HOLE
COVER ................................................................. 9
INSTALLATION OF LOWER JOINT AND HOLE
COVER ................................................................. 9
REMOVAL OF STEERING COLUMN ASSEM-
BLY ...................................................................... 10
INSTALLING STEERING COLUMN ASSEMBLY ... 10
Disassembly and Assembly .................................... 11
DISASSEMBLY .................................................... 11
INSPECTION AFTER DISASSEMBLY. ............... 11
ASSEMBLY .......................................................... 11
POWER STEERING GEAR AND LINKAGE ............ 12
Removal and Installation ........................................ 12
REMOVAL ........................................................... 12INSTALLATION ................................................... 12
Components ........................................................... 14
MODEL PR24AD ................................................. 14
Disassembly and Assembly .................................... 15
DISASSEMBLY ................................................... 15
INSPECTION AFTER DISASSEMBLY ................ 16
ASSEMBLY ......................................................... 17
POWER STEERING OIL PUMP ............................... 24
On-Vehicle Inspection and Service ......................... 24
OIL PUMP PULLEY HYDRAULIC PRESSURE
INSPECTION ...................................................... 24
Removal and Installation (QR20DE and QR25DE
engine models) ....................................................... 24
REMOVAL ........................................................... 24
INSTALLATION ................................................... 24
Disassembly and Assembly(QR20DE and
QR25DE engine models) ........................................ 25
INSPECTION BEFORE DISASSEMBLY ............. 25
DISASSEMBLY ................................................... 25
INSPECTION AFTER DISASSEMBLY ................ 26
ASSEMBLY ......................................................... 26
Removal and Installation (YD22DDTi engine
model) ..................................................................... 29
Disassembly and Assembly (YD22DDTi engine
model) ..................................................................... 30
INSPECTION BEFORE DISASSEMBLY ............. 30
DISASSEMBLY ................................................... 31
INSPECTION AFTER DISASSEMBLY ................ 32
ASSEMBLY ......................................................... 32
HYDRAULIC LINE .................................................
... 34
Removal and Installation ........................................ 34
SERVICE DATA AND SPECIFICATIONS (SDS) ...... 36
Wheel ..................................................................... 36
Steering Angle ........................................................ 36
Steering Column ..................................................... 36
Steering Linkage ..................................................... 36
Steering Gear ......................................................... 37
Oil Pump ................................................................. 37
Steering Fluid .......................................................... 37
Page 2912 of 3833

PS-2

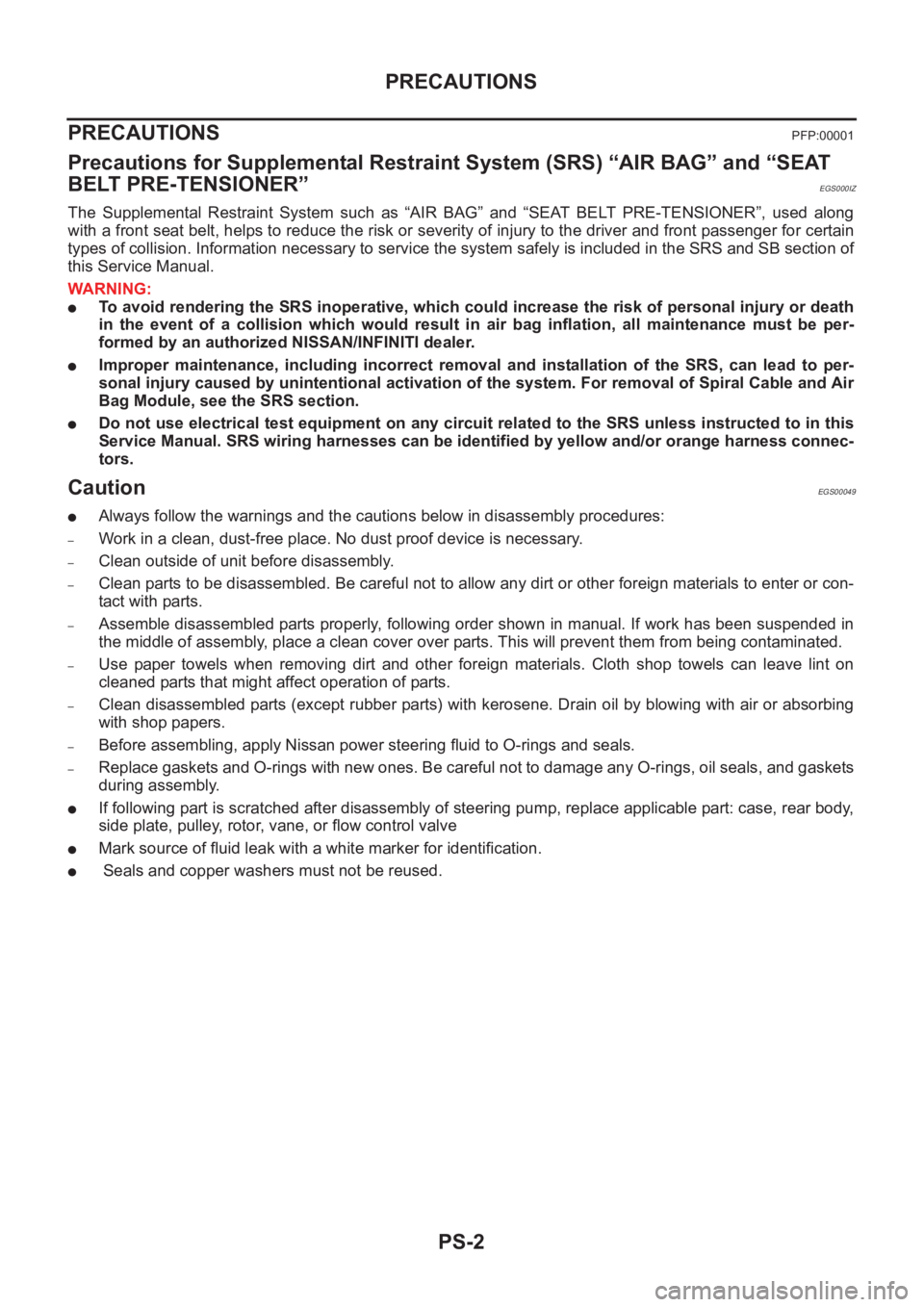

PRECAUTIONS
PRECAUTIONS
PFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
EGS000IZ
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the SRS and SB section of
this Service Manual.
WARNING:
●To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.
●Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.
●Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harness connec-
tors.
CautionEGS00049
●Always follow the warnings and the cautions below in disassembly procedures:
–Work in a clean, dust-free place. No dust proof device is necessary.
–Clean outside of unit before disassembly.
–Clean parts to be disassembled. Be careful not to allow any dirt or other foreign materials to enter or con-
tact with parts.
–Assemble disassembled parts properly, following order shown in manual. If work has been suspended in
the middle of assembly, place a clean cover over parts. This will prevent them from being contaminated.
–Use paper towels when removing dirt and other foreign materials. Cloth shop towels can leave lint on
cleaned parts that might affect operation of parts.
–Clean disassembled parts (except rubber parts) with kerosene. Drain oil by blowing with air or absorbing
with shop papers.
–Before assembling, apply Nissan power steering fluid to O-rings and seals.
–Replace gaskets and O-rings with new ones. Be careful not to damage any O-rings, oil seals, and gaskets
during assembly.
●If following part is scratched after disassembly of steering pump, replace applicable part: case, rear body,
side plate, pulley, rotor, vane, or flow control valve
●Mark source of fluid leak with a white marker for identification.
● Seals and copper washers must not be reused.
