DTC P1065 ECM POWER SUPPLY
EC-267
[QR25(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

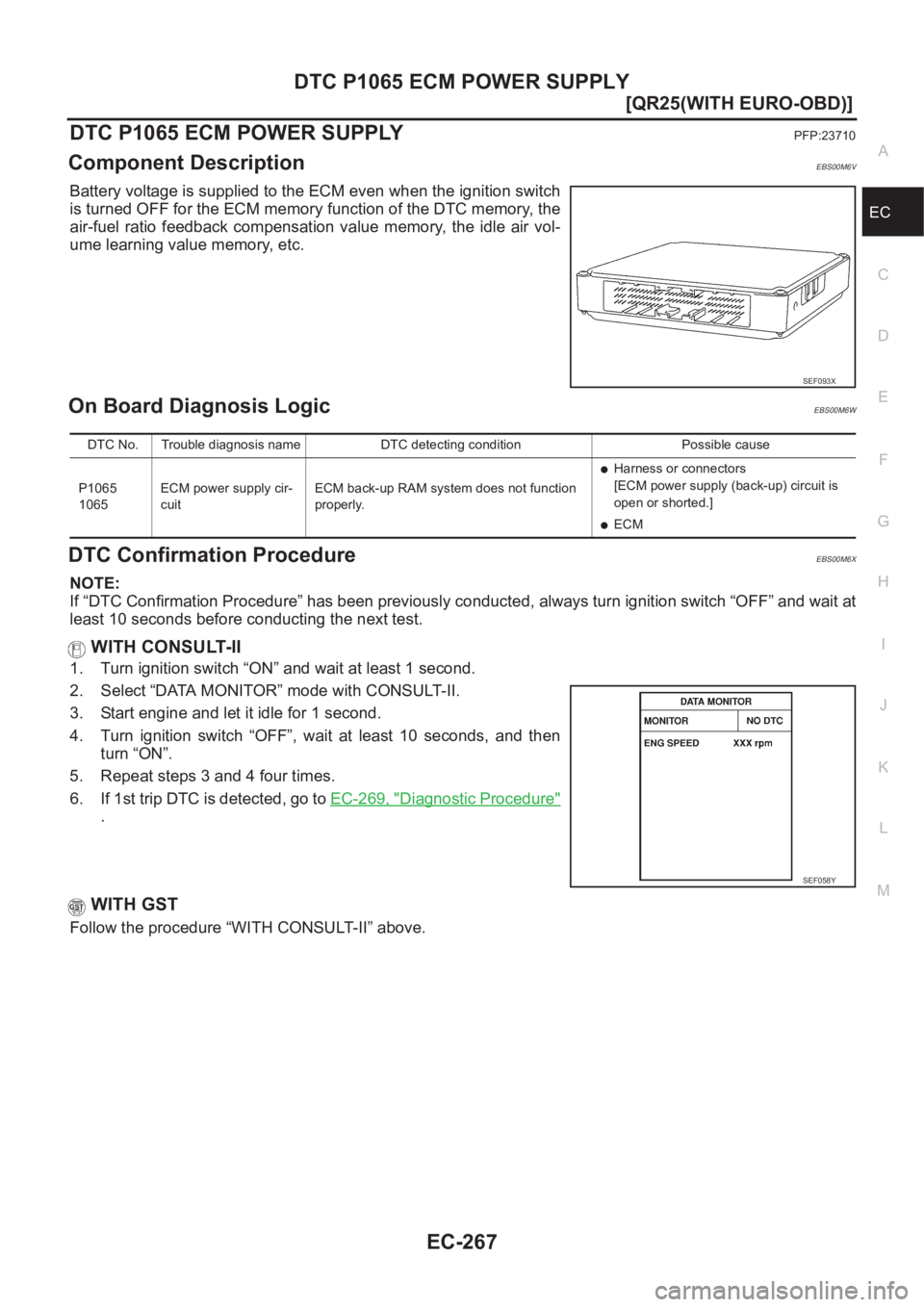

DTC P1065 ECM POWER SUPPLYPFP:23710
Component DescriptionEBS00M6V
Battery voltage is supplied to the ECM even when the ignition switch
is turned OFF for the ECM memory function of the DTC memory, the
air-fuel ratio feedback compensation value memory, the idle air vol-
ume learning value memory, etc.
On Board Diagnosis LogicEBS00M6W
DTC Confirmation ProcedureEBS00M6X
NOTE:
If “DTC Confirmation Procedure” has been previously conducted, always turn ignition switch “OFF” and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch “ON” and wait at least 1 second.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Start engine and let it idle for 1 second.
4. Turn ignition switch “OFF”, wait at least 10 seconds, and then
turn “ON”.
5. Repeat steps 3 and 4 four times.
6. If 1st trip DTC is detected, go to EC-269, "
Diagnostic Procedure"
.
WITH GST
Follow the procedure “WITH CONSULT-II” above.
SEF093X
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1065
1065ECM power supply cir-
cuitECM back-up RAM system does not function
properly.
●Harness or connectors
[ECM power supply (back-up) circuit is
open or shorted.]
●ECM
SEF058Y
Page 618 of 3833
EC-268
[QR25(WITH EURO-OBD)]
DTC P1065 ECM POWER SUPPLY

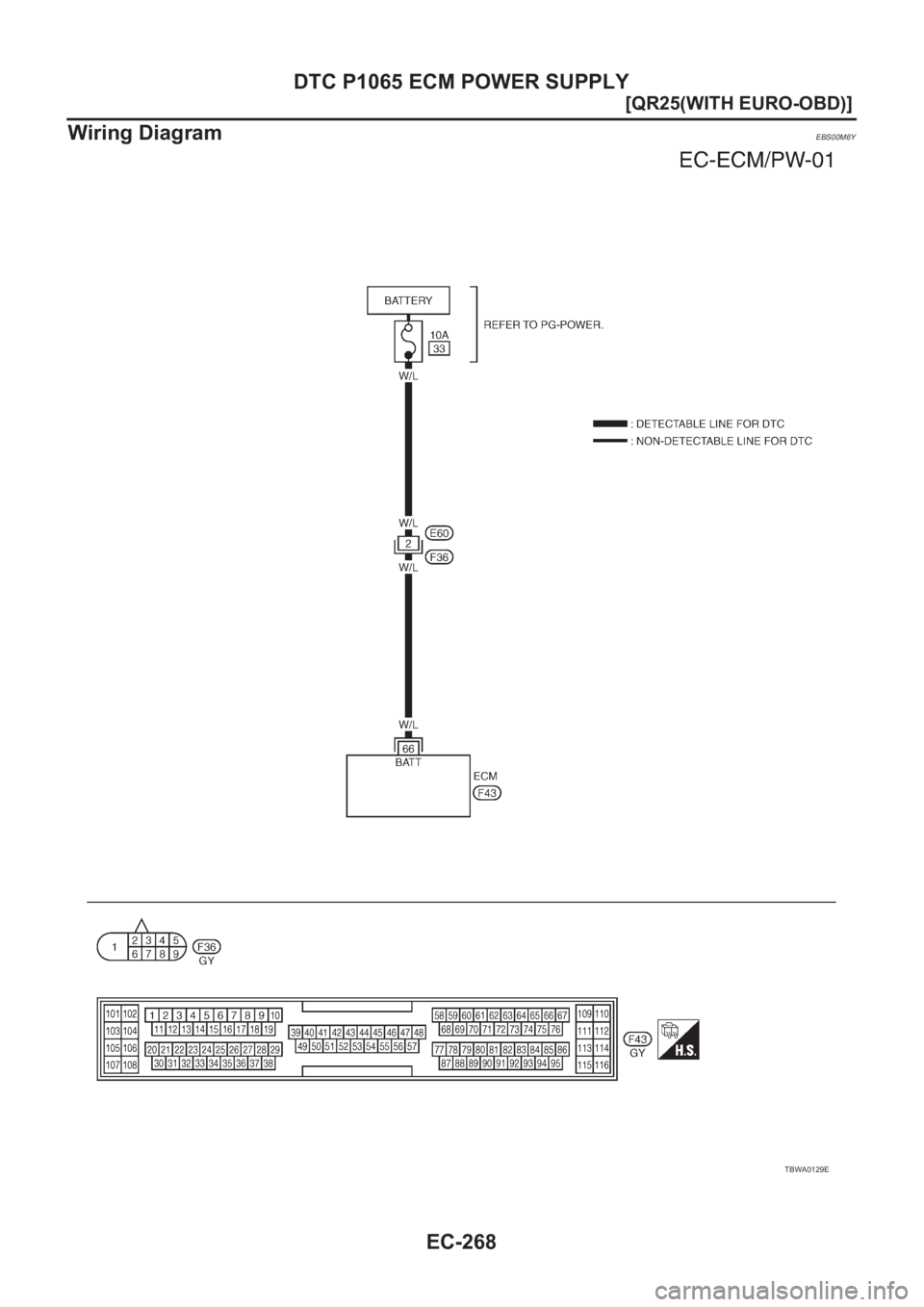

Wiring Diagram
EBS00M6Y
TBWA0129E
Page 619 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual DTC P1065 ECM POWER SUPPLY
EC-269
[QR25(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Diagnostic ProcedureEBS00M6Z
1.CHECK ECM POWER SUPPLY
1. Turn ignition switch “OFF”.
2. Disconnect ECM harness con NISSAN X-TRAIL 2001 Service Repair Manual DTC P1065 ECM POWER SUPPLY
EC-269
[QR25(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Diagnostic ProcedureEBS00M6Z
1.CHECK ECM POWER SUPPLY
1. Turn ignition switch “OFF”.
2. Disconnect ECM harness con](/manual-img/5/57405/w960_57405-618.png)
DTC P1065 ECM POWER SUPPLY
EC-269
[QR25(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

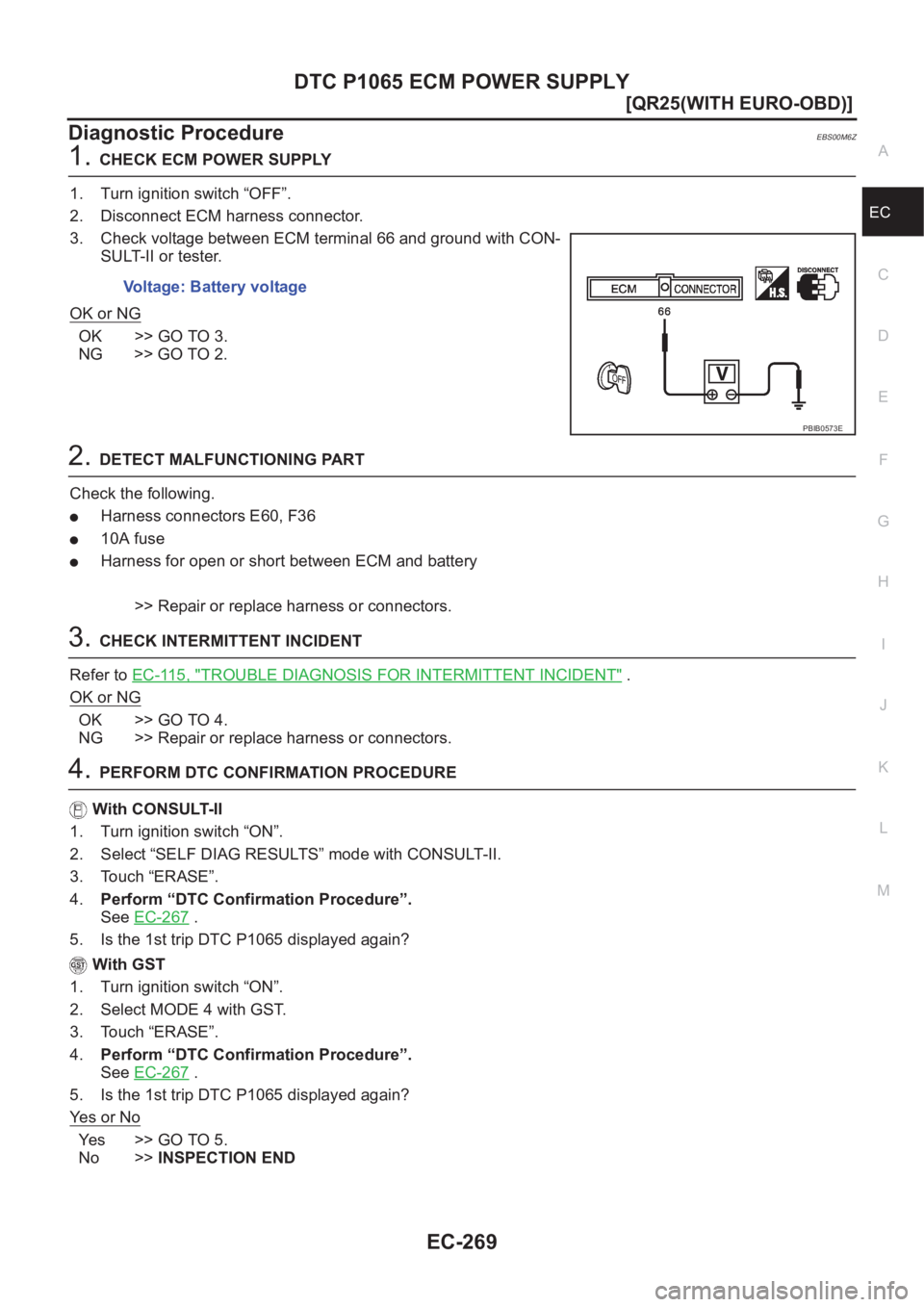

Diagnostic ProcedureEBS00M6Z
1.CHECK ECM POWER SUPPLY
1. Turn ignition switch “OFF”.
2. Disconnect ECM harness connector.
3. Check voltage between ECM terminal 66 and ground with CON-
SULT-II or tester.
OK or NG
OK >> GO TO 3.
NG >> GO TO 2.
2.DETECT MALFUNCTIONING PART
Check the following.
●Harness connectors E60, F36
●10A fuse
●Harness for open or short between ECM and battery
>> Repair or replace harness or connectors.
3.CHECK INTERMITTENT INCIDENT
Refer to EC-115, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
OK or NG
OK >> GO TO 4.
NG >> Repair or replace harness or connectors.
4.PERFORM DTC CONFIRMATION PROCEDURE
With CONSULT-II
1. Turn ignition switch “ON”.
2. Select “SELF DIAG RESULTS” mode with CONSULT-II.
3. Touch “ERASE”.
4.Perform “DTC Confirmation Procedure”.
See EC-267
.
5. Is the 1st trip DTC P1065 displayed again?
With GST
1. Turn ignition switch “ON”.
2. Select MODE 4 with GST.
3. Touch “ERASE”.
4.Perform “DTC Confirmation Procedure”.
See EC-267
.
5. Is the 1st trip DTC P1065 displayed again?
Ye s o r N o
Ye s > > G O T O 5 .
No >>INSPECTION END Voltage: Battery voltage
PBIB0573E
Page 620 of 3833
EC-270
[QR25(WITH EURO-OBD)]
DTC P1065 ECM POWER SUPPLY

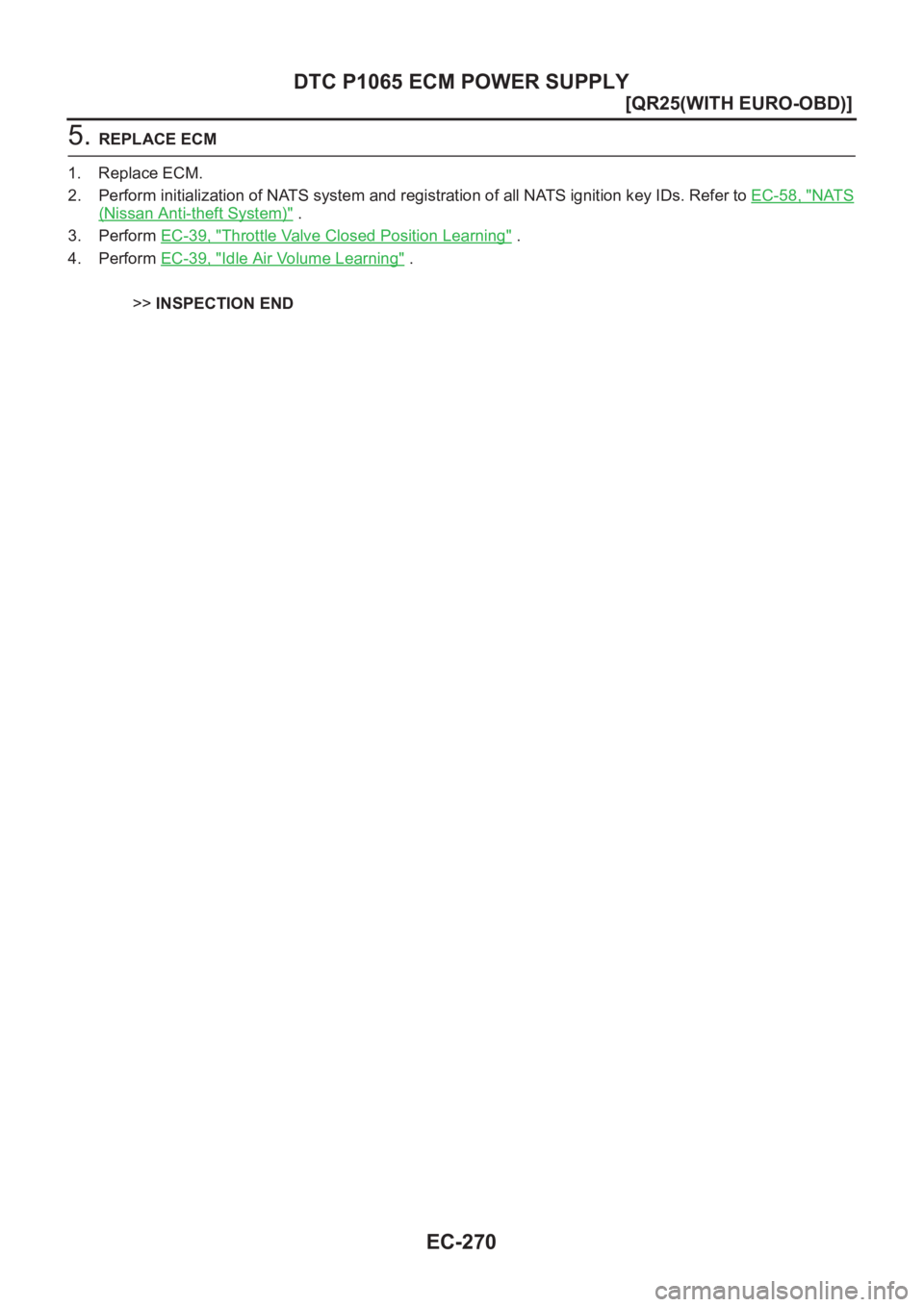

5. REPLACE ECM
1. Replace ECM.
2. Perform initialization of NATS system and registration of all NATS ignition key IDs. Refer to EC-58, "
NATS
(Nissan Anti-theft System)" .
3. Perform EC-39, "
Throttle Valve Closed Position Learning" .
4. Perform EC-39, "
Idle Air Volume Learning" .
>>INSPECTION END
Page 621 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual DTC P1111 IVT CONTROL SOLENOID VALVE
EC-271
[QR25(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
D T C P 1111 I V T C O N T R O L S O L EN O I D VA LV EPFP:23796
Component DescriptionEBS00M70
Int NISSAN X-TRAIL 2001 Service Repair Manual DTC P1111 IVT CONTROL SOLENOID VALVE
EC-271
[QR25(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
D T C P 1111 I V T C O N T R O L S O L EN O I D VA LV EPFP:23796
Component DescriptionEBS00M70
Int](/manual-img/5/57405/w960_57405-620.png)
DTC P1111 IVT CONTROL SOLENOID VALVE
EC-271
[QR25(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
D T C P 1111 I V T C O N T R O L S O L EN O I D VA LV EPFP:23796
Component DescriptionEBS00M70
Intake valve timing control solenoid valve is activated by ON/OFF
pulse duty (ratio) signals from the ECM.
The intake valve timing control solenoid valve changes the oil
amount and direction of flow through intake valve timing control unit
or stops oil flow.
The longer pulse width advances valve angle.
The shorter pulse width retards valve angle.
When ON and OFF pulse widths become equal, the solenoid valve
stops oil pressure flow to fix the intake valve angle at the control
position.
CONSULT-II Reference Value in Data Monitor ModeEBS00M71
Specification data are reference values.
ECM Terminals and Reference ValueEBS00M72
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
On Board Diagnosis LogicEBS00M73
PBIB0195E
MONITOR ITEM CONDITION SPECIFICATION
INT/V SOL (B1)
●Engine: After warming up
●Shift lever: N
●Air conditioner switch: OFF
●No-loadIdle 0% - 2%
When revving engine up to 2,000 rpm
quicklyApprox. 0% - 50%
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
107 Y/RIntake valve timing
control solenoid valve[Engine is running]
●Warm-up condition
●Idle speedBATTERY VOLTAGE
(11 - 14V)
[Engine is running]
●Warm-up condition
●When revving engine up to 2,000 rpm quicklyApproximately 4V - BATTERY
VOLTAGE (11 - 14V)
PBIB0532E
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P 1111
1111Intake valve timing con-
trol solenoid valve cir-
cuitAn improper voltage is sent to the ECM
through intake valve timing control solenoid
valve.
●Harness or connectors
(Intake valve timing control solenoid
valve circuit is open or shorted.)
●Intake valve timing control solenoid valve
Page 622 of 3833
EC-272
[QR25(WITH EURO-OBD)]
DTC P1111 IVT CONTROL SOLENOID VALVE
DTC Confirmation Procedure
EBS00M74
NOTE:
If “DTC Confirmation Procedure” has been previously conducted, always turn ignition switch “OFF”
and wait at least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch “ON”.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Start engine and let it idle for 5 seconds.
4. If 1st trip DTC is detected, go to EC-274, "
Diagnostic Procedure"
.
WITH GST
Following the procedure “WITH CONSULT-II” above.
SEF058Y
Page 623 of 3833
DTC P1111 IVT CONTROL SOLENOID VALVE
EC-273
[QR25(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

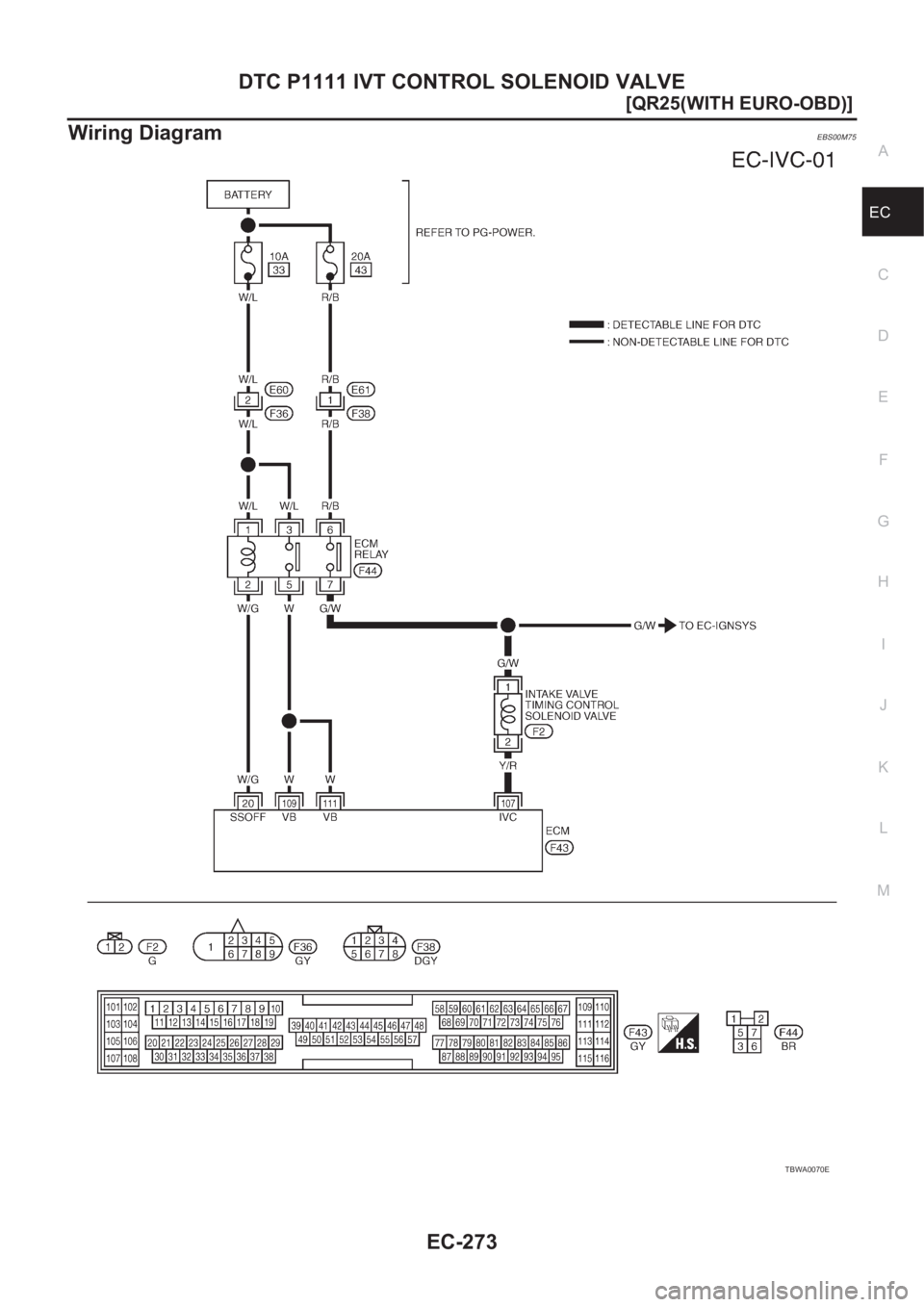

Wiring DiagramEBS00M75
TBWA0070E
Page 624 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual EC-274
[QR25(WITH EURO-OBD)]
DTC P1111 IVT CONTROL SOLENOID VALVE
Diagnostic Procedure
EBS00M76
1. CHECK POWER SUPPLY CIRCUIT
1. Turn ignition switch “OFF”.
2. Disconnect intake valve timing contr NISSAN X-TRAIL 2001 Service Repair Manual EC-274
[QR25(WITH EURO-OBD)]
DTC P1111 IVT CONTROL SOLENOID VALVE
Diagnostic Procedure
EBS00M76
1. CHECK POWER SUPPLY CIRCUIT
1. Turn ignition switch “OFF”.
2. Disconnect intake valve timing contr](/manual-img/5/57405/w960_57405-623.png)
EC-274
[QR25(WITH EURO-OBD)]
DTC P1111 IVT CONTROL SOLENOID VALVE

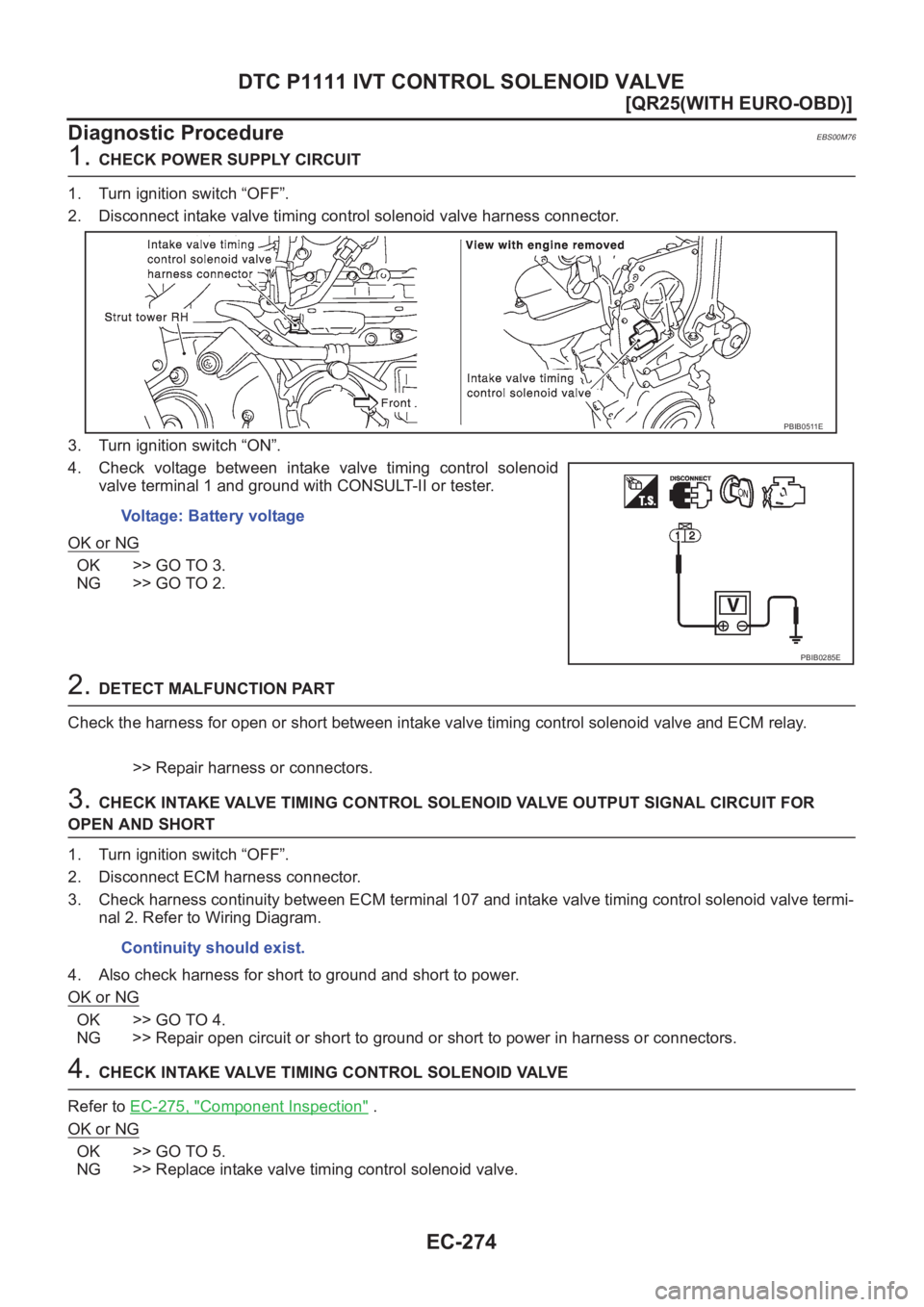

Diagnostic Procedure
EBS00M76
1. CHECK POWER SUPPLY CIRCUIT
1. Turn ignition switch “OFF”.
2. Disconnect intake valve timing control solenoid valve harness connector.
3. Turn ignition switch “ON”.
4. Check voltage between intake valve timing control solenoid
valve terminal 1 and ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 3.
NG >> GO TO 2.
2. DETECT MALFUNCTION PART
Check the harness for open or short between intake valve timing control solenoid valve and ECM relay.
>> Repair harness or connectors.
3. CHECK INTAKE VALVE TIMING CONTROL SOLENOID VALVE OUTPUT SIGNAL CIRCUIT FOR
OPEN AND SHORT
1. Turn ignition switch “OFF”.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM terminal 107 and intake valve timing control solenoid valve termi-
nal 2. Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
4. CHECK INTAKE VALVE TIMING CONTROL SOLENOID VALVE
Refer to EC-275, "
Component Inspection" .
OK or NG
OK >> GO TO 5.
NG >> Replace intake valve timing control solenoid valve.Voltage: Battery voltage
PBIB0511E
PBIB0285E
Continuity should exist.
