Page 289 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual OIL FILTER
LU-9
[QR]
C
D
E
F
G
H
I
J
K
L
MA
LU
OIL FILTERPFP:15208
Removal and InstallationEBS00KO5
REMOVAL
1. Open the oil filter installation/removal cover on the under cover.
2. Using an oil filter NISSAN X-TRAIL 2001 Service Repair Manual OIL FILTER
LU-9
[QR]
C
D
E
F
G
H
I
J
K
L
MA
LU
OIL FILTERPFP:15208
Removal and InstallationEBS00KO5
REMOVAL
1. Open the oil filter installation/removal cover on the under cover.
2. Using an oil filter](/manual-img/5/57405/w960_57405-288.png)
OIL FILTER
LU-9
[QR]
C
D
E
F
G
H
I
J
K
L
MA
LU
OIL FILTERPFP:15208
Removal and InstallationEBS00KO5
REMOVAL
1. Open the oil filter installation/removal cover on the under cover.
2. Using an oil filter wrench, remove the oil filter.
CAUTION:
●The oil filter is provided with a relief valve.
Use genuine NISSAN oil filter or equivalent.
●Be careful not to get burned when the engine and engine
oil are hot.
●When removing, prepare a shop cloth to absorb any
engine oil leakage or spillage.
●Do not allow engine oil to adhere to the drive belts.
●Completely wipe off any engine oil that adhere to the
engine and the vehicle.
INSTALLATION
1. Remove foreign materials adhering to the oil filter installation surface.
2. Apply engine oil to the oil seal circumference of the new oil filter.
3. Screw the oil filter manually until it touches the installation sur-
face, then tighten it by 2/3 turn.
4. After warming up the engine, check for engine oil leakage.
5. Check engine oil level and add engine oil. Refer to LU-7,
"ENGINE OIL" .
KBIA0303E
SMA010
Oil filter:
: 14.7 - 20.5 N·m (1.5 - 2.1 Kg-m, 11 - 15 ft-lb)
SMA229B
ALC094
Page 290 of 3833
LU-10
[QR]
OIL PUMP

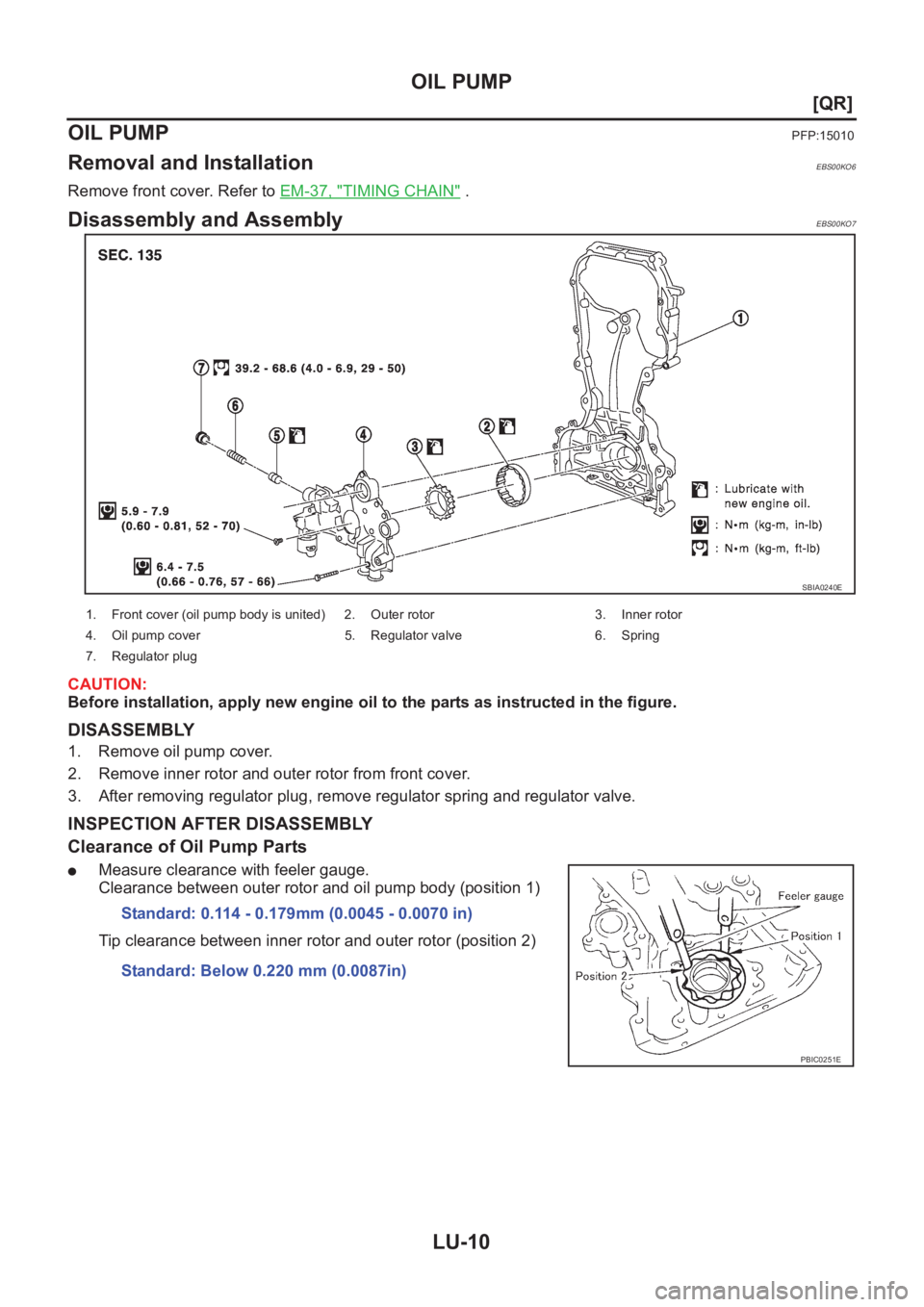

OIL PUMP
PFP:15010
Removal and InstallationEBS00KO6
Remove front cover. Refer to EM-37, "TIMING CHAIN" .
Disassembly and AssemblyEBS00KO7
CAUTION:
Before installation, apply new engine oil to the parts as instructed in the figure.
DISASSEMBLY
1. Remove oil pump cover.
2. Remove inner rotor and outer rotor from front cover.
3. After removing regulator plug, remove regulator spring and regulator valve.
INSPECTION AFTER DISASSEMBLY
Clearance of Oil Pump Parts
●Measure clearance with feeler gauge.
Clearance between outer rotor and oil pump body (position 1)
Tip clearance between inner rotor and outer rotor (position 2)
SBIA0240E
1. Front cover (oil pump body is united) 2. Outer rotor 3. Inner rotor
4. Oil pump cover 5. Regulator valve 6. Spring
7. Regulator plug
Standard: 0.114 - 0.179mm (0.0045 - 0.0070 in)
Standard: Below 0.220 mm (0.0087in)
PBIC0251E
Page 291 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual OIL PUMP
LU-11
[QR]
C
D
E
F
G
H
I
J
K
L
MA
LU
●Measure clearance with feeler gauge and straightedge.
Side clearance between inner rotor and oil pump body (position
3).
Side clearance between outer r NISSAN X-TRAIL 2001 Service Repair Manual OIL PUMP
LU-11
[QR]
C
D
E
F
G
H
I
J
K
L
MA
LU
●Measure clearance with feeler gauge and straightedge.
Side clearance between inner rotor and oil pump body (position
3).
Side clearance between outer r](/manual-img/5/57405/w960_57405-290.png)
OIL PUMP
LU-11
[QR]
C
D
E
F
G
H
I
J
K
L
MA
LU
●Measure clearance with feeler gauge and straightedge.
Side clearance between inner rotor and oil pump body (position
3).
Side clearance between outer rotor and oil pump body (position
4).
●Calculate the clearance between inner rotor and oil pump body
as follows.
1. Measure the outer diameter of protruded portion of inner rotor
(Position 5).
2. Measure the inner diameter of oil pump body with inside
micrometer (Position 6).
(Clearance) = (Inner diameter of oil pump body) – (Outer diame-
ter of inner rotor)
Regulator Valve Clearance
(Clearance) = D1 (Valve hole diameter) – D2 (Outer diameter of
valve)
CAUTION:
●Coat regulator valve with engine oil.
●Check that it falls smoothly into the valve hole by its own
weight.Standard: 0.030 - 0.070 mm (0.0012 - 0.0028 in)
Standard: 0.060 - 0.110 mm (0.0024 - 0.0043 in)
PBIC0252E
PBIC0253E
Standard: 0.035 - 0.070mm (0.0014 - 0.0028 in)
PBIC0254E
Standard: 0.040 - 0.097 mm (0.0016 - 0.0038 in)
KBIA0043E
Page 292 of 3833
LU-12
[QR]
OIL PUMP
ASSEMBLY
●Assemble in the reverse order of disassembly.
●Install the inner rotor and outer rotor with the punched marks on
the oil pump cover side.
●After warming up the engine, check for engine oil leakage and
engine oil level. Refer to LU-7, "
ENGINE OIL LEVEL" .
PBIC0255E
Page 293 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual OIL COOLER
LU-13
[QR]
C
D
E
F
G
H
I
J
K
L
MA
LU
OIL COOLERPFP:21305
Removal and InstallationEBS00KO8
WARNING:
Be careful not to get burned when the engine and engine oil are hot.
CAUTION:
●When remo NISSAN X-TRAIL 2001 Service Repair Manual OIL COOLER
LU-13
[QR]
C
D
E
F
G
H
I
J
K
L
MA
LU
OIL COOLERPFP:21305
Removal and InstallationEBS00KO8
WARNING:
Be careful not to get burned when the engine and engine oil are hot.
CAUTION:
●When remo](/manual-img/5/57405/w960_57405-292.png)
OIL COOLER
LU-13
[QR]
C
D
E
F
G
H
I
J
K
L
MA
LU
OIL COOLERPFP:21305
Removal and InstallationEBS00KO8
WARNING:
Be careful not to get burned when the engine and engine oil are hot.
CAUTION:
●When removing oil cooler, prepare a shop cloth to absorb any engine oil leakage or spillage.
●Completely wipe off any engine oil that adhere to the engine and the vehicle.
REMOVAL
1. Remove front RH wheel and engine room right side cover.
2. Drain engine coolant by removing cylinder block drain plug and radiator drain cock. Refer to CO-9,
"Changing Engine Coolant" .
3. Paint a mating mark at the oil cooler and oil cooler bracket.
INSPECTION
Oil Cooler
Check oil cooler for cracks. Check oil cooler for clogging by blowing through engine coolant inlet. If necessary,
replace oil cooler assembly.
Oil Pressure Relief Valve
Inspect oil pressure relief valve for movement, cracks and breaks by pushing the ball. If replacement is neces-
sary, remove valve by prying it out with a suitable tool. Install a new valve in place by tapping it.
INSTALLATION
Installation is in the reverse order of removal.
●After warming up the engine, check for engine oil and engine coolant leakage and for engine oil level.
Refer to LU-7, "
ENGINE OIL" .
PBIC0278E
1. Oil pressure switch 2. Oil cooler bracket 3. Oil cooler
4. Gasket
Page 294 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual LU-14
[QR]
SERVICE DATA AND SPECIFICATIONS (SDS)
SERVICE DATA AND SPECIFICATIONS (SDS)
PFP:00030
Standard and LimitEBS00KO9
OIL PRESSURE
*:Engine oil temperature at 80°C (176°C)
OIL PUMP
Unit: mm (i NISSAN X-TRAIL 2001 Service Repair Manual LU-14
[QR]
SERVICE DATA AND SPECIFICATIONS (SDS)
SERVICE DATA AND SPECIFICATIONS (SDS)
PFP:00030
Standard and LimitEBS00KO9
OIL PRESSURE
*:Engine oil temperature at 80°C (176°C)
OIL PUMP
Unit: mm (i](/manual-img/5/57405/w960_57405-293.png)
LU-14
[QR]

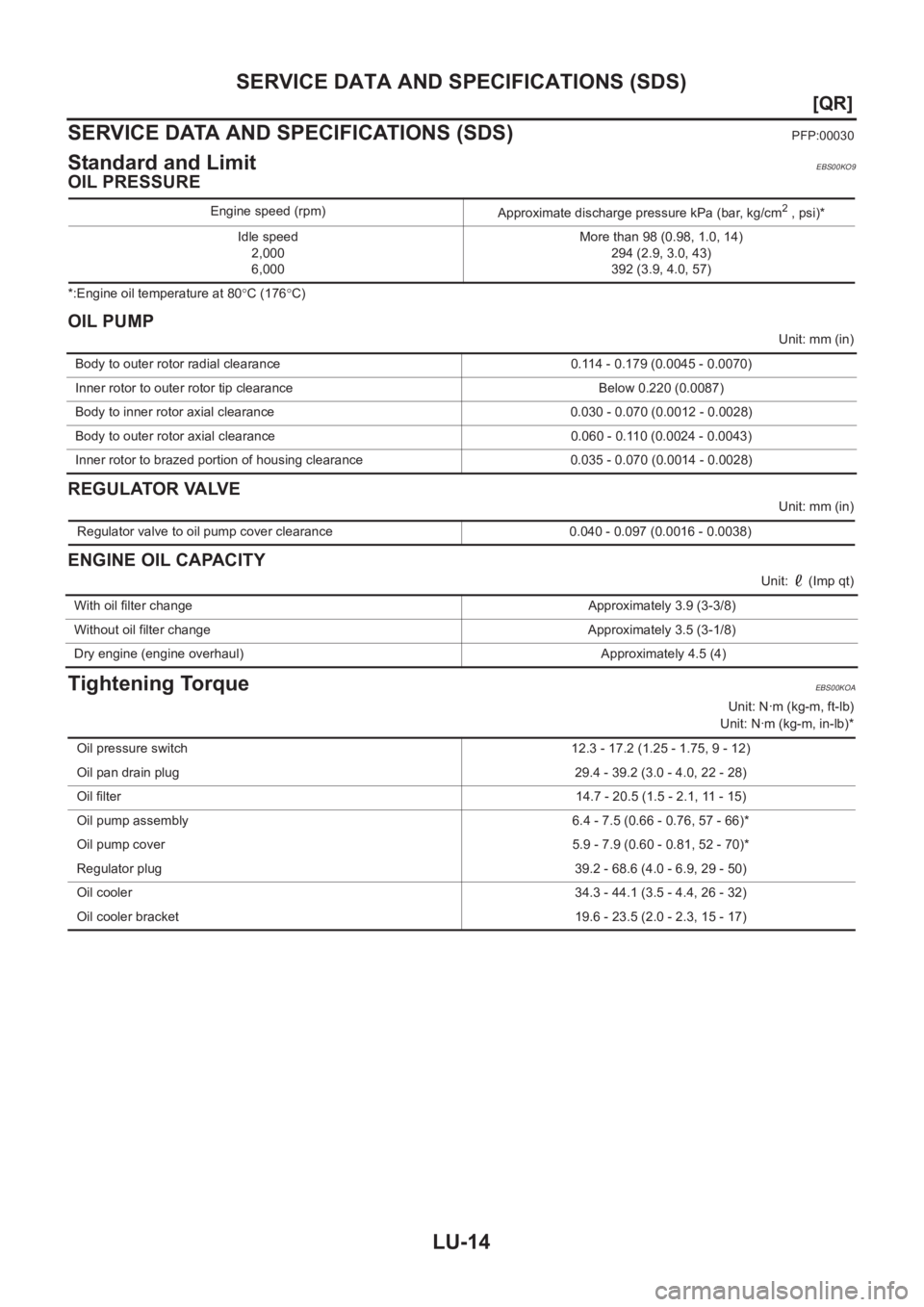

SERVICE DATA AND SPECIFICATIONS (SDS)
SERVICE DATA AND SPECIFICATIONS (SDS)
PFP:00030
Standard and LimitEBS00KO9
OIL PRESSURE
*:Engine oil temperature at 80°C (176°C)
OIL PUMP
Unit: mm (in)
REGULATOR VALVE
Unit: mm (in)
ENGINE OIL CAPACITY
Unit: (Imp qt)
Tightening TorqueEBS00KOA
Unit: N·m (kg-m, ft-lb)
Unit: N·m (kg-m, in-lb)* Engine speed (rpm)
Approximate discharge pressure kPa (bar, kg/cm
2 , psi)*
Idle speed
2,000
6,000 More than 98 (0.98, 1.0, 14)
294 (2.9, 3.0, 43)
392 (3.9, 4.0, 57)
Body to outer rotor radial clearance 0.114 - 0.179 (0.0045 - 0.0070)
Inner rotor to outer rotor tip clearance Below 0.220 (0.0087)
Body to inner rotor axial clearance 0.030 - 0.070 (0.0012 - 0.0028)
Body to outer rotor axial clearance 0.060 - 0.110 (0.0024 - 0.0043)
Inner rotor to brazed portion of housing clearance 0.035 - 0.070 (0.0014 - 0.0028)
Regulator valve to oil pump cover clearance 0.040 - 0.097 (0.0016 - 0.0038)
With oil filter change Approximately 3.9 (3-3/8)
Without oil filter change Approximately 3.5 (3-1/8)
Dry engine (engine overhaul) Approximately 4.5 (4)
Oil pressure switch 12.3 - 17.2 (1.25 - 1.75, 9 - 12)
Oil pan drain plug 29.4 - 39.2 (3.0 - 4.0, 22 - 28)
Oil filter14.7 - 20.5 (1.5 - 2.1, 11 - 15)
Oil pump assembly 6.4 - 7.5 (0.66 - 0.76, 57 - 66)*
Oil pump cover 5.9 - 7.9 (0.60 - 0.81, 52 - 70)*
Regulator plug 39.2 - 68.6 (4.0 - 6.9, 29 - 50)
Oil cooler34.3 - 44.1 (3.5 - 4.4, 26 - 32)
Oil cooler bracket 19.6 - 23.5 (2.0 - 2.3, 15 - 17)
Page 295 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual PRECAUTIONS
LU-15
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
LU
[YD22DDTi]PRECAUTIONSPFP:00001
Precautions For Liquid GasketEBS00MRV
REMOVAL OF LIQUID GASKET
●After removing the mounting bolts and nuts, sepa NISSAN X-TRAIL 2001 Service Repair Manual PRECAUTIONS
LU-15
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
LU
[YD22DDTi]PRECAUTIONSPFP:00001
Precautions For Liquid GasketEBS00MRV
REMOVAL OF LIQUID GASKET
●After removing the mounting bolts and nuts, sepa](/manual-img/5/57405/w960_57405-294.png)
PRECAUTIONS
LU-15
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
LU
[YD22DDTi]PRECAUTIONSPFP:00001
Precautions For Liquid GasketEBS00MRV
REMOVAL OF LIQUID GASKET
●After removing the mounting bolts and nuts, separate the mating
surface using a seal cutter and remove the old liquid gasket
sealing.
CAUTION:
Be careful not to damage the mating surfaces.
●In areas where the cutter is difficult to use, use a plastic hammer
to lightly tap the areas where the liquid gasket is applied.
CAUTION:
If for some unavoidable reason a tool such as a flat-blade
screwdriver is used, be careful not to damage the mating
surfaces.
LIQUID GASKET APPLICATION PROCEDURE
1. Using a scraper, remove the old liquid gasket adhering to the liq-
uid gasket application surface and the mating surface.
●Remove the liquid gasket completely from the groove of the
liquid gasket application surface, mounting bolts and bolt
holes.
2. Wipe the liquid gasket application surface and the mating sur-
face with white gasoline (lighting and heating use) to remove
adhering moisture, grease and foreign materials.
3. Attach the liquid gasket to the tube presser.
Use Genuine Liquid Gasket or equivalent.
4. Apply the liquid gasket without breaks to the specified location
with the specified dimensions.
●If there is a groove for the liquid gasket application, apply the
liquid gasket to the groove.
●As for the bolt holes, normally apply the liquid gasket inside
the holes. If specified, it should be applied outside the holes.
Make sure to read the instruction in this manual.
●Within five minutes of liquid gasket application, install the mat-
ing component.
●If the liquid gasket protrudes, wipe it off immediately.
●Do not retighten after the installation.
●After 30 minutes or more have passed from the installation, fill
the engine oil and engine coolant.
CAUTION:
If there are instructions in this manual, observe them.
PBIC0275E
PBIC0003E
EMA0622D
SEM159F
Page 296 of 3833
LU-16
[YD22DDTi]
PREPARATION
PREPARATION
PFP:00002
Special Service ToolsEBS00B01
Tool number
Tool nameDescription
ST25051001
Oil pressure gaugeMeasuring oil pressure
Maximum measuring range:
2,452 kPa (25 kg/cm2, 356 psi)
ST25052000
HoseAdapting oil pressure gauge to cylinder block
WS39930000
Tube presserPressing the tube of liquid gasket
S-NT050
S-NT559
S-NT052
