Page 2009 of 3833

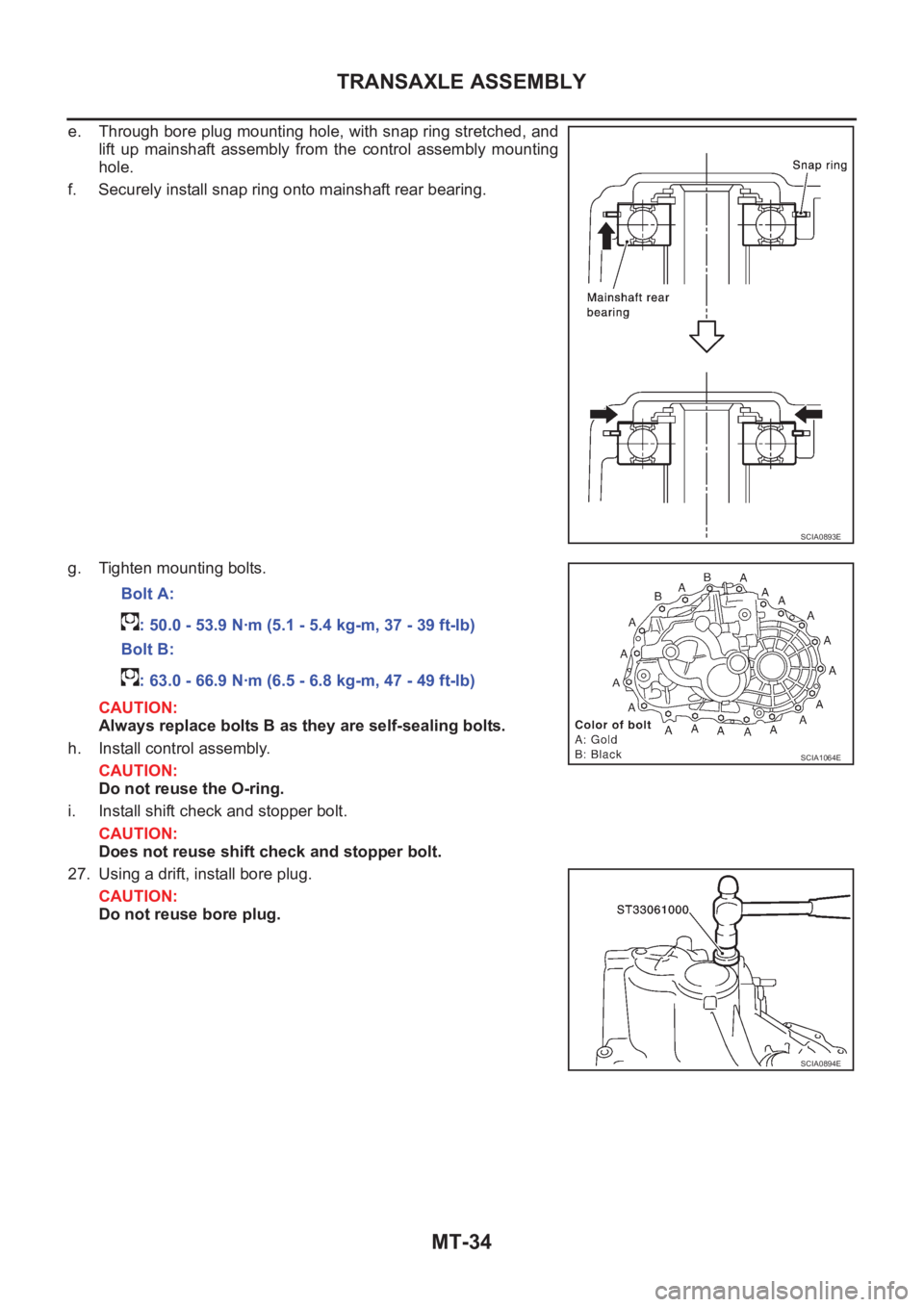

NISSAN X-TRAIL 2001 Service Repair Manual TRANSAXLE ASSEMBLY MT-33 D E F G H I J K L MA B MT c. Tighten mounting bolts to specified torque, and then install reverse lever assembly. 21. Install check ball, 5th-reverse shift check

Page 2010 of 3833

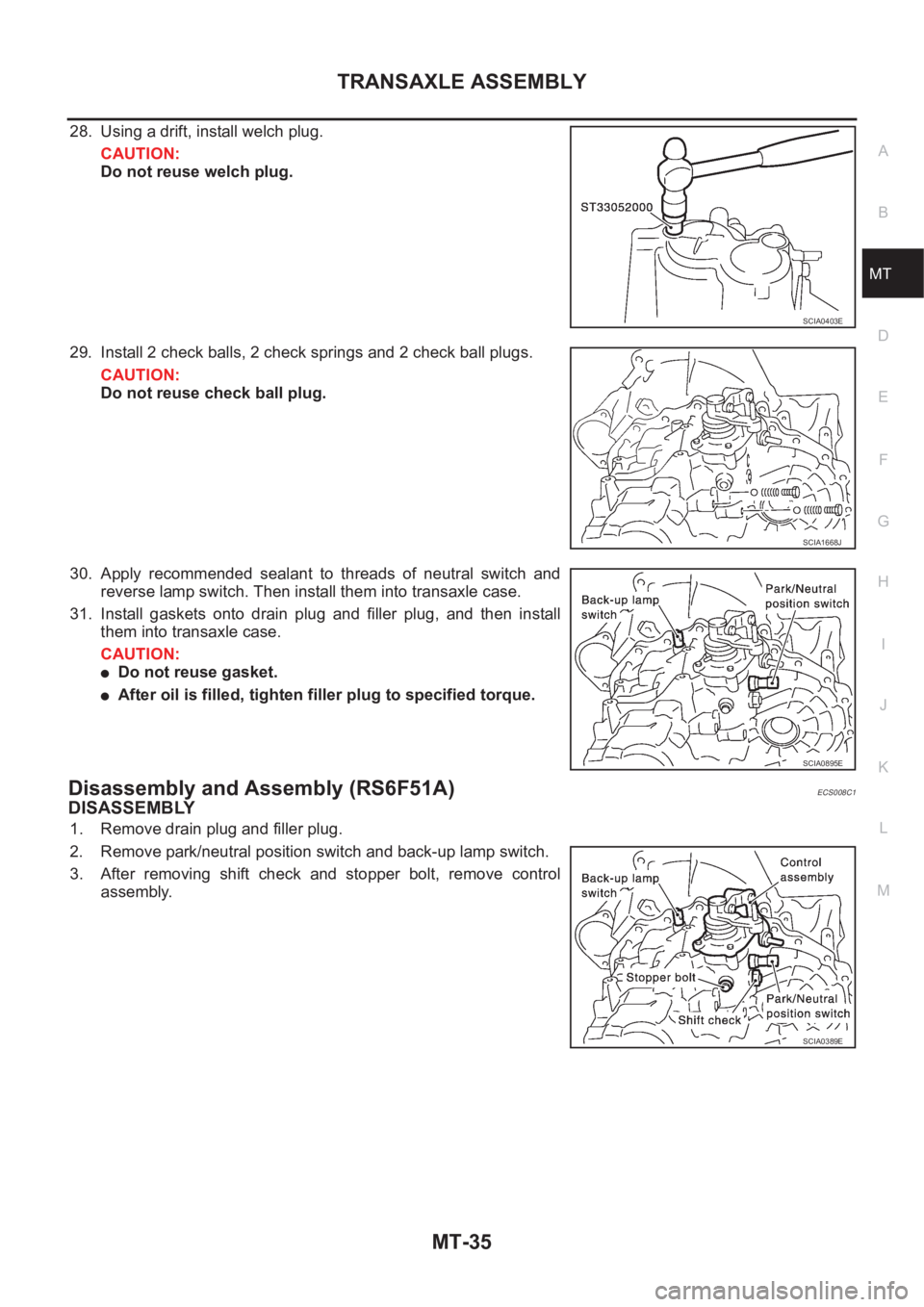

NISSAN X-TRAIL 2001 Service Repair Manual MT-34 TRANSAXLE ASSEMBLY e. Through bore plug mounting hole, with snap ring stretched, and lift up mainshaft assembly from the control assembly mounting hole. f. Securely install snap ring ont

Page 2011 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual TRANSAXLE ASSEMBLY MT-35 D E F G H I J K L MA B MT 28. Using a drift, install welch plug. CAUTION: Do not reuse welch plug. 29. Install 2 check balls, 2 check springs and 2 check ball plugs. CAUTION:

Page 2012 of 3833

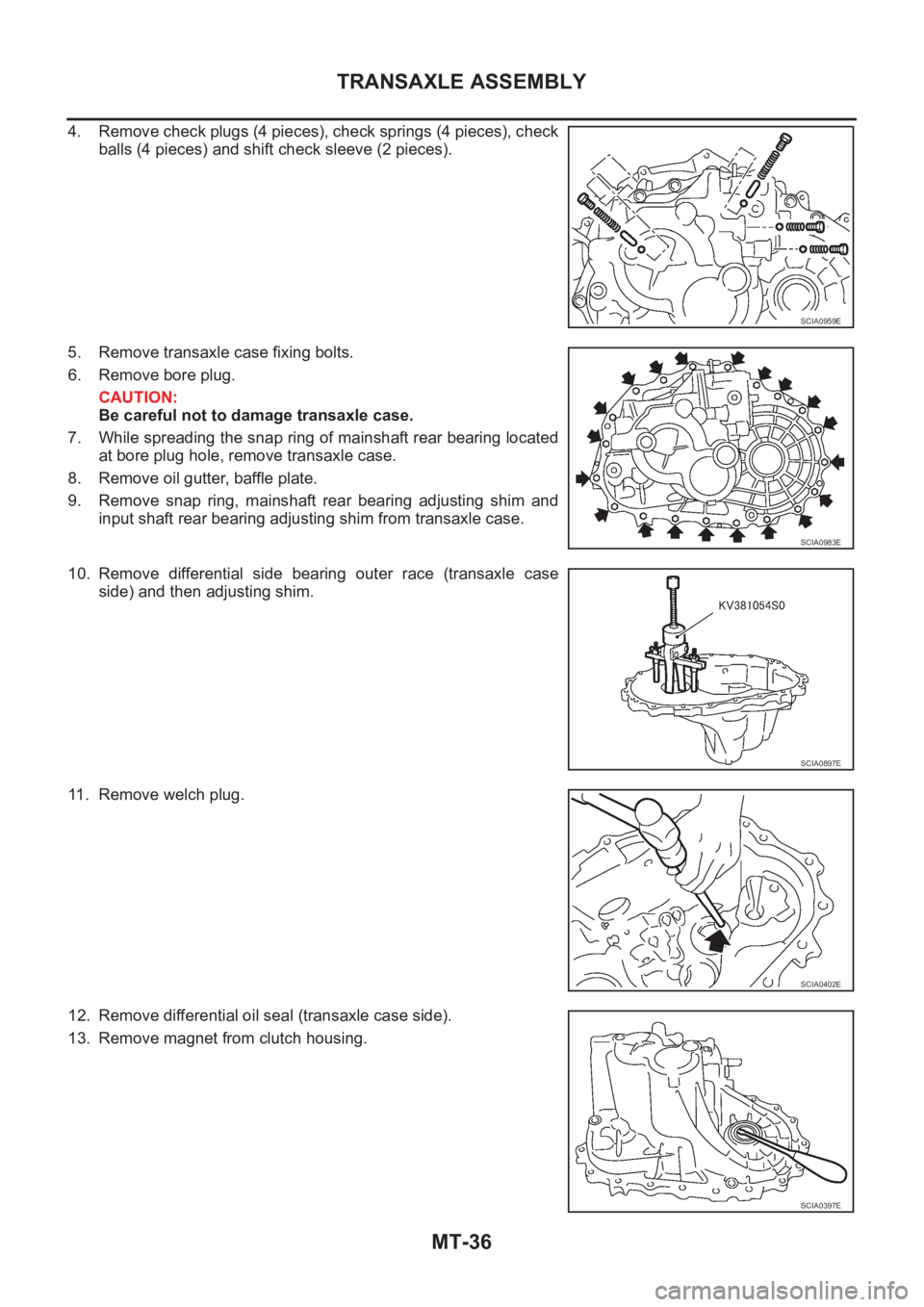

NISSAN X-TRAIL 2001 Service Repair Manual MT-36 TRANSAXLE ASSEMBLY 4. Remove check plugs (4 pieces), check springs (4 pieces), check balls (4 pieces) and shift check sleeve (2 pieces). 5. Remove transaxle case fixing bolts. 6. Remove bore plu

Page 2013 of 3833

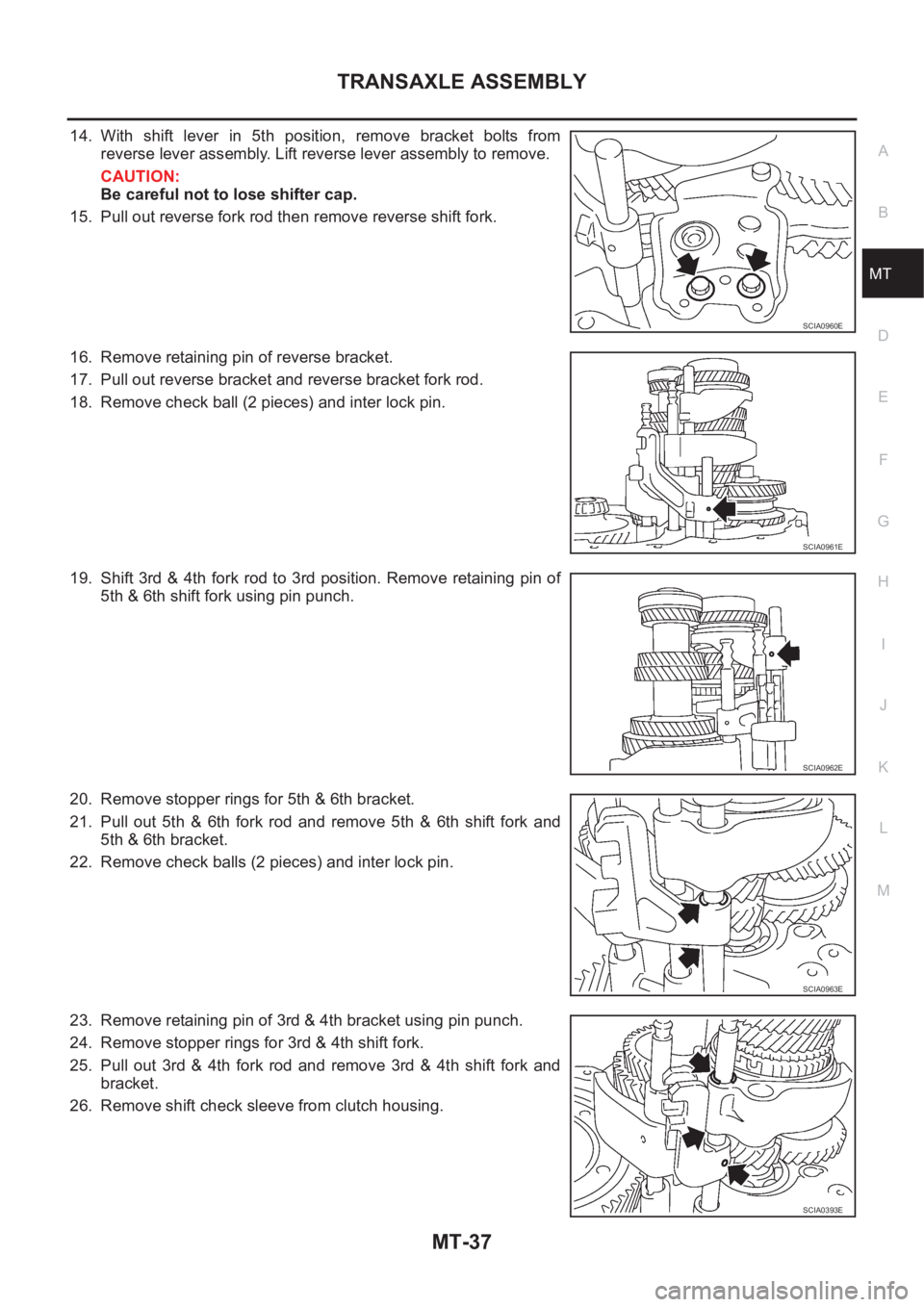

NISSAN X-TRAIL 2001 Service Repair Manual TRANSAXLE ASSEMBLY MT-37 D E F G H I J K L MA B MT 14. With shift lever in 5th position, remove bracket bolts from reverse lever assembly. Lift reverse lever assembly to remove. CAUTION: Be c

Page 2014 of 3833

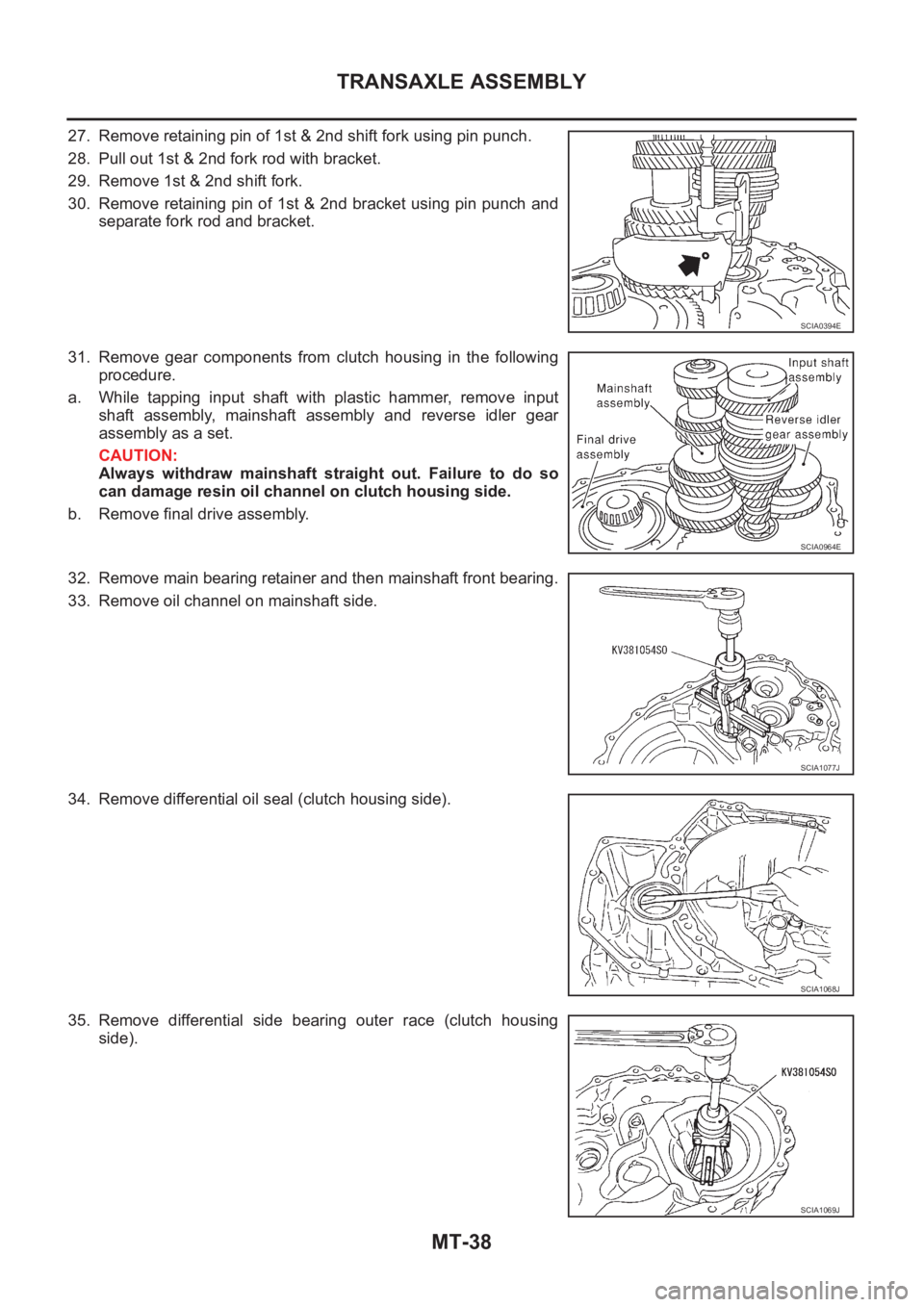

NISSAN X-TRAIL 2001 Service Repair Manual MT-38 TRANSAXLE ASSEMBLY 27. Remove retaining pin of 1st & 2nd shift fork using pin punch. 28. Pull out 1st & 2nd fork rod with bracket. 29. Remove 1st & 2nd shift fork. 30. Remove retaining pin of 1s

Page 2015 of 3833

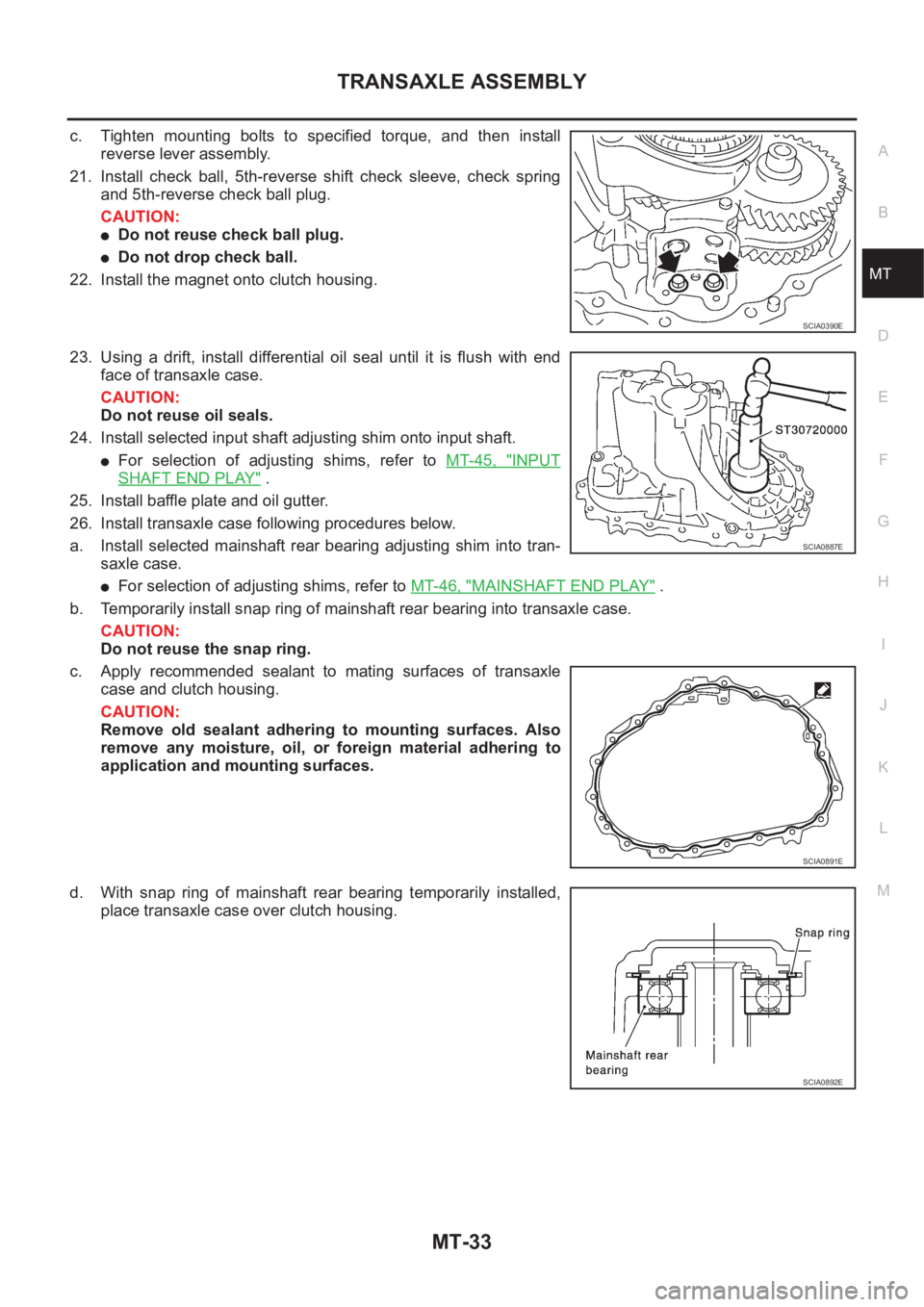

NISSAN X-TRAIL 2001 Service Repair Manual TRANSAXLE ASSEMBLY MT-39 D E F G H I J K L MA B MT 36. Remove input shaft oil seal. CAUTION: Be careful not to damage clutch housing. ASSEMBLY 1. Using a drift, install input shaft oil seal from

Page 2016 of 3833

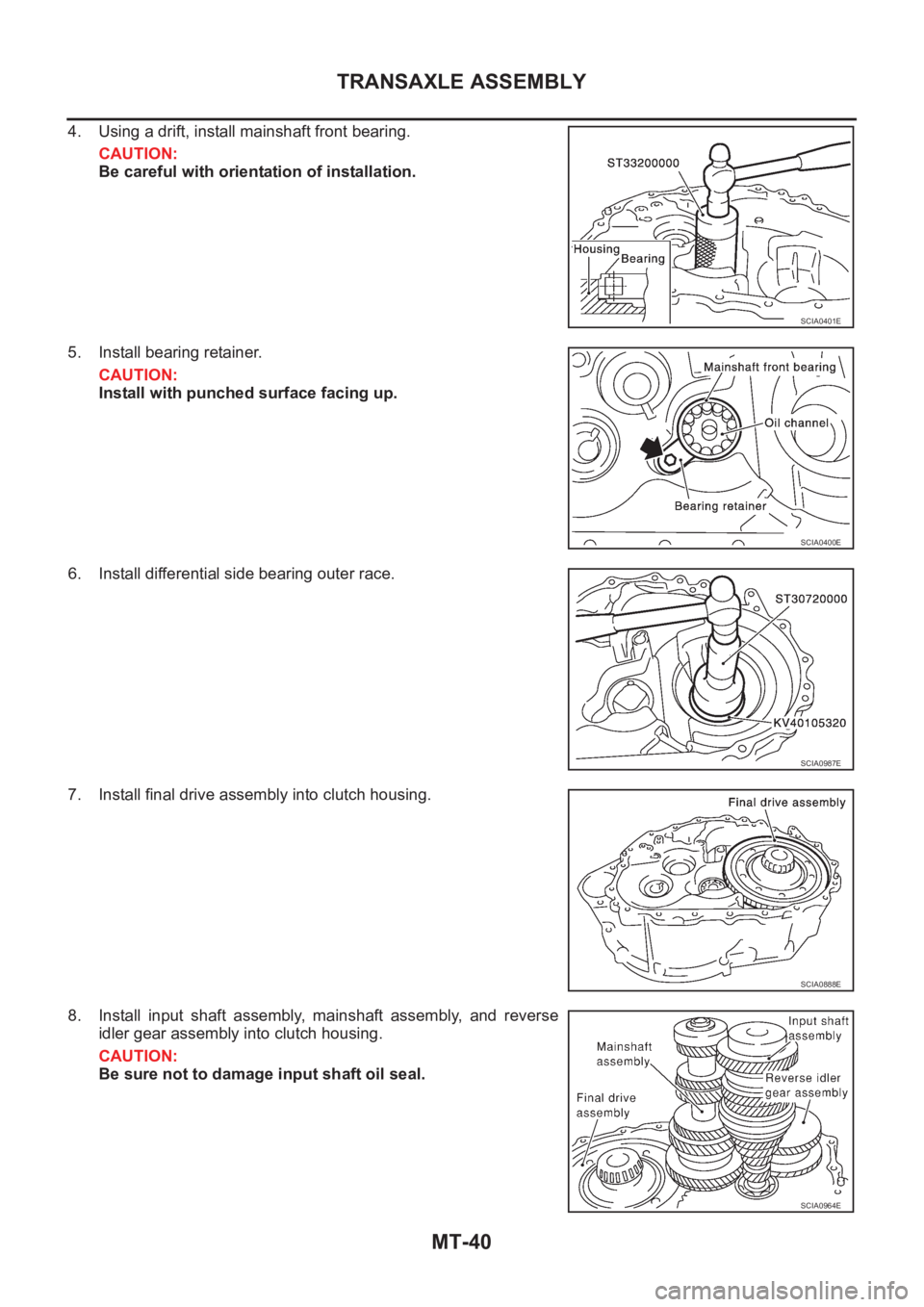

NISSAN X-TRAIL 2001 Service Repair Manual MT-40 TRANSAXLE ASSEMBLY 4. Using a drift, install mainshaft front bearing. CAUTION: Be careful with orientation of installation. 5. Install bearing retainer. CAUTION: Install with punched surface fac
