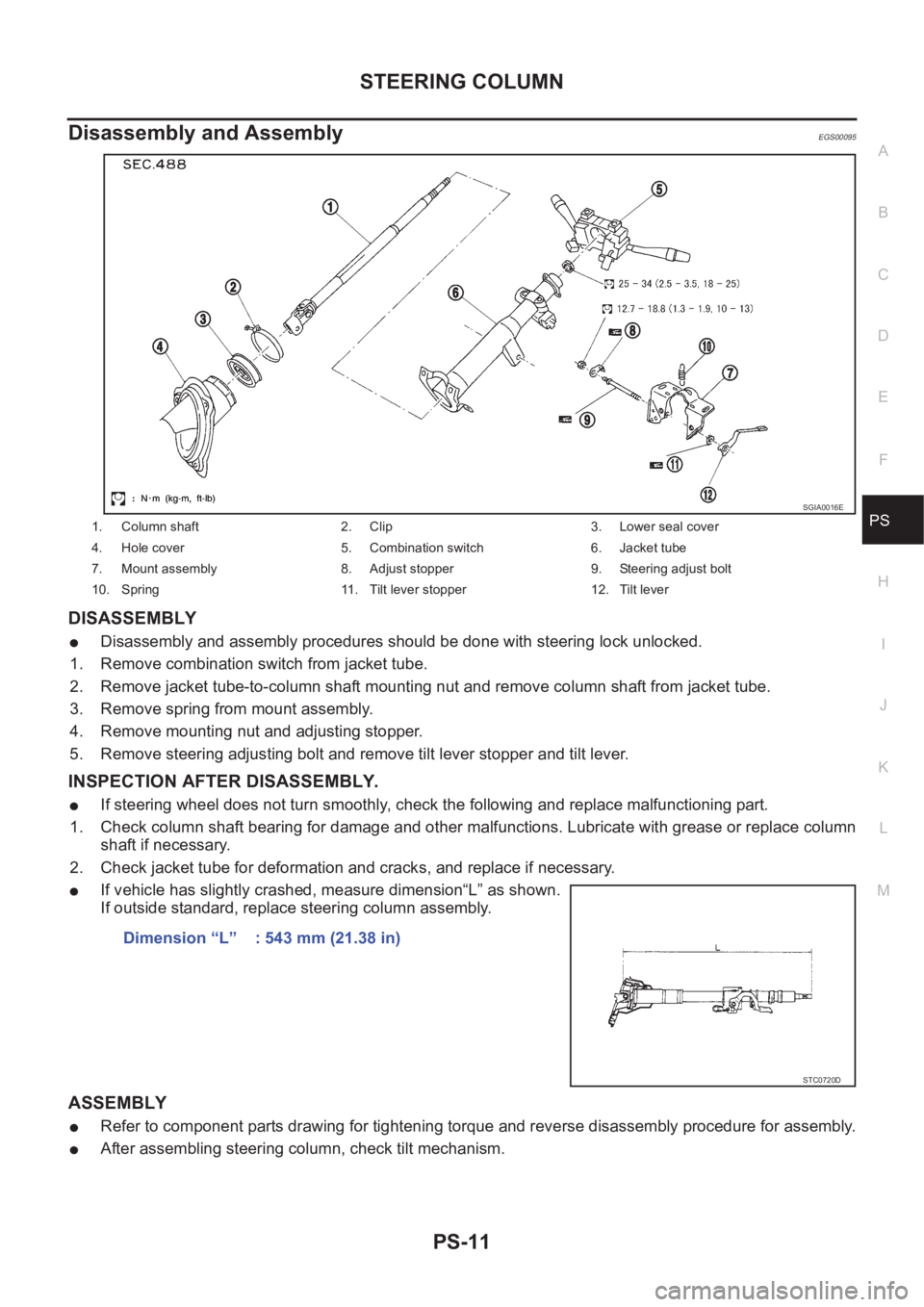

NISSAN X-TRAIL 2001 Service Repair Manual STEERING COLUMN PS-11 C D E F H I J K L MA B PS Disassembly and AssemblyEGS00095 DISASSEMBLY ●Disassembly and assembly procedures should be done with steering lock unlocked. 1. Remove combination sw

Page 2922 of 3833

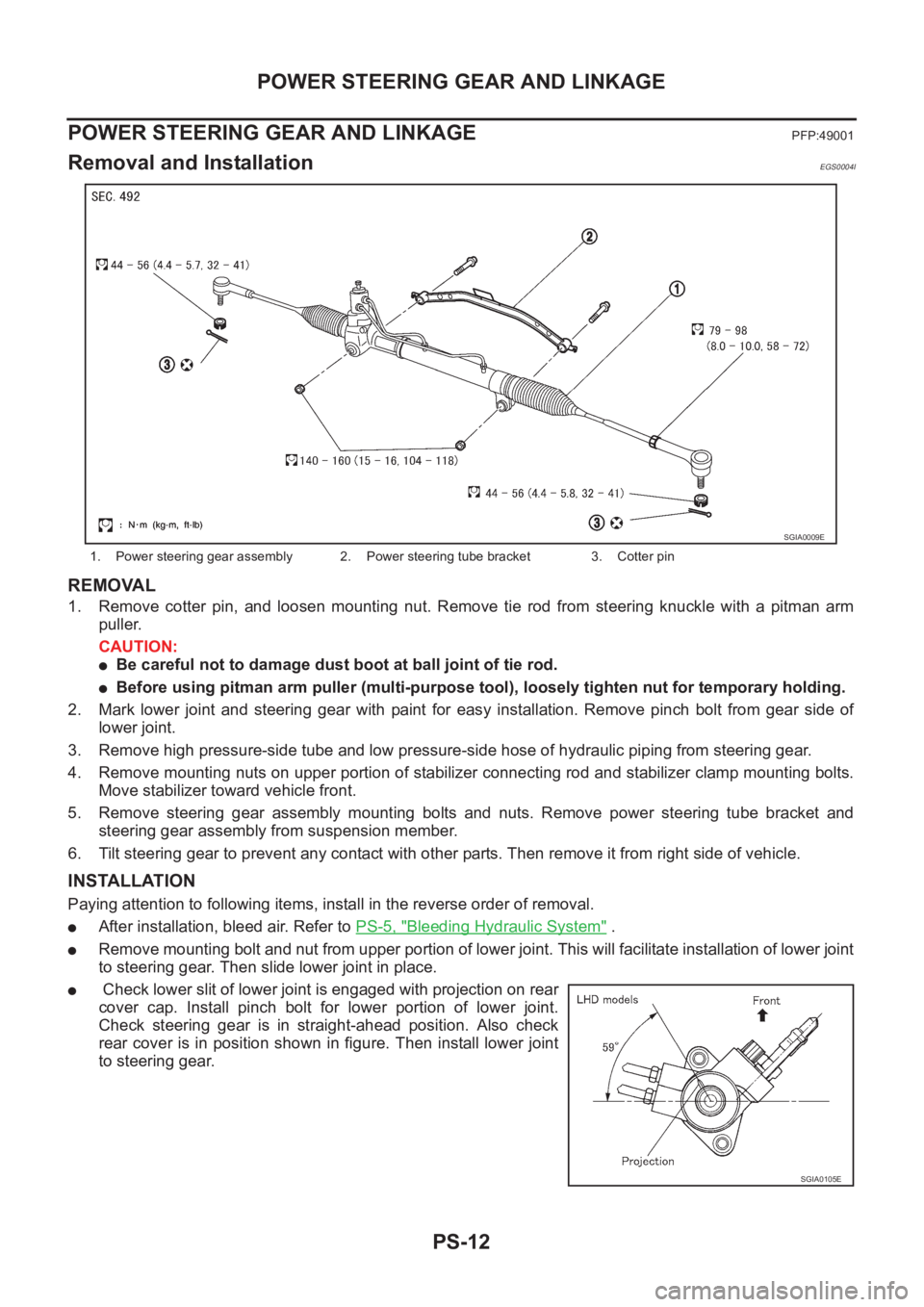

NISSAN X-TRAIL 2001 Service Repair Manual PS-12 POWER STEERING GEAR AND LINKAGE POWER STEERING GEAR AND LINKAGE PFP:49001 Removal and InstallationEGS0004I REMOVAL 1. Remove cotter pin, and loosen mounting nut. Remove tie rod from s

Page 2923 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual POWER STEERING GEAR AND LINKAGE PS-13 C D E F H I J K L MA B PS SGIA0010E

Page 2924 of 3833

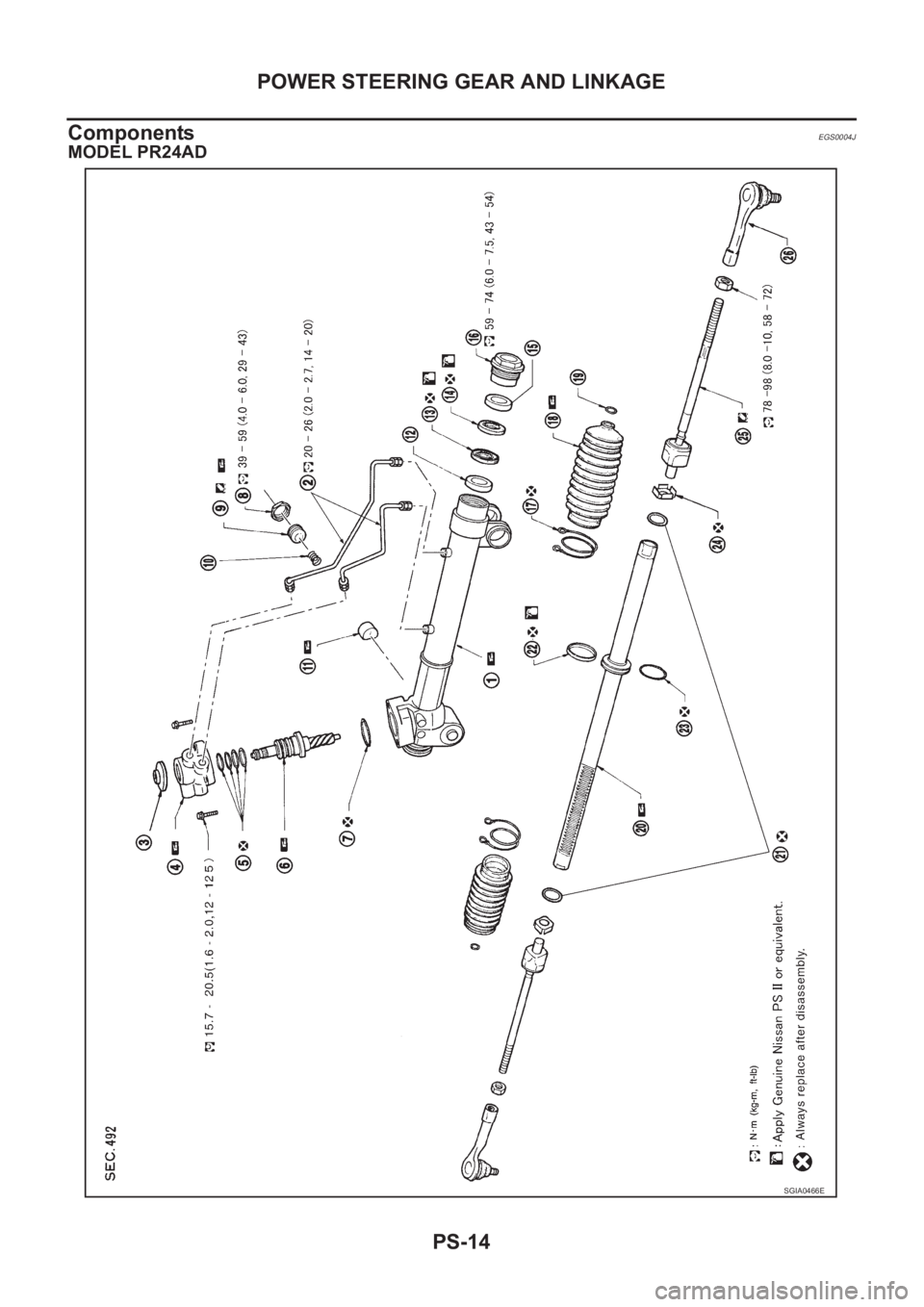

NISSAN X-TRAIL 2001 Service Repair Manual PS-14 POWER STEERING GEAR AND LINKAGE Components EGS0004J MODEL PR24AD SGIA0466E

Page 2925 of 3833

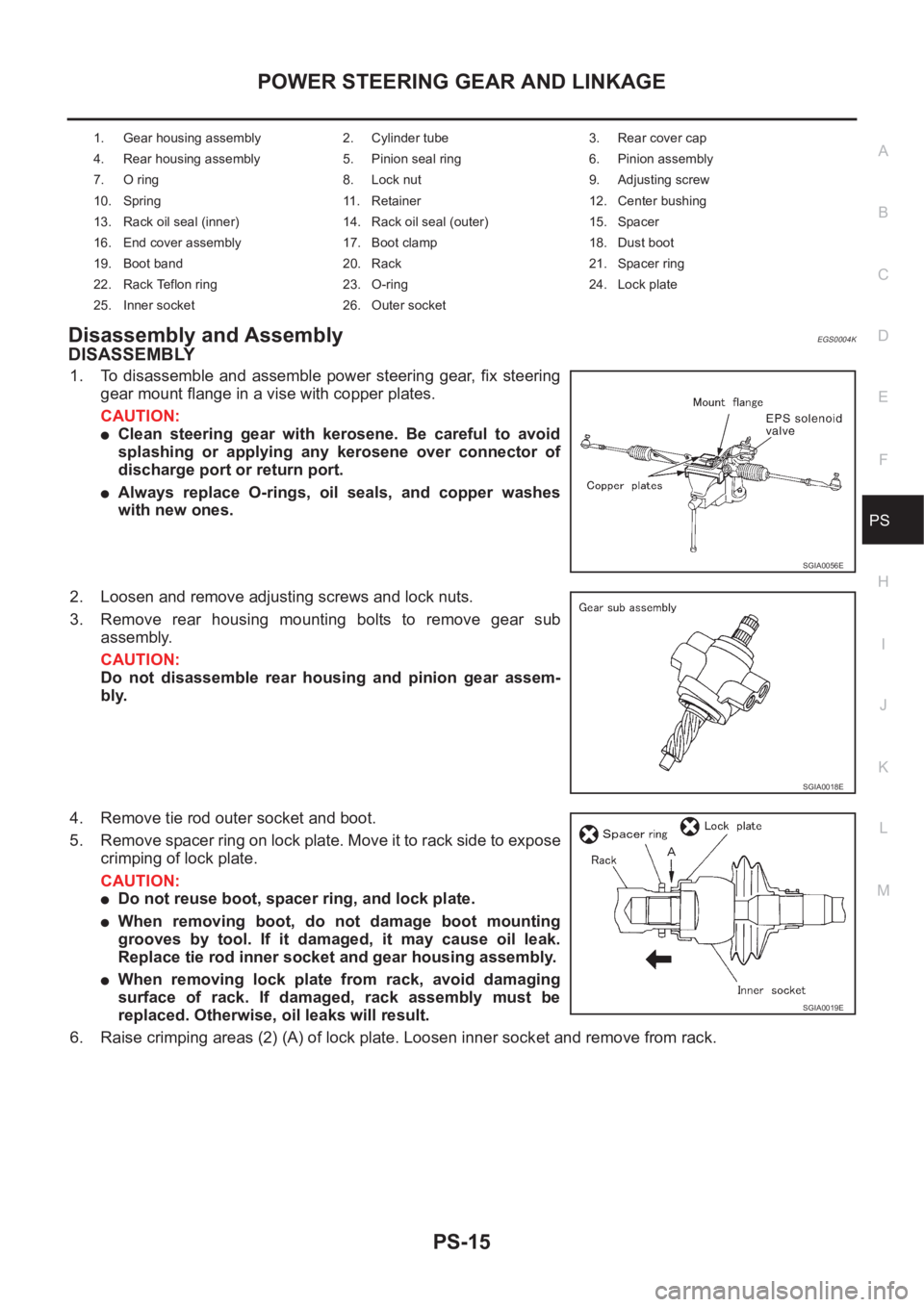

NISSAN X-TRAIL 2001 Service Repair Manual POWER STEERING GEAR AND LINKAGE PS-15 C D E F H I J K L MA B PS Disassembly and AssemblyEGS0004K DISASSEMBLY 1. To disassemble and assemble power steering gear, fix steering gear mount flange in a

Page 2926 of 3833

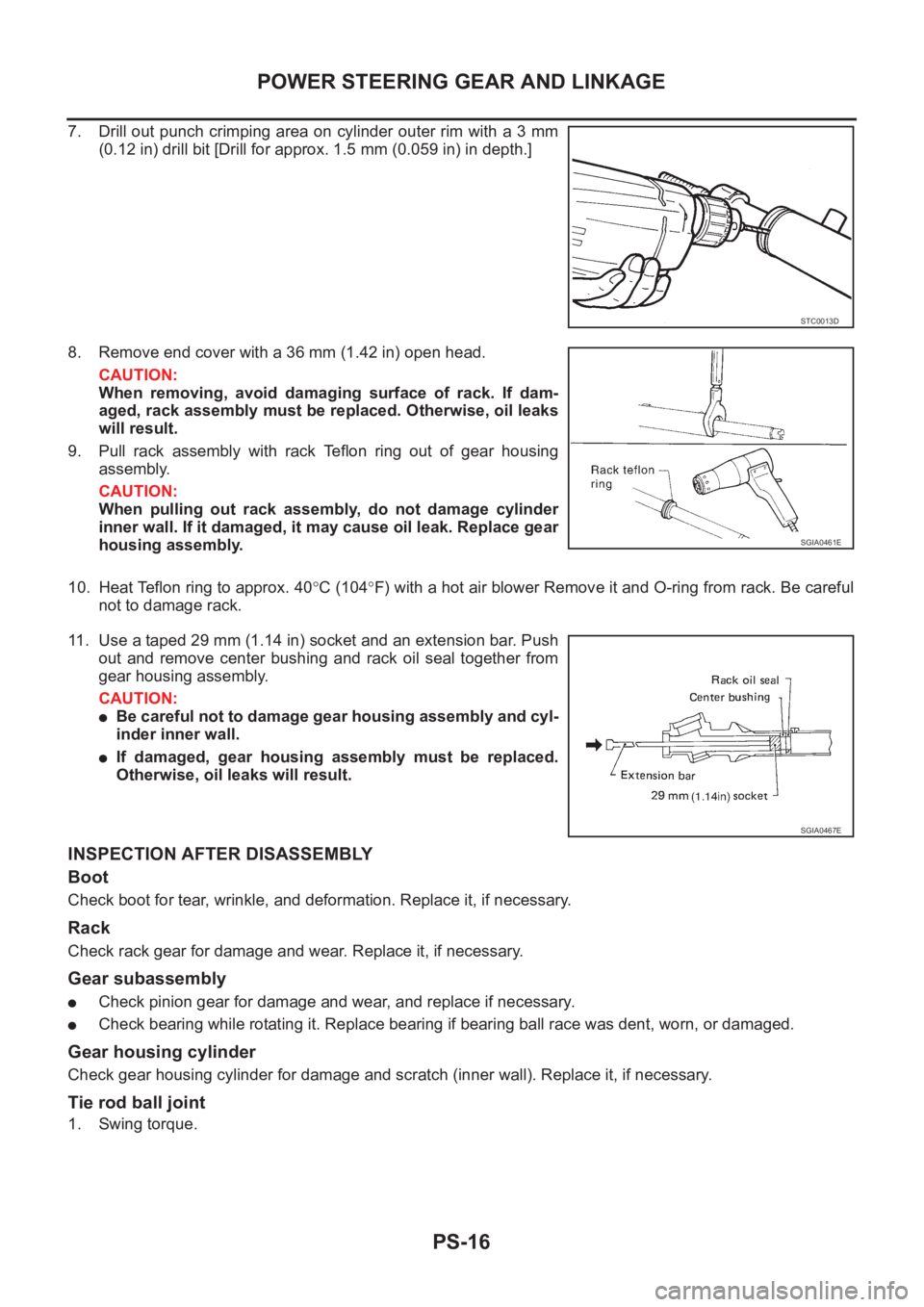

NISSAN X-TRAIL 2001 Service Repair Manual PS-16 POWER STEERING GEAR AND LINKAGE 7. Drill out punch crimping area on cylinder outer rim with a 3 mm (0.12 in) drill bit [Drill for approx. 1.5 mm (0.059 in) in depth.] 8. Remove end cover with a

Page 2927 of 3833

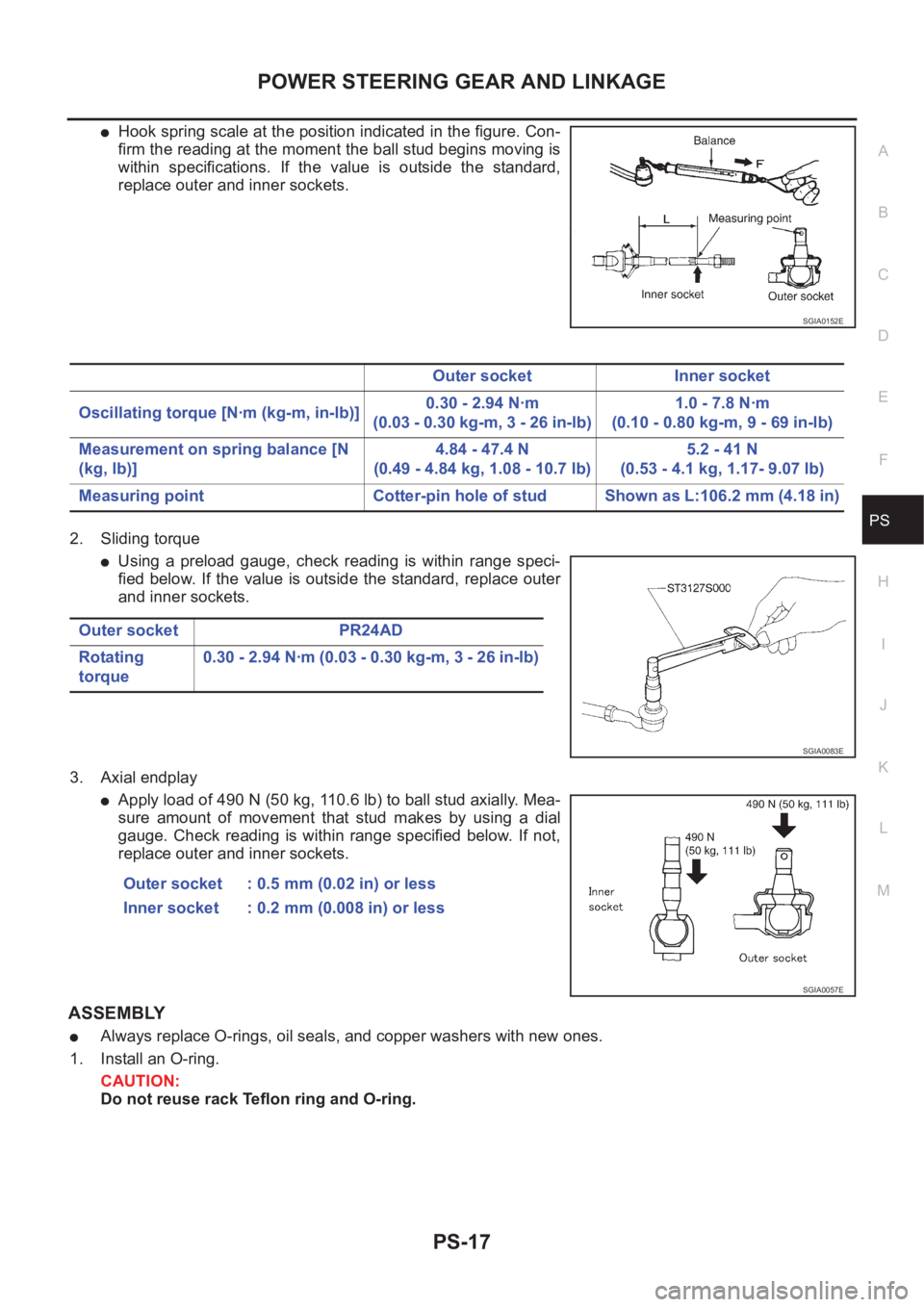

NISSAN X-TRAIL 2001 Service Repair Manual POWER STEERING GEAR AND LINKAGE PS-17 C D E F H I J K L MA B PS ●Hook spring scale at the position indicated in the figure. Con- firm the reading at the moment the ball stud begins moving is within

Page 2928 of 3833

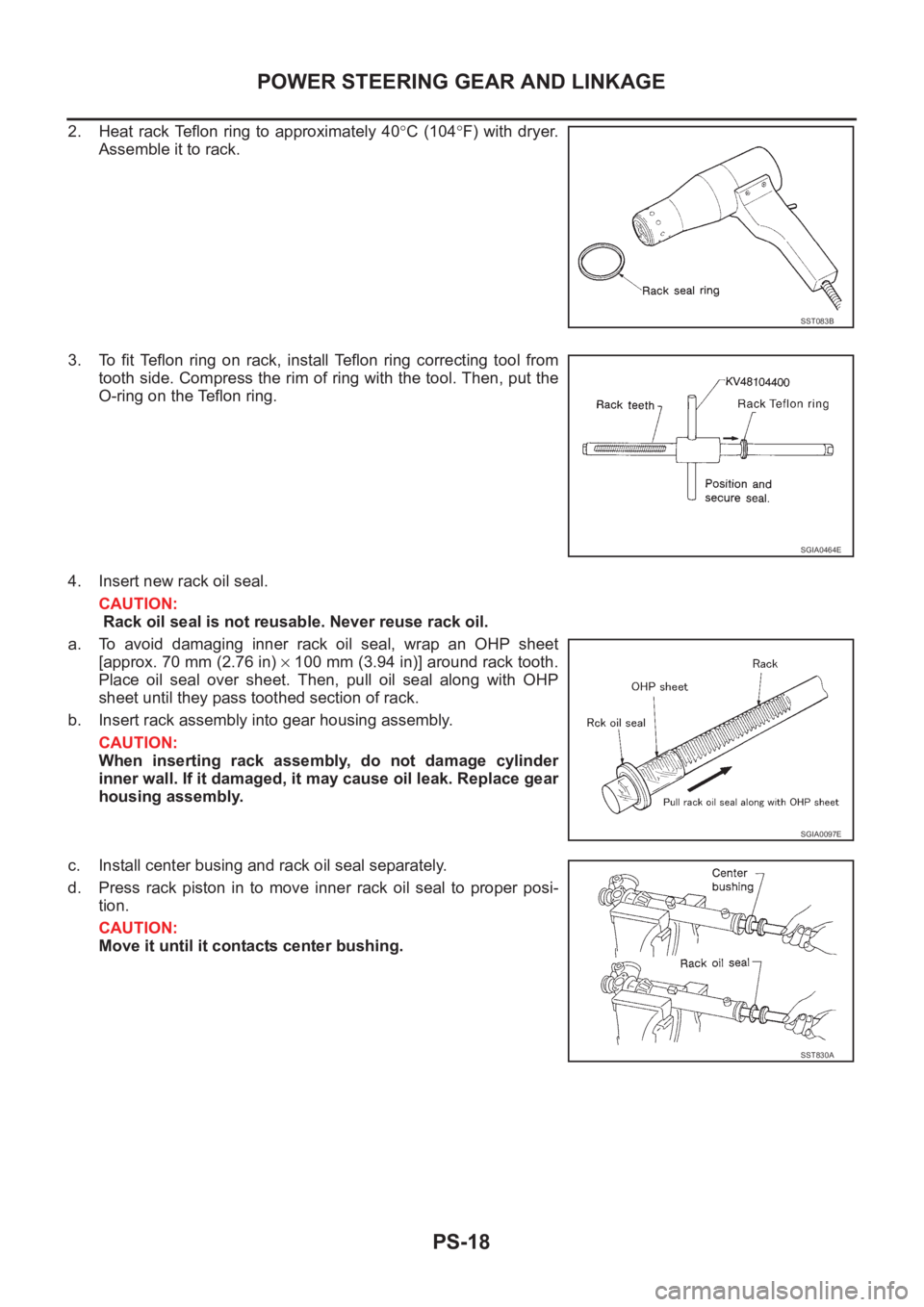

NISSAN X-TRAIL 2001 Service Repair Manual PS-18 POWER STEERING GEAR AND LINKAGE 2. Heat rack Teflon ring to approximately 40°C (104°F) with dryer. Assemble it to rack. 3. To fit Teflon ring on rack, install Teflon ring correc
