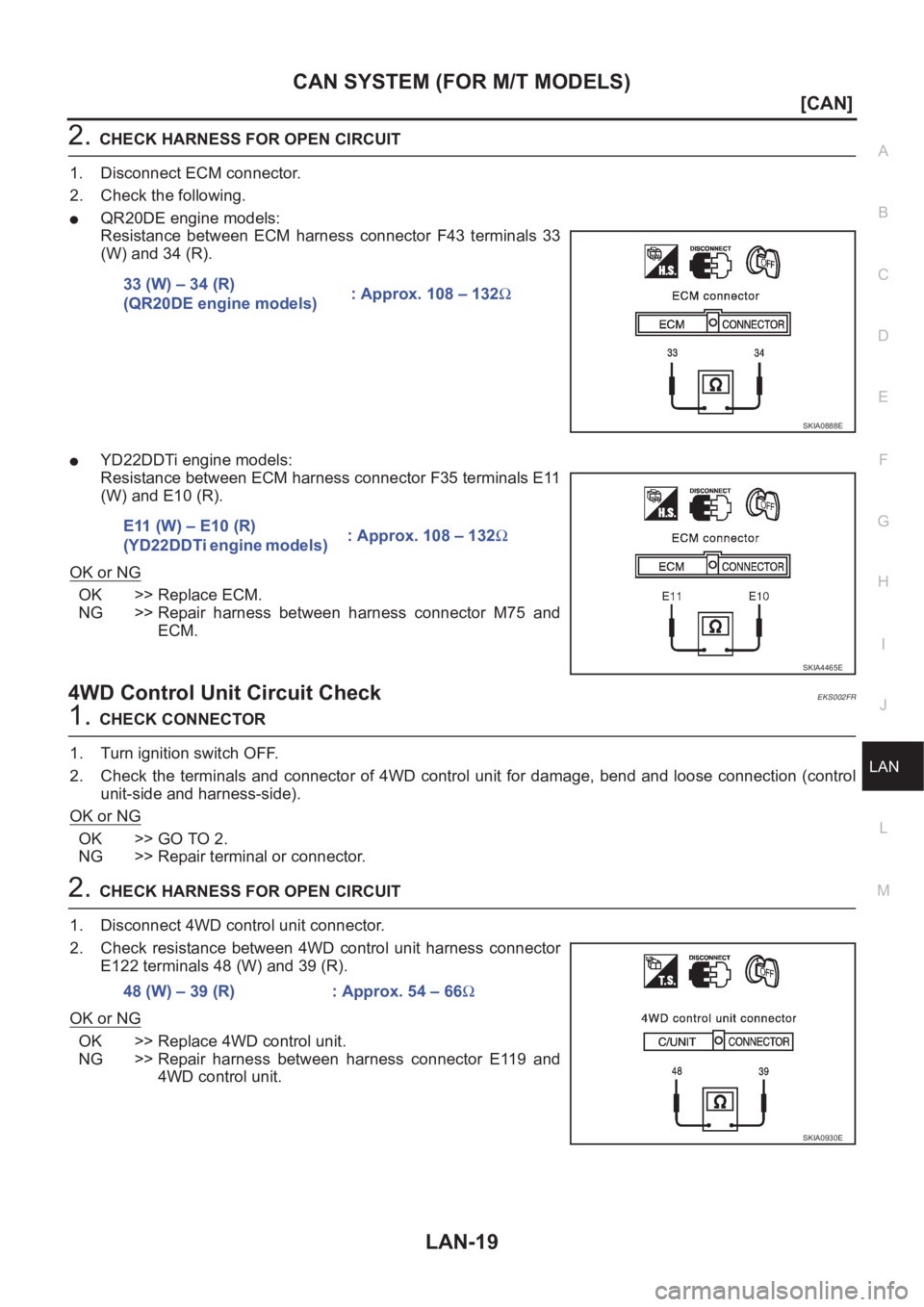

NISSAN X-TRAIL 2001 Service Repair Manual CAN SYSTEM (FOR M/T MODELS) LAN-19 [CAN] C D E F G H I J L MA B LAN 2.CHECK HARNESS FOR OPEN CIRCUIT 1. Disconnect ECM connector. 2. Check the following. ●QR20DE engine models: Resistance between EC

Page 3682 of 3833

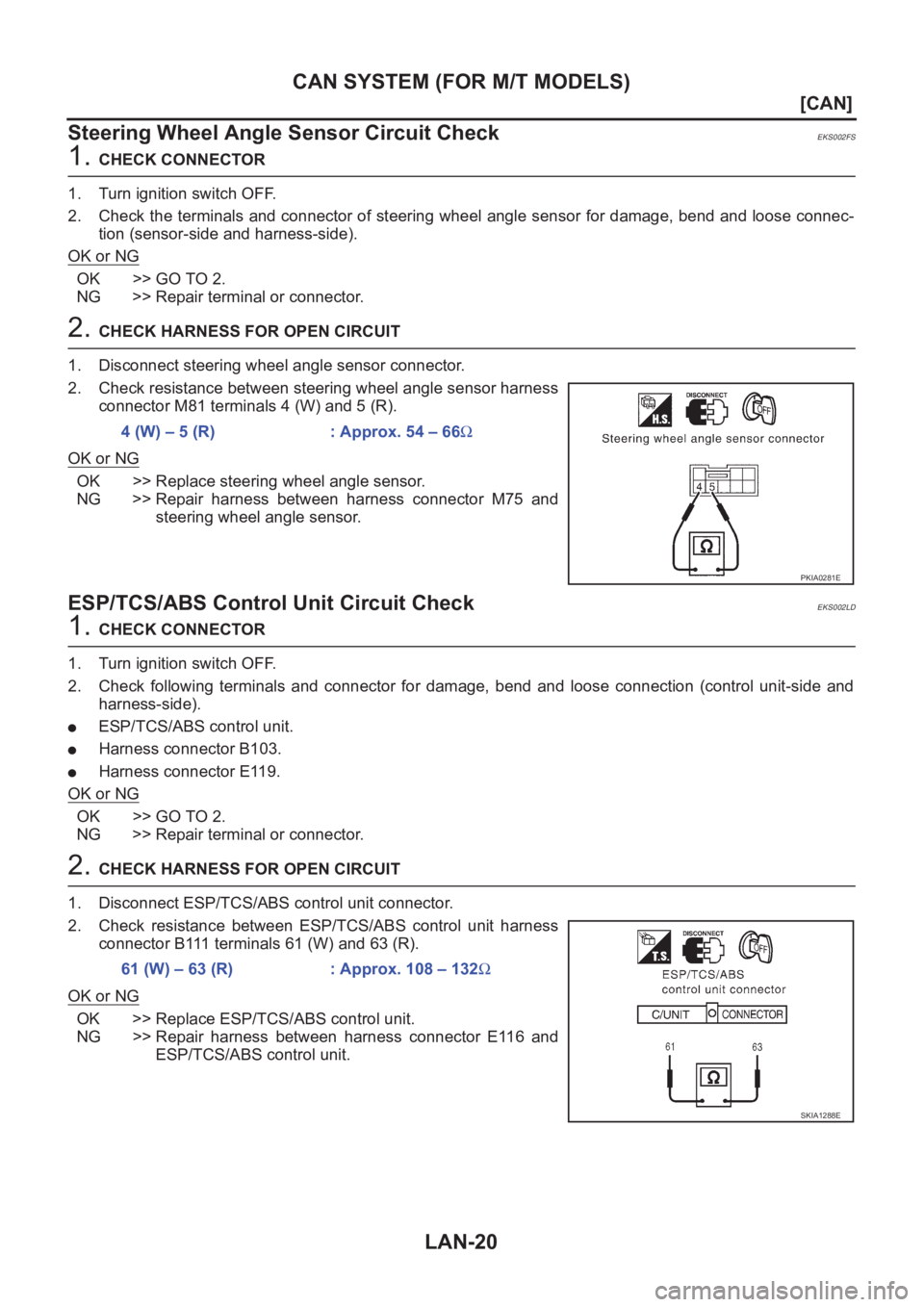

NISSAN X-TRAIL 2001 Service Repair Manual LAN-20 [CAN] CAN SYSTEM (FOR M/T MODELS) Steering Wheel Angle Sensor Circuit Check EKS002FS 1. CHECK CONNECTOR 1. Turn ignition switch OFF. 2. Check the terminals and connector of steering wheel angle

Page 3683 of 3833

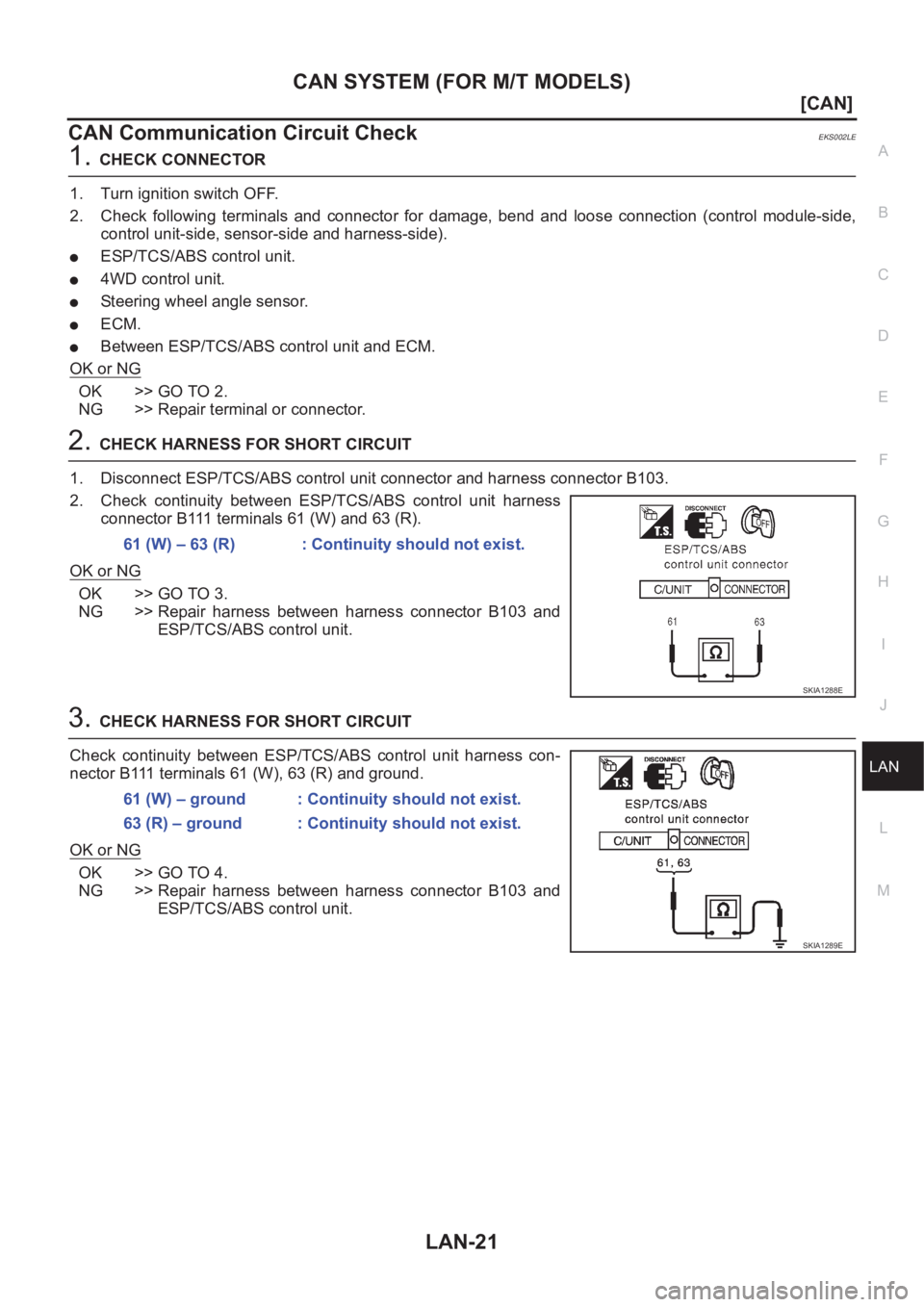

NISSAN X-TRAIL 2001 Service Repair Manual CAN SYSTEM (FOR M/T MODELS) LAN-21 [CAN] C D E F G H I J L MA B LAN CAN Communication Circuit CheckEKS002LE 1.CHECK CONNECTOR 1. Turn ignition switch OFF. 2. Check following terminals and connecto

Page 3684 of 3833

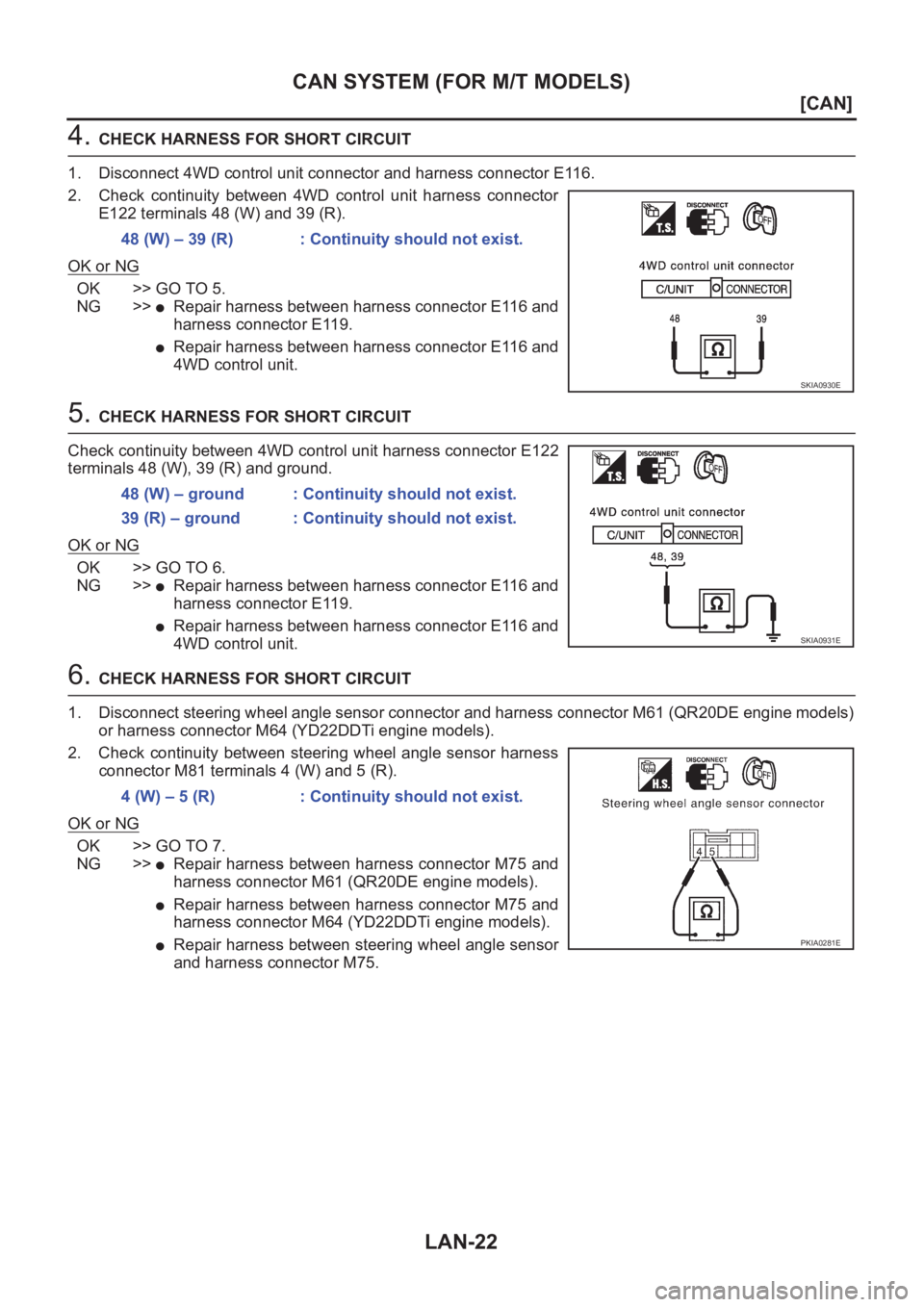

NISSAN X-TRAIL 2001 Service Repair Manual LAN-22 [CAN] CAN SYSTEM (FOR M/T MODELS) 4. CHECK HARNESS FOR SHORT CIRCUIT 1. Disconnect 4WD control unit connector and harness connector E11 6 . 2. Check continuity between 4WD control unit ha

Page 3685 of 3833

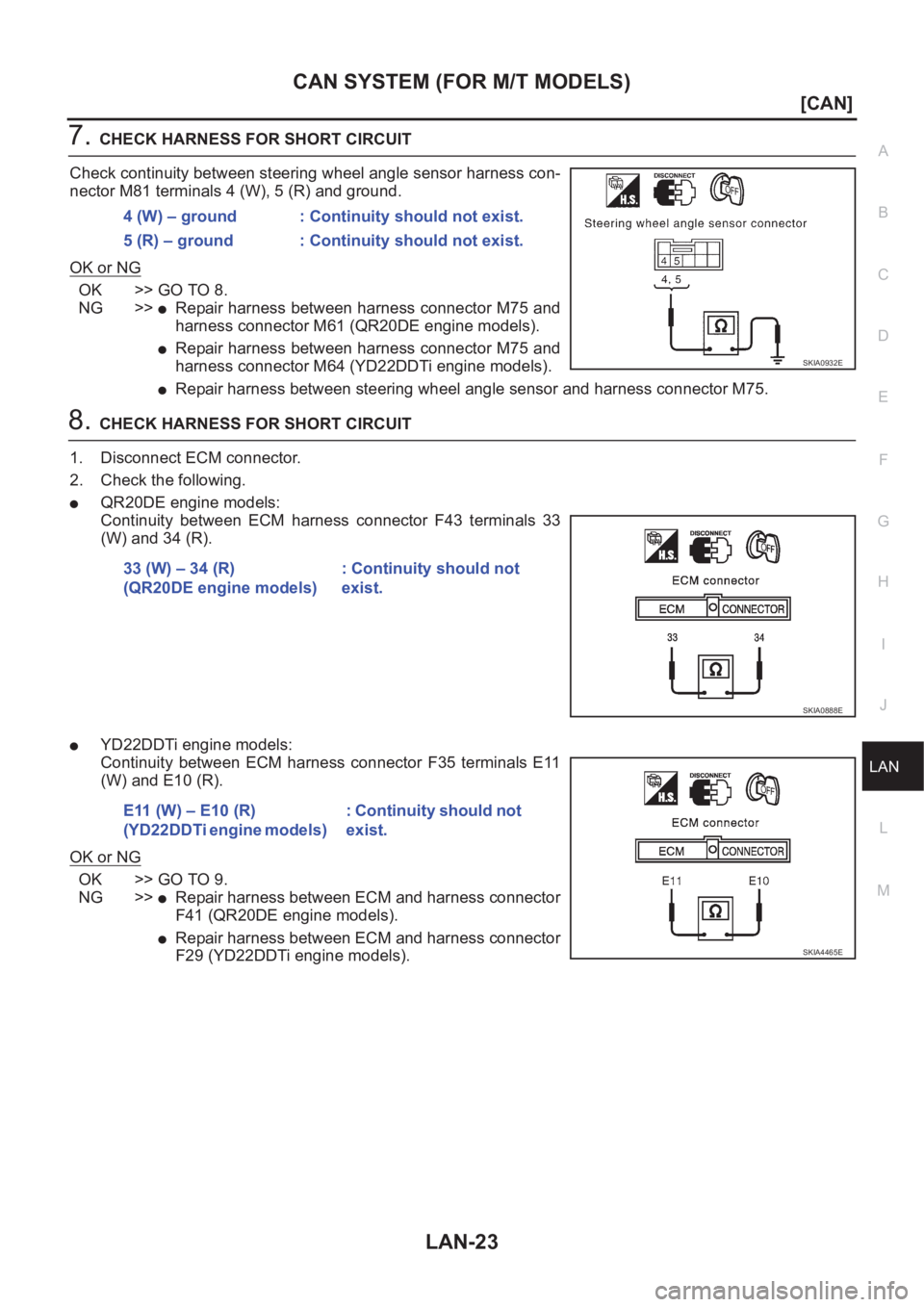

NISSAN X-TRAIL 2001 Service Repair Manual CAN SYSTEM (FOR M/T MODELS) LAN-23 [CAN] C D E F G H I J L MA B LAN 7.CHECK HARNESS FOR SHORT CIRCUIT Check continuity between steering wheel angle sensor harness con- nector M81 terminals 4 (W), 5 (R

Page 3686 of 3833

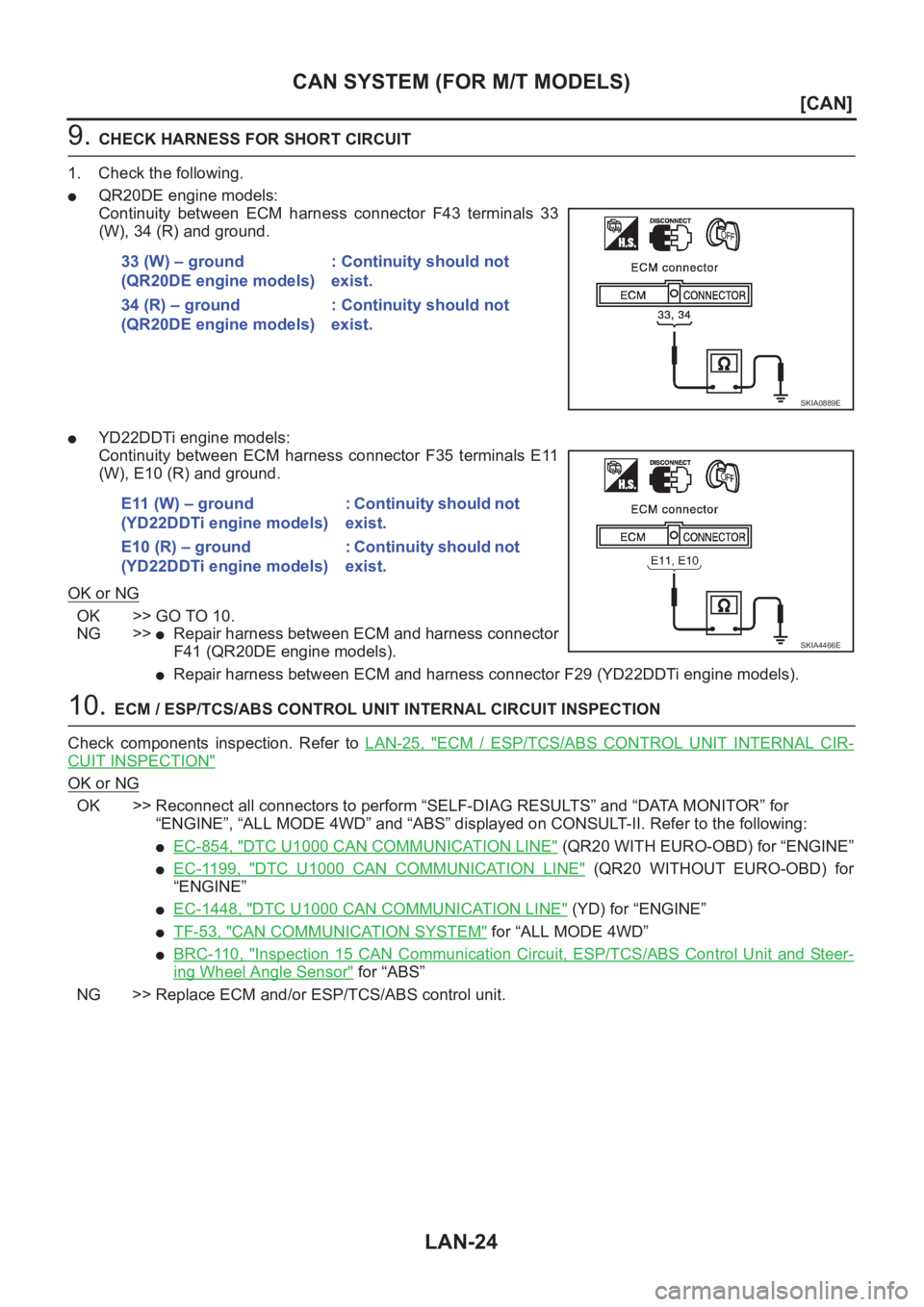

NISSAN X-TRAIL 2001 Service Repair Manual LAN-24 [CAN] CAN SYSTEM (FOR M/T MODELS) 9. CHECK HARNESS FOR SHORT CIRCUIT 1. Check the following. ●QR20DE engine models: Continuity between ECM harness connector F43 terminals 33 (W), 34 (R

Page 3687 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual CAN SYSTEM (FOR M/T MODELS) LAN-25 [CAN] C D E F G H I J L MA B LAN Component InspectionEKS002FW ECM / ESP/TCS/ABS CONTROL UNIT INTERNAL CIRCUIT INSPECTION ●Remove ECM and ESP/TCS/ABS control unit f

Page 3688 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual LAN-26 [CAN] CAN SYSTEM (FOR M/T MODELS)
