NISSAN X-TRAIL 2001 Service Repair Manual ON BOARD DIAGNOSTIC (OBD) SYSTEM
EC-51
[QR25(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

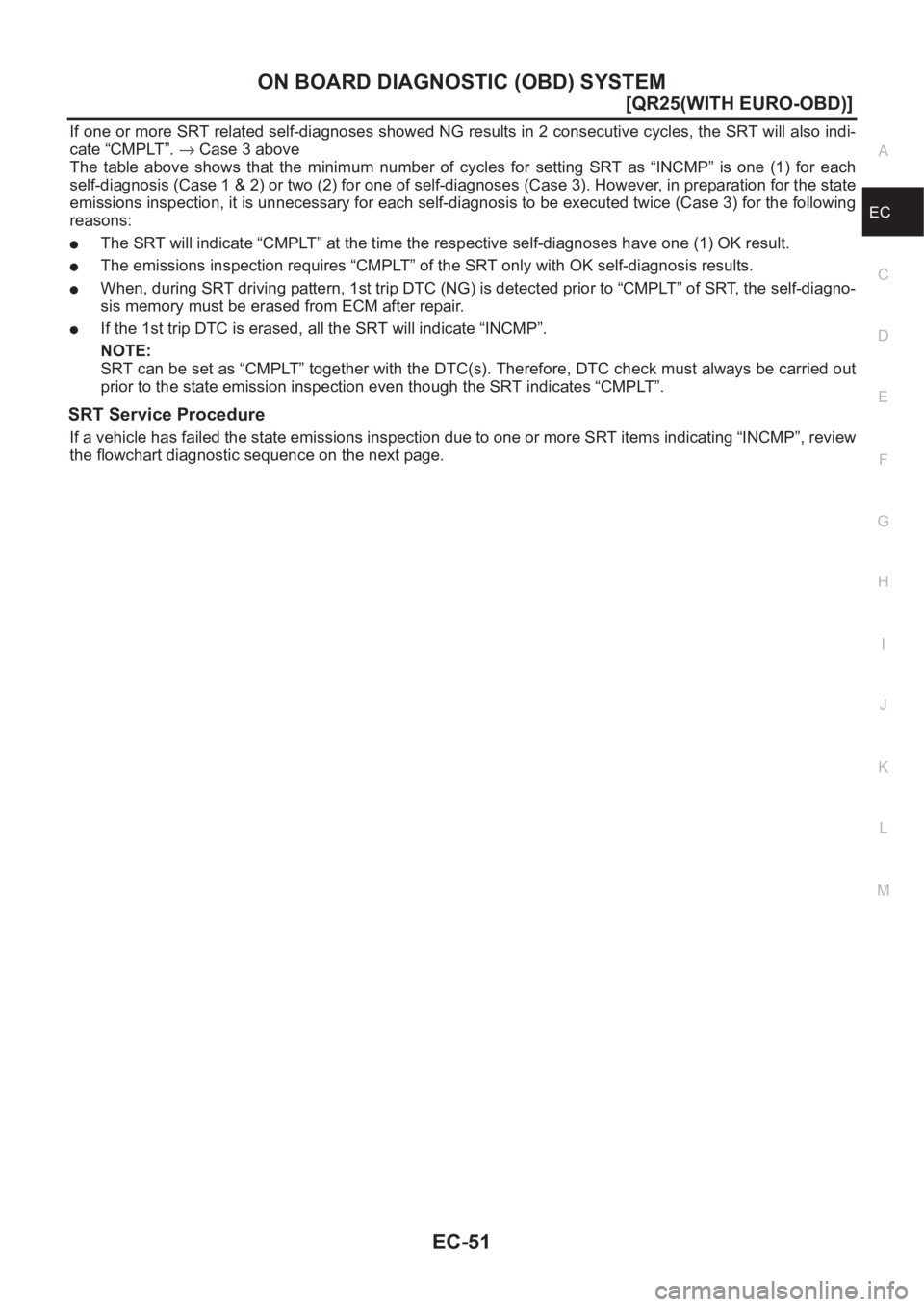

If one or more SRT related self-diagnoses showed NG results in 2 consecutive cycles, the SRT will also indi-
cate

Page 402 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual EC-52
[QR25(WITH EURO-OBD)]
ON BOARD DIAGNOSTIC (OBD) SYSTEM

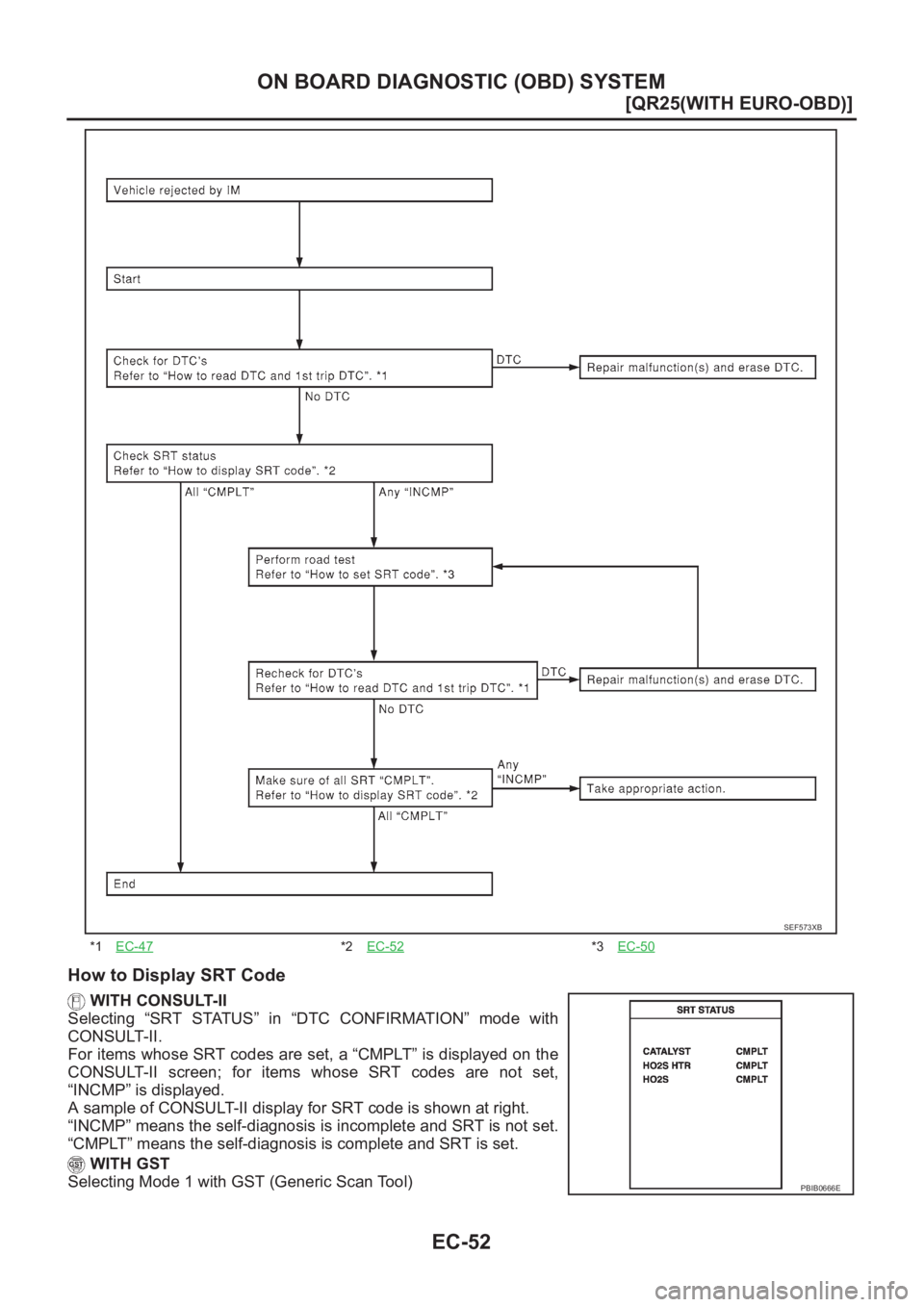

How to Display SRT Code
WITH CONSULT-II
Selecting “SRT STATUS” in “DTC CONFIRMATION” mode with
CONSULT-II.
For items whose S

Page 403 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual ON BOARD DIAGNOSTIC (OBD) SYSTEM
EC-53
[QR25(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

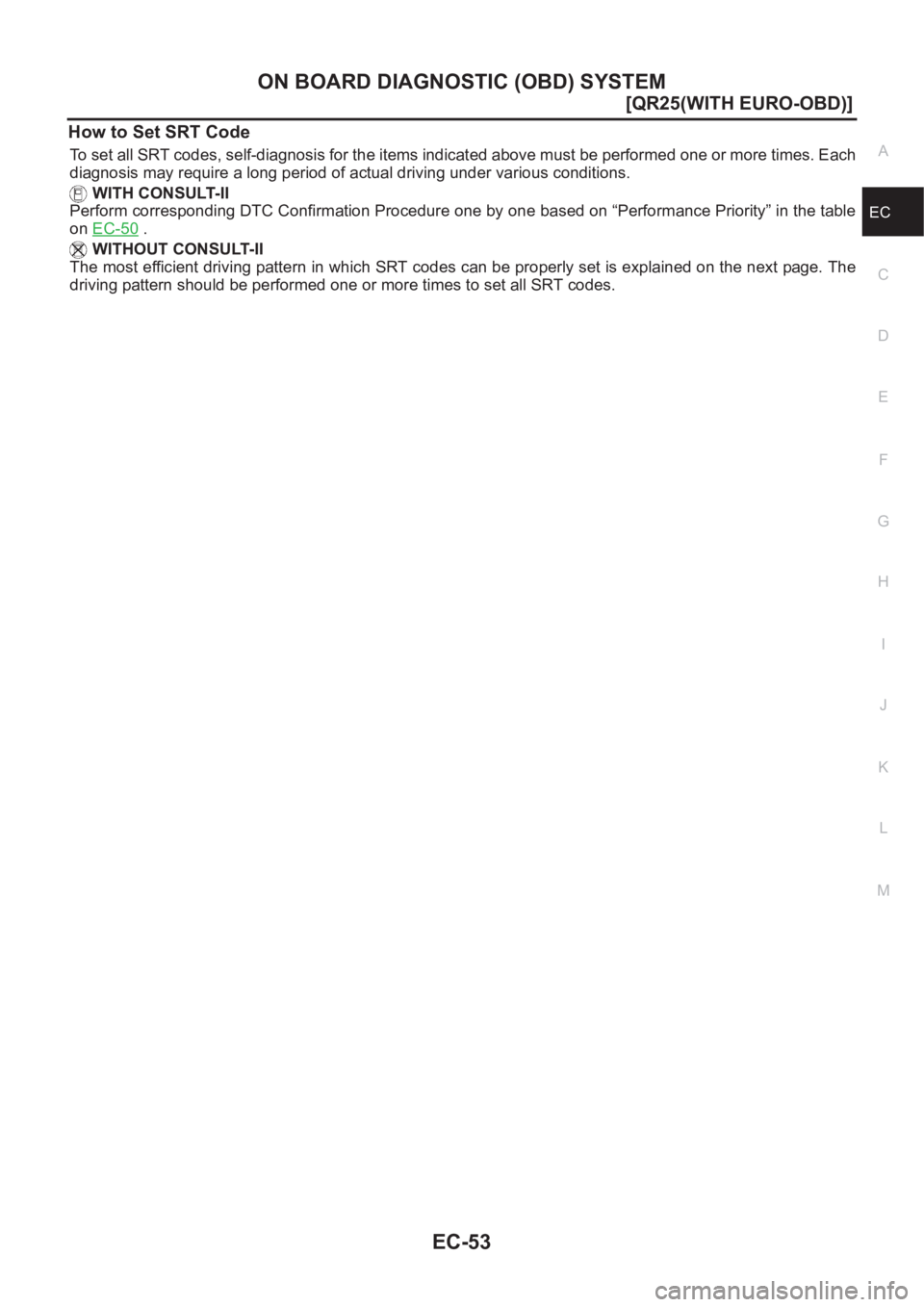

How to Set SRT Code
To set all SRT codes, self-diagnosis for the items indicated above must be performed one or m

Page 404 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual EC-54
[QR25(WITH EURO-OBD)]
ON BOARD DIAGNOSTIC (OBD) SYSTEM

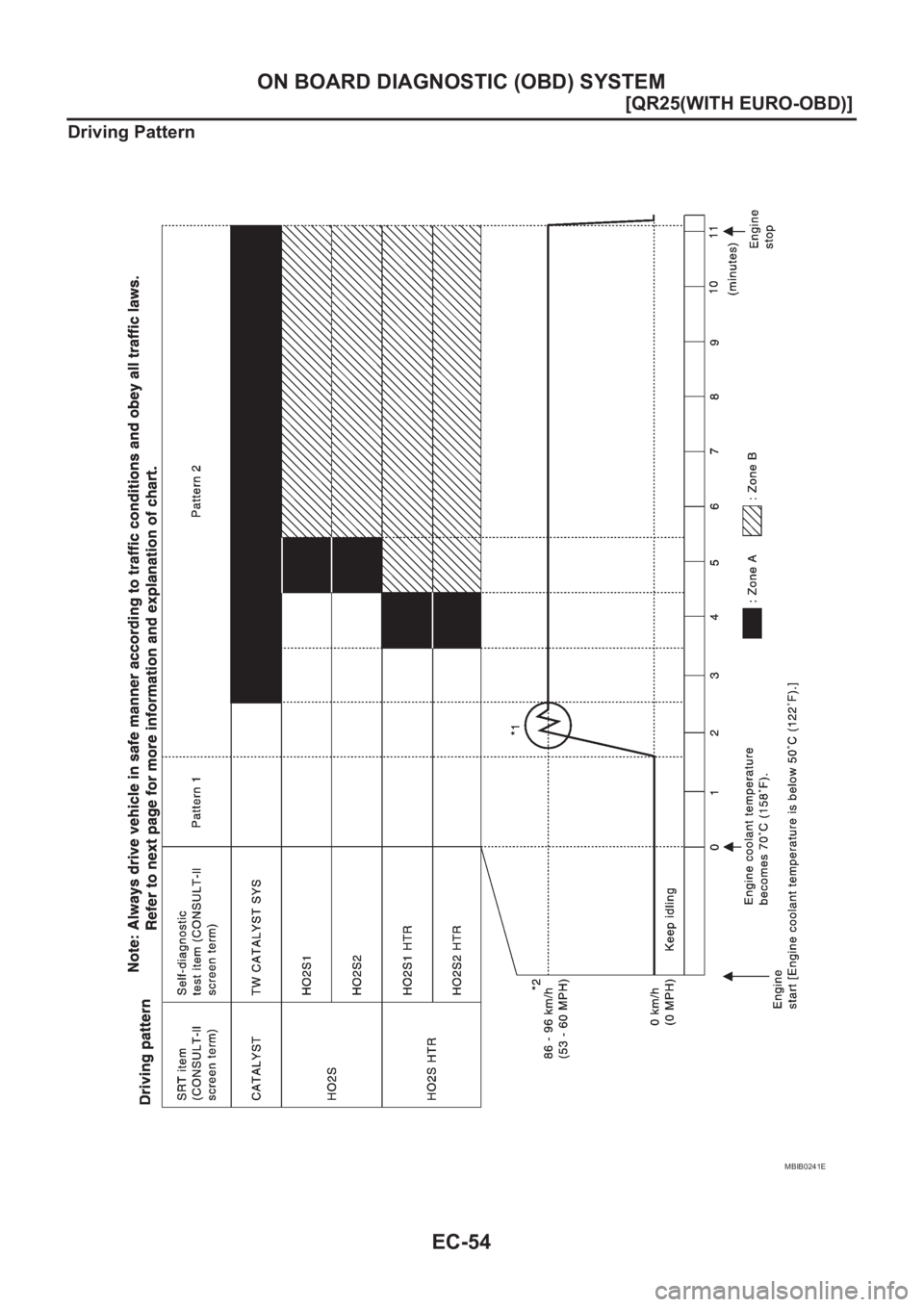

Driving Pattern
MBIB0241E

Page 405 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual ON BOARD DIAGNOSTIC (OBD) SYSTEM
EC-55
[QR25(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

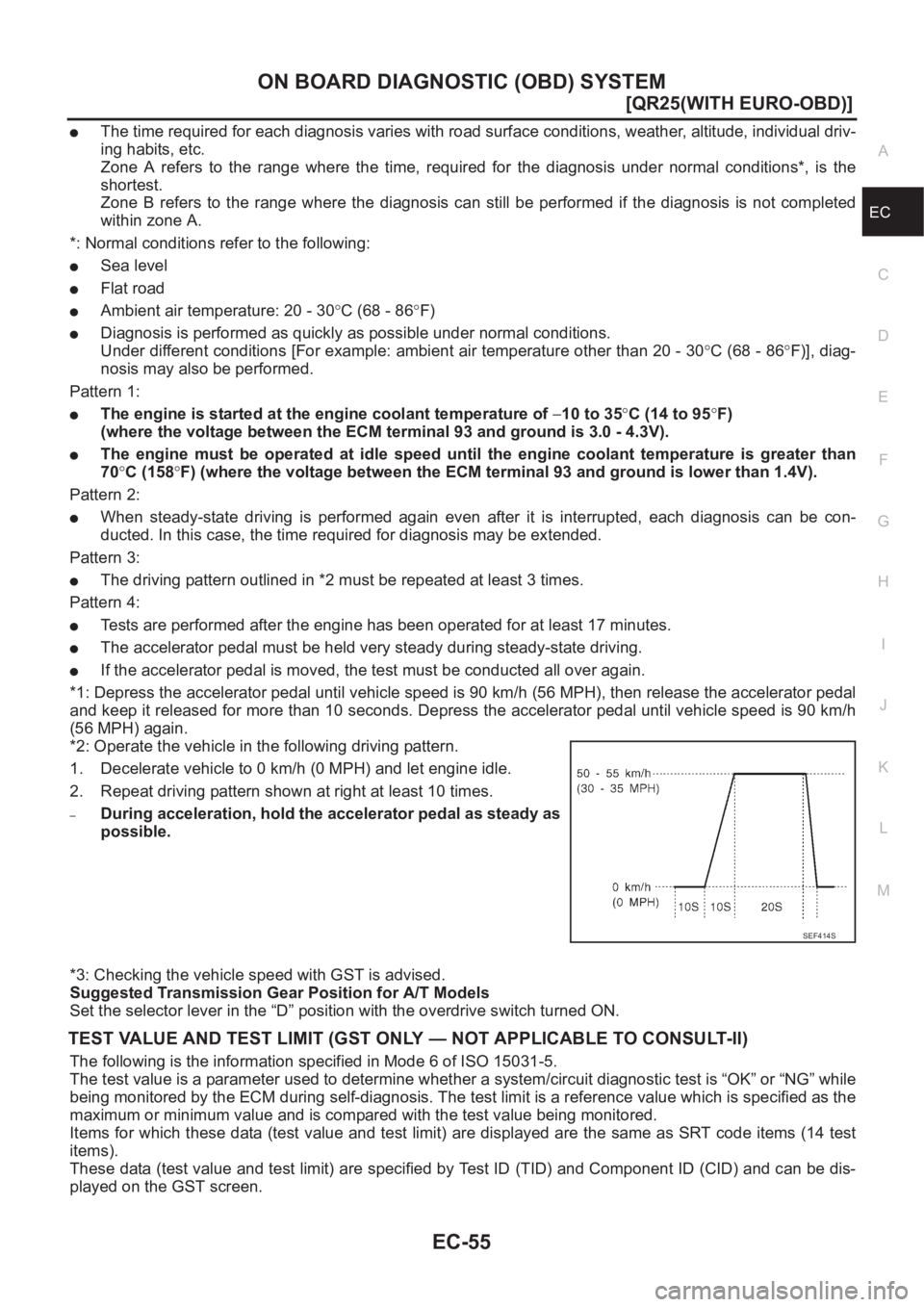

●The time required for each diagnosis varies with road surface conditions, weather, altitude, individual driv-

ON BOARD DIAGNOSTIC (OBD) SYSTEM
EC-55
[QR25(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
●The time required for each diagnosis varies with road surface conditions, weather, altitude, individual driv-
ing habits, etc.
Zone A refers to the range where the time, required for the diagnosis under normal conditions*, is the
shortest.
Zone B refers to the range where the diagnosis can still be performed if the diagnosis is not completed
within zone A.
*: Normal conditions refer to the following:
●Sea level
●Flat road
●Ambient air temperature: 20 - 30°C (68 - 86°F)
●Diagnosis is performed as quickly as possible under normal conditions.
Under different conditions [For example: ambient air temperature other than 20 - 30°C (68 - 86°F)], diag-
nosis may also be performed.
Pattern 1:
●The engine is started at the engine coolant temperature of −10 to 35°C (14 to 95°F)
(where the voltage between the ECM terminal 93 and ground is 3.0 - 4.3V).
●The engine must be operated at idle speed until the engine coolant temperature is greater than
70°C (158°F) (where the voltage between the ECM terminal 93 and ground is lower than 1.4V).
Pattern 2:
●When steady-state driving is performed again even after it is interrupted, each diagnosis can be con-
ducted. In this case, the time required for diagnosis may be extended.
Pattern 3:
●The driving pattern outlined in *2 must be repeated at least 3 times.
Pattern 4:
●Tests are performed after the engine has been operated for at least 17 minutes.
●The accelerator pedal must be held very steady during steady-state driving.
●If the accelerator pedal is moved, the test must be conducted all over again.
*1: Depress the accelerator pedal until vehicle speed is 90 km/h (56 MPH), then release the accelerator pedal
and keep it released for more than 10 seconds. Depress the accelerator pedal until vehicle speed is 90 km/h
(56 MPH) again.
*2: Operate the vehicle in the following driving pattern.
1. Decelerate vehicle to 0 km/h (0 MPH) and let engine idle.
2. Repeat driving pattern shown at right at least 10 times.
–During acceleration, hold the accelerator pedal as steady as
possible.
*3: Checking the vehicle speed with GST is advised.
Suggested Transmission Gear Position for A/T Models
Set the selector lever in the “D” position with the overdrive switch turned ON.
TEST VALUE AND TEST LIMIT (GST ONLY — NOT APPLICABLE TO CONSULT-II)
The following is the information specified in Mode 6 of ISO 15031-5.
The test value is a parameter used to determine whether a system/circuit diagnostic test is “OK” or “NG” while
being monitored by the ECM during self-diagnosis. The test limit is a reference value which is specified as the
maximum or minimum value and is compared with the test value being monitored.
Items for which these data (test value and test limit) are displayed are the same as SRT code items (14 test
items).
These data (test value and test limit) are specified by Test ID (TID) and Component ID (CID) and can be dis-
played on the GST screen.
SEF414S

Page 406 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual EC-56
[QR25(WITH EURO-OBD)]
ON BOARD DIAGNOSTIC (OBD) SYSTEM
×: Applicable —: Not applicable
HOW TO ERASE EMISSION-RELATED DIAGNOSTIC INFORMATION
How to Erase DTC ( With CONSULT-II)
The emission

Page 407 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual ON BOARD DIAGNOSTIC (OBD) SYSTEM
EC-57
[QR25(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

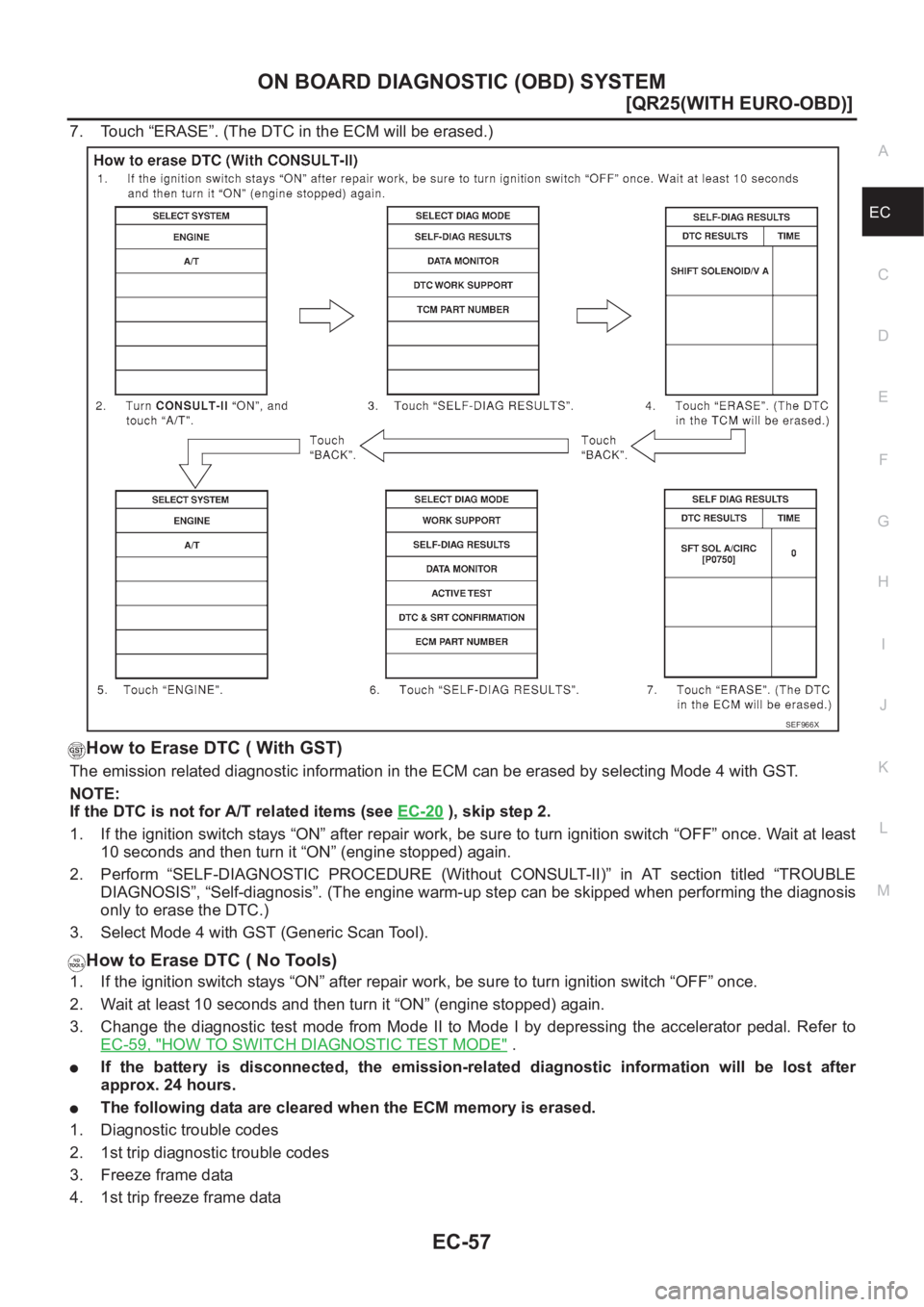

7. Touch “ERASE”. (The DTC in the ECM will be erased.)
How to Erase DTC ( With GST)
The emission related diag

Page 408 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual EC-58
[QR25(WITH EURO-OBD)]
ON BOARD DIAGNOSTIC (OBD) SYSTEM
5. System readiness test (SRT) codes
6. Test values
7. Others
Actual work procedures are explained using a DTC as an example. Be careful so

EC-58
[QR25(WITH EURO-OBD)]
ON BOARD DIAGNOSTIC (OBD) SYSTEM
5. System readiness test (SRT) codes
6. Test values
7. Others
Actual work procedures are explained using a DTC as an example. Be careful so that not only the DTC, but all
of the data listed above, are cleared from the ECM memory during work procedures.

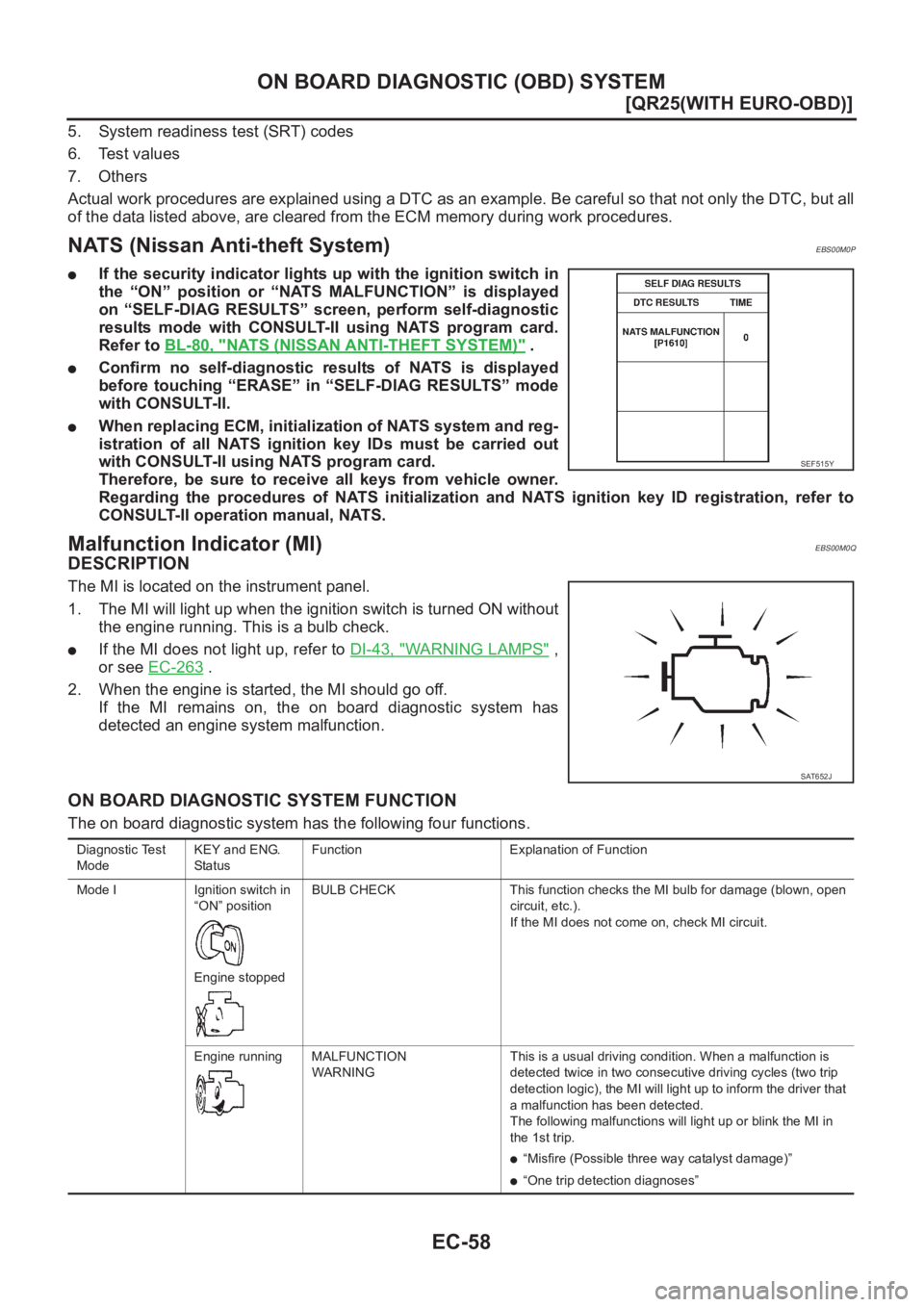

NATS (Nissan Anti-theft System)EBS00M0P
●If the security indicator lights up with the ignition switch in
the “ON” position or “NATS MALFUNCTION” is displayed
on “SELF-DIAG RESULTS” screen, perform self-diagnostic
results mode with CONSULT-II using NATS program card.
Refer to BL-80, "
NATS (NISSAN ANTI-THEFT SYSTEM)" .
●Confirm no self-diagnostic results of NATS is displayed
before touching “ERASE” in “SELF-DIAG RESULTS” mode
with CONSULT-II.
●When replacing ECM, initialization of NATS system and reg-
istration of all NATS ignition key IDs must be carried out
with CONSULT-II using NATS program card.
Therefore, be sure to receive all keys from vehicle owner.
Regarding the procedures of NATS initialization and NATS ignition key ID registration, refer to
CONSULT-II operation manual, NATS.
Malfunction Indicator (MI)EBS00M0Q
DESCRIPTION
The MI is located on the instrument panel.
1. The MI will light up when the ignition switch is turned ON without
the engine running. This is a bulb check.
●If the MI does not light up, refer to DI-43, "WARNING LAMPS" ,
or see EC-263
.
2. When the engine is started, the MI should go off.
If the MI remains on, the on board diagnostic system has
detected an engine system malfunction.
ON BOARD DIAGNOSTIC SYSTEM FUNCTION
The on board diagnostic system has the following four functions.
SEF515Y
SAT652J
Diagnostic Test
ModeKEY and ENG.
Sta tusFunction Explanation of Function
Mode I Ignition switch in
“ON” position
Engine stoppedBULB CHECK This function checks the MI bulb for damage (blown, open
circuit, etc.).
If the MI does not come on, check MI circuit.
Engine running MALFUNCTION
WARNINGThis is a usual driving condition. When a malfunction is
detected twice in two consecutive driving cycles (two trip
detection logic), the MI will light up to inform the driver that
a malfunction has been detected.
The following malfunctions will light up or blink the MI in
the 1st trip.
●“Misfire (Possible three way catalyst damage)”
●“One trip detection diagnoses”
